The AUTOOL ATF702 Automatic Transmission Fluid Exchanger is designed to complete a full cycle cleaning and fluid replacement of the transmission, torque converter, and related hydraulic components in just 20 minutes—achieving nearly 100% replacement efficiency without the need for disassembly. Its adjustable pressure system adapts to the requirements of various vehicle models, while the independent cycle cleaning function ensures thorough removal of metal debris and sludge from inside the transmission, delivering comprehensive maintenance performance.

Why do you need AUTOOL ATF702?

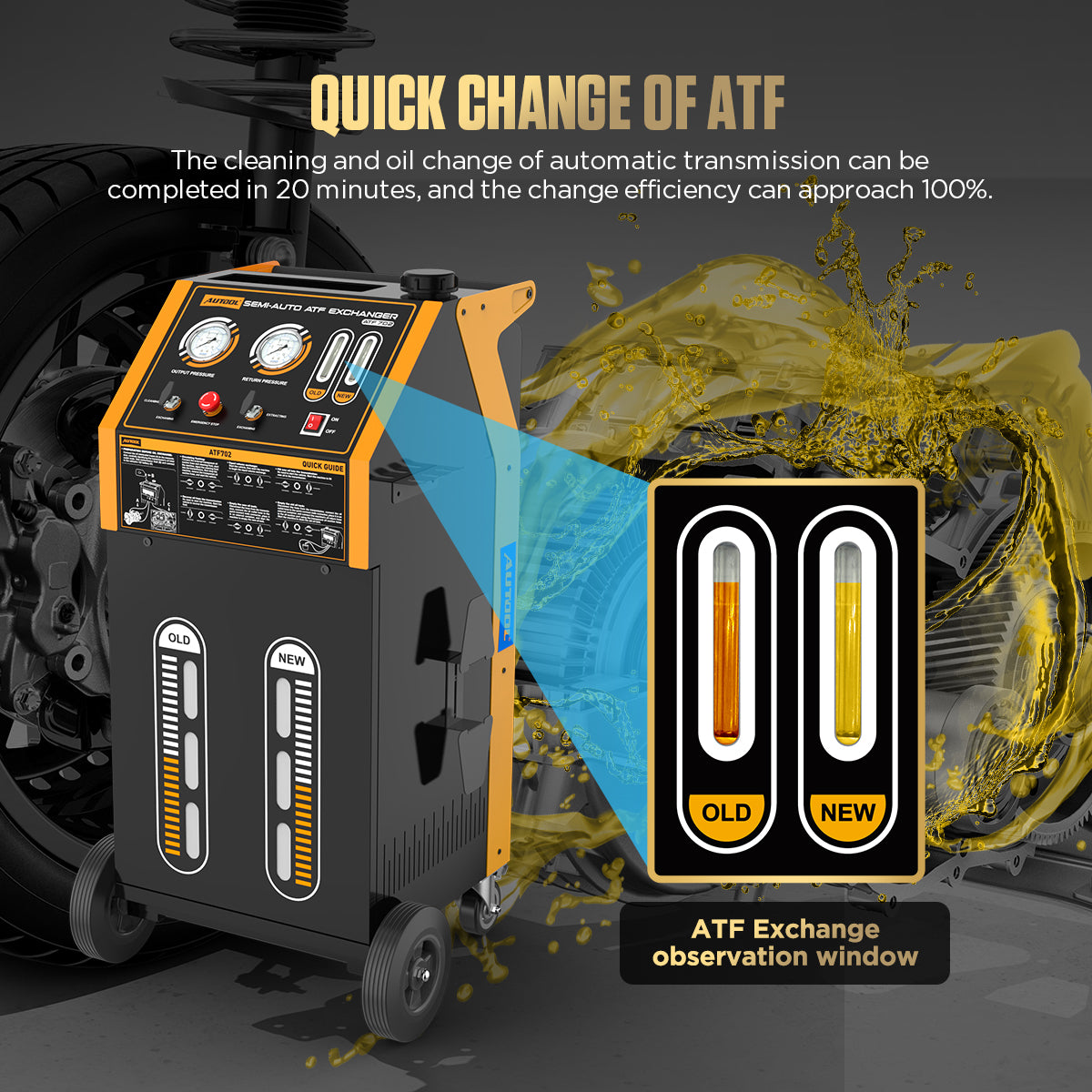

• High-efficiency oil change: Automatic transmission cleaning and oil change can be completed in just 20 minutes, with an efficiency approaching 100%.
• Six working modes: Supports equal volume exchange, circulating flushing, new oil filling, old oil recovery, and emptying of both old and new oil tanks, meeting all maintenance needs.
• Circulating cleaning function: Independent circulating cleaning thoroughly removes metal debris and sludge from inside the transmission.

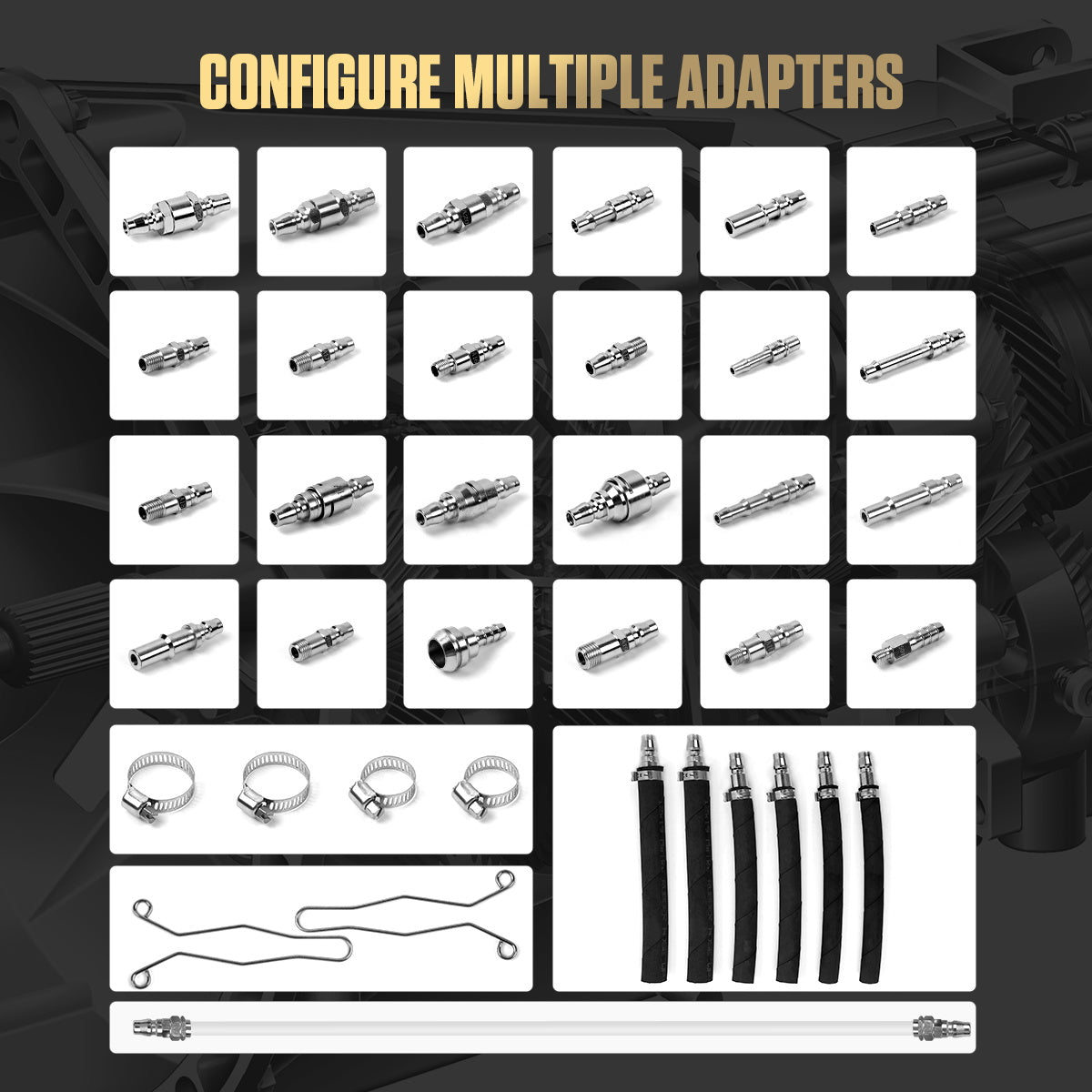

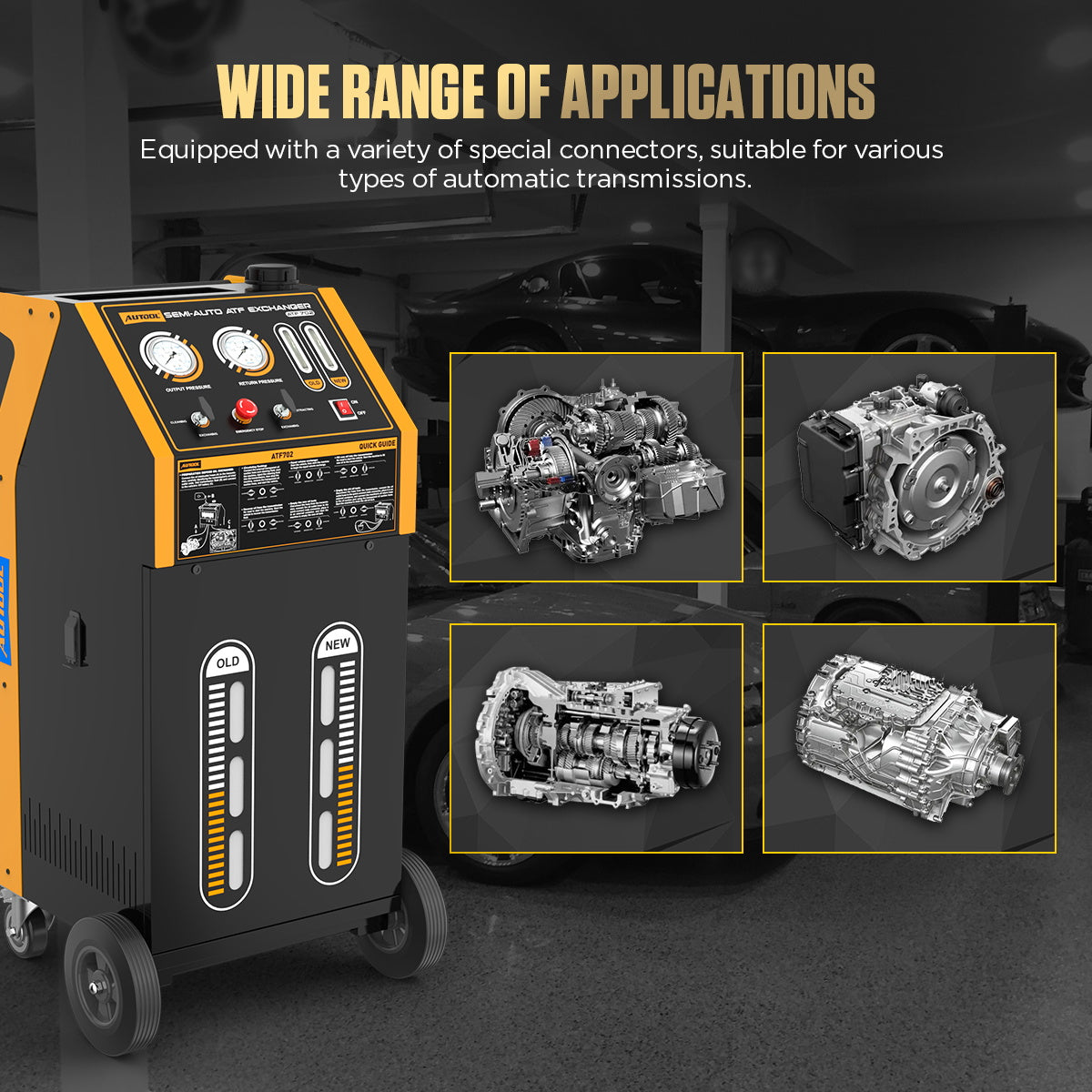

• Wide applicability: Equipped with various dedicated connectors, compatible with all types of automatic transmissions; adjustable pressure adapts to different vehicle models.

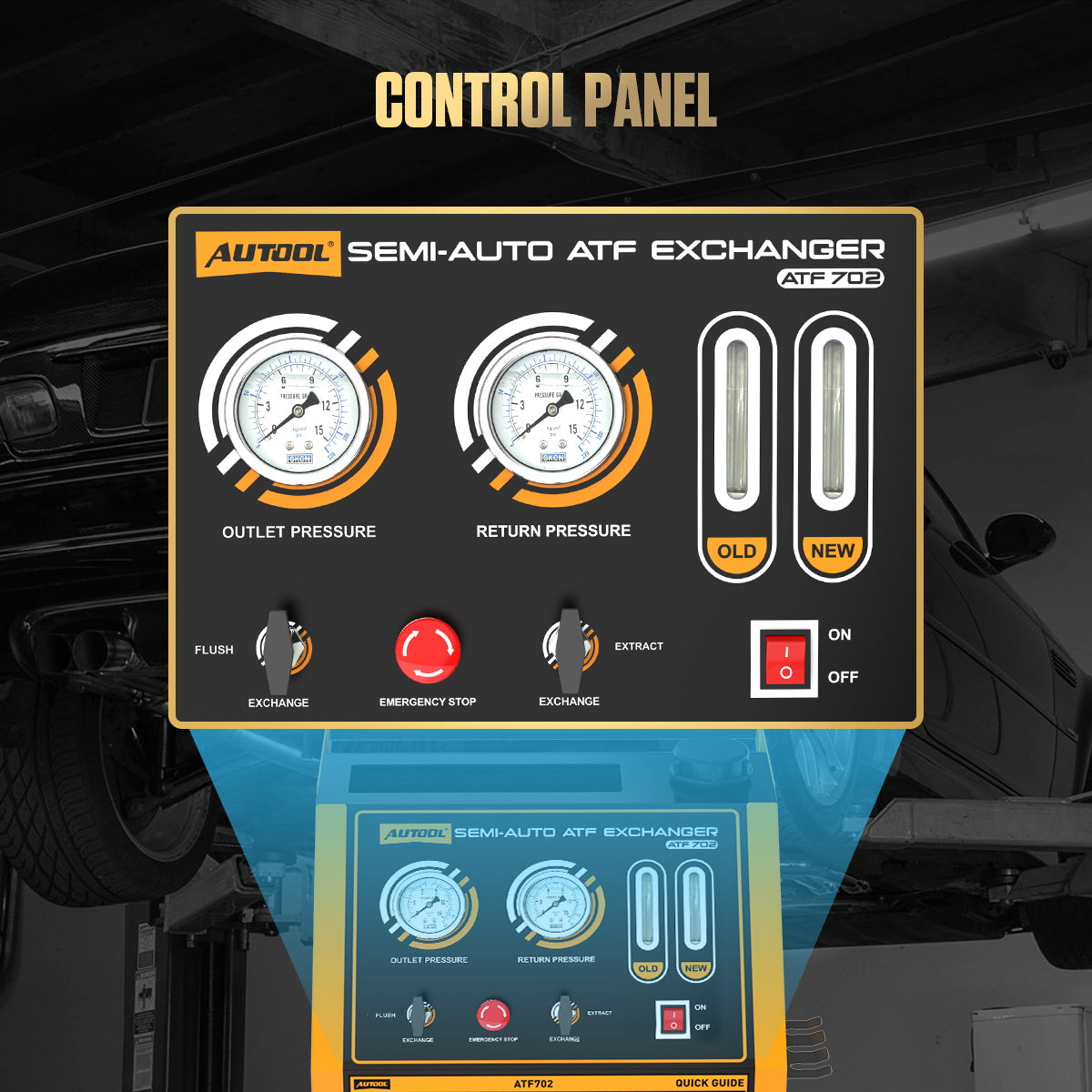

• Convenient operation design: The control panel features dual pressure displays and an observation window for both old and new oil, providing clear real-time monitoring.
• Safety protection mechanism: An emergency stop button ensures safe and reliable operation.

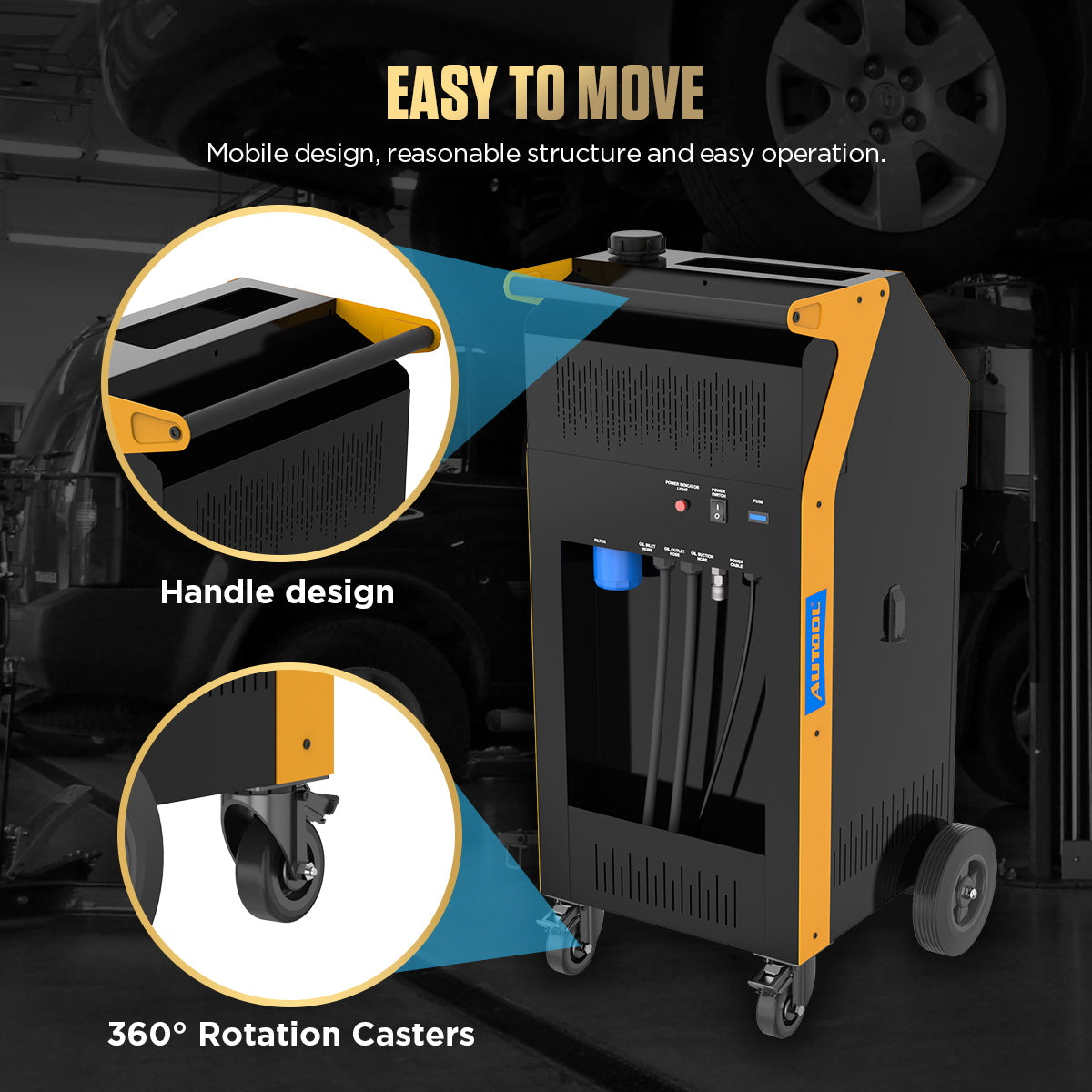

• Easy and flexible movement: The machine is equipped with 360° rotating casters and a push handle; its reasonable structure allows for easy and labor-saving movement within the workshop.

AUTOOL ATF702 Transmission Fluid Changer Operating Instructions

Step 1: Preparation

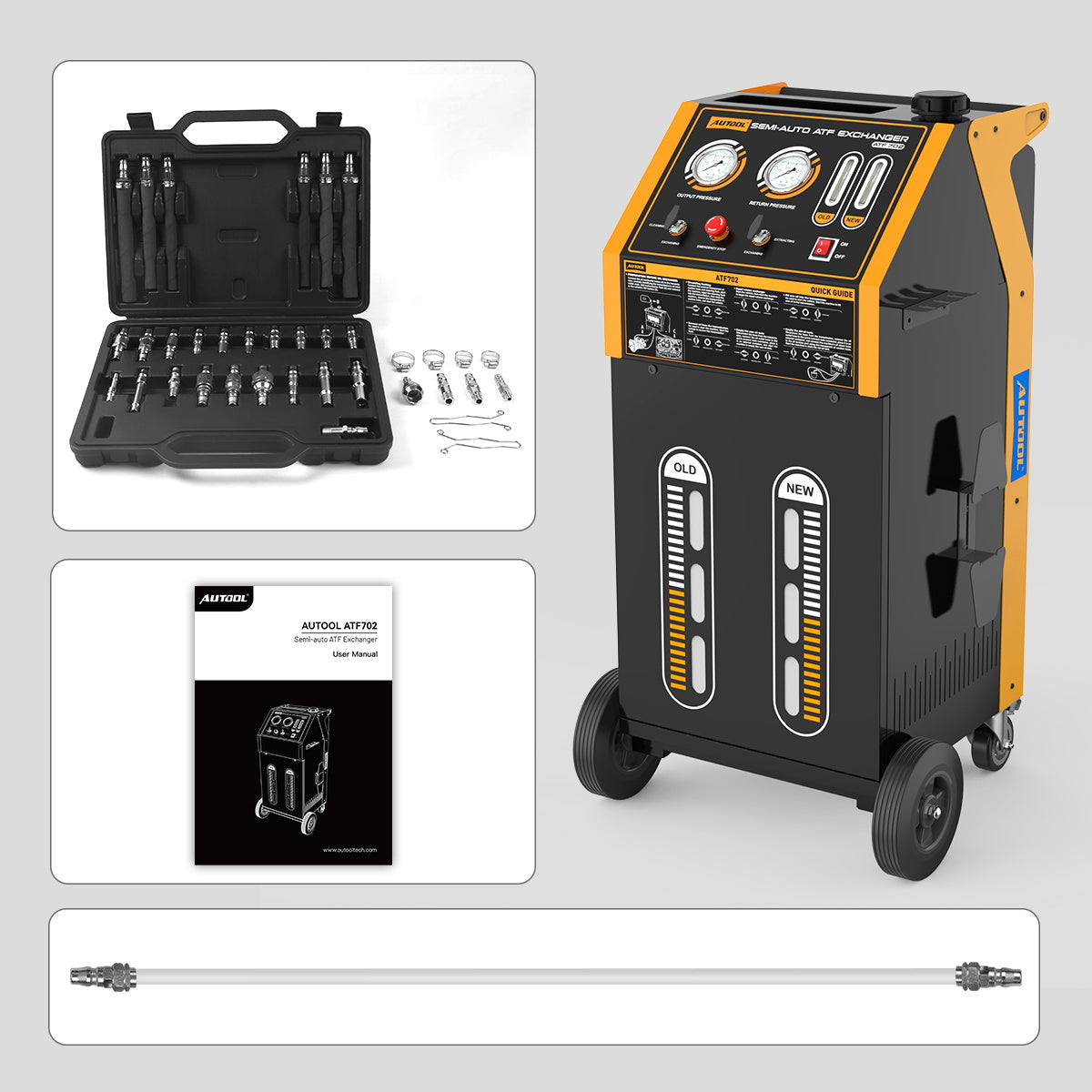

Check that all parts are complete and in good working order.

Add approximately 12 liters of new transmission fluid to the new fluid tank, leaving the old fluid tank empty.

Step 2: Circulation Cleaning

Safely lift the vehicle and locate and disconnect an easily accessible transmission fluid hose.

Select the appropriate connector and connect the machine's red and blue hoses to the two ends of the disconnected hose.

Start the engine, determine the fluid inlet and outlet directions, and connect the hoses correctly.

Set the machine valve to cleaning mode, start the machine, and begin the circulation cleaning process.

During the cleaning process, switch between different gears, holding each gear for 5-10 seconds. Turn off the machine after approximately 5 minutes. Engine

Step 3: New and Old Oil Exchange

Set the machine valve to exchange mode and start the machine to begin injecting new oil.

Observe the new and old oil sight glass: If the new oil flows in slower than the old oil flows out, fine-tune the return oil line valve to balance the flow rate.

During the exchange process, switch between gears (holding each gear for 5-10 seconds) until the old oil becomes clear and nearly indistinguishable from the new oil.

Turn off the engine and restore the transmission oil lines to their original positions.

Restart the engine and check the oil level; add new oil if necessary.

Check all lines for leaks.

Step 4: Final Inspection

Road test approximately 1 kilometer, then check the oil level and lines again to ensure everything is normal.
