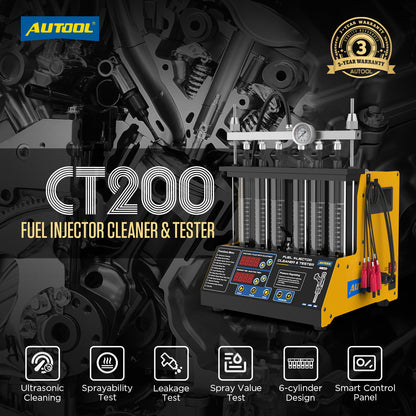

What is the AUTOOL CT200 Ultrasonic Injector Cleaner Machine?

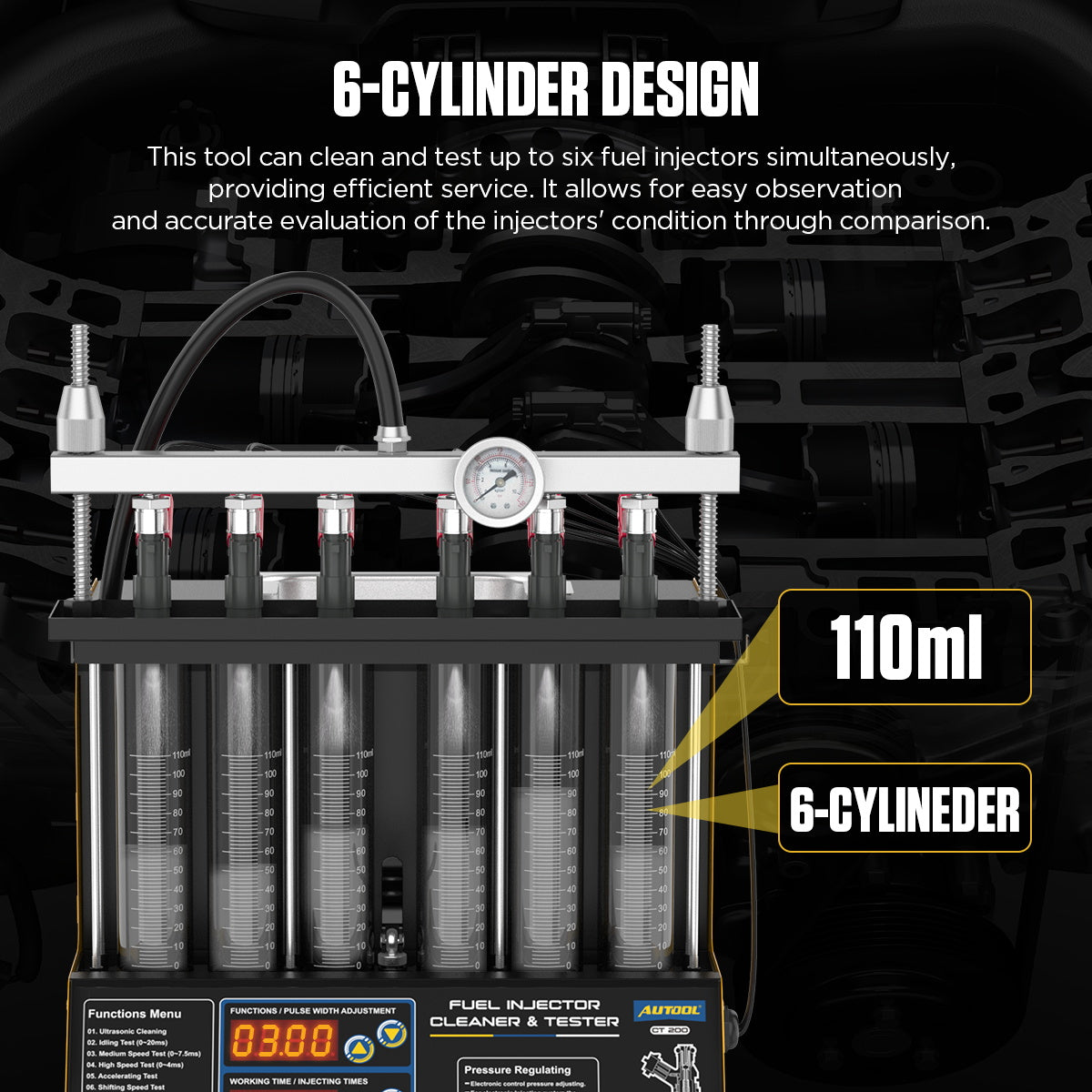

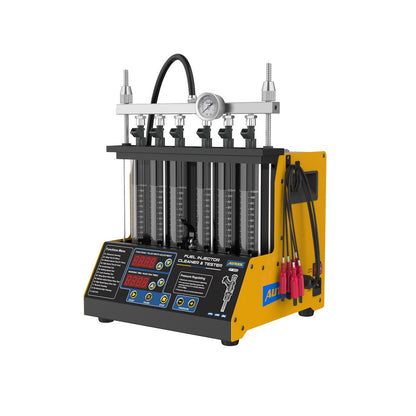

The AUTOOL CT200 Ultrasonic Injector Cleaner Machine is a mechatronic product that integrates ultrasonic cleaning technology with microcomputer-controlled hydraulic closed-loop cleaning and testing technology. This product simulates various engine operating conditions to clean and test injectors for all vehicle types. It also enables non-disassembly cleaning of automotive injectors and fuel systems. The CT200 features six test tubes, allowing simultaneous testing of six injectors to significantly boost productivity.
AUTOOL CT200 Ultrasonic Fuel Injector Cleaner is essential and the preferred choice for automotive repair shops, maintenance facilities, research institutions, and educational training departments.

Warm Tips:

• For ultrasonic cleaning fluid, please use professional engine carbon cleaning fluid.
• Please use professional injector test fluid; do not use corrosive cleaning fluid, as the cleaning fluid will damage the equipment. If you use the cleaning fluid to damage the equipment when testing the injector, you need to bear the repair cost.
• When using the ultrasonic cleaning function, please add the transmitter carbon cleaning fluid before running the equipment. Please do not add the cleaning fluid directly to open the equipment to run, as it will lead to ultrasonic motherboard damage.
• How to choose a cleaning fluid? To achieve the best cleaning effect, it is recommended to use a professional syringe ultrasonic cleaning fluid to clean the injector. Or you can use medical alcohol with an alcohol content of more than 75% instead of cleaning fluid, but the cleaning effect may not be good enough.
• How to choose a test fluid? To achieve the best test effect, it is recommended to use professional automotive injector test fluids. If it is not available locally, as an alternative, we recommend that medical alcohol with an alcohol content of more than 75% instead of the test fluid.
• When you test a single injector, you need to plug only the other 3 cylinders, so the CT160 comes with three plugs.

What is the Difference Between the AUTOOL Fuel Injector Cleaner & Tester Machine?

AUTOOL CT200 Ultrasonic Injector Cleaner Machine Features：

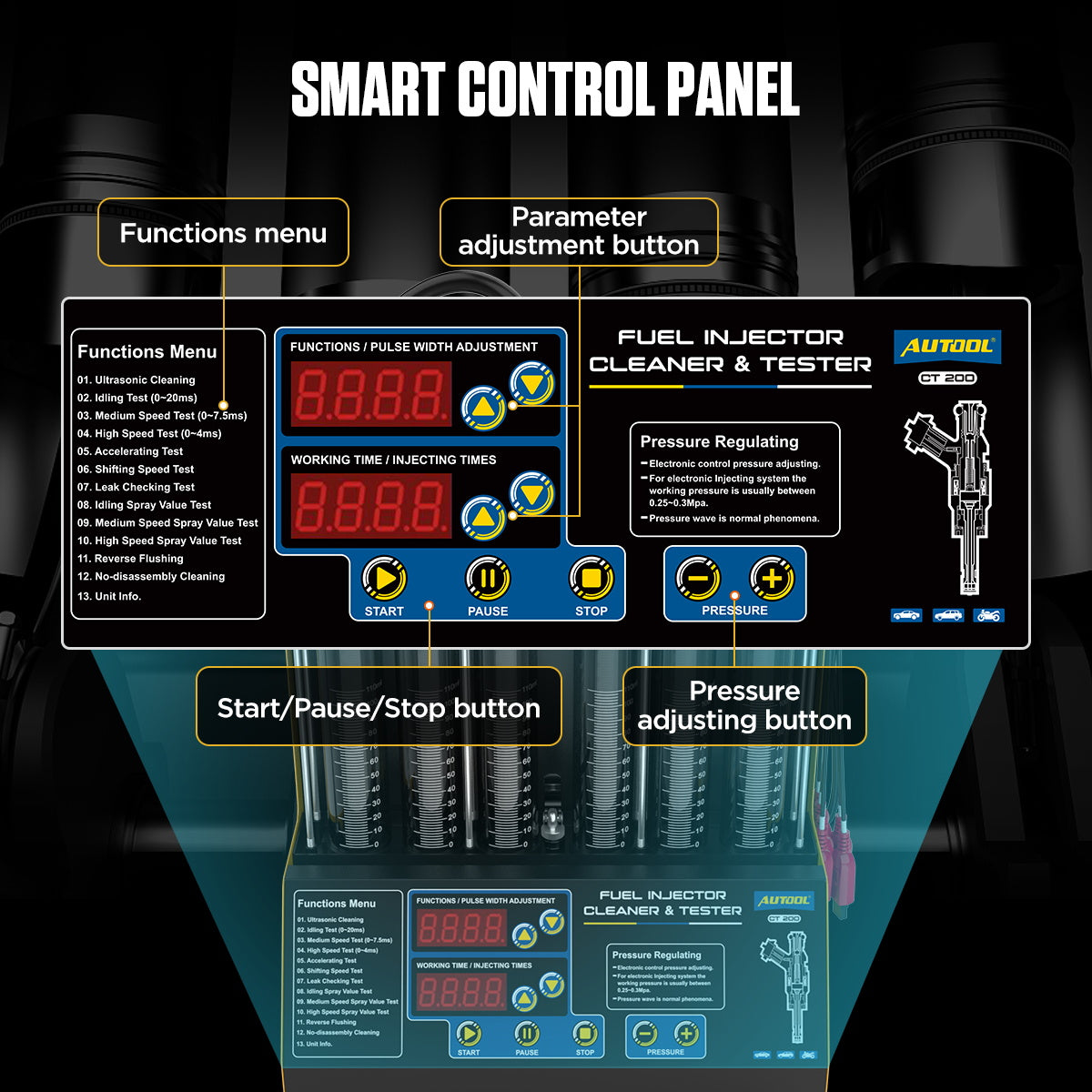

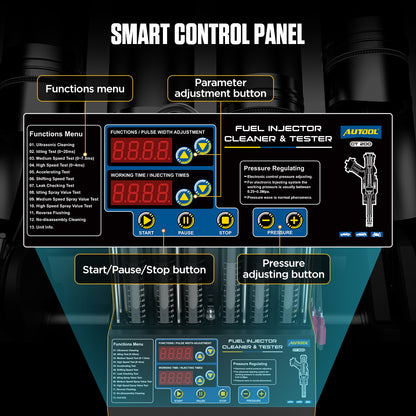

• Digital Display: With the help of microcomputer control and digital display, the equipment makes possible automatic cleaning, testing injectors, and real-time monitoring of the dynamic values.
• Adopting Humanization Design: Automatic fuel draining through preset programs for some test items. At the end of the test, pressing the button on the control panel, and draining the test fluid/cleaner, quickly restored the system pressure to its default value.
• Automatic Cleaning and Testing: Fuel pressure control through microcomputer offers stable pressure control and a large adjustable range, which is suitable for all EGI vehicles and can help to achieve automatic cleaning and testing of injectors.
• Reverse Flush: Uniformity/Sprayability test: To test the uniformity of injecting amount of each injector, and to monitor the spraying status of each injector with the help of backlight. This test is also for reverse flush.
• Three-Year Warranty, Lifetime Maintenance: For damage caused by non-human factors, AUTOOL promises to resend parts for free within 3 years. For any needs, you are warmly welcome to contact us and we will get back to you ASAP within 24 hours.

How To Use AUTOOL CT200 Injector Cleaning Machine?

1. Clean injectors outside with gasoline or cleaning liquid before opening the machine
2. Putting injectors in the ultrasonic bathtub after the outside of the injector is free of dirt.
3. Turn on the ultrasonic system， pulsed allowing the ultrasonic energy to dislodge any particles that even build up inside the injectors.
4. Fixed injectors on the main machine.
5. Testing injectors for resistance, shorts, and current draw.
6. Performing leak test, spray pattern, and flow rate testing on the flow bench.
7. The injectors are now returned to the flow bench for retesting of all functions.

Operation Steps

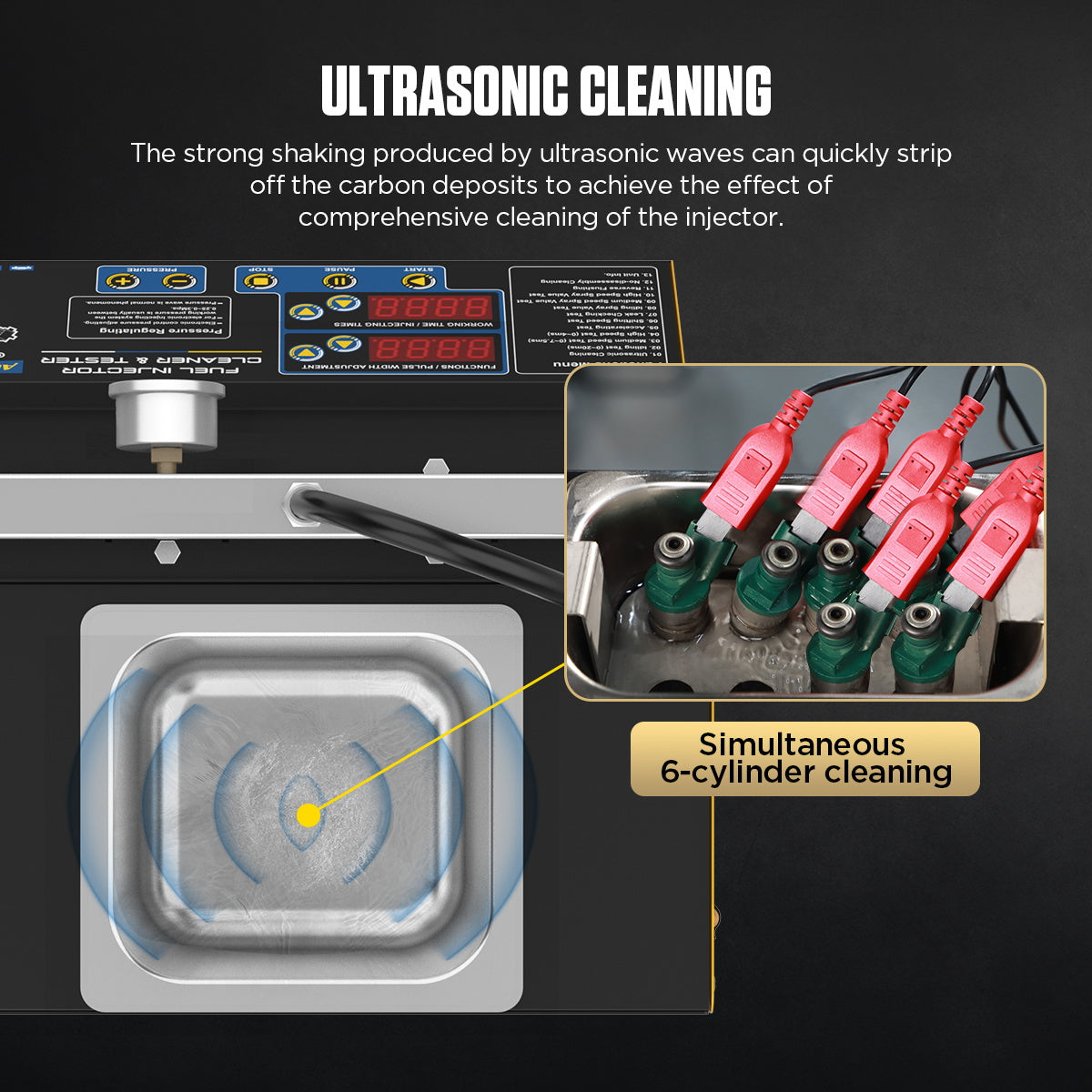

• Ultrasonic Cleaning:
• Step 1: Pour in the detergent and place the fuel injector in the ultrasonic cleaner.
• Step 2: Connect the pulse signal wire & select the ultrasonic cleaning function to start working.
• Fuel Injector Testing:
• Step 1: Pour in the test liquid, install this injector to the fuel distributor, and fix it to the main unit by bolts.
• Step 2: Test if the fuel injector is leaking or blocked under different functions.
