|battery capacity||5000 mAh||5000 mAh||5000 mAh||3200mAh|
|Android version||Android 4.4.2||Android 4.4.4||Android 4.4.2||Android 4.4.4|
|Wi-Fi||2.4 & 5 GHz||2.4 & 5 GHz||2.4 GHz||2.4 GHz|
|Connection||VCI Mini / Bluetooth||main cable||VCI Mini / Bluetooth||main cable|
|Full OBD2 Functions for All Systems||√||√||√（read/erase codes,read ECU info.,data stream）||√（read/erase codes,read ECU info.,data stream）|
|Commonly used Special Functions||√||√||√||√|
|Replacement of Control Unit for Some Software||√||√||X||X|
|Language||English, Simplified Chinese, Traditional Chinese, Spanish,French, German, Polish, Italian, Japanese, Korean, Dutch,Portuguese, Swedish,Russian|
|More Functions||welcome to contact us|

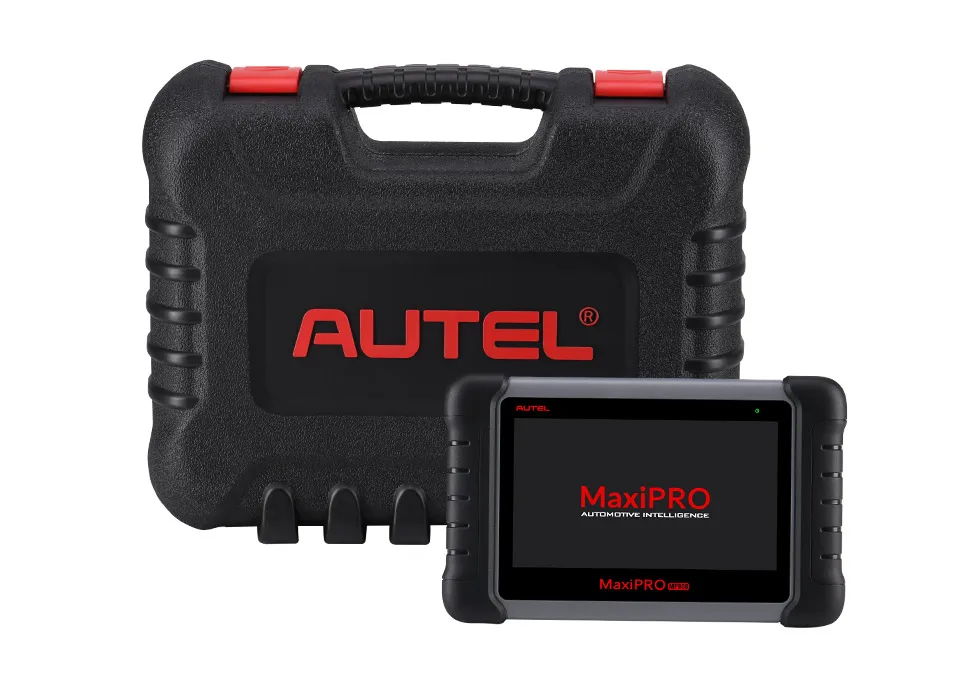

Autel Maxidas MP808 (Upgraded Version of DS708) Automotive Diagnostic Tool Scanner with Key Coding and Multi-language System (Same Function as MS906)
Supported Languages: English, German, Spanish, Portuguese, Dutch, French, Italian.Korean, Polish, Swedish, Japanese, Russian
( Please tell us about yourS/Nof machine to activate the language you need after you get it. Thanks~)
Autel MP808, featuring a multitasking-capable Android operating system, and a7-inch LCD touchscreen, a fast quad-core processor, and extensive coverage of OE-level diagnostics, is built with the greatest concentration and offers maximum convenience and efficiency for your diagnosis and analysis.
■ Bullet Points
1. ADVANCED DIAGNOSIS and ANALYSIS: MP808 is the upgraded version of DS708, which performs as powerful as MS906, contains complete capabilities for codes, live data, active test, ECU information, adaptation, matching.
2. POWERFUL FUNCTIONS: MP808 includes the most commonly performed service functions, such as Oil Reset Service, TPMS Programming Service, EPB Service, DPF Regeneration Service, SAS Calibration Service, ABS/SRS Service, etc.
3. SPECIALIZED FUNCTIONS: The Autel MP808 includes the SmartAutoVIN, Cloud-based MaxiFix, and Shop Manager functions. These new functions make the Autel DS808 better than the old DS708 model while selling at an even better price than the older model
4. BROAD VEHICLE COVERAGE: MP808 covers more than 80 US, Asian and European vehicles from the year 1996 to 2017, which includes the exceptional OE Level system coverage for all electronic systems.
5. AUTOMATIC SOFTWARE UPDATING: The Auto Update allows the tool to automatically update the OS, the MaxiDAS system, and the Vehicle. We provide one year update online and a full guarantee.
■ All Systems Diagnostics for Deep Inspection in Vehicle
The MP808 provides you with access to the electronic control unit (ECU) for various vehicle control systems, such as engine, transmission, anti-lock brake system (ABS), airbag system (SRS), and more.
By establishing a data link to the electronic control units of the vehicle being serviced directly, this diagnostic tool allows you to retrieve ECU information of tested control units including unit type, version numbers, and other specifications, read & erase DTCs to locate problem areas and clear the codes easily, view live data of each parameter item and perform active tests which help users to figure out whether a specific subsystem or component in vehicles goes well or not by testing output elements instead of checking in ignition status.
■ Active Test
During the actuation test, MP808 outputs a command to the ECU in order to drive the actuators and then determines the integrity of the system or parts by reading the ECU data, or by monitoring the operation of the actuators, such as switching an injector between two operating states. (This option is used to access vehicle-specific subsystem and component tests. The available test varies by vehicle manufacturer, year, and model.
■ Hot Service Functions to Get More Done
The Service section is specially designed to provide you with quick access to the vehicle systems for various scheduled service and maintenance performances:
1. Oil Service Reset– Performs reset for the Engine Oil Life system, which calculates an optimal oil life change interval depending on the vehicle driving conditions and climate, and turns off the warning light;
2. TPMS Service– Quickly looks up the tire sensor IDs from the vehicle’s ECU, as well as perform TPMS programming and reset procedures after tire sensors are replaced;
3. EPB Service– Initialize the throttle actuators to the default state for regulating throttle (or idle engine) operations accurately;
4. ABS/SRS Services– Performs various bi-directional tests to check the operating conditions of both the Anti-lock Braking System and the Supplemental Restraint System;
5. SAS Service– Performs steering angle adjustment, clears steering sensor fault memory, and turns off steering wheel warning light;
6. DPF Regeneration Service– Clears particulate matter from the DPF filter to stabilize the filter performance.
7. BMS Service– Perform a reset on the vehicle battery for clearing the fault information and re-match the battery;
8. Brake Bleed– When your brake pedal becomes soft and inconvenient to control, this diagnostic tool can perform bi-directional tests to check the Anti-lock Braking System;
9. IMMO Service- Clear the lost car key’s information and program the new key into the ECU database to protect user’s car from being stolen;
10. Injector Coding- Make the cylinder better identify injector after ECU or injector is replaced;
11. SAS Service– to perform calibration for the Steering Angle Sensor and clear steering sensor fault memory;
12. Throttle Adaptation– initialize the throttle actuators to the default state for regulating throttle (or idle engine) operations accurately
15. Lang change
18. CHG tire size
19. TEC learn
20. WIN DR ROOF
■ Intelligent Applications to Facilitate Your Daily Repair Work
not only provides you with virtually all common diagnostic trouble codes (DTCs) database, but also serves as a forum allowing you to network with other MaxiDAS users, and gives you access to a vast database of repair and diagnostic tips.
2. Shop Manager
helps you to manage the workshop information, customer information records, and test vehicle history records, which can be a great assist in dealing with daily workshop business and improves customer service.
3. Data Manager
store, print, and review the saved files.
■ Supported Languages
English, German, Spanish, Portuguese, Dutch, French, Italian.Korean, Polish, Swedish, Japanese, Russian(Please tell us about your SN of the machine to activate the language you need after you get it. Thanks~)
■ Suitable Vehicles
For AU Ford, Holden, Buick, Cadillac, Chevrolet, Chevrolet MPV, Chevrolet Truck, Chrysler, Ford, Geo, GM, Hummer, Hyundai, Kia, Pontiac, Satum, Scion, Workhorse, Acura, Daihatsu, Honda, Infiniti, Isuzu, Lexus, Mazda, Mitsubishi, Nissan, Subaru, Suzuki, Toyota, Daewoo, Abarth, Alfa Romeo, Audi, Bentley, Benz, BMW, Bugatti, Citroen, CnFiat, Fiat, Jaguar, Lancia, Lamborghini, Landrover, LT3, Maybach, Mini, Opel, Peugeot, Porsche, Renault, Rolls-Royce, SAAB, Seat, Skoda, Smart, Sprinter, Vauxhall, Volvo, VW …
Operating System Android 4.4.4
Processor Cortex-A9 processor (1.5 GHz)
Display7-inch LCD capacitive touchscreen with 1024×600 resolution
ConnectivityMini USB 2.0 USB 2.0 Wi-Fi Micro SD card (supports up to 32GB)
SensorsAmbient light sensor for brightness auto changing
Audio Input/OutputInput: N/A Output: buzzer
Power and Battery3.7 V/3200 mAh lithium-polymer battery Charges via 5 VDC power supply
Tested Battery LifeAround 4.5 hours of continuous use
Battery Charging Input 5 V/1.5 A
Power Consumption500 mA (LCD on with default brightness, Wi-Fi on) at 3.7 V
Operating Temp.-10 to 60°C(14 to 140°F)
Storage Temp.-20 to 70°C (-4 to 158°F)
Operating Humidity5% – 95% non-condensing

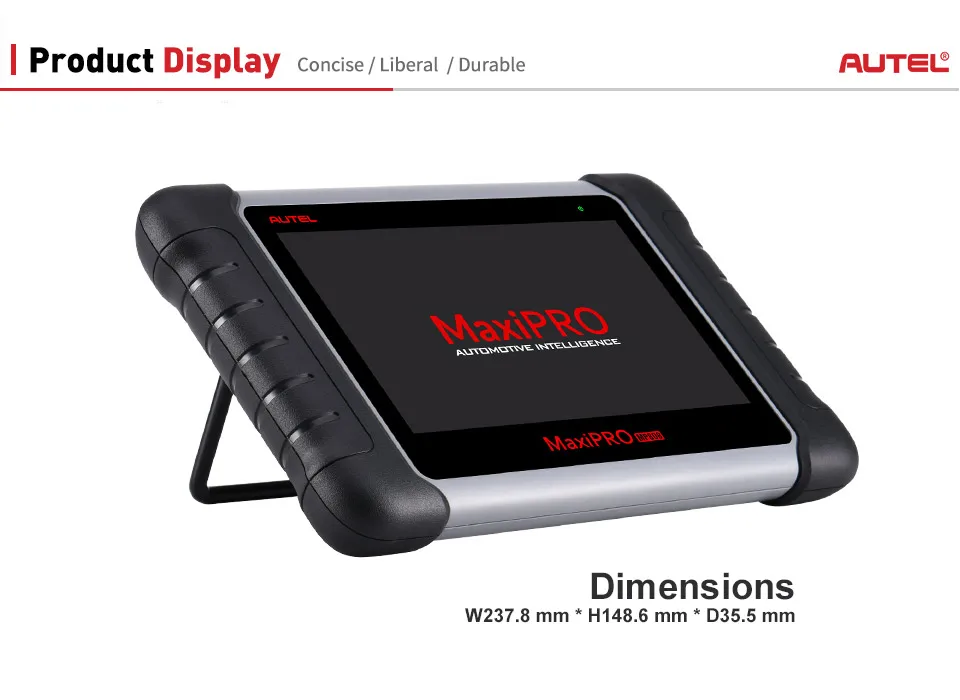

Dimensions (W x H x D)237.8 mm (9.4″) x 148.6 mm (5.9″) x 35.5 mm (1.4″)
Net Weight788 g (2.42 lb.)
Supported Automotive Protocols
ISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, ISO11898(Highspeed, Middlespeed, Low-speed and Singlewire CAN, fault-tolerant CAN), SAE J2610, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6

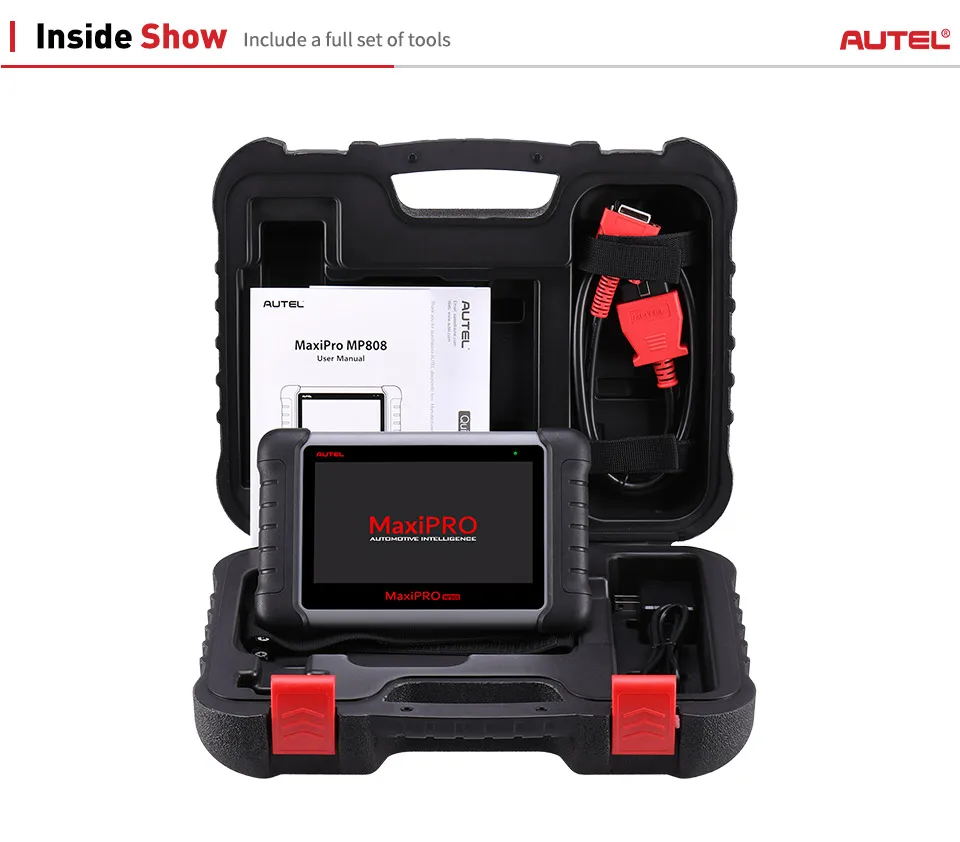

■ Packing List
1 * USB External Power Adapter
1*Quick reference guide
1*Mini USB Cable
