Autel Maxisys MS906 Automotive Diagnostic Scanner Scanner with OE Level Diagnosis and ECU Coding
Language: English ONLY
Autel is a leading company experienced in producing professional diagnostic tools, equipment and accessories in the automotive aftermarket. Focused on the orientation of "value innovation and assiduous pursuit", Autel has always adhered to deliver easier diagnostic solutions and long-time value to customers worldwide.

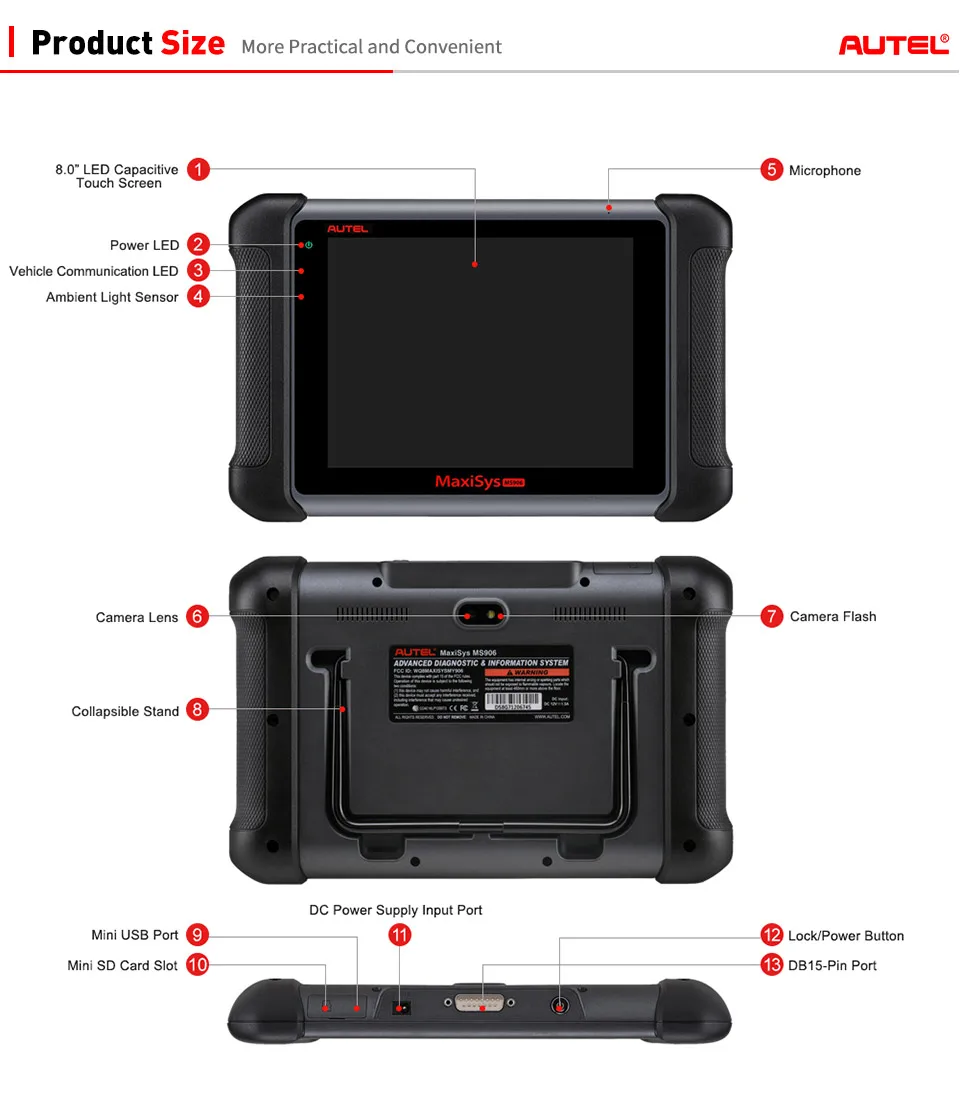

MaxiSys MS906 is an advanced diagnostic tool developed for mechanics looking for a scanner with ultra-convenient and modern design while delivering ultimate performance. Featuring the Samsung 6-core processor, an 8.0 inch LED capacitive touch screen, Android multitasking operating system and the exceptional OE-level diagnostics, this diagnostic scanner MS906 is absolutely an ideal solution to manage your repair jobs smartly and conveniently with greater integration.
■ Complete Diagnostic Functions for All Systems
■ In All Vehicle Systems on the ECUs
The diagnostic tool can access to ALL vehicle systems and subsystems, such asBody, Chassis, Powertrain, Networkand etc., to perform a comprehensive scanning on ECUs to locate fault systems and retrieve DTCs.
■ Active Test
The Active Testfunction is used to access vehicle-specific subsystem and component tests. Available test varies by manufacturer, year, and model, and only the available tests display in the menu. During an active test, the tester outputs commands to the ECU in order to drive the actuators. This test determines the integrity of the system or parts by reading the engine ECU data, or by monitoring the operation of the actuators, such as switching a solenoid, relay, or switch, between two operating states.
■ Special Functions
1.Oil Reset Serviceto reset service mileage and service intervals for the Engine Oil Life system;
2.TPMS Serviceto look up the tire sensor IDs from ECU, as well as to perform TPMS programming and reset procedures after sensor replacements;
3.EPB Serviceto deactivate and activate the brake control system, assist with brake fluid control, open and close brake pads, and set brakes after disc or pad replacement, etc.;
4.ABS/SRS Servicesto perform bi-directional tests to check the operating conditions of ABS and SRS, such as Automated Bleeding, Pump Motor Test, and checking Module information, etc.;
5.SAS Serviceto perform calibration for the Steering Angle Sensor, and clear fault memory;
6.DPF Regeneration Serviceto clear the blockage through the continuous burning of the particulate matter captured in the DPF filter
7.BMS Serviceperforms a reset on the vehicle battery for clearing the fault information and re-match the battery;
8.Brake Bleedperforms various bi-directional tests to check the operating conditions of Anti-lock Braking System (ABS), and turn off the warning light;
9.IMMO Serviceclear the lost car key’s information and program the new key into the ECU database to protect user’s car from being stolen;
10.Injector Codingwrites the new code to the ECU after replacement of injector, so that the injector works;
11.Throttle Adaptationinitialize the throttle actuators to the default state for regulating throttle (or idle engine) operations accurately;
14.CHG tire size
16.WIN DR ROOF
■ OBDI Adaptor List
Adaptersfor GM/Daewoo-12, BMW-20, Benz-38, Kia-20, Mitsubishi/Hyundai-12+16, Nissan-14, Honda-3, VW/AUDI-2+2, Chrysler-16 (America Only), Fiat-3 (NOT AVAILABLE), PSA-2 (NOT AVAILABLE), Benz-14 (Europe Only)
■ Extension Usage
■ Wide Vehicle Coverage
This diagnostic scan tool works on more than80US, Asian and European vehicle makes, and well combines with up to 12 kinds of adapters included in package. Even OBD-I compliant vehicles are perfectly supported by this diagnostic scanner when connecting via these adapters. Get one diagnostic scanner, and you can diagnose much more vehicles than using other diagnostic scan tools.
The supported brands are as follows: Abarth, Acura, Alfa, Audi, Bentley, Benz, BMW, Bugatti, Chevrolet, Chrysler, Citroen, Dodge, Dacia, Daihatsu, Fiat, Ford, GM, Holden, Honda, Hyundai, Infiniti, Isuzu, Jaguar, Jeep, Kia, Land Rover, Lexus, Lancia, Maybach, Mazda, Mini, Mitsubishi, Nissan, Opel, Peugeot, Porsche, Renault, Saab, Scion, Seat, Skoda, Smart, Sprinter, Subaru, Suzuki, Toyota, Vauxhall, Volvo, VW, etc.
