TS601 Supported Car Brands:
for ABARTH, for Acuba, for Alfa Romeo, For Alpina, for Aston Martin, for Audi,for Bentley, for BMW, for Bugatti, for Buick, for BYD, for Cadillac, for ChangAn, for Chery, for Chevrolet, for Chrysler, for Citroen, for Dacia, for Daewoo, for Dodge, for Ferrari, for Fiat, for Ford, for Foton, for Geely, for GMC, for GreatWall, for Haval, for Holden, for Honda, for HSV, for Hummer, for Hyundai, for Infiniti, for ISUZU, for JAC, for Jaguar, for Jeep, for Junpai, for KIA, for Lada, for Lamborghini, for Lancia, for LandRover, for Lexus, for Lifan, for Lincoln, for Lotus, for Mahindra, for Maserati, for Maybach, for Mazda, for McLaren, for Mercedes Benz, for Mercury, for MG, for Mini, for Mitsubishi, for Nissan, for Oldsmobile, for Opel, for Peugeot, for Plymouth, for Pontiac, for Porsche, for Renault, for Rolls-Royce, for SAAB, for Samsung, for Saturn, for Scion, for Skoda, for Smart, for SsangYong, for Subaru, for Suzuki, for Tesla, for Toyota, for Venucia, for Volvo, for VPG, for VW.
TS601 send from Germany or England (European version) don't have the Magnet!!!
The magnet is for some old cars to activate the sensor. It is not the necessary accessory.
Hope for your kind understanding!!!
AUTEL MaxiTPMS TS601 TPMS diagnostic & service tool
The MaxiTPMS® TS601 is the most powerful TPMS diagnostic & service tool in the world capable of fully diagnosing TPMS problems as well as activating TPMS sensors and reprogramming the vehicle's ECU. This professional tool is the best solution for tire shops and automotive workshops to perform TPMS service!
Lifetime Free Update Online.
1 Year Warranty for any quality problem
English, French, Germany, Spanish, Portuguese, Dutch, Polish, Swedish, Japanese, Russian, Italian.Korean
If you need change the language, please give us serial number after you received parcel, we will help you authorize language what you need. Thanks

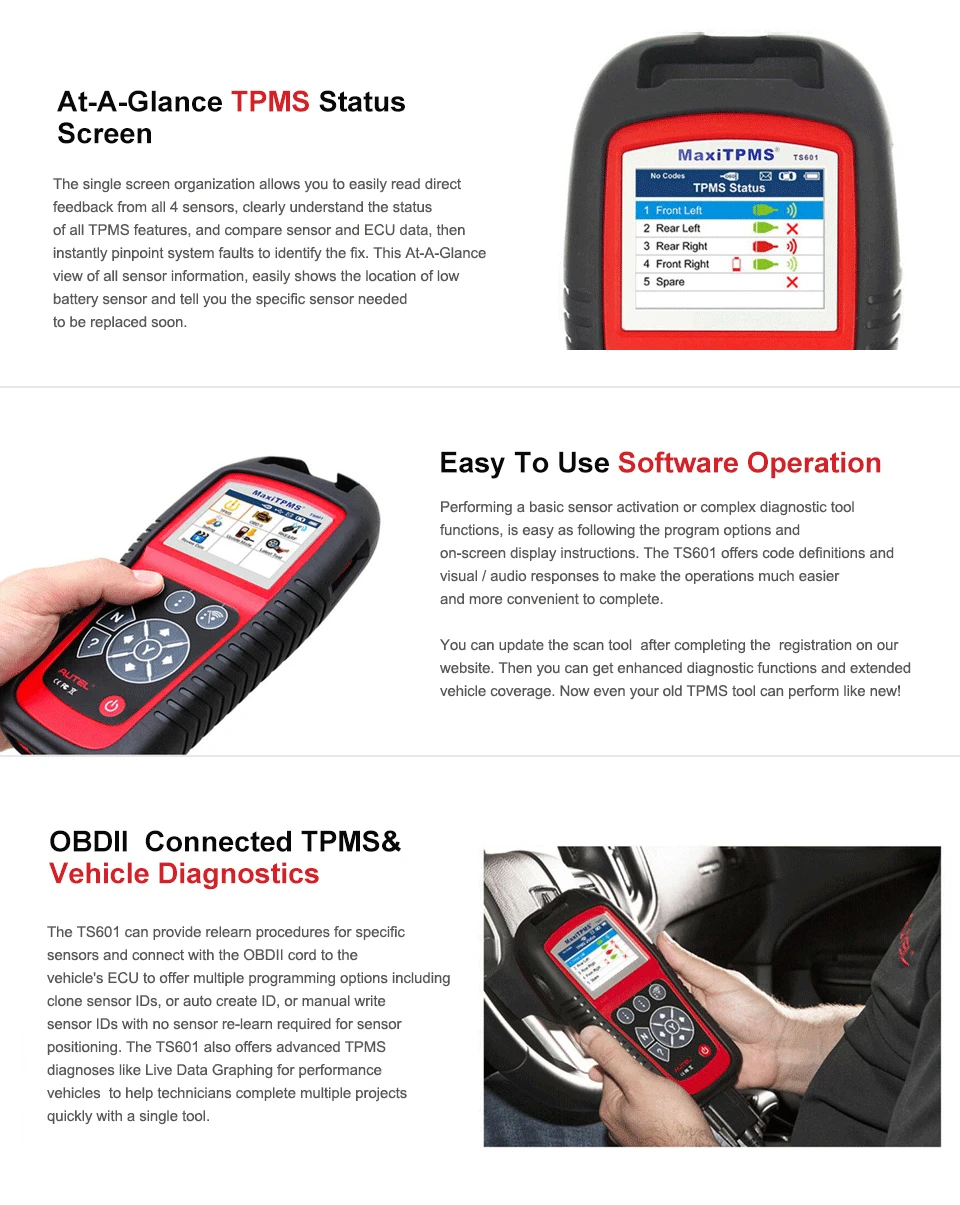

Professional TPMS Diagnosis and Programming
The easy-to-use TPMS tool Autel TS601 provides users with unparalleled experience of efficiency and accuracy for complete TPMS diagnosis. Instead of simply checking the sensor data, sensor ID, tire pressure/temperature, battery condition, sensor position and diagnosing the TPMS to read/write sensor ID, read/clear TPMS codes (turn off TPMS warning light), retrieve TPMS ECU information, and perform actuation test, this TPMS tool allows user programming the sensor data to MX-sensor and replacing faulty sensor that is with low battery life or is not functioning.

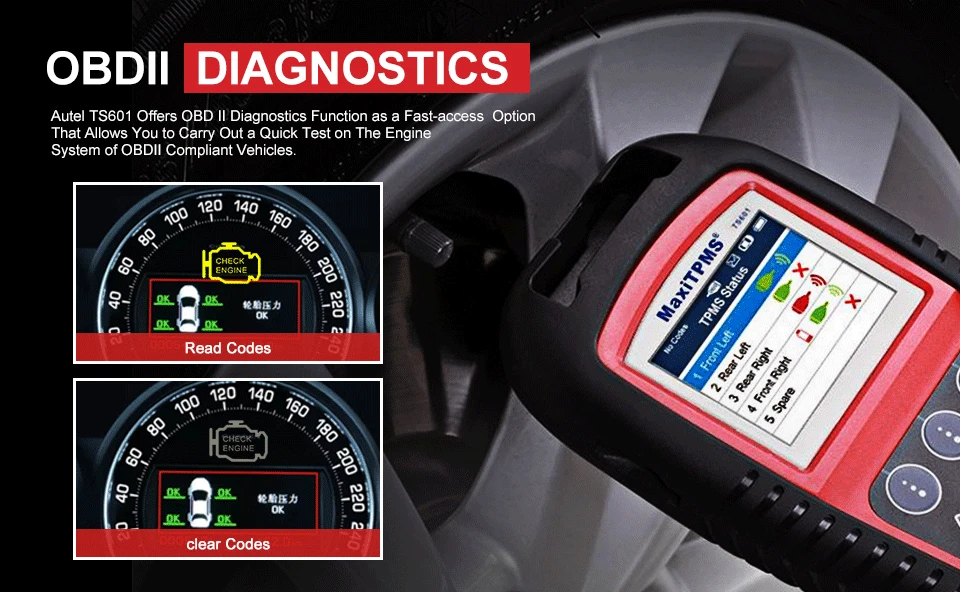

Fast Access to Accurate OBDII Diagnosis
Autel TS601 is the first one to integrate the TPMS tool with OBDII code reader. Except professional diagnosis to the TPMS, you can also perform the exceptional diagnosis to vehicle engine running conditions and the operating status of the exhaust after-treatment, which is called OBDII diagnosis.
With OBDII diagnostic functions, you can quickly check the vehicle self-inspection condition, accurately locate the fault that caused the Check Engine Light, and easily turn off the check engine light after the maintenance and repair.
Easy and Fast MX-Sensor Programming
The TPMS sensor programming can and will only work with the Autel MX-sensor. There are 4 options available for you to complete MX-sensor programming, and they each have their own advantages and characteristics:
Auto Create – applying random ID for the tested vehicle
Manual Create – manually input the random ID or the original sensor ID
Copy by OBD – read sensor ID with Relearn function, and write it to MX-sensor
Copy by Activation – automatically write in the retrieved original sensor data to MX-sensor in the case of original sensor is triggered
1.Activates ALL magnetic, frequency and tire deflation triggered sensors using 125KHz continuous 2.or modulated wave signals
3.Receives both 315MHz and 433MHz signals
4.Reads / writes sensor ID from vehicle ECU
5.Reads / clears codes of TPMS system and resets malfunction indicator light
6.Reads activated sensor data including sensor ID, tire pressure, temperature, battery condition, OE part number, relearn information
7.Reads, records and playbacks TPMS live data, including tire pressure, signal status, temperature, battery status, etc.
8.Retrieves TPMS ECU information
9.Performs actuation tests and special functions
10.Programs vehicle ECU to learn sensor IDs and positions
11.Capable of programming single tires for Chrysler, Renault, and Citroen
12.Checks Remote Keyless Entry (Key FOB) for transmissions
13.Graphs vehicle with 4 or 5 wheels to simplify the diagnostic process
14.Pre-selection process offers faster activation and diagnostics
15.Provides visual and audible responses to confirm sensors are working properly
16.On-screen code definitions
17.Incredibly easy to use with intuitive navigation and step-by-step on-screen instructions
18.Proper LF signal to prevent being fooled by other RF signals
19.Built-in rechargeable Li-polymer battery
20.Automatic power-off to preserve battery life
21.Ergonomic design features strong housing and protective rubber boot

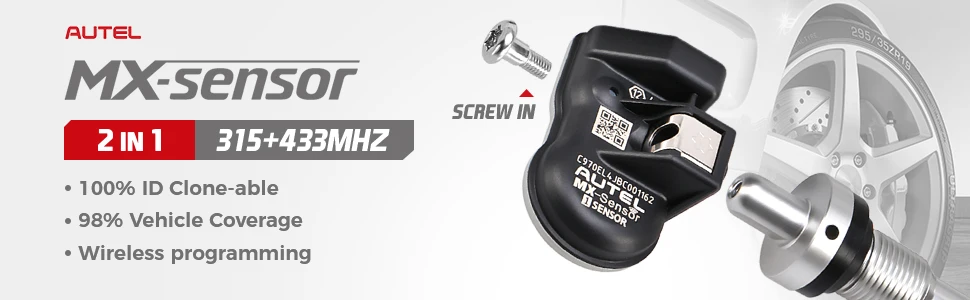

Autel MX-Sensor 2 In 1 (315MHz + 433MHz) Clamp-In OE-Level Programmable Sensor for Tire Pressure Monitoring System (TPMS) 100% Cloneable + Fits 98% Mainstream Vehicles / MX-Sensor 433 MHz /TPMS PAD Sensor Programmer
Autel MX-Sensor 2 In 1 (315 + 433MHz), as a programmable universal sensor featuring in Clamp-in and Snap-in options which are both smart and efficient specially built for sensor replacement with maximum application coverage, ease of use, OE-level fit, performance and reliability, will help users economize the cost of diagnostic work and raise the repair efficiency greatly.

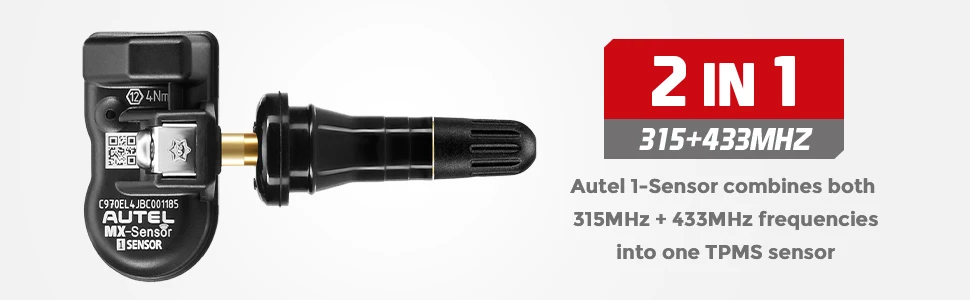

2 in 1 Sensor Feature
Featuring the latest and most comprehensive coverage of 98% OE sensors on the market, and up to 90% of North American, European and Asian vehicles, it nearly fits all types of wheels on the road.
Easy To Use
The maximum sensor signal strength allows sensors to be easily programmed wirelessly even when they have already been mounted to the wheel. Moreover, the unique PRESS release valve design makes the manual sensor replacement much easier.
Solid & Durable
Equipped with an automotive grade battery, a replaceable aluminum/rubber valve stem to withstand cold, hot and resistance corrosion, and a high-precision air valve to prevent air leakage, this sensor ensures superior stability and performance.
Autel guarantees that the sensor is free from material and manufacturing defects for a period of 24 months or for 24,000 miles. Each sensor is marked with a series number to track the sensor quality from the factory to ensure that only the highest quality parts are installed.
Battery Life ≥5 years
Operating Temperature -40°C to +125°C
Storage Temperature -40°C to +150°C
Operating Humidity 90%
Operating Frequency 433 MHz/315MHz
Pressure Monitoring Range 100 to 900 kPa
Pressure Reading Accuracy ±10 kPa
Temperature Reading Range -40°C to +125°C
Temperature Reading Accuracy ±5°C
G Sensor Reading Accuracy ±15%
Transmission Power 5-8 dBm
Battery 3.0 V
Dimensions (W x H x D) 55.1 mm x 29.4 mm x 21.8 mm (Clamp-in Sensor)
Weight (Without Valve) 18.5 g (Clamp-in Sensor)
