AUTOOL 2020 SDT106 Car Smoke Leak Detector Automotive EVAP Gas Leak Locator

From: $129.80

Choose an option
Choose an option
China
Germany
Russia
United States
Clear
SKU MOT232-4 Category

Descriptions :

AUTOOL SDT106 Car Smoke Leak Detector is a professional auto pipe leak detect tool. It will help us position cars motorcycles leakage on pipe system quickly and exactly ,such as :
?
Intake System Test, Exhaust Systems Test, Car Sealing Test, Fuel Tank System Test.Russia fans share with it:https://youtu.be/3i2Ted4xSd0

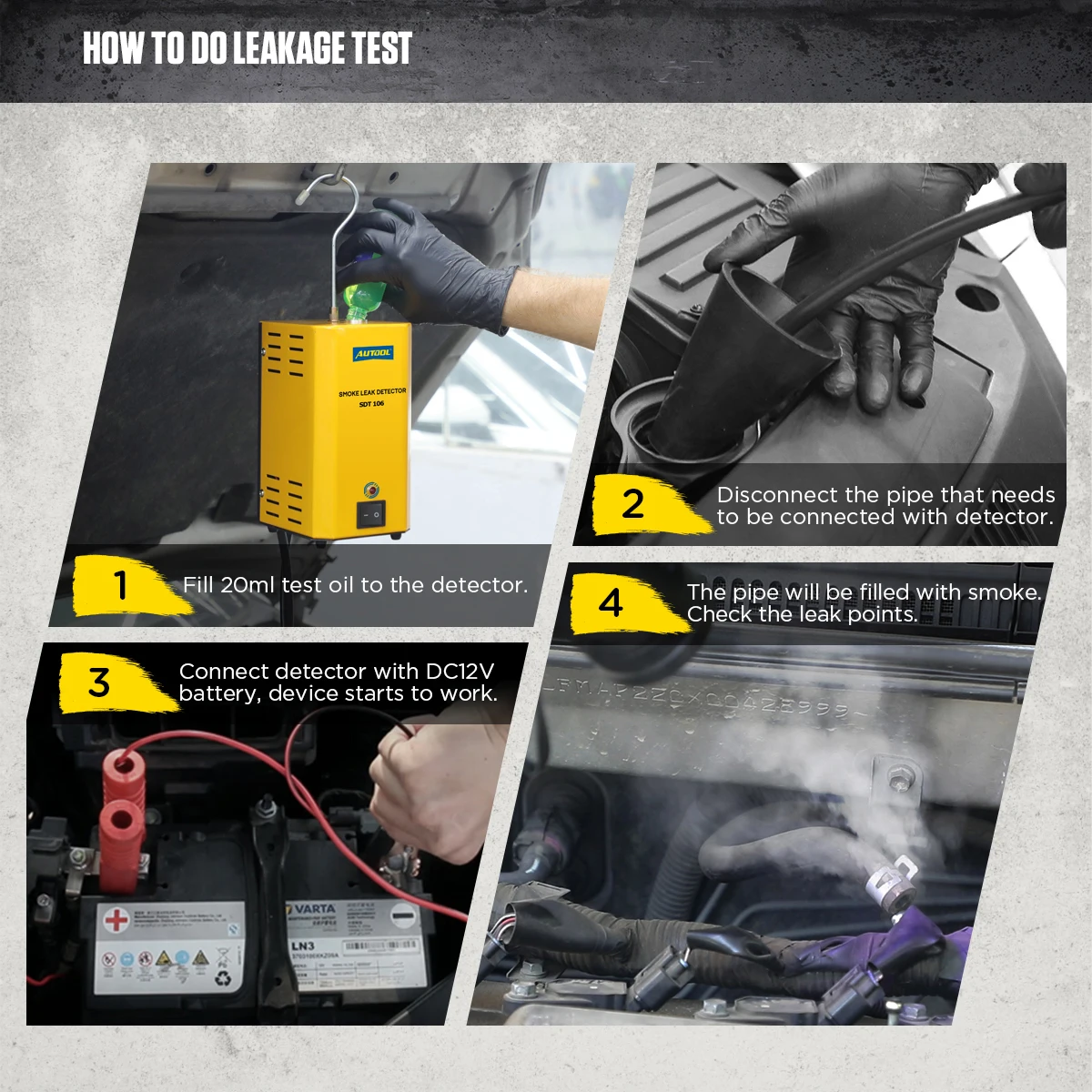

How to do leakage test ?

1. Fill 20ml baby oil to the detector for the first time. Open the engine cover, and hang the detector in the cover.
?
2. Disconnect the pipe that needs to be connected with detector.3. Connect detector with DC12V battery, turn on the power switch, and the detector starts to work.4. In about 30 seconds, the pipe will be filled with smoke. Check the leak points. Please use head lamp if necessary.

AUTOOL SDT 106 Car Smoke Leak Detector Features :

1.[Wide range of applications] For detecting the leakage of pipe systems on cars, motorcycles, snowmobiles, off-road vehicles, ATVs, light trucks and speedboats boats.Works on all car makes and models.
?
2.[Powerful and easy to operate ] The AUTOOL SDT 106 has its own air pump, it does not rely on other air machine ,Connect the detector with DC12V battery,It can be outputs lots of Smoke within 30 seconds after turning on.
?
3.[Advanced technology] It works on the EVAP system (we also have another version that specially designed for EVAP system).
?
4.[Overheat & Anti-frost protection] The detector has smart protector. If it exceeds working limit,for e.g over 75??. It will power off automatically.
?
5.[3 year warranty] For damage caused by non-human factors, we promise to resend parts for free within 3 years.

Main Unit Structure :

Hook: To hang the detector when detecting.
?
Working Indicator: It is lit when the detector worksPower Switch: Power it on, and the detector worksSmoke Output Tube: The smoke outlet which connecting with detection portPower Code Clamp: To connect with vehicle battery. The voltage is DC12V.

Caution??

1.When you use this AUTOOL SDT 106 Car Smoke Leak Detector for the first time, fill with 20ml oil . Please be careful NOT to beyond this range.
?
2.The testing liquid : both liquid paraffin and baby oil are OK.
?
3.Fresh oil can be filled with only when the smoke gets thin, and it can??t be filled over 20ml each time.
?
4.Before filling fresh oil, please pour out the left oil in the detector & replace the detector oil regularly.
?
5.During the process of leak detection, please keep away from smoke-sensitive parts.
?
6.Do NOT run the detector over 8 minutes continuously. It needs interval rest.
?
7.The detector has an intelligent protector, if it exceeds the working limit, such as over 75 ??, it will automatically turn off the power. In this case, please operate it later.
?
8.The round part of this detector has temperature, please be careful to avoid burns.
?
9.If the test pipe needs to be disconnected in the middle, please secure the other side with a rubber stopple.
?

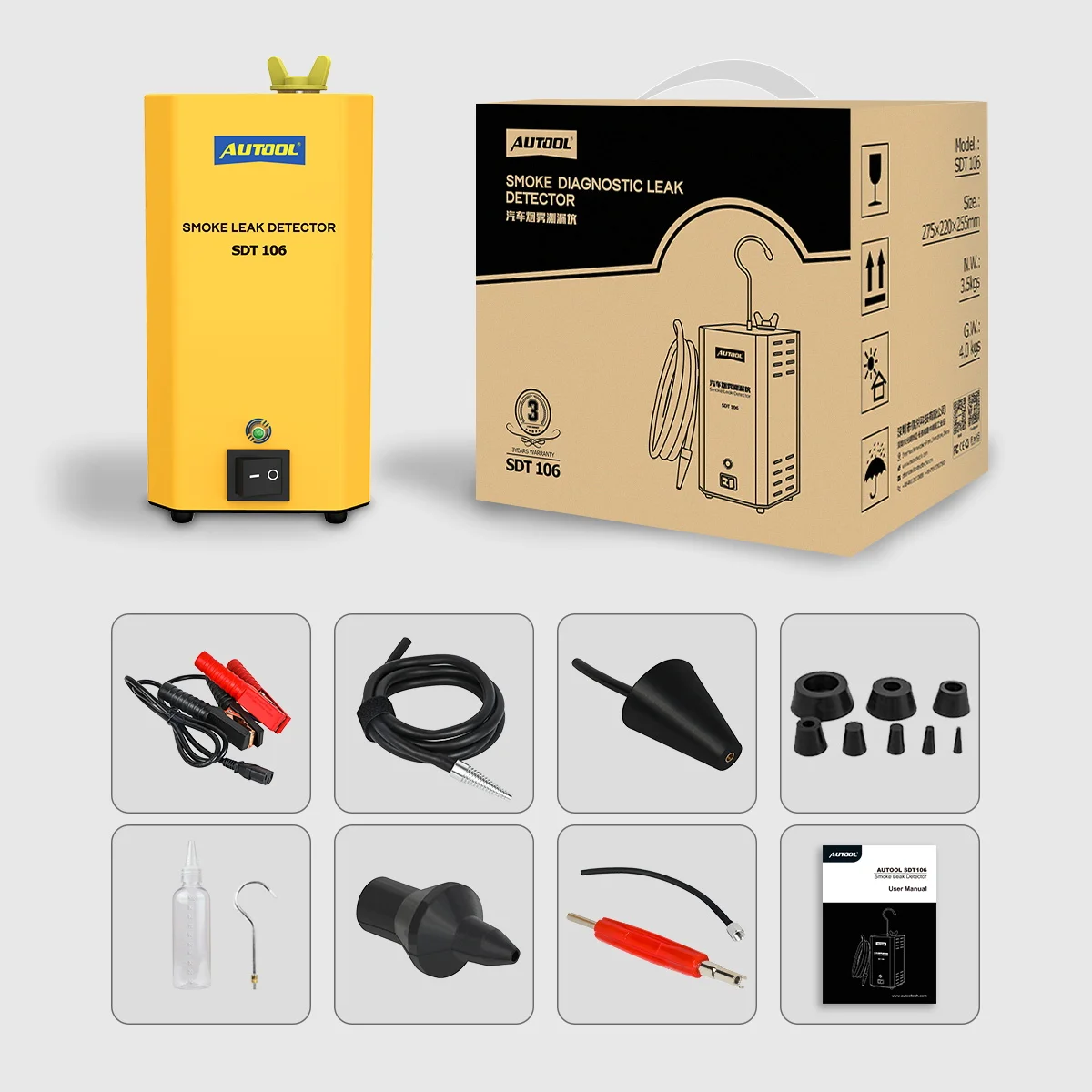

Packing List :

1pc * AUTOOL SDT106 Car Smoke Leak Detector Main Unit
?
1pc * Hook (with hand-tighten nuts)1pc * Rubber Connect Parts1sets * Hard Rubber Hose Plug (with serial specification)1pc * Standard Cone Adapter1pc * Power Cord Clamp1pc * Valve Core Wrench1pc * Test Oil Refill Bottle(oil not included)1pc * EVAP Special Connector1pc * Smoke Hose1pc * User Manual
