Specifications

BrandFXTUL
Weight1800 g
Supported Brands10 brands incl. Kawasaki, Yamaha, Honda, Vespa, Suzuki, PIAGGIO, KTM
Supported ProtocolsOBD2 and EURO5

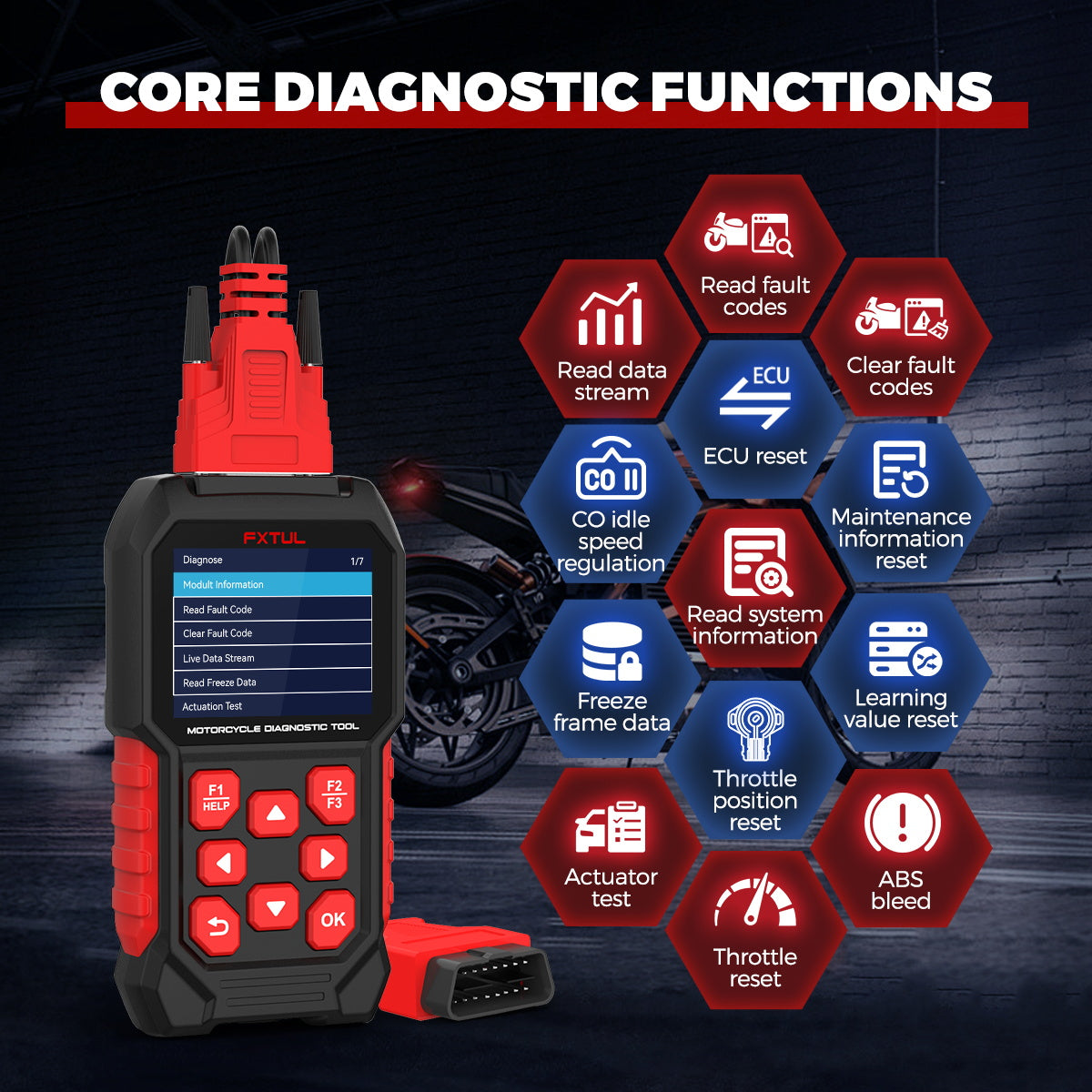

Diagnostic FunctionsRead/clear codes, live data (waveform), freeze frame, actuator test, service light reset, ECU reset, ABS bleeding
Display2.8-inch color screen
Operating VoltageDC10-15V
Languages13
Dimensions16.5 × 8.5 × 2.5 cm
Vehicle Coverage10 mainstream motorcycle brands (brands common in Southeast Asia)
Software UpdatesFree lifetime updates; update by connecting to PC via USB and replacing the DIAGNOSE folder

Details

Diagnose 10 Motorcycle Brands Including Piaggio, Aprilia and Triumph

This FXTUL M4 version covers Kawasaki, Yamaha, Honda, Vespa, Suzuki, Piaggio, KTM, Aprilia, Triumph and Royal Enfield. It supports OBD2 and EURO5 protocols and handles codes, live data, service light reset, ECU reset and ABS bleeding.

  • 10 Brands
  • OBD2 & EURO5
  • ABS Bleeding

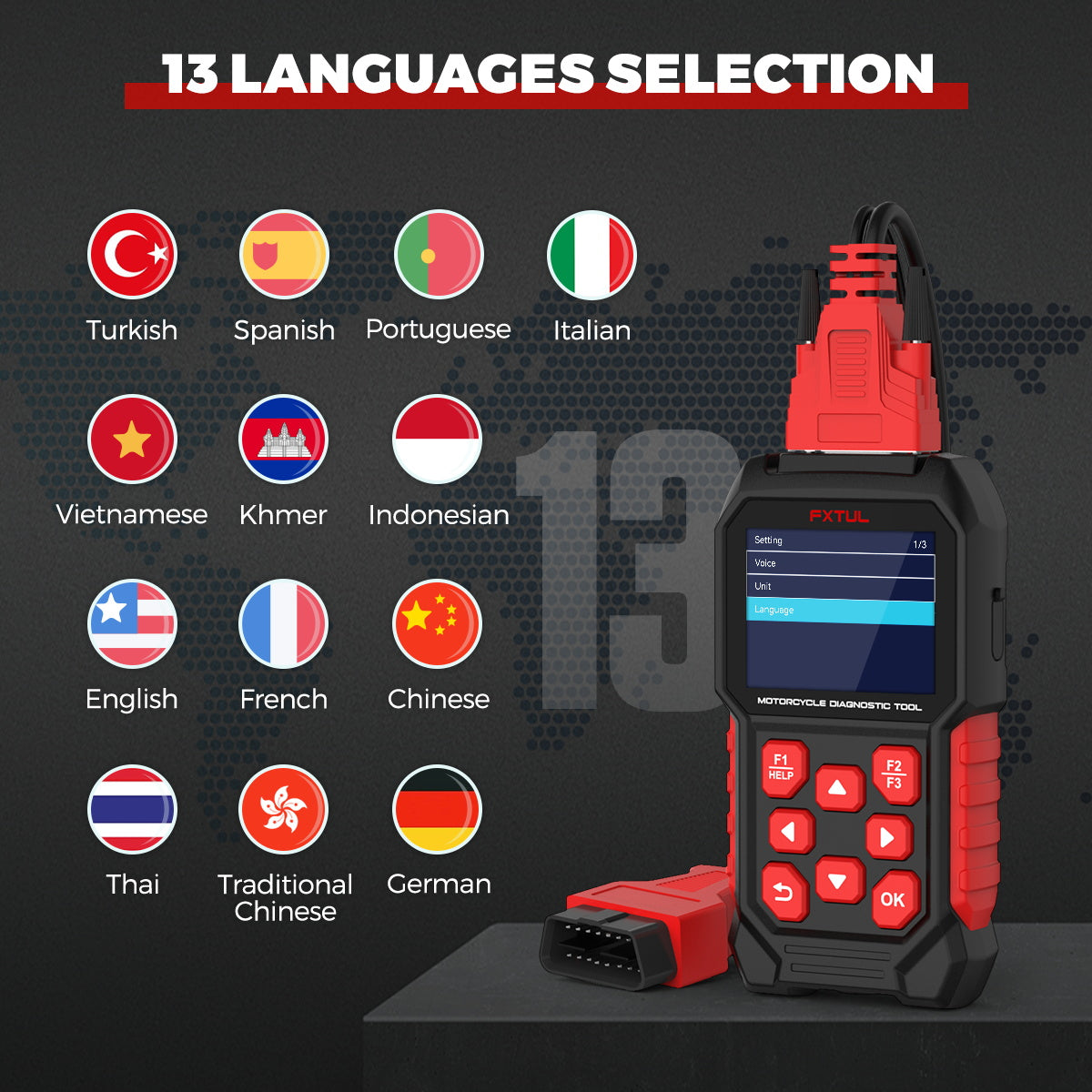

  • 13 Languages
  • 2.8-inch Screen

Key Features

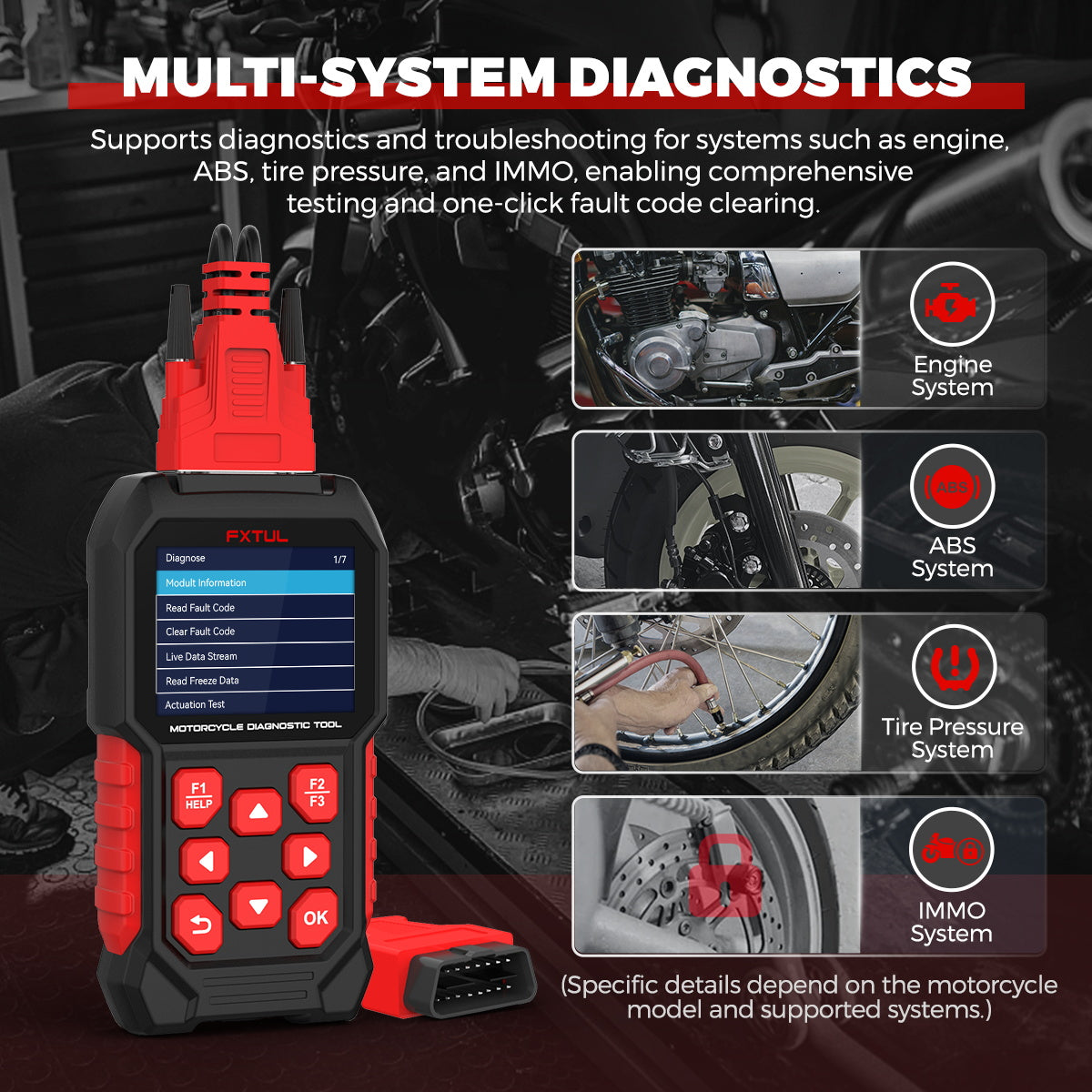

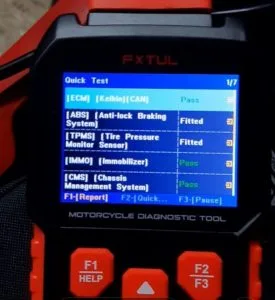

  1. Quick Test for Every System

    Scans all systems of the selected model, reports which are fitted and which hold codes, and builds a fault report; codes can be cleared across all systems at once.

  2. Service Light and ECU Reset

    Resets the service reminder and the ECU where the model supports it.

  3. ABS Bleeding

    Runs the ABS venting routine after brake work on supported models.

  4. Data Graphs and Freeze Frames

    Live data can be shown as a waveform, and freeze frame data shows conditions at the moment a fault was stored.

  5. Actuator and Service Tests

    Activate components and run idle speed regulation or throttle position learning.

  6. Voltage and Unit Options

    Reads battery voltage live at the socket and switches between metric and imperial units.

M4-EU vs M4-Asia

M4-EU (this version) M4-Asia
Shared brands Honda, Yamaha, Kawasaki, Suzuki, Vespa, KTM Honda, Yamaha, Kawasaki, Suzuki, Vespa, KTM
Brands unique to the version Piaggio, Aprilia, Triumph, Royal Enfield SYM, KYMCO, PGO, Benelli

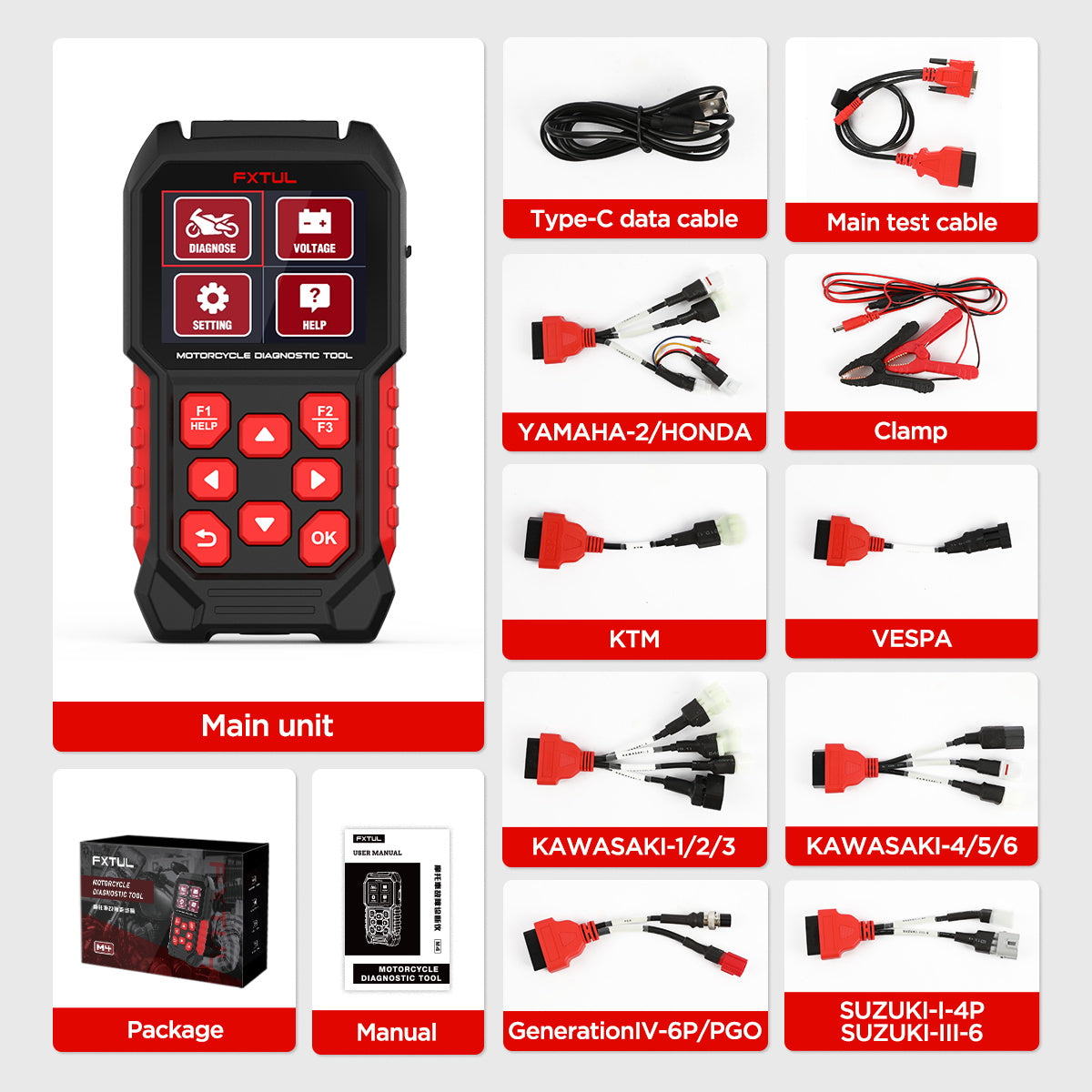

Connecting cables 10 10

How to Use

  1. ConnectPlug the M4 into the motorcycle's diagnostic socket with the matching brand cable.
  2. Choose brandSelect Diagnosis, then the motorcycle brand.
  3. Match the modelUse Model Selection, or System Selection when the model name is not listed.
  4. Run the scanStart Quick Test or open one system through Control Unit, then read, clear or test as needed.

Full menu walkthrough: FXTUL M4 user manual (PDF)

Updates & Support

Software updates
Free lifetime updates
Update package
M4 EU package, in European and Asian language editions
Update method
Connect to a computer by USB, replace the DIAGNOSE folder on the new drive with the downloaded one, then power on again

If a motorcycle or function is not supported, update to the latest software and reconnect.

Good to Know

Caution
  • Service light reset and ECU reset depend on the model's compatibility.
  • The USB port runs on 5V and is meant only for updating from a computer; a fast charger above 5V can damage the tool.
Care
  • Follow the on-screen instructions once the M4 is connected to the motorcycle.
