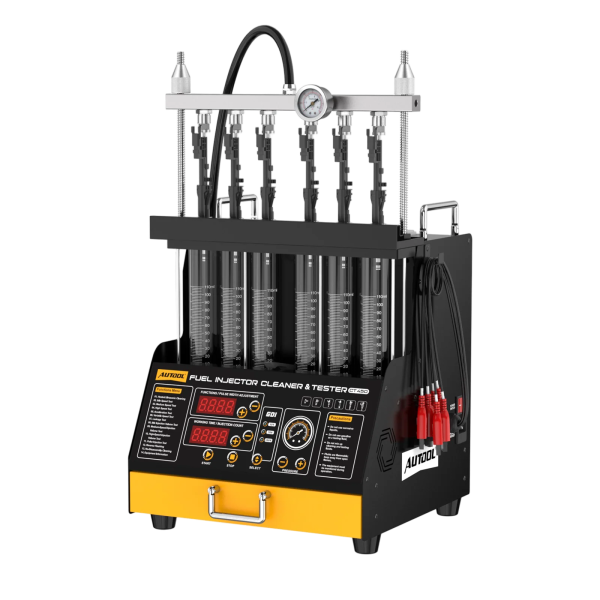

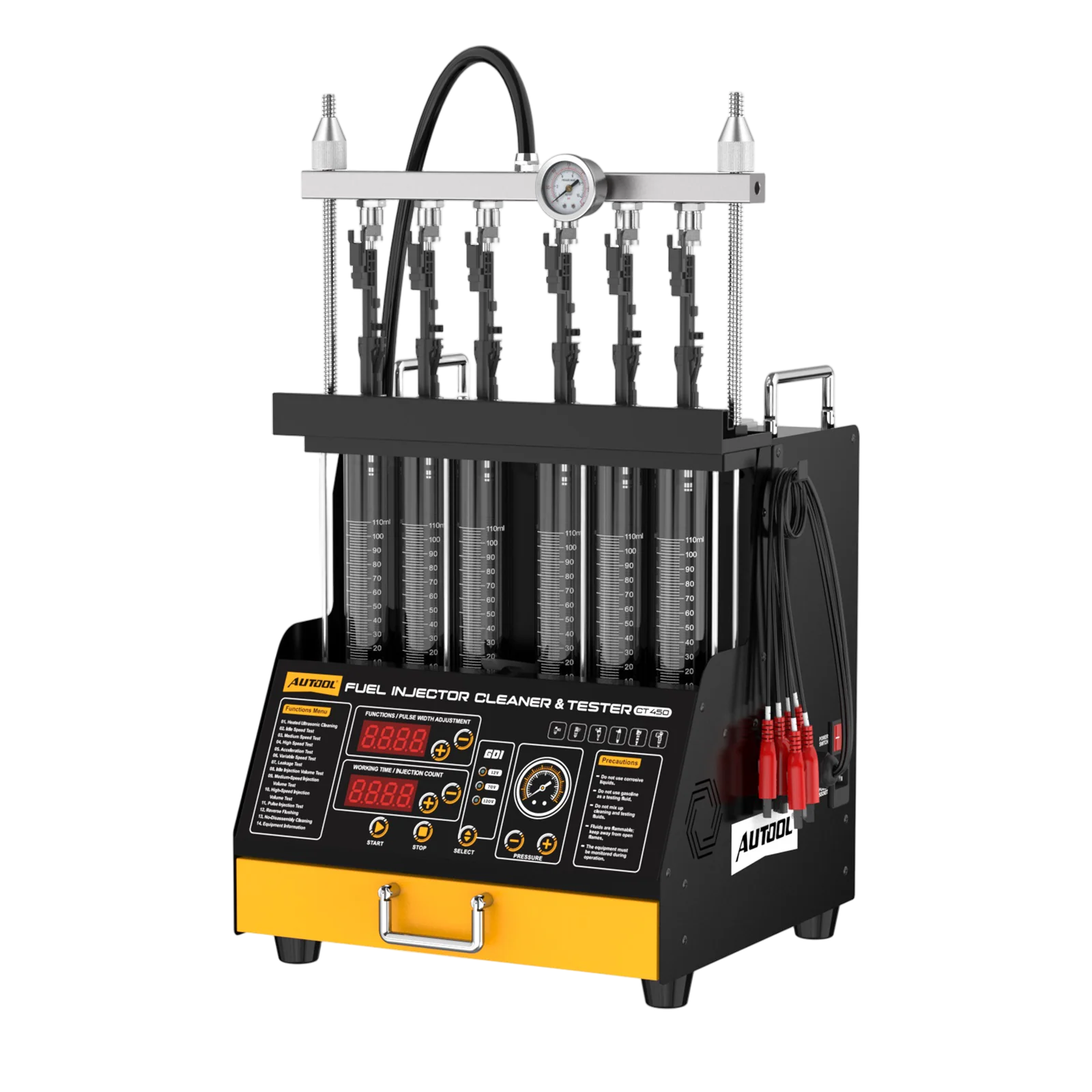

Heated Ultrasonic Cleaning and Six-Position Injector Testing

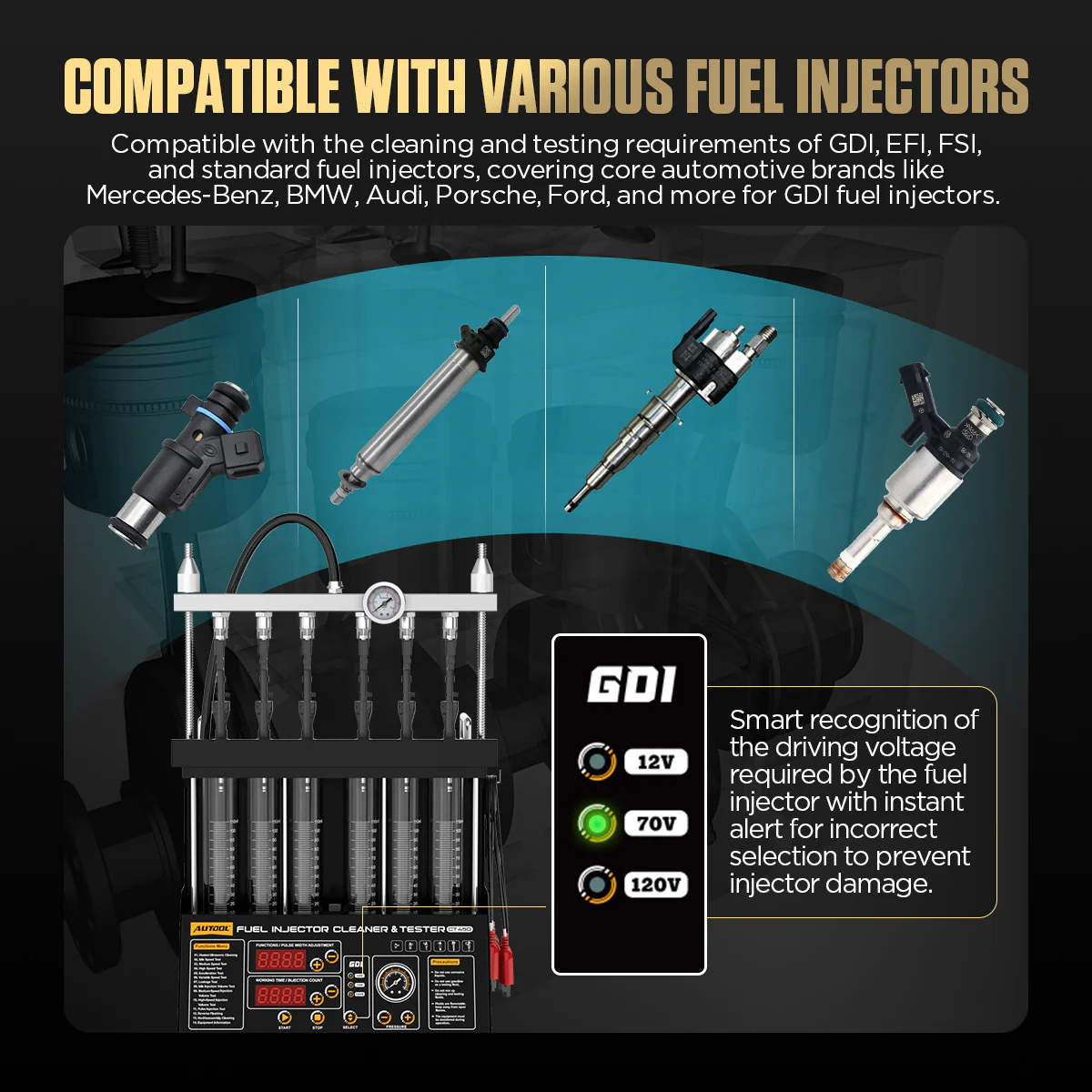

Clean compatible gasoline, EFI, FSI and selected GDI injectors in a heated ultrasonic tank, then compare up to six injectors for spray, leakage, collected volume and pulse response at 12 V, 70 V or 120 V drive. Testing runs at low bench pressure, not original GDI pressure.
- 6 Injector Stations
- 12 / 70 / 120 V Drive
- Heated to 50 °C
- 28 kHz Ultrasonic Tank

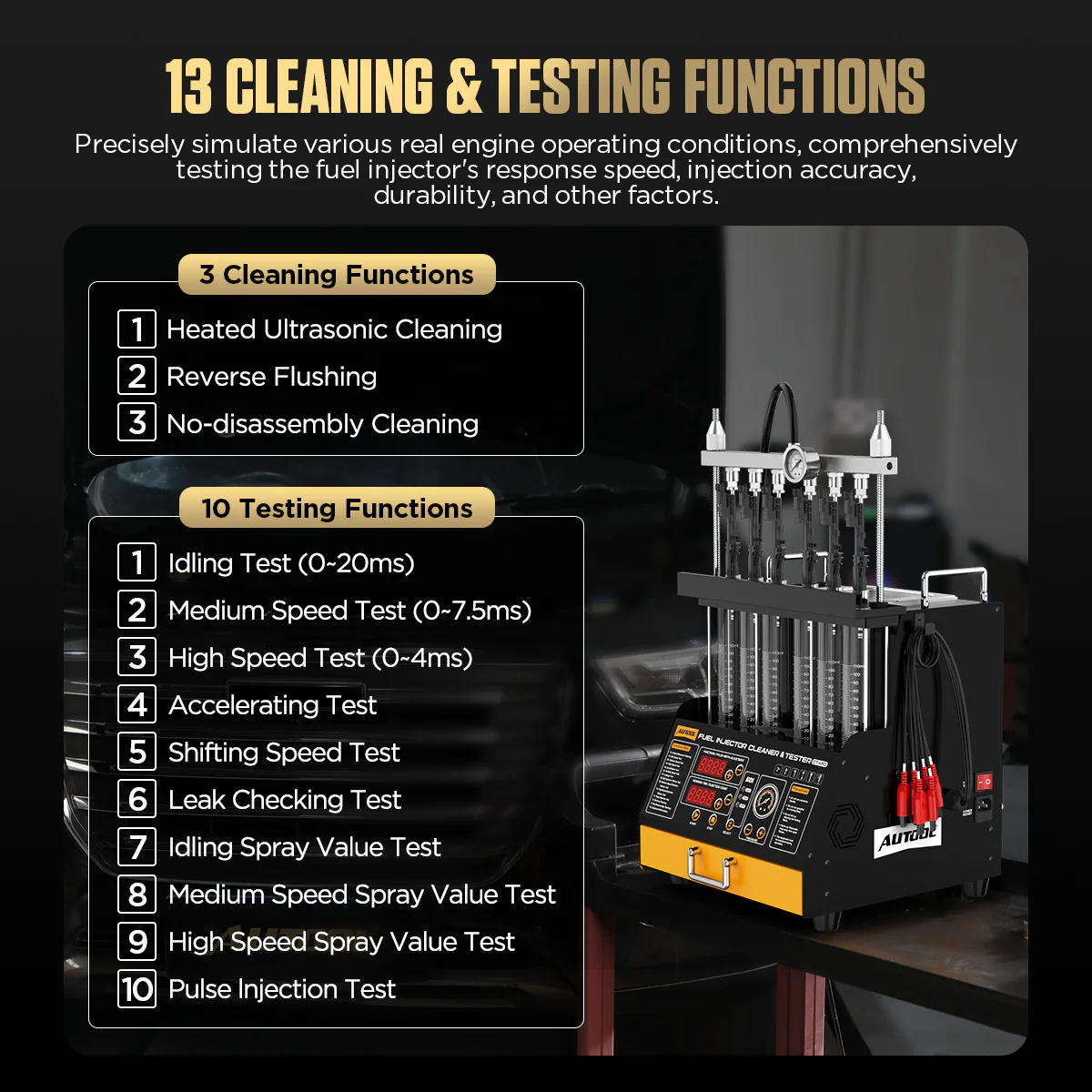

- 3 Cleaning + 10 Test Functions
Key Features
-

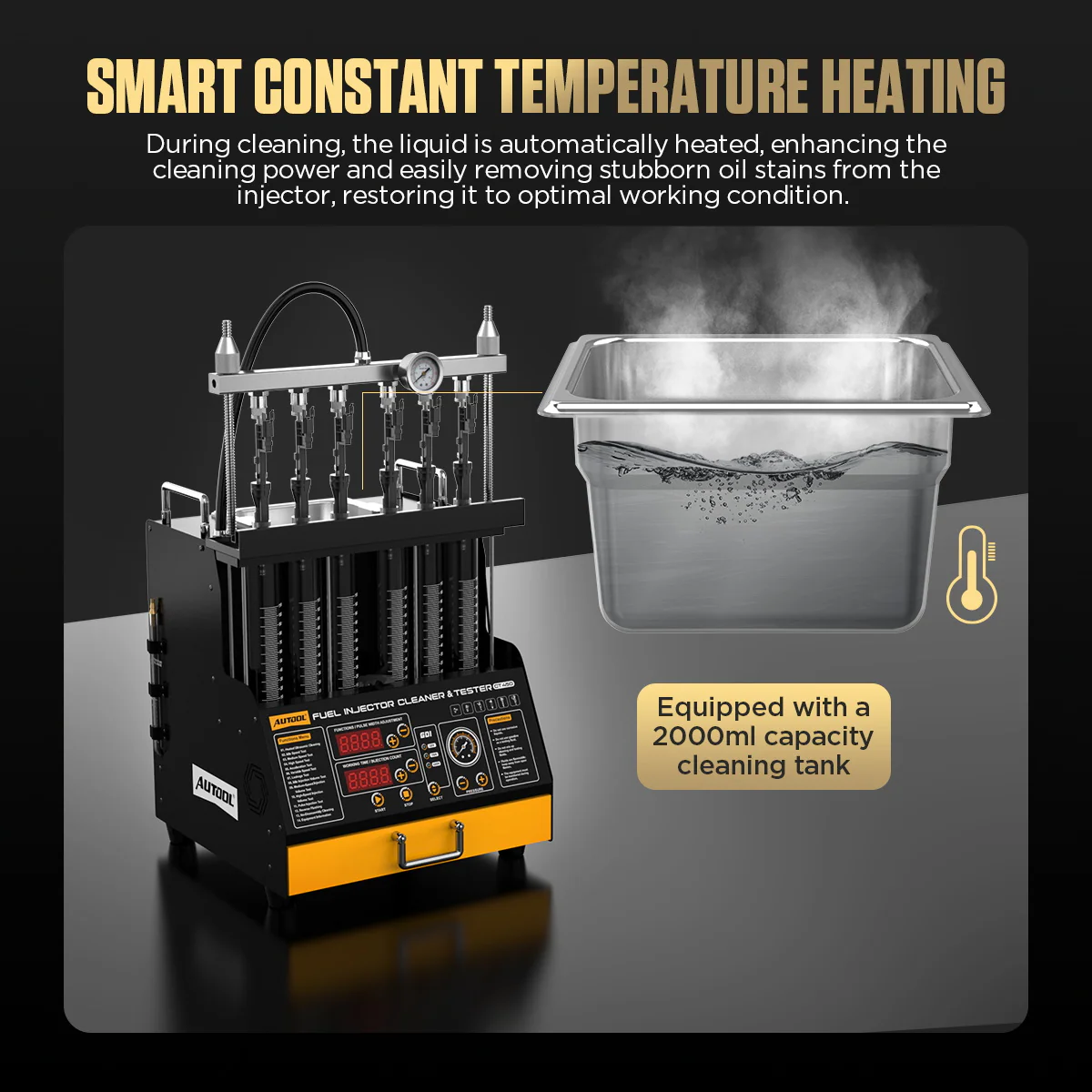

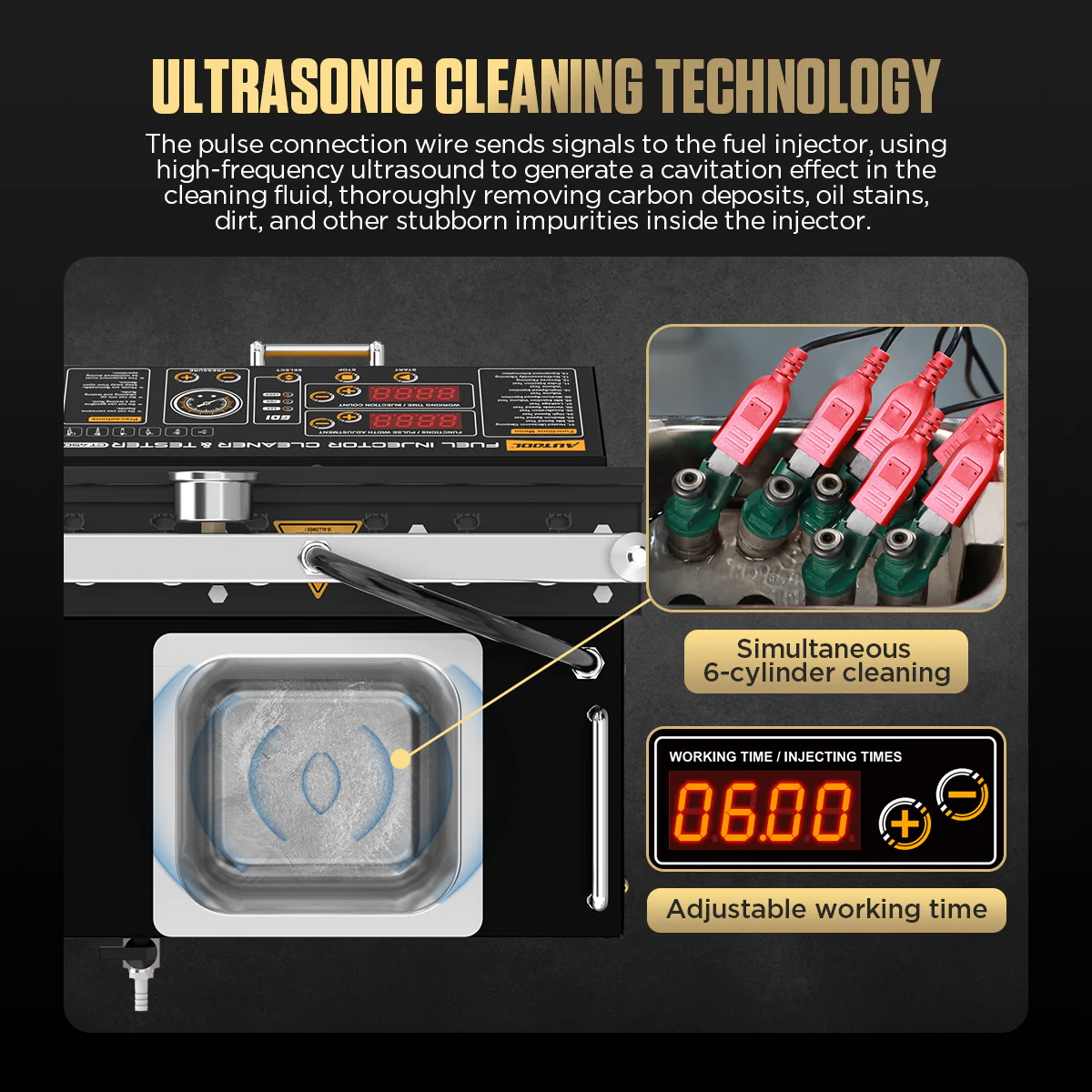

Heated Ultrasonic Cleaning
Ultrasonic energy combined with thermostatic heating, used when the cleaning chemistry, injector material and procedure permit heat.
-
Selectable Injector Drive
Choose 12 V, 70 V or 120 V to match supported injectors, using verified part-number and manufacturer information.
-

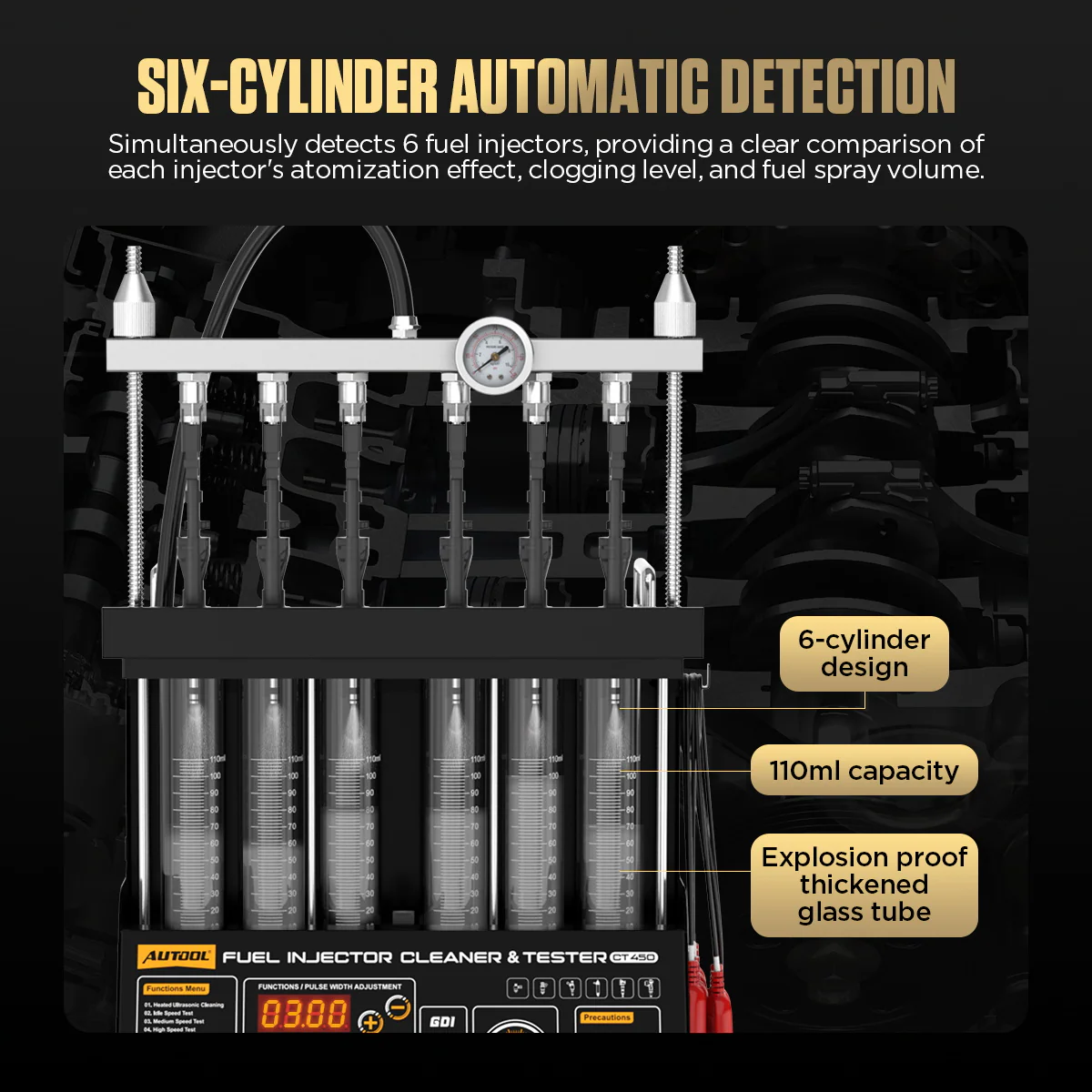

Side-by-Side Comparison
Observe up to six injectors under one controlled setup for relative spray and collected-volume differences.
-
Pulse-Injection Observation
Run intermittent injection at supported pulse settings to compare response and spray behavior.
-
Leak, Spray and Volume Checks
Glass tubes and an illuminated test area show comparative leakage, spray shape and volume once fixture sealing is checked.
-
Reverse Flushing
Available for injector designs where the feed direction and manufacturer procedure allow reverse flow.
-
Practical Workshop Controls

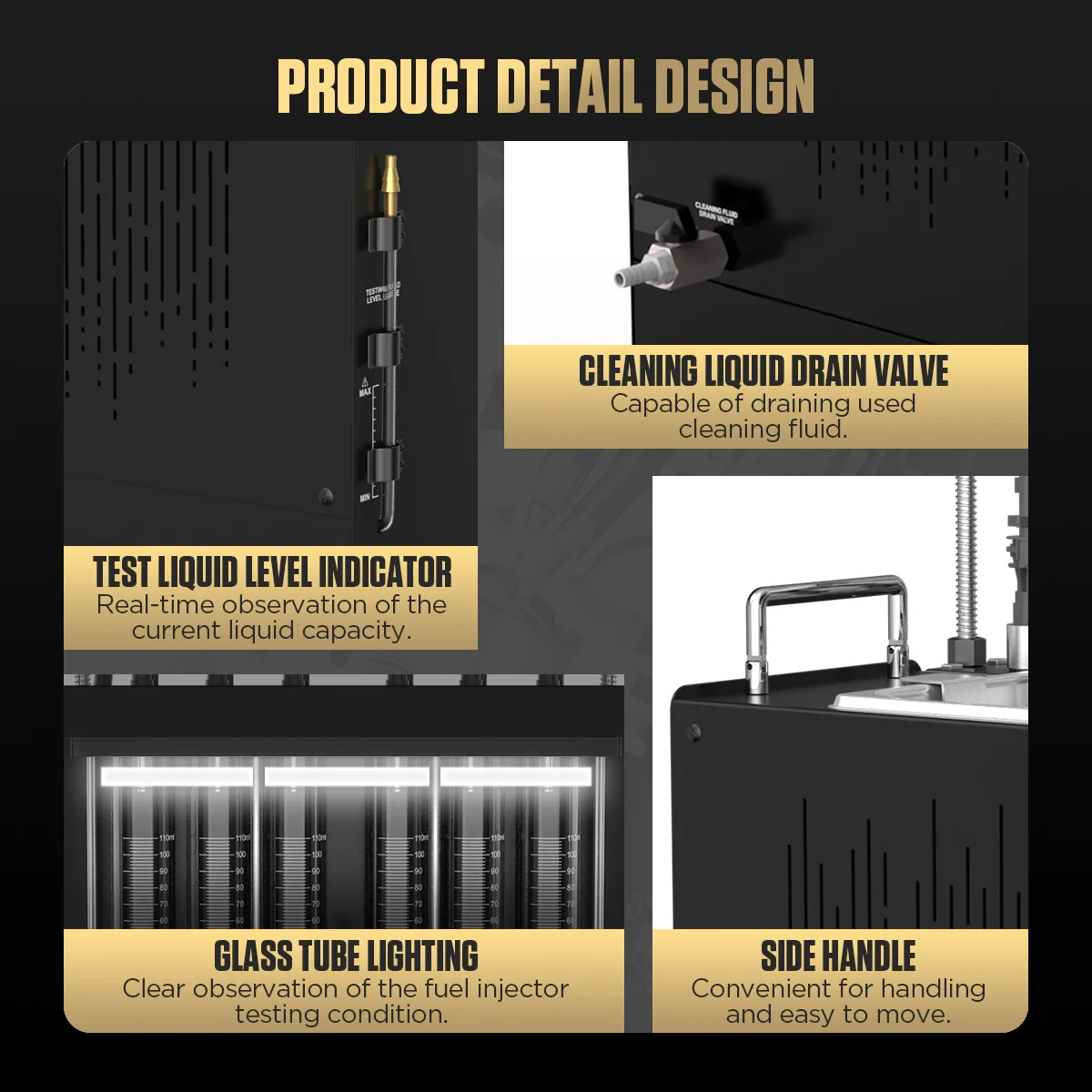

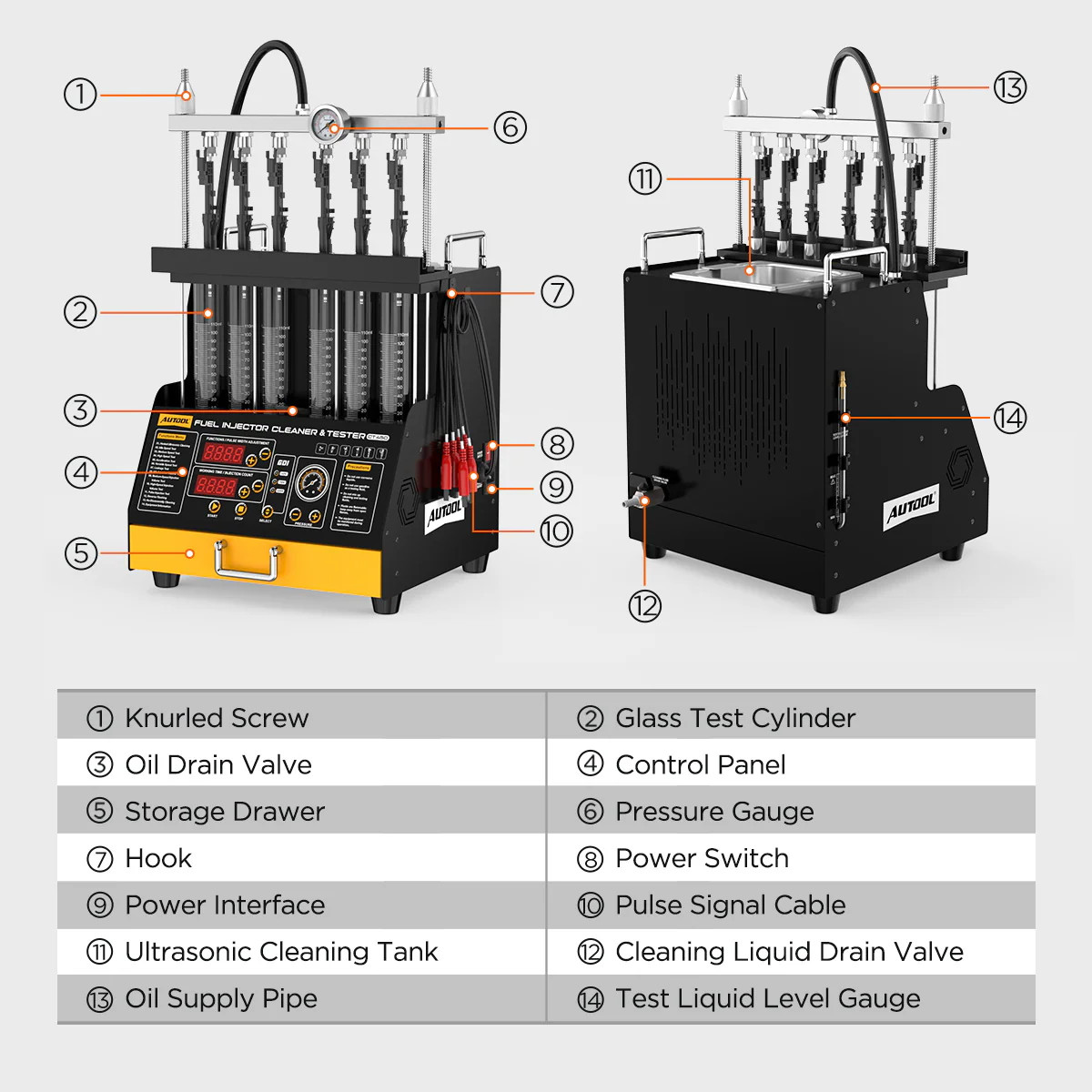

Fluid-level indicator, drain valves, glass-tube lighting, foldable grip and side handle.
-

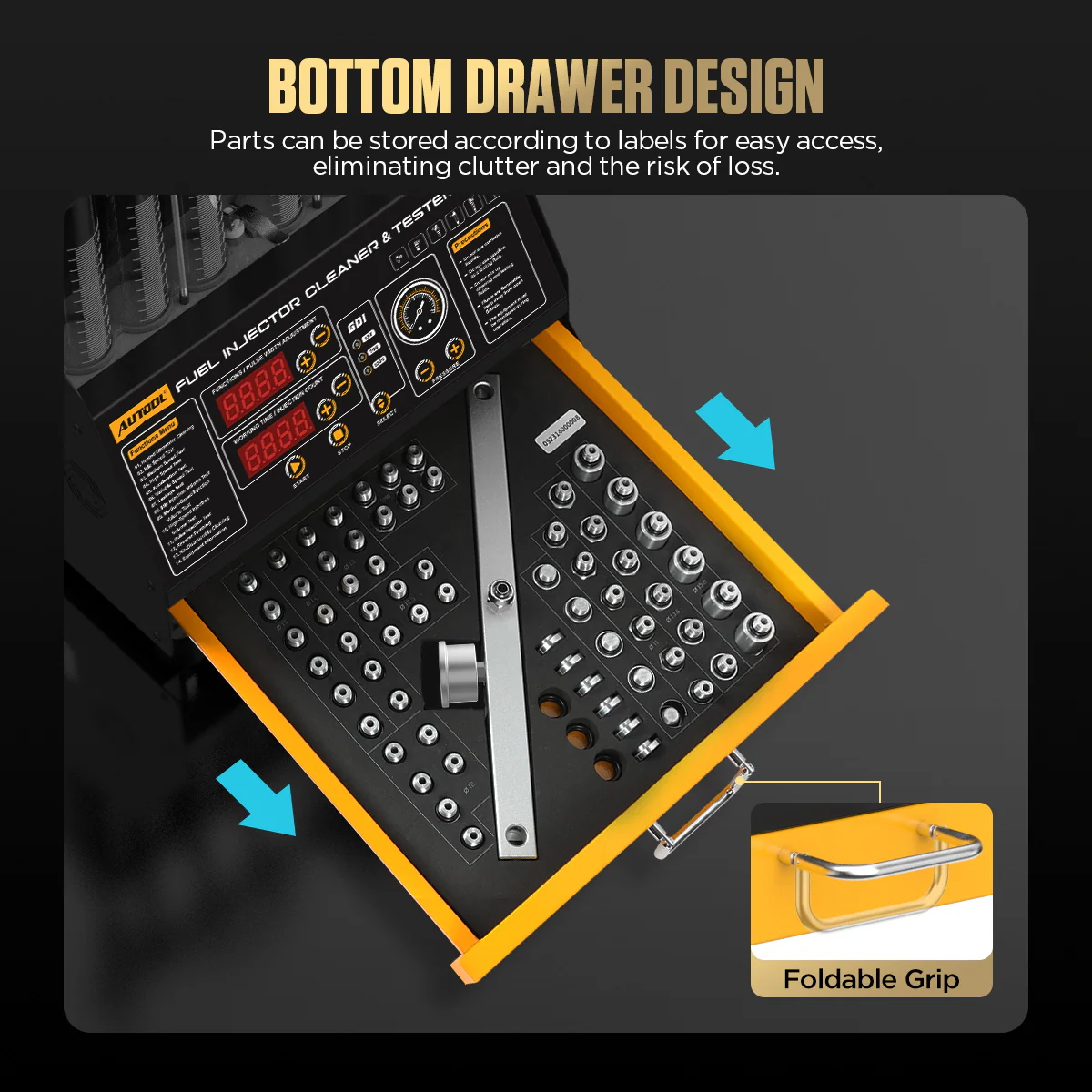

Accessory Storage Drawer
Keeps adapters, plugs, cables, seals and fittings close to the bench.

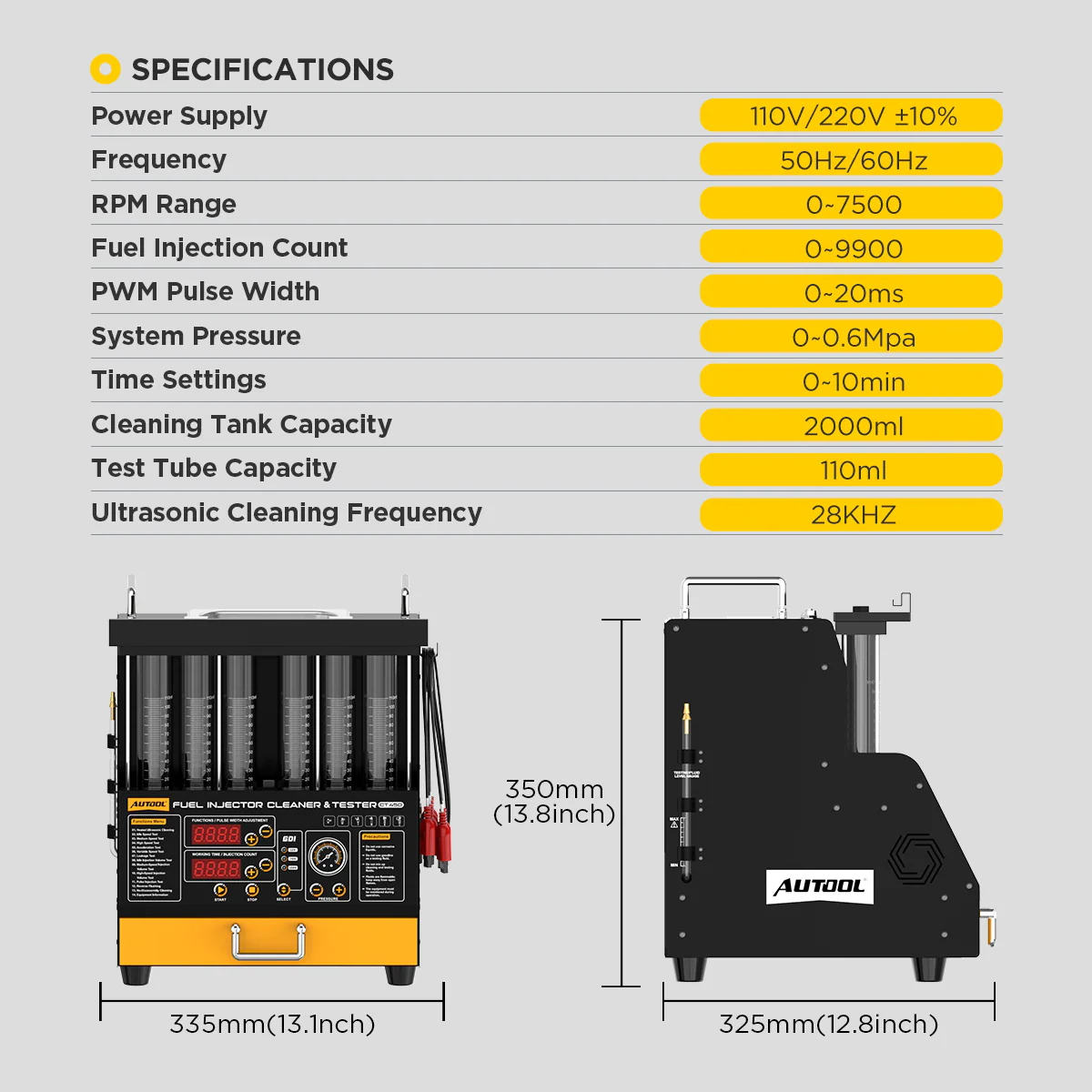

More Specifications
| Diesel injectors | Cleaning only when the approved procedure permits; no testing |
|---|---|

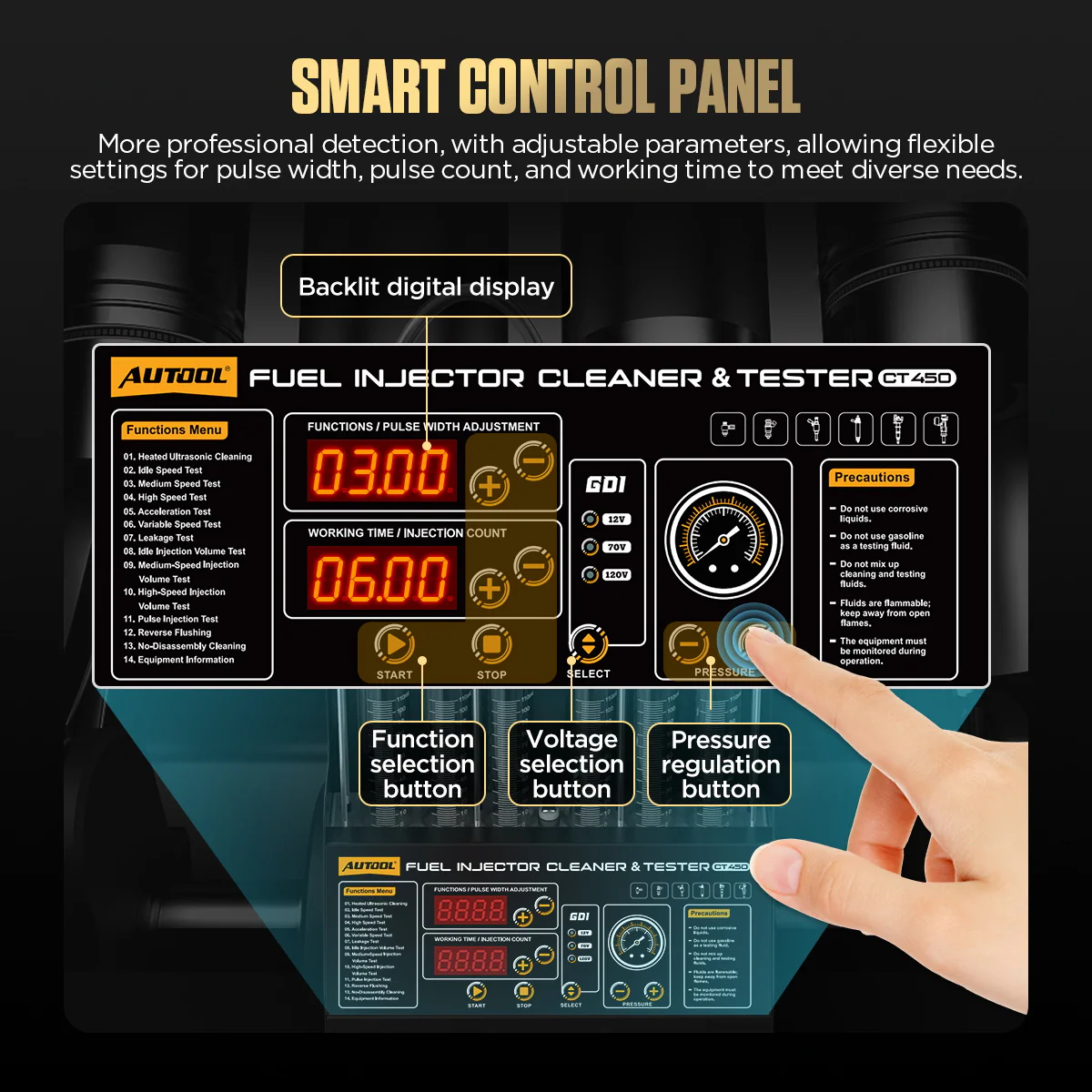

| Display | LCD display with pressure gauge |
| Cleaning tank | Integrated (not removable), with cleaning-fluid recovery valve |
| Test liquid level gauge | Yes |
Model Comparison
| CT400 | CT450 | CT500 | |
|---|---|---|---|
| Cleaning fluid heating | No | Up to 50 °C | No |
| Testing functions | 9 | 10 | 12 |
| Pulse injection test | No | Yes | Yes, plus wide-pulse and continuous injection tests |
| Pulse settings | 0-20 ms | 0-20 ms | 0-40 ms, 0.1 ms step |
| Language settings | No | No | Chinese, English |
| Oil baffle | No | No | Yes |

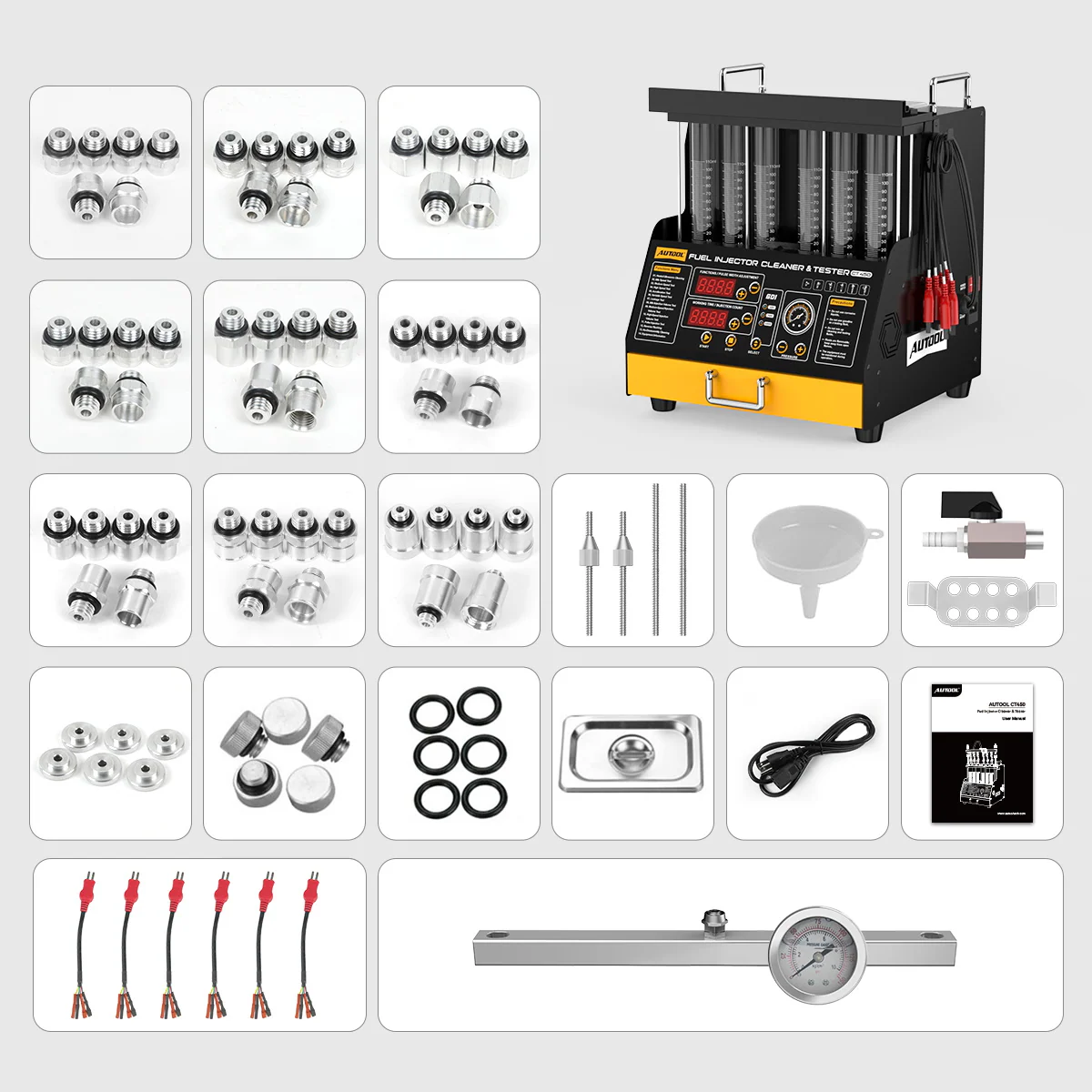

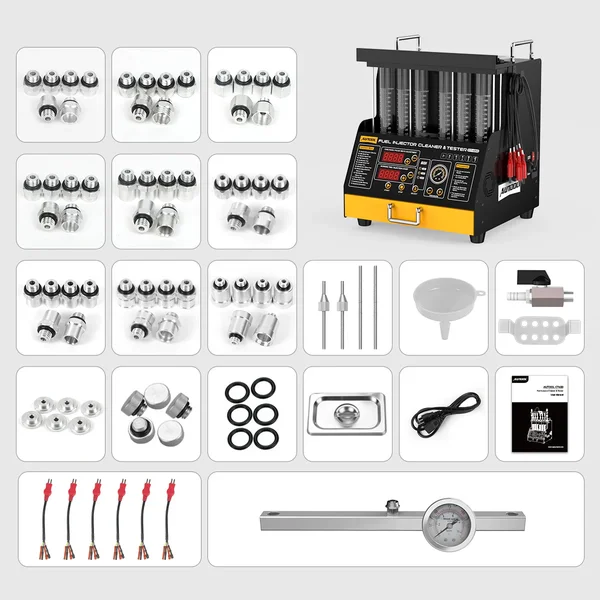

What’s in the Box
- CT450 main unit
- Injector adapters, including types for supported BMW injectors
- Glass measuring cylinders
- Injector signal cables and connector parts
- O-rings, plugs, caps and fittings
- Funnel, drain-valve parts and metal tray cover
- Power cable
- User manual
How to Use
- Identify the injectorRecord make and part number, and confirm drive, feed direction, adapter, seals and temperature limit.
- Select adapter and voltageChoose the connector, rail adapter and 12 V, 70 V or 120 V setting from verified data; stop if the drive is unknown.
- Fill and set heatFill the tank to the manual’s level with approved cleaning fluid and set a permitted temperature.
- Run the cleaning cycleSecure and connect the injectors, then run the ultrasonic and pulse-cleaning cycle.
- Mount and sealInstall injectors with the correct fittings and new seals where required, and plug every unused position.
- Configure the testAdd approved test fluid and set voltage, pressure, pulse, time and test mode.
- Test, compare and drainRun checks under identical conditions, swap channels if needed, retest after cleaning and drain each fluid through its own path.
Cleaning, testing, voltage selection and troubleshooting: CT450 user manual (PDF).
Good to Know
Caution
- Never run the ultrasonic tank dry; doing so may damage the ultrasonic system.
- Keep cleaning fluid out of the test circuit. Never use gasoline or a corrosive cleaner as test fluid.
- Heat only when the injector, seals and cleaning chemistry are compatible with the chosen temperature.
- CT450 is not a high-pressure GDI characterization, coding or calibration machine.
Care
- Before long storage, recover or drain the test fluid through the specified path.
- Before judging an injector, rule out adapter, seal and channel leakage and repeat the test under the same settings.
