Reviews·13

4.8 / 5Based on 13 reviews
4 ★0%
2 ★0%
1 ★0%
Luis

ABS bleeds works perfect with my FATBOY M8 114. No vin binding and no internet connection. !

Ed

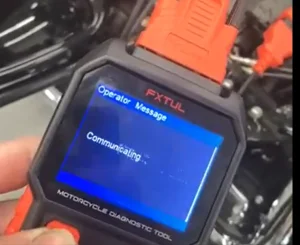

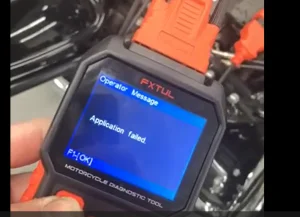

Interesting tool but will not perform abs brake like it should even with latest update, updated twice to be sure. Would do front brakes on 2020 softail but not the rear and would not work at all on 2021 Streetglide. I reached out to FXTUL and they were going to discuss it with the engineers but did not hear anything back for several days. Does have the capability to read and clear codes but on Harley only. The OBD2 side can read vehicle codes but cannot clear them. It may work for older J1850 bikes for a scanner and abs brake bleeding but will not do so correctly on 2020 up models from my experience.

Chapman V.

I've been using the M4-ASIA motorcycle diagnostic tool in my workshop for a few months now, and it's been a game-changer. It supports all the major Asian brands like Honda, Yamaha, Kawasaki, SYM, and KYMCO, and the connection process is fast and stable. The interface is clean and easy to use, even for technicians who aren’t very tech-savvy. I especially like the service functions like TPI Reset, Idle Adjustment, and Throttle Learning ?they’ve saved us a lot of time. The software updates are regular and customer support is responsive. Highly recommended for any professional motorcycle repair shop.

Specifications

BrandFXTUL
Weight1800 g
Applicable ModelsHarley Softail, Sportster, Touring, Trike, Dyna, Street, VRSC V-Rod
Supported SystemsECM, ABS, SPEEDO, IPC, BCM, LHG/RHG, TSM, SCM, TACHO, RADIO, EHCU
Diagnostic FunctionsModule info, read/clear codes, live data
Actuator TestsFuel pump, idle valve, front/rear ignition coils, throttle sweep, exhaust valve motor, coolant pump, fan A/B, chassis fan, ABS pump motor/solenoids, etc.
Service FunctionsIdle adjustment, AFV reset, module replacement, auto decompression, side stand switch, EITMS, oil cooler fan, cruise control
Vehicle IdentificationSmart identification by VIN
Software UpdatesFree lifetime updates, one-time purchase for permanent use
Vehicle CoverageMainstream Harley-Davidson motorcycle families (systems/functions depend on vehicle configuration)

Details

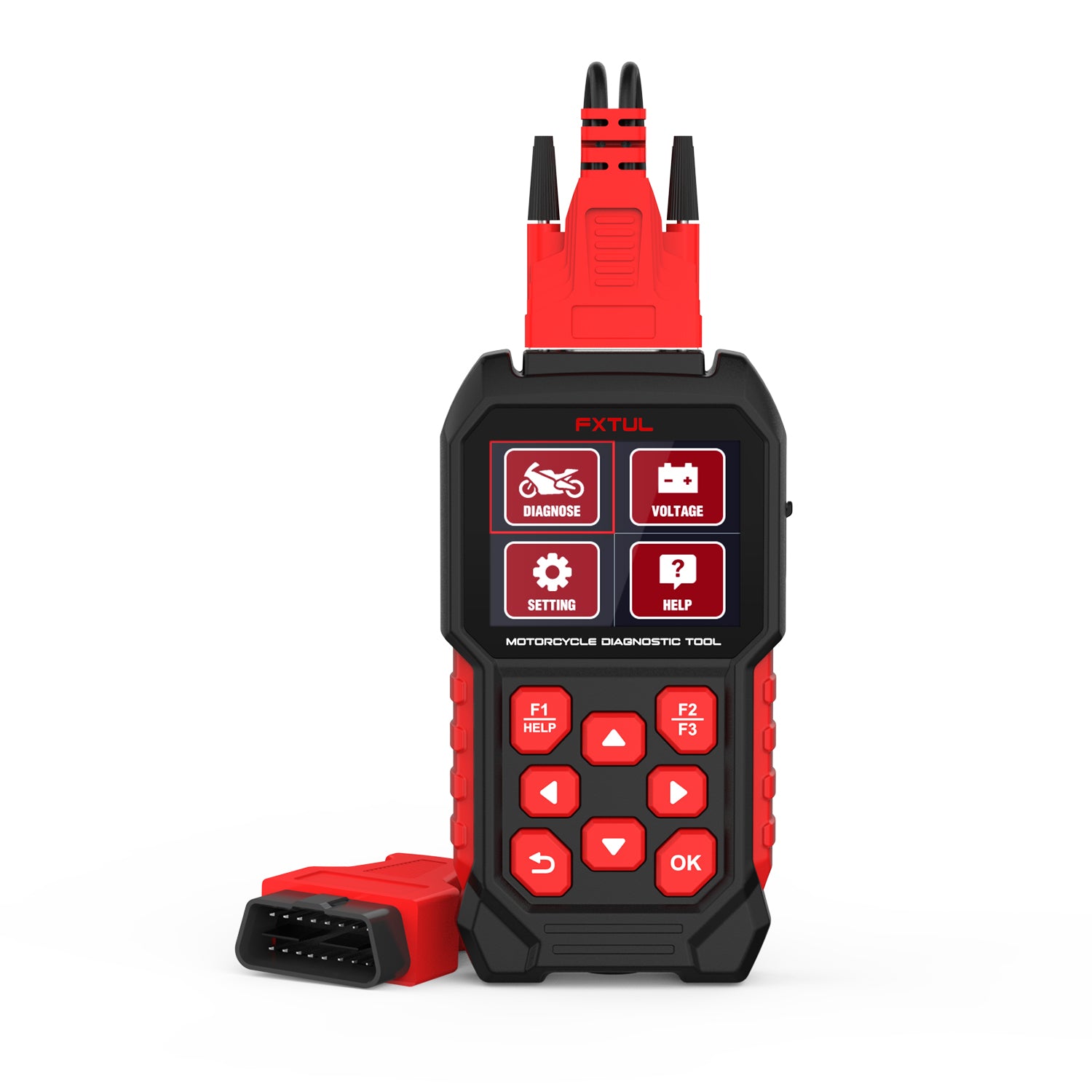

Test and Service Harley-Davidson Motorcycles by VIN

The FXTUL M4-HD covers Softail, Sportster, Touring, Trike, Dyna, Street and VRSC V-Rod families. If the model is not in the list, it can identify the bike from its VIN, then read codes, run actuator tests and perform service routines.

  • Harley-Davidson Only
  • VIN Identification
  • 12 Systems
  • ABS Solenoid Tests
  • One-Time Purchase

Key Features

  1. 12 Control Modules

    Reaches ECM, ABS, speedometer, instrument cluster, BCM, left and right hand grips, turn signal module, security module, tachometer, radio and the electro-hydraulic control unit.

  2. Engine Actuator Tests

    Run the fuel pump, idle air control valve, front and rear ignition coils, air cleaner intake valve and exhaust flap servomotor, or sweep the throttle actuator through its full travel.

  3. Cooling System Checks

    Switch the cooling pump or relay, fan A, fan B and the chassis fan on demand to confirm the cooling circuit.

  4. ABS Component Tests

    Operate the ABS pump motor and the front and rear apply and release solenoids to verify the hydraulic unit.

  5. Service Functions

    AFV reset, idle speed adjustment, module replacement setup, automatic compression release, side stand switch, EITMS, oil cooler fan, chassis fan cooler and cruise control.

  6. Module Information

    Shows hardware and software versions and serial numbers for each module.

M4-HD vs Other M4 Versions

M4-HD M4-BMW M4-DUC M4-EU / M4-Asia
Brand coverage Harley-Davidson BMW Ducati 10 brands each

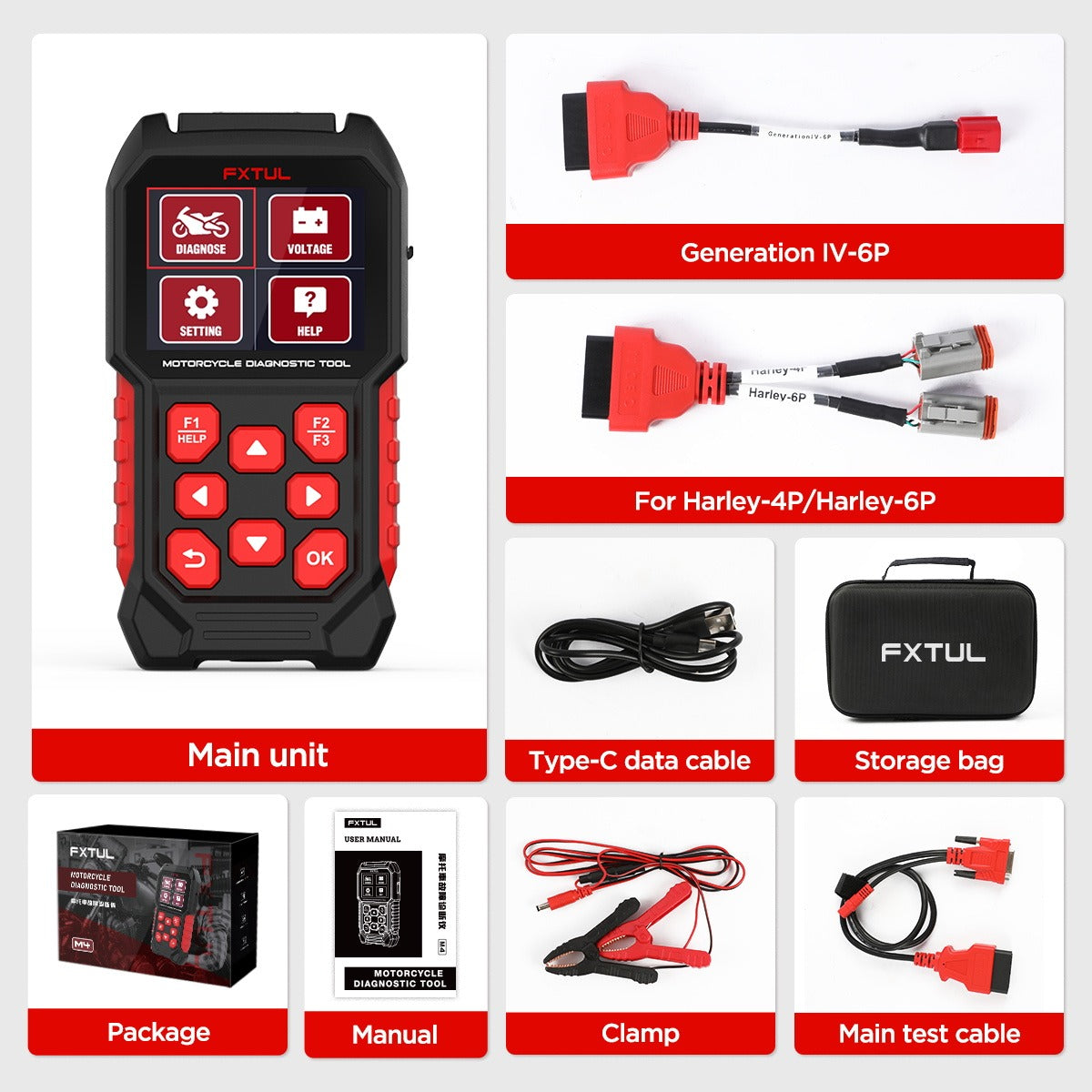

Connecting cables 5 4 5 10
Screen 2.8-inch 2.8-inch 2.8-inch 2.8-inch

How to Use

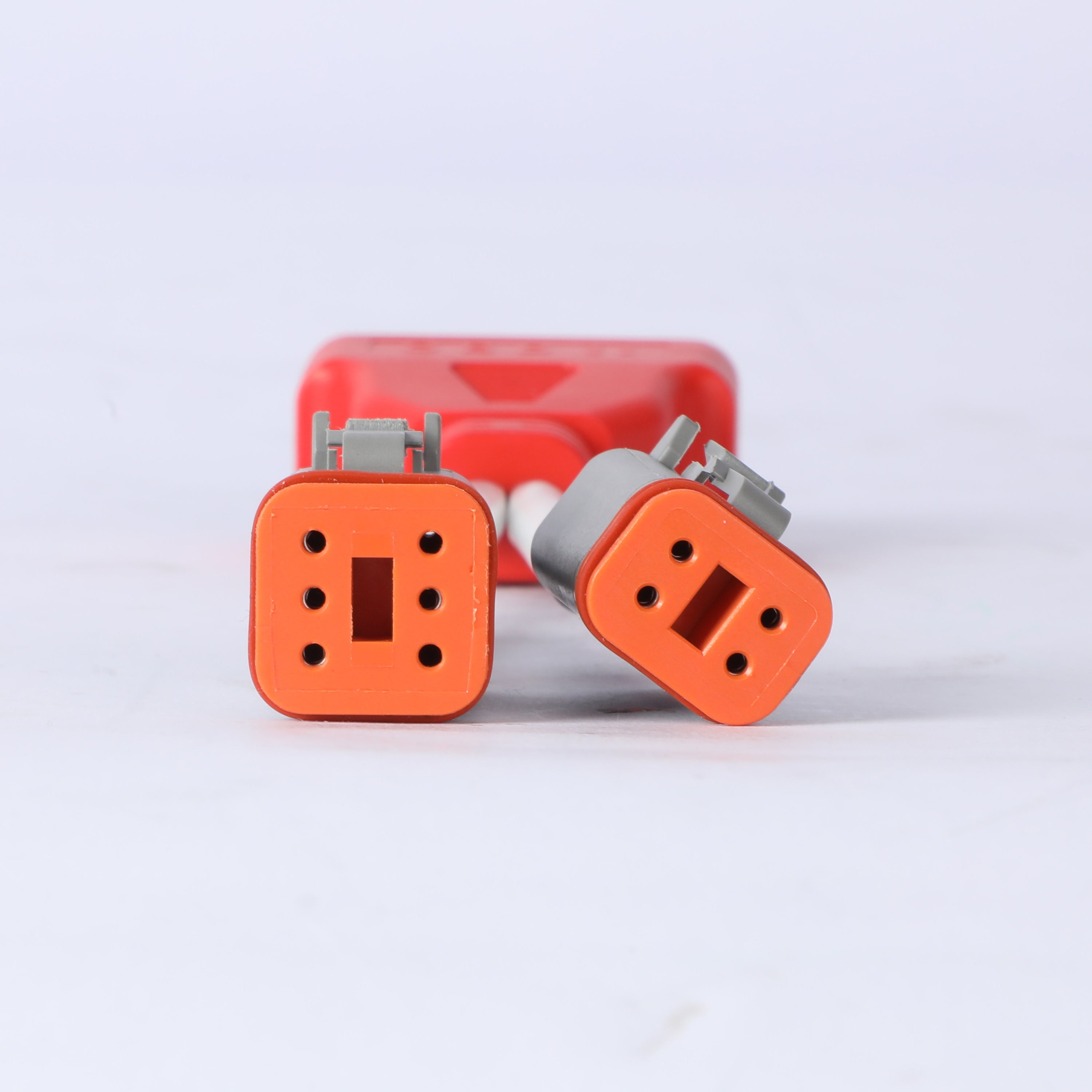

  1. ConnectAttach the M4-HD to the motorcycle's diagnostic connector with the Harley cable.
  2. Select the bikeOpen Diagnose and choose the model family, or select VIN identify if the model is not listed.

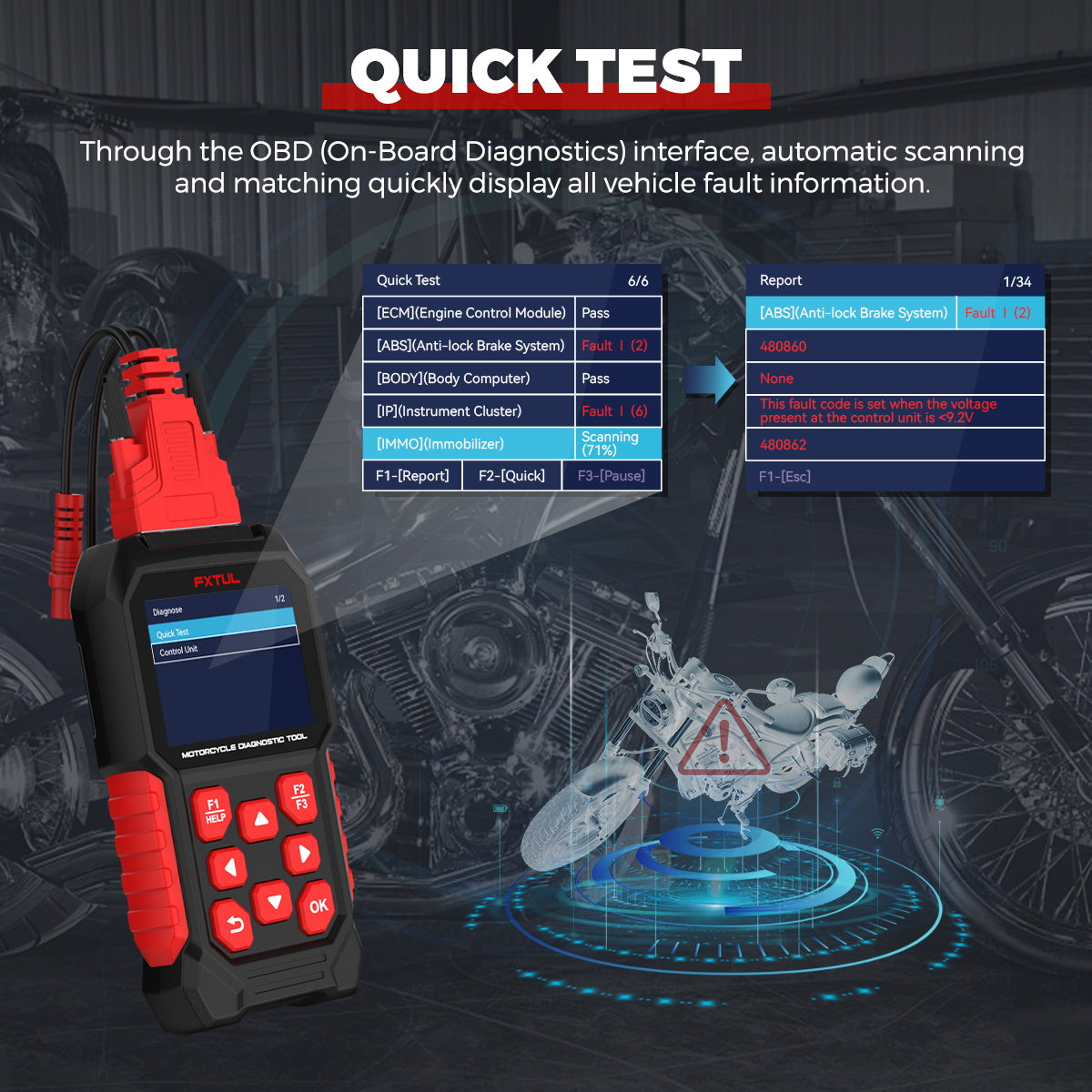

  3. ScanUse Quick Test for all systems or Control Unit for a single module.
  4. Test or serviceRead live data such as engine speed and temperature, run an actuator test or start a service function.

Full menu walkthrough: FXTUL M4 user manual (PDF)

Updates & Support

Software updates
Free lifetime updates; one-time purchase for permanent use
Update package
Dedicated M4 Harley package
Update method
Connect to a computer by USB, replace the DIAGNOSE folder on the new drive with the downloaded one, then power on again

Good to Know

Caution
  • Systems and functions depend on the equipment fitted to each motorcycle; check your bike's configuration first.
  • The USB port runs on 5V and is meant only for updating from a computer; a fast charger above 5V can damage the tool.

You may also like

Select specifications

Offers

  • 10%
    10% off AUTOOL & MRCARTOOLBrands: AUTOOL, MRCARTOOL, FXTUL, CMTOOL, DUOYI · United States, United Kingdom and Australia only. Cannot be combined with other coupons.Code: AB10OFF

Offers are applied at checkout according to the store rules.

Delivery

Ships in 1-3 business days

Payment methods

  • Credit / Debit CardVisaMastercardAmerican Express
  • PayPalPayPal
  • Apple PayApple Pay
  • Google PayGoogle Pay
  • LinkLink
  • iDEAL | WeroiDEAL | Wero
  • BancontactBancontact
  • EPSEPS
  • Przelewy24Przelewy24
  • BancontactBancontact
  • BlikBlik
  • EPSEPS
  • iDealiDeal
  • MyBankMyBank
  • Przelewy24Przelewy24
  • TrustlyTrustly
  • MultibancoMultibanco

Available methods may vary by currency and billing country; the final list is shown at checkout.

Service

  • Secure checkout

    Payments are processed over an encrypted connection.

  • After-sales support

    Contact us for installation or usage questions.

Specifications

Brand
FXTUL
Weight
1800 g
Applicable Models
Harley Softail, Sportster, Touring, Trike, Dyna, Street, VRSC V-Rod
Supported Systems
ECM, ABS, SPEEDO, IPC, BCM, LHG/RHG, TSM, SCM, TACHO, RADIO, EHCU
Diagnostic Functions
Module info, read/clear codes, live data
Actuator Tests
Fuel pump, idle valve, front/rear ignition coils, throttle sweep, exhaust valve motor, coolant pump, fan A/B, chassis fan, ABS pump motor/solenoids, etc.
Service Functions
Idle adjustment, AFV reset, module replacement, auto decompression, side stand switch, EITMS, oil cooler fan, cruise control
Vehicle Identification
Smart identification by VIN
Software Updates
Free lifetime updates, one-time purchase for permanent use
Vehicle Coverage
Mainstream Harley-Davidson motorcycle families (systems/functions depend on vehicle configuration)

Reviews13

4.8 / 5Based on 13 reviews
4 ★0
2 ★0
1 ★0
Luis

ABS bleeds works perfect with my FATBOY M8 114. No vin binding and no internet connection. !

Ed

Interesting tool but will not perform abs brake like it should even with latest update, updated twice to be sure. Would do front brakes on 2020 softail but not the rear and would not work at all on 2021 Streetglide. I reached out to FXTUL and they were going to discuss it with the engineers but did not hear anything back for several days. Does have the capability to read and clear codes but on Harley only. The OBD2 side can read vehicle codes but cannot clear them. It may work for older J1850 bikes for a scanner and abs brake bleeding but will not do so correctly on 2020 up models from my experience.

Chapman V.

I've been using the M4-ASIA motorcycle diagnostic tool in my workshop for a few months now, and it's been a game-changer. It supports all the major Asian brands like Honda, Yamaha, Kawasaki, SYM, and KYMCO, and the connection process is fast and stable. The interface is clean and easy to use, even for technicians who aren’t very tech-savvy. I especially like the service functions like TPI Reset, Idle Adjustment, and Throttle Learning ?they’ve saved us a lot of time. The software updates are regular and customer support is responsive. Highly recommended for any professional motorcycle repair shop.

ROBERT L.

This Harley motorcycle diagnostic tool is easier to use than I expected. I like its appearance. During the process, I encountered several problems. The customer service staff Winnie actively helped me via email, and I also successfully used the service function.

Valentine

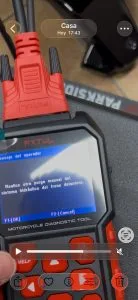

Herramienta muy completa, no necesita vinculacion a VIN o internet. Acaban de actualizar a version con funcionalidad de ABS BLEED de harley. Muy contento de momento

Luis P.

Product apparently of good quality.

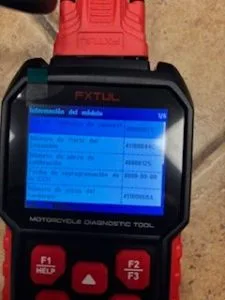

It can read the modules of my 2021 Fatboy HD without any issues. I haven’t tested more functions yet. I’m waiting for the ABS Bleed function to be available so I can do brake fluid changes at home. The device offers free updates and is not linked to your VIN. So far, the support has been good and they resolve your questions efficiently.

Jack B.

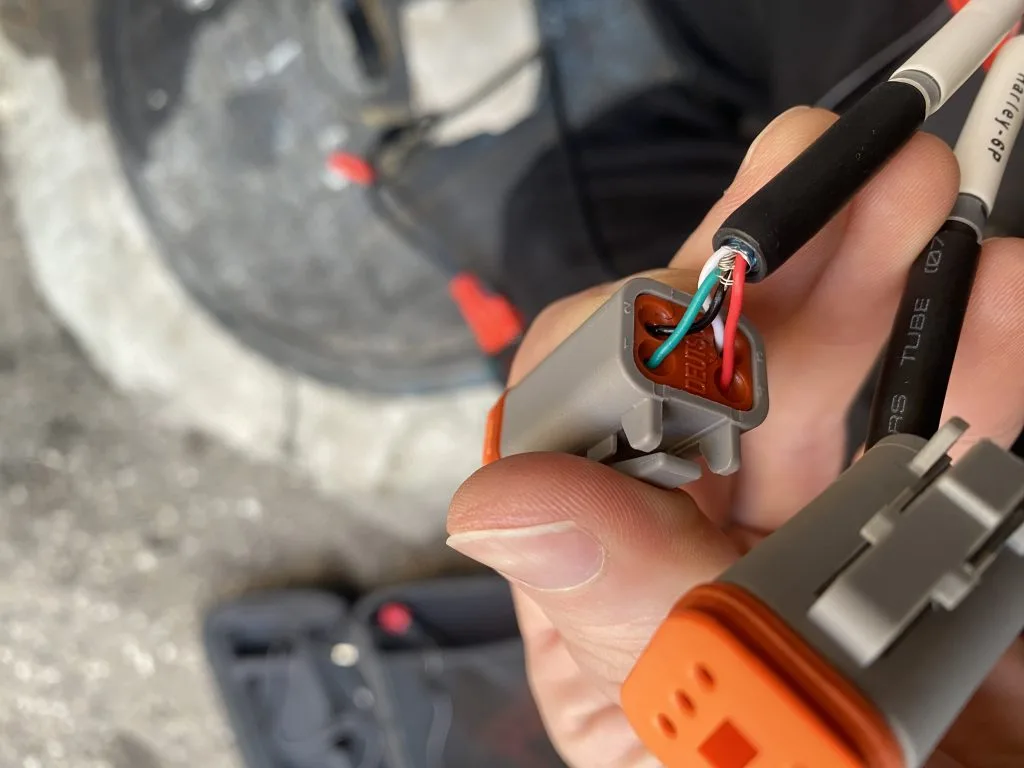

The product works well and is easy to use. But some of the cables for the connectors are showing exposed wire

Jack

It works great for resetting the service light on Harley-Davidson motorcycles! Plus, it’s very affordable—getting lifetime free software at this price is a real bargain.

Andrew R.

Works perfectly on my 2019 softail, I bought it because of the abs bleed capabilities and it does it without any problems.

Selena F.

This diagnostic tool is a game-changer for Harley maintenance — fast fault reading, live data streaming, and deep system checks. Easy to use and great value, it saved me time and money versus dealer diagnostics. Works on multiple Harley models and gives accurate, reliable results every time!
