70W Ultrasonic Cleaner for Car and Motorcycle Fuel Injectors
The FXTUL UNT50 strips carbon deposits from fuel injectors in a timed ultrasonic bath, with a pulse line connected to the injectors during cleaning. The 130 ml tank holds eight motorcycle injectors at a time and can also take small parts that fit.
- 70W Ultrasonic
- 28 kHz
- 0–20 min Timer
- 8 Injectors per Load
- AC 110V / 220V
Key Features
-

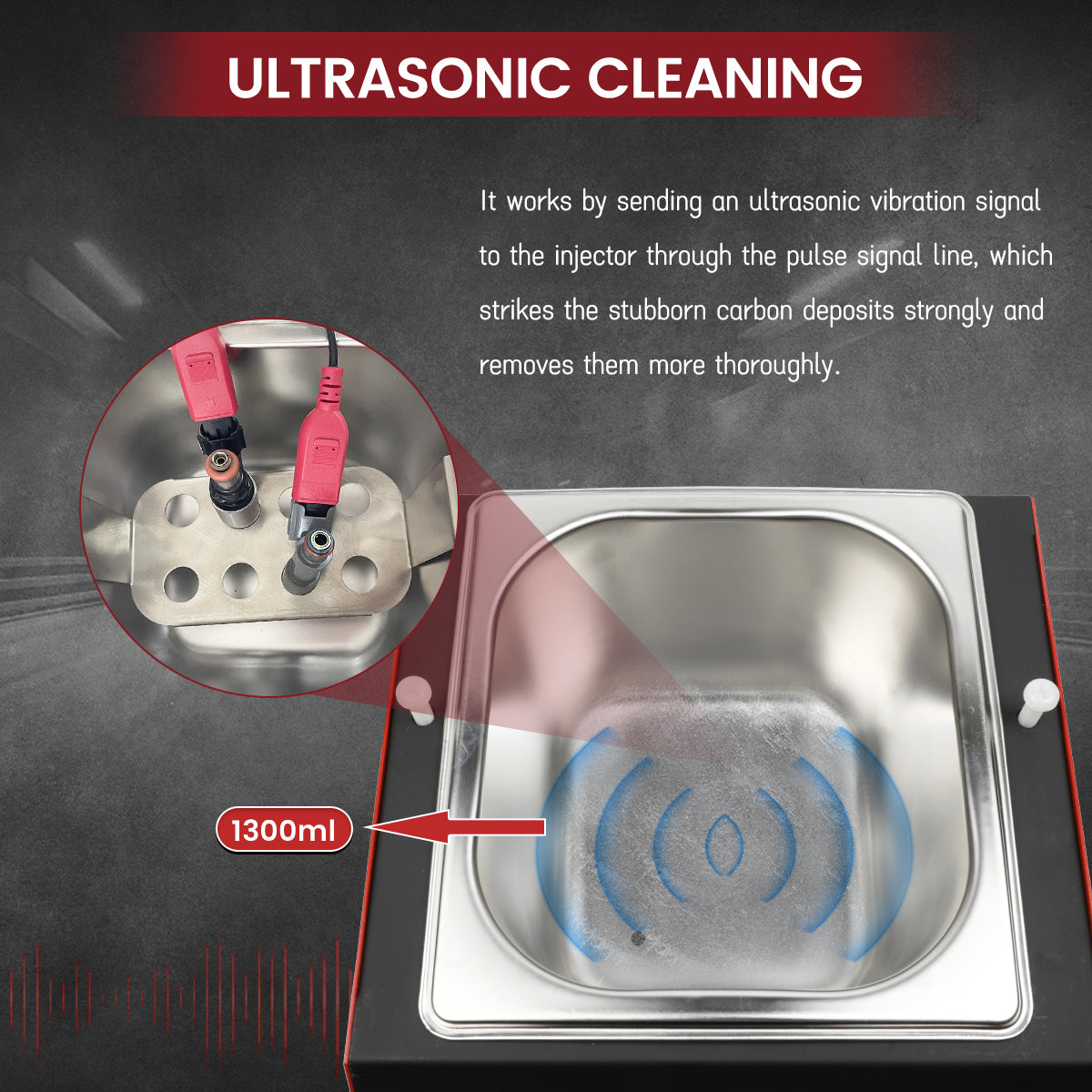

Ultrasonic Deposit Removal
Microcomputer-controlled ultrasonic vibration removes carbon from injectors, a common cause of hard starts, unsteady idle, black smoke, weak power and slow throttle response.
-
Eight Injectors at Once
Injectors stand in a cleaning bracket inside the bath, eight motorcycle injectors per load.
-
Timed Cleaning
Set the run time to match how dirty the injectors are; the unit stops on its own when time is up.
-

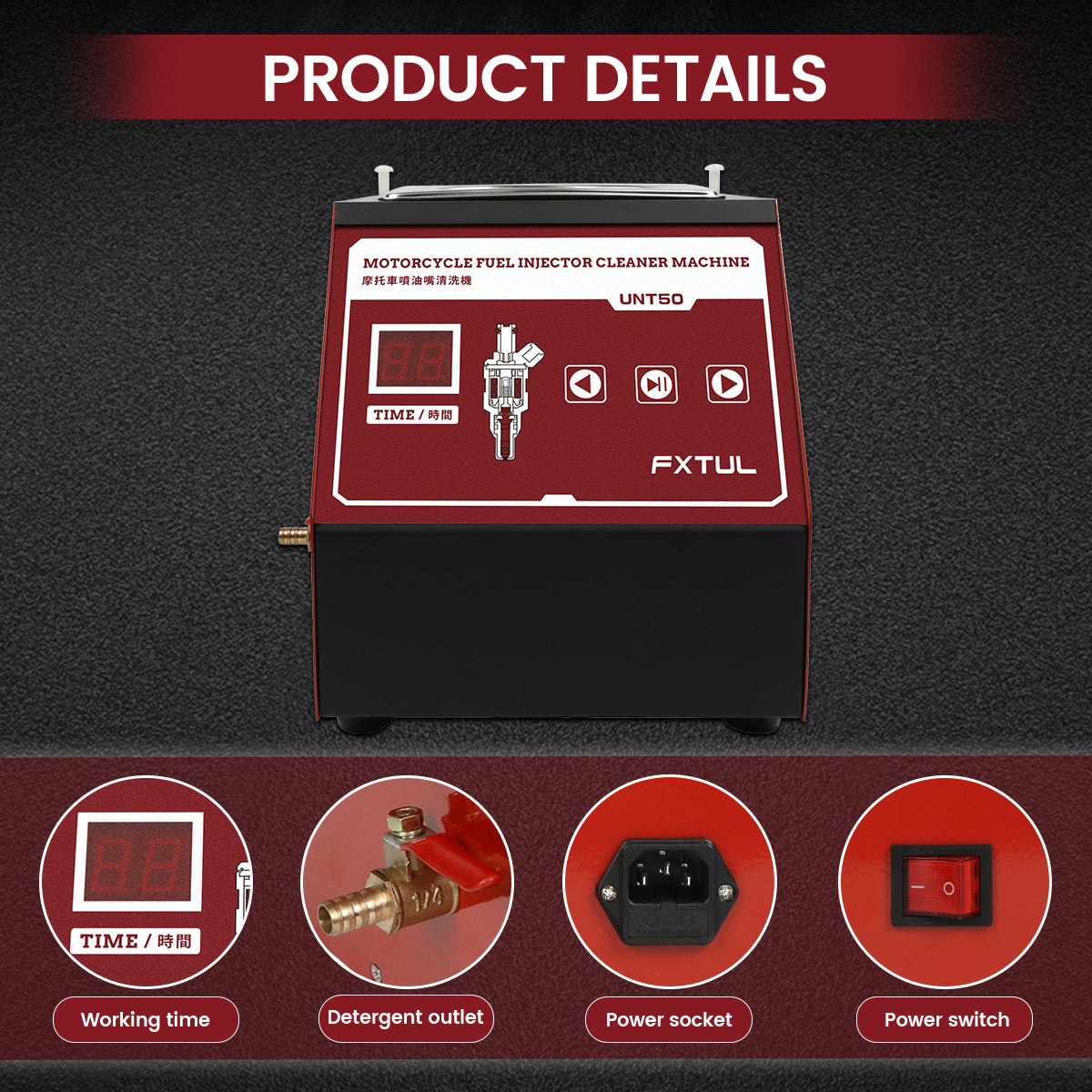

Drain Outlet
Used cleaning fluid drains from an outlet on the unit instead of being tipped out.
More Specifications
| External magnetic field | Below 400 A/m |
|---|---|
| Clearance | More than 200 mm from walls or other objects |
| Power socket | Must be grounded |

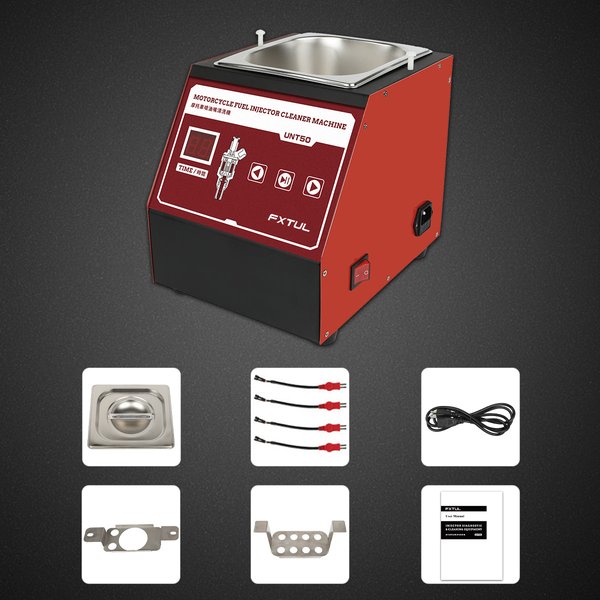

What’s in the Box
- 1×UNT50 main unit
- 1×Cleaning bracket
- 1×Power cord
- 1×Instruction manual
- 1×Certificate
How to Use
- Power upPlug the unit into a grounded socket and switch it on.
- Connect the pulse lineAttach the pulse signal line to the injectors.
- Load the bracketSeat the cleaning bracket on its positioning nut in the bath and put the injectors in its holes.
- Add cleaning fluidPour in injector cleaner until the needle valves are covered by about 20 mm.

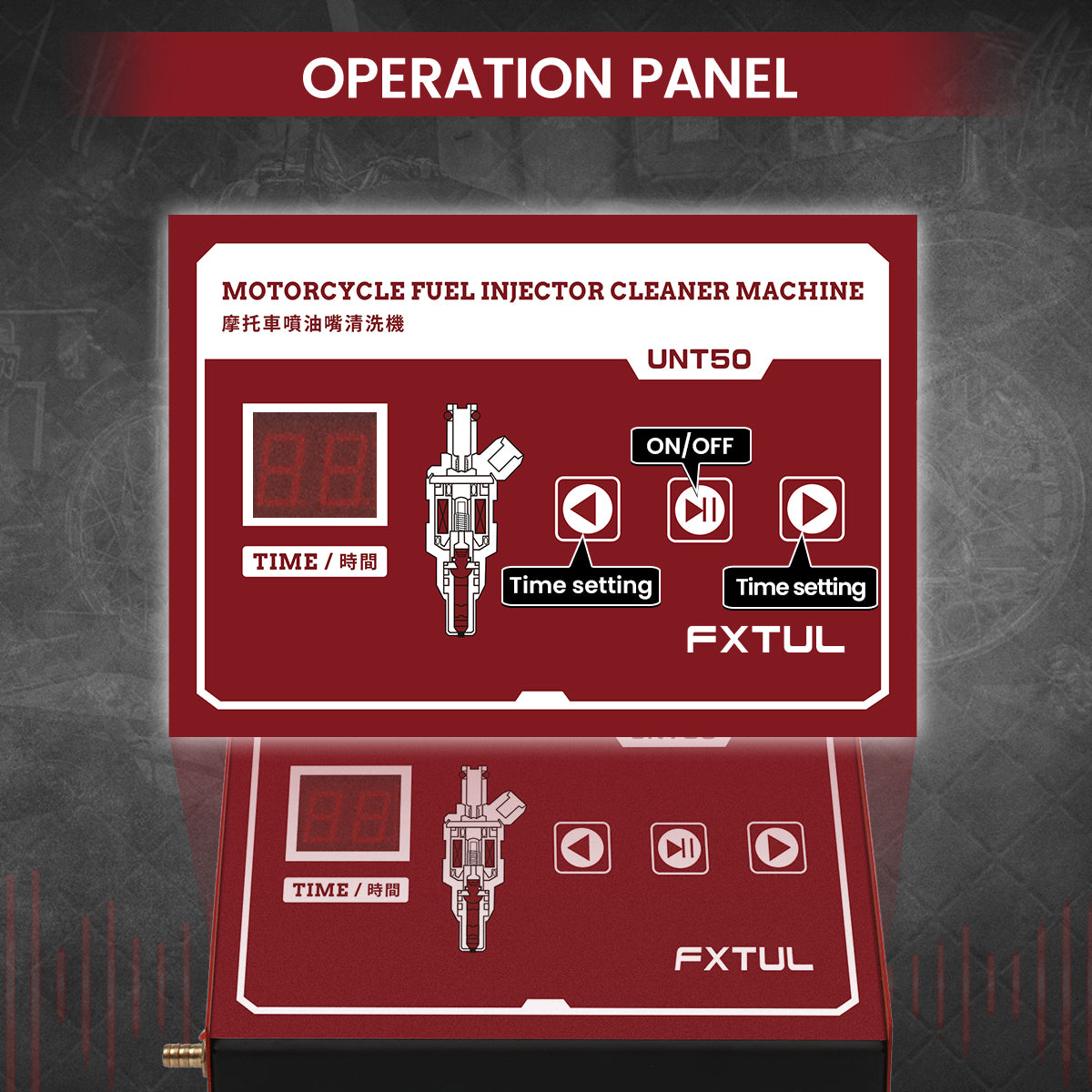

- Set the timeUse the arrow keys to set the cleaning time.
- CleanPress start; the unit stops automatically when the time runs out.
- DrainLet the used fluid out through the drain port.
Full operating details: UNT50 User Manual (PDF).
Good to Know
Caution
- Never switch on the ultrasonic system with an empty tank; this damages the transducer.
- Do not use the unit if the power cord is damaged.
- Keep open flames at least 2 m away and do not run the unit near open containers of gasoline.
Care
- Drain the tank before moving the unit, keep it upright within 45° and never turn it upside down.
- Let the unit cool completely before storing it in a dry, ventilated place out of direct sunlight.
- If you need an extension cord, use one rated at least as high as the original cord.
