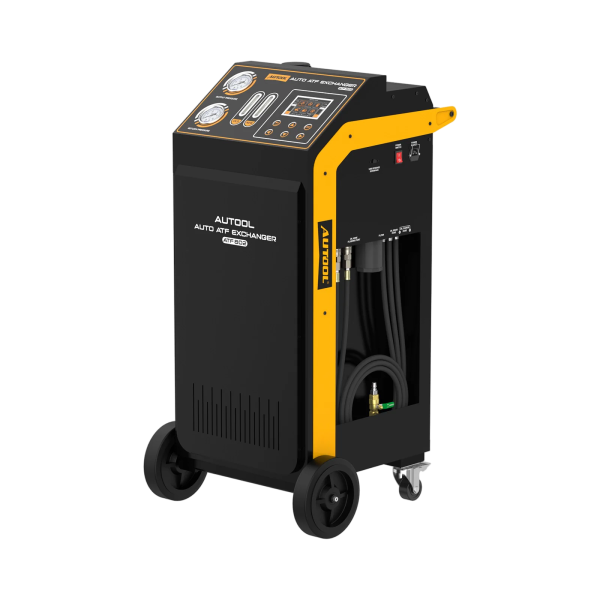

Guided ATF Exchange Through Separate Fresh and Used Fluid Pumps
The ATF802 detects the flow direction, balances fresh-fluid delivery against used-fluid recovery and walks you through each step on a 5-inch screen, with two mechanical gauges showing pressure. For automatic transmissions that support cooler-line exchange; set the final fluid level by the vehicle procedure.
- Dual Oil Pumps
- Auto Flow Direction
- Equal-Volume Exchange
- 5-Inch IPS Guidance
- USB-Updatable Database
Key Features
-

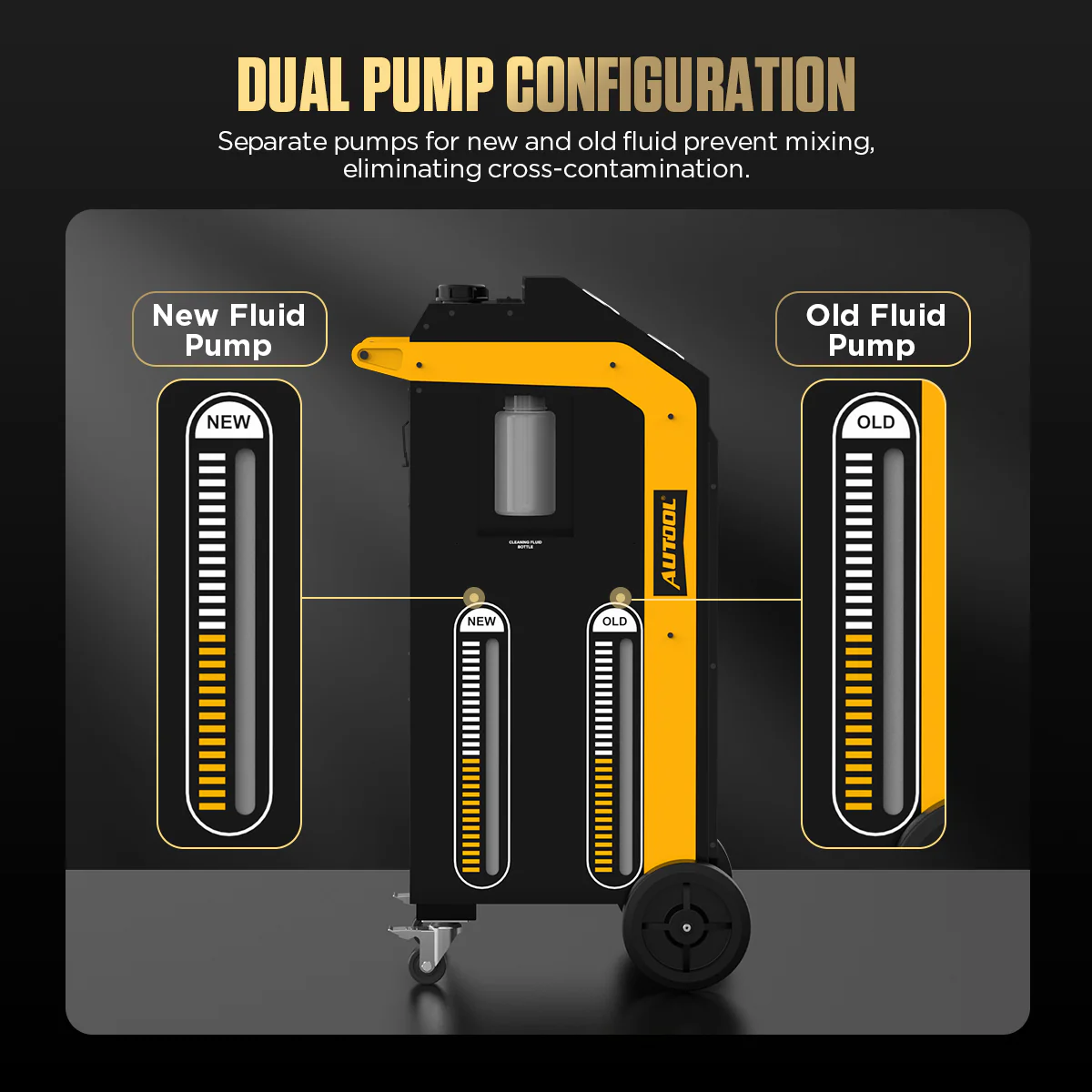

Separate Fresh and Used Paths
Two pumps handle delivery and recovery independently during automatic exchange.
-

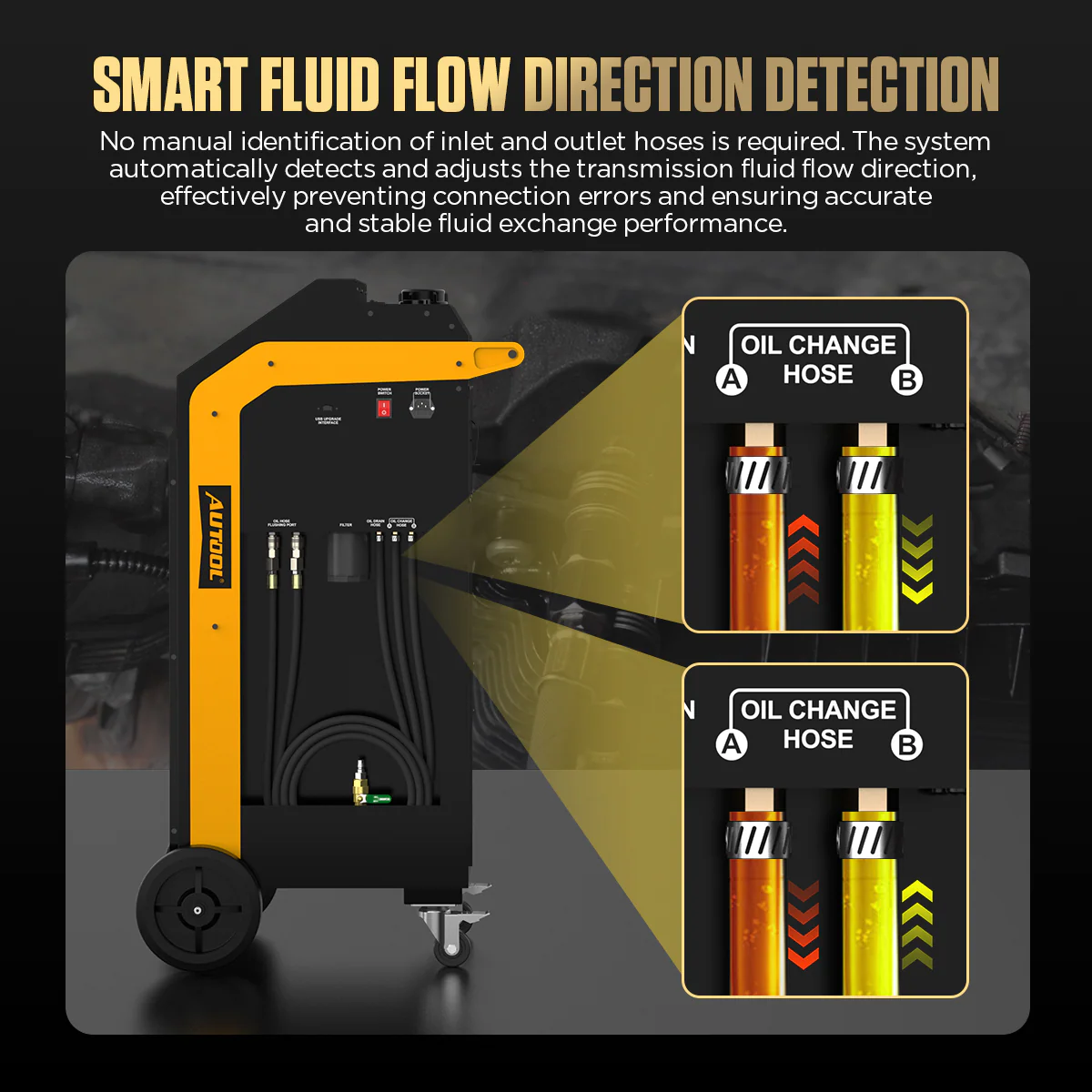

Automatic Flow Direction
Identifies the transmission-fluid inlet and return for the connected service route.
-
Automatic Equal-Volume Exchange
Balances new-fluid delivery and used-fluid recovery through the exchange sequence.
-
Automated Service Functions
Circulation cleaning, used-fluid recovery, new-fluid refilling, tank emptying and electric refilling of the new-oil tank.
-

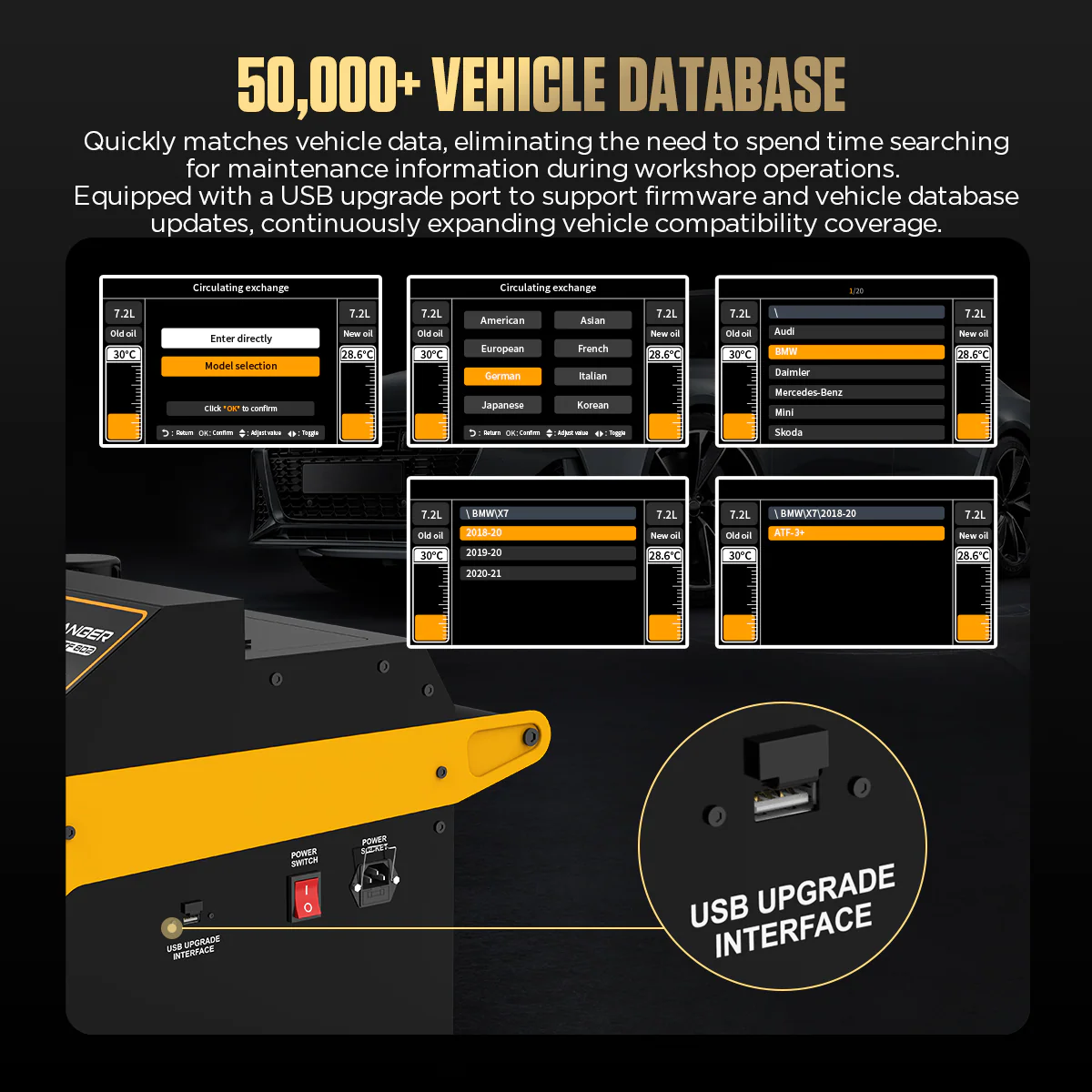

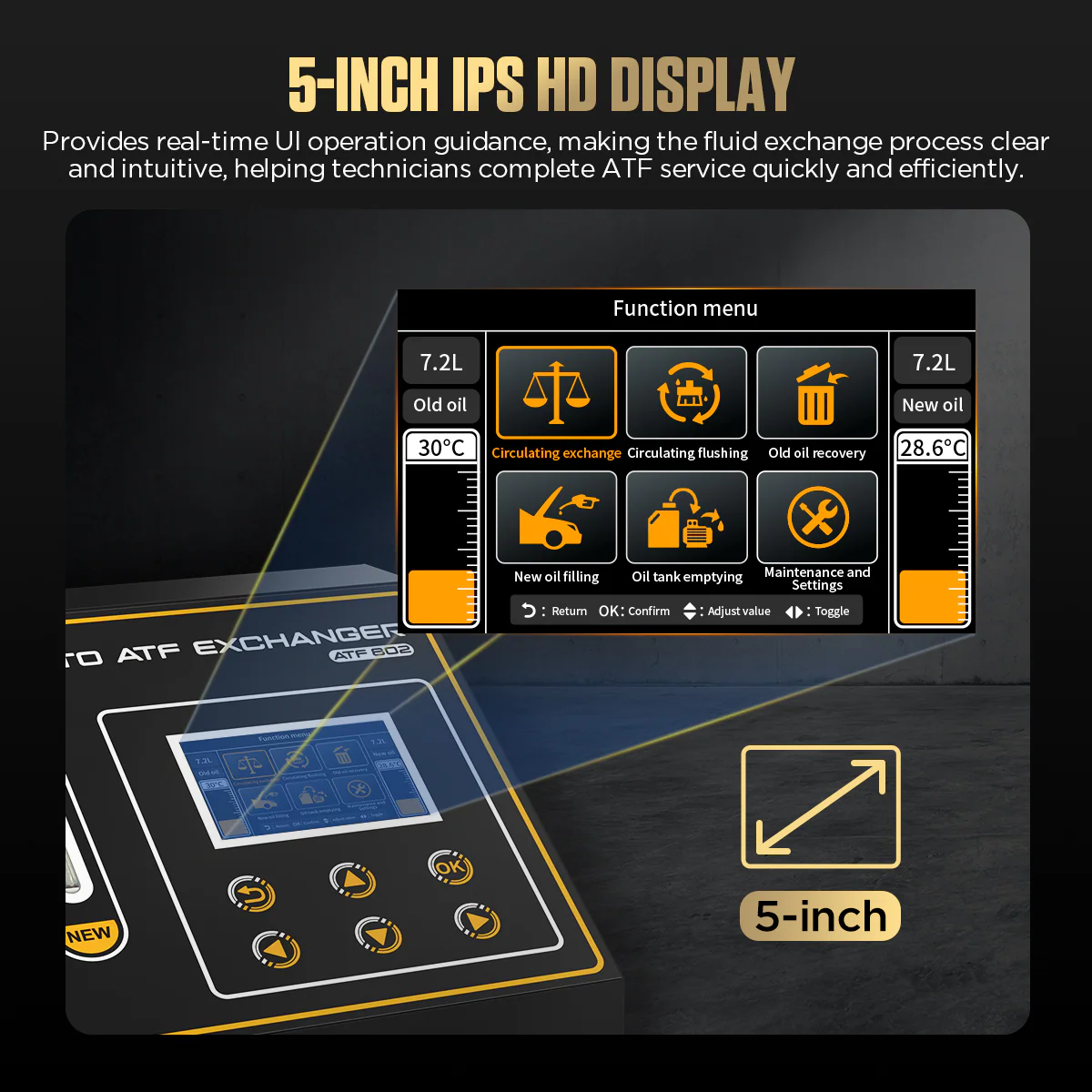

Vehicle Database
Select the vehicle and service on screen; the database updates by USB.
-

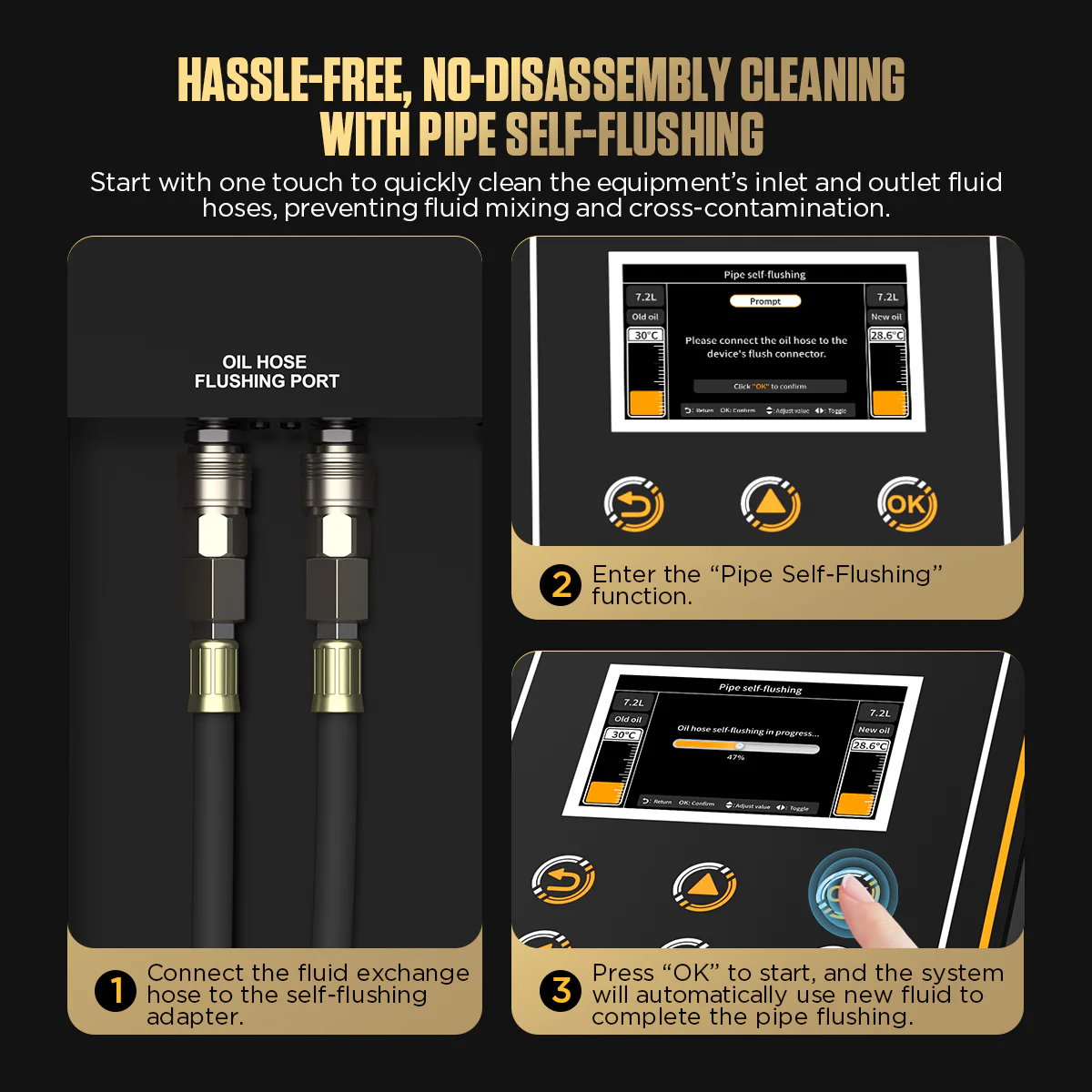

Line Self-Cleaning
Clears residual fluid from the machine lines between compatible services.
-

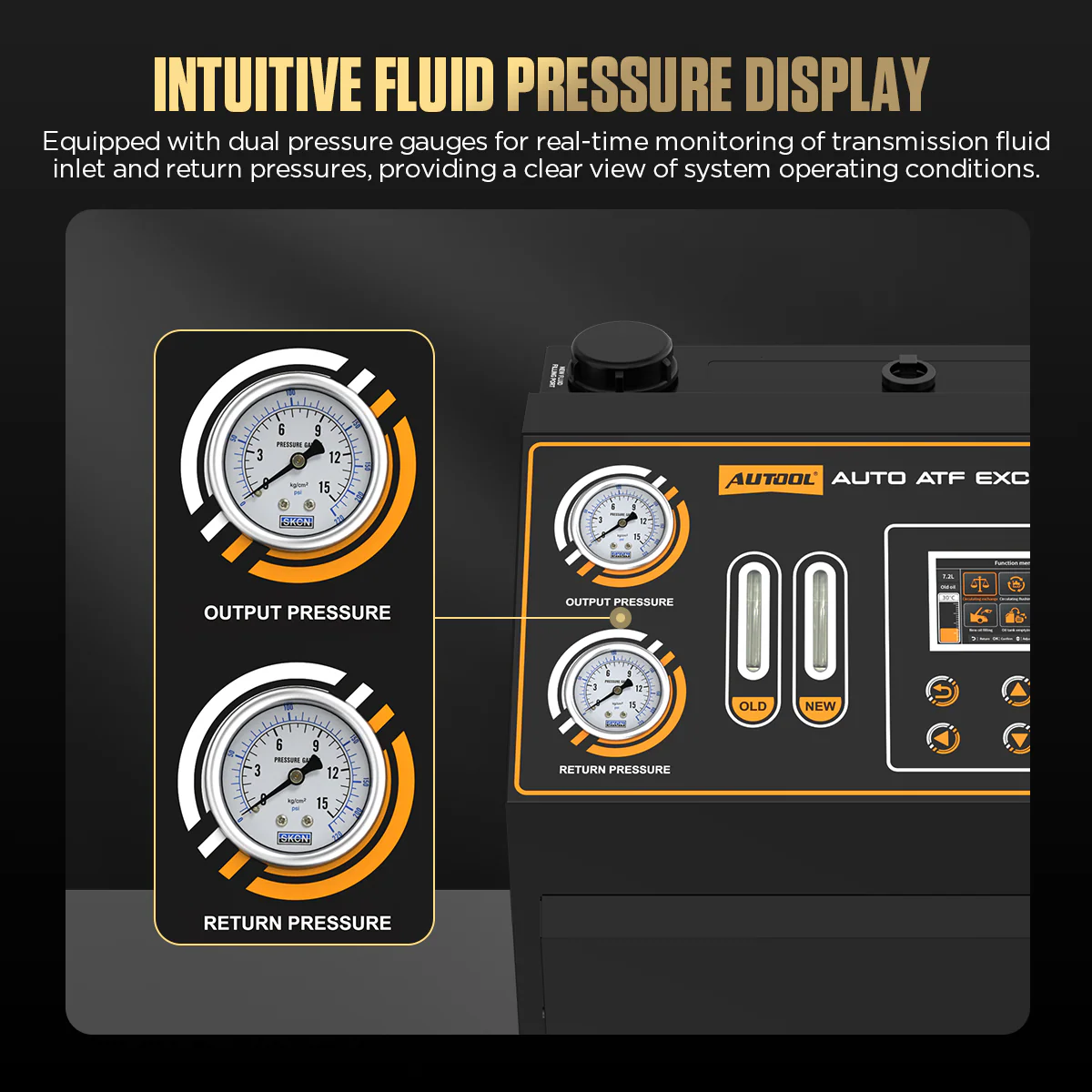

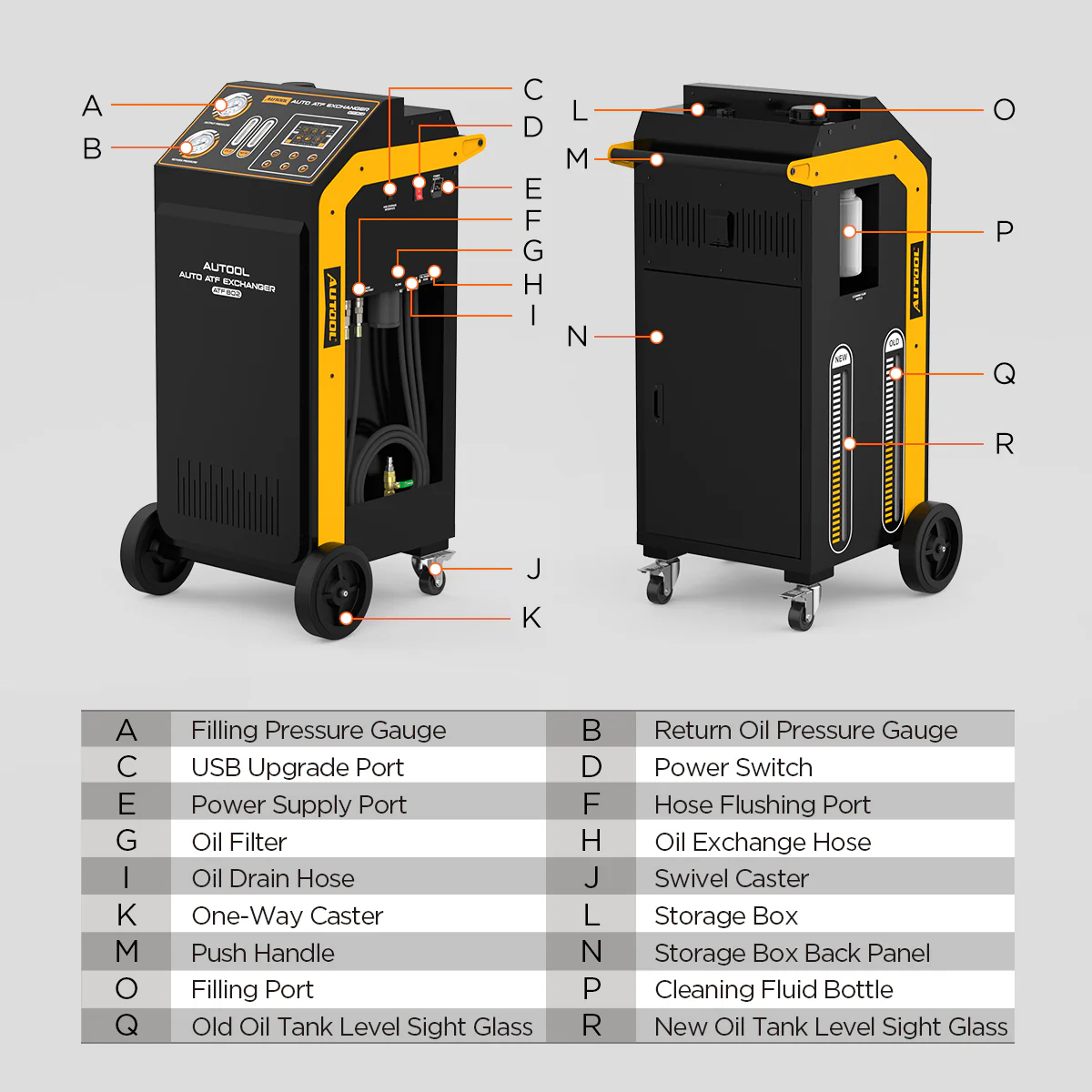

Visible Pressure and Fluid
Two gauges, backlit exchange and level windows, real-time tank level, buzzer alerts and a filter replacement reminder.
Model Comparison
| ATF702 | ATF705 | ATF802 | ATF805 | |
|---|---|---|---|---|
| Control | Mechanical | Electronic | Electronic | Electronic |
| Oil pump | Single | Single | Dual | Dual |
| Screen | None | 5-inch IPS | 5-inch IPS | 7-inch IPS |
| Circulating flushing | Manual | Manual | Automatic | Automatic |
| Exchange database | No | No | Yes | Yes |
| New-fluid heating and oil temperature display | No | No | No | Yes |
| Data printing | No | No | No | Yes |
| Net weight | 45.8 kg | 47 kg | 53 kg | 56 kg |

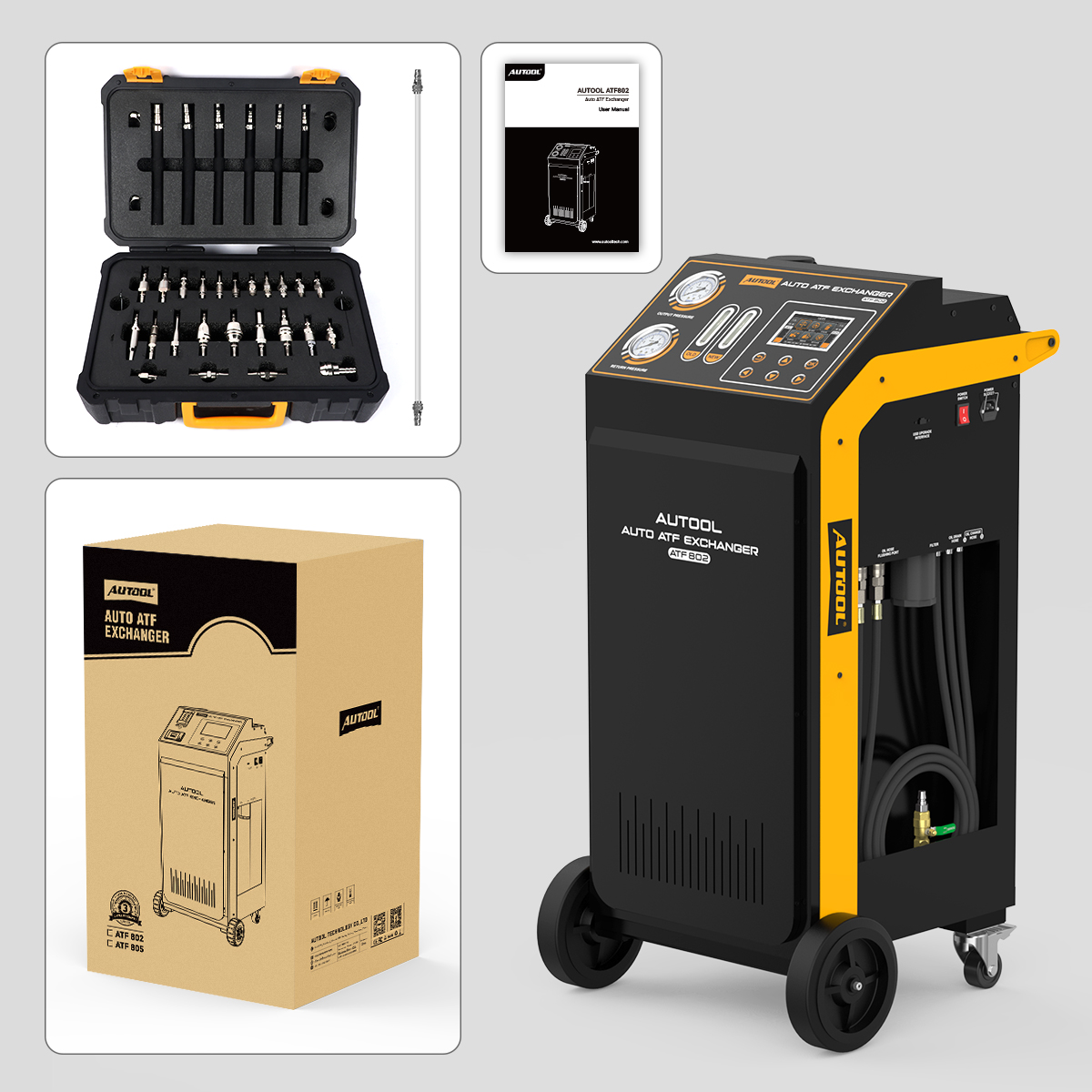

What’s in the Box
- ATF802 transmission fluid exchanger
- Transmission-fluid hoses and adapter set supplied with the selected order
- User manual
How to Use
- Confirm the vehicle procedureVerify the transmission supports a cooler-line exchange and identify the connection route.
- Prepare fluid and adaptersLoad the specified ATF, select matching adapters and keep new and recovered fluid separate.
- Connect and check for leaksSecure the vehicle, connect the inlet and return lines and inspect every joint.
- Run the selected functionUse the screen-guided exchange, circulation, recovery or refilling function while watching pressure, flow and tank level.
- Restore and verifyReconnect the vehicle circuit, set the final fluid level by the vehicle procedure and inspect for leaks.
Operation, database updates and troubleshooting: ATF802 user manual (PDF).
Good to Know
Caution
- Order the 110 V or 220 V AC version that matches your workshop supply and check the machine label before connecting.
- The machine does not replace the final level check: set the transmission fluid level at the vehicle-specified temperature and procedure.

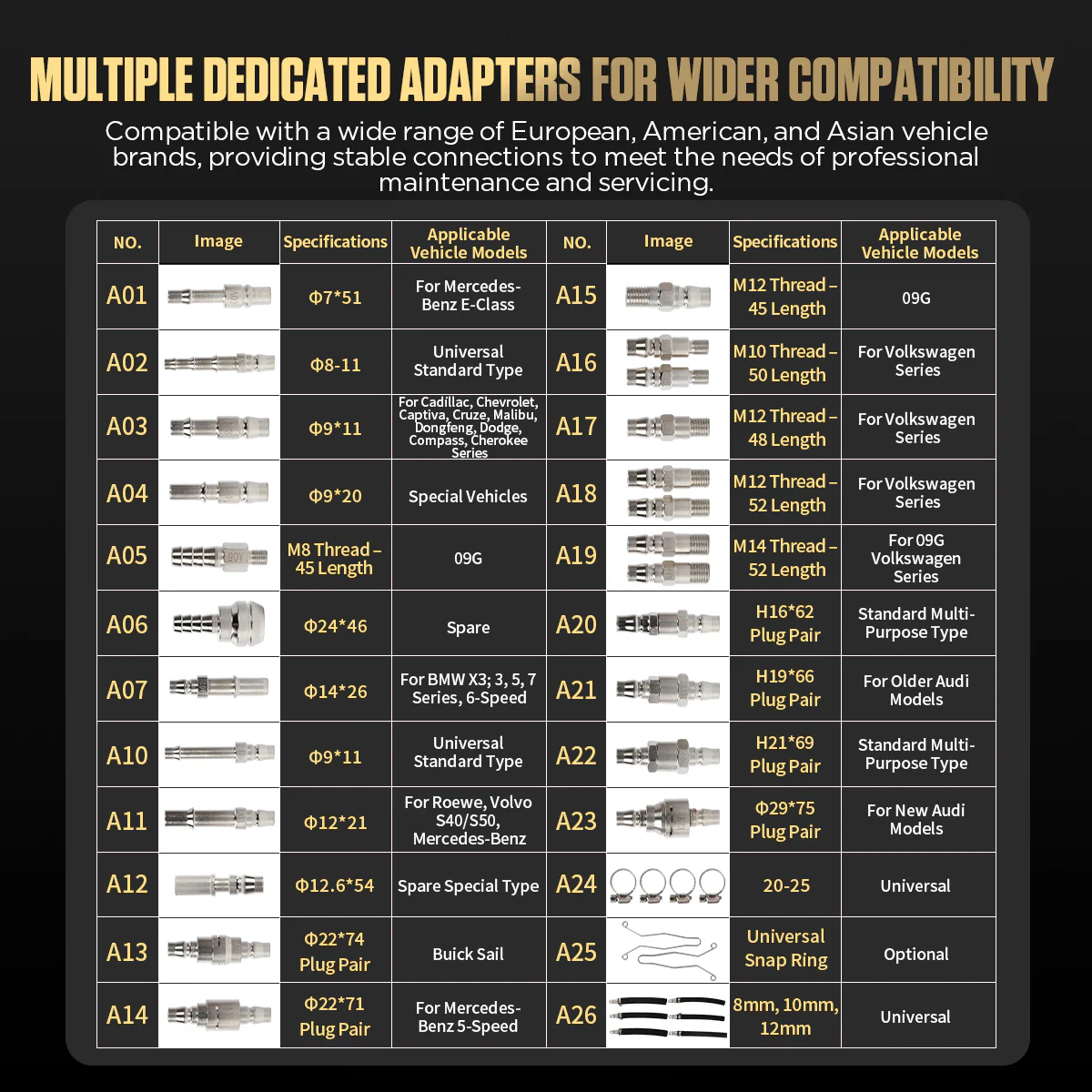

- Match the adapter and fluid route to the transmission service procedure before starting.
Care
- Identify the ATF and clean the machine paths before introducing a different compatible fluid.
- Watch pressure, fluid windows and tank level throughout the service.
