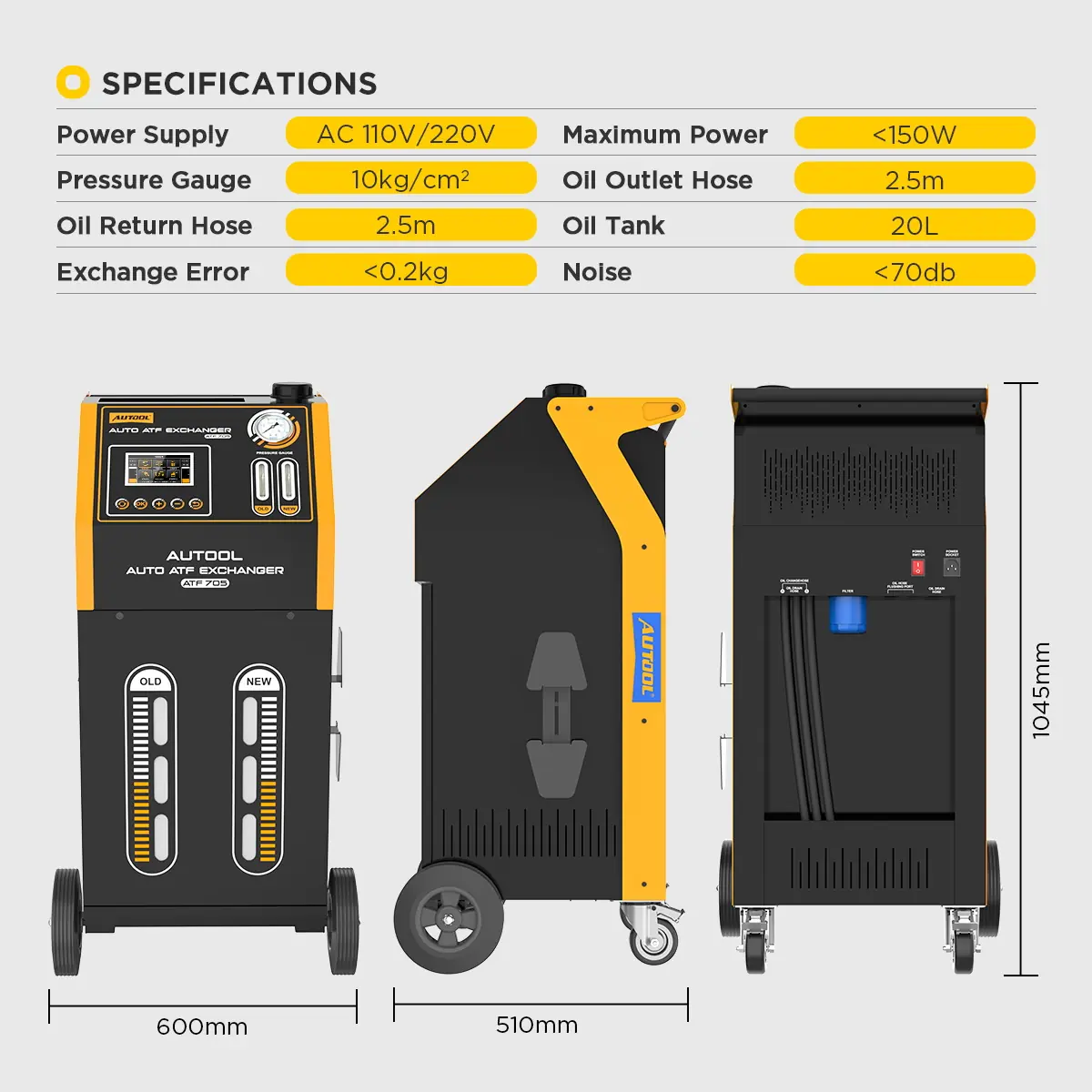

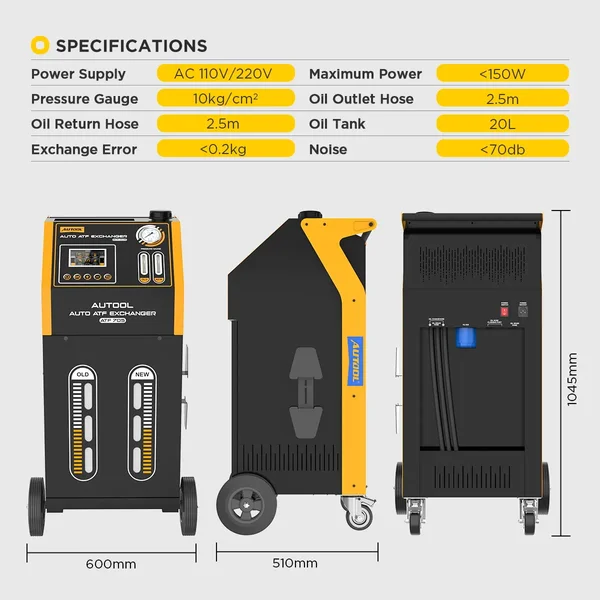

Specifications

BrandAUTOOL
Weight59500 g
Control ModeElectronic control, automatic detection of inlet/return flow direction
Exchange MethodAutomatic equal exchange, error <0.2 kg
Tank Capacity20 L, single oil pump
Display5-inch IPS, 9 languages
FunctionsSmart exchange, equal exchange, manual circulation cleaning, line self-cleaning, recovery, filling, draining
Pressure Gauge1 mechanical pressure gauge 10kg/cm²
HosesExchange hose 2.5 m, drain hose 1.5 m, power cord 3 m
Voltage / Power110V / 220V AC (by variant), max <150W
WeightNet 47 kg / gross 59.5 kg

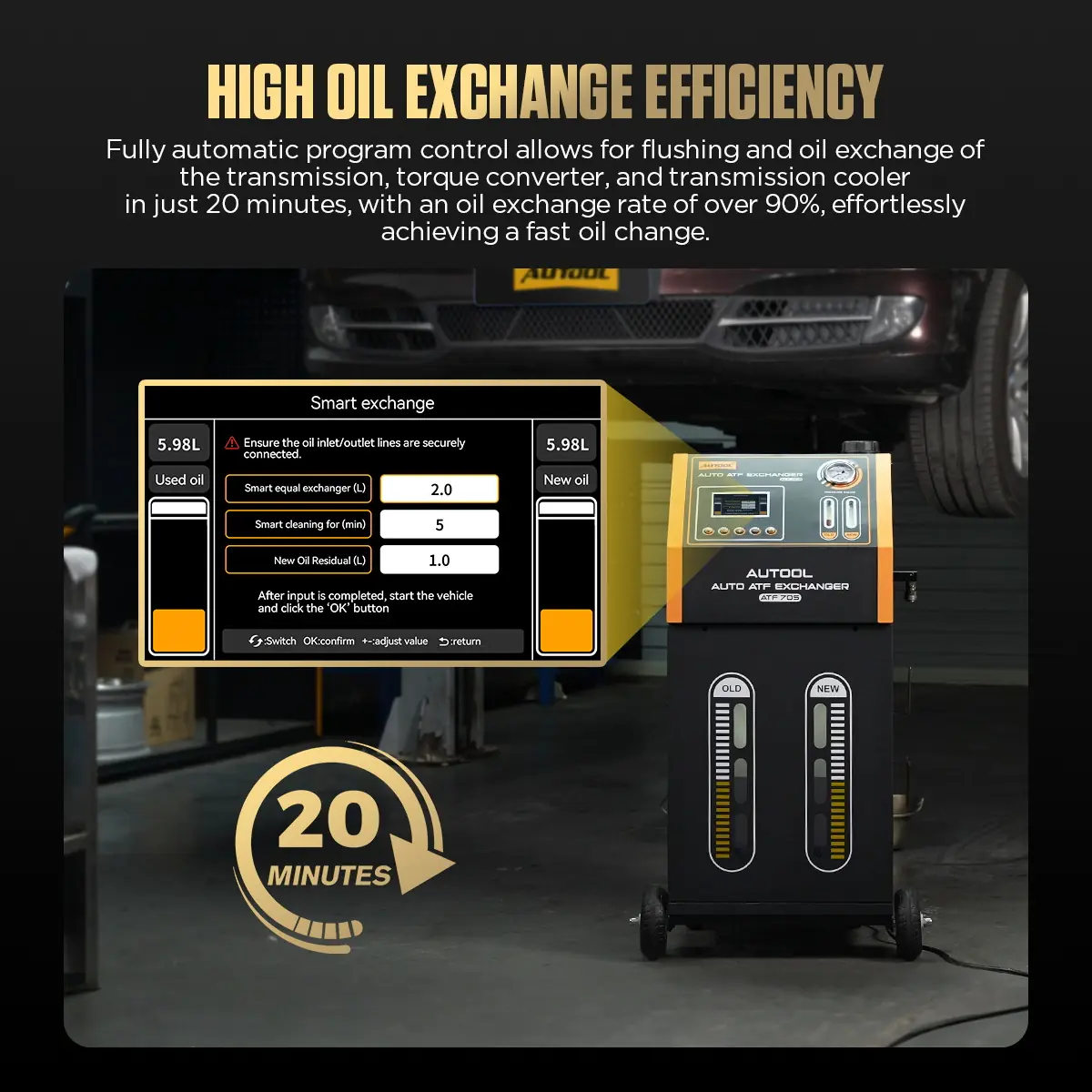

Fluid ExchangeApprox. 20 minutes, exchange rate >90%
CompatibilityAutomatic transmissions of European, American, Japanese, Korean, Chinese gasoline/diesel vehicles (adapter kit)

Details

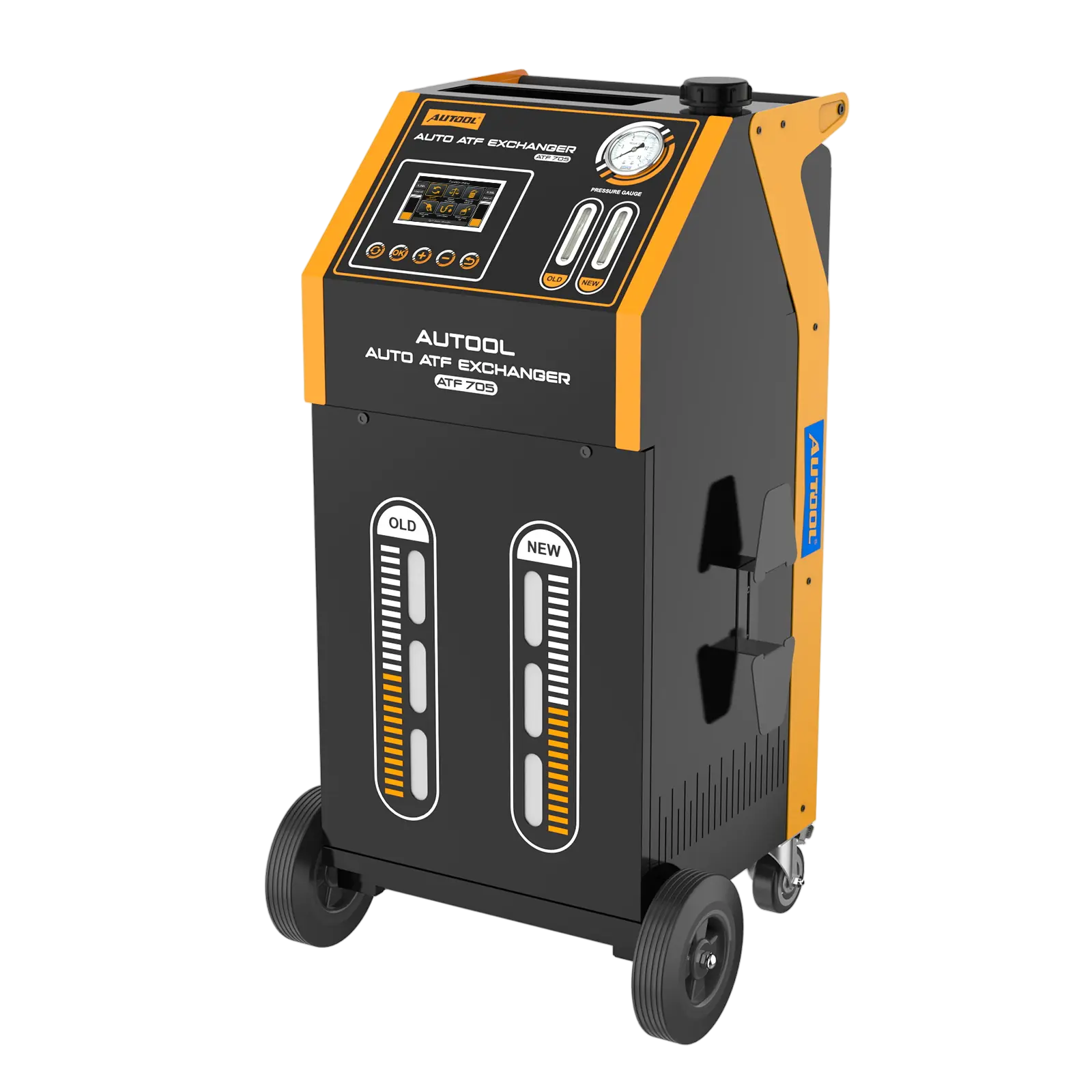

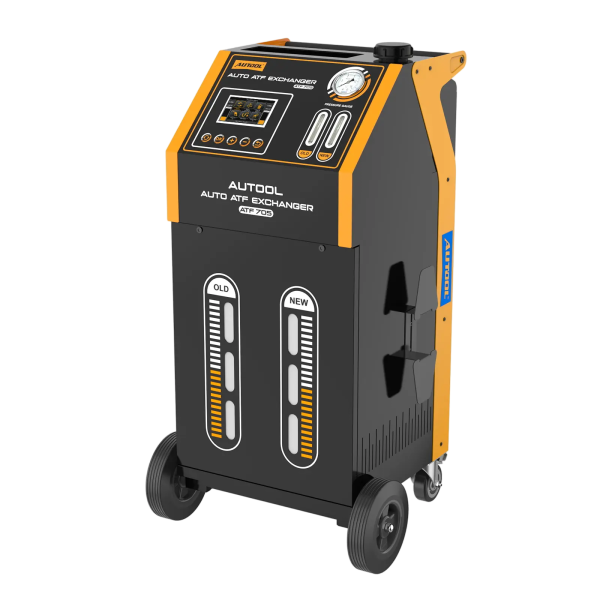

Guided Equal-Volume ATF Exchange Through the Cooler Lines

The AUTOOL ATF705 connects to the transmission cooler line, detects the flow direction on its own and balances fresh-fluid delivery with used-fluid recovery, guided from a 5-inch screen. It also handles circulation flushing, line cleaning, recovery, refilling and tank draining for gasoline and diesel vehicles.

  • Auto Flow-Direction Detection
  • Equal Exchange, Error <0.2 kg

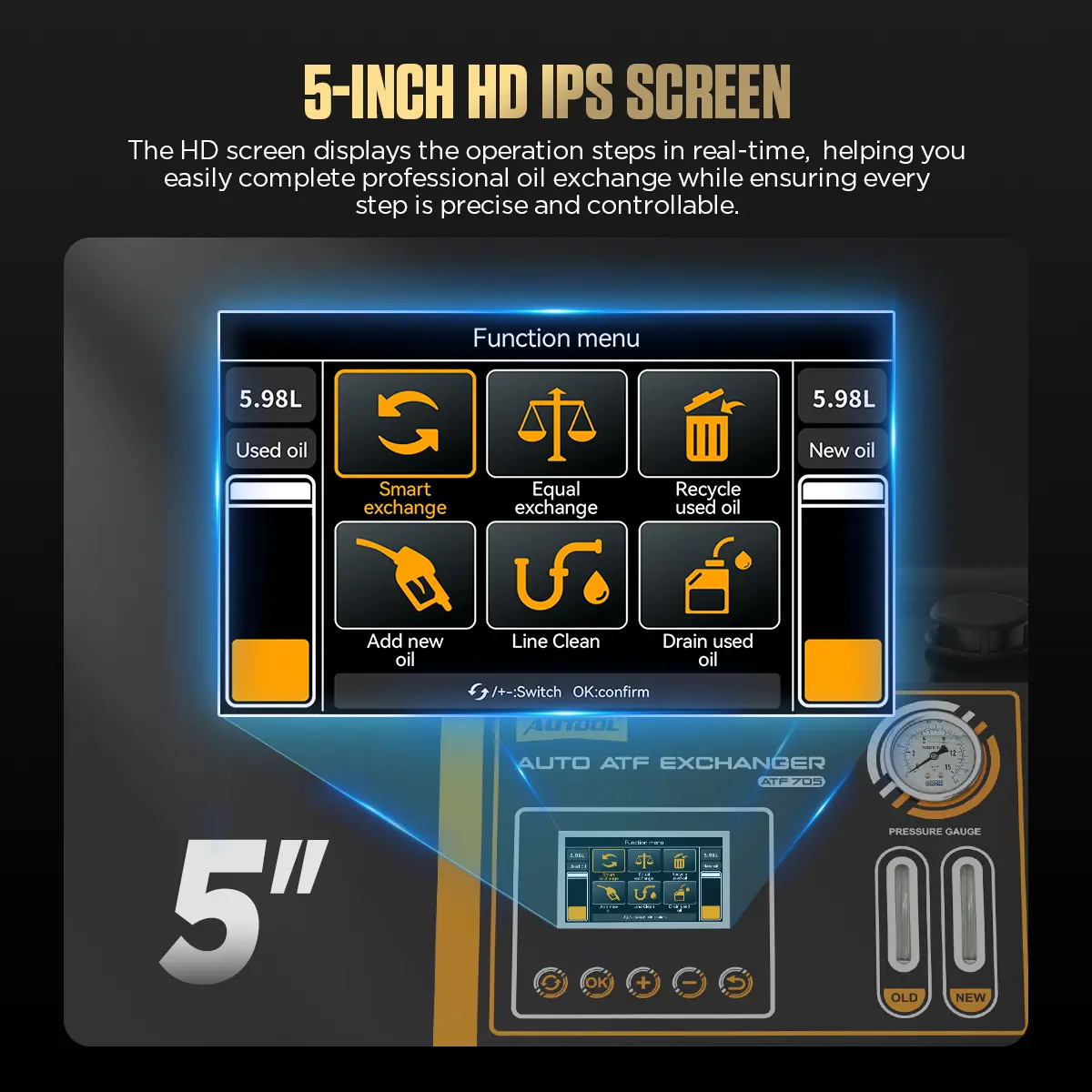

  • 5-Inch IPS Screen
  • 20 L Tank
  • ~20 Min Typical Exchange

Key Features

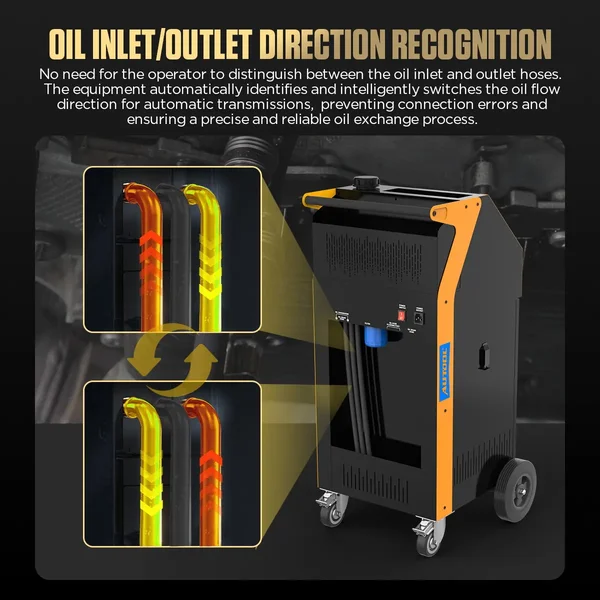

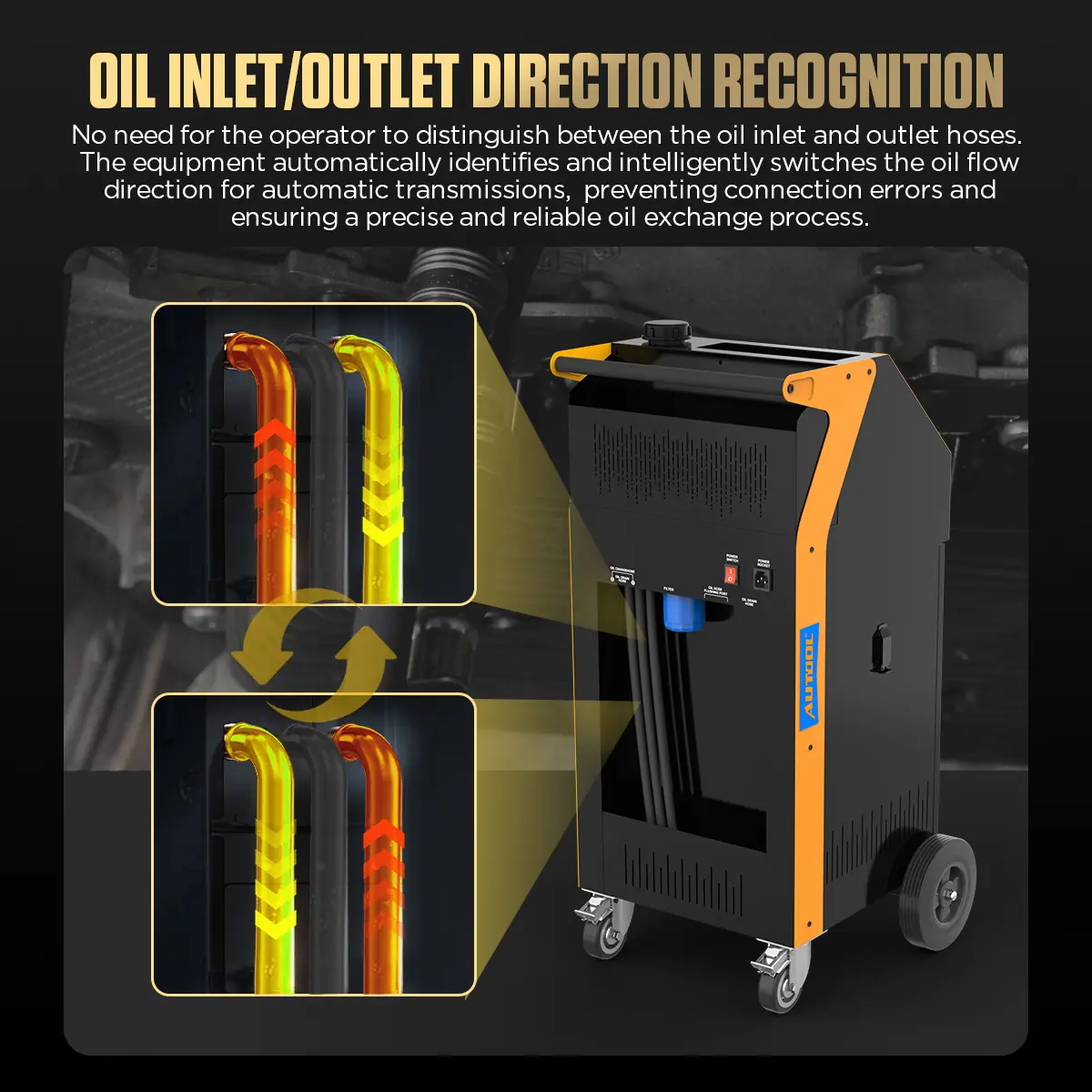

  1. Automatic Inlet/Return Detection

    Connect the service hoses and start; no need to identify the flow direction by hand.

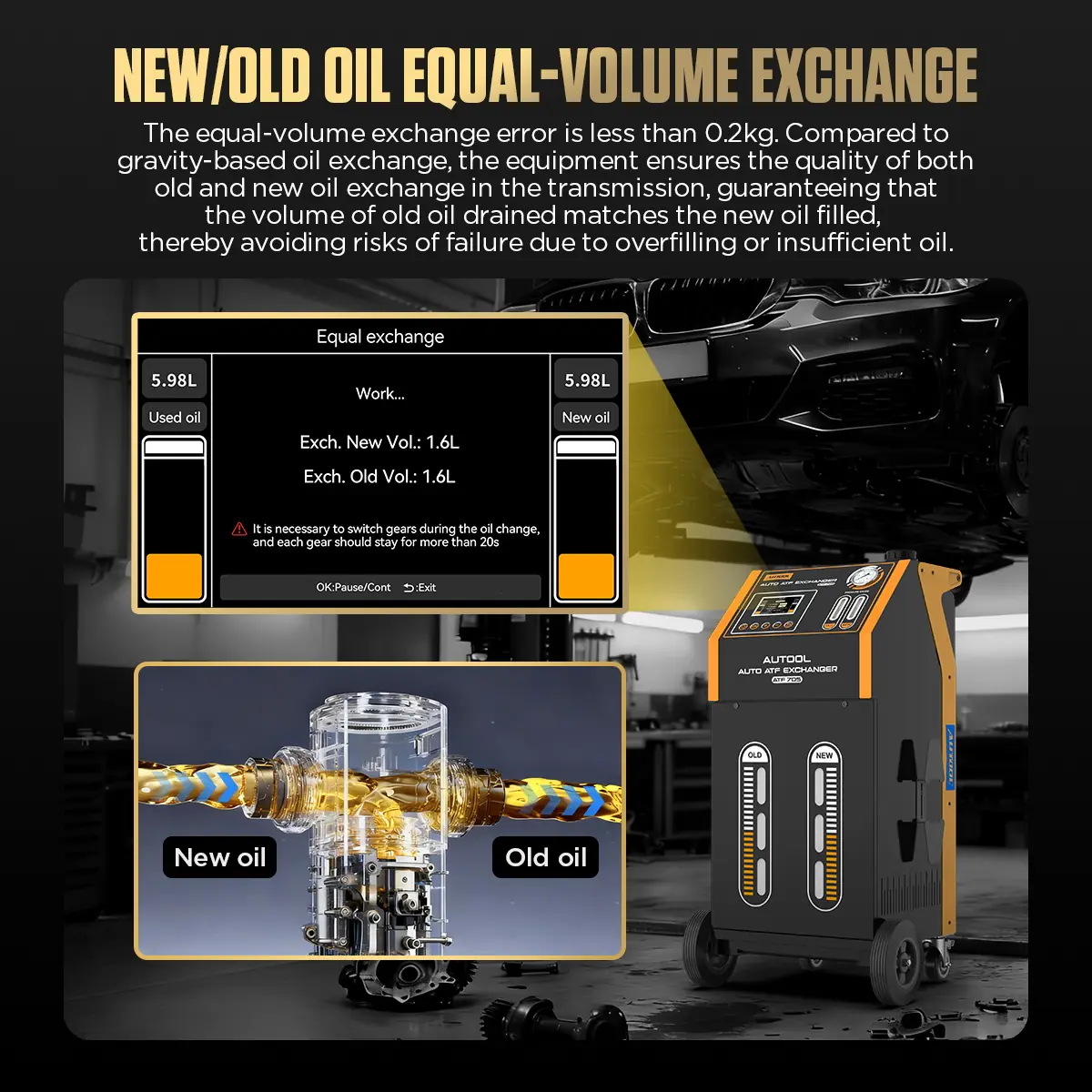

  2. Balanced Exchange

    Used-fluid output and new-fluid input are kept in balance, reducing the risk of overfilling or underfilling.

  3. Manual Circulation Flushing

    Select and control circulation from the screen to move fluid through the service route before the final exchange.

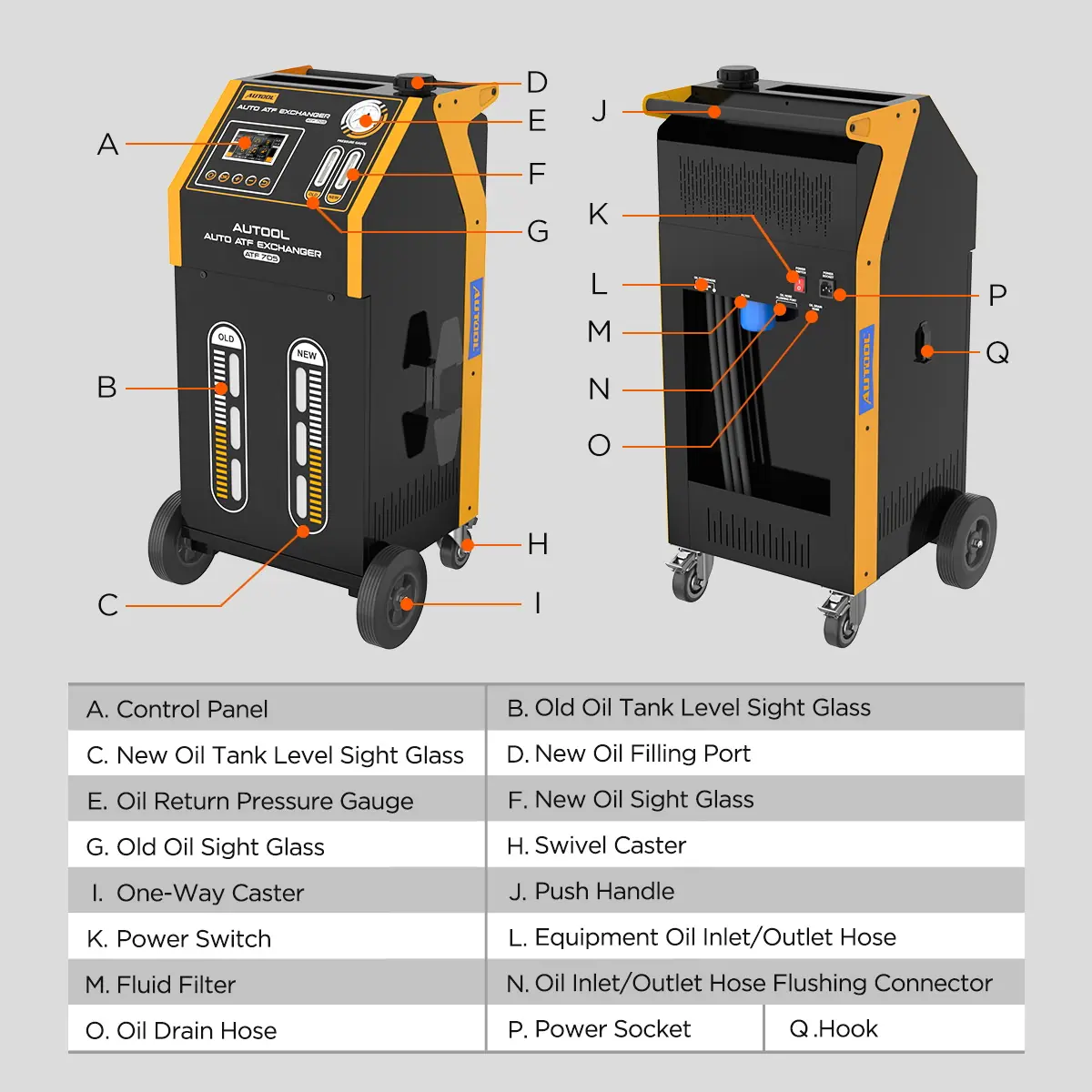

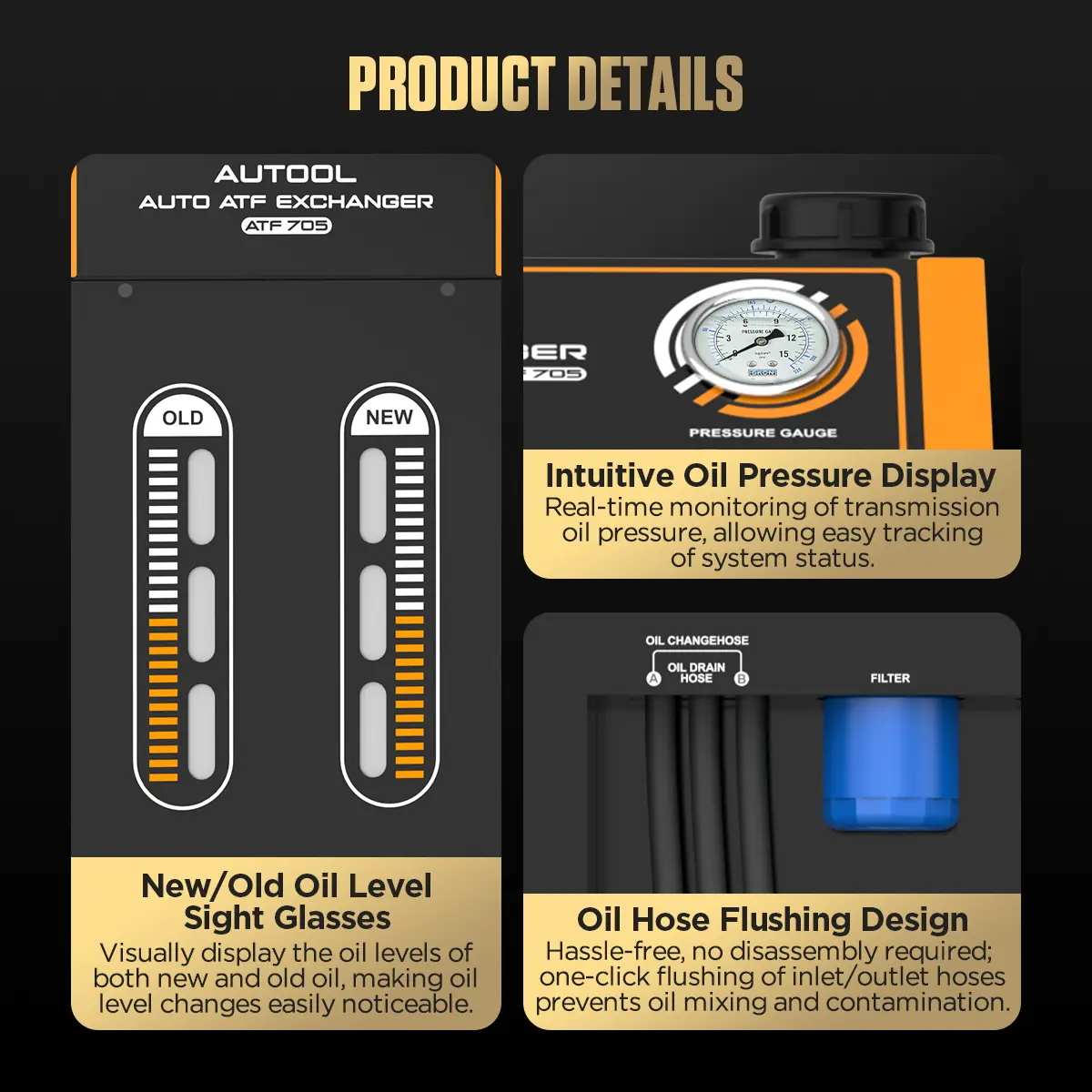

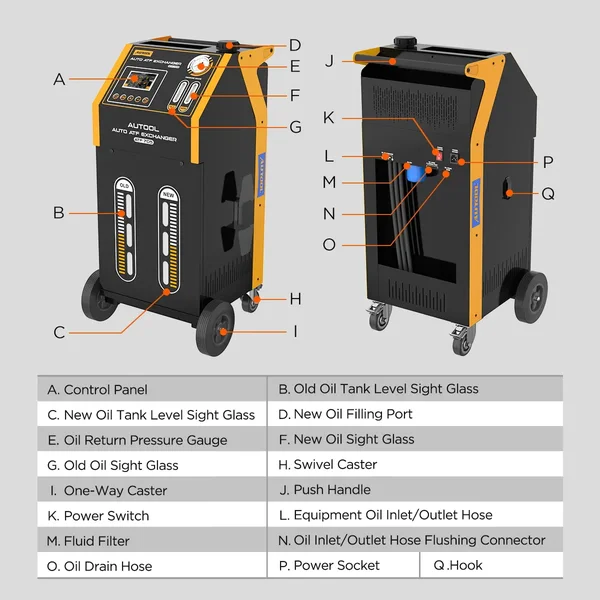

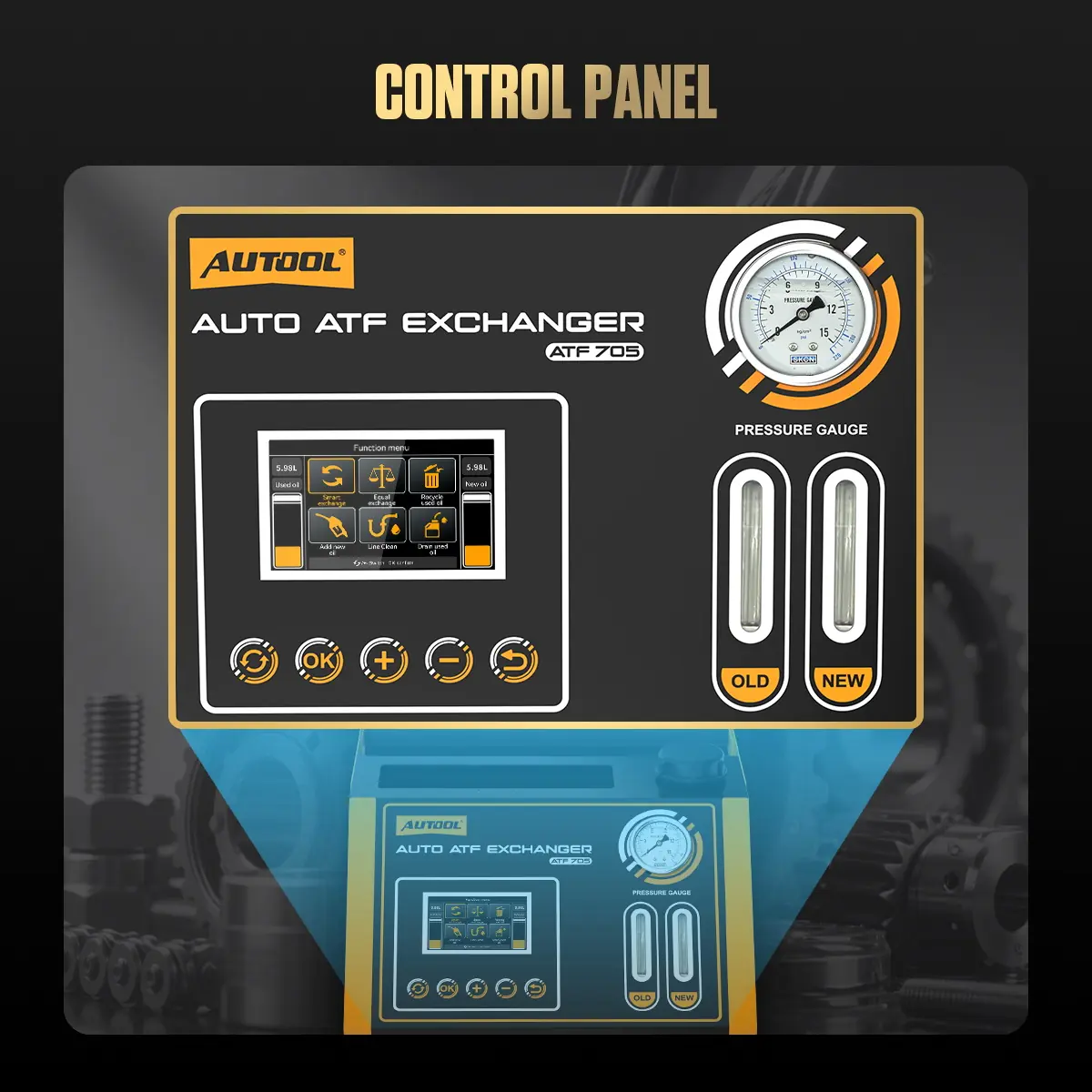

  4. Visible Fluid and Pressure

    New and used ATF sight glasses, fluid-level windows and a mechanical pressure gauge keep the process in view.

  5. Quick-Connect Fittings

    Connects to accessible transmission lines without major disassembly; the connector toolbox covers many European, American, Japanese, Korean and Chinese transmissions.

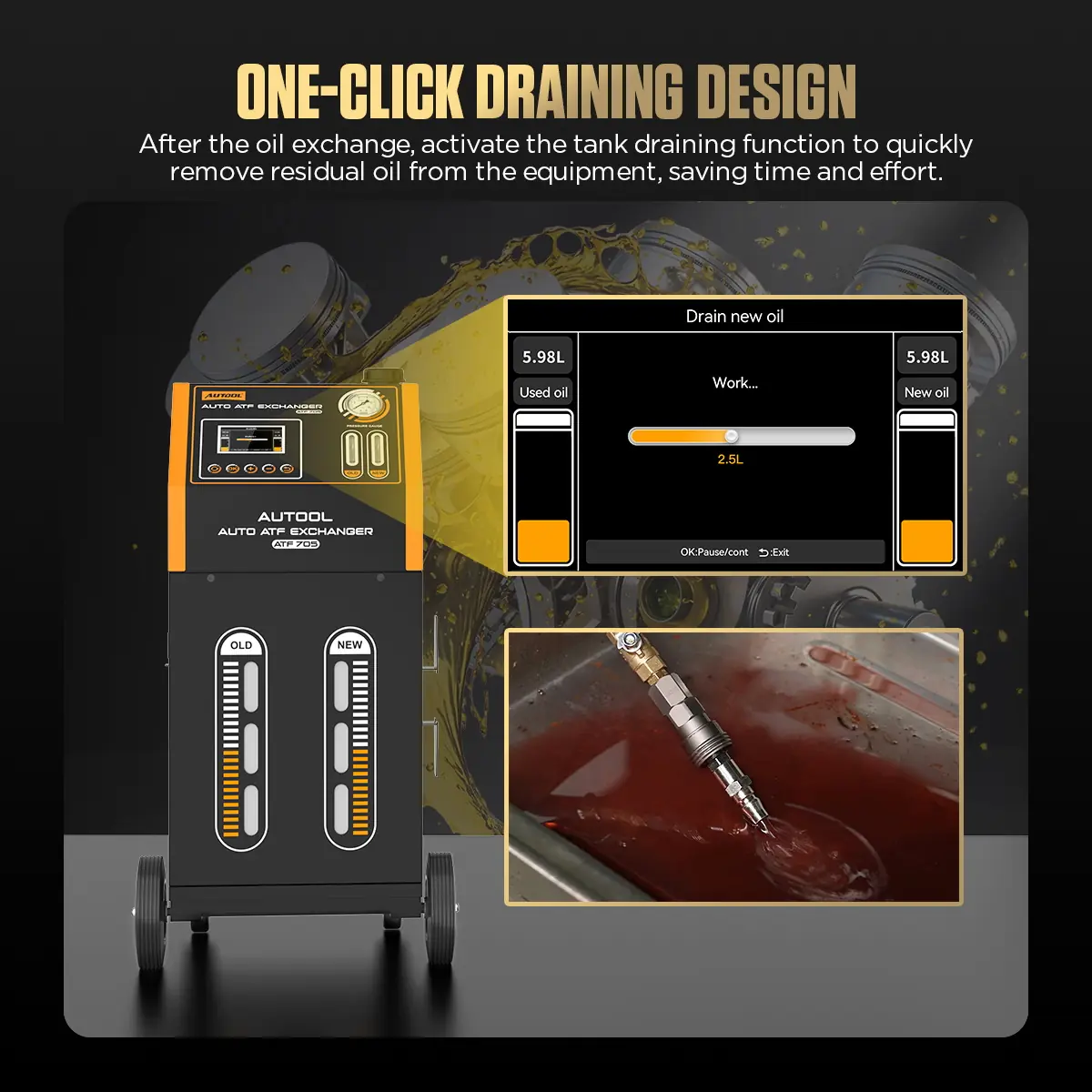

  6. One-Touch Tank Draining

    Empties residual fluid from the machine after the job for faster cleanup.

  7. Mobile Cabinet

    Push handle, one-way and swivel casters and a side hook keep hoses and connections within reach.

More Specifications

Noise <70 dB
Fluid level display Real-time tank level; backlit exchange and fluid-level windows
Alerts Buzzer
Interface languages Chinese, English, Spanish, French, German, Russian, Portuguese, Vietnamese, Malaysian

Model Comparison

ATF702 ATF705 ATF802
Control Mechanical Electronic Electronic
Screen None 5-inch IPS 5-inch IPS
Oil pumps Single Single Dual
Circulating flushing Manual Manual Automatic
Equal-volume exchange Manual Automatic Automatic
System update No No USB

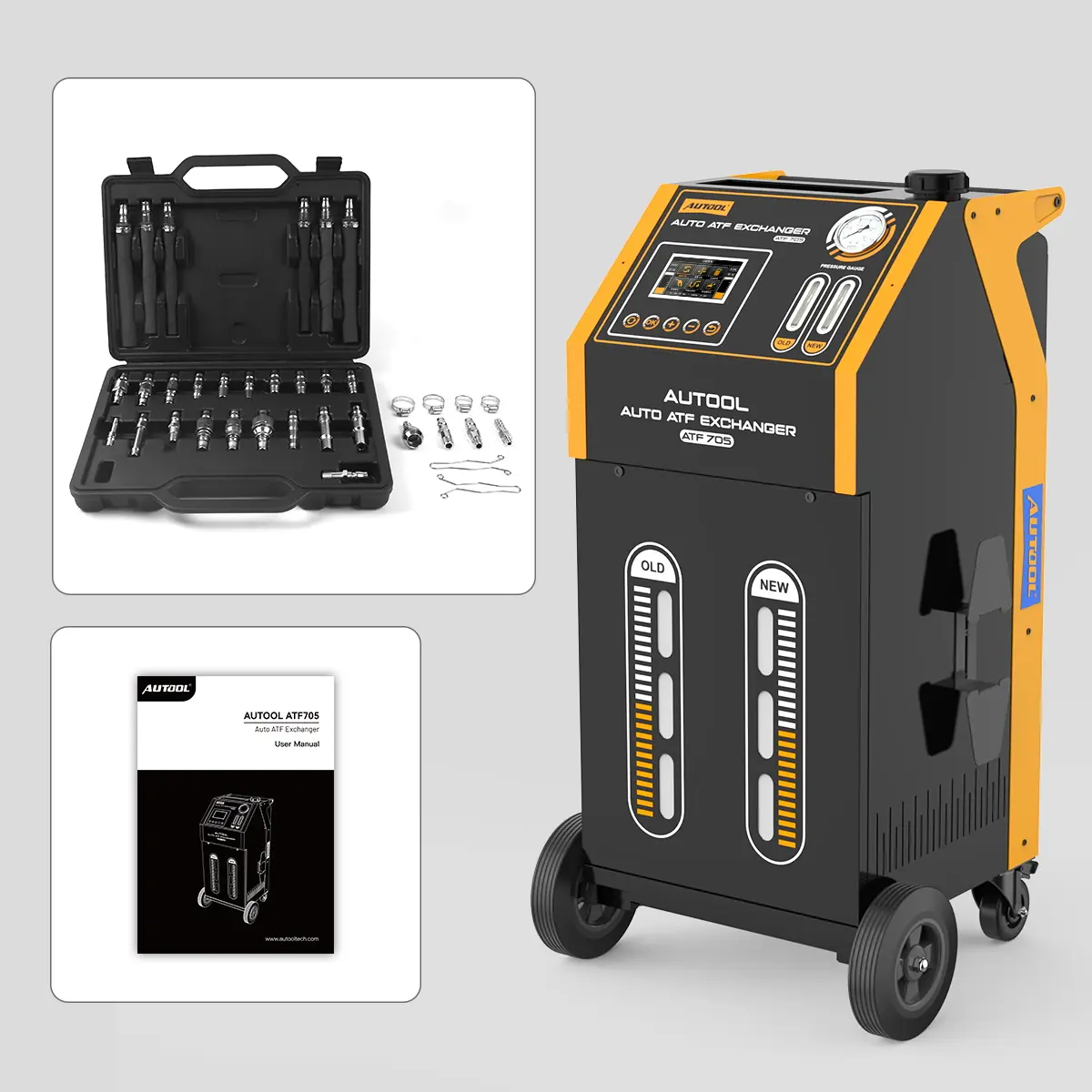

What’s in the Box

  • ATF705 main unit

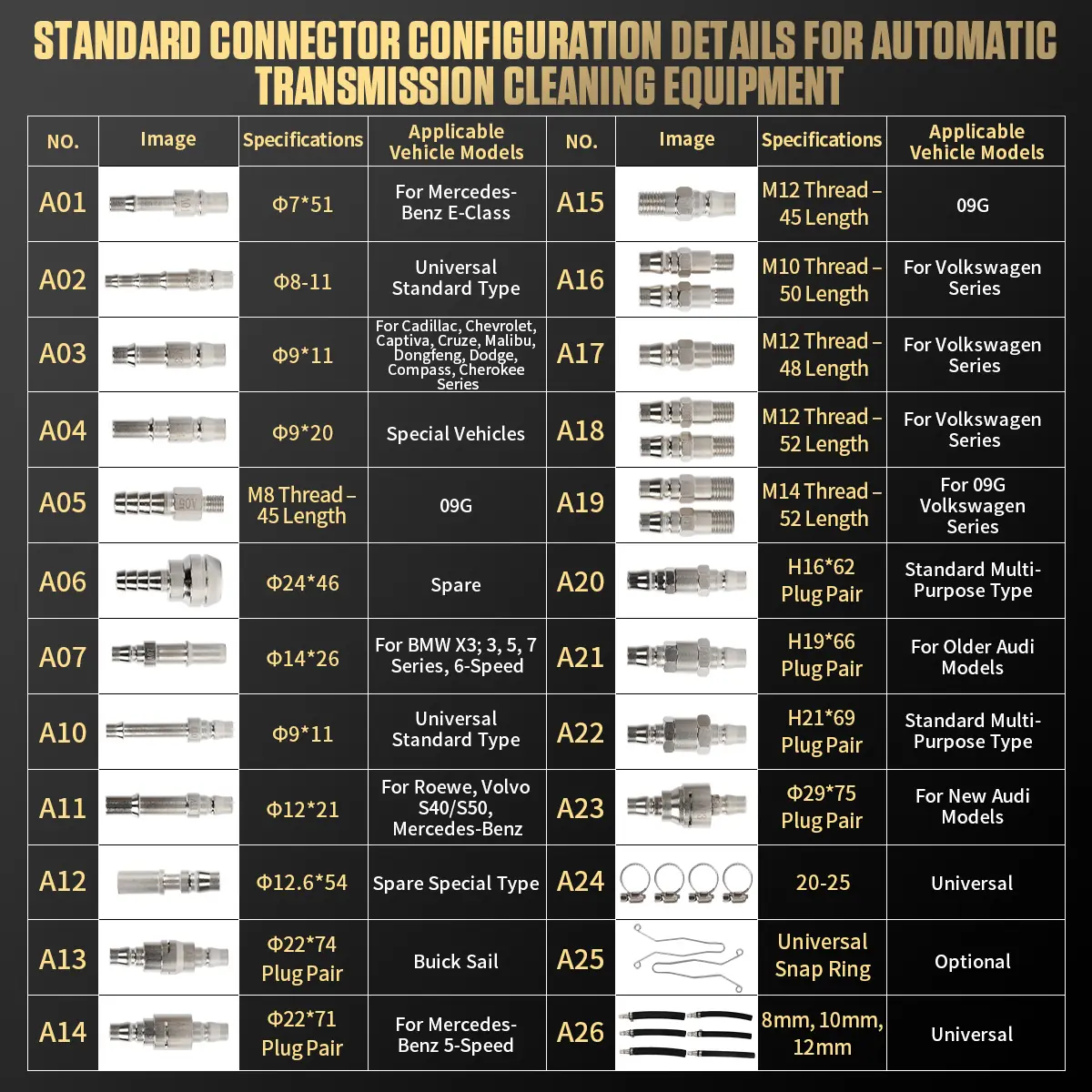

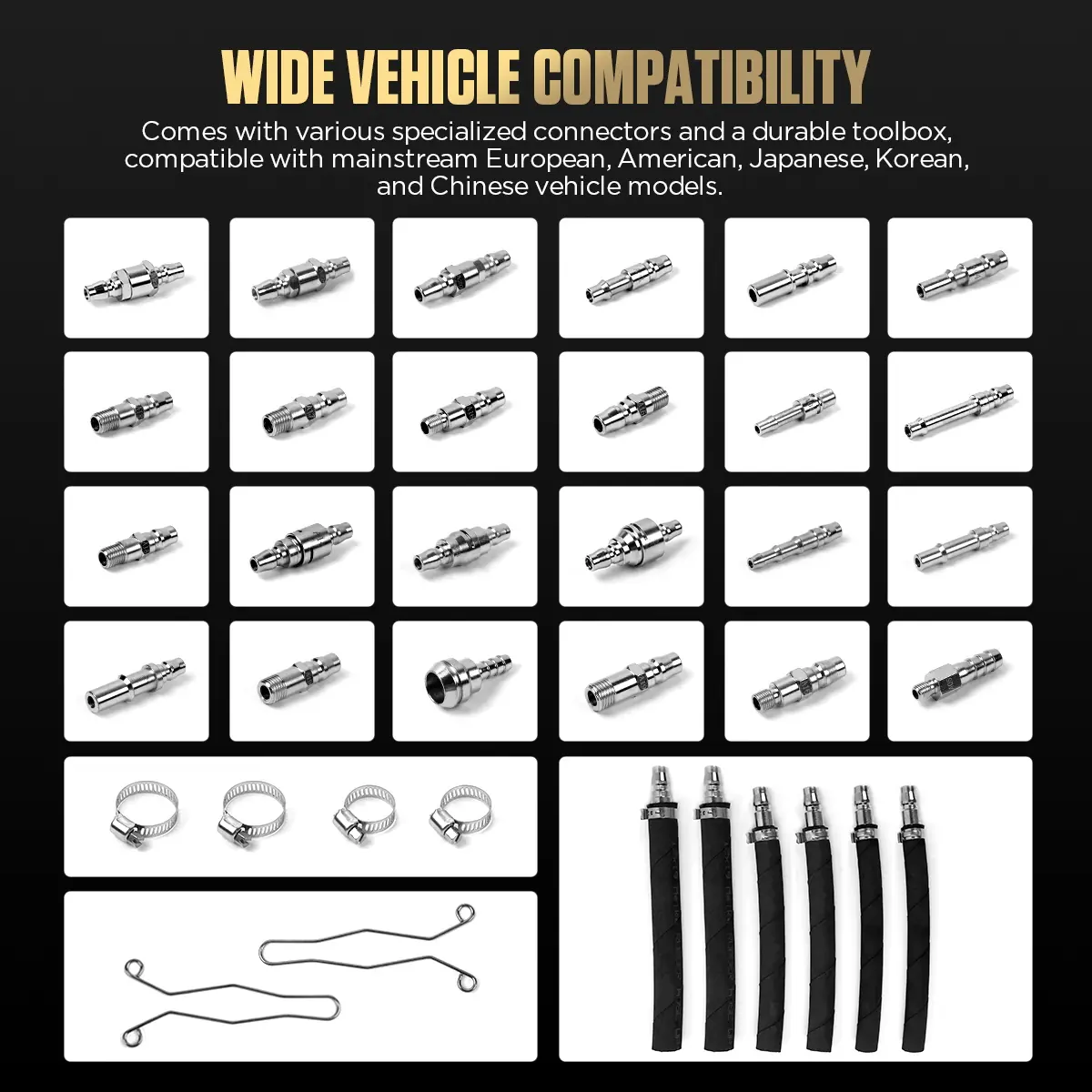

  • Connector toolbox with specialized connectors and service accessories
  • User manual
AUTOOL ATF705 exchanger with connector toolbox and user manual
The exact connector set may vary with the package configuration.

How to Use

  1. Prepare power and ATFConfirm the 110 V or 220 V version and prepare the ATF specified by the vehicle manufacturer.
  2. Lift and secure the vehicleRaise the drive wheels at least 20 cm off the ground, apply the parking brake and chock the non-drive wheels.
  3. Connect the fluid linesDisconnect the accessible line between transmission and radiator and connect the hoses with the correct connectors.
  4. Check for leaksStart the engine as required and continue only when every connection is secure and dry.
  5. Select the functionChoose smart exchange, equal-volume exchange, circulation flushing, line cleaning, recovery, refilling or draining.
  6. Shift through the gearsDuring circulation flushing, shift as directed and hold each gear for about one minute when the procedure calls for it.

Exchange, flow detection, connectors and troubleshooting: ATF705 user manual (PDF)

Good to Know

Caution
  • Match the unit label to your power supply before connecting; order the correct voltage version for your region.
  • Overfilling or underfilling can damage an automatic transmission. Use only the ATF the vehicle manufacturer specifies and do not mix fluids.
  • Run drive-wheel procedures only with the vehicle safely lifted, and procedures at or above 60 km/h only under controlled workshop conditions.
  • Confirm connector fitment for your vehicle before ordering if unsure.
Care
  • Stop if a hose leaks or a connector loosens.
  • After the exchange, restore the circuit, set the final level by the vehicle procedure and inspect for leaks.
  • Run circulation flushing longer than 20 minutes when the vehicle procedure calls for extended flushing.
