Pulse-Test and Clean Gasoline Injectors on the Bench
Drives 12V and lower-voltage gasoline injectors through short, medium, long or continuous pulses at 12V or 5V, two injectors at a time, with adapters for cleaning. Runs from a 12V battery or DC 12V supply that you provide.
- Tests 2 Injectors at Once
- LCD Mode Display
- Reverse Polarity Protection
- Gasoline Engines Only

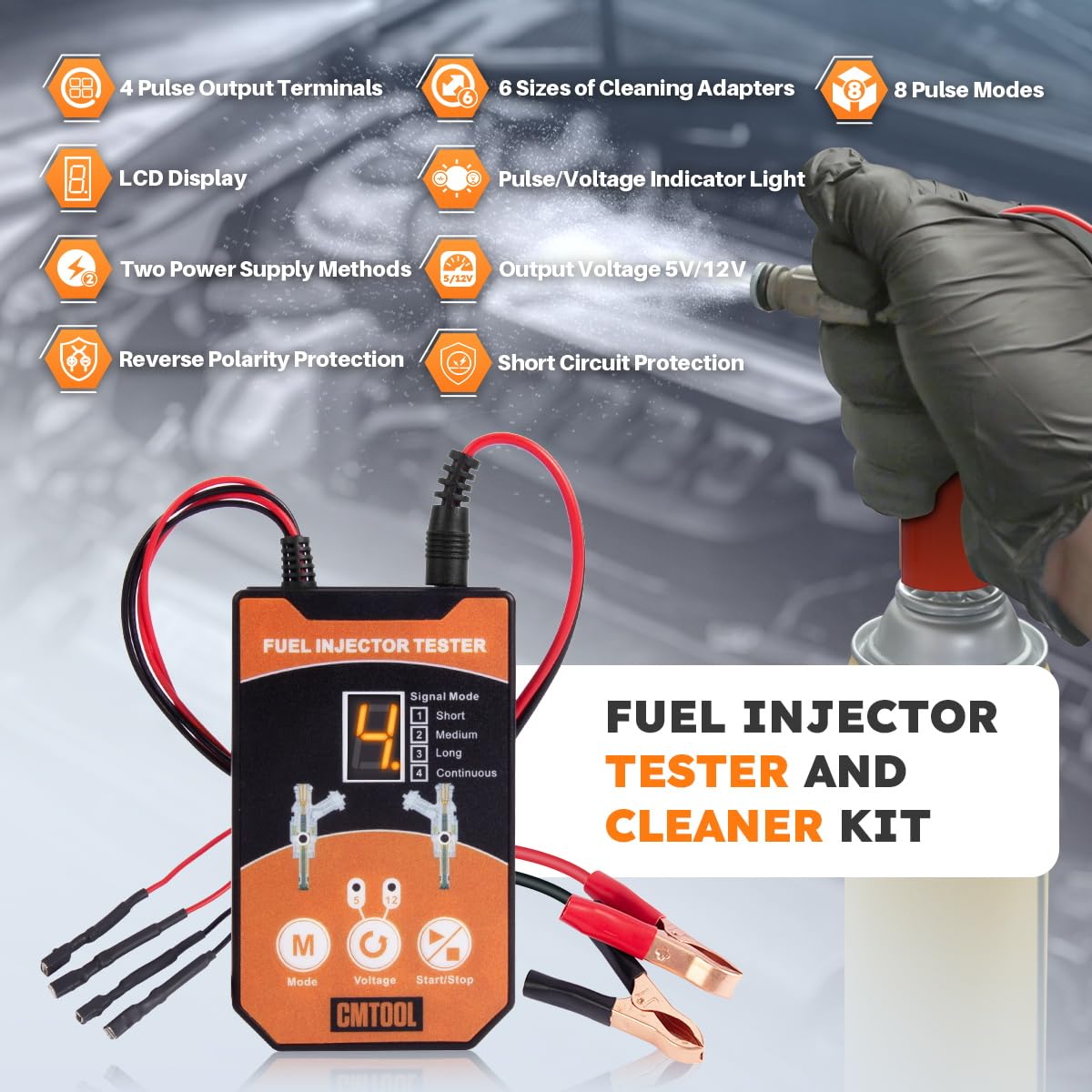

Key Features
-

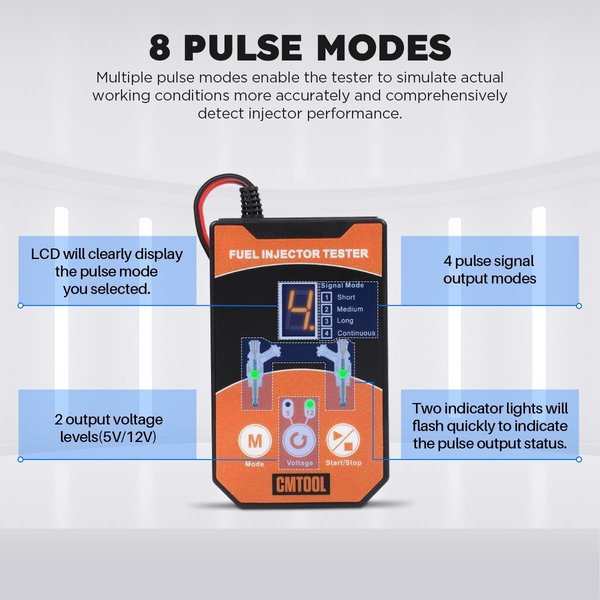

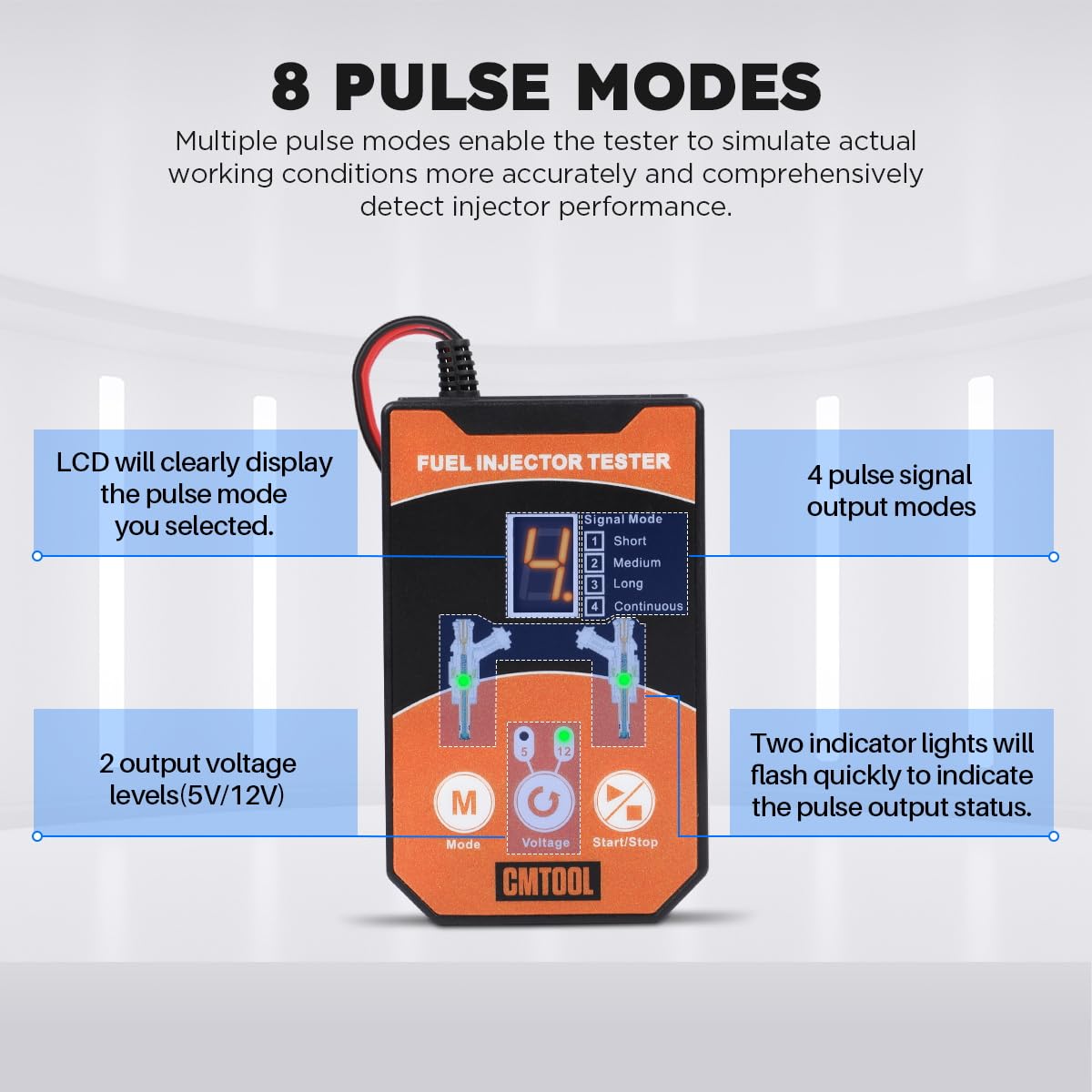

Pulse Modes Explained
Four pulse patterns (short, medium, long, continuous) at two drive levels, high 12V or low 5V. The LCD shows the active mode and two lights flash with each output.
-

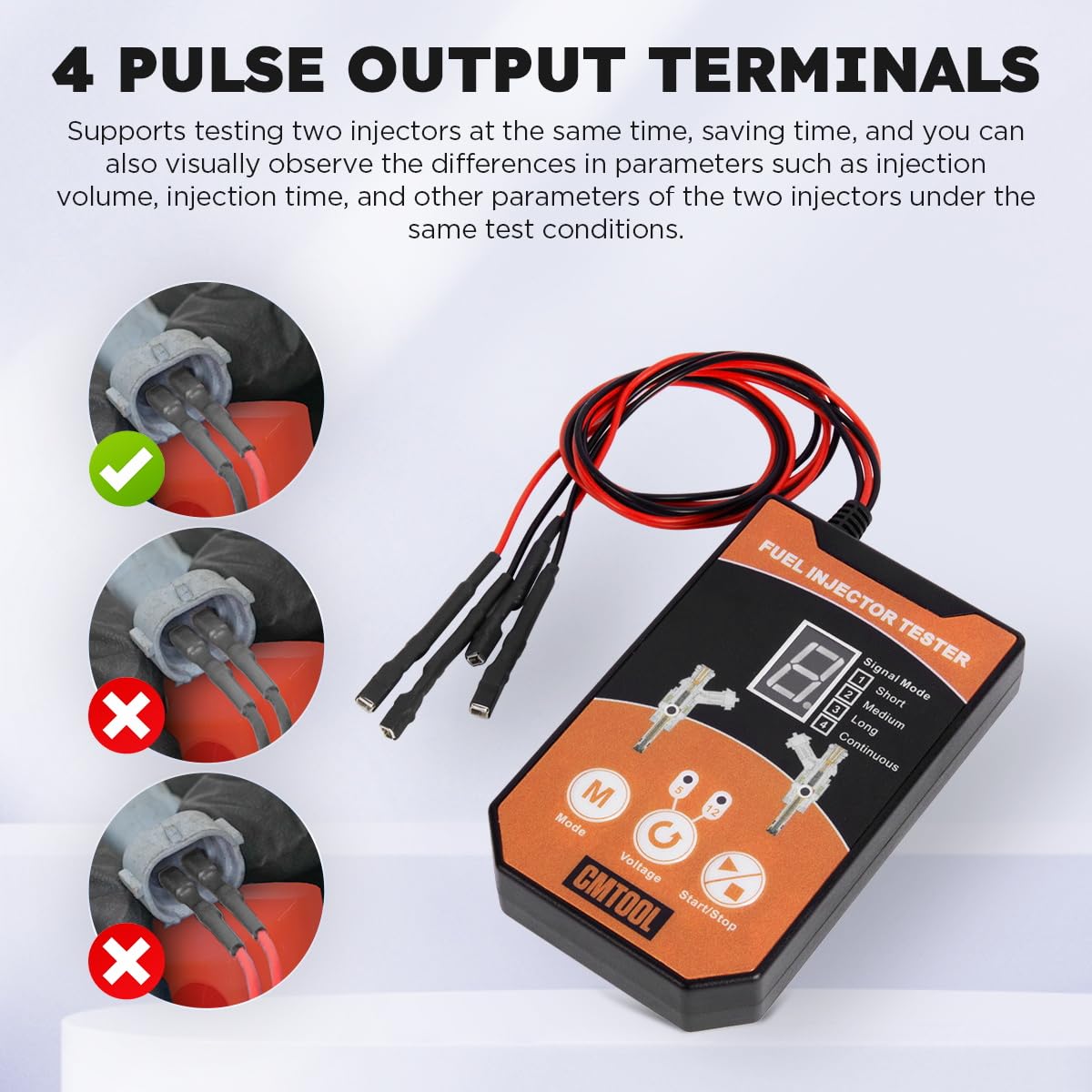

Two Injectors in Parallel

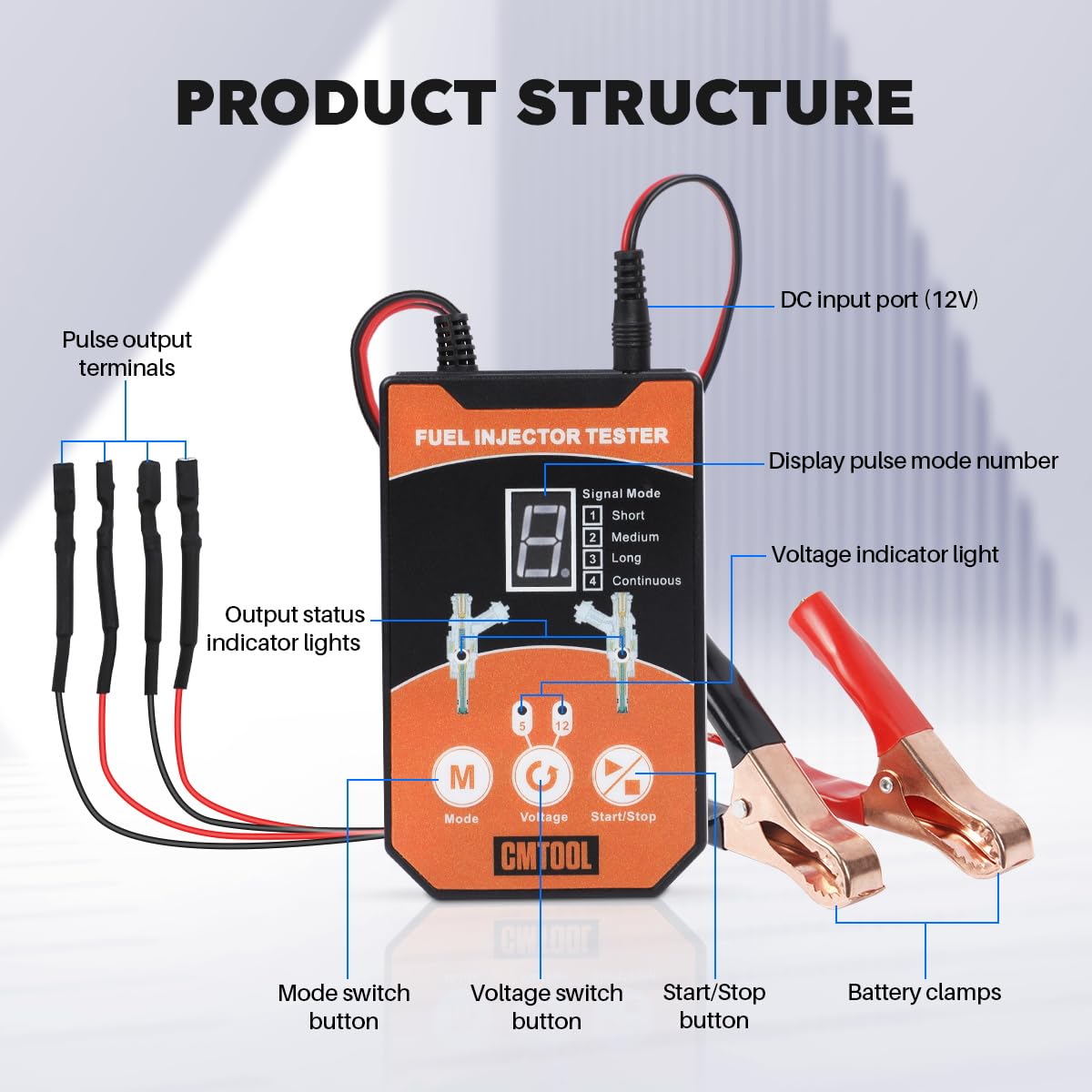

Four output terminals on two pairs of test leads let you compare two injectors side by side.
-
Wide Injector Coverage
Suits EFI, GDI, FSI, MPFI, SPFI, TBI, CFI, L-JET, LPG, K-Jetronic, coil-type direct and motorcycle injectors.
-

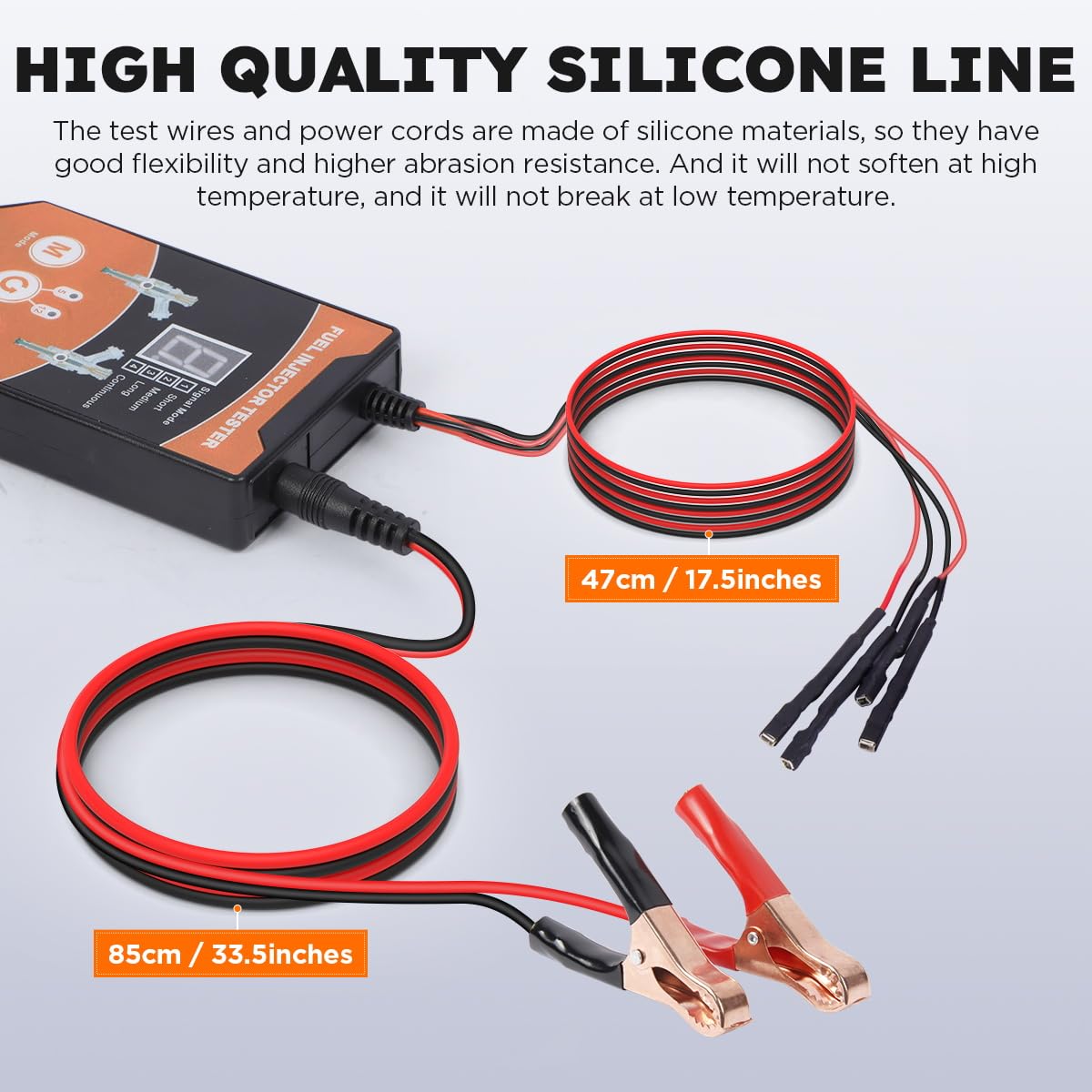

Silicone Leads
Test leads and power cord are silicone for better resistance to heat and cold.
-
Built-In Safeguards
Reverse polarity protection on the clamps; the unit refuses to run if the outputs are shorted together or an injector is wired red-to-red or black-to-black.
More Specifications

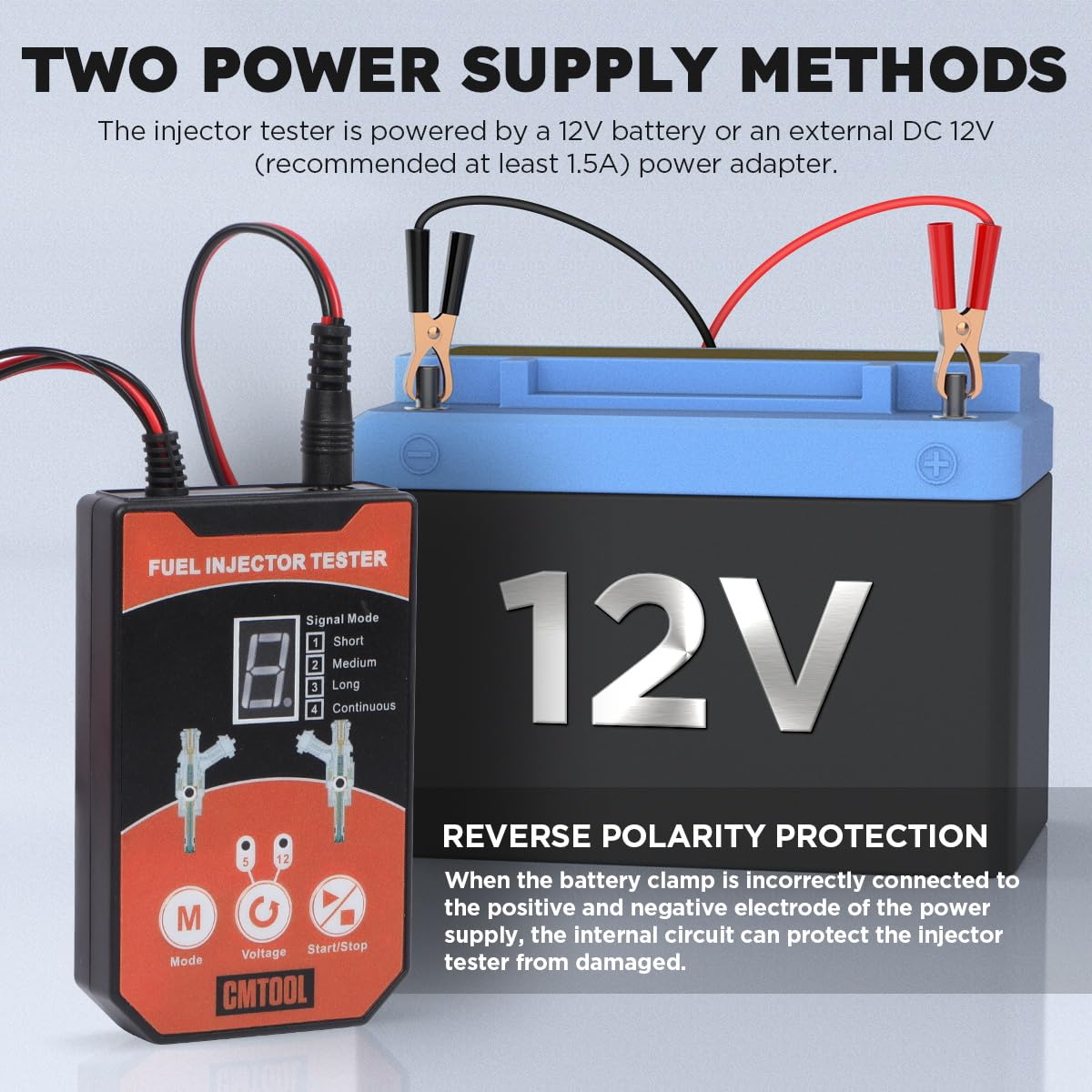

| Power supply | 12V vehicle battery or DC 12V adapter (1.5A or more recommended) |
|---|---|
| Test lead length | 47 cm (18.5 in) |
| Power cord length | 85 cm (33.5 in) |

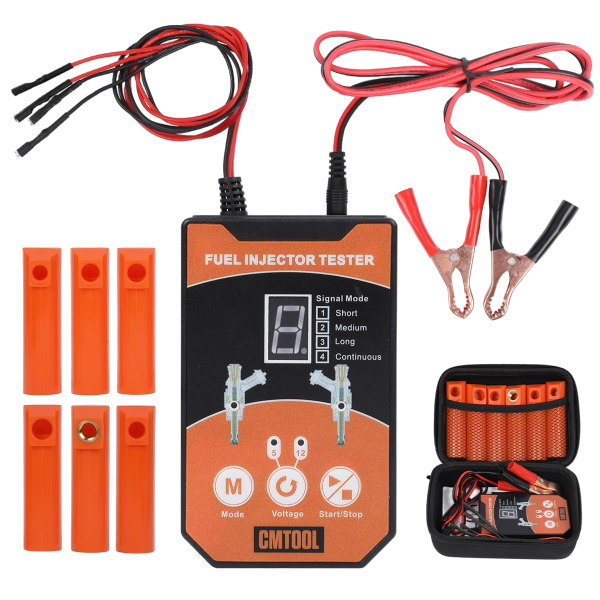

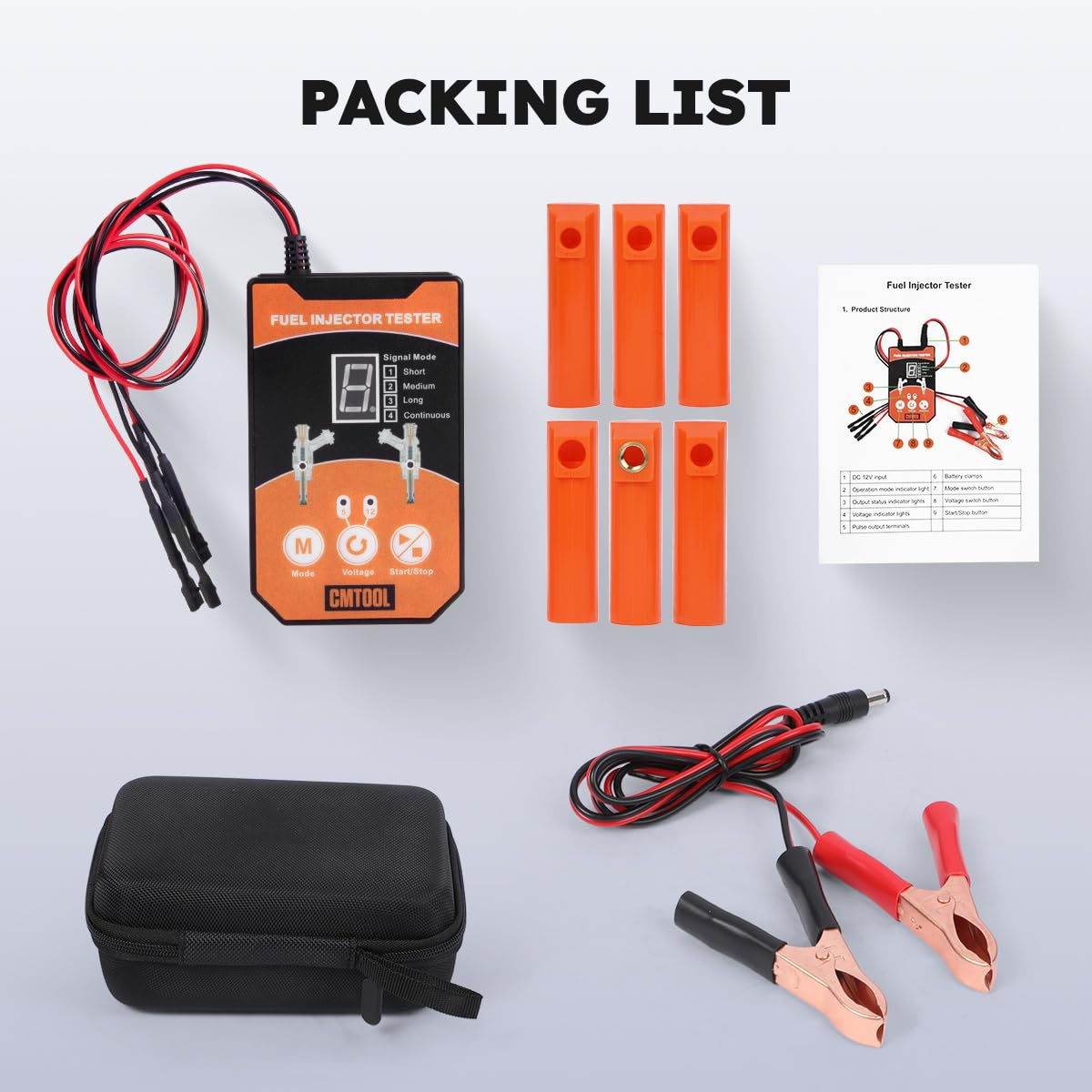

What’s in the Box
- 1รFuel injector tester
- 1รPair of battery clamps

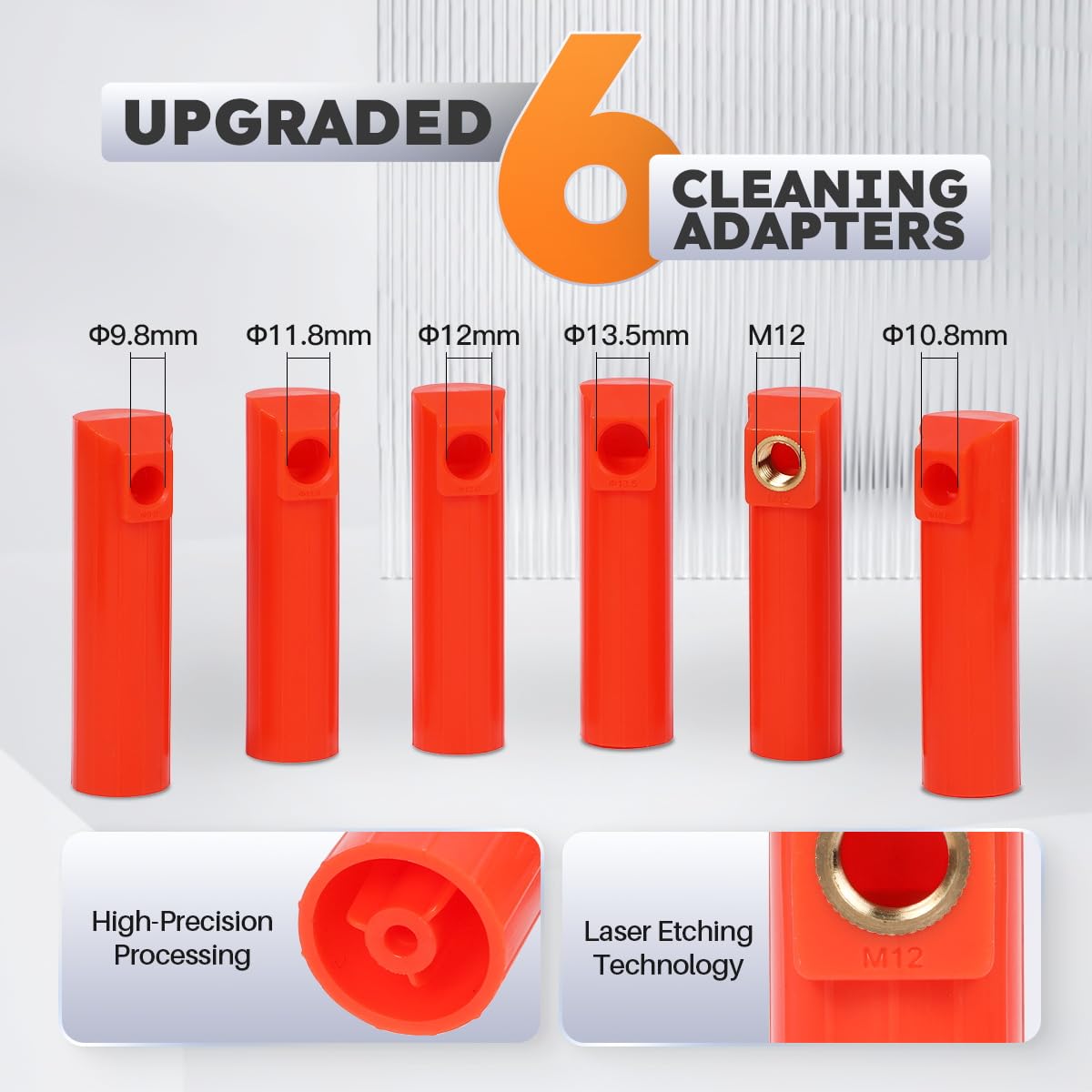

- 6รCleaning adapters
- 1รEnglish manual
- 1รCarrying bag
Good to Know
Caution
- For gasoline-engine injectors only; not for diesel injectors.
- A power supply and injector cleaning fluid are not included.
