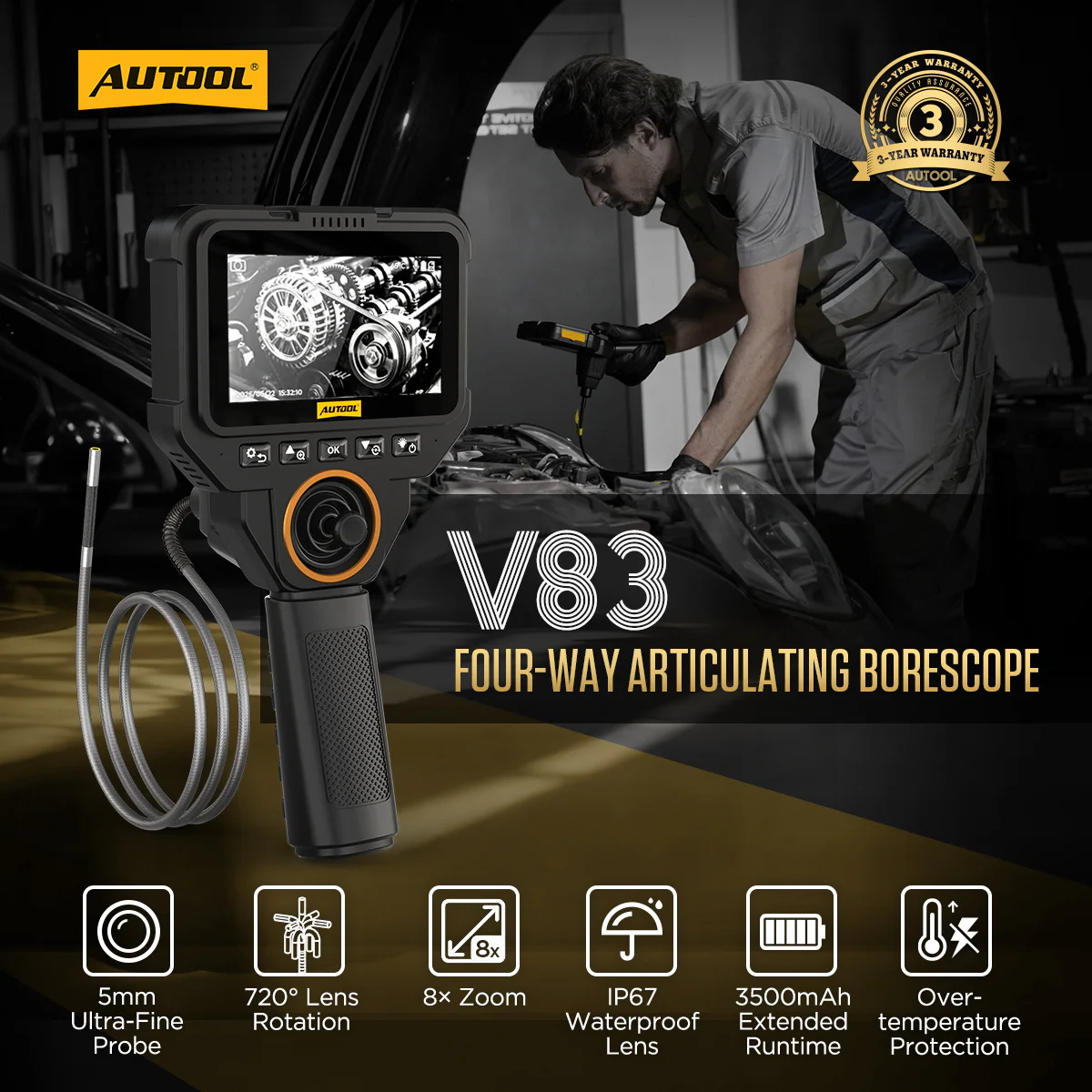

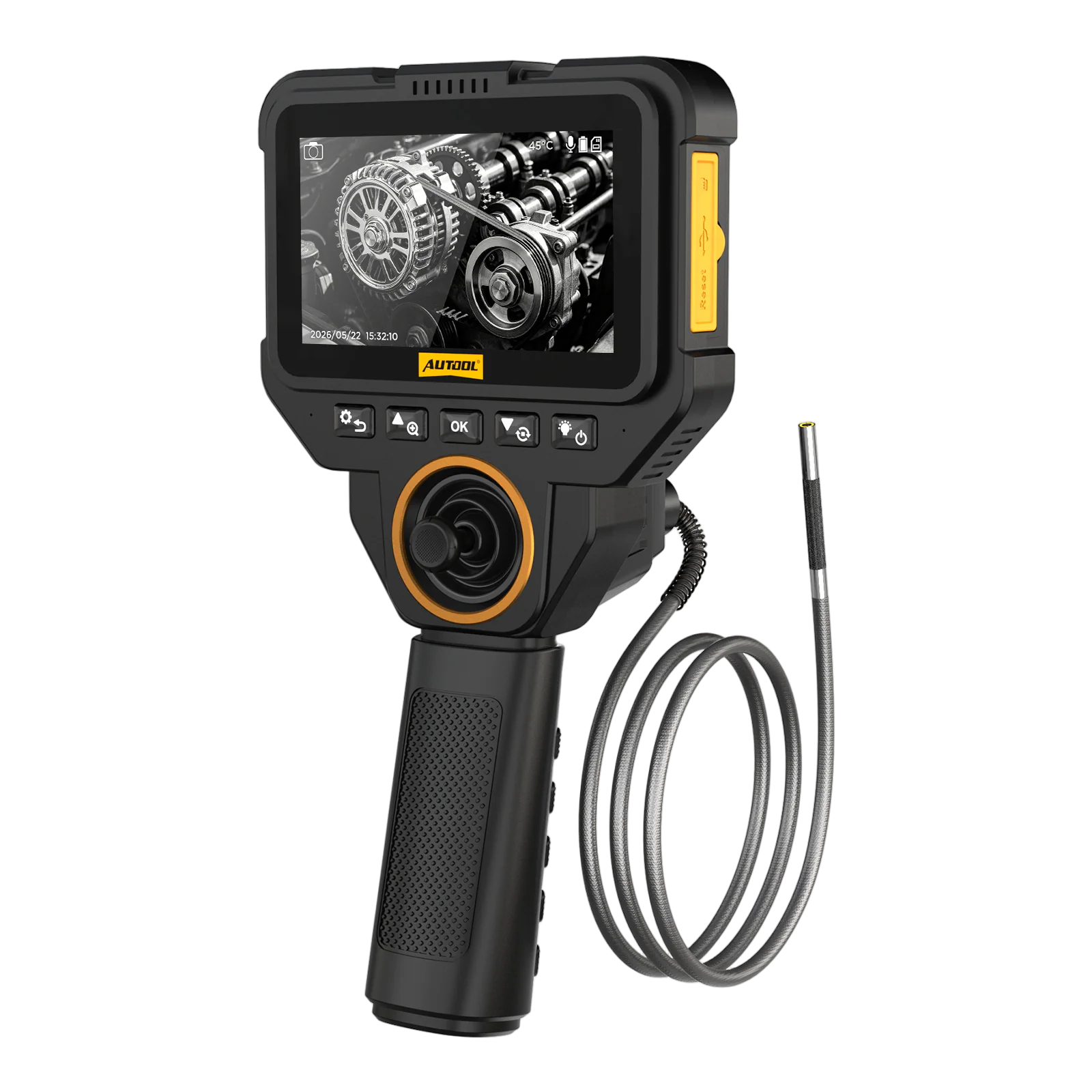

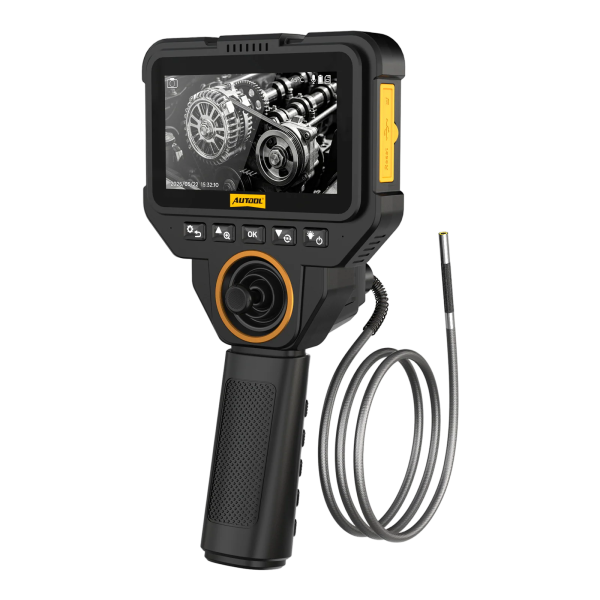

Steer a 5 mm Camera Probe Through Narrow Engine Openings

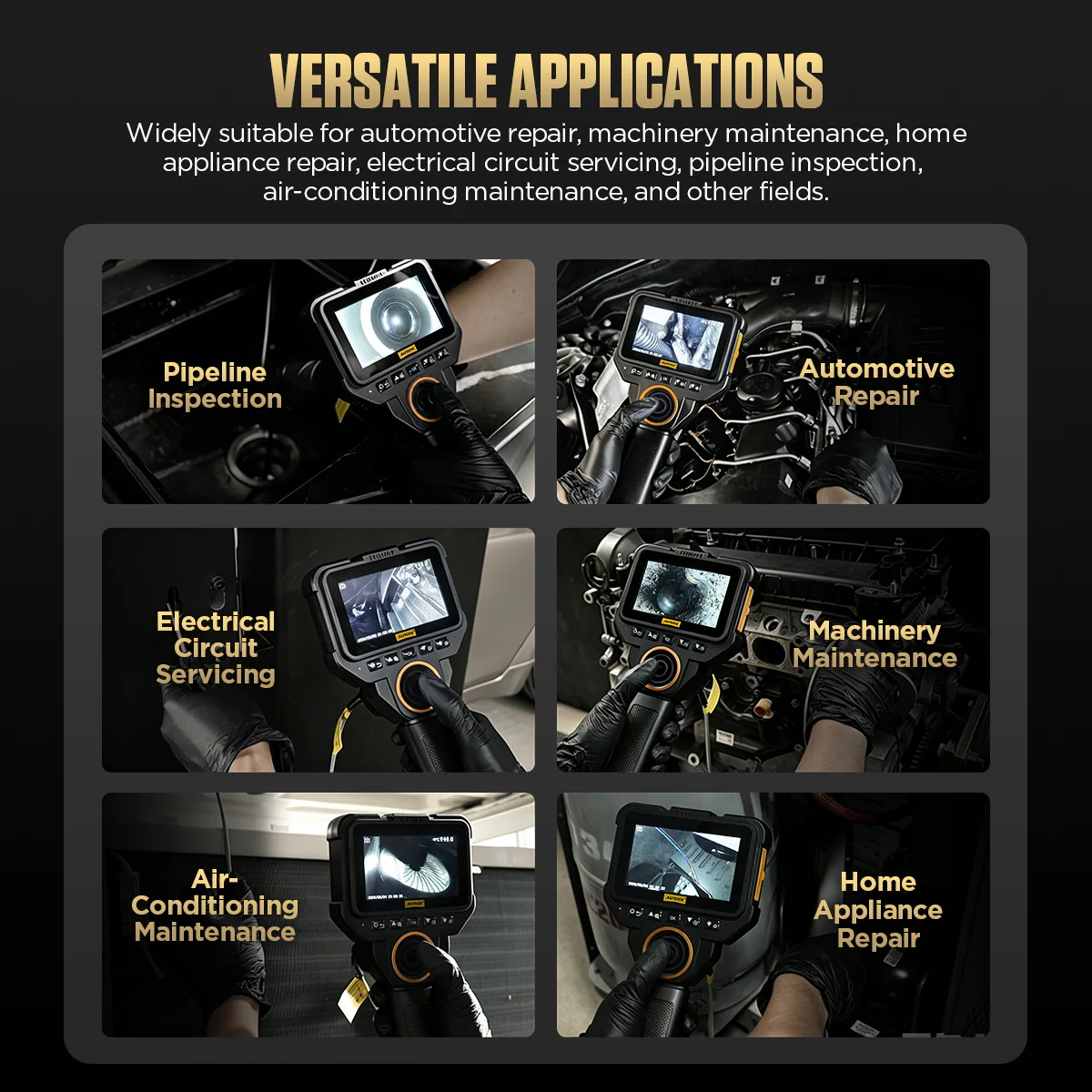

The V83 combines a 5 mm probe with four-way articulation and a built-in 4.3-inch screen, so you can aim the camera inside engines, pipes and equipment and save photos or video without a phone or app. Check the tip and turning space against the actual entry path.

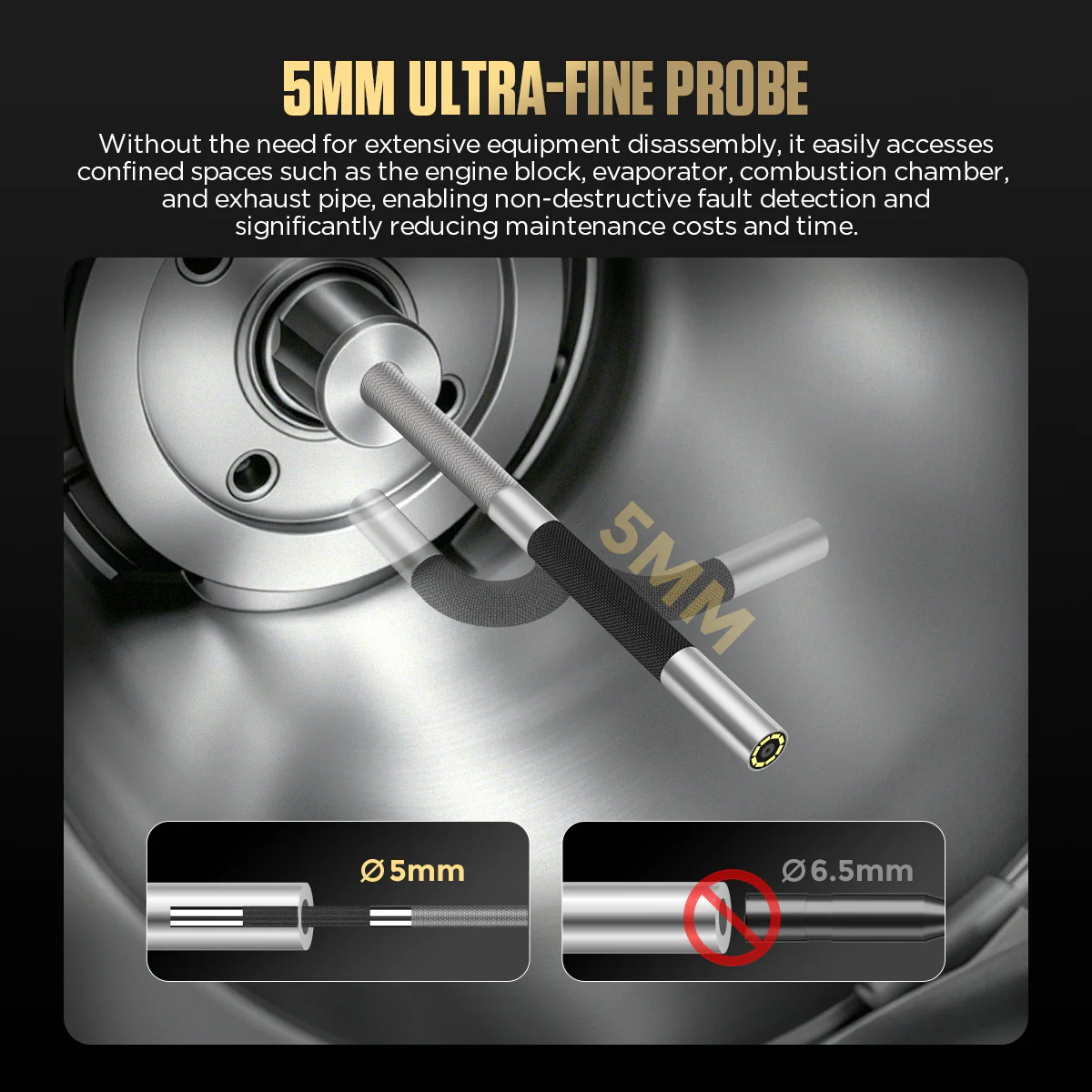

- 5 mm Four-Way Probe
- 4.3-Inch Built-In Screen
- 1 m Braided Hose
- 8 Adjustable LEDs
- Photo & Video Recording
Key Features
-

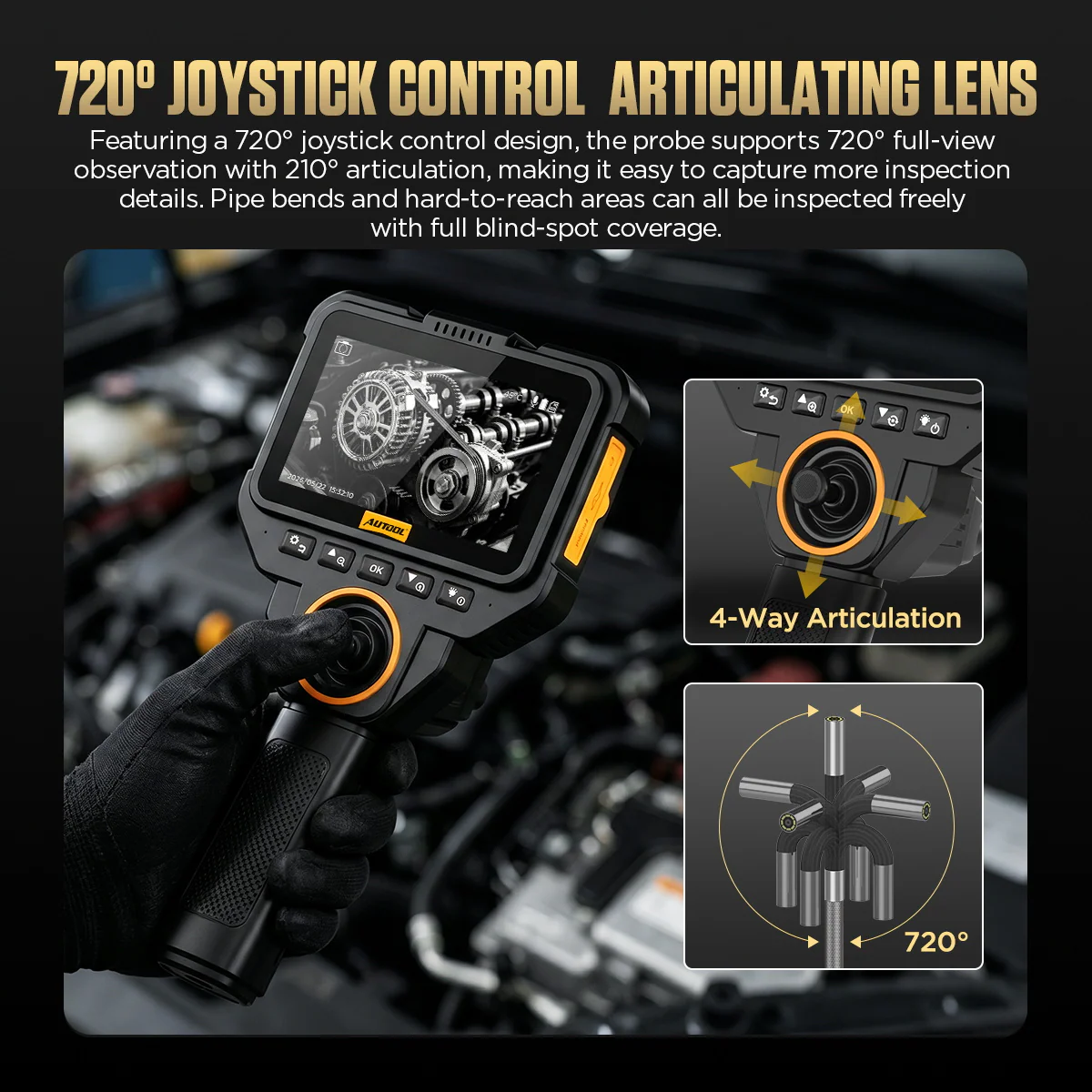

Four-Way Articulation
Aim the tip in four directions across the steering range; the 720° name describes articulation, not continuous tip rotation.
-
Standalone Viewing
Live view, playback and device controls run on the integrated color screen with no phone app.
-

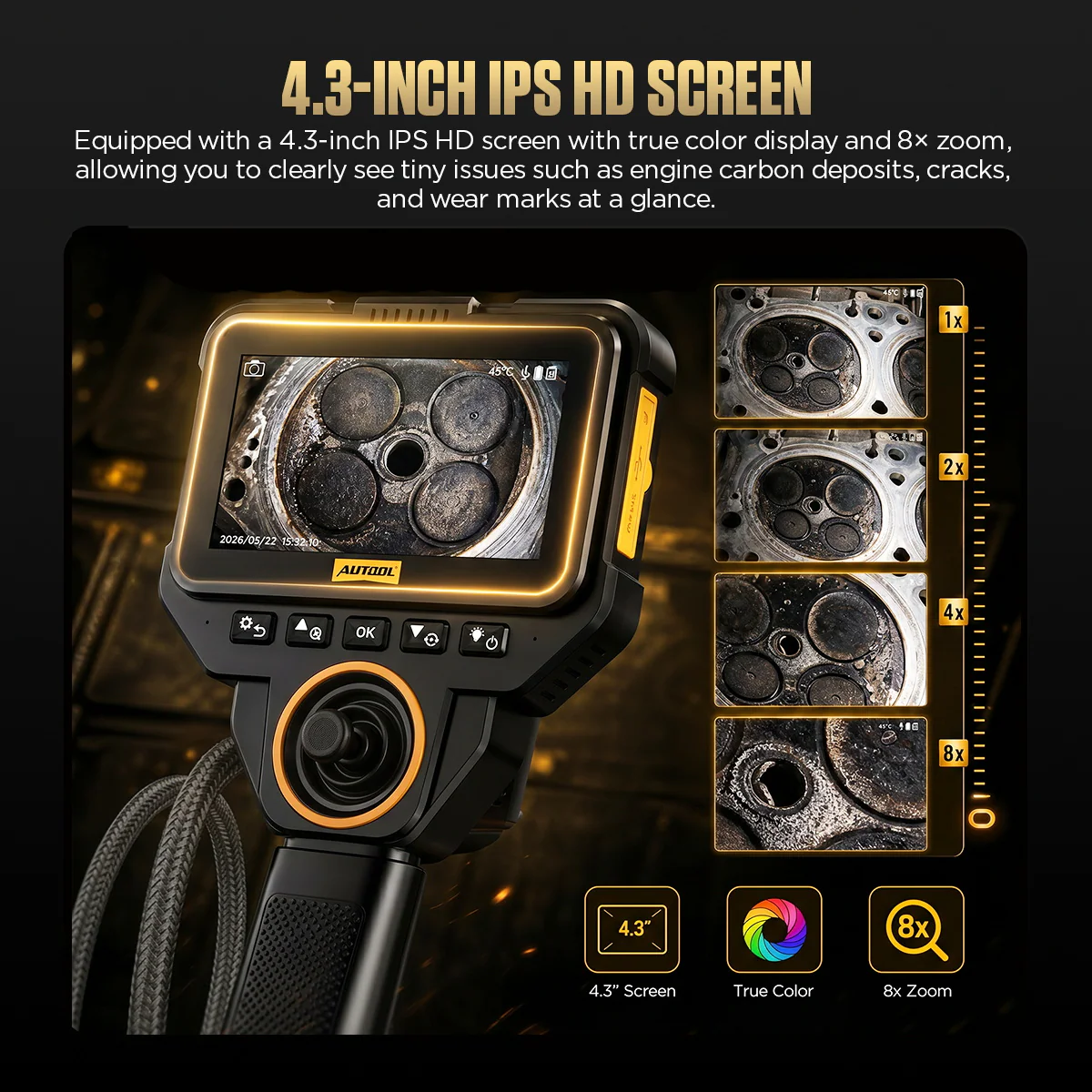

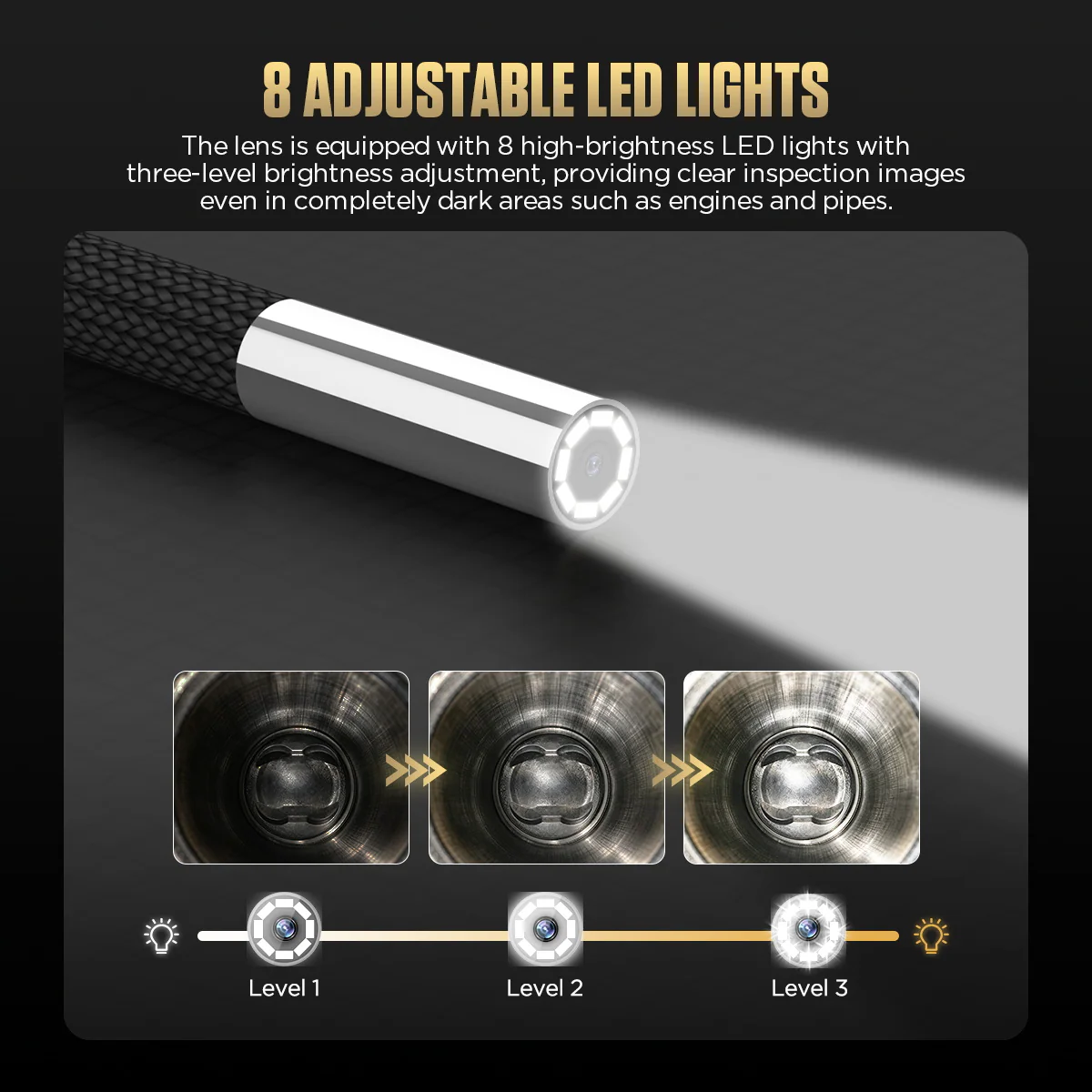

Adjustable Lighting and Zoom
Three LED brightness levels plus off reduce shadows and glare; digital zoom enlarges captured detail for review.
-
Photo, Video and Playback

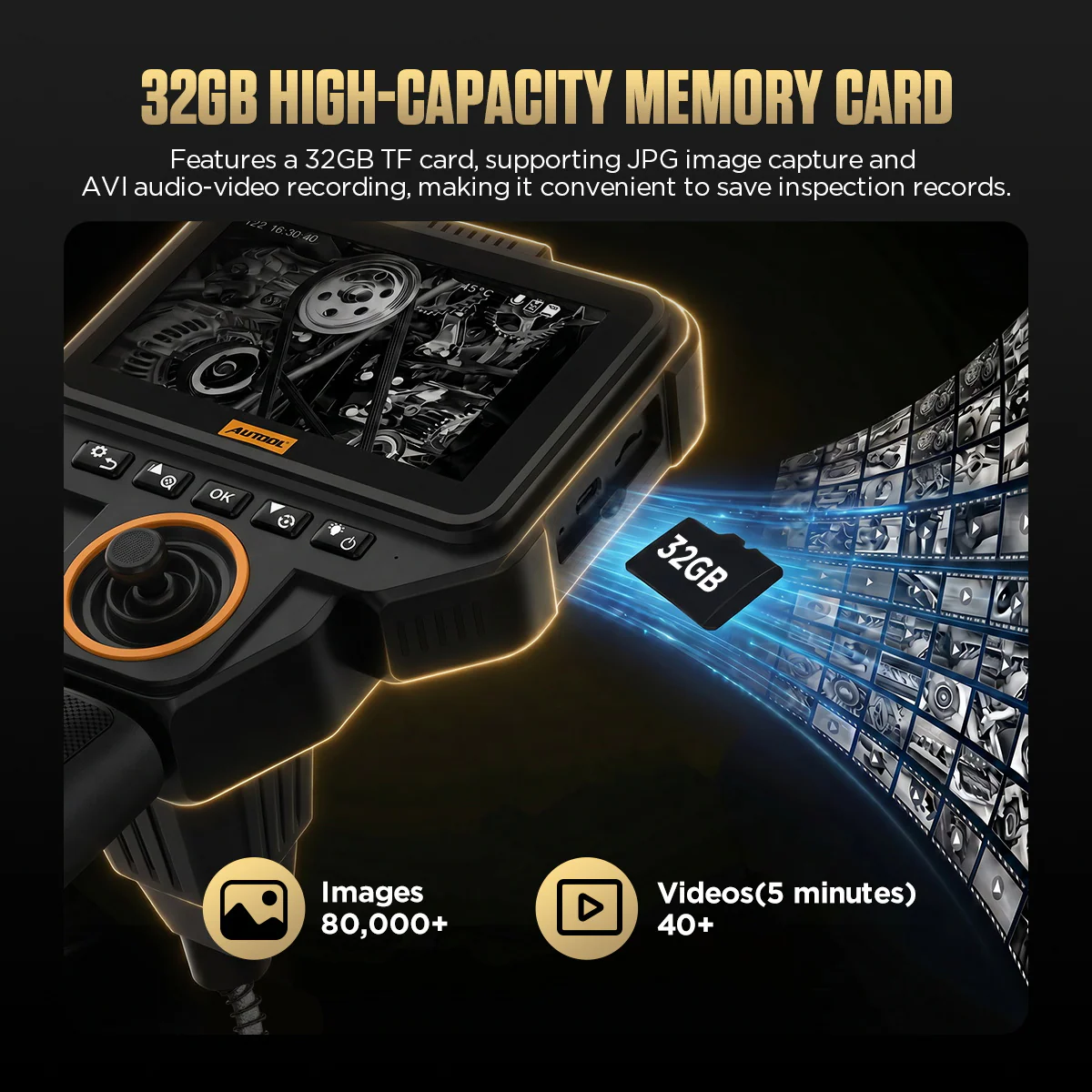

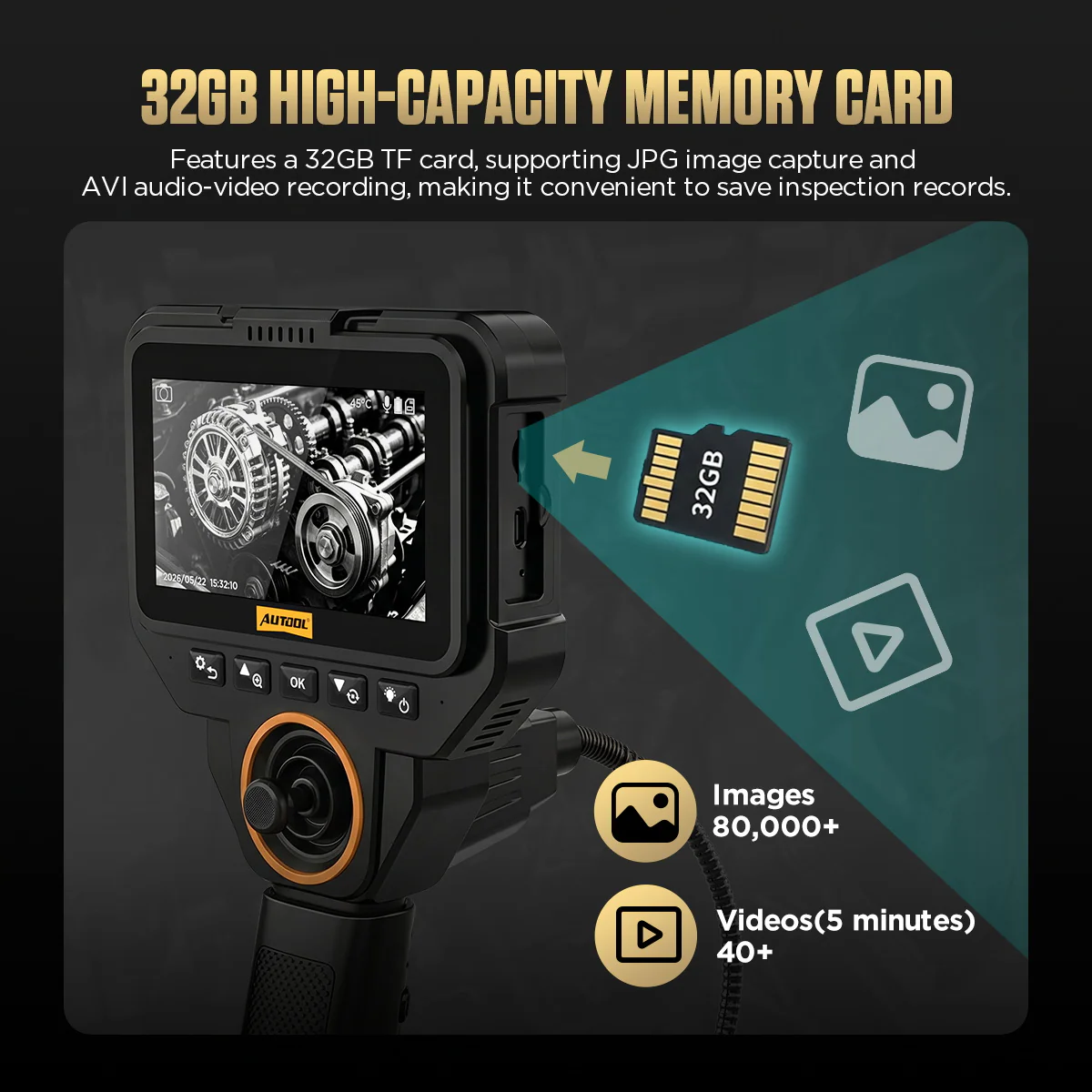

Record with the handle capture button, then review files with playback and image rotation; files save to a removable TF card.
-

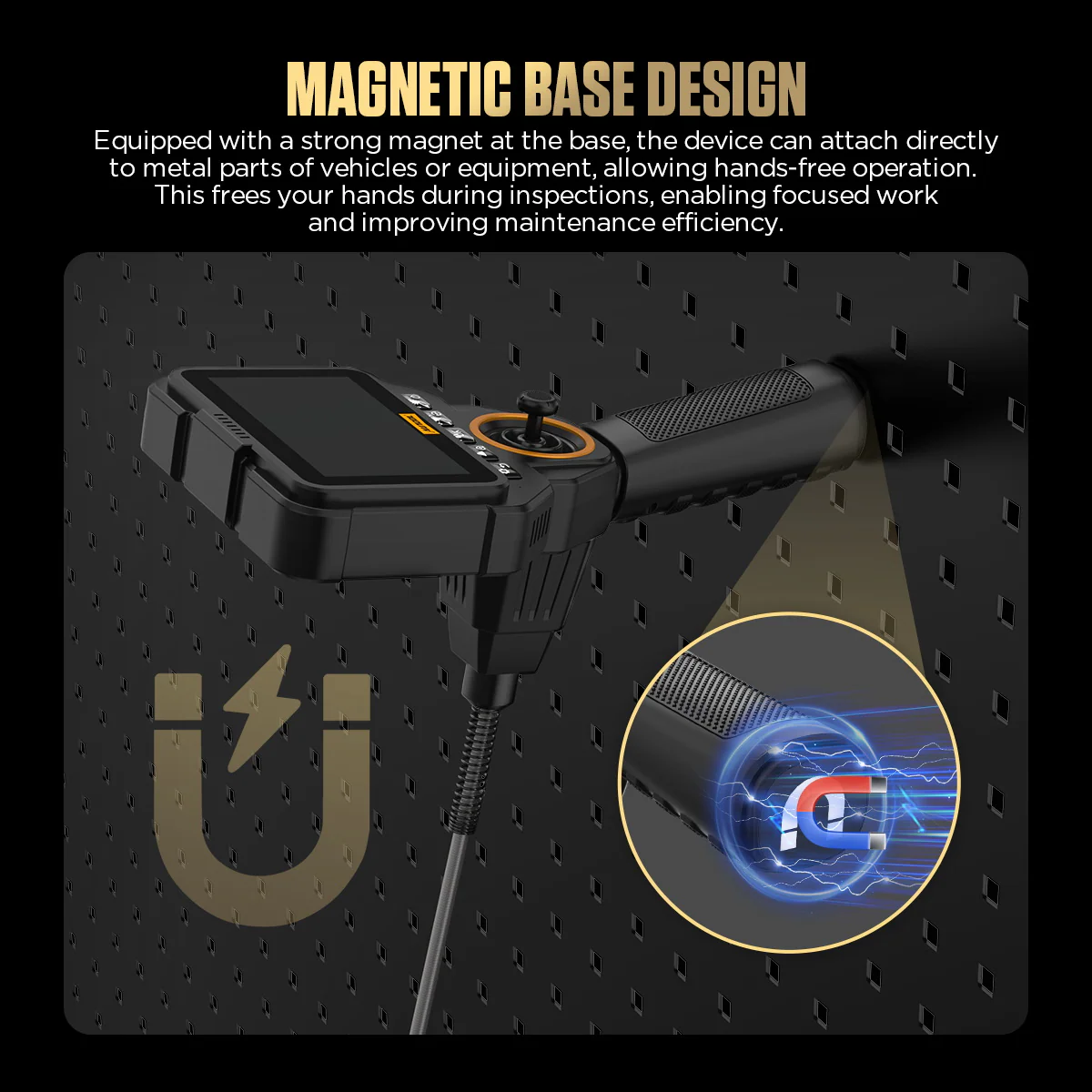

Magnetic Positioning
A magnetic base attaches to a suitable ferrous surface to hold the unit while you guide the probe.
-
Probe Protection

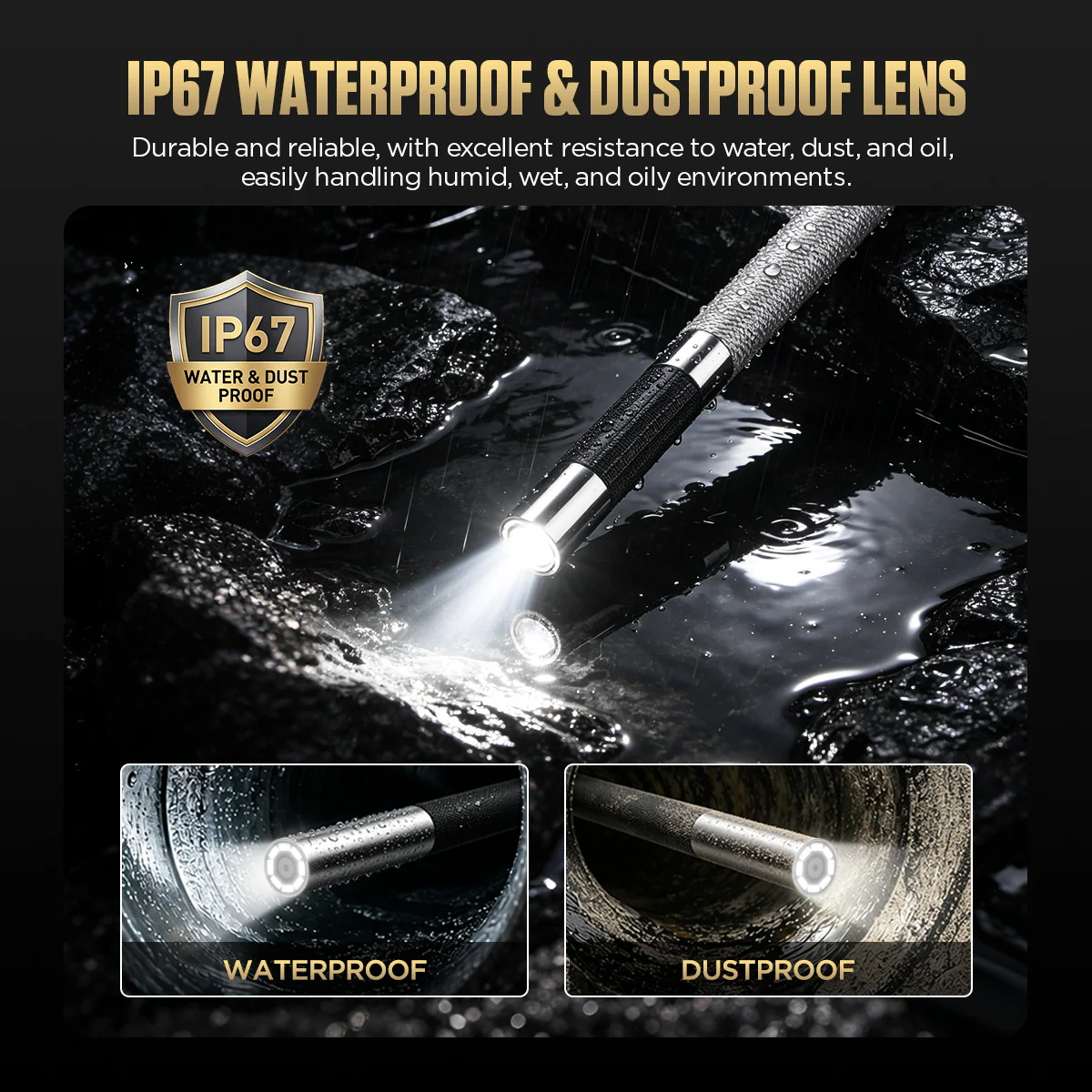

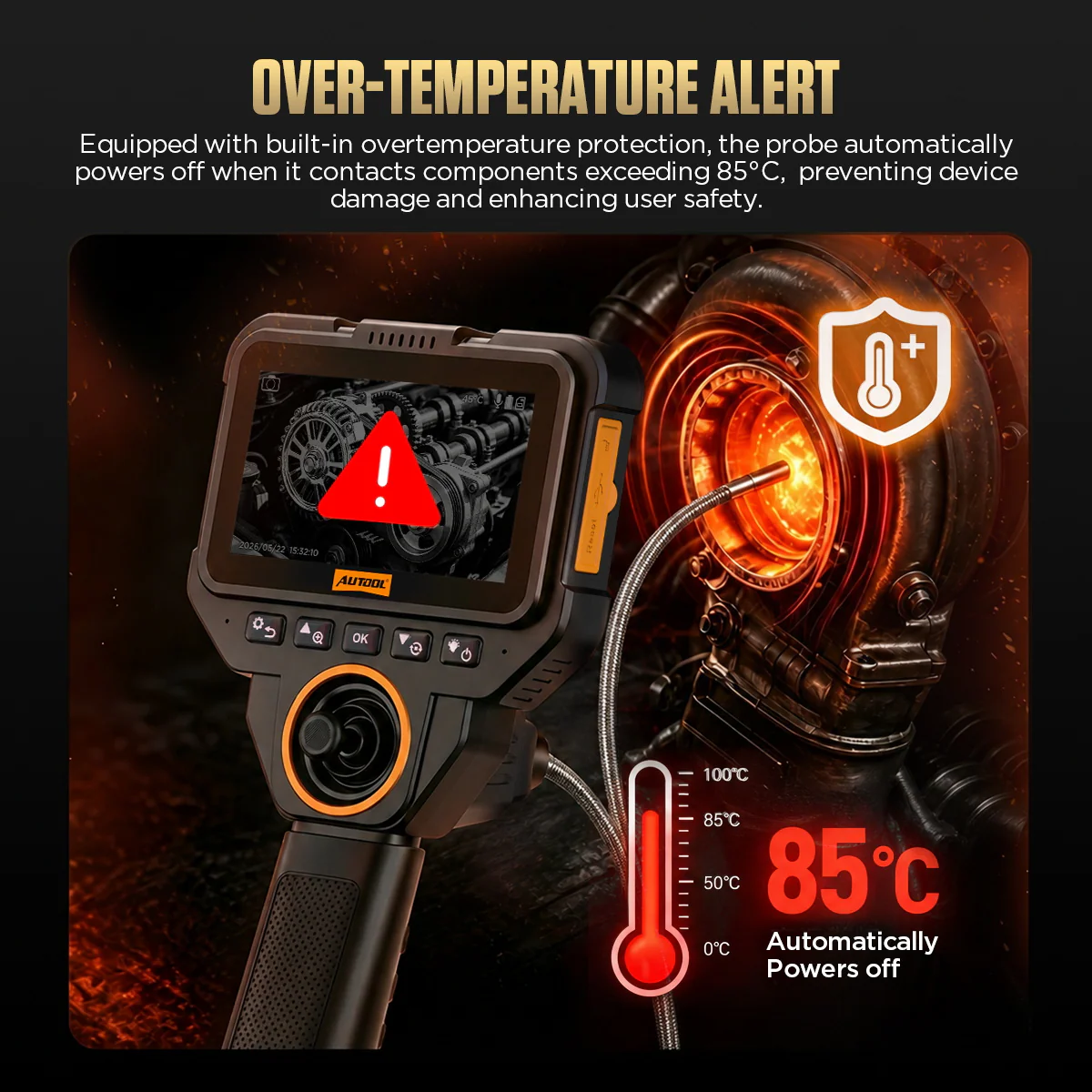

The probe is rated IP67, and the device shuts down above its temperature protection threshold.

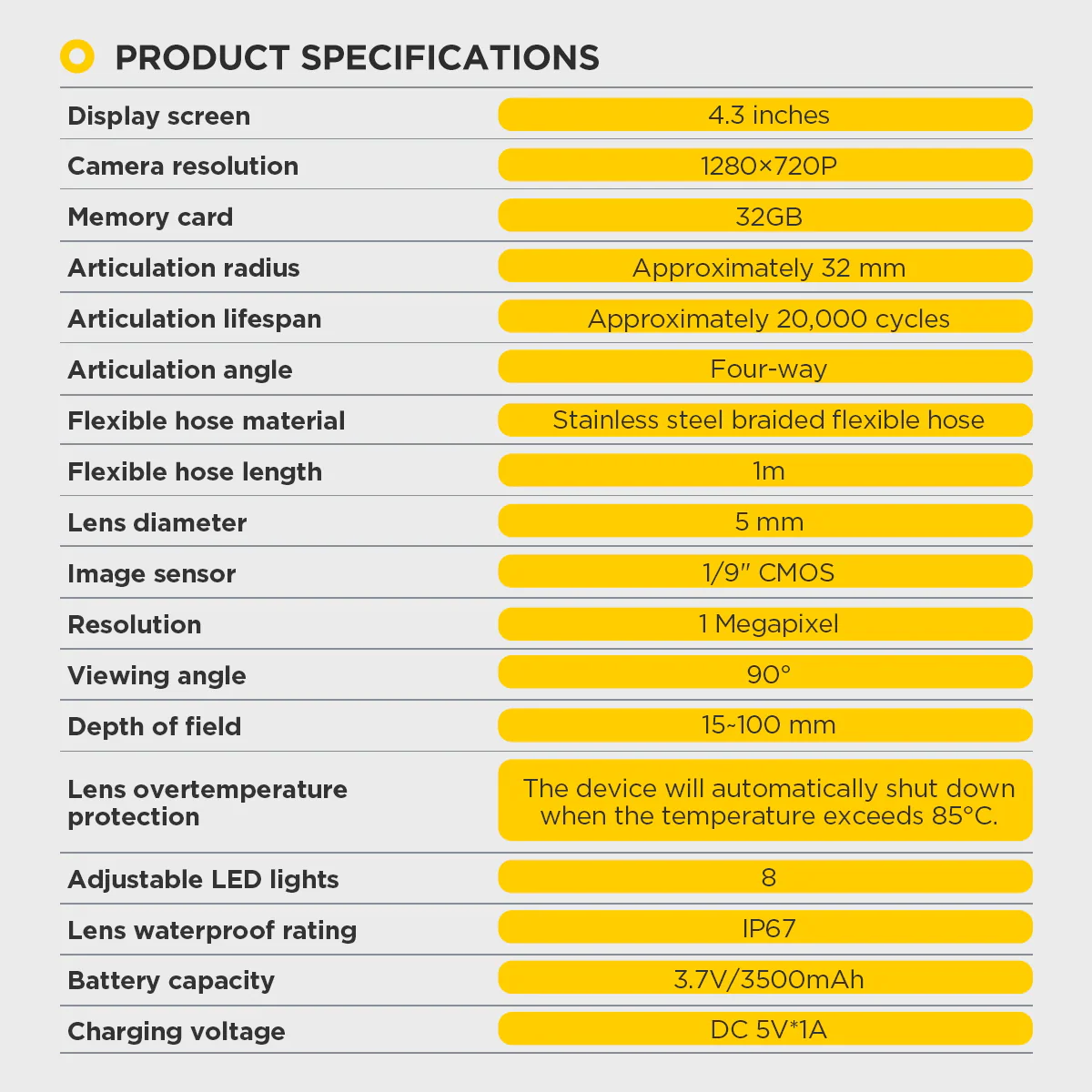

More Specifications
| Articulation service life | Approximately 20,000 cycles |
|---|---|
| Fast charging | Not supported |

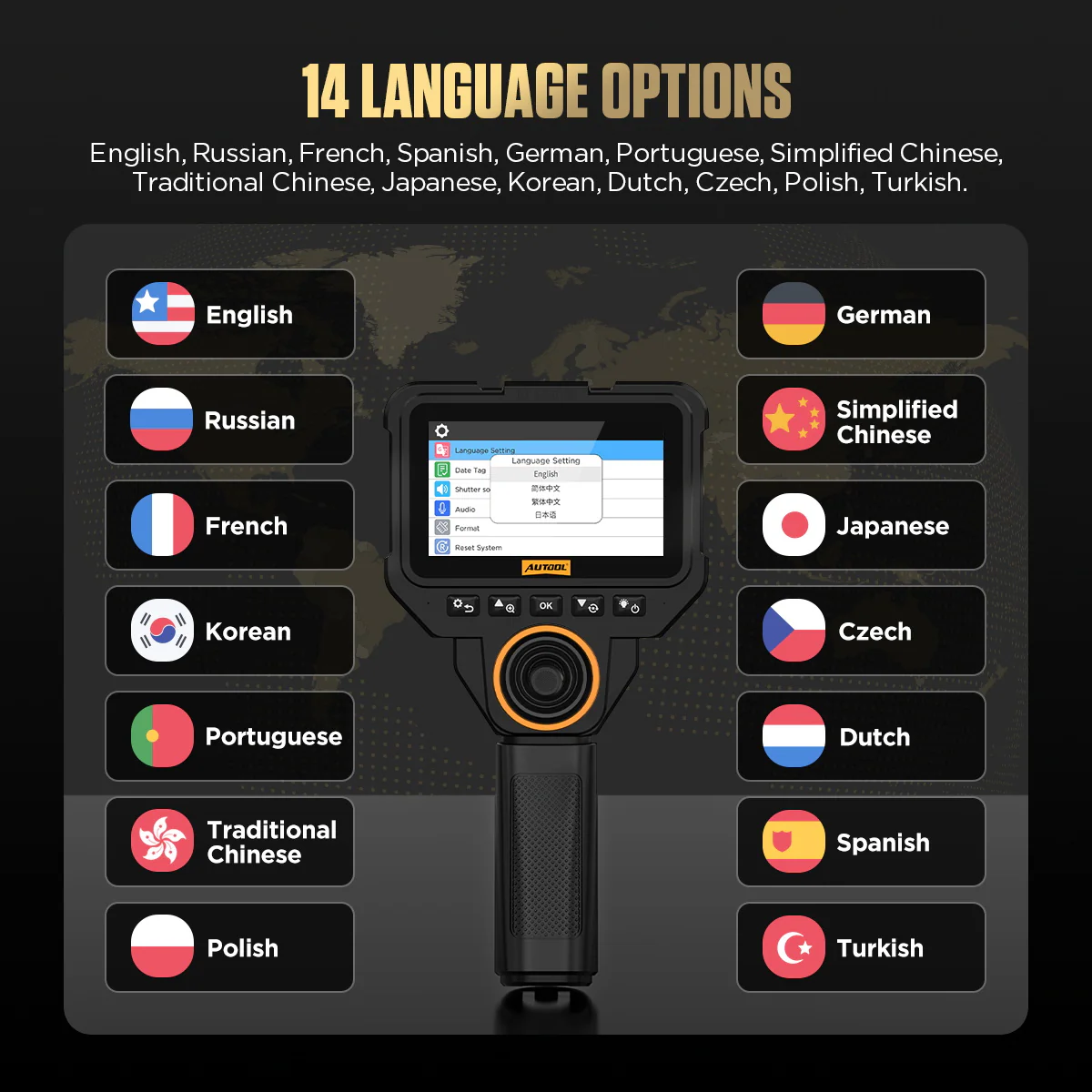

| Menu languages | English, Chinese (simplified and traditional), French, Spanish, German, Czech, Portuguese, Japanese, Korean, Russian, Dutch, Turkish, Polish |
Model Comparison
| V81 | V82 | V83 | V85 | |
|---|---|---|---|---|
| Lens diameter | 5 mm | 6.25 mm | 5 mm | 3.95 mm |
| Steering | Two-way | Four-way | Four-way | Four-way |
| Camera resolution | 1280×720 | 1920×1080 | 1280×720 | 1920×1080 |
| Adjustable LEDs | 8 | 6 | 8 | 6 |

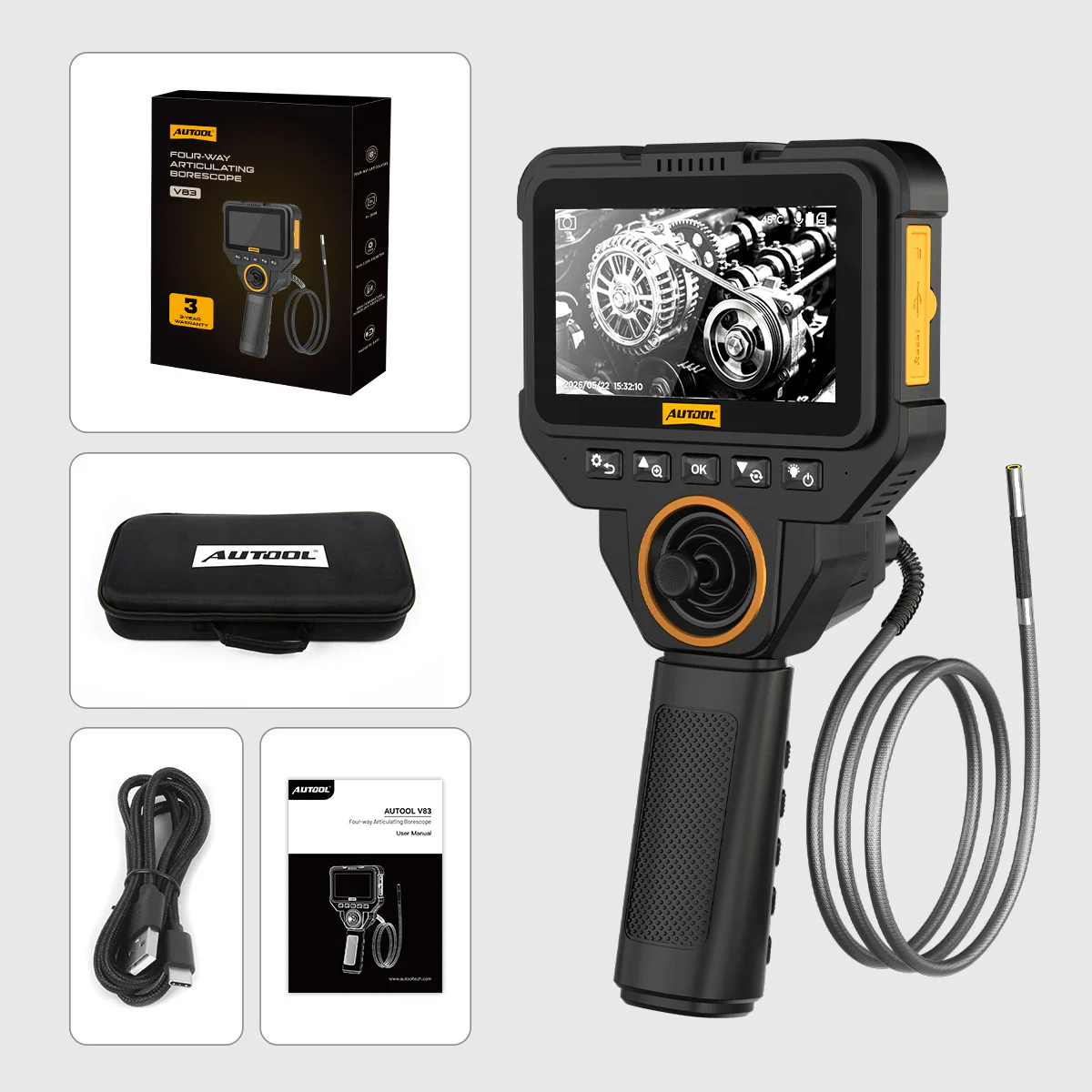

What’s in the Box
- V83 borescope with 5 mm articulating probe and integrated screen
- Carrying case
- USB charging cable
- User manual
How to Use
- Define the targetIdentify the entry point and surface to inspect, and confirm the probe and viewing range suit that path.
- Check the equipmentInspect the tip and cable, charge the device, and test steering, lighting and recording.
- Prepare the vehicleIsolate moving and live parts, let the area cool and clean the access point.
- Guide and illuminateInsert gently while watching the image, steer and adjust lighting to bring the target into focus; never force a bend.
- Record findingsCapture useful angles and note the component, entry point and viewing direction.
- Withdraw and storeStraighten the tip, withdraw gently, check the probe, then clean, dry and store it.
Steering, recording, charging and troubleshooting: V83 user manual (PDF).
Good to Know
Caution
- IP67 applies to the probe only, not the screen or handle; do not assume oil, fuel or solvent compatibility from the rating.
- The heat shutdown is a protection event, not a working-temperature rating; let components cool before inserting the probe.
- If the probe resists withdrawal, stop pulling, return the tip with the control and do not start the engine with the probe inserted.
Care
- Avoid coiled operation and forced bending of the hose.
- Confirm whether a TF card is supplied with your package.
