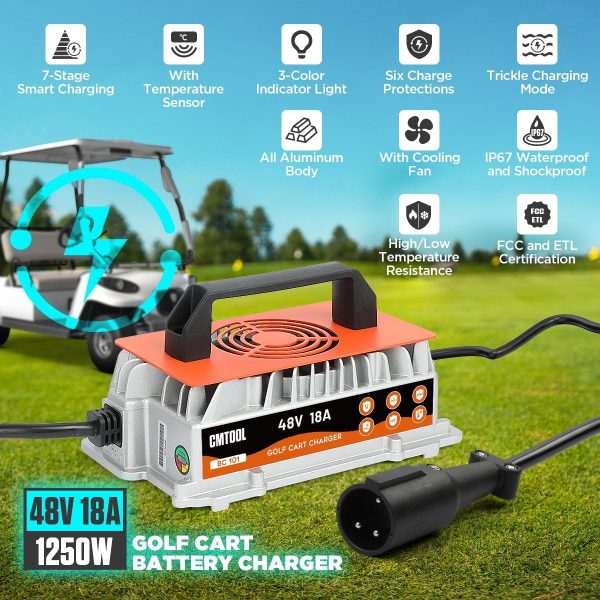

48V Club Car Charging, Bypass Wires Included
An 18A, 1250W lead-acid charger with Club Car’s 3-pin round plug for 48V carts from 1995 to present, including DS, Precedent, Tempo and Villager.
- 48V 18A / 1250W
- 3-Pin Round Plug
- 2 OBC Bypass Wires
- FCC & ETL Certified

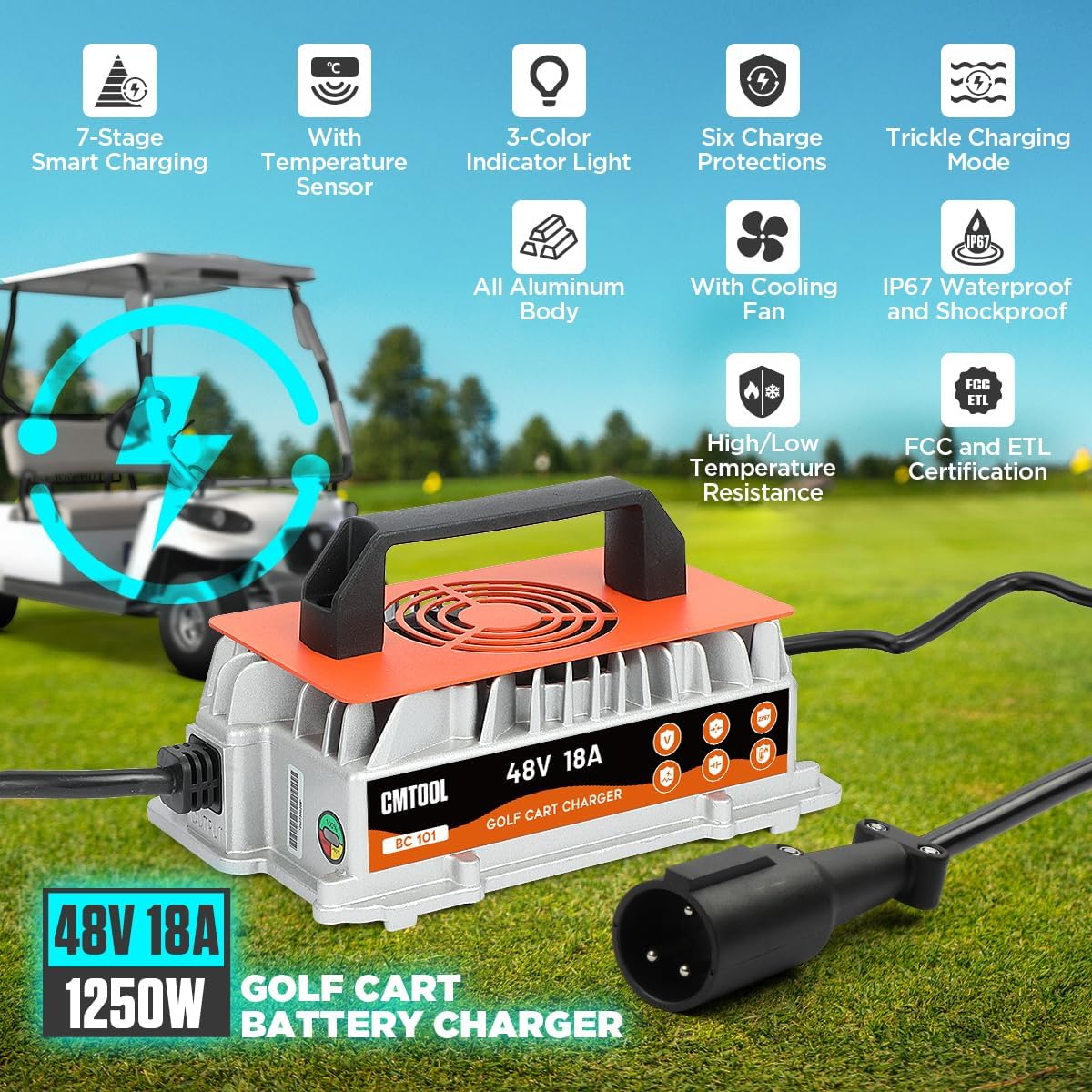

Key Features
-
OBC Bypass Wires
Two bypass wires are supplied for DS (1995–2010) and Precedent (2004–2014) carts.
-
Temperature Compensation
A built-in sensor adjusts charging voltage to the ambient temperature, from -20 °C to +45 °C.
-
Seven-Stage Smart Charging

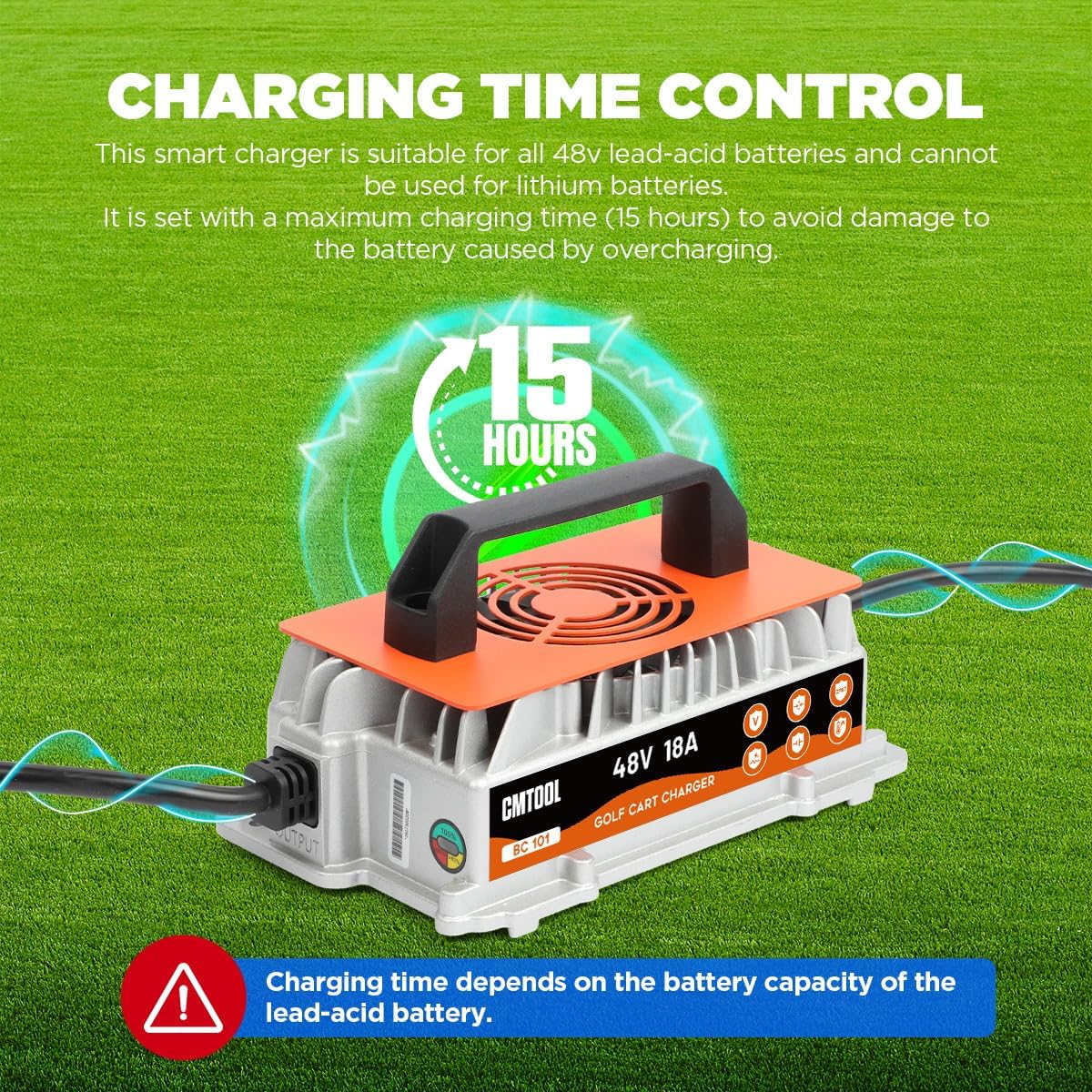

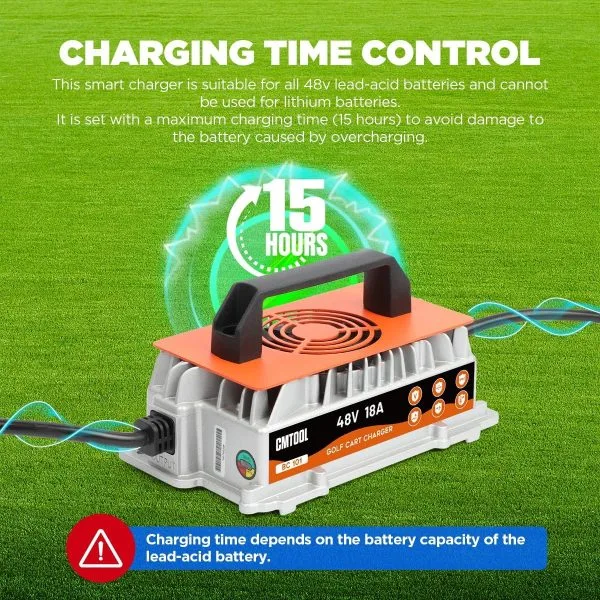

Voltage and current are adjusted throughout the cycle; output stops at full charge and the charger switches to trickle mode, with a 15-hour maximum charging time.
-
Six-Way Protection
Guards against over-voltage, over-current, reverse polarity, short circuit, no-load and over-temperature, shutting down when overheated and resuming once cooled.
-
Rugged Aluminum Body

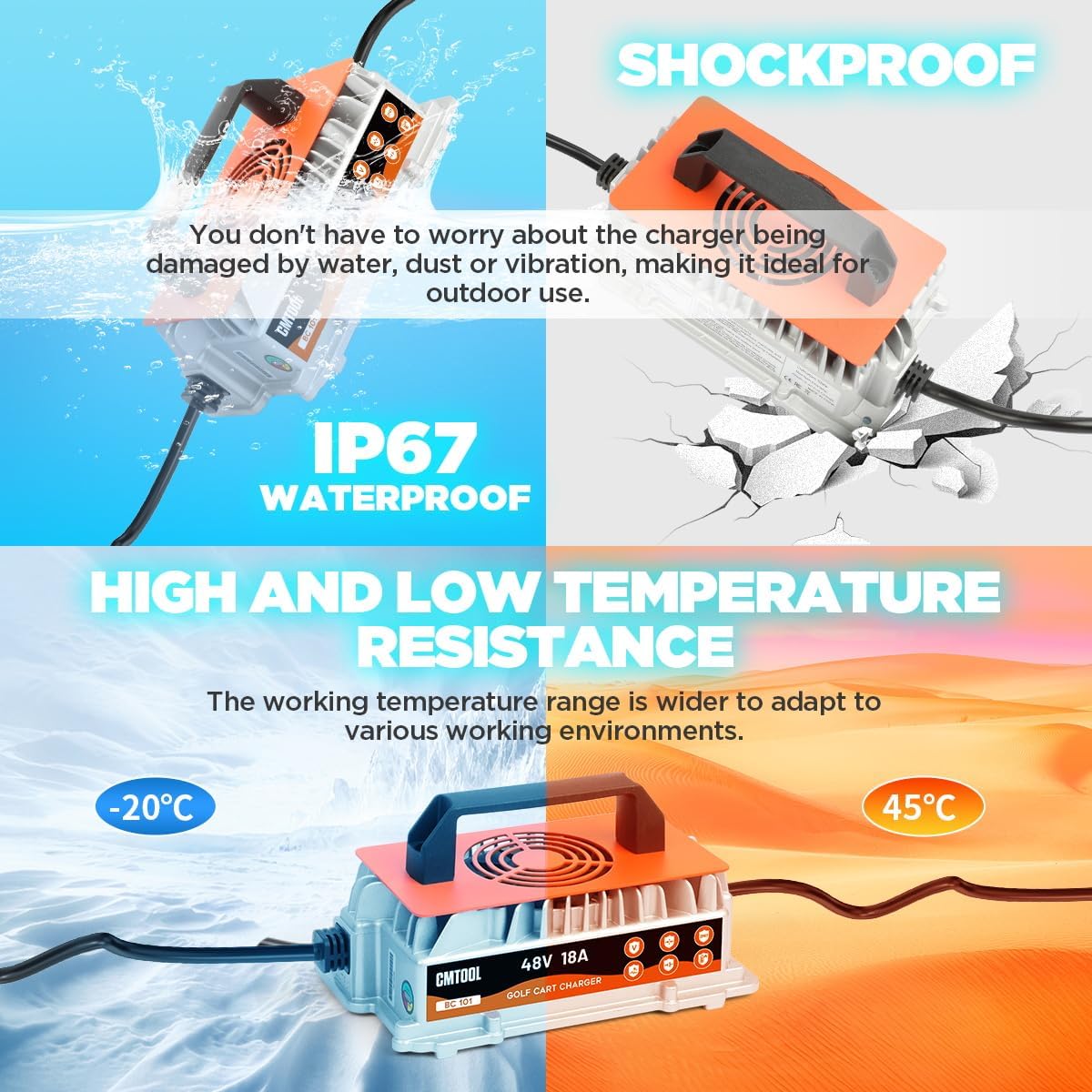

IP67 waterproof and automotive-grade shockproof, with a fan that runs throughout charging to keep the unit cool.
-
Certified, Portable Build
PFC and LLC technology, 100% full-load aging test, and a built-in handle on a 6.39 lb body.
Highlights

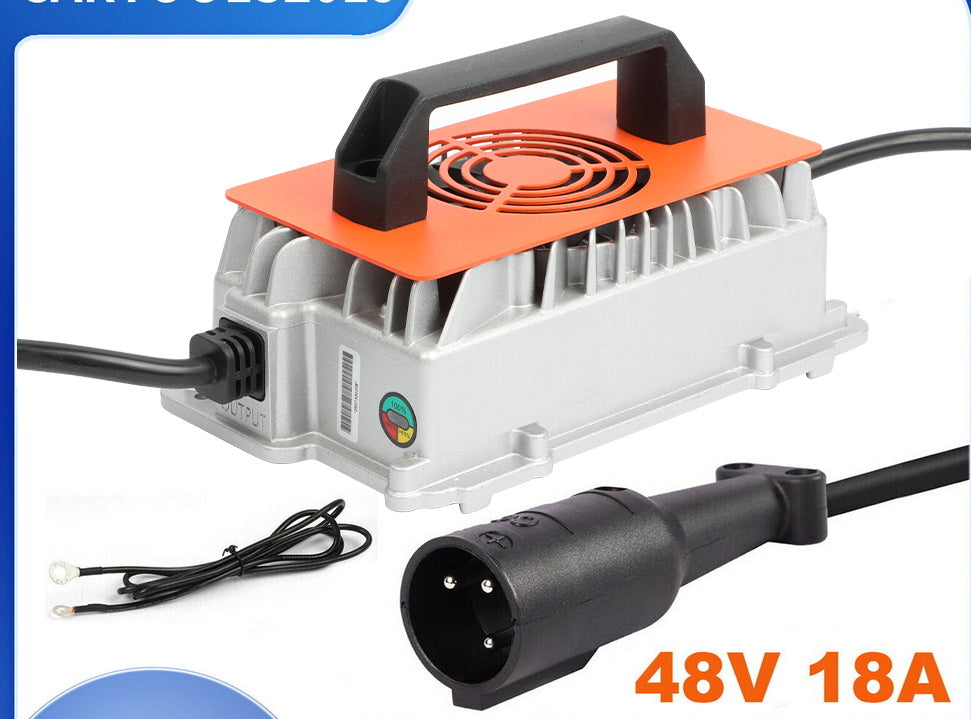

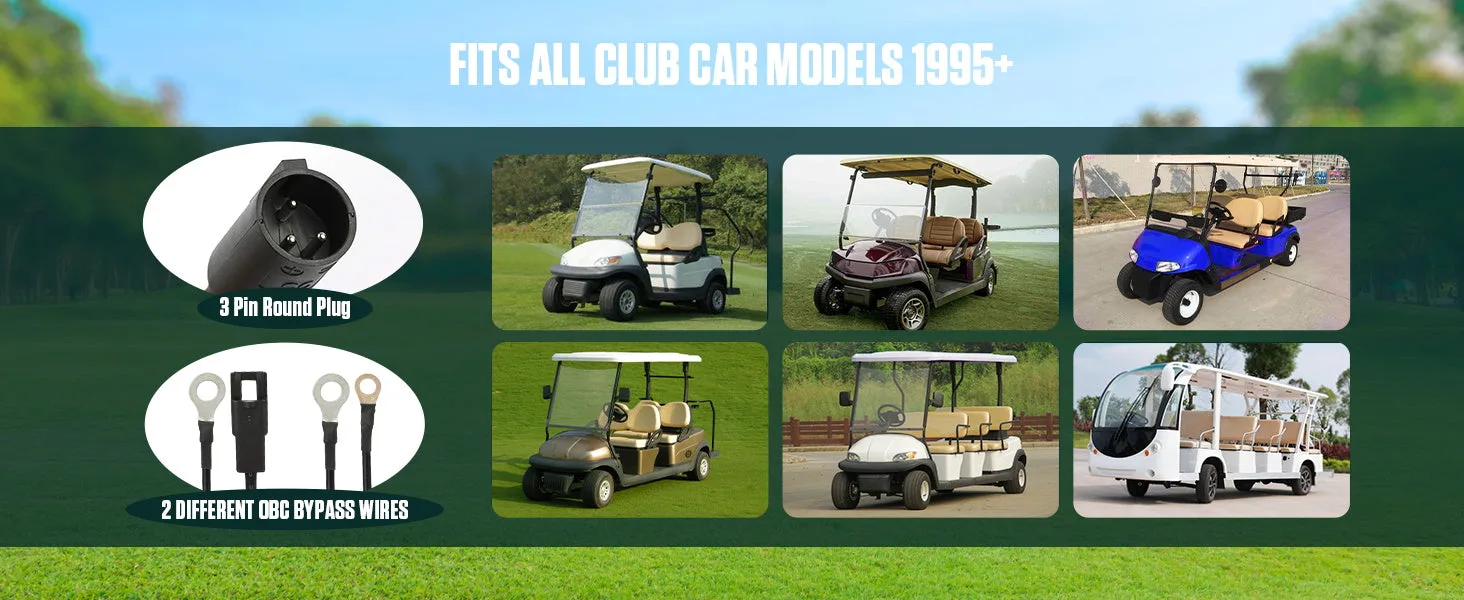

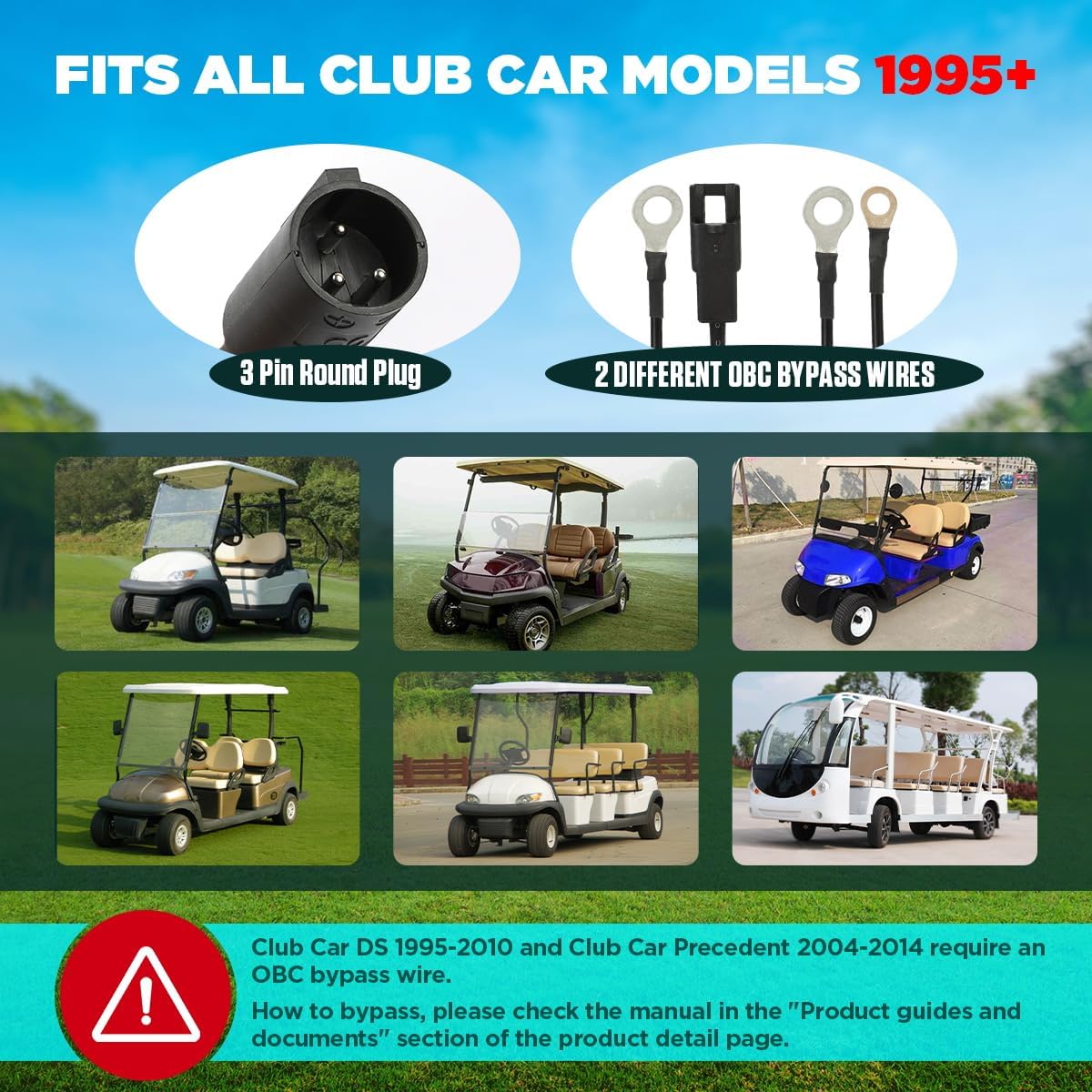

Plug and Bypass Leads
The 3-pin round plug and the two different OBC bypass wires that come with the charger.

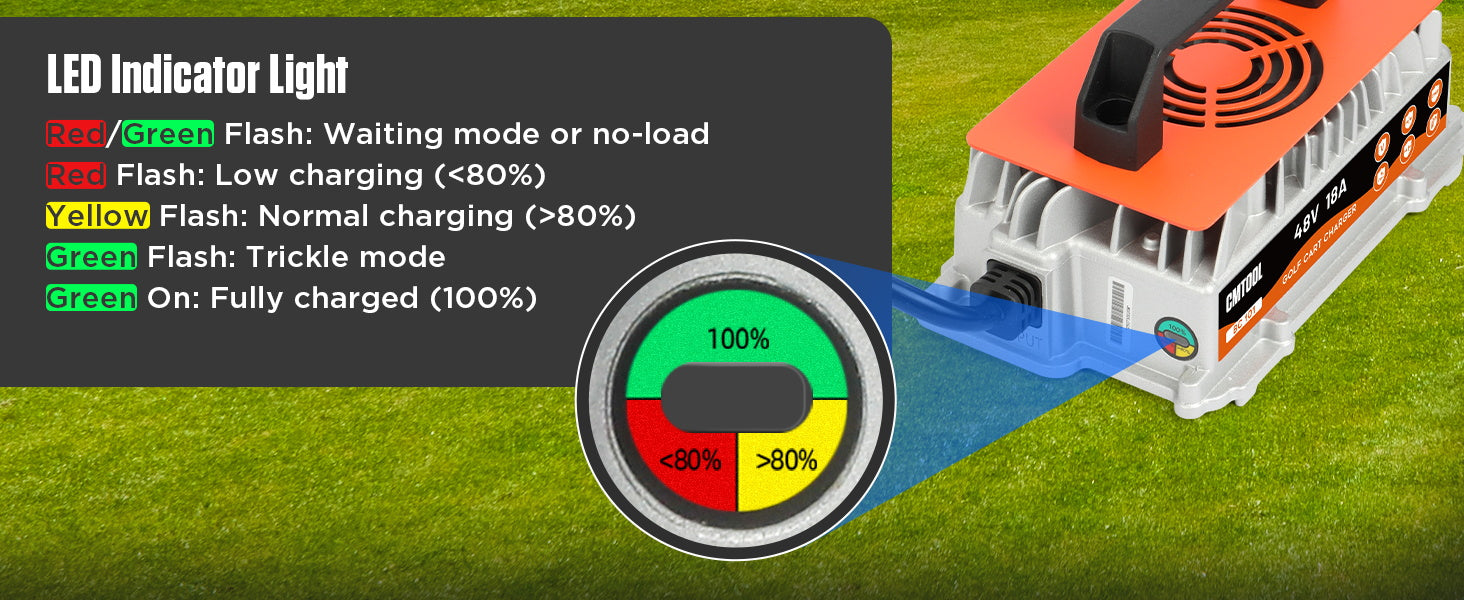

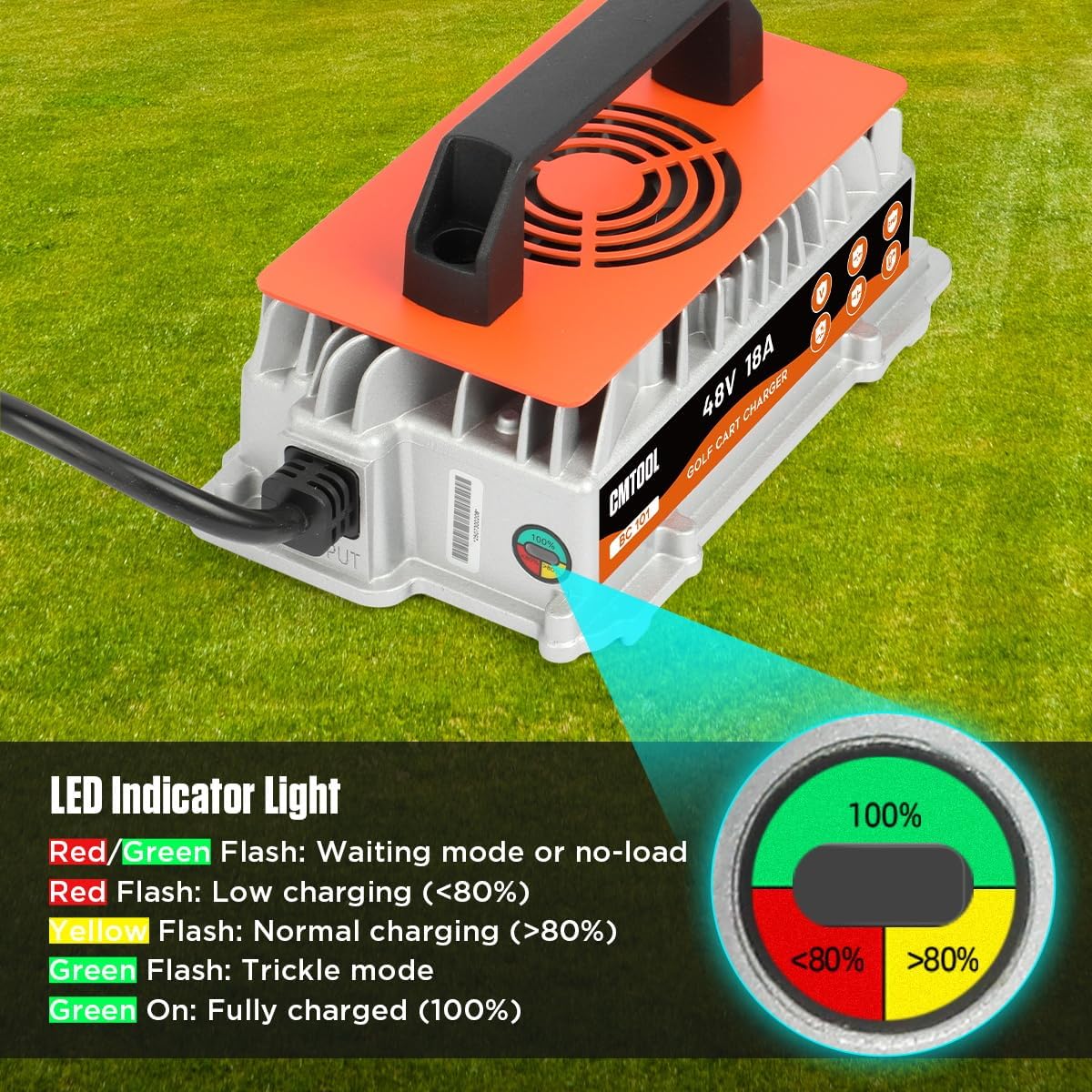

Reading the LED
Red/green flashing means waiting or no load, red flashing is below 80%, yellow flashing is above 80%, green flashing is trickle mode, and steady green means fully charged.

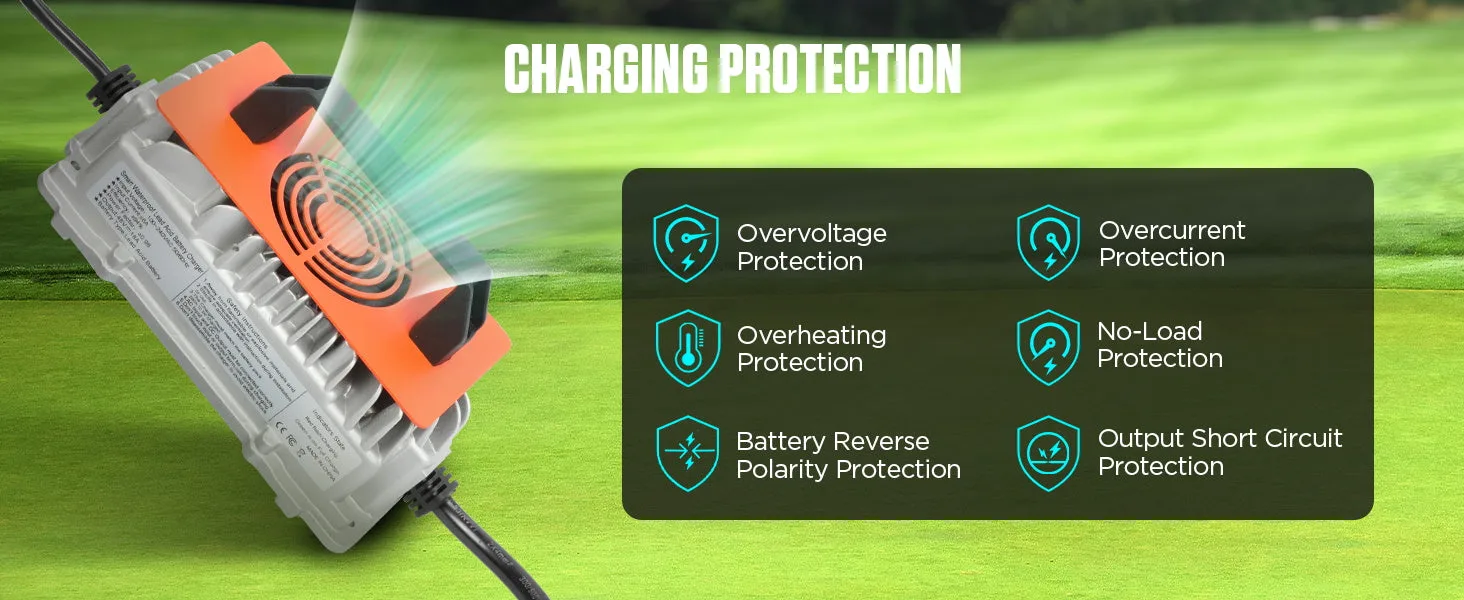

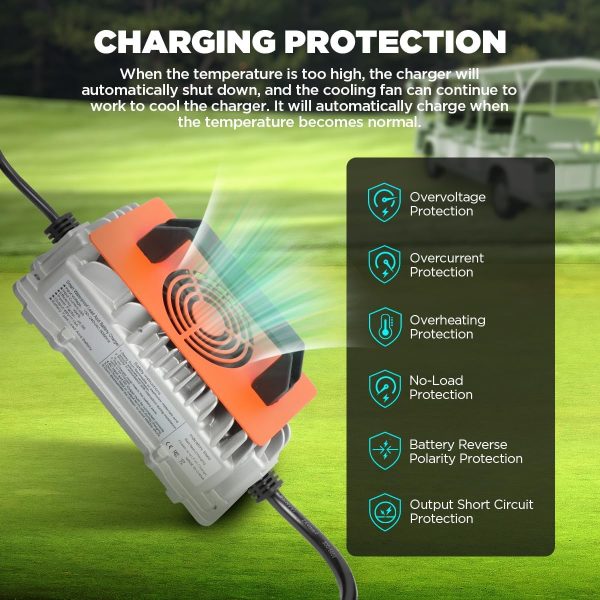

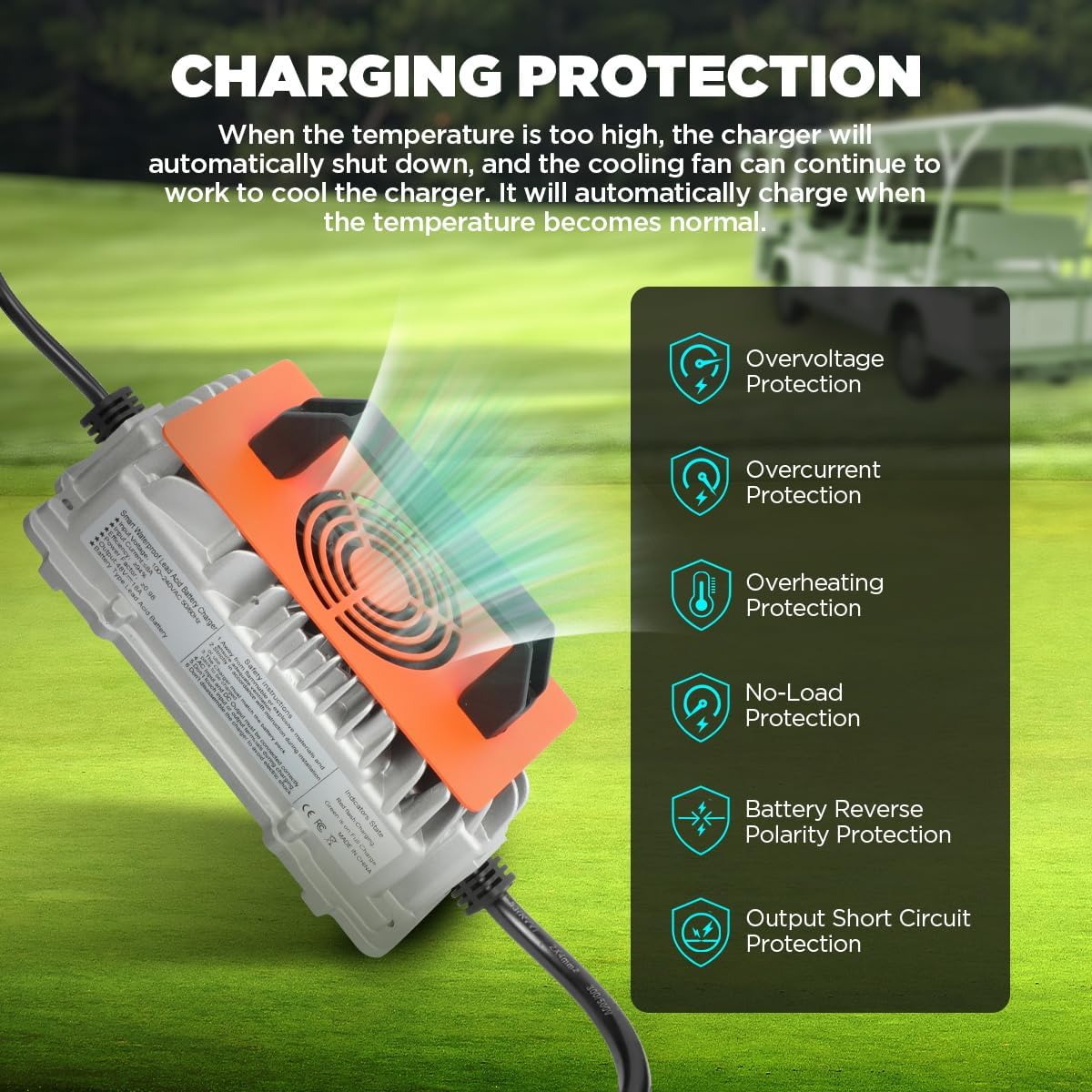

Charging Protection
The six protections work together with the cooling fan on top of the housing.

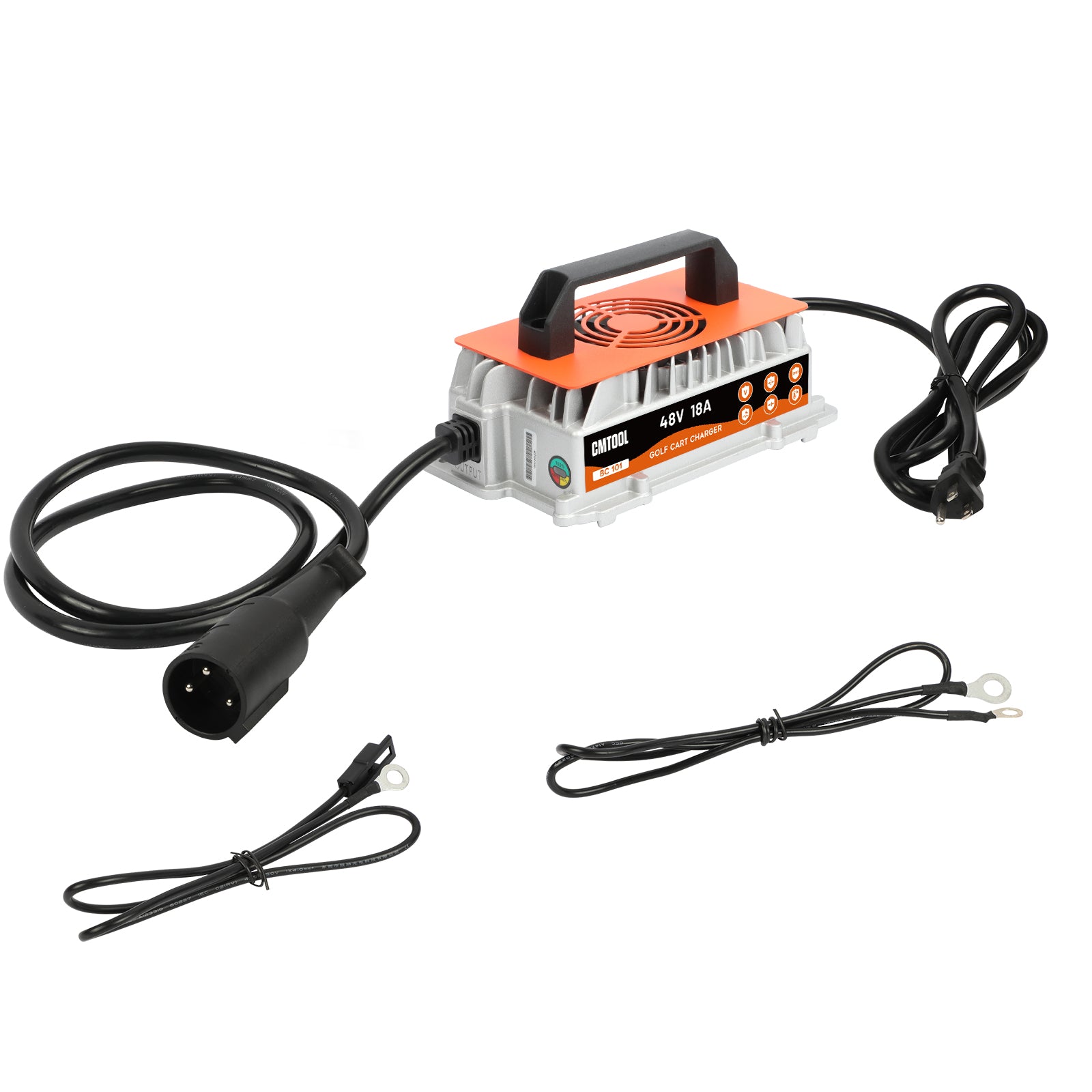

What’s in the Box
- 1×48V 18A charger with 3-pin round plug
- 2×OBC bypass wires
Good to Know
Caution
- For 48V lead-acid Club Car carts only. The bypass wires are listed for specific DS and Precedent model years; confirm your cart’s model and year before fitting them.
