Full-System Diagnostics for 70+ Motorcycle Brands on a 5-Inch Screen
The FXTUL M7 covers more than 70 brands and over 10,000 models from Asia, Europe and the Americas, including Harley-Davidson, Ducati, BMW and the major Japanese makes. It reads engine, ABS, TPMS, immobilizer, instrument and body modules and updates itself over Wi-Fi.
- 70+ Brands
- 5-inch TFT
- Wi-Fi Updates
- 4GB Storage
- Record & Playback
Key Features
-
Brand-Specific Connectors

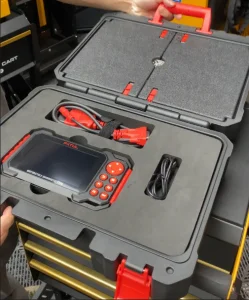

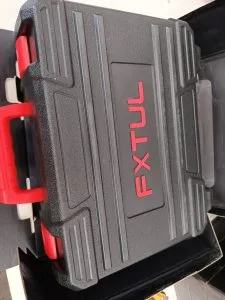

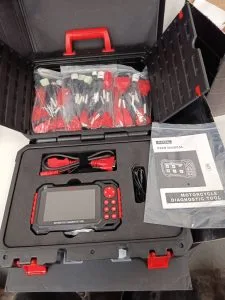

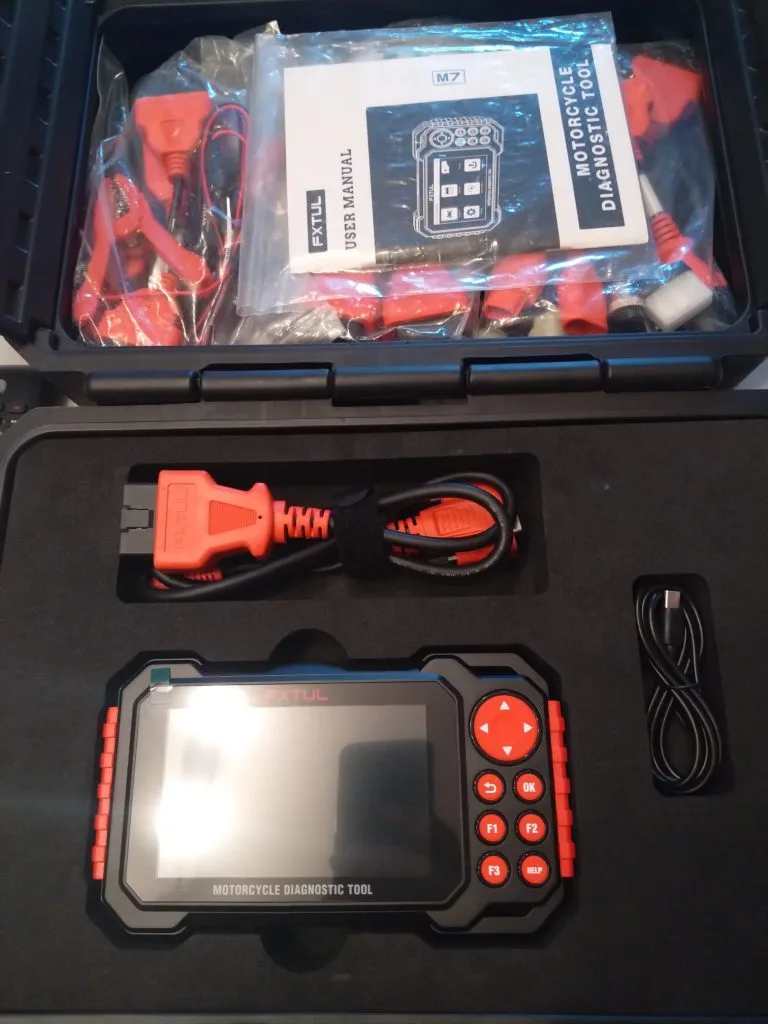

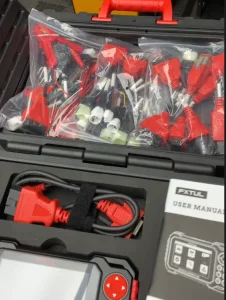

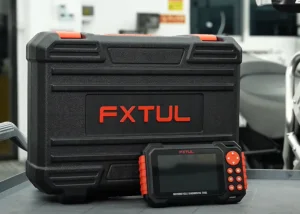

Comes in a portable toolbox with dedicated connectors for mainstream makes, from Asian scooters to European and American motorcycles.
-
Quick Test or Control Unit
Quick Test scans every ECU on a single shared socket and builds a fault report; Control Unit lets you pick a module manually on bikes with separate sockets.
-
Five Core Functions
Read codes, clear codes, view data streams, run action tests and use service functions, which include hundreds of service items such as idle adjustment and throttle position learning.
-
Record, Replay and Screenshot
Long-press F2 to record a data stream and play it back later, or long-press F1 to save a screenshot of codes and waveforms when chasing intermittent faults.
-
Self-Scaling Waveforms
Data graphs adjust their amplitude automatically and can show only the streams you select.
-
Beyond Motorcycles
Can also read most car fault codes and communicates with systems built to the EURO V standard.
-
Built for the Workshop
Ergonomic, drop-resistant housing with dark and light display themes and a battery voltage test.
M7 vs M4
| M7 | M4 | |
|---|---|---|
| Brands supported | 76 | 10 (EU and Asia versions) or 1 (Ducati, Harley-Davidson, BMW versions) |
| Screen | 5.0-inch | 2.8-inch |
| Upgrade method | USB or Wi-Fi | USB |
| Screenshot, data recording and playback | Yes | No |
| Connecting cables | 17 | 4 to 10, depending on version |
How to Use

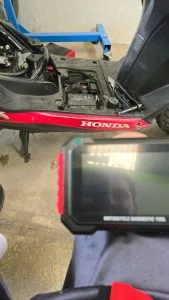

- Find the socketThe diagnostic connector is usually under the seat or the left or right side cover; on some scooters it sits under the footrest or at the front.
- Pick the connectorChoose the cable that matches the brand and socket style. A few special sockets also need power from the battery clamp.
- Identify the bikeUse System Selection, choose the model by type, year and engine, or let VIN reading identify it on brands that support it.
- ScanRun Quick Test or Control Unit; each system shows as installed, not installed, passed or with its number of faults.
- Work the faultOpen a system to read and clear codes, watch live data, run action tests or start a service function.
For Ducati, BMW and Harley-Davidson, choose VIN identify when the model is not in the list. Full menu walkthrough: FXTUL M7 user manual (PDF)
Updates & Support
Exit diagnosis normally before switching off so the log is saved; do not cut the power directly.
Good to Know
Caution
- Check the power cable, data cables and connectors before each use, and do not operate the tool if any are damaged.
Care
- If a brand or model is not recognized, update to the latest software and reconnect.
- Do not twist or sharply bend the cables, and keep them away from heat, oil, sharp edges and moving parts.
