Rebecca A.

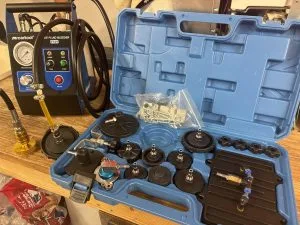

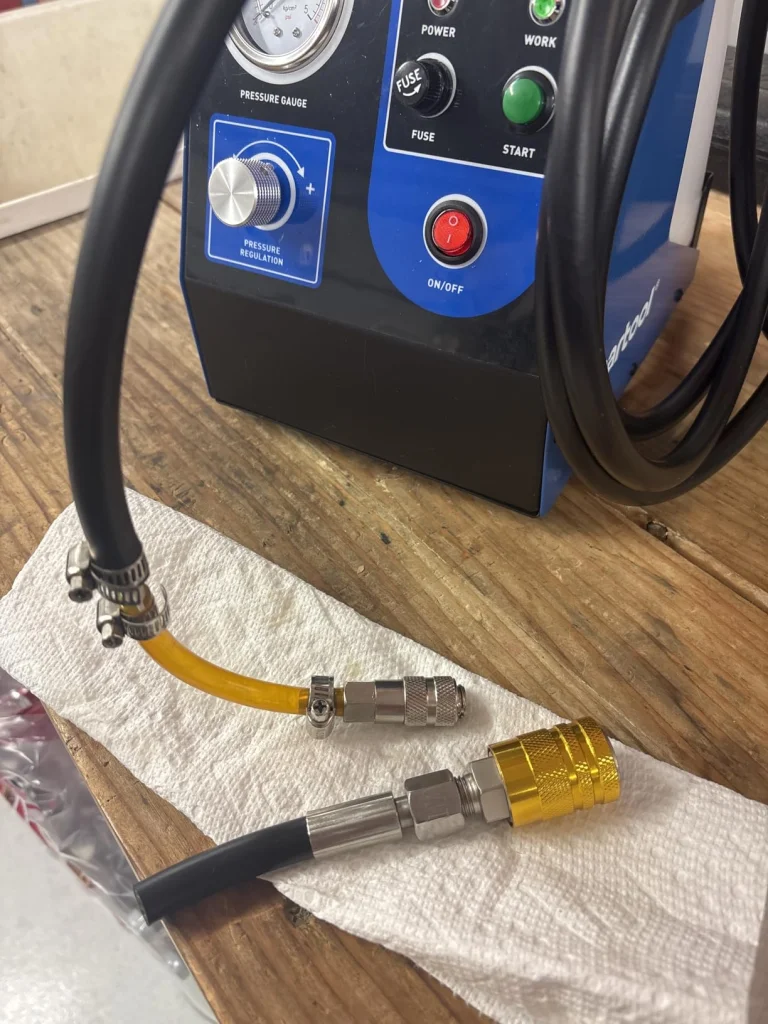

Worked great for pressure bleeding breaks with ABS and TCS. That said before using I had to modify the pressure hose line. It would be more helpful if the pump bleeder system had the same quick disconnect as the MR CARTOOL Automotive Brake Bleeder Kit 12PCS Brake Master Cylinder Adapters with Quick Coupler, Brake System Fluid Bleeding Tools Set for Most Vehicles. Or provision where made to change the quick connect without having to cut the hose and modify for application.

Oliver T.

Worked great for pressure bleeding breaks with ABS and TCS. This brake bleeder system is so easy to use, I was able to bleed my own brakes with no automative experience prior.

Jayce

After using the MRCARTOOL F109 brake fluid changer, I’m really impressed with how efficient it is. The built-in pressure monitoring system makes it easy to adjust the pressure accurately, and the one-time replacement function saves a huge amount of time compared to traditional methods. The automatic liquid level detection is very helpful—it stops the machine immediately when the fluid is low, so no air enters the lines. The fully automatic process is smooth and avoids any air bubbles, which means no manual bleeding at all. I also appreciate the green recycling feature; it recovers waste brake fluid quickly and cleanly. Overall, the F109 works with nearly all car models I’ve serviced, making it a very practical and reliable tool for daily use. Highly recommended for both workshops and professionals.

Specifications

BrandMRCARTOOL
Weight5300 g
DimensionsN/A
Power SupplyAC 110V/220V±10%
Exchange MethodPulse exchange, one person completes in 15-20 minutes
Working Pressure0.5–2.5 bar (knob 0.6-2.5 BAR)
Output Pressure0.7–2.5 bar
Power35W max
Flow Rate≤1.6 L/min
Fill Hose Length3.5m
Brake Fluid Adapter1
ProtectionAuto stop on low fluid level, prevents air intake
Weight7 kg
Vehicle CoverageMost European, American and Asian vehicles

Details

One-Person Brake Fluid Exchange With Pulsed Flow and Adjustable Pressure

The F109 replaces brake fluid with pulsating flow, so one technician can complete the whole exchange while the used fluid is recovered at the same time. Filling pressure is set with a knob and shown on the gauge.

  • Pulse Exchange
  • One-Person Operation
  • Adjustable Pressure
  • Used-Fluid Recovery
  • Standard & Master Modes

Key Features

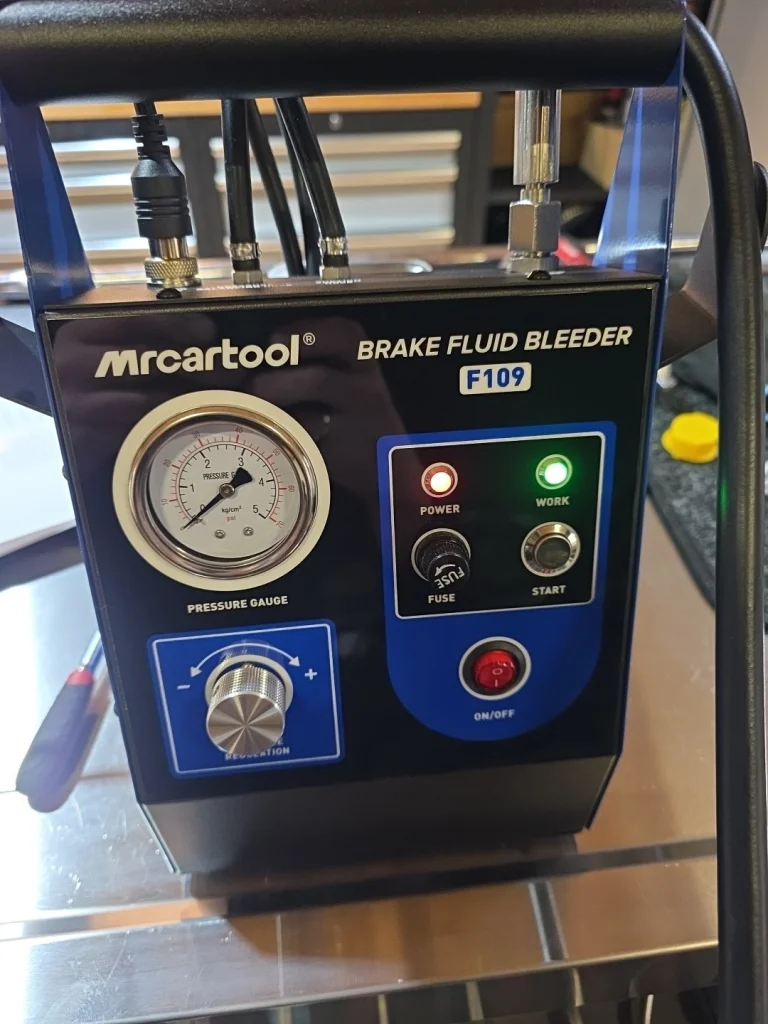

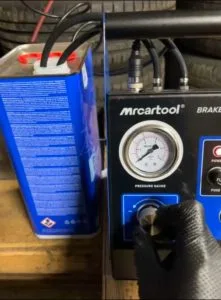

  1. Pressure Monitoring and Adjustment

    The built-in pressure monitoring device and adjustment knob control the filling pressure into the brake fluid reservoir.

  2. Pulsed Exchange

    The pulsed electric exchange prevents bubble formation and removes the need for manual bleeding.

  3. One-Person Brake Bleeding

    A single operator can carry out the complete brake fluid replacement, saving time and labor.

  4. Fluid Recovery

    Used brake fluid is recycled at the same time as new fluid is filled.

  5. Two Working Modes

    Choose standard mode or master mode before starting.

Highlights

MRCARTOOL F109 operation steps: hoses in the new fluid bottle, filling hose on the reservoir adapter, recovery bottle on the wheel cylinder, start button
Operation Steps

Connect the fluid bottle, reservoir adapter and recovery bottle, then press start.

MRCARTOOL F109 air purge: adapter connected to the filling hose and brake fluid discharging from the adapter
Air Purge

Fill the unit’s lines with brake fluid before the first exchange so no air enters the brake system.

F109 vs F118

F109 F118
Output pressure 0.7–2.5 bar 0.7–3.0 bar
Brake fluid adapters 1 7
Brake calipers changed at once Single wheel Two wheels
Pulsating exchange Yes Yes
One-person operation Yes Yes
Working pressure adjustment Yes Yes

What’s in the Box

  • F109 main unit
  • Filling hose
  • Power cable
  • Brake fluid adapter
  • Recycling bottle
  • User manual

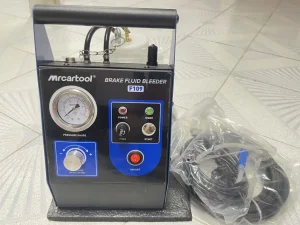

MRCARTOOL F109 main unit, filling hose, power cable, user manual, brass reservoir adapter and recycling bottle
F109 package contents.

How to Use

  1. Add new fluidPour new brake fluid into the filling bottle.
  2. Connect the bottleConnect the suction hose and pressure balance hose to the filling bottle.
  3. Connect the reservoirConnect the filling hose to the brake fluid reservoir through the adapter.

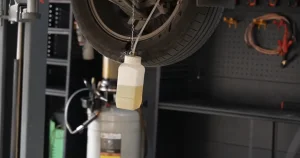

  4. Connect the recovery bottleAttach the recovery bottle to the brake wheel cylinder.
  5. Select a modeChoose standard mode or master mode.
  6. StartPress the start button and wait for the fluid exchange to finish.

Good to Know

Caution
  • Before connecting to the vehicle’s brake fluid reservoir, purge the unit until fluid discharges from the adapter, so that no air enters the brake system.
  • Do not over-adjust the pressure at higher settings; this can damage the brake master cylinder.
