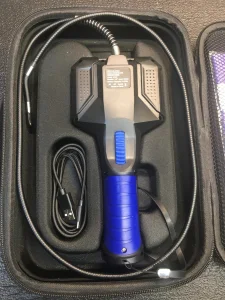

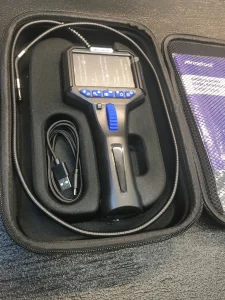

I like to keep my tools organized and protected and one feature I like about this articulating borescope is the included custom case. It’s a semi rigid nylon exterior with a a custom molded interior that also has foam padding and a mesh pocket in the top enclosure. Perfect to keep the borescope protected and organised with all the accessories. This instrument has a lot of features and functions that are well detailed in the included instruction booklet with color pictures for easy reference. I have used similar but older borescopes in my work inspecting building HVAC system across Canada. This borescope is definitely packed with options for image storage and performs much better than the older models I used.

Arno H.

This MRCARTOOL N150 endoscope is an absolute lifesaver for inspection work. The image quality is incredibly clear, and the ability to magnify details during inspection allows me to easily examine tight spaces inside cars or machinery. It also offers multiple language options and overheat protection, making it perfect for test drives and repairs.

Specifications

BrandMRCARTOOL
Weight1100 g
Probe Diameter6.2mm
ArticulationTwo-way 210°
Display3.5-inch 1080p, 4X magnification
Field of View90°
Depth of Field20-100mm
Cable Length1m
Waterproof RatingIP67 waterproof and oilproof
Lighting6 LEDs, 3 adjustable levels
Battery2200mAh lithium battery
Storage32GB
High Temperature Protection80°C alarm (also stated as auto power off at 90°C in description)
Languages10
Weight1.1 kg
CompatibilityAuto repair, machinery, circuits, pipes, AC inspection

Details

Steer a 6.2 mm Camera Into Tight Spaces and Record What You Find

The N150 is a handheld articulating borescope with a 6.2 mm probe on a 1 m hose that bends 210° in two directions. A 3.5-inch screen shows the live view, and photos and video are saved to the 32GB memory card.

  • Two-Way 210° Articulation
  • Angle Lock Button
  • IP67 Probe
  • 6 Adjustable LEDs
  • 32GB Card

Key Features

  1. Articulating Tip

    The hose bends up to 210° with a 35mm bending radius, so you can look around corners from many angles.

  2. Detection Angle Locking

    Press the lock button to hold the probe angle; the hose keeps its shape without springing back for steady observation.

  3. Clear View With Zoom

    The 1080p 3.5-inch screen captures photos and video and zooms up to 4X to inspect fine structures.

  4. Water- and Oil-Proof Hose

    The IP67 camera hose is suited to deep inspections inside engines and pipes.

  5. Adjustable Lighting

    Six LEDs with three brightness levels for dark spaces.

  6. Overheat Protection

    A built-in thermal chip protects the camera from high temperatures.

  7. Storage and Transfer

    The 32GB memory card stores photos and 50+ videos of 5 minutes or more; view files on a computer through the Type-C charging cable.

  8. 10 Menu Languages

    English, Spanish, German, French, Italian, Russian, Chinese, Traditional Chinese, Japanese and Korean.

Highlights

MRCARTOOL N150 with lens diameter, 210 degree bending angle and 35mm bending radius callouts
210° Steering

Turn the thumb wheel to bend the 6.2 mm tip.

MRCARTOOL N150 angle lock button beside the steering wheel and a locked bent probe
Angle Lock

Hold the tip in position while you inspect.

MRCARTOOL N150 probe tip with six LEDs and off, level 1, level 2 and level 3 brightness settings
Three Light Levels

Set the brightness for the space you are inspecting.

Model Comparison

N100 N130 N150 N180 N220
Steering Two-way 210° Two-way 210° Two-way 210° Four-way 360° Two-way 210°
Display 2.8-inch 3.5-inch 3.5-inch 5-inch 3.5-inch
Lens diameter 6.25 mm 5.5 mm 6.2 mm 6.25 mm 3.9 mm
Depth of field 15–100 mm 15–100 mm 20–100 mm 15–100 mm 15–100 mm
Magnification 4X 4X 4X 8X 4X
Languages 11 11 10 11 11
Battery 2600mAh 2000mAh 2200mAh 2600mAh 2000mAh
Detachable screen connects to phone No No No Yes Yes
External monitor Yes Yes No Yes Yes

What’s in the Box

  • N150 main unit
  • Storage bag
  • Wiper cloth
  • Lanyard
  • Data cable
  • User manual
MRCARTOOL N150 main unit with storage bag, retail box, wiper cloth, lanyard, data cable and user manual
N150 package contents.

Setup and operation: N150 user manual (PDF).

Good to Know

Caution
  • Wait 1-2 hours for the engine to cool before testing; high temperatures can damage the camera.
  • The screen is not waterproof. Keep liquids such as engine oil away from the screen; liquid entering it will damage the screen.
Care
  • The unit charges only when connected to the charger. Charging from a computer is recommended; phone chargers may overload it and shorten battery life.
