Diagnose SYM, KYMCO, PGO and Benelli Along With 6 More Brands
This FXTUL M4 version is aimed at scooters and motorcycles common in Asia: Honda, Yamaha, Kawasaki, SYM, KYMCO, Suzuki, Vespa, KTM, PGO and Benelli. It reads and clears codes, resets service lights and resets the ECU over OBD2 and EURO5.
- 10 Brands
- OBD2 & EURO5
- Service Light Reset
- 13 Languages
- DC10-15V
Key Features
-
Scooter Brands Covered
Adds SYM, KYMCO and PGO scooter makes plus Benelli to the six major Japanese and European brands.
-

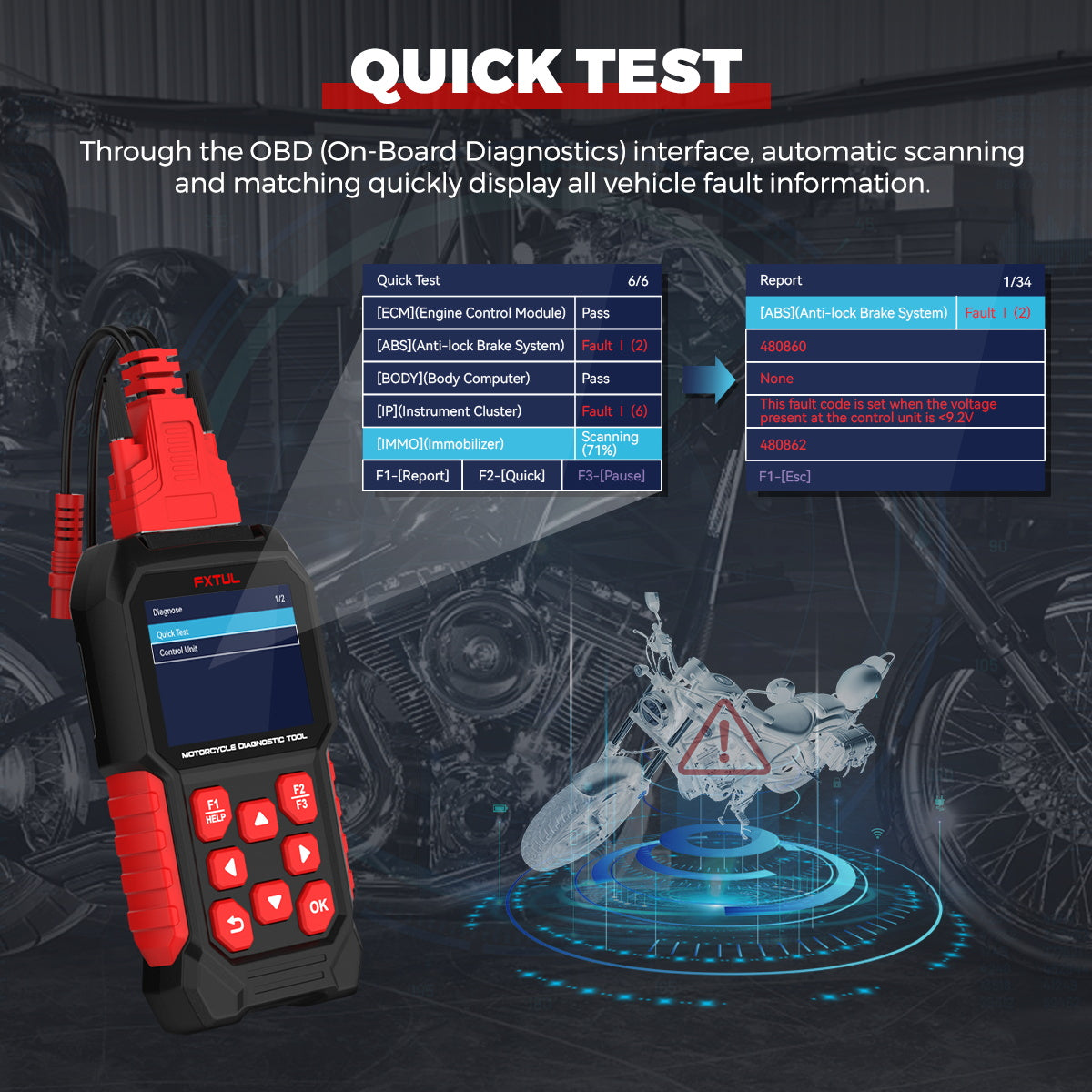

All-System Scan
Reports the fitted systems and their fault status for the chosen model, and clears all codes in one step.
-
Engine, ABS, TPMS and Anti-Theft
Reads system information, codes, data streams and freeze frame data from these systems.
-
Live Data Waveforms
Graph a data stream to watch how a sensor signal changes.
-
Tests and Service Functions
Actuator and action tests, idle speed regulation, throttle position learning, service light reset and ECU reset.
-

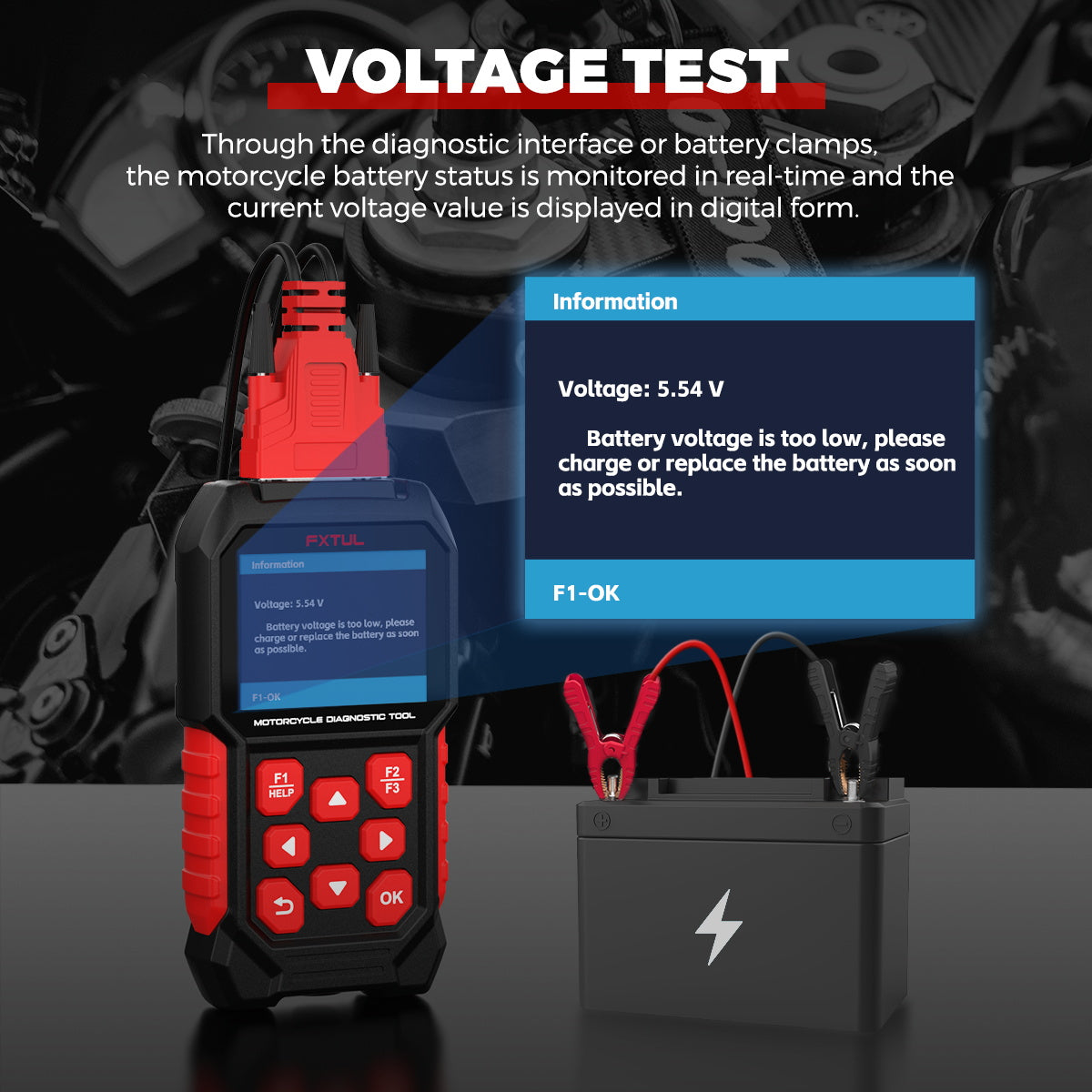

Battery Voltage Reading
Voltage at the diagnostic socket is shown live, with a waveform option.
M4-Asia vs M4-EU
| M4-Asia (this version) | M4-EU | |
|---|---|---|
| Shared brands | Honda, Yamaha, Kawasaki, Suzuki, Vespa, KTM | Honda, Yamaha, Kawasaki, Suzuki, Vespa, KTM |
| Brands unique to the version | SYM, KYMCO, PGO, Benelli | Piaggio, Aprilia, Triumph, Royal Enfield |

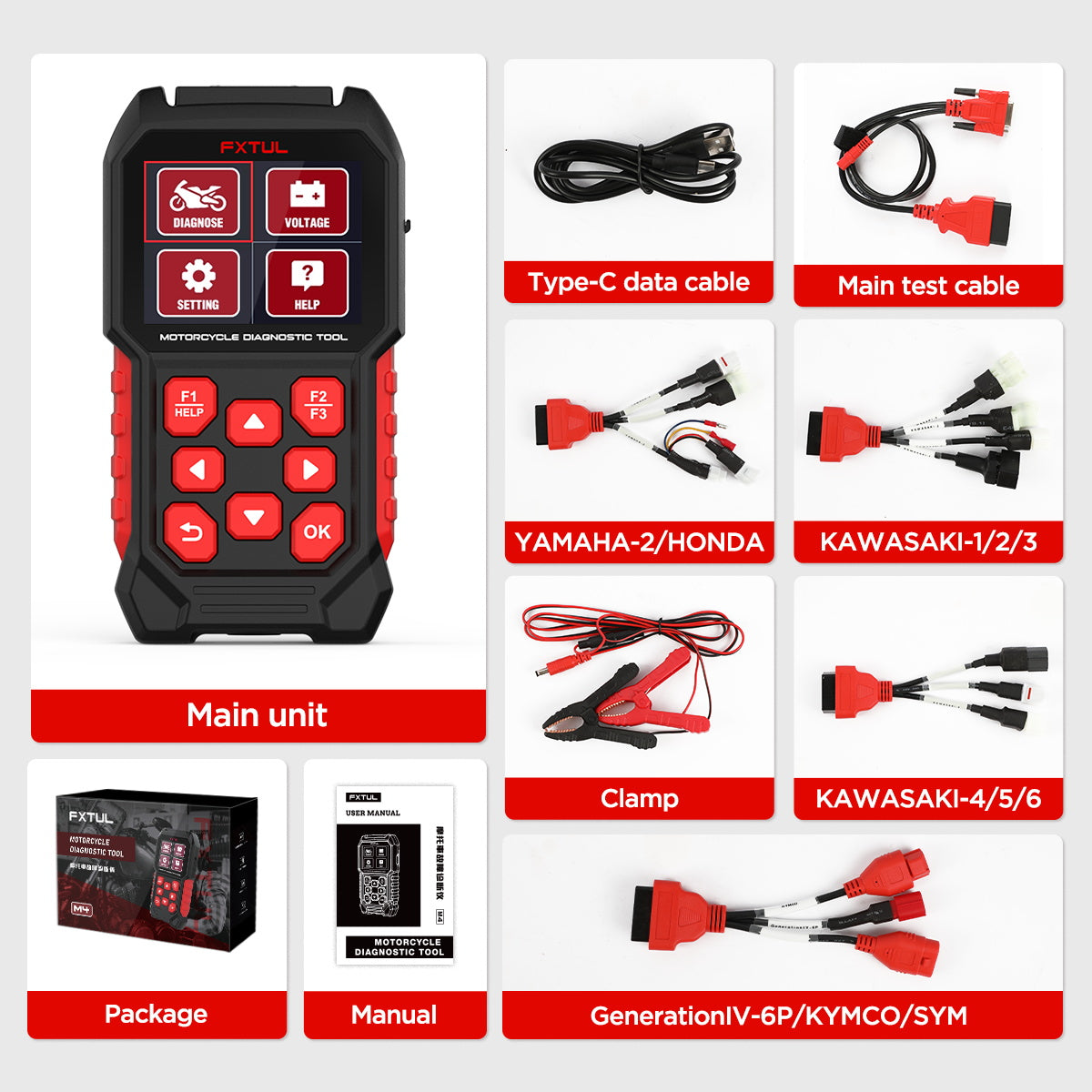

| Connecting cables | 10 | 10 |
How to Use
- Plug inConnect the M4 to the diagnostic socket with the cable for your brand.
- Open DiagnosisChoose Diagnosis and select the brand.
- Find the modelPick the model, or use System Selection when the regional model name is not listed.
- Scan and actRun Quick Test or Control Unit, then read or clear codes, view data, or start a service reset.
Full menu walkthrough: FXTUL M4 user manual (PDF)
Updates & Support

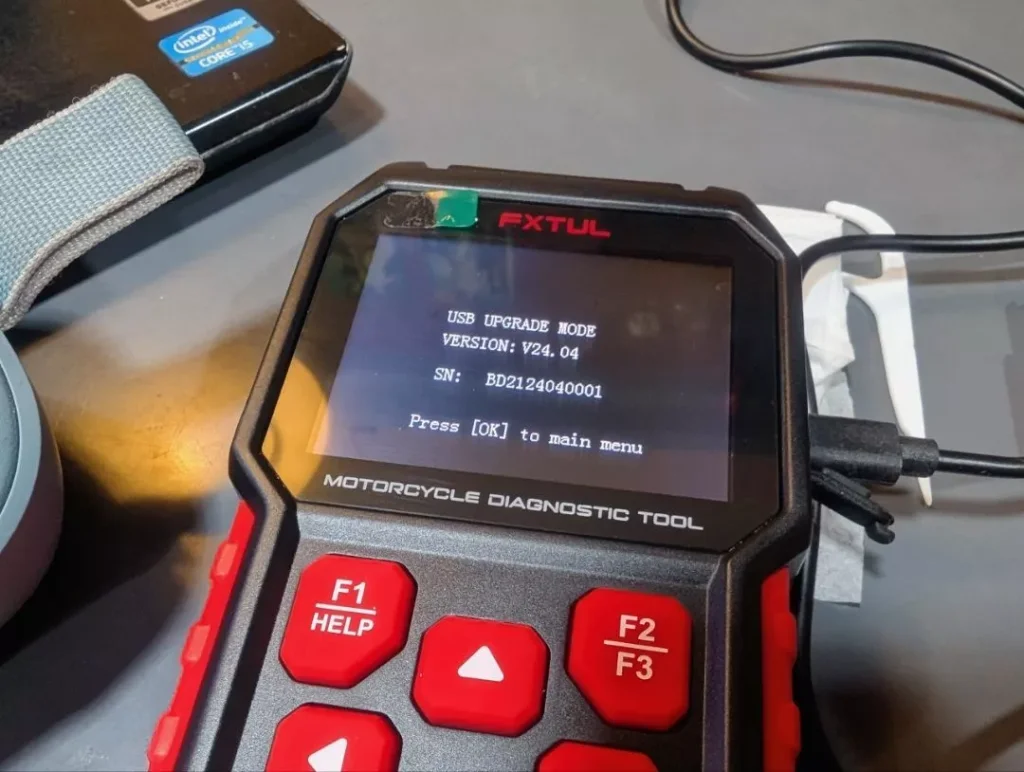

Unzip update files into the drive's root directory without renaming them. If the tool is in black-screen upgrade mode, do not press OK; stay with the USB method.
Good to Know
Caution
- Service light reset and ECU reset are subject to model compatibility.
- The USB port runs on 5V and is meant only for updating from a computer; a fast charger above 5V can damage the tool.
Care
- If your motorcycle is not recognized, check for a newer software version before reconnecting.
