Ole L.

Heating function enhances cleaning effectiveness, large-capacity fuel tank, aluminum alloy construction, efficient and rapid operation, user-friendly design, ultrasonic cleaning capability, portable and lightweight.

Glenn K.

Works great for diagnosing injectors. Very easy to use, well made product. I was able to find my leaking injector easily.

Frederick

The product is outstanding, with packaging that’s intact and well-protected. It’s fully functional and easy to use, making it a very worthwhile purchase.

Specifications

BrandMRCARTOOL
Weight8000 g
Voltage Versions110V / 220V (operating voltage 110-230V)
Functions1 cleaning + 9 test functions
Injector Count4 cylinders, 100ml measuring cylinders
Tank Capacity2000ml (also stated as 1300ml tank in description)
Simulated Speed0–7500 r/min
Drive Voltage12V
Cleaning Fluid Heating40–45°C
Applicable InjectorsStandard injectors; diesel injectors can be cleaned but not tested

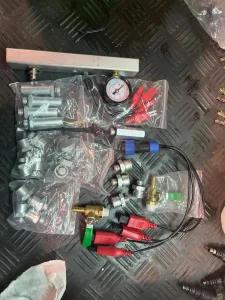

Adapters4 types
MaterialAluminum alloy
Weight8 kg
CompatibilityGasoline car, motorcycle and marine injectors (Audi, Ford, Benz, BMW, Honda, Toyota, VW, etc.)

Details

Clean and Test Four Fuel Injectors at Once

The V308 cleans fuel injectors in a heated ultrasonic bath and tests them on a four-cylinder flow bench, for gasoline car, motorcycle and boat injectors. Diesel injectors can be cleaned but not tested.

  • 1 Cleaning + 9 Tests
  • 4 Injectors
  • 0–7500 r/min
  • Heated Ultrasonic Bath
  • Aluminum Alloy

Key Features

  1. Heated Ultrasonic Cleaning

    The tank heats the cleaning fluid to remove carbon deposits faster and improve the cleaning effect on injectors.

  2. Nine Test Functions

    Idling, medium speed, high speed, accelerating and shifting speed tests, a leak checking test, and idling, medium-speed and high-speed spray value tests.

  3. Real-Time Monitoring

    An LED display, pressure gauge, graduated glass tubes, liquid level gauge and control panel show what is happening during each test.

  4. Easy Fluid Recovery

    Drain valves let you recover used cleaning fluid and testing fluid after use.

  5. Short-Circuit Protection

    If the machine short-circuits, the internal fuse trips and shuts it down to prevent electric shock.

  6. Aluminum Alloy Build

    Lightweight and strong, with good airtightness and corrosion resistance.

Highlights

MRCARTOOL V308 control panel with function menu and pressure knob
Control Panel

Working parameter display and adjustment, start/pause/stop, function selection and pressure adjustment.

MRCARTOOL V308 pressure gauge, graduated glass tubes and fluid level gauge
Built-In Gauges

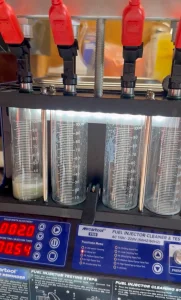

Watch working pressure, injector test status in the graduated tubes and the amount of test fluid left.

MRCARTOOL V308 drain valves for cleaning and testing fluid
Drain Valves

Separate valves drain the cleaning agent and the testing agent for recovery.

MRCARTOOL V308 ultrasonic cleaning and fuel injector testing steps
Clean, Then Test

Ultrasonic cleaning with the pulse signal wire connected, then leak and blockage tests on the fuel distributor.

V308 vs V209 vs V309

V308 V209 V309
Basic functions 1 cleaning, 9 testing 1 cleaning, 9 testing 3 cleaning, 9 testing
Measuring cylinder 100ml 110ml 110ml
Simulated RPM range 0–7500 r/min 0–5000 r/min 0–7500 r/min
Adapter connectors 4 types 6 types 9 types
Injector cleaning type Standard fuel injectors Standard, plus GDI, EFI and FSI long injectors Standard, plus GDI, EFI and FSI long injectors
Voltage settings 12V 12V / 70V / 120V 12V / 70V / 120V

How to Use

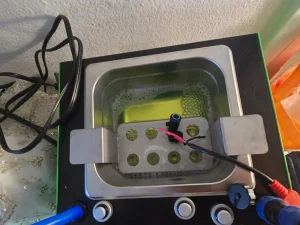

  1. Clean the exteriorClean the outside of the injectors, place them in the ultrasonic bath and keep the cleaning fluid below the pulse line connection port.
  2. Run ultrasonic cleaningStart the ultrasonic system to dislodge buildup inside the injectors, then recover the remaining cleaning fluid.
  3. Mount and checkFix the injectors on the main machine to test for resistance, shorts and current draw, and fill the glass tubes halfway with test liquid.
  4. Test on the flow benchRun the leak, spray pattern and flow rate tests, then retest all functions.

Setup and operation: V308 user manual (PDF).

Good to Know

Caution
  • Do not start the ultrasonic cleaner before adding the cleaning fluid, as this may cause damage.
  • Never put the pulse signal cable or its connector into the cleaning fluid.
  • Do not run the ultrasonic cleaner continuously for more than 30 minutes, as this shortens its life.
  • Do not use corrosive fluids for testing.
Care
  • Medical alcohol or paraffin can be used as test fluid; if the machine will sit unused for a long time, recover the test fluid after testing.
  • Add only enough cleaning fluid to soak the injector needles.
  • Unplug the machine when not in use.

You may also like

Select specifications

Offers

  • 10%
    10% off AUTOOL & MRCARTOOLBrands: AUTOOL, MRCARTOOL, FXTUL, CMTOOL, DUOYI · United States, United Kingdom and Australia only. Cannot be combined with other coupons.Code: AB10OFF

Offers are applied at checkout according to the store rules.

More

Delivery

Ships in 1-3 business days

Warehouses

  • US Warehouse
  • DE Warehouse
  • UK Warehouse
  • CN Warehouse

Choose the warehouse in the specifications.

Payment methods

  • Credit / Debit CardVisaMastercardAmerican Express
  • PayPalPayPal
  • Apple PayApple Pay
  • Google PayGoogle Pay
  • LinkLink
  • iDEAL | WeroiDEAL | Wero
  • BancontactBancontact
  • EPSEPS
  • Przelewy24Przelewy24
  • BancontactBancontact
  • BlikBlik
  • EPSEPS
  • iDealiDeal
  • MyBankMyBank
  • Przelewy24Przelewy24
  • TrustlyTrustly
  • MultibancoMultibanco

Available methods may vary by currency and billing country; the final list is shown at checkout.

Service

  • Secure checkout

    Payments are processed over an encrypted connection.

  • After-sales support

    Contact us for installation or usage questions.

Specifications

Brand
MRCARTOOL
Weight
8000 g
Voltage Versions
110V / 220V (operating voltage 110-230V)
Functions
1 cleaning + 9 test functions
Injector Count
4 cylinders, 100ml measuring cylinders
Tank Capacity
2000ml (also stated as 1300ml tank in description)
Simulated Speed
0–7500 r/min
Drive Voltage
12V
Cleaning Fluid Heating
40–45°C
Applicable Injectors
Standard injectors; diesel injectors can be cleaned but not tested
Adapters
4 types
Material
Aluminum alloy
Weight
8 kg
Compatibility
Gasoline car, motorcycle and marine injectors (Audi, Ford, Benz, BMW, Honda, Toyota, VW, etc.)

Reviews35

4.9 / 5Based on 35 reviews
3 ★0
2 ★0
1 ★0
Ole L.

Heating function enhances cleaning effectiveness, large-capacity fuel tank, aluminum alloy construction, efficient and rapid operation, user-friendly design, ultrasonic cleaning capability, portable and lightweight.

Glenn K.

Works great for diagnosing injectors. Very easy to use, well made product. I was able to find my leaking injector easily.

Frederick

The product is outstanding, with packaging that’s intact and well-protected. It’s fully functional and easy to use, making it a very worthwhile purchase.

Yetta D.

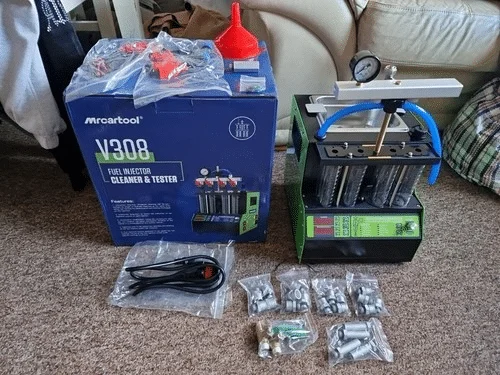

Have jusr recieved my package less than 48 hrs after placing the order. Very quick delivery. A1. Came well packaged with no signs of damaging to parcel. Well done to delivery company. Wasnt sure what fluids to use for the cleaning and for the testing. Communication with the seller was excellent and very helpful with links given to the appropriate fluids. Also had good comms with the manufacturer, who was very helpful too. Looks to be a good machine. Waiting for fluids to see how well it function

Kevin

This fuel injector cleaner is ready to use right out of the box—I specifically bought it to remove carbon deposits from my fuel system. It performs comprehensive tests including idling, acceleration, leaks, and fuel injection quantity, with real-time data displayed on an LED screen. Fuel injector testing can be done using 99% medical alcohol and paraffin. I can clean and test four fuel injectors simultaneously—the ultrasonic + heated cleaning function quickly removes even the most stubborn carbon deposits.

Lyndon M.

This is a very efficient tool with excellent cleaning results. I’ve equipped my workshop with it, and it’s been a huge help. My work efficiency has greatly improved. With this tool, my workshop operations are more reliable, and more and more customers are coming to me for fuel injector cleaning.

Eugene K.

Tested all functioned thanks seller

Flora N.

The cleaning effect is remarkable. I’ve always been a loyal fan of MR CARTOOL; their products are very well-made. This fuel injector cleaner offers great value for money and is an ideal product. I hope MR CARTOOL continues to improve and launch more and better products.

+1
Zachary G.

Have jusr recieved my package less than 48 hrs after placing the order. Very quick delivery. A1. Came well packaged with no signs of damaging to parcel. Well done to delivery company. Wasnt sure what fluids to use for the cleaning and for the testing. Communication with the seller was excellent and very helpful with links given to the appropriate fluids. Also had good comms with the manufacturer, who was very helpful too. Looks to be a good machine.

Keith

The new blue colour looks better than the green model, the quality is as good as ever, buying an extra injector cleaner helps me to be more efficient and is recommended.
