Pulse-Test and Clean Fuel Injectors on the Bench With 12V or 5V Drive
The V30 drives fuel injectors with 8 selectable pulse modes at 12V or 5V to simulate engine operating conditions, so you can spot clogged, leaking, damaged or burned-out injectors and check injection volume and spray pattern. It can be paired with any fuel pressure tester.
- 8 Pulse Modes
- 12V / 5V Drive
- Tests 2 Injectors at Once
- 6 Nozzle Adapters
- Reverse Polarity Protection
Key Features
-
8 Pulse Modes
Modes 1โ4 drive at 12V and modes 5โ8 at 5V, each set offering single, short, long and continuous pulses; the display shows the selected mode number.
-
Two Injectors Side by Side
Four pulse output terminals drive two injectors at once, so you can compare injection volume and timing under the same test conditions.
-
Mode Lock
During pulse output the mode button is disabled; press Start/Stop to end the output before changing modes, which keeps test conditions uniform.
-
Built-In Protection
Reverse polarity protection guards the tester if the battery clips are connected the wrong way, and short-circuit protection guards it if an injector is damaged or an output terminal is shorted.
-
Car and Motorcycle Injectors
Six nozzle adapters let it clean and test most automotive and motorcycle injectors.
Highlights
Two Injectors at Once
Compare spray from two injectors under identical conditions.
Leads and Protection
A battery-clip power cable feeds the tester; separate test leads run to the injectors.
More Specifications
| Power cable length | 33.5 inches |
|---|---|
| Test lead length | 18.5 inches |

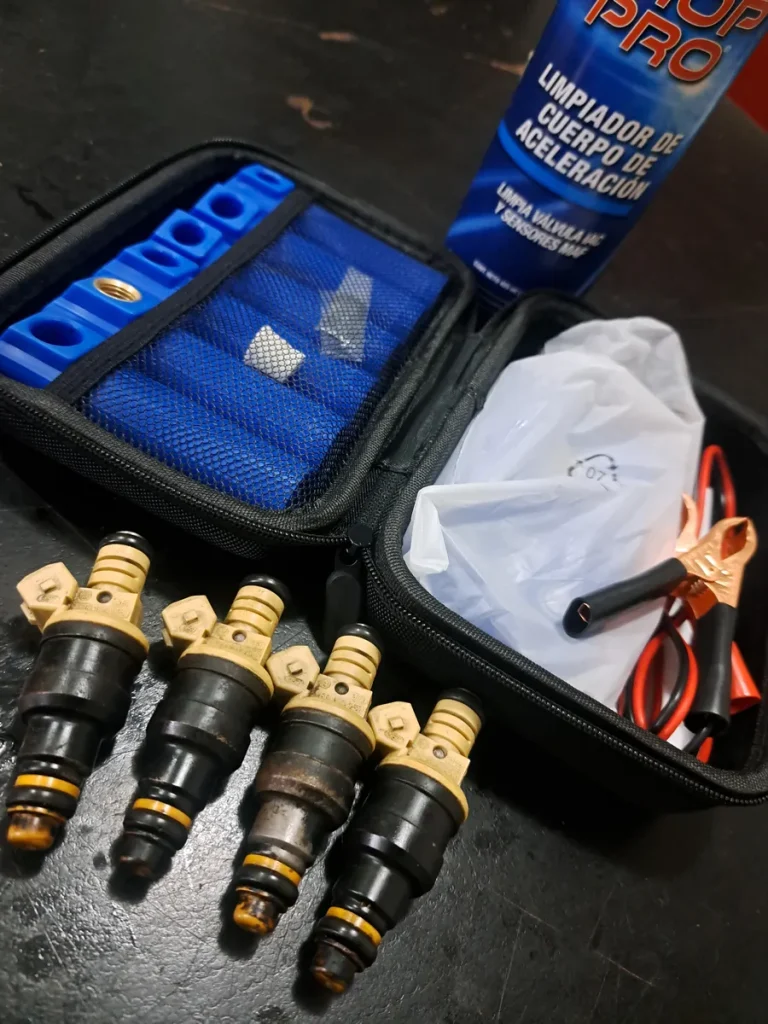

What’s in the Box
- Injector tester main unit
- Battery clamp power cable
- Test leads
- Nozzle adapters
- Storage case
Good to Know
Caution
- Testing requires injector test fluid.
- Test in a well-ventilated area and keep away from sources of ignition.
