Specifications

BrandAUTOOL
Weight1800 g

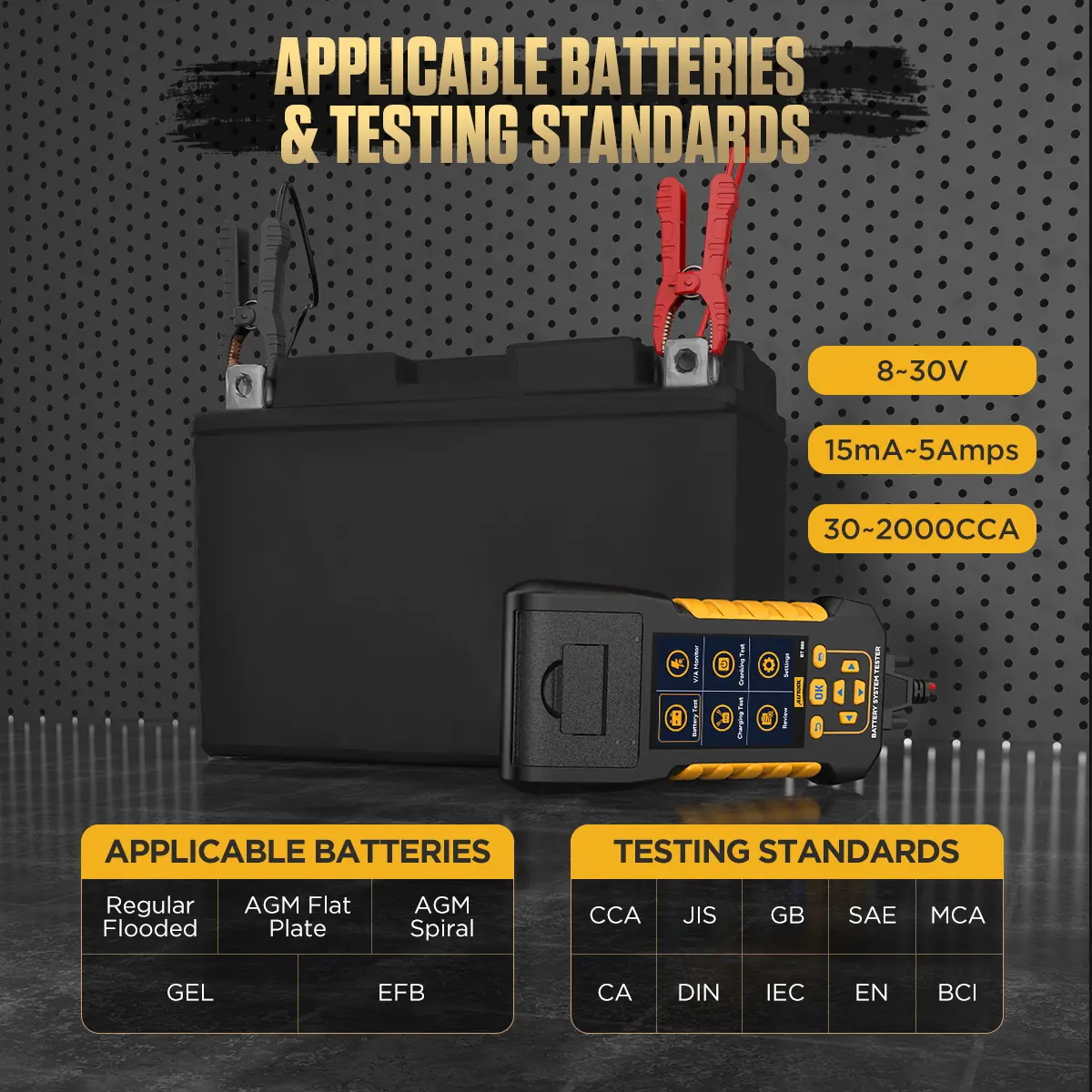

Battery Types12V / 24V lead-acid (flooded, AGM flat/spiral, GEL, EFB)
Operating Voltage8–30 V DC
CCA Range30–2000 CCA
Leakage Current Monitoring15 mA–5 A, records waveform
Test FunctionsBattery, cranking, charging, max load, V/A waveform monitoring
Test StandardsCCA, JIS, GB, SAE, MCA, CA, DIN, IEC, EN, BCI
PrinterBuilt-in thermal printer

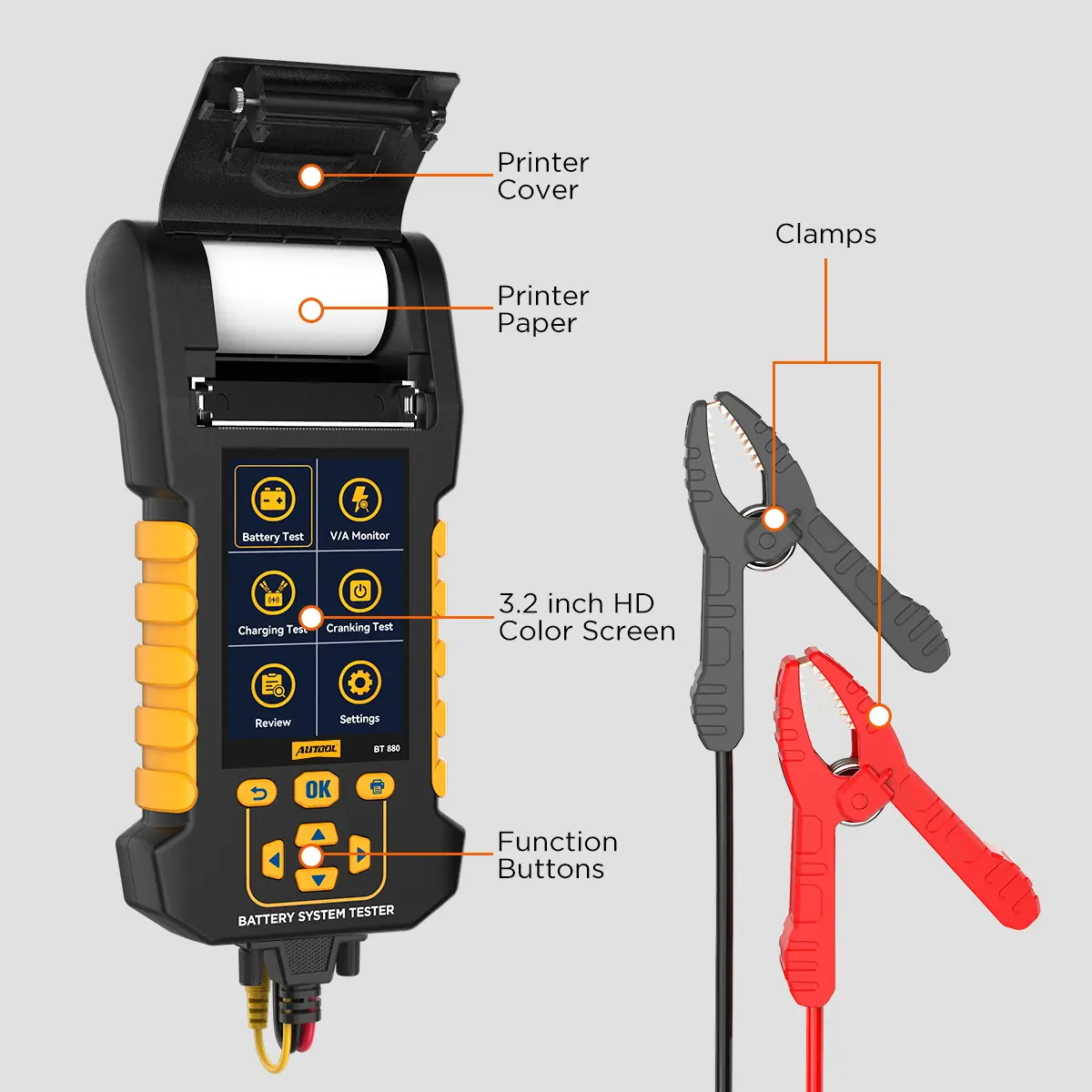

Display3.2-inch color screen
Languages18 languages
Other FeaturesAmbient temperature sensor, historical data playback, remote firmware upgrade

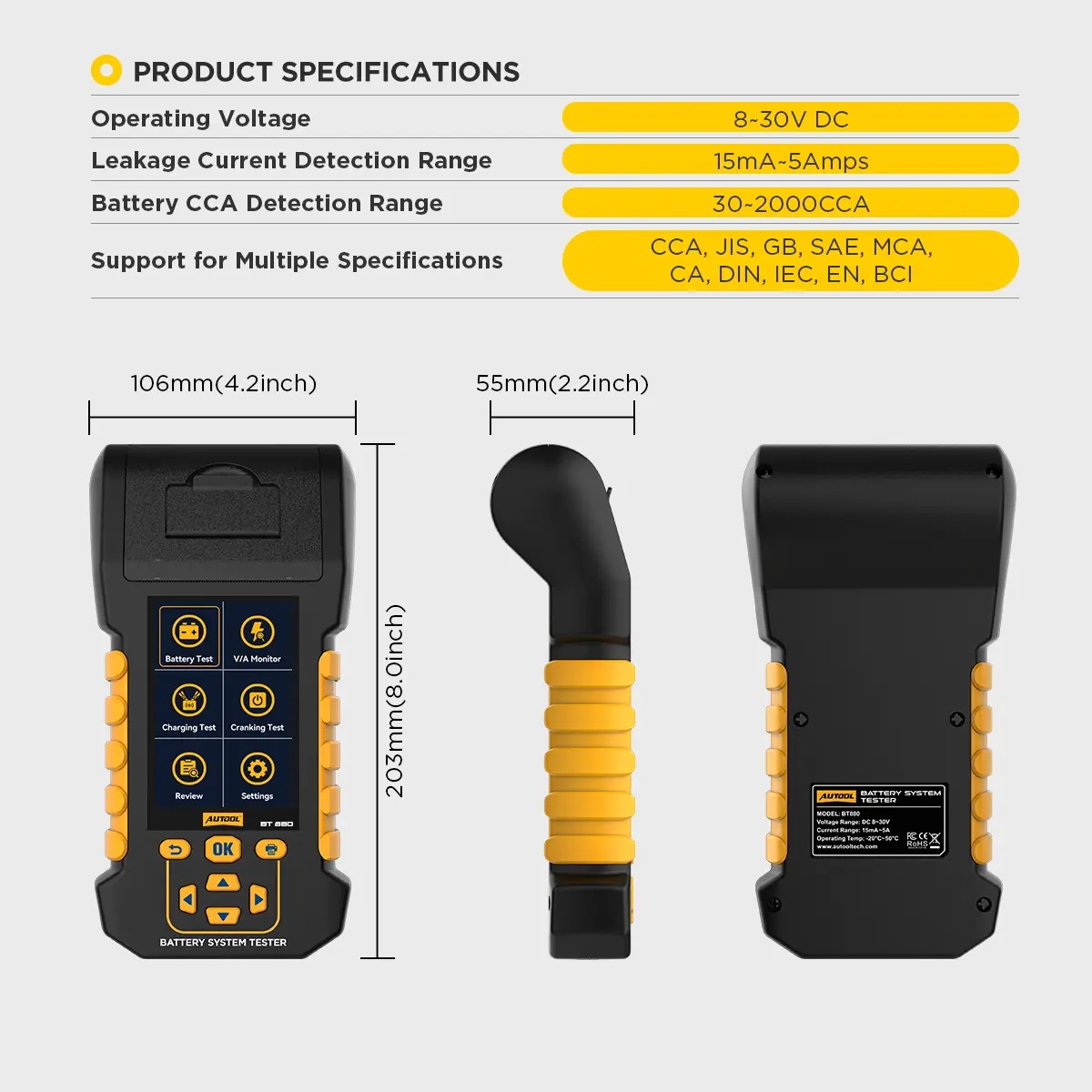

Dimensions203 × 106 × 55 mm
Applicable VehiclesVehicles with 12V/24V lead-acid batteries
Software UpdatesRemote firmware upgrade supported; 18 languages

Details

Test the Battery, Track Key-Off Drain and Print the Result

The AUTOOL BT880 checks 12 V and 24 V lead-acid batteries, cranking and charging, monitors total key-off current through a dedicated leakage clamp, and prints results for the work order. It does not test lithium batteries and does not charge.

  • 12 V / 24 V Lead-Acid
  • 15 mA–5 A Leakage Monitor
  • V/A Waveforms
  • Built-In Thermal Printer
  • 18 Languages

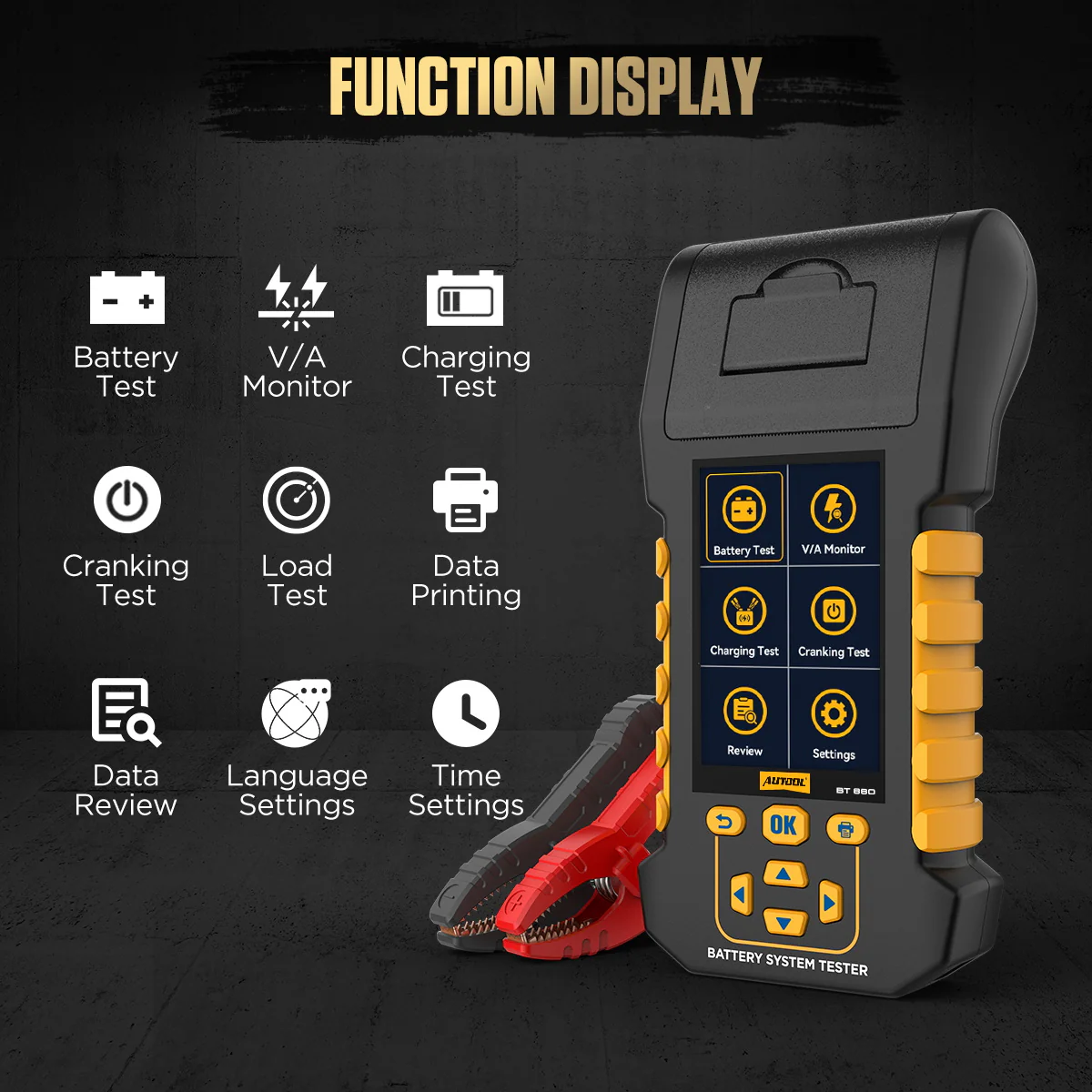

Key Features

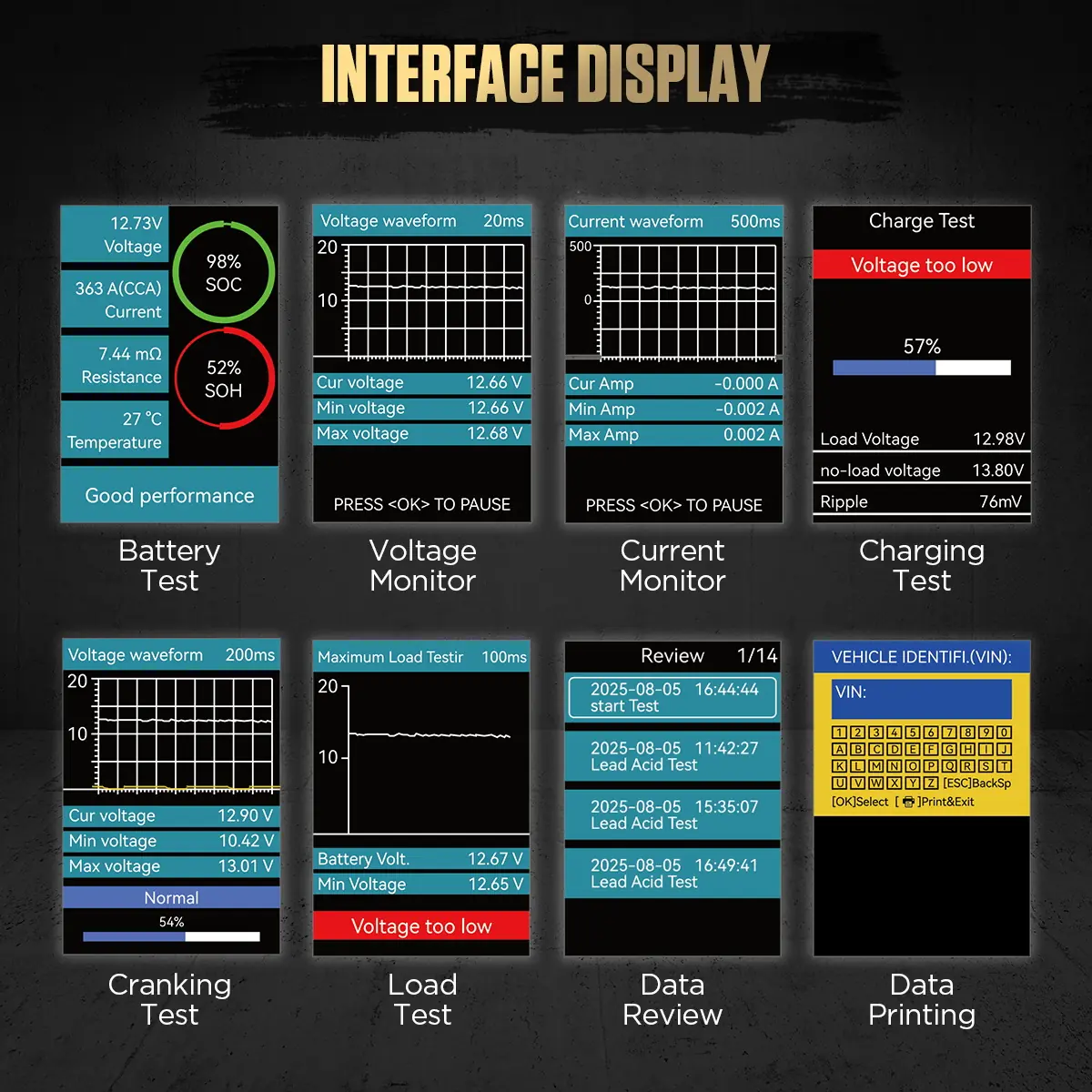

  1. Battery Health Test

    Checks voltage, CCA, resistance, SOC, SOH and overall condition based on the selected battery type and rating standard.

  2. Cranking and Charging Tests

    Evaluate starting performance and charging status to help diagnose common vehicle electrical faults.

  3. Maximum Load Test

    Observes system voltage with the engine running and electrical loads switched on. It is not a traditional high-current resistive load test.

  4. Leakage Current Monitoring

    The negative-side leakage clamp observes total current and records its waveform, so you can decide when circuit isolation is needed.

  5. Voltage and Current Monitor

    The V/A monitor shows voltage and current waveforms to reveal fluctuation during inspection.

  6. Ambient Temperature Sensor

    Displays ambient temperature as context for hot or cold results; the tester does not automatically compensate the result.

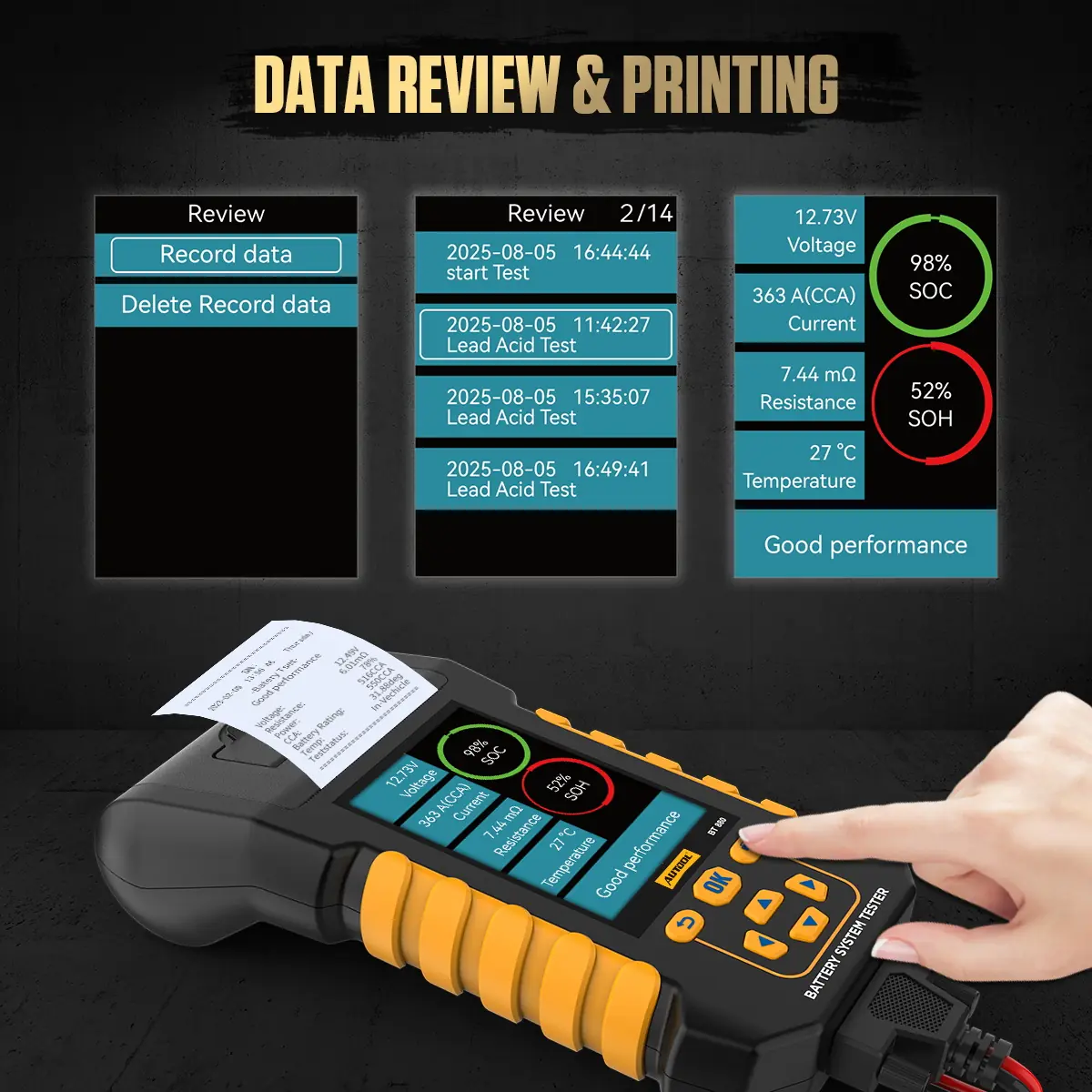

  7. Data Review and Printing

    Stores previous test data and battery voltage values for comparison over time, and prints results on thermal paper with no ink required.

BT760 vs BT880 vs BT960

BT760 BT880 BT960
Leakage current monitoring No Yes Yes
Thermal monitor No Yes Yes
Lithium batteries No No Yes
Voltage test range 8–30 V 8–30 V 0–80 V
Software upgrade No Yes Yes
Languages 14 18 14

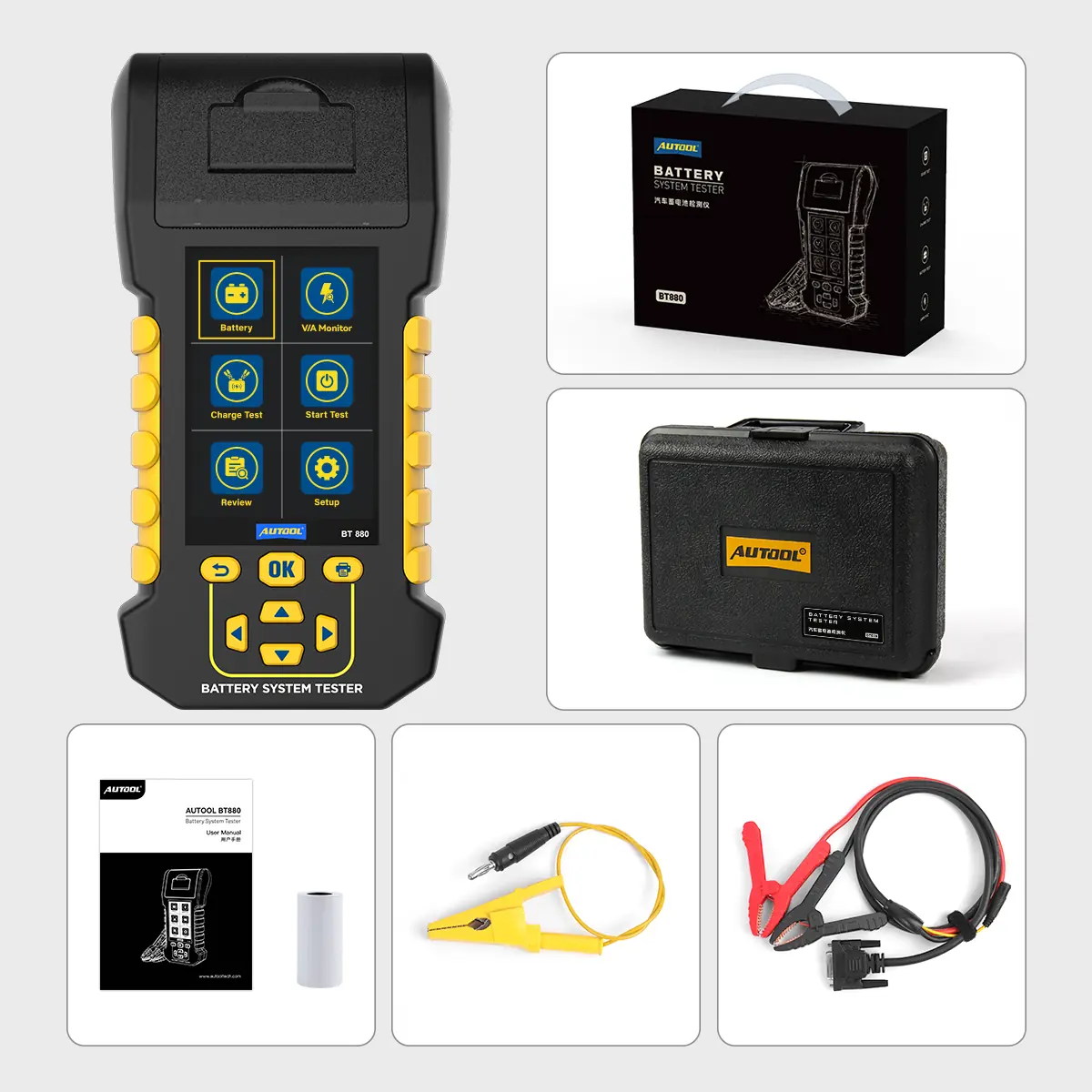

What’s in the Box

  • BT880 battery and system tester with built-in thermal printer
  • Red and black battery clamp cable
  • Yellow leakage current test clamp cable
  • Thermal paper roll
  • User manual
  • Retail box or carrying case

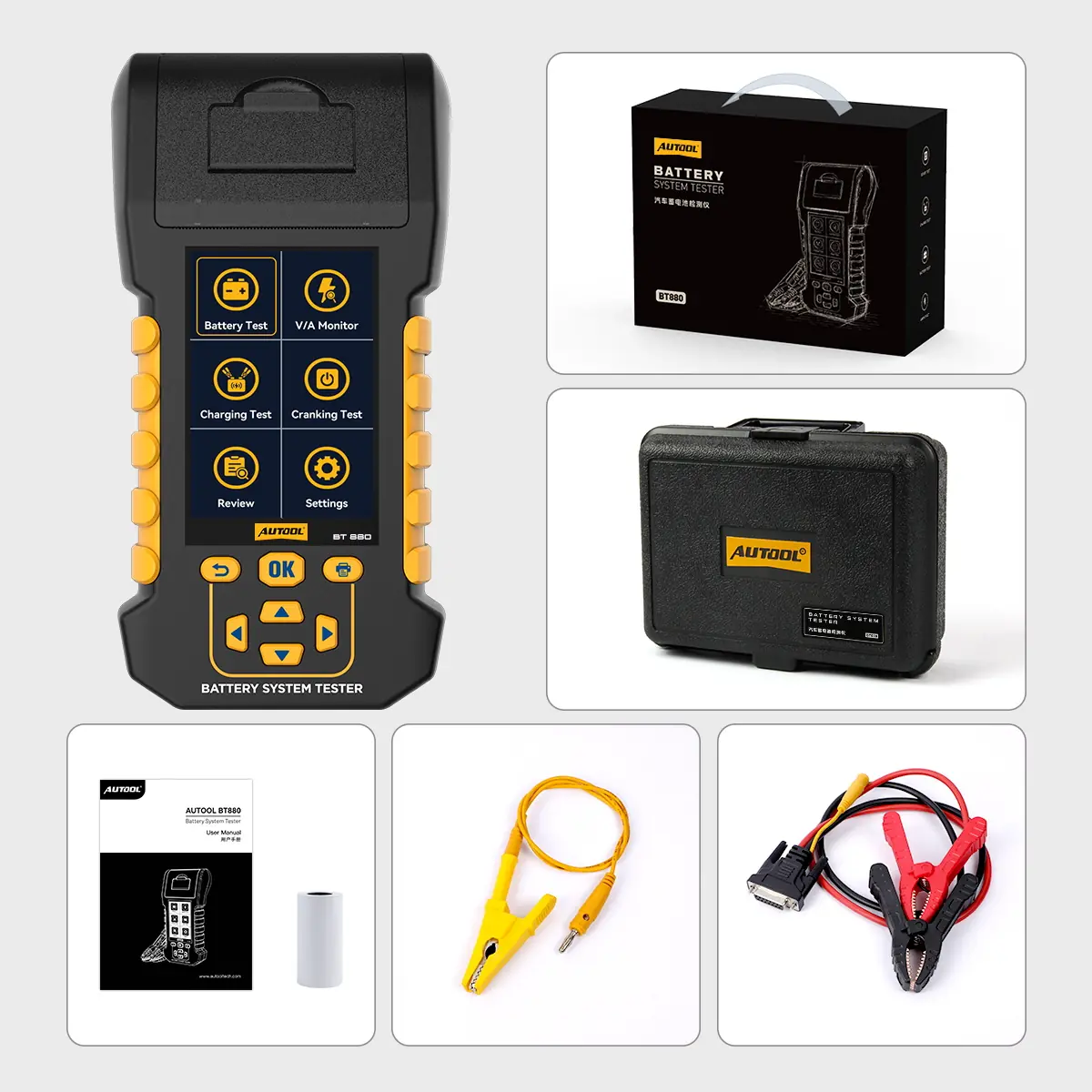

AUTOOL BT880 with retail box, carrying case, user manual, thermal paper roll, yellow leakage clamp and battery clamp cable
BT880 package contents.

How to Use

  1. Select the test modeChoose battery, cranking, charging system, maximum load, V/A monitor, leakage, data review or printing.
  2. Connect the clampsAttach the red and black clamps by polarity; reverse-polarity protection does not replace a correct connection.
  3. Choose type and standardSelect the battery type and the rating standard and value printed on the battery label.
  4. Monitor leakage when neededDisconnect the negative terminal as instructed, fit the leakage clamp to the vehicle negative bus, let the vehicle reach its sleep state and watch the current waveform.
  5. Review or printCheck stored records or print the results for the work order or customer.

Setup, testing and firmware upgrade: BT880 user manual (PDF).

Good to Know

Caution
  • Lead-acid batteries only. Choose the BT960 if lithium battery testing is required.
  • The BT880 does not charge batteries; use separate charging equipment when charging is needed.
  • A leakage reading shows total current only. Finding the responsible circuit requires a separate sleep-state and fuse/circuit isolation procedure.
Care
  • Treat CCA, SOC and health values as algorithm-based indicators; repeat unexpected results after checking terminal contact and charge state.
  • Test individual 12 V batteries separately when the vehicle procedure requires it.
  • Replace the thermal paper roll when printing becomes unclear or the paper runs out.

You may also like

Select specifications

Offers

  • 10%
    10% off AUTOOL & MRCARTOOLBrands: AUTOOL, MRCARTOOL, FXTUL, CMTOOL, DUOYI · United States, United Kingdom and Australia only. Cannot be combined with other coupons.Code: AB10OFF

Offers are applied at checkout according to the store rules.

Delivery

Ships in 1-3 business days

Warehouses

  • US Warehouse
  • DE Warehouse
  • UK Warehouse
  • CN Warehouse

Choose the warehouse in the specifications.

Payment methods

  • Credit / Debit CardVisaMastercardAmerican Express
  • PayPalPayPal
  • Apple PayApple Pay
  • Google PayGoogle Pay
  • LinkLink
  • iDEAL | WeroiDEAL | Wero
  • BancontactBancontact
  • EPSEPS
  • Przelewy24Przelewy24
  • BancontactBancontact
  • BlikBlik
  • EPSEPS
  • iDealiDeal
  • MyBankMyBank
  • Przelewy24Przelewy24
  • TrustlyTrustly
  • MultibancoMultibanco

Available methods may vary by currency and billing country; the final list is shown at checkout.

Service

  • Secure checkout

    Payments are processed over an encrypted connection.

  • After-sales support

    Contact us for installation or usage questions.

Specifications

Brand
AUTOOL
Weight
1800 g
Battery Types
12V / 24V lead-acid (flooded, AGM flat/spiral, GEL, EFB)
Operating Voltage
8–30 V DC
CCA Range
30–2000 CCA
Leakage Current Monitoring
15 mA–5 A, records waveform
Test Functions
Battery, cranking, charging, max load, V/A waveform monitoring
Test Standards
CCA, JIS, GB, SAE, MCA, CA, DIN, IEC, EN, BCI
Printer
Built-in thermal printer
Display
3.2-inch color screen
Languages
18 languages
Other Features
Ambient temperature sensor, historical data playback, remote firmware upgrade
Dimensions
203 × 106 × 55 mm
Applicable Vehicles
Vehicles with 12V/24V lead-acid batteries
Software Updates
Remote firmware upgrade supported; 18 languages

Reviews18

5.0 / 5Based on 18 reviews
4 ★0
3 ★0
2 ★0
1 ★0
Ryan F.

Immediately after receiving the goods in a few cars on the test, the results are…

Immediately after receiving the goods in a few cars on the test, the results are very intuitive and accurate, especially for the old car, can help me quickly determine the status of the battery, really save a lot of heartache. The interface is simple and clear, you don’t need to read the manual to operate, it’s perfect for us!

Marlon E.

This tool certainly is impressive as allows to perform specific diagnoses to…

This tool certainly is impressive as allows to perform specific diagnoses to measure and test the actual battery condition and its overall health. It can be use with the most common types of vehicle batteries available, as Regular flooded, AGM, GEL or EFB. I’m greatly surprised for the level of testing capabilities that is included with this tester. It accurately can measure the actual cold cranking current (CCC), battery voltage, state of charge (SOC), and state of health (SOH) as a percentage of battery life, providing insights and precise assessment of battery’s status and performance. It comes with several diagnostics programs to obtain a complete and in deep diagnostic of car’s battery. I really like its interface LCD color screen that shows precise trend graphics and can record values for each one of the routine diagnostics and tests performed, and also its added feature to get a printout register of the values obtained. Incredible tool that was usually available only for professional shops, but now it comes down to be somewhat affordable for DIYers, enthusiasts and beginners. I already used in my weekend car’s battery and wife car’s and it helped me to confirm that my car’s battery is reaching its end of life, and need to replace it soon. Wife’s car battery is still good to go. So far, the construction of this battery tester seems rugged and the clamps and cables do not feel flimsy. It has a reasonable size and it comes with a rechargeable battery and hard-case to keep everything neat and stored in one place. This device also does offer 24v testing capability and the built printer certainly adds a lot of versatility to the tool compared with other manufacturers. Overall, although not cheap, has a fair price compared with other similar testers. Certainly has now an affordable value for those ‘garage, week-end mechanics’, car enthusiasts or serious DIYers that like to do its own tests and diagnostics avoiding to pay for pro-shop visits. It is a -simple to use- and effective tool that although somewhat specialized, I think is valuable and a ‘nice to have’ in your tool box -well, if you can afford it-. I guess that at the current professional-shop rates, by using it just a couple of times, it can pay by itself. I like that. Recommended. (Reviewed by Handyman)

Dunn R.

Great tool

I recently picked this battery tester because I didn’t want to return to topdon version. The topdon has issues with the paper jamming all the time. I seen reviews about this one and wanted to give it a try. The price was a little higher than I wanted but I needed one. I use it on every vehicle at my dealer ship and print it out and put it on paper work. Great tool. I think shops should supply this to techs because the business will be getting more surveys with customers having battery tested every service

Luther Y.

I recently picked this battery tester because I didn’t want to return to topdon…

I recently picked this battery tester because I didn’t want to return to topdon version. The topdon has issues with the paper jamming all the time. I seen reviews about this one and wanted to give it a try. The price was a little higher than I wanted but I needed one. I use it on every vehicle at my dealer ship and print it out and put it on paper work. Great tool. I think shops should supply this to techs because the business will be getting more surveys with customers having battery tested every service

Godfery J.

I use it on every vehicle at my dealer ship and print it out and put it on paper…

I use it on every vehicle at my dealer ship and print it out and put it on paper work. Great tool. I think shops should supply this to techs because the business will be getting more surveys with customers having battery tested every service

Clyde E.

I've been using this battery tester for a while and I feel it works…

I’ve been using this battery tester for a while and I feel it works exceptionally well. The operation is very simple, you can know the status in a few seconds after connecting the battery, and the accuracy is also very high. Usually check the battery power and health is particularly convenient, to avoid a lot of unexpected problems. Machine workmanship is solid, holding a weight, put the car can be used at any time. There is also a print function, the test is directly typed out to the customer to see, very professional. Overall, this tester allows me to work more efficiently, and I highly recommend it to my friends who do auto repair!

Dennis M.

Good

wow its so goood its best high quality my husband love this so much.thank you

Devin

This tool certainly is impressive as allows to perform specific diagnoses to…

This tool certainly is impressive as allows to perform specific diagnoses to measure and test the actual battery condition and its overall health. It can be use with the most common types of vehicle batteries available, as Regular flooded, AGM, GEL or EFB. I’m greatly surprised for the level of testing capabilities that is included with this tester. It accurately can measure the actual cold cranking current (CCC), battery voltage, state of charge (SOC), and state of health (SOH) as a percentage of battery life, providing insights and precise assessment of battery’s status and performance. It comes with several diagnostics programs to obtain a complete and in deep diagnostic of car’s battery. I really like its interface LCD color screen that shows precise trend graphics and can record values for each one of the routine diagnostics and tests performed, and also its added feature to get a printout register of the values obtained. Incredible tool that was usually available only for professional shops, but now it comes down to be somewhat affordable for DIYers, enthusiasts and beginners. I already used in my weekend car’s battery and wife car’s and it helped me to confirm that my car’s battery is reaching its end of life, and need to replace it soon. Wife’s car battery is still good to go. So far, the construction of this battery tester seems rugged and the clamps and cables do not feel flimsy. It has a reasonable size and it comes with a rechargeable battery and hard-case to keep everything neat and stored in one place. This device also does offer 24v testing capability and the built printer certainly adds a lot of versatility to the tool compared with other manufacturers. Overall, although not cheap, has a fair price compared with other similar testers. Certainly has now an affordable value for those ‘garage, week-end mechanics’, car enthusiasts or serious DIYers that like to do its own tests and diagnostics avoiding to pay for pro-shop visits. It is a -simple to use- and effective tool that although somewhat specialized, I think is valuable and a ‘nice to have’ in your tool box -well, if you can afford it-. I guess that at the current professional-shop rates, by using it just a couple of times, it can pay by itself. I like that. Recommended.

Laura P.

A good device but not excellent.

I own three devices of this type from various manufacturers that are used for testing car batteries. Compared to the others.. Bosch and Launch, at the end of the test, the workshop data and other additional or optional information cannot be printed.

Marco F.

Good product and superb help

After have more than six Autool products this one give a problem on CCA rating calibration. The after sale team help and resolve with firmware upgrade quickly. Great products and great team

Write a review

AUTOOL BT880 12V/24V Battery Tester with Leakage Current Monitoring & Built-In Printer
Overall rating *
What stood out?optional, up to 3
Add photos0 / 5
JPG, PNG or WebP, up to 5 MB each.

Reviews are checked before they appear. Verified Purchase is added automatically when your email matches an order.

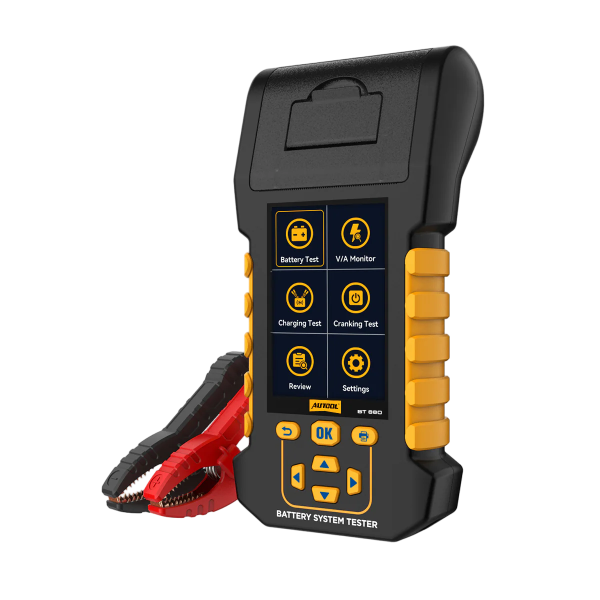

AUTOOL BT880 Automotive Battery Tester with Leakage Monitoring
