Specifications

BrandMRCARTOOL
Weight1800 g
DimensionsN/A
PositioningEntry-level smoke leak detector
Working PrincipleLow-oxygen combustion smoke generation, built-in air pump
Output Pressure<10 psi
Smoke Flow<5 L/min
Power SupplyDC 12V battery
Power50W rated
ConfigurationNo pressure gauge, no flow meter (per comparison chart)
Test ItemsIntake, crankcase, EVAP, turbo, exhaust, cooling, seals
ProtectionAuto shutoff above 75°C
Weight1.88 kg (also stated as 1.05 kg in comparison chart)
CompatibilityAutomotive intake, exhaust, emission and other lines

Details

Find Intake, EVAP and Exhaust Leaks With Smoke From a 12V Battery

The T80 is an entry-level smoke leak detector with a built-in air pump, so it needs no shop air supply. It runs from the vehicle’s 12V battery and fills the line under test with smoke so leak points show clearly.

  • Built-In Air Pump
  • DC 12V Battery Powered
  • Overheat Auto Shutoff
  • Intake, EVAP, Turbo & More

Key Features

  1. No External Air Needed

    The built-in air pump and smoke generator work without a separate air unit, which suits mobile repairs.

  2. Many Systems, One Tool

    Test the intake, crankcase, EVAP, turbo, exhaust and cooling systems, as well as seals.

  3. Overheat Protection

    If the detector exceeds its working limit, it cuts the power automatically; operate it again later.

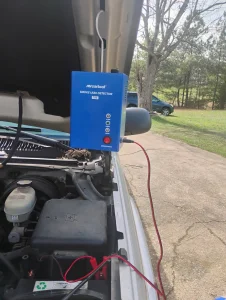

  4. Hang It Under the Hood

    A hook holds the detector in the engine compartment during testing, and a work indicator lights while it runs.

Model Comparison

T80 T100 T105
Output pressure <10 psi <10 psi <15 psi
Output flow <5 L/min <5 L/min <6 L/min
Rated power 50W 50W 65W
Air flow meter No No Yes

How to Use

  1. Add oil and hang the detectorBefore first use, add baby oil or liquid paraffin to the filler. Open the hood and hang the detector from its hook.
  2. Open the lineDisconnect the pipe that will be connected to the detector and attach the smoke output tube.
  3. Power onClip the power leads to the DC 12V battery and turn on the power switch.

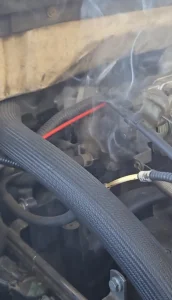

  4. Find the leakIn about 30 seconds the pipe fills with smoke. Look for escaping smoke, using a headlamp if needed.

Good to Know

Caution
  • Power the detector only from a 12V battery; too much current will damage it.
  • Fill 10–15 ml of oil at a time and never more than 15 ml; overfilling leaves no space to produce smoke.
  • Do not run the detector for more than 8 minutes continuously; let it rest between runs.
  • The round part of the detector gets hot; avoid touching it to prevent burns.
  • Keep smoke away from smoke-sensitive parts during testing.
Care
  • Top up with fresh oil only when the smoke gets thin.
  • Pour out the old oil before refilling, and replace the oil regularly.
