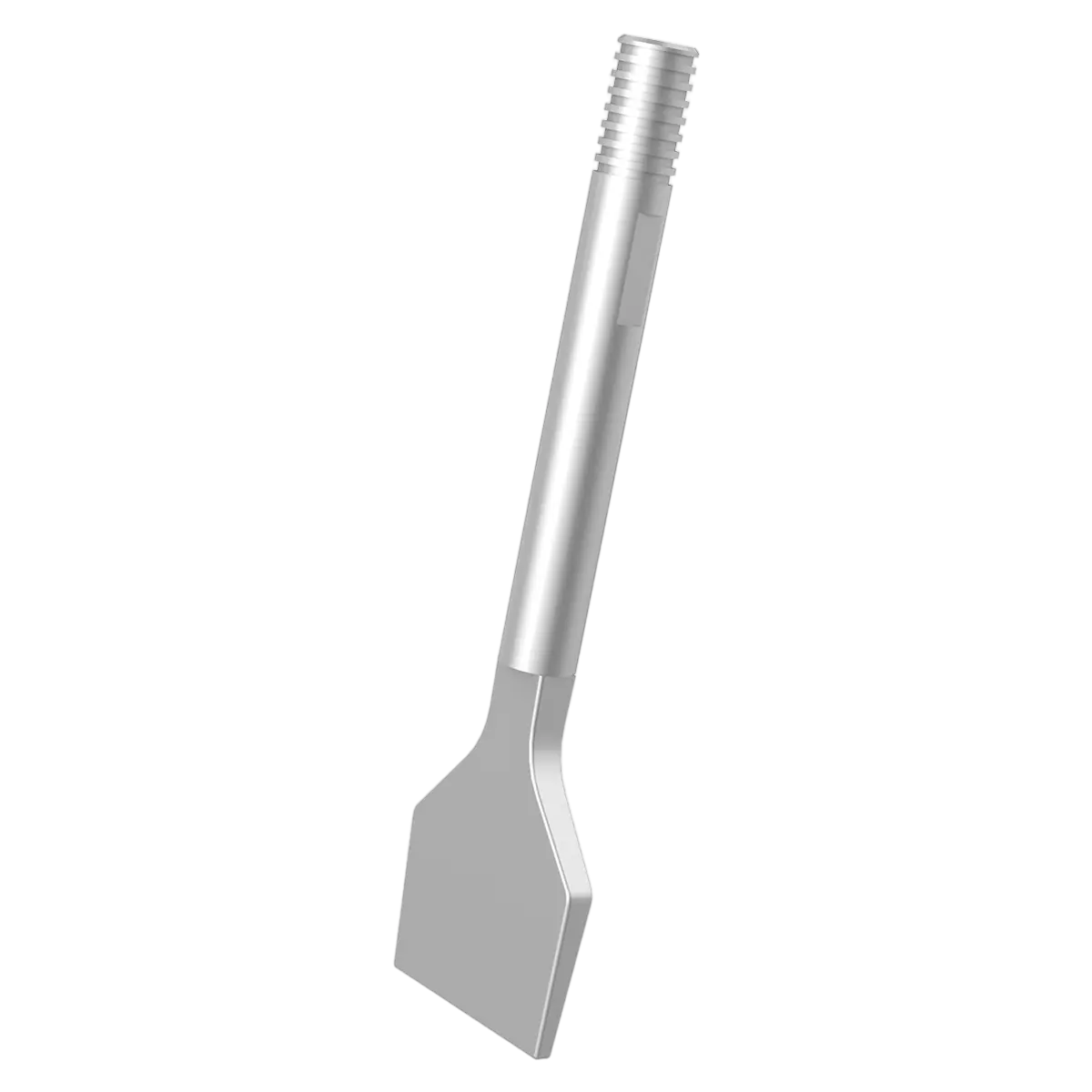

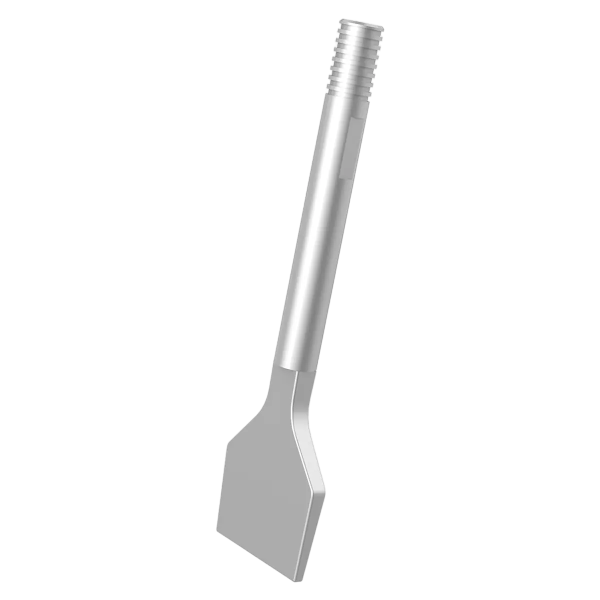

Flat Nozzle and Service Parts for AUTOOL HTS Dry Ice Blasters
A flat spray nozzle and other individually sold parts for AUTOOL HTS705, HTS708 and HTS709 dry ice blasters. The HTS705 ships with a flat nozzle by default; this listing adds or replaces one for any of the three.
- Flat Spray Nozzle
- HTS705 / HTS708 / HTS709
- Sold Individually
Key Features
-
Flat Blast Pattern
Gives a flat spray option for surfaces and contaminants that suit a wider pattern.
-
Nozzles and Board
Long nozzles (pair) and a main board are offered as separate variants.
-
Outlet Hose Replacement
Dry ice can wear and thin the inner wall of the outlet hose over long use; the replacement hose is supplied without the handle switch.
-
Air-Side Fittings
An air hose and a hose clamp are available for the compressed-air connection.
How to Use
- Confirm the machineVerify the blaster is an HTS705, HTS708 or HTS709 and identify its current nozzle connection.
- Match the taskPick the flat pattern only after considering the material, contaminant and desired finish.
- Isolate and installIsolate the machine, inspect the threads and connection, and install per the machine manual.
- Test a small areaStart with a conservative setup on a small test area before widening the pass.
- Inspect after useClear residual dry ice and check the nozzle for blockage, wear or damage.
Good to Know
Caution
- Never aim the nozzle at people; wear eye, hearing, hand and cold protection and ventilate the area for COâ‚‚.
- Dry ice blasting cannot be guaranteed harmless on every surface; test first.
Care
- If the nozzle blocks, remove it, let it thaw naturally and refit it; repeated blockage often points to an undersized air compressor.
