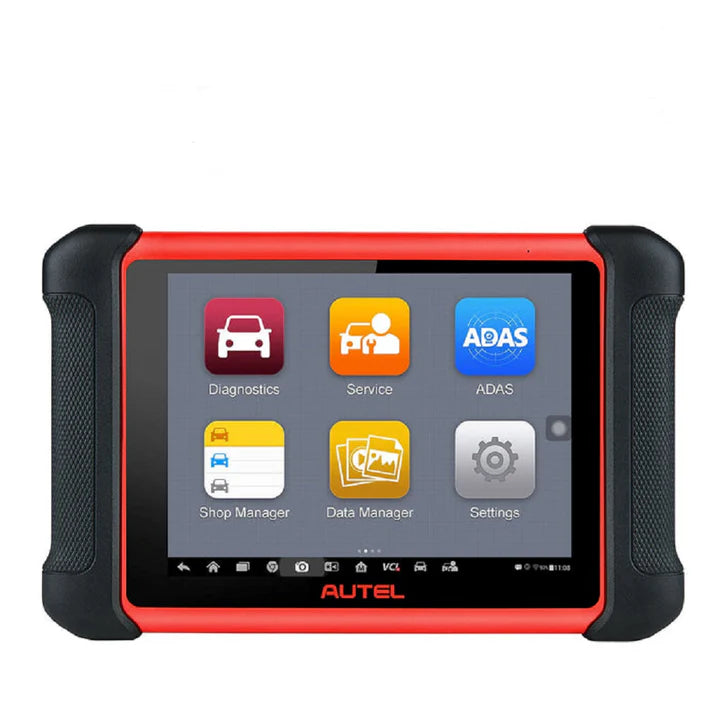

Autel MaxiCOM MK906BT Diagnostic Tool Full System Car Scanner

 Autel Maxicom MK906BT Full System OBD2 Scanner New Version Car Diagnostic Tool with Comprehensive OBD Advanced ECU Coding 31+ Special Service Function

Autel MaxiCOM MK906BT is the 2022 newest professional auto diagnostic scanner tools to the series of MaxiCOM can diagnose more than 1000 car models with MaxiVCI V100 Bluetooth Box, which can connect and communicate with vehicles wirelessly with new version with car OBD2 Advanced ECU Coding 31+ Special Services and Full System, intuitively designed for all system diagnositc, Bi-directional control (active test), etc. The device is based on the Android operating system equiped with the powerful Exynos 5260 6-core processor (1.3 GHz quad-core ARM Cortex-A7 + 1.7 GHz dual-core ARM Cortex-A15), an 8” capacitive HD touch screen, Autel MaxiCOM MK906BT so that it's easy and convenient to deal with the cars' faults. Moreover, the Autel MK906BT supports over 150 vehicle brands and models in the gloabl scope and can meet all your needs.

Autel MaxiCOM MK906BT OBD2 Scanner Overview

1 Year Free Update Online on Autel Official Website, 1 Year Warranty
Global Version without IP Blocking Problem

Enhanced ECU Coding

With the advanced ECU coding function, the MK906BT professional diagnostic scanner empowers you to establish full data links with electronic control units via VCI for vehicle diagnosis, repairs, or coding. It also features online coding and personalization for high-end vehicles:

1.Support online coding for BM-W;
2.Support online coding, guided function, modifications for Volkswagen;
3.Support ECU coding, ECU online coding, and guided function of providing repair tips after
4.reading DTCs for Porsche;
5.Support ECU online coding for Renault;
6.Support customized configuration for Toyota, Nissan, Peugeot, and more.

Active Test

By passing the electronic control module and communicating directly with the control unit is an efficient diagnosis method. The MK906BT car scanner can perform active tests to check the vehicle’s running states by receiving information from ECUs or by monitoring actuators (e.g., switching solenoids, relays, or on-off between two operations) to control the system or parts (e.g., ABS, windows, doors, roof).

Autel MaxiCOM MK906BT OE-Level Full-System Diagnosis

By penetrating all available ECUs, including but not limited to PCM, ECM, EPS, PDM, TPM, BCM, ABS, SCCM, etc., MK906BT retrieves information and performs OE-level diagnostics on all available vehicle systems, like read and clear codes, view data stream and vehicle information, ECU Replacement, Zero Point Calibration (Toyota), Signal Check (Toyota), Initialization (ECU), and Guided Function (VAG). It not only enables you to troubleshoot promptly but also makes you customize the configuration.

Autel MaxiCOM MK906BT 31+ Special Functions

The MK906BT performs all-around maintenance solutions to extend your vehicle’s life. Oil Reset, Injector Coding, Throttle Adaptation, BMS Service, SAS Calibration Reset, EPB Reset, ABS Bleeding, DPF Regeneration, Suspension Matching, Transmission Adaptation, Key Fob Coding (Add a new key after car keys loss), etc. Car maintenance can be done at your fingertips.
*Note: The TPMS function cannot program sensors.

Languages

①English Only
②Multi-Languages: English with French/ Spanish/ Portuguese/ German/ Dutch/ Polish/ Russian/ Italian/ Swedish/ Japanese/ Korean

Note: Multi-language can only choose English with another one language to use, cannot change it later, leave notes when place order or provide serial number to set up language when you received the tool.

Wide Range Vehicle List

No need to worry about compatibility issues. The device currently supports 80+ car manufacturers and 140+ car brands worldwide. Also, you will be able to get more new car models through subsequent high-frequency software updates.

It is compatible with:

For Chrysler, Dodge, For Ford, For GM, For Jeep, For Abarth, For Alfa, For Citroen, For Fiat, For Lancia, For Opel, For Peugeot, For Porsche, For Renault, For Saab, For Vauxhall, For Volvo, For Aston Martin, For A-udi, Bentley, For Benz, For Sprinter, For BM-W, For Bugatti, For Ferrari, For Jaguar, For Lamborghini, For Land Rover, For Maserati, For Maybach, For Mini, For Rolls-Royce, For Seat, For Skoda, For Smart, For V-W, For V-W CV, For Dacia, For Ford EU, For LT3, For Acura, For Daewoo, For Daihatsu, For Honda, For Hyundai, For Hyundai CV, For Infiniti, For Kia, For Lexus, For Maruti Suzuki, For Mazda, For Mitsubishi, For Nissan, For Nissan GTR, For Samsung, For Scion, For Ssang Yong, For Subaru, For Suzuki, For Toyota, For Isuzu, For Mahindra, For Perodua, For Proton, For TATA, For HINO, For UD, For Fuso.

Auto VIN

Just one click can facilitate the vehicle diagnostic process. MK906BT scanner tool incorporates the latest Auto VIN technology that allows technicians or repairmen to easily identify vehicle information such as manufacturer, model, year and place of manufacture, etc.

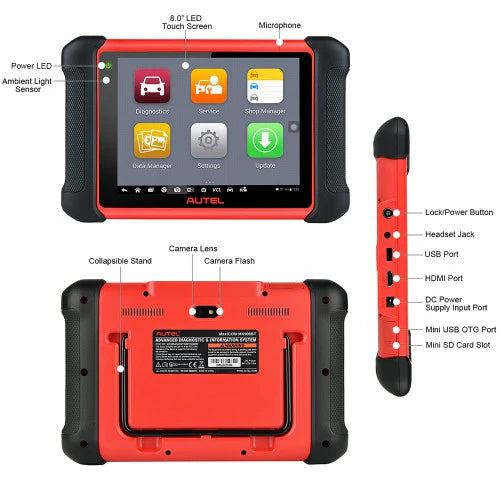

Features

1. Extraordinarily powerful Samsung Exynos Hexa-core processor
2. 8.0” 1024x768 LED-backlit glossy Multi-Touch capacitive display with IPS technology for ultra-mobility
3. Internal reliable 32GB SSD for better performance
4. Built-in 8-megapixel rear camera with autofocus and flashlight
5. 802.11b/g/n Wi-Fi to access your favorite web resources
6. Unique ergonomic design with rubberized outer protection and a rugged internal housing
7. Built-in rechargeable lithium-polymer battery for up to 14 hours of continuous operation
8. USB, audio and auxiliary ports make it easy to connect accessories
9. Open source Android Operating System for fast boot-up and multitasking
10. Easy and intuitive navigation makes finding what you need simple and fast
11. The most extensive complete system coverage for more than 80 US, Asian and European makes and models
12. Exceptional OE-Level functionality from comprehensive OBDII diagnostics & services to advanced ECU coding
13. Complete capabilities for codes, live data, active test, ECU information, adaptation, matching, coding etc.
14. Smart AutoVIN technology for identifying vehicle easily
15. Automatic system and software updates with real-time push message notifications via internet
16. Instant remote control tech support anytime, anywhere
17. Cloud-based MaxiFix online community provides a vast database of diagnostic and repair tips and proven filed fixes
18. Interactive Data Logging sessions enable direct contact with Autel Technical Support for first-hand troubleshooting of diagnostic bugs and errors
19. One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized
20. Enhanced wireless BT connectivity between the display tablet and VCI device allows greater mobility and ease at work
21. Convenient data management system for managing internal program applications and reviewing data

AUTEL MaxiCom MK906BT VS. AUTEL MaxiSys MS906

Autel MaxiCOM MK906BT Specifications

1) Operating System: Android™ 4.4.2, KitKat
2) Processor: Samsung Exynos T5260 6-Core Processor (1.3 GHz quad-core ARM Cortex-A7 + 1.7 GHz dual-core ARM Cortex-A15)
3) Memory: 2 GB RAM & 32 GB ROM
4) Display: 8.0" LED capacitive touch screen with 1024x768P resolution
5) Connectivity: Wi-Fi (802.11 b/g/n)
6) USB: 2.0, Mini USB 2.0
7) Wireless BT V2.1+EDR Class1, HDMI 1.4a
8) SD Card (support up to 32 GB)
9) Camera (rear): Rear-facing, 8.0 Megapixel; AF with Flashlight
10) Sensors: Gravity Accelerometer, Ambient Light Sensor (ALS)
11) Audio Input/Output: Microphone, Single Speaker
12) 3-Band 3.5 mm stereo/standard headset jack
13) Power and Battery: 10,000 mAh 3.7 V lithium-polymer battery
14) Charging via 12 V AC/DC power supply
15) Input Voltage: 12 V (9-35 V)
16) Power Consumption: 5 W
17) Dimensions (W x H x D): 270.8 mm (10.0”) x 176.0 mm (6.9”) x 36.0 mm (1.4”)
18) Weight: NW: 1.05 kg (2.3lb.)

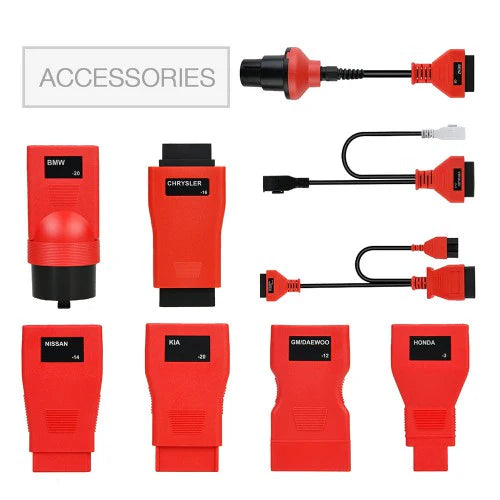

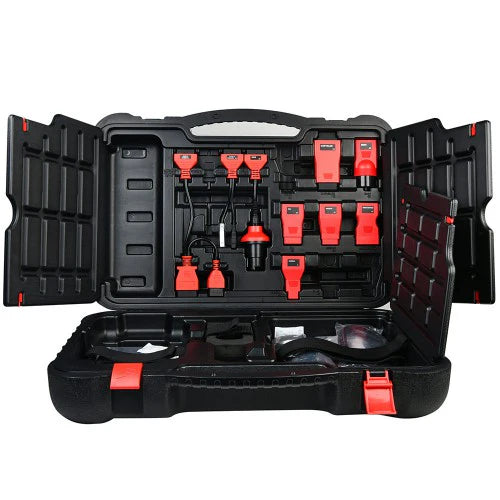

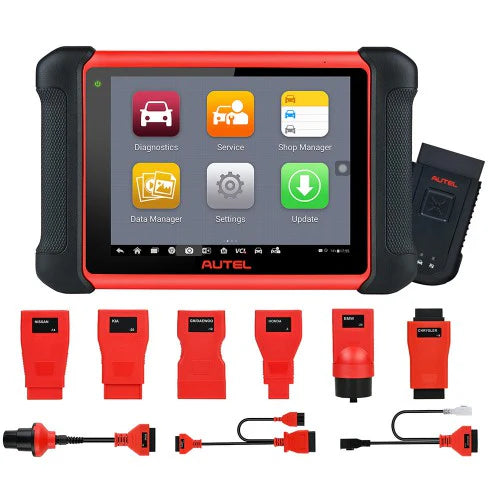

Autel MaxiCOM MK906BT Package List

1pc x AC/DC Adapter (12V)
1pc x Adapter for GM/Daewoo-12
1pc x Adapter for Benz-38
1pc x Adapter for Mitsubishi/Hyundai-12+16
1pc x Adapter for Honda-3
1pc x Adapter for BM-W-20
1pc x Adapter for Kia-20
1pc x Adapter for Nissan-14
1pc x Adapter for V-W/A-UDI-2+2
1pc x Cigarette Lighter

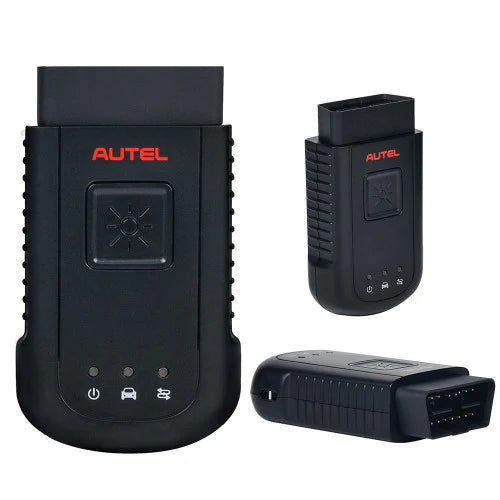

1pc x MaxiVCI V100
1pc x Lighter Fuse
1pc x Soft Cloth
1pc x Mini USB Cable
1pc x User Manual
1pc x Packing List
1pc x Carrying Case
1pc x Quick Reference Guide

Why Choose Autel MaxiCOM MK906BT Diagnostic Tool ?

【2022 All-in-one Scanner MK906BT】MaxiCOM MK906BT is the perfect combination of Maxisys MS906/MS906BT, MK808/MK808BT, MP808/MP808K, DS808/DS808K, same diagnostics and service functions as MK908/MS908. Equipped with ECU Coding, Module Replacement, 31+ special functions, active test, and full-system diagnostics, Autel newest scanner MK906BT can serve for more than 10,000+ car models.

【31+Maintenance Functions, Deeper and Wider】MaxiCOM MK906BT diagnostic scanner is competent to perform Oil Reset, Injector Coding, Throttle Matching, ABS Bleeding, BMS Service, SAS Reset, IMMO, Key Fob Coding, and more, covers 99% of car repair and maintenance needs, is useful for technicians, advance DIYers, garages, car dealers, home mechanics, and individuals.

【 Advanced ECU Coding & Replacement】Upgraded from Autel Maxisys MS906, MK906BT is best designed for ECU Coding, Online Coding, and Module Replacement. You can easily modify ECU and reveal hidden features for 99% cars in the market. Online coding is an expensive function only equipped in high-end scanners to get the data from server. In addition, you are able to quickly match, learn, code or program any replaced ECU with advanced ECU Replacement function.

【Active Test & Full Systems Diagnostics】Bi-directional control, aims to help you pinpoint any possible problem in all subsystems. MK906BT does a full-system scan, checks the engine, SRS, ABS, TPMS, etc., and performs OE-level diagnostics to read/erase DTCs, view data stream, perform active test, ECU Replacement, Zero Point Calibration, Signal Check, Initialization, and Guided Functions.
