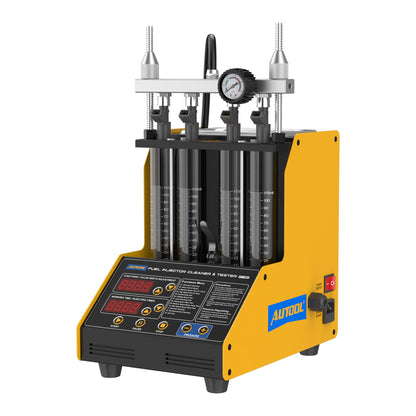

What is the AUTOOL CT150 AUTOOL Ultrasonic Fuel Injector Cleaner Tester?

The CT150 model is an integrated four-cylinder fuel injector machine launched by AUTOOL in 2018. It combines ultrasonic cleaning technology and microcomputer oil pressure closed-loop control technology into one, which can simulate various working conditions of the engine and can clean and test the injectors of automobiles and motorcycles. It has a three-dimensional and nice appearance, which is both drop-resistant and shockproof. It has undergone years of technological and design innovation in which it will solve your fuel injector problems with stable performance and convenient operation.

Why Choose AUTOOL CT150 Ultrasonic Fuel Injector Cleaner Tester?

• Fuel Injector Tester & Cleaner: Injector cleaner and tester can be used both for cleaning and testing injectors. Perfectly suited for removing carbon from your fuel system, testing leaking, sprayability and testing fuel injectors in different situations.

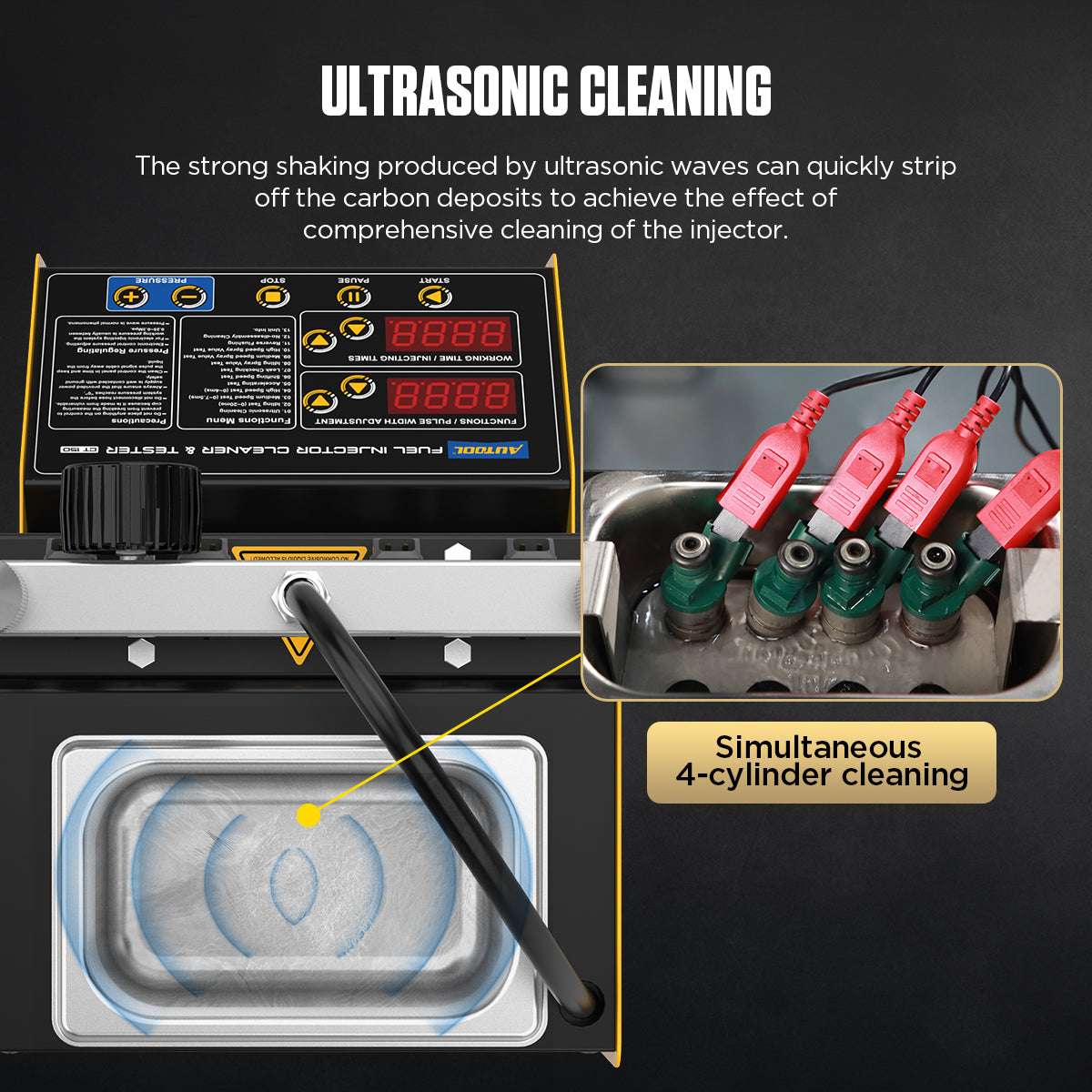

• Hi-tech Ultrasonic Cleaning: Built-in Ultrasonic Ultrasonic mechanism. Different from the traditional way, it works by sending an ultrasonic vibration signal to the injector nozzle through the pulse signal line, which makes the stubborn carbon deposit jitter strongly and removes more thoroughly.

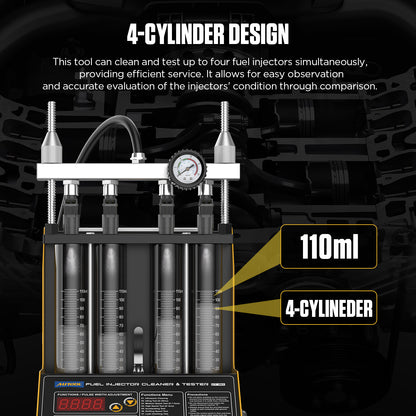

• Efficient & Labor-free: 4 injectors can be tested and cleaned at one time. Support reverse cleaning & on-vehicle cleaning. Plus, it can also be used on 6 cylinders, twice tests will do.
• Portable & Durable: Tool trolley makes it more conveniently to operate. CT150 injector cleaner tester with high quality SIEMENS pump, which make it more endurable.
• Support Motorcycle: CT150 4-Cylinder fuel injector cleaner tester can clean and test both petrol cars and motorcycle injectors. (motorcycle support for HONDA,for YAMAHA,for SUZUKI,for SANYANG only)

• Reverse Flush: To test the uniformity of injecting amount of each injector,and to monitor the spraying status of each injector with the help of backlight. This test is also for reverse flush.

• Suitable for All EGI Vehicles: Fuel pressure control through microcomputer offers stable pressure control and large adjustable range, which is suitable for all EGI vehicles and can help to achieve automatic cleaning and testing of injectors.

• Clean Multiple Injectors At The Same Time: Ultrasonic cleaning: To perform simultaneous cleaning on several injectors and to remove the carbon deposits on the injector completely.

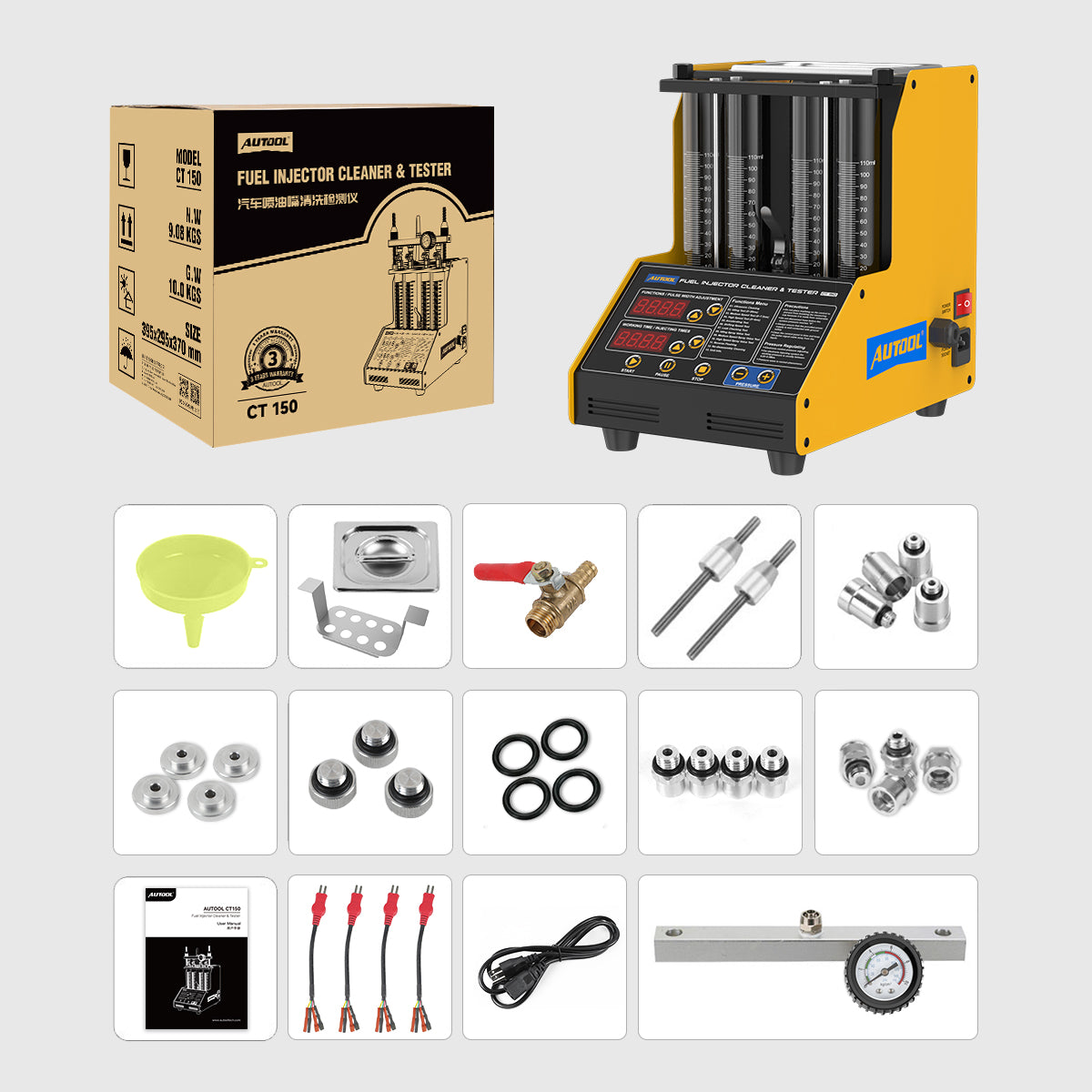

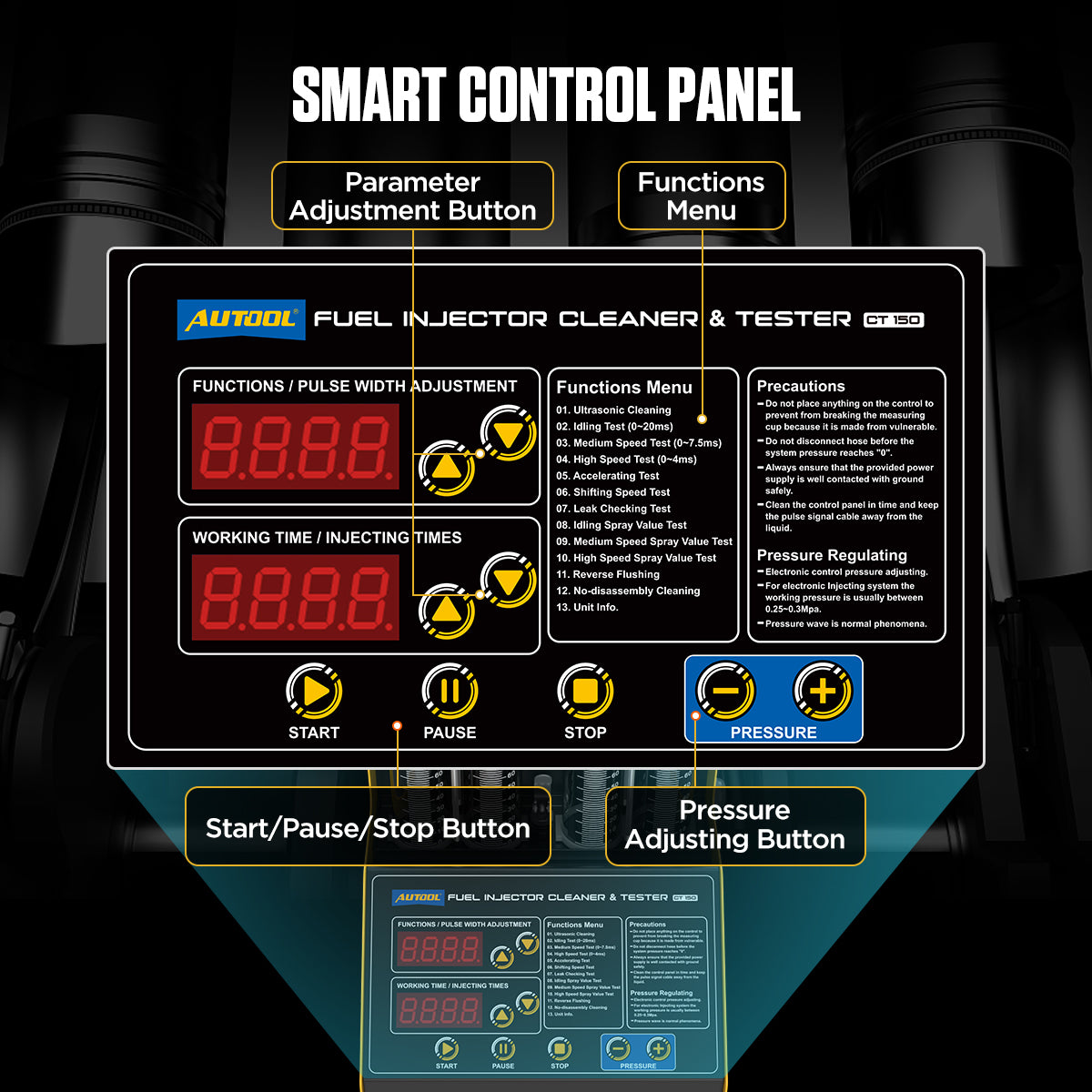

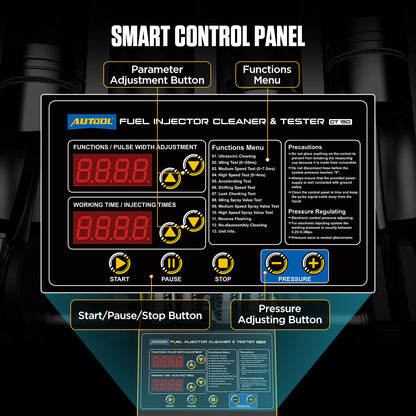

• Adopting Humanization Design: CT150 Injector Cleaner Tester with various adaptors and couplers that facilitate cleaning on the injectors on vehicle.With the help of microcomputer control and digital display, the equipment makes possible automatic cleaning, testing injectors and real-time monitoring of the dynamic values.can make the system pressure fast restored to the default values.

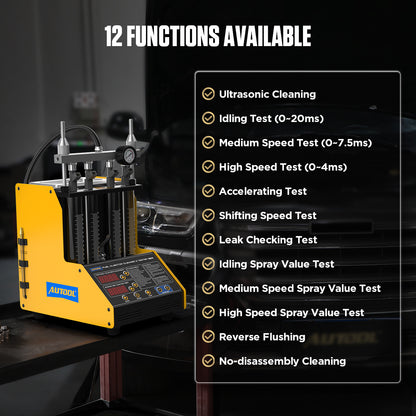

AUTOOL CT450 GDI Fuel Injector Cleaner & Tester Machine Functions

1. Ultrasonic Cleaning: It sends signals to the injectors through the pulse signal line, using the cleaning fluid with the ultrasonic vibration so as to completely remove the carbon and impurities inside the injectors.
2. Idle Speed Test (0-20ms): Simulate the engine idling speed and test the state of the fuel injector.
3. Medium Speed Test (0-7.5ms): Simulate the engine running at medium speed and test the state of the fuel injector.
4. High-Speed Test (0-4ms): Simulate the high-speed performance of the engine and test the state of the fuel injector.
5. Acceleration Test: Simulate the acceleration state of the car and test the performance of the fuel injector.
6. Shift Speed Test: Simulate the shifting state of the car and test the working performance of the fuel injector.
7. Leakage Test: Test the sealing condition of the fuel injector.
8. Idle Dpeed Sprayability Test: Simulate the engine idling state and test the spraying performance of the fuel injector.
9. Medium Speed Sprayability Test: Simulate the engine medium-speed state and test the spraying performance of the fuel injector.
10. High-Speed Sprayability Test: Simulate the high-speed state of the engine and test the spraying performance of the fuel injector.
11. Reverse Flush: Reverse flush is a way to clean the injectors with the test liquid flowing from the outlet to the inlet of the injector. Reverse flush may remove the dirt inside the injector or the injector Strainer (Only for the top fuel supply injector).
12. No-Disassembly Cleaning: Direct cleaning without disassembling the injectors, this function is an additional function, which requires special adapters.
