What is the MRCARTOOL Fuel Pressure Tester?

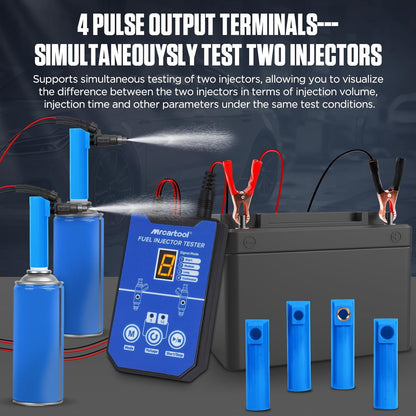

MRCARTOOL Fuel Pressure Tester supports 12V injector testing, which can simulate the complex working conditions of the engine and effectively determine whether the injector is good or not.It is suitable for many kinds of automobile injectors, and it can easily diagnose and fix the fuel delivery problem of the injector for you. Fuel Injector Tester has 8 pulse modes, LCD digital display for current pulse mode, easy for you to observe and switch between different modes. Our injector tester kit is equipped with 2 pairs of pulse output terminals, which can test 2 injectors at the same time and improve the testing and cleaning efficiency.

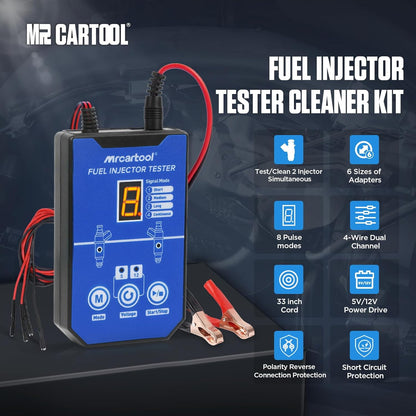

Why Choose MRCARTOOL Fuel Pressure Tester?

• Fuel Injector Clean Test: This tool enables you to detect clogged, leaking, damaged, or burned-out fuel injectors while measuring fuel injection volume and spray patterns.

• 8 Pulse Modes: The MR CARTOOL Fuel Injector Tester features 8 programmable pulse modes with an LCD digital display. When you select a pulse mode, the display clearly shows the corresponding mode number, allowing for easy observation and seamless switching between different modes.

• 12V/5V Output Voltage: Support 12V/5V output voltage selection and 4 pulse signal output modes. It can simulate the complex working conditions of the engine, effectively determine whether the injector is good or bad, clean all kinds of automobile injectors, and easily diagnose and repair the fuel delivery problems of the injector for you.

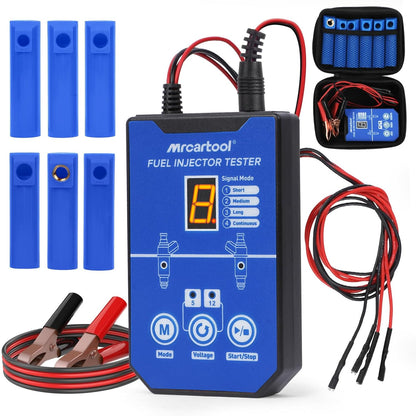

• 6 Nozzle Adapters: 5V/12V Automotive Injector Pressure Tester can be used with any fuel pressure tester to easily clean and test most automotive and motorcycle injectors.

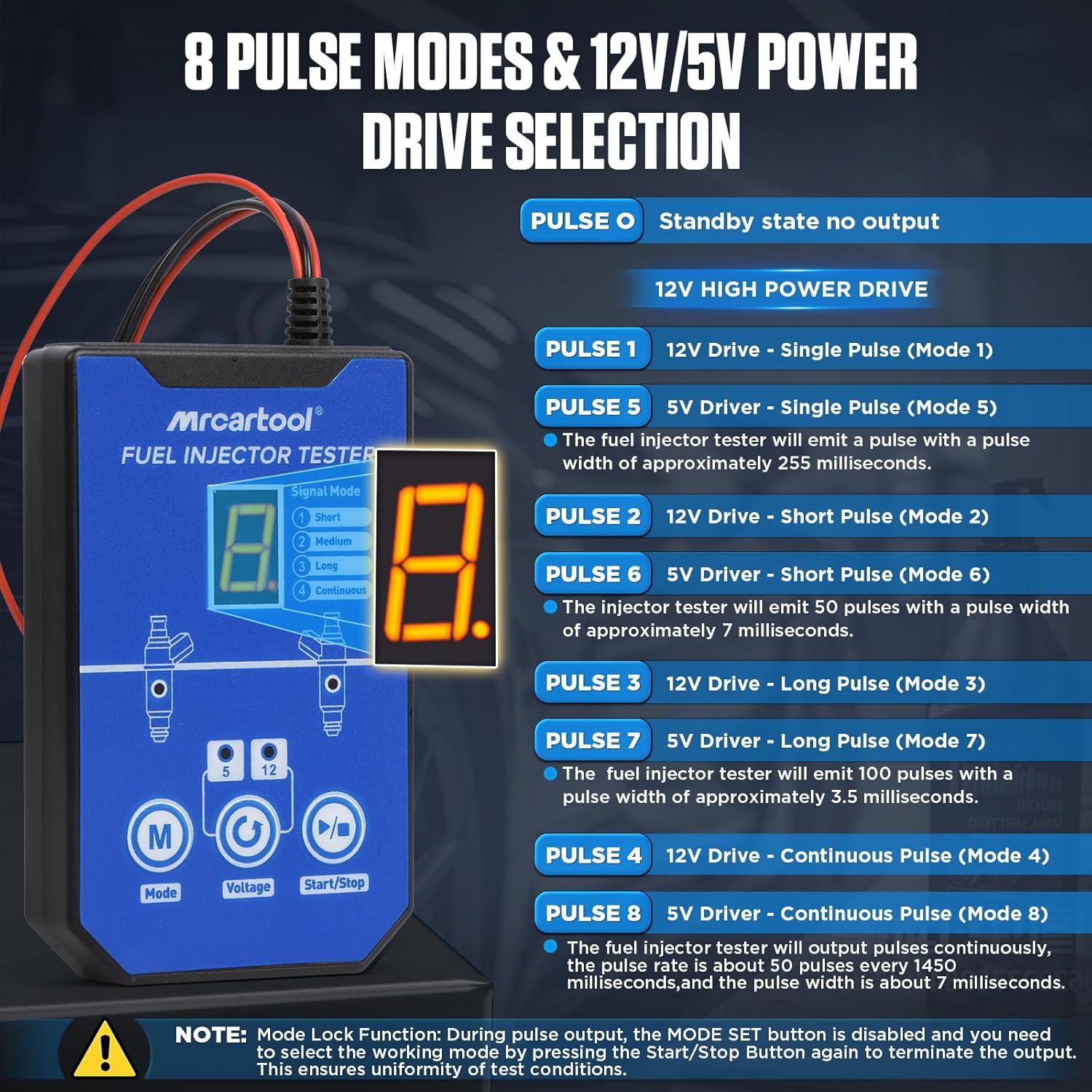

MRCARTOOL Fuel Pressure Tester Functions

1. PULSE 0: Standby state no output, 12V HIGH POWER DRIVE

2. PULSE 1: 12V Drive . single Pulse (Mode 1)
   PULSE 5: 5v Driver .single Pulse (Mode 5)
   The fuel injector tester will cmit a pulse with a pulsewidth of approximately 255 milliseconds.

3. PULSE 2: 12V Drive -short Pulse (Mode 2)
   PULSE 6: 5v Driver.short Pulse(Mode 6)
   The injector tester willl emit 5O pulses with a pulse widthof approximately 7 mllllseconds.

4. PULSE 3: 12v Drlve -Long Pulse (Mode 3)
   PULSE 7: 5v Driver .Long Pulse (Mode 7)
   The fuel injector tester will emit lo0 pulses with apulse width of approximately 3.5 milliseconds.

5. PULSE 4: 12V Drlve .continuous Pulse (Mode 4)
   PULSE 8: 5 Driver -continuous pulse (Mode 8)
   The fudl injector tester wlll output pulses continuously,tho pulse rato is about 5o pulsos ovory1450milliseconds,and the pulse width is about 7 milliseconds
