Full-System Diagnostics and Complete TPMS Service in One Wireless Tablet

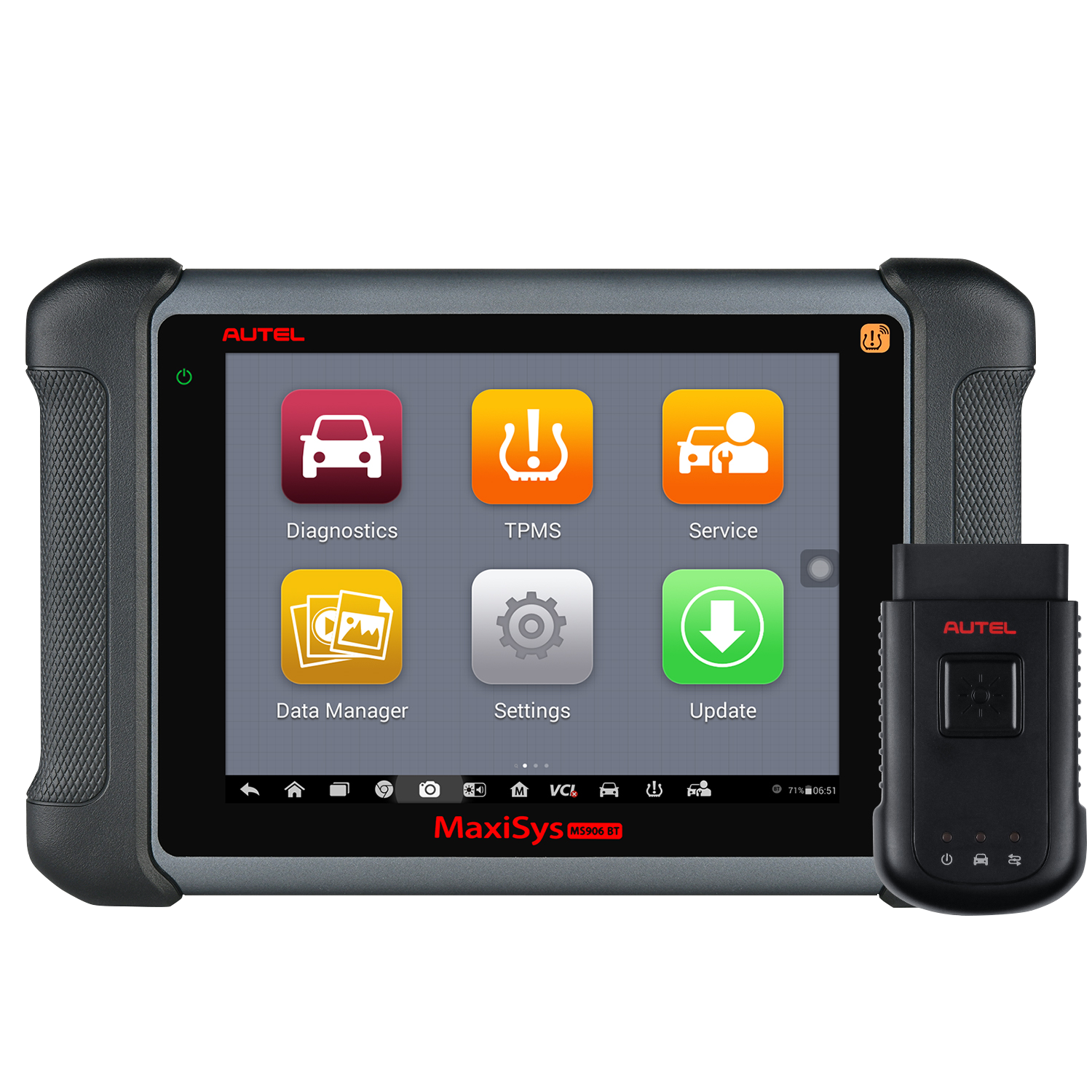

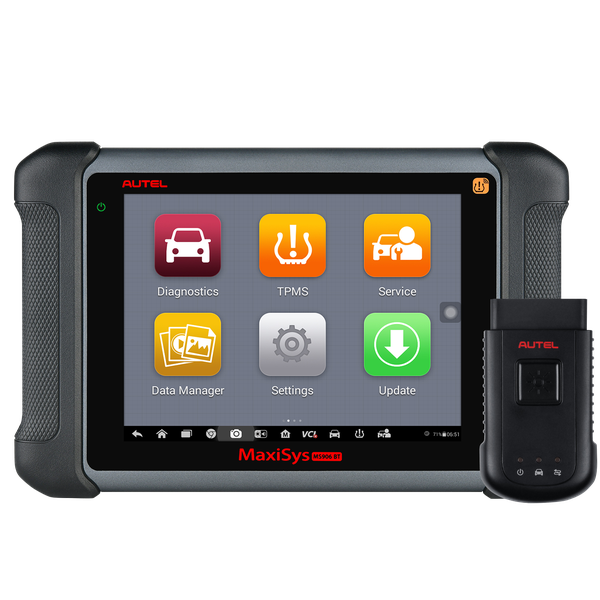

The MaxiSys MS906TS combines OE-level diagnostics, ECU coding and bi-directional control with a built-in TPMS antenna module. It triggers known OEM sensors, programs Autel MX-Sensors and runs sensor relearn procedures, and communicates wirelessly with its VCI.
- Built-In TPMS Module
- Online ECU Coding
- Bi-Directional Control
- 31+ Services
- AutoVIN
Key Features
-
Complete TPMS Service

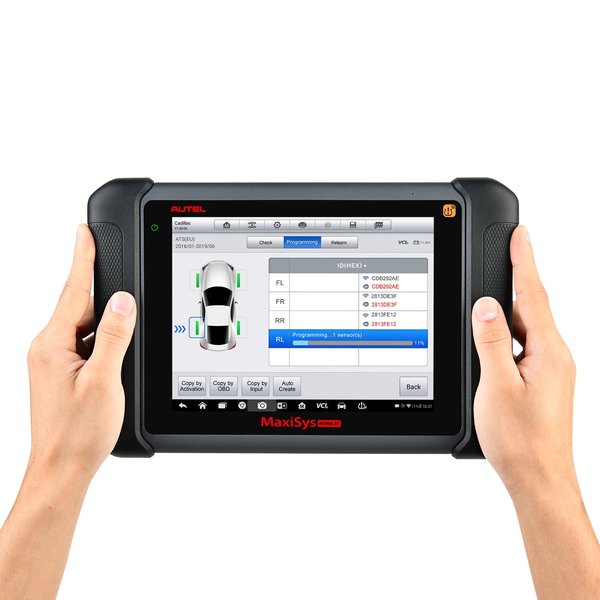

Trigger, relearn or program Autel MX-Sensors, activate and relearn known TPMS sensors, and monitor TPMS system status.
-
ECU Coding
Online coding for BMW F and E chassis, Porsche, VW, Nissan and Hyundai, plus offline adaptation for Ford.
-
Hidden Features
Activate hidden functions on BMW, VW, Audi and Skoda, or disable functions such as the automatic stop system.
-
Bi-Directional Active Tests
Check actuator status by switching the fuel pump on and off and operating wipers, windows, doors, sunroof and headlamps.
-
Service Functions
More than 31 special functions, including oil, EPB, SAS, DPF, BMS, ABS bleed, injector and IMMO.
-
Full Diagnostic Coverage
Codes, live data, active tests, ECU information, adaptation, matching and coding, with AutoVIN to identify the vehicle.
-
Workshop Tools
Remote-control tech support, the cloud-based MaxiFix community of repair tips, Data Logging sessions with Autel Technical Support, and a data manager for customer and vehicle records.
More Specifications
| Processor detail | 1.3 GHz quad-core ARM Cortex-A7 + 1.7 GHz dual-core ARM Cortex-A15 |
|---|---|
| Connectivity | Wi-Fi (802.11 b/g/n), USB 2.0, Mini USB 2.0, BT V2.1+EDR Class1, HDMI 1.4a, SD card (up to 32 GB) |
| Rear camera | 8.0 megapixel, autofocus with flashlight |
| Sensors | Gravity accelerometer, ambient light sensor |
| Audio | Microphone, single speaker, 3.5 mm headset jack |
| Charging | 12 V AC/DC power supply |
| Power consumption | 5 W |
| Operating temperature | -10 to 55ยฐC (14 to 131ยฐF) |
| Storage temperature | -20 to 70ยฐC (-4 to 158ยฐF) |
| Housing | Rubberized outer protection and rugged internal housing |

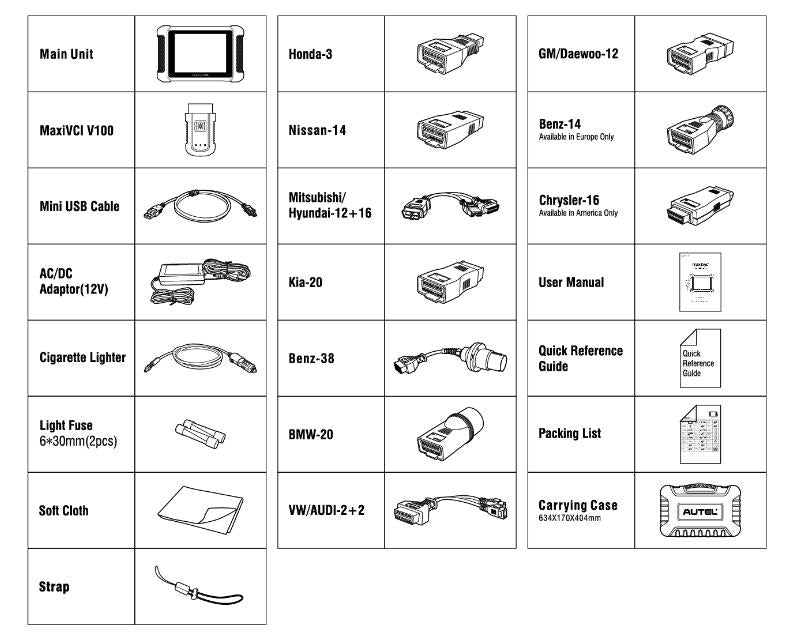

What’s in the Box
- Main unit
- MaxiVCI V100
- Mini USB cable
- AC/DC adapter (12 V)
- Cigarette lighter cable
- Light fuses (2 pcs)
- Soft cloth
- Strap
- OBD adapters: Honda-3, Nissan-14, Mitsubishi/Hyundai-12+16, Kia-20, Benz-38, BMW-20, VW/Audi-2+2, GM/Daewoo-12
- Benz-14 adapter (Europe only)
- Chrysler-16 adapter (America only)
- User manual
- Quick reference guide
- Packing list
- Carrying case
