Reviews·5

5.0 / 5Based on 5 reviews
4 ★0%
3 ★0%
2 ★0%
1 ★0%

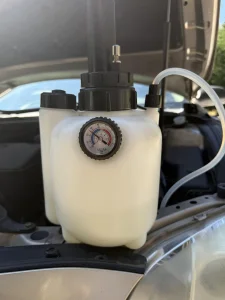

Stanley B.

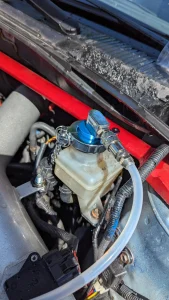

Used this on my 2006 Scion tC to bleed the brakes after a master cylinder replacement. Used the wrong adapter at first, then tried the one in my pictures. Pushed all the air right out and flushed the system well. Alot of Toyota’s use this style master cylinder, so if you’re looking to bleed your brakes solo, grab this unit. No air compressor needed, and about 10psi on the gauge is plenty. very good

Wade J.

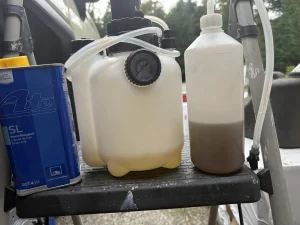

Have done two successful flushes on two Toyotas. One a 2009 Camry and a 2010 FJ Cruiser. Has a lot of adaptors to fit most vehicles. My main concern was the non threaded universal one but the Toyota one with the seal and collar works well, no leaks on fluid or air. Brought psi to 30 and bled furthest to closest and was amazed on how simple this method works, you do need a little elbow grease to pump and bleed. There was no instructions but you can follow videos on YouTube. A little advice when you’re done bleeding a caliper unscrew the top from the bottle to release pressure if you just pull the adaptor off the bleed valve then the back pressure from the bottle will shoot old fluid out on to your car or floor. Was able to flush a whole FJ Cruiser system with 1 liter of ATE fluid, new fluid is in the big bottle and old fluid is in the little bottle.

Winni G.

It worked great. However, when I first tried using it I was not able to make it hold pressure. I Didier the cap around the pressure pump plunger was not tight. I screwed it down all the way and it was very easy to use. It was definitely worth picking up.

Specifications

BrandMRCARTOOL
DimensionsN/A
Pump3-liter manual pump
Reservoir4-liter reservoir + 1-liter bottle
SafetyPressure gauge + relief valve, prevents air ingress
Applicable FluidsBrake fluid, transmission fluid, clutch fluid, engine oil
MaterialHigh-strength plastic, with hanging chain
Weight0.18 kg (as stated in source)
CompatibilityHydraulic brake and clutch systems of cars, motorcycles, boats, lawn mowers

Details

Pressure-Bleed Brakes and Clutches With a Hand Pump, Gauge and Relief Valve

Fill the reservoir with fresh fluid, seal it to the master cylinder with an adapter cap and pump the handle to build pressure while the waste bottle collects old fluid at the bleeder screw. A gauge and relief valve keep the pressure in check.

  • Hand-Pumped Pressure
  • Gauge + Relief Valve
  • 4 Master Cylinder Caps
  • Waste Bottle With Chain
  • Brake & Clutch Systems

Key Features

  1. Manual Pressure Pump

    Push and pull the handle to generate pressure; no extra tools are needed.

  2. Gauge and Relief Valve

    The gauge monitors internal air pressure and the relief valve releases overpressure, helping keep air out of the braking system.

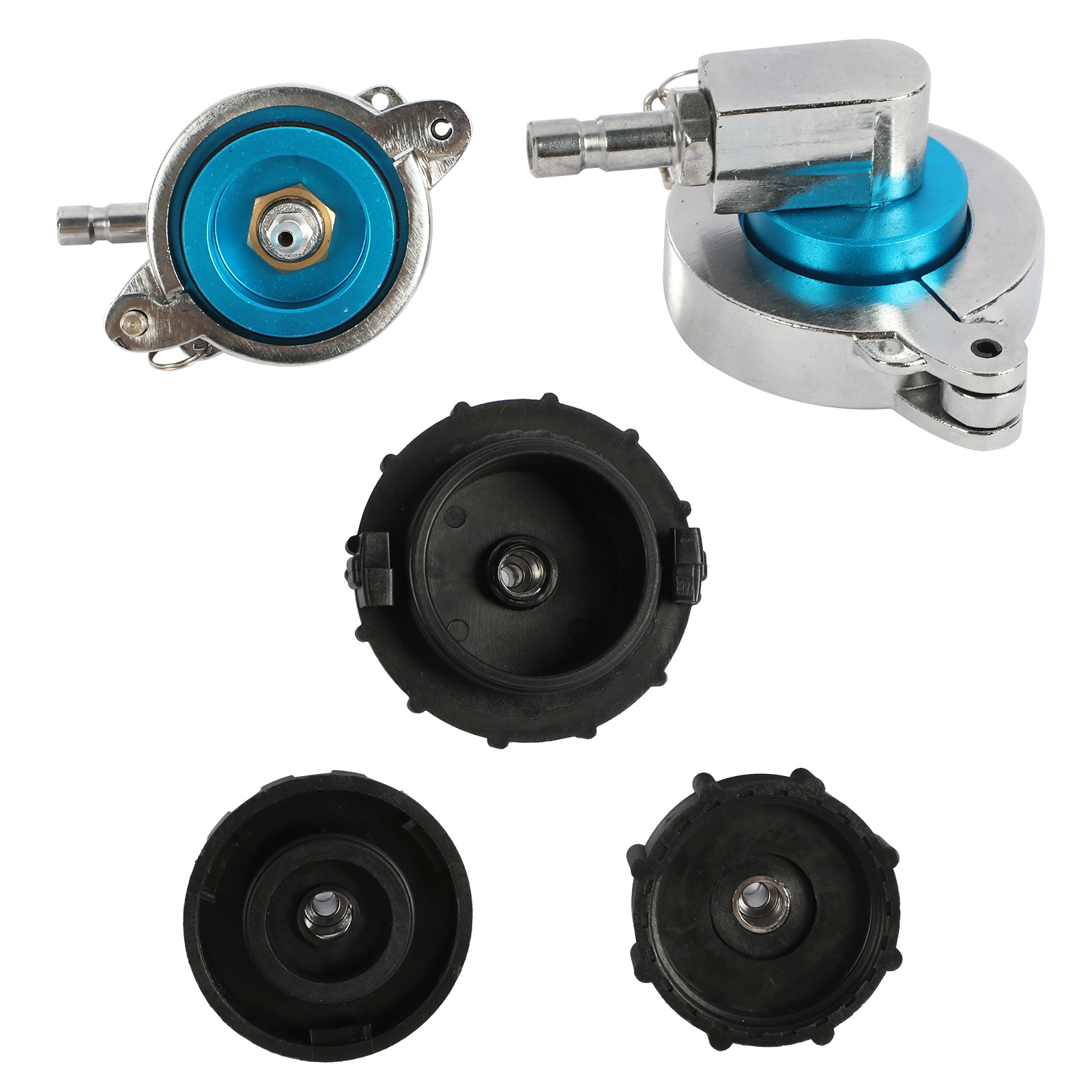

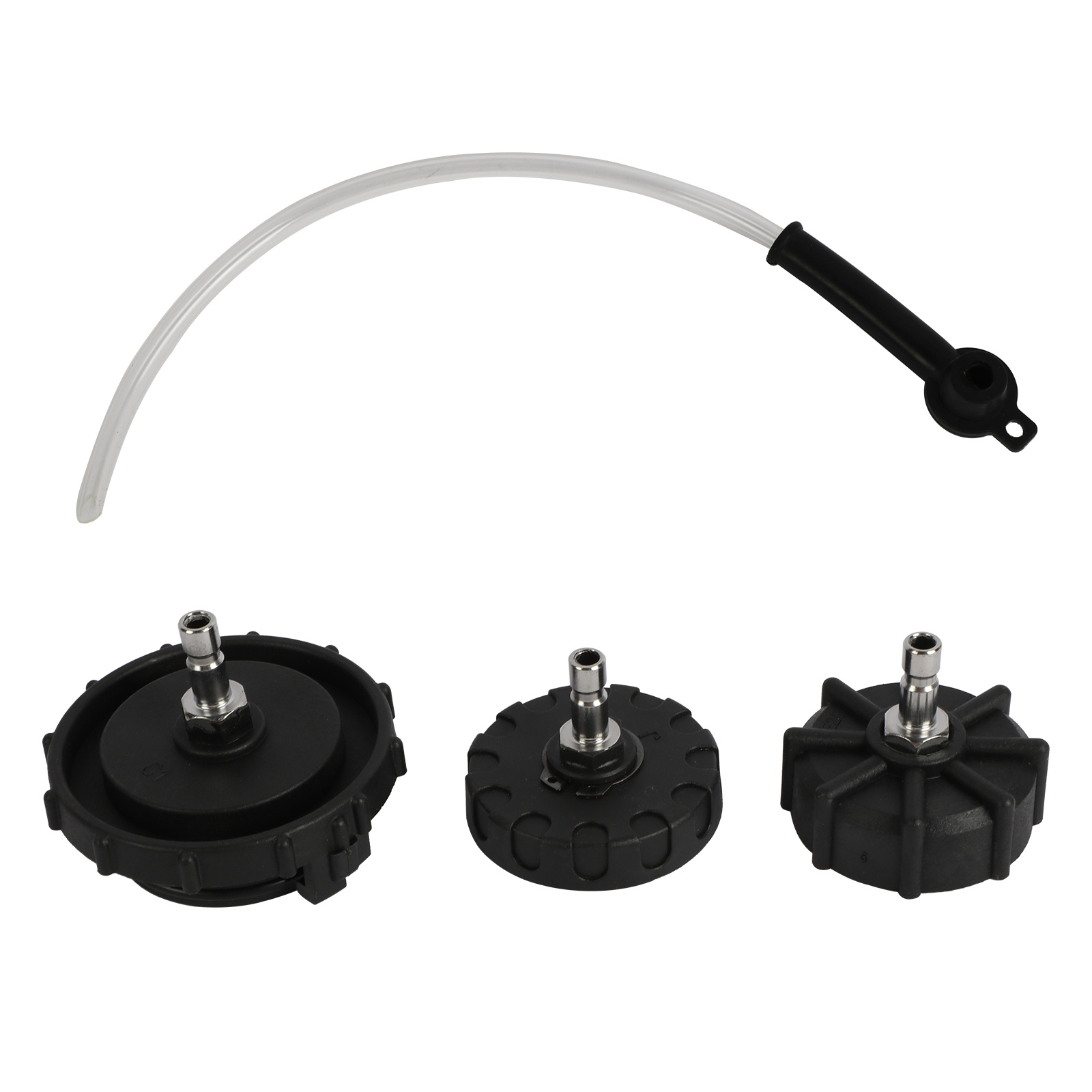

  3. Four Adapter Caps

    53, 55, 58 and 77 mm master cylinder adapter caps connect to the hose through an aluminum quick connector.

  4. Waste Bottle With Hanging Chain

    A chain and hook hang the bottle at the wheel, and its connector suits most bleeder screws.

  5. Durable, Easy-Clean Body

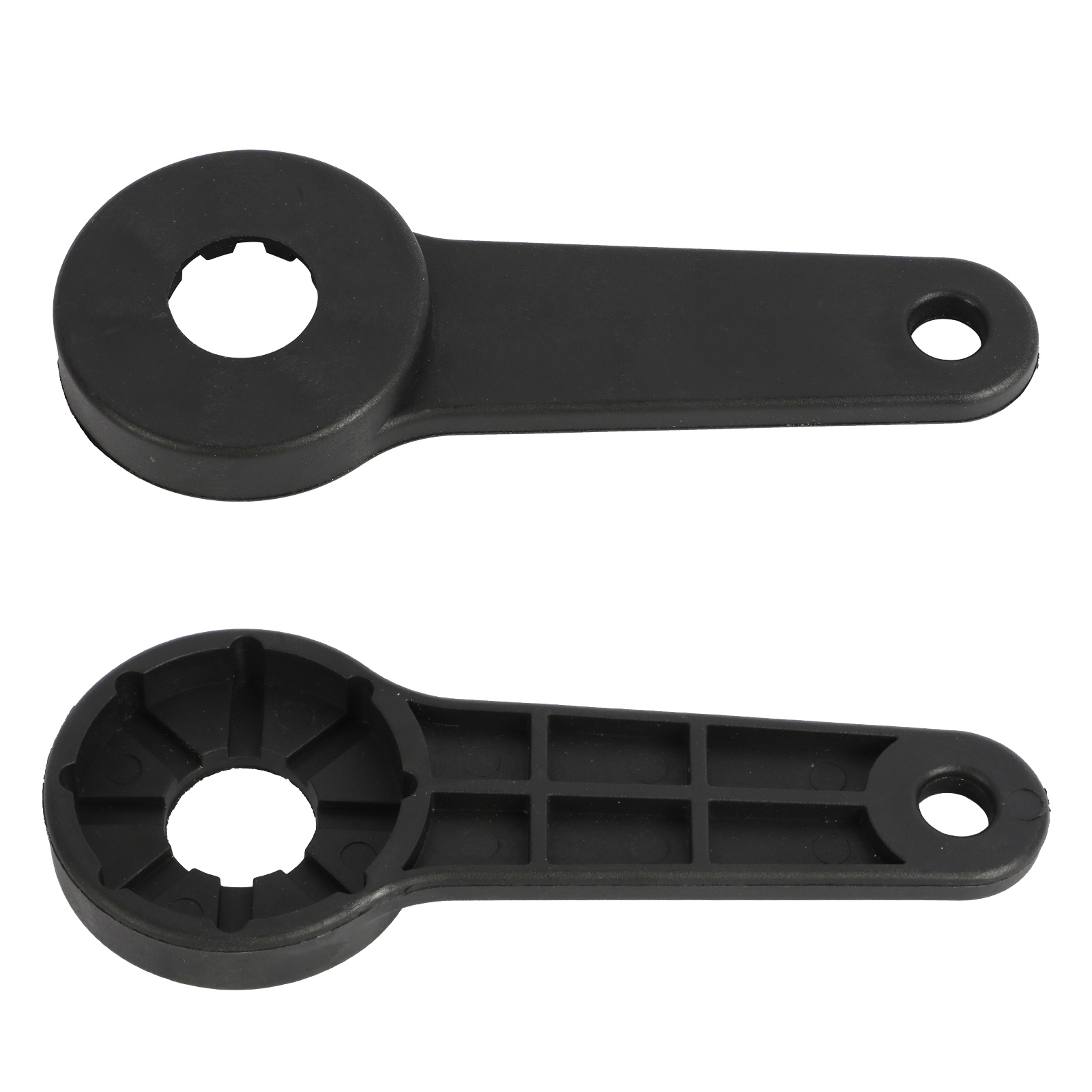

    Made from strong plastic; a wrench is included to open the filler cap without damaging it.

Highlights

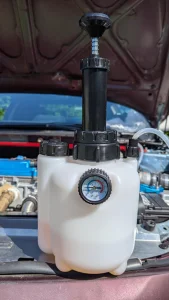

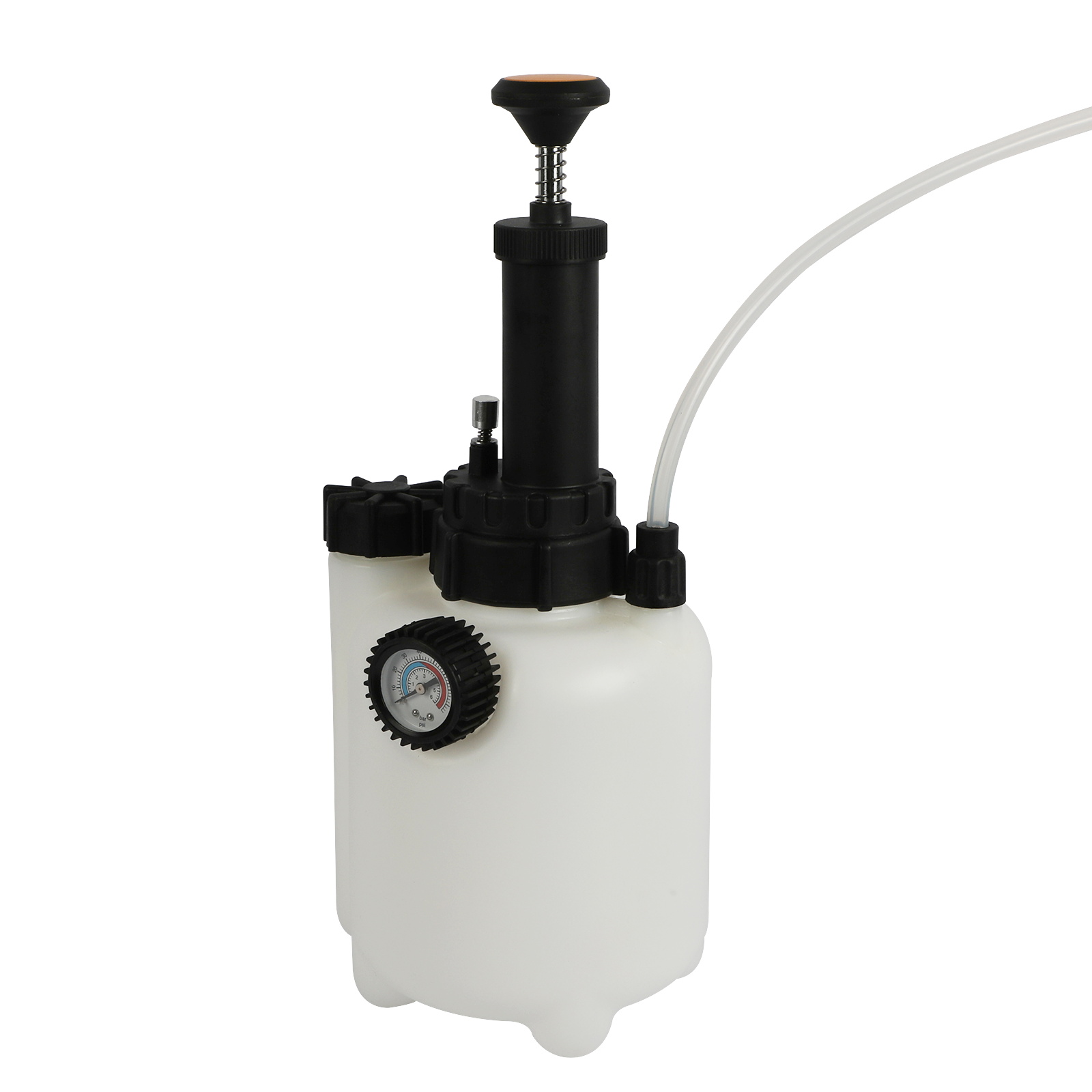

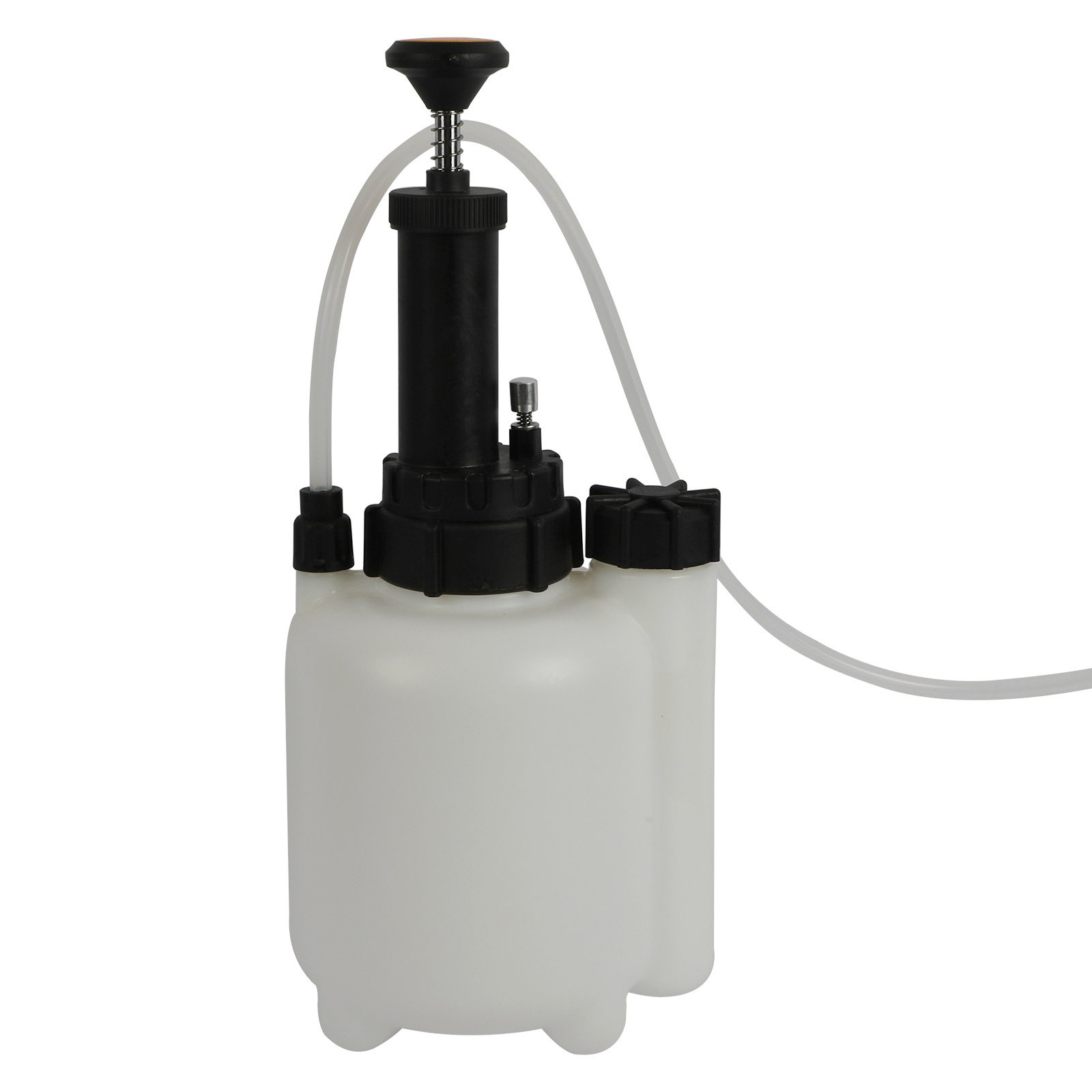

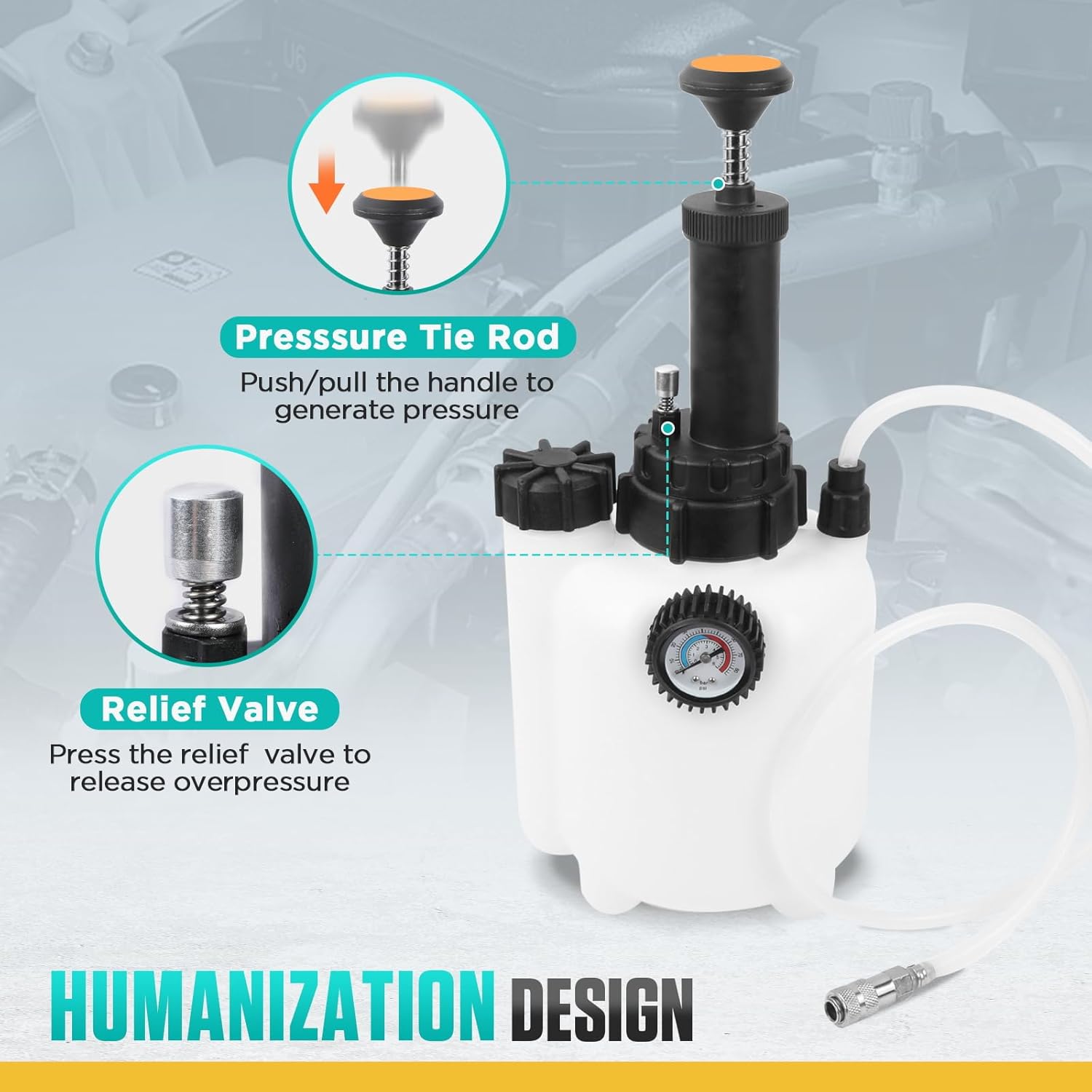

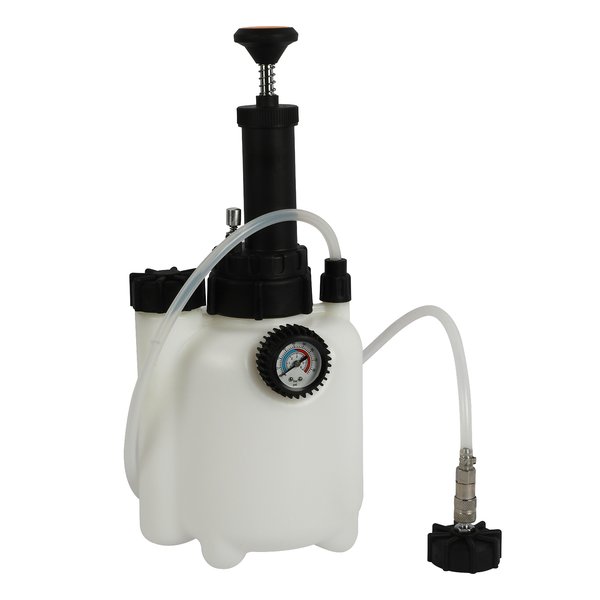

MRCARTOOL brake bleeder pump handle and relief valve with pressure gauge on the reservoir
Pump and Relief Valve

Build pressure with the handle; press the valve to release overpressure.

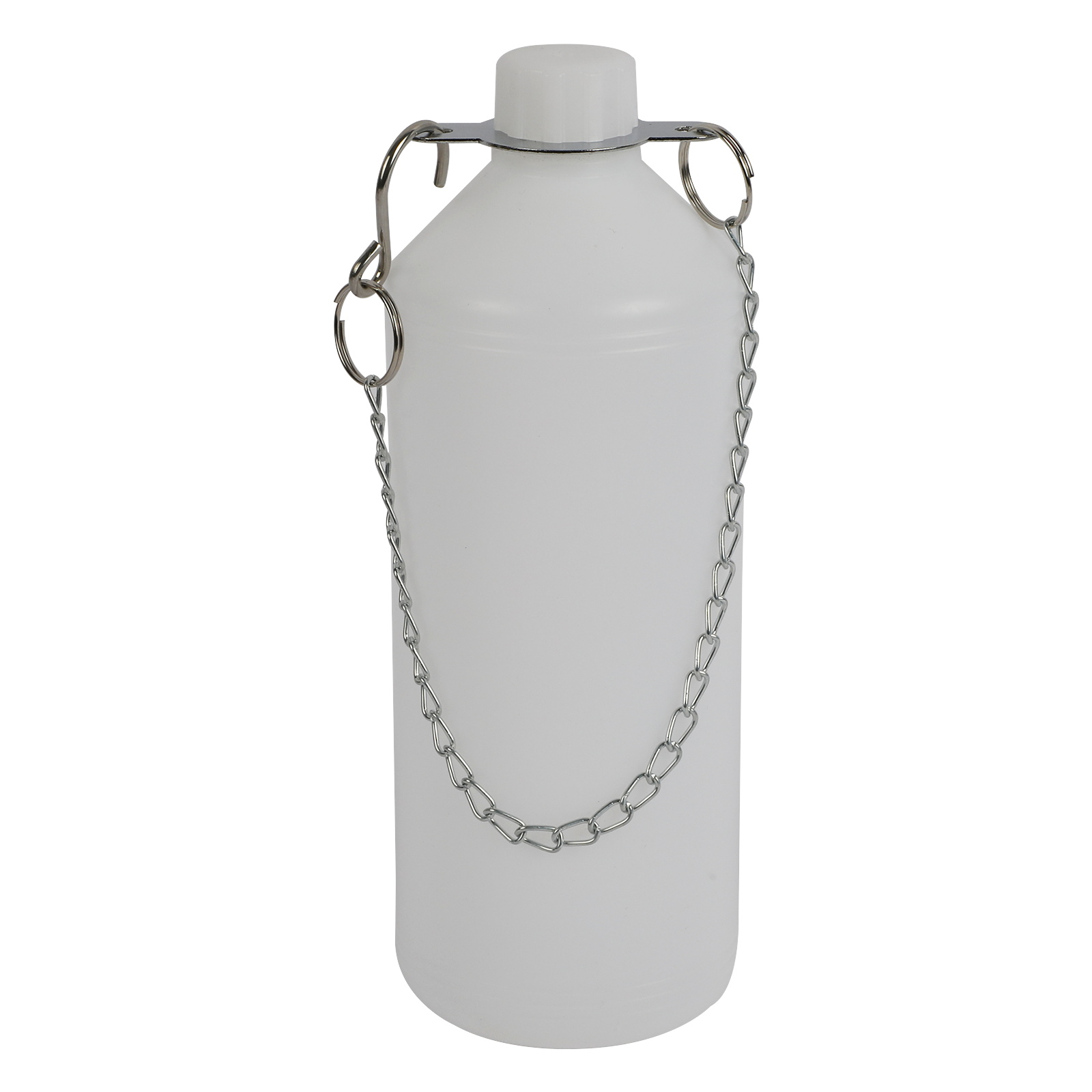

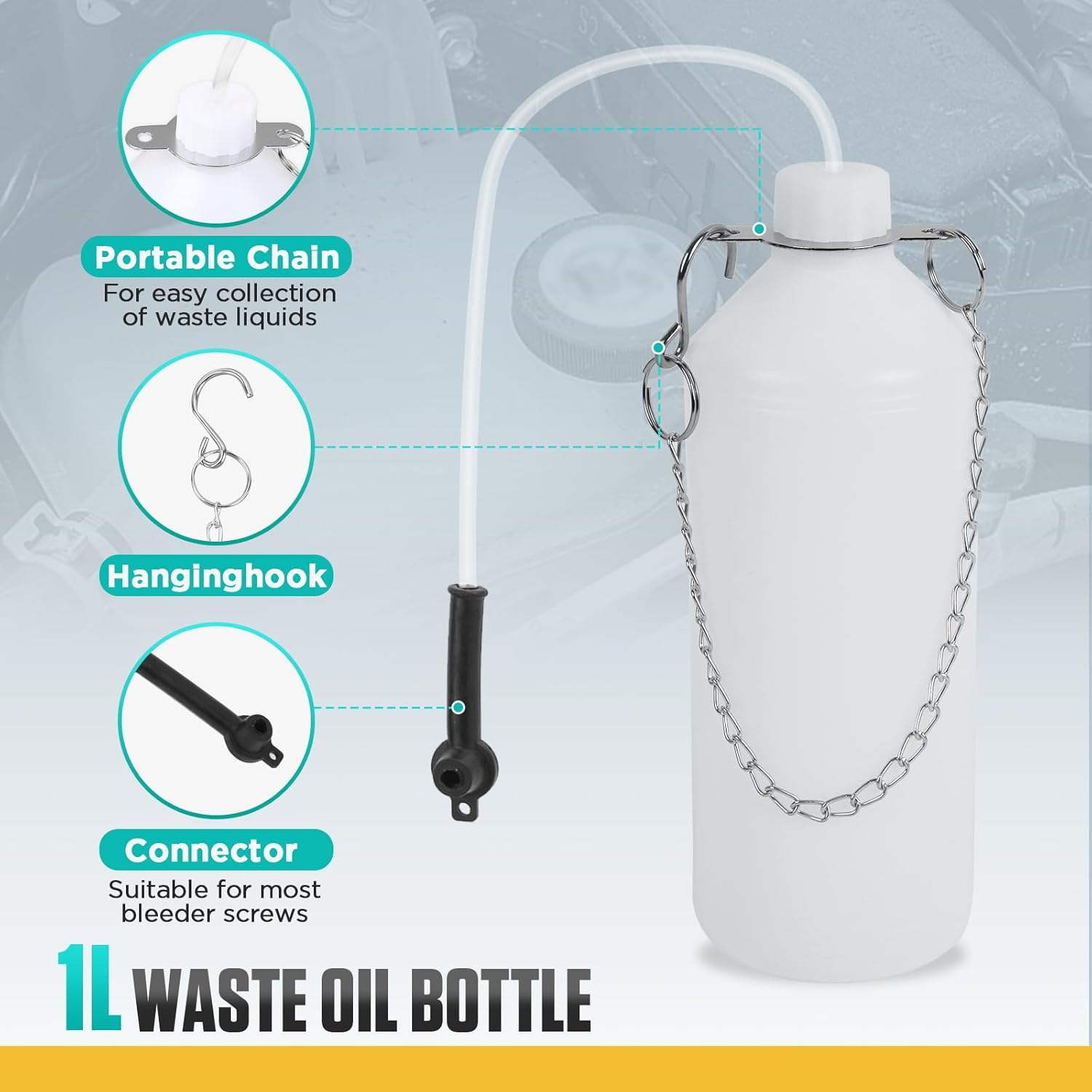

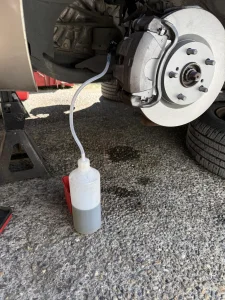

Waste fluid bottle with portable chain, hanging hook and bleeder screw connector
Waste Collection

Hang the bottle by its chain and hook while old fluid drains from the bleeder screw.

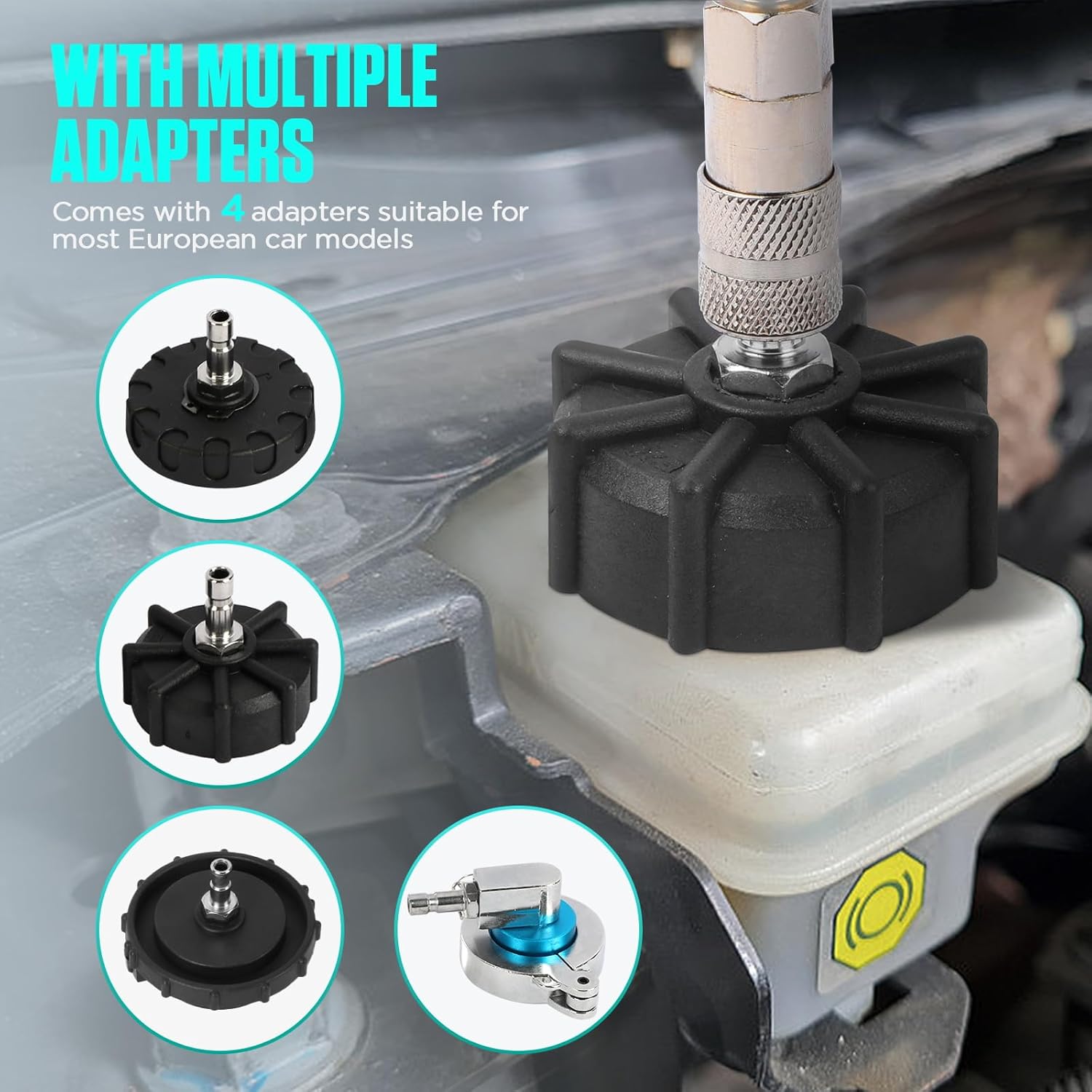

Four master cylinder adapter caps and a cap fitted to a brake fluid reservoir
Master Cylinder Caps

Choose the cap that matches the reservoir and lock the quick connector onto it.

What’s in the Box

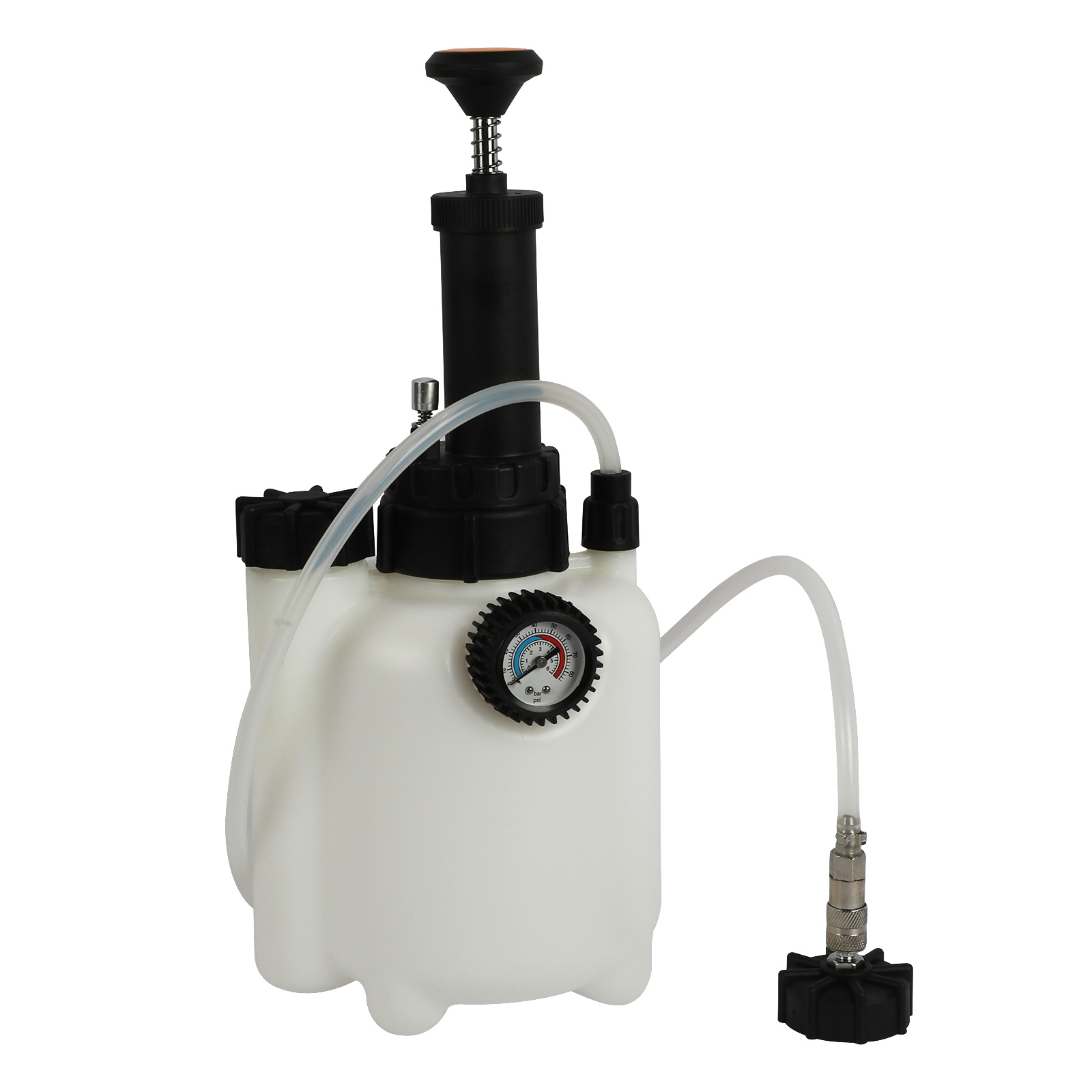

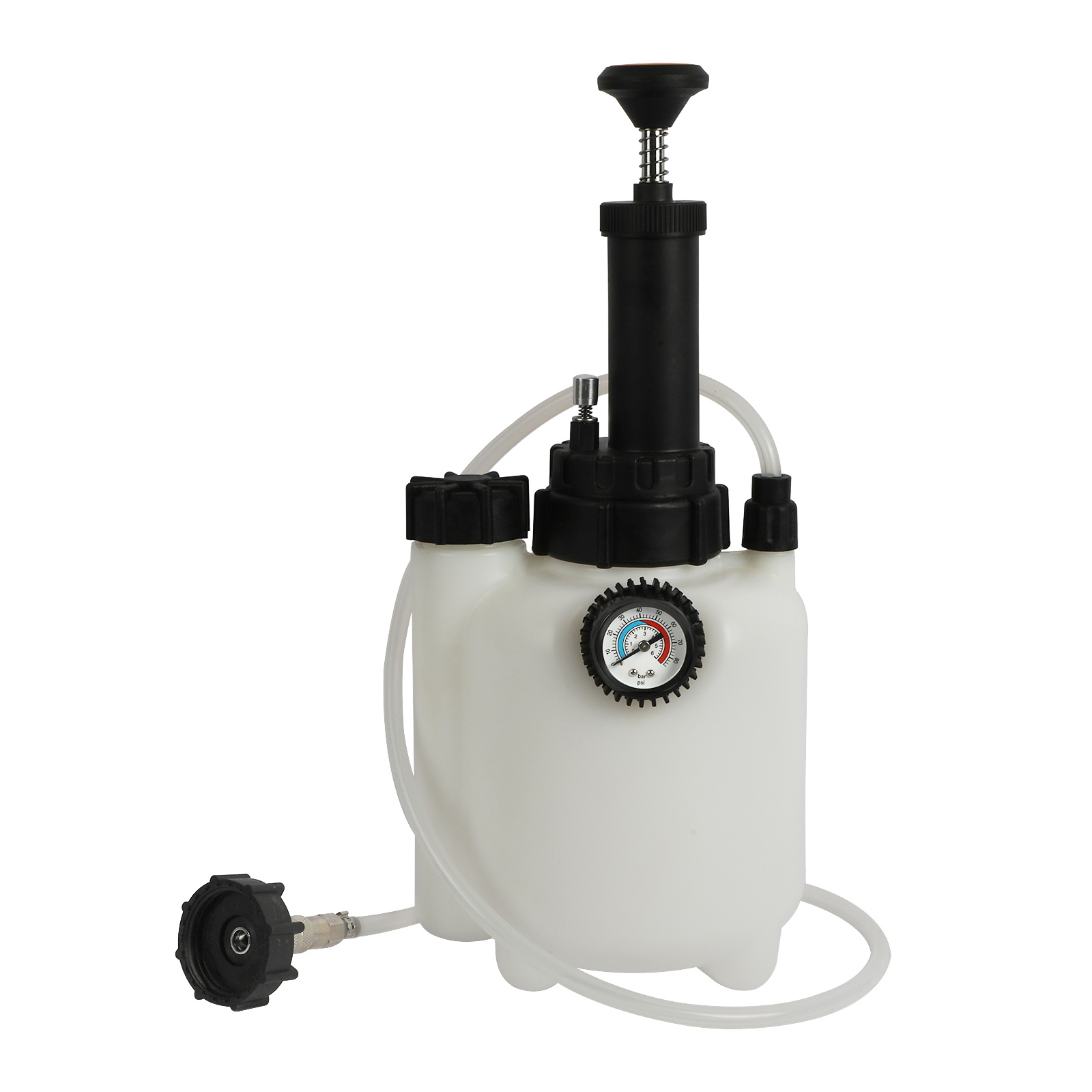

  • Pump reservoir with pressure gauge, relief valve and hose
  • Waste bottle with chain, hook, hose and bleeder connector
  • Master cylinder adapter caps
  • Filler cap wrench

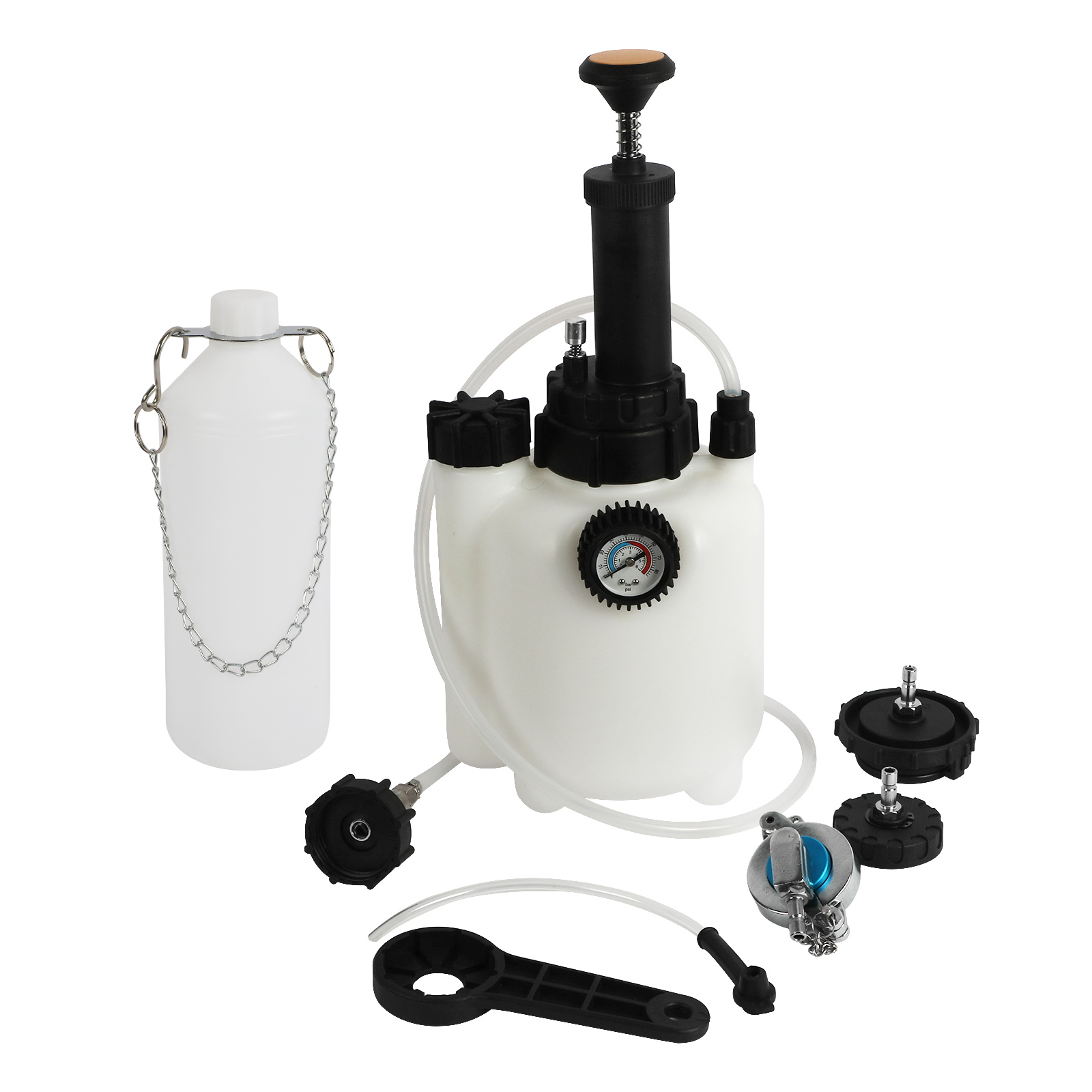

MRCARTOOL brake bleeder kit with pump reservoir, waste bottle, adapter caps and wrench
Brake bleeder kit contents.

How to Use

  1. FillFill the tank with fresh fluid.
  2. ConnectFit the matching adapter cap to the master cylinder reservoir and attach the hose.
  3. PressurizePush and pull the handle to generate pressure, watching the gauge.
  4. BleedAttach the waste bottle to the bleeder screw and collect the old fluid.
