AUTOOL HTS678 Best Walnut Sand Blaster Engine Carbon Cleaning Machine for Intake Valve, Throttle Valve, and Cylinder Cleaning

Sale price$890.00 USDRegular price $1,090.00 USD
Ship From
Ship From: China
Voltage
Voltage: 110V
In stock, ready to ship
Popular Combination

In stock! Ships within 1-2 business days.

3-Year Warranty

Complimentary shipping & returns

Pairs well with

Despcription

What is the AUTOOL HTS678 Walnut Sand Blaster Engine Carbon Cleaning?

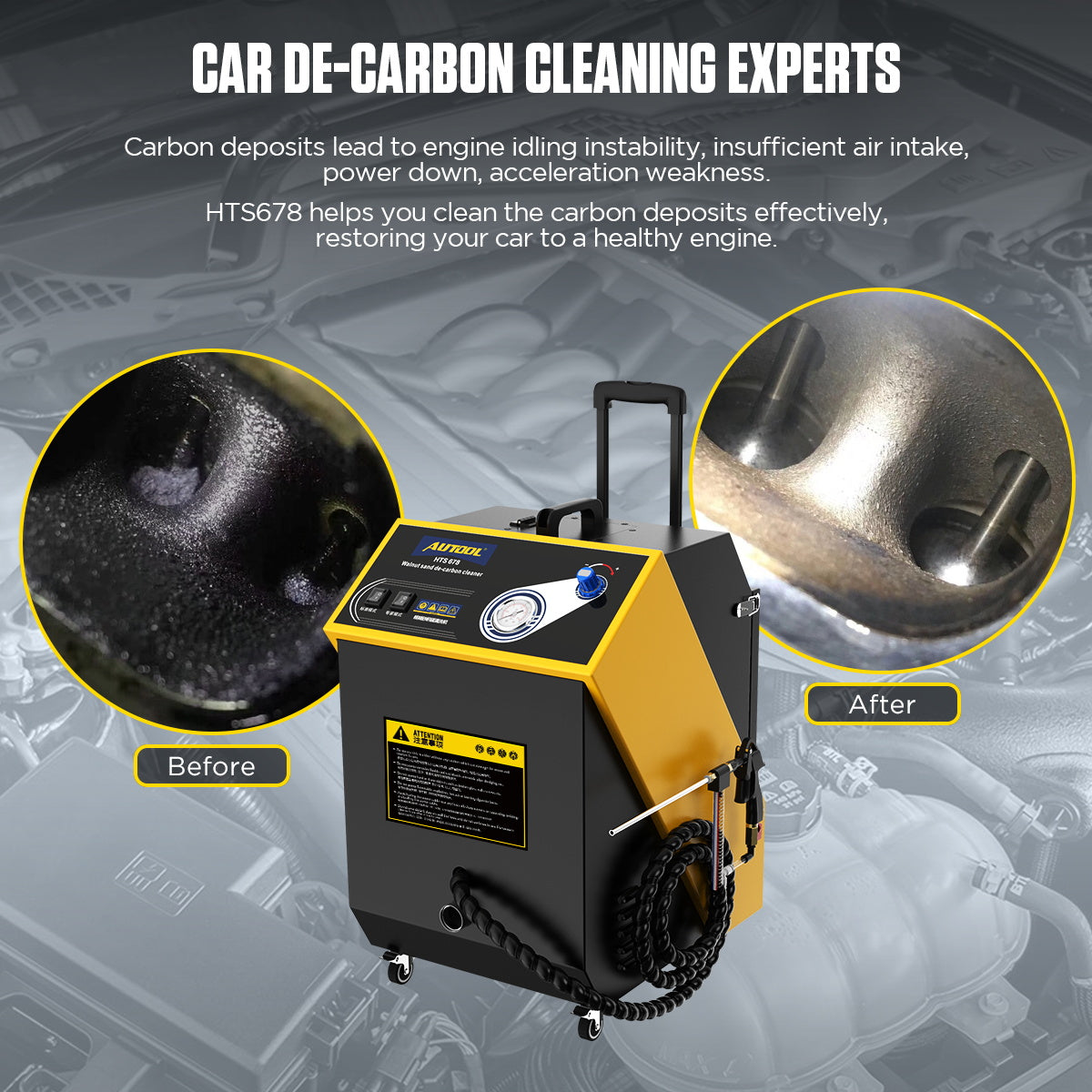

The AUTOOL HTS678 walnut sand blaster is a car engine carbon deposition cleaning equipment with adjustable output air pressure. The Walnut Blaster uses harmless walnut shell abrasive to deeply clean carbon deposits in the intake manifold and valves, effectively resolving issues such as unstable idle, incomplete fuel combustion, and increased engine oil consumption. The AUTOOL HTS678 walnut blasting machine features a 1800W motor and an adjustable pressure knob, providing strong suction power and flexible air pressure regulation. In addition, it is also equipped with 23 connectors suitable for various vehicle models, therefore meeting the cleaning needs of different workshops.

Why Choose AUTOOL HTS678 Walnut blasting Machine Engine Carbon Cleaning

  • Dual Mode Operation: Easily switch between Standard Mode and Expert Mode with the press of a button.

  • Adjustable Pressure: AUTOOL HTS678 walnut sand blaster with a pressure adjustment knob to regulate the output air pressure, ensuring optimal cleaning performance.

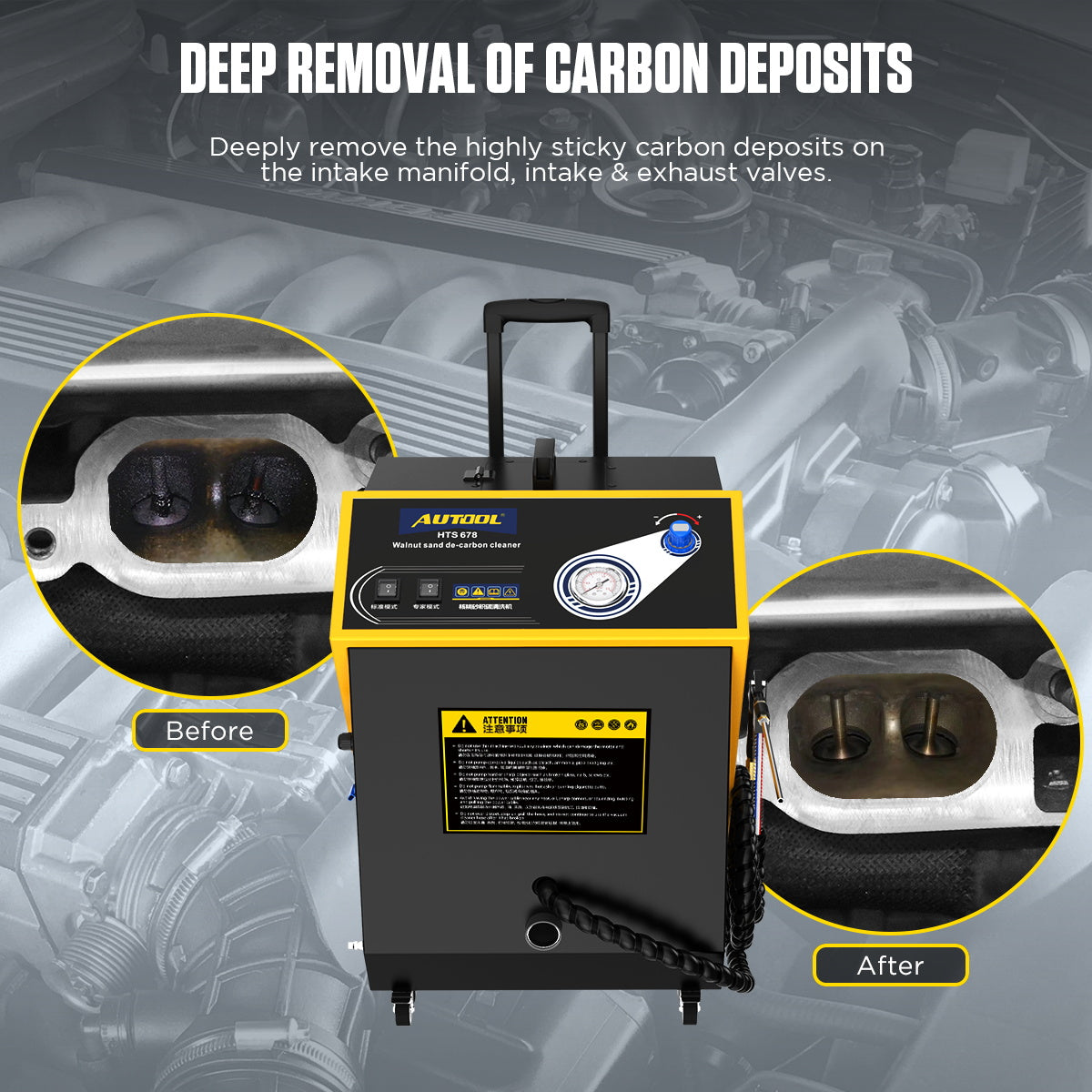

  • Intake manifold cleaning: Clean the intake manifold of the engine by sandblasting in sequence.

  • Intake Exhaust Valve Cleaning: The sequential sandblasting process cleans the intake and exhaust valves without requiring disassembly.

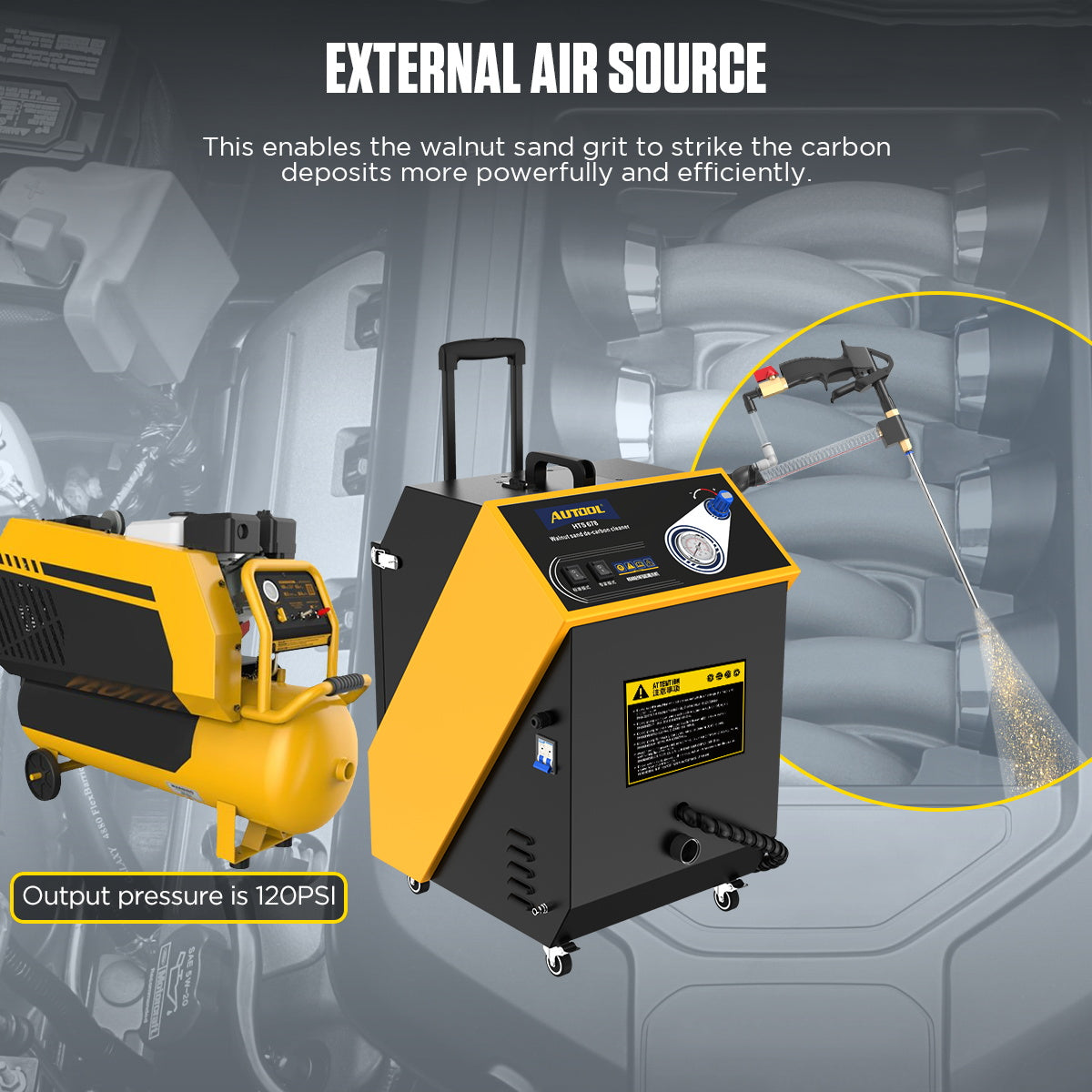

  • External Air Source: The machine is powered by a robust 1800W high-performance motor, which uses an external air source to provide continuous power. This enhances the impact force of the walnut shell abrasive, ensuring thorough removal of carbon deposits from the engine pipes.

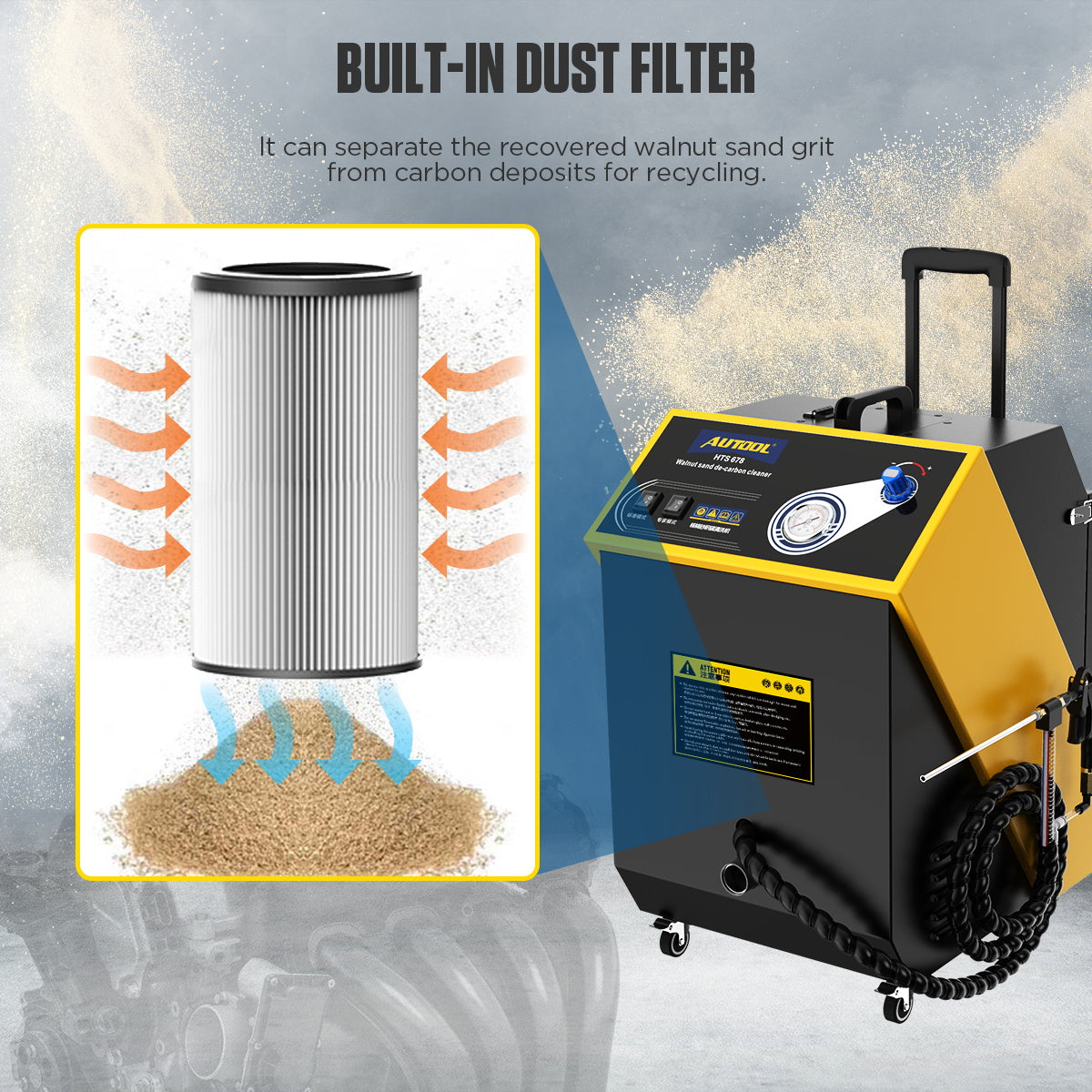

  • Built-in Dust Filter: The equipment performs spraying and recovery simultaneously. The filter separates the walnut shell abrasive from carbon deposits, allowing reuse and preventing damage to the exhaust system at high temperatures.

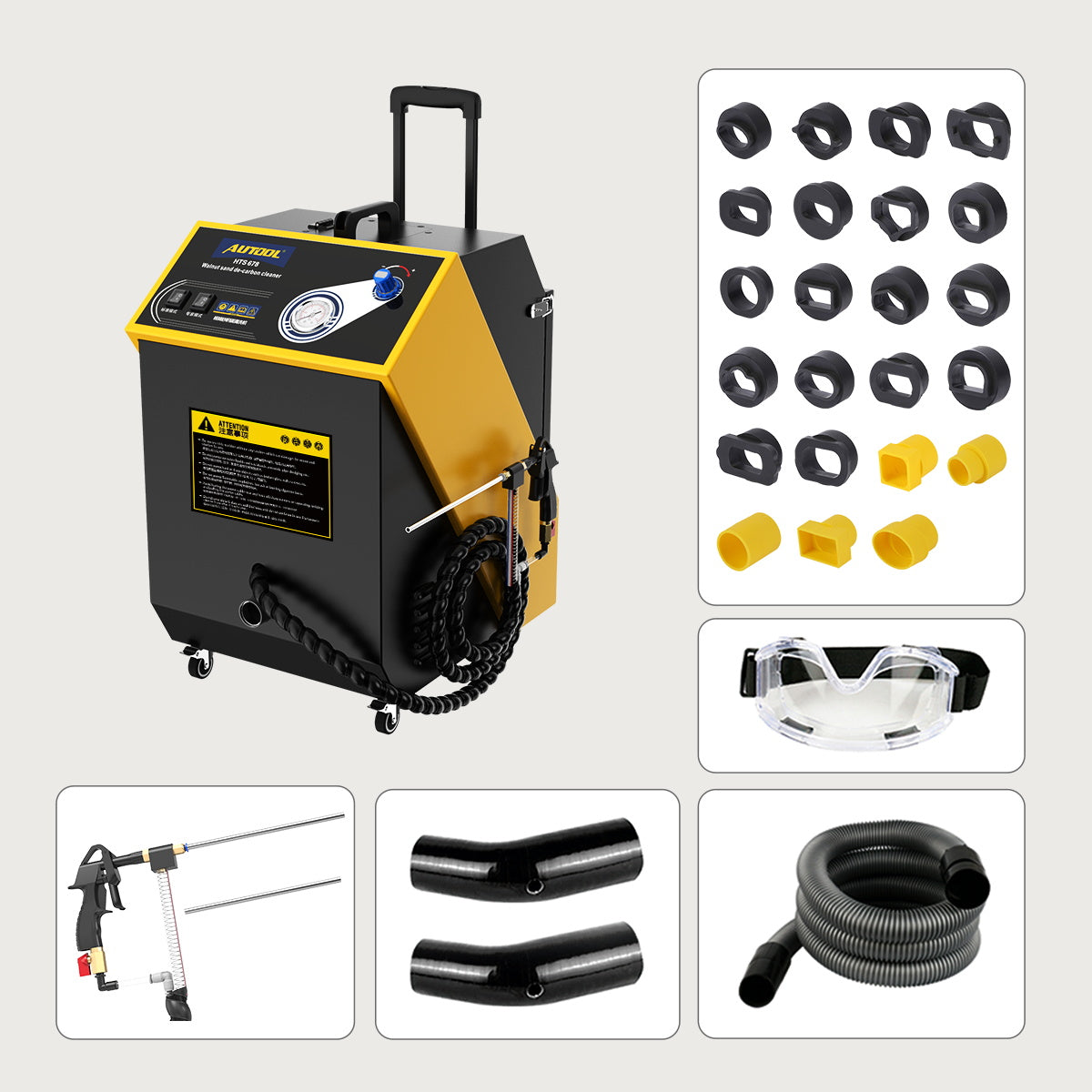

  • Multiple Adapters: The AUTOOL HTS678 walnut sand blaster has 23 adapters and is compatible with various vehicle models, including Audi, BMW, GM, Mercedes-Benz, and Land Rover.

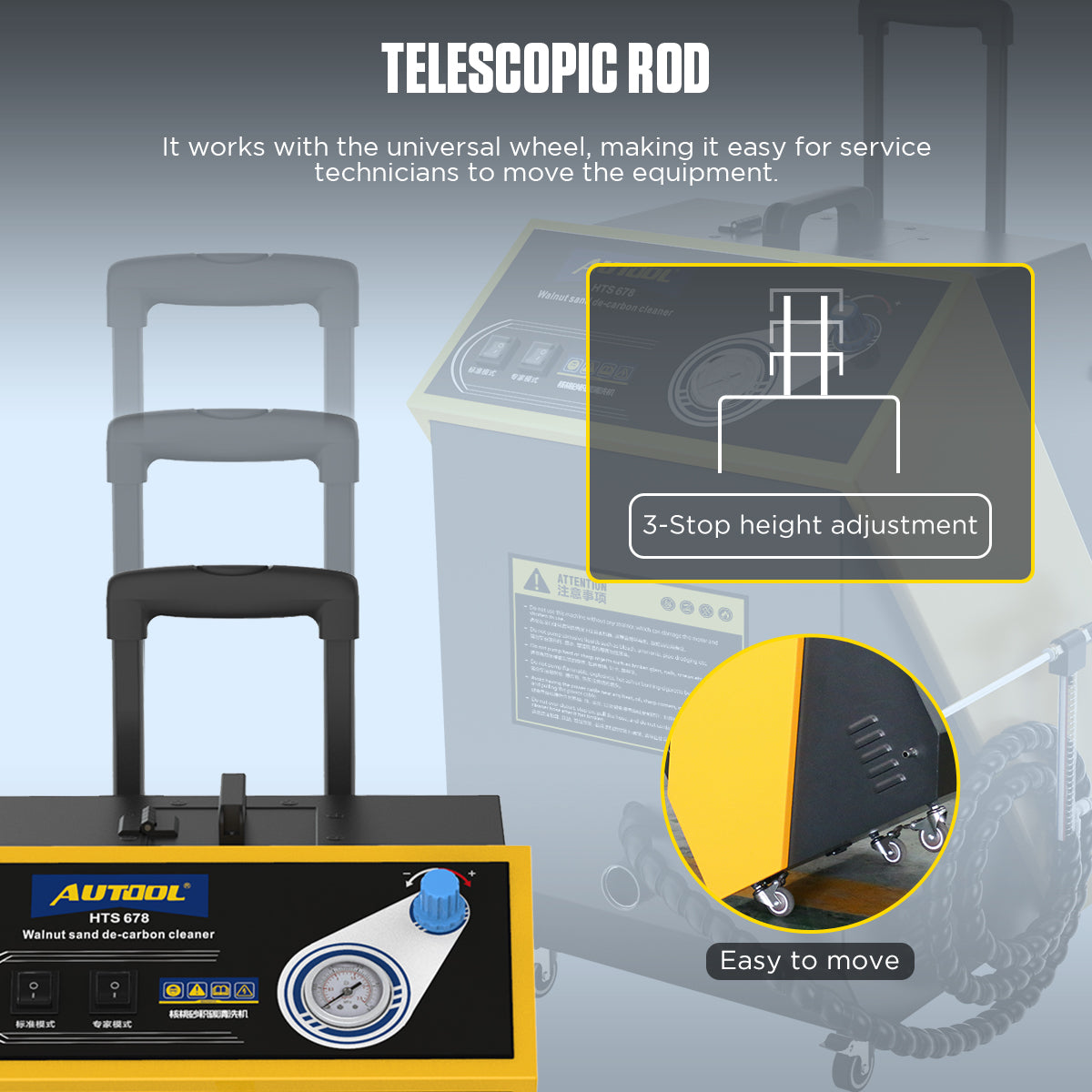

  • User-Friendly: AUTOOL HTS678 walnut blasting machine with a swivel caster that can rotate 360°, making it easy to move and operate.

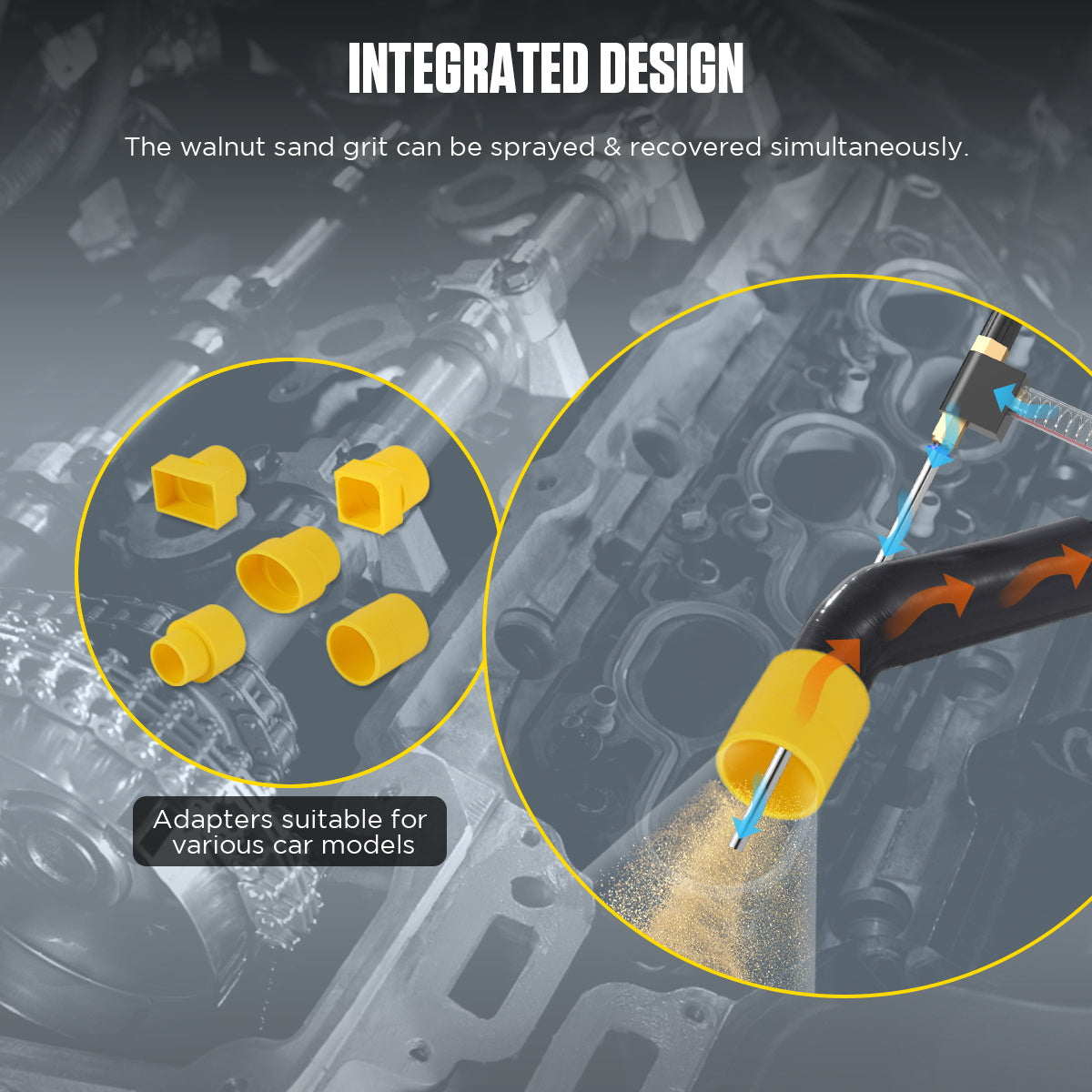

  • Integrated Design: The walnut shell abrasive is recycled within the equipment, and no manual recovery is required, saving time and effort.

  • Three-Year Warranty, Lifetime Maintenance: For damage caused by non-human factors, AUTOOL promises to resend parts for free within 3 years. If you have any problems, please contact us, and we will respond within 24 hours!

How To Use The AUTOOL HTS678 Walnut Shell Blasting?

  • Step 1: Open the outer package and inspect all parts for any damage.

  • Step 2: Pull the rod upwards, open the metal latches on both sides of the main unit, and swing the accessory box outwards. Take out the accessories, lock the accessory box, and proceed with the component installation as per the steps below.

  • Step 3: Connect the end of the recovery particle hose with the tendon sheath to the main unit. Ensure the tendon sheath is clamped securely and confirm it is locked in place.

  • Step 4: Select the appropriate fitting connector for the engine air intake, either the metal connector or the yellow silicone connector.

  • Step 5: Attach the other end of the recovery pipe to the black transit-bend. Use the large bend with the metal model adapter and the small bend with the yellow silicone model adapter.

  • Step 6: Open the top cover of the main unit. Rotate the handle of the filter cartridge counterclockwise, remove the filter cartridge, and check that the filter screen at the bottom is flat and not rolled over.

  • Step 7: Add walnut sand into the sand storage bucket through the filler opening. The recommended amount is generally 3-5 kg.

  • Step 8: Reinsert the filter cartridge and rotate it clockwise until it locks securely.

  • Step 9: Close and secure the top cover of the main unit.

  • Step 10: Move the main unit to the operating site and connect it to an external compressed air source, ensuring a pressure of no less than 0.7 MPa.

  • Step 11: Switch on the standard mode of the device to start operation. For more advanced control, professionals may activate expert mode. Only one mode switch can be active at a time; the other must be turned off, or the air switch protection will engage.

  • Step 12: Insert the sandblasting gun into the injection port on the black silicone bend of the recovery pipe. Pull the switch on the sandblasting gun to begin the carbon removal procedure. Adjust the throttle valve at the bottom of the gun as needed based on the workpiece and operating conditions to optimize spraying speed.

Tips

  • Air compressor configuration: air pressure up to 0.7mpa, 6bar or more air pressure.

  • The walnut shell abrasive size should be between 0.6~1.2 mm. Under normal conditions, walnut shell abrasive can be reused 5~10 times.

  • We recommend using an air compressor equipped with a dryer filter to effectively prevent moisture buildup, which can cause walnut shell media to clump and result in poor blasting performance.
