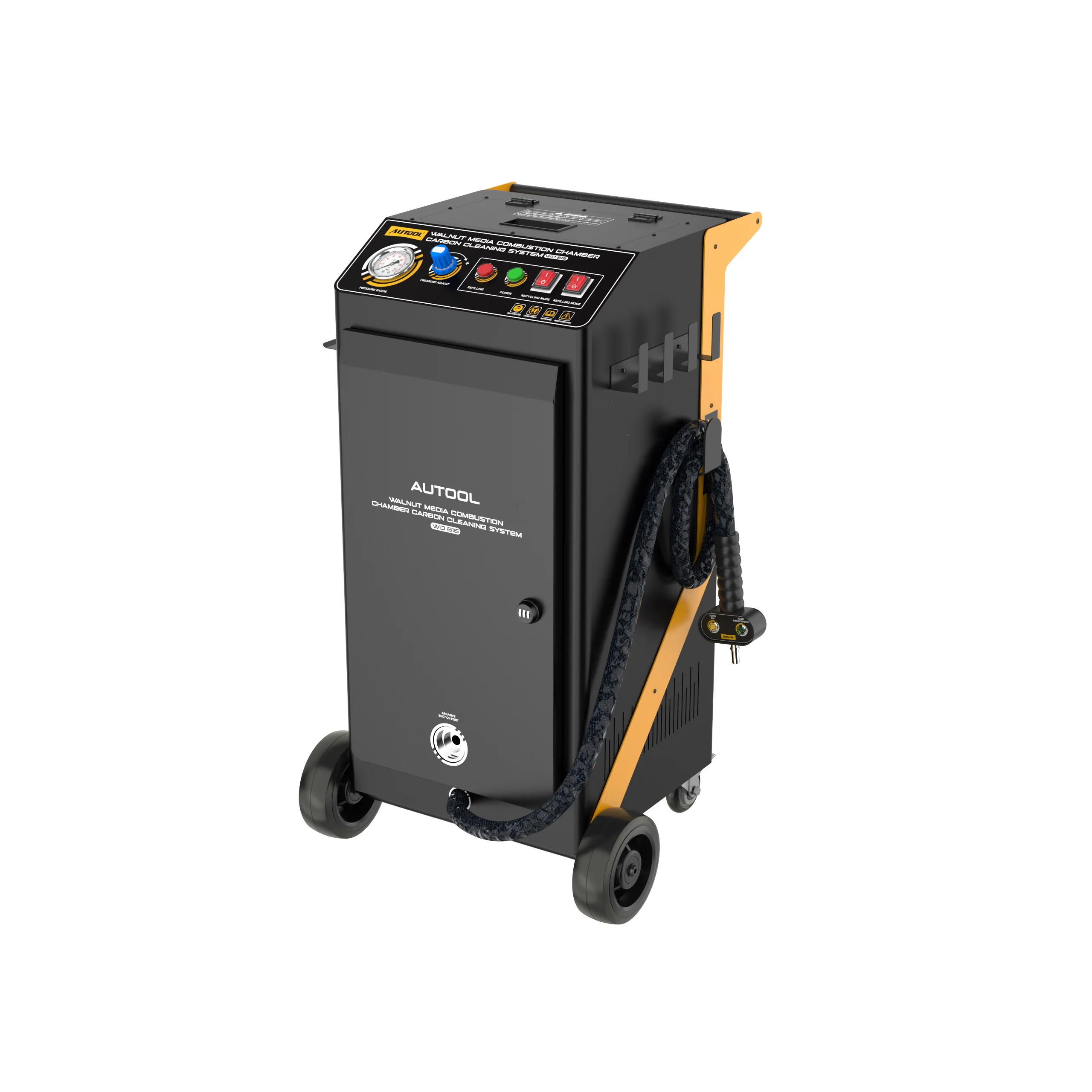

Fine-Media Walnut Blasting With Angled Tubes for Spark-Plug-Hole Access
The WD816 blasts 0.4โ0.6 mm walnut media through 23 intake adapters or eight angled tubes while a filter screen and HEPA stage recover media and carbon. Combustion-chamber cleaning through the spark plug hole is only for vehicles whose procedure allows it; an external compressor is required.
- 23 Adapters + 8 Tubes
- 0.4โ0.6 mm Media
- HEPA Recovery
- Blasting / Air Gun
- Mobile Cabinet
Key Features
-
Angled Access Tubes
Eight bent tubes reach through the spark plug hole where the vehicle procedure permits chamber preparation, sealing and recovery.
-

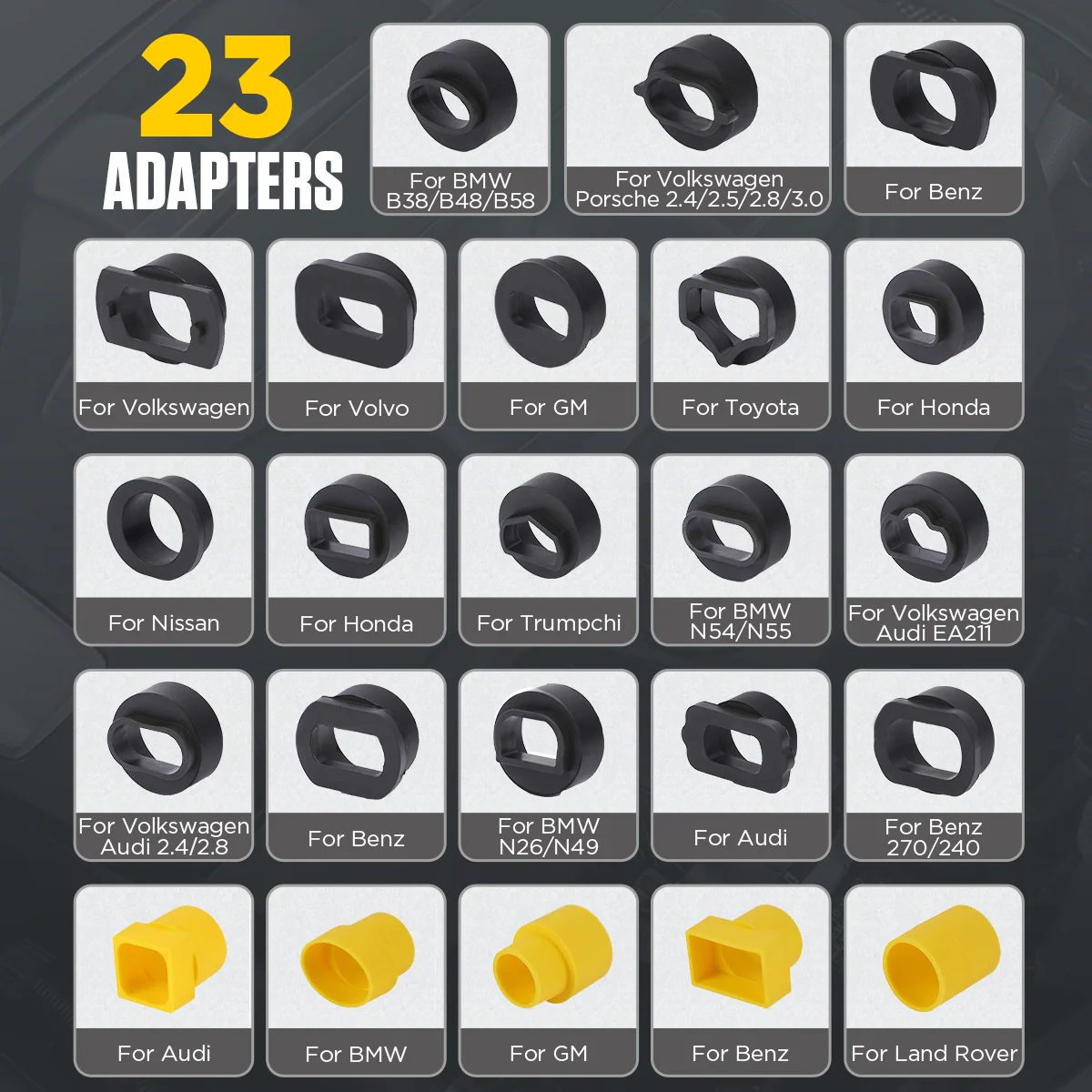

Adapters for Varied Intake Ports
Twenty-three adapter shapes cover different intake connections; check fit and seal on the exact engine.
-

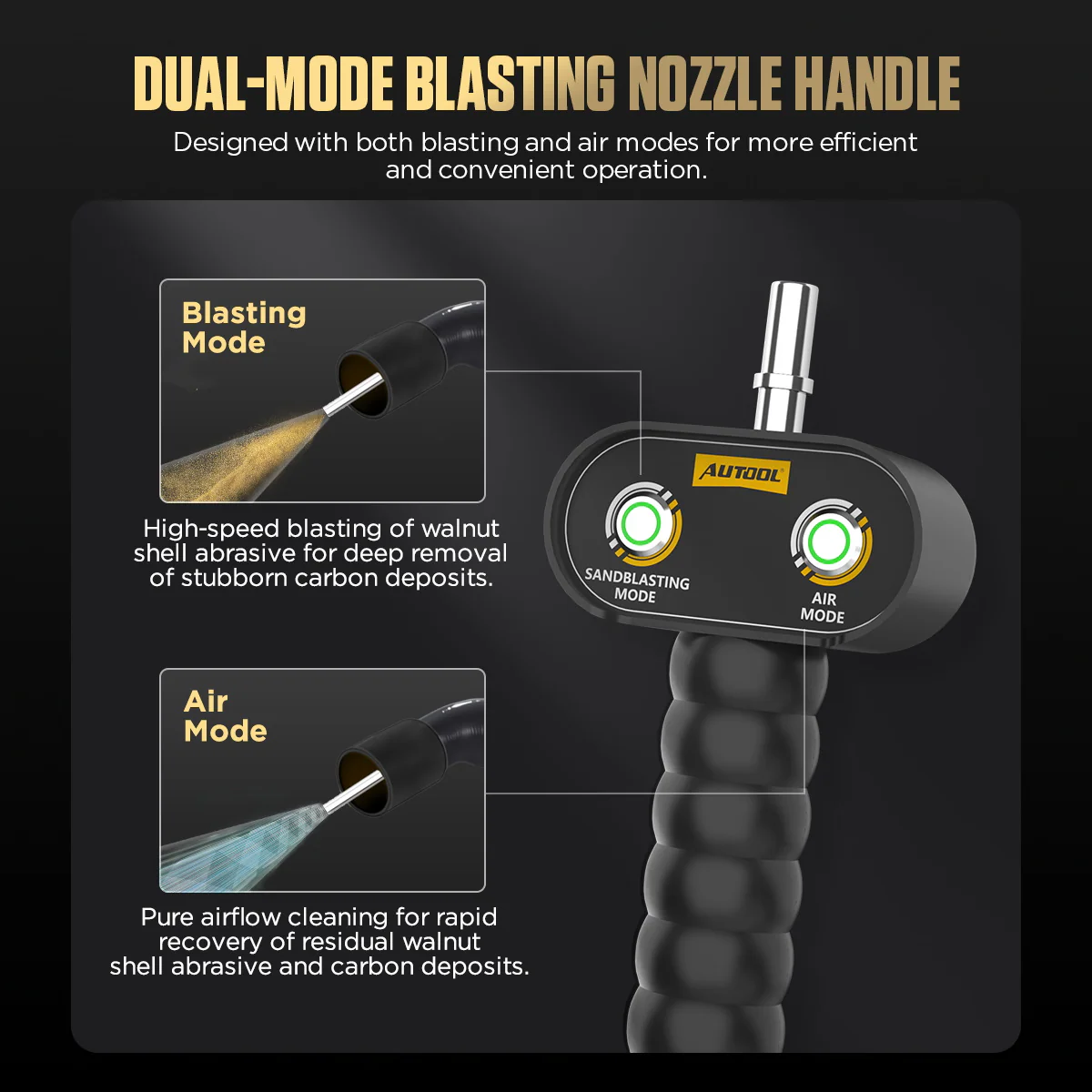

Two-Stage Gun
Separate Blasting and Air positions let you cut the media and clear the area with air alone.
-

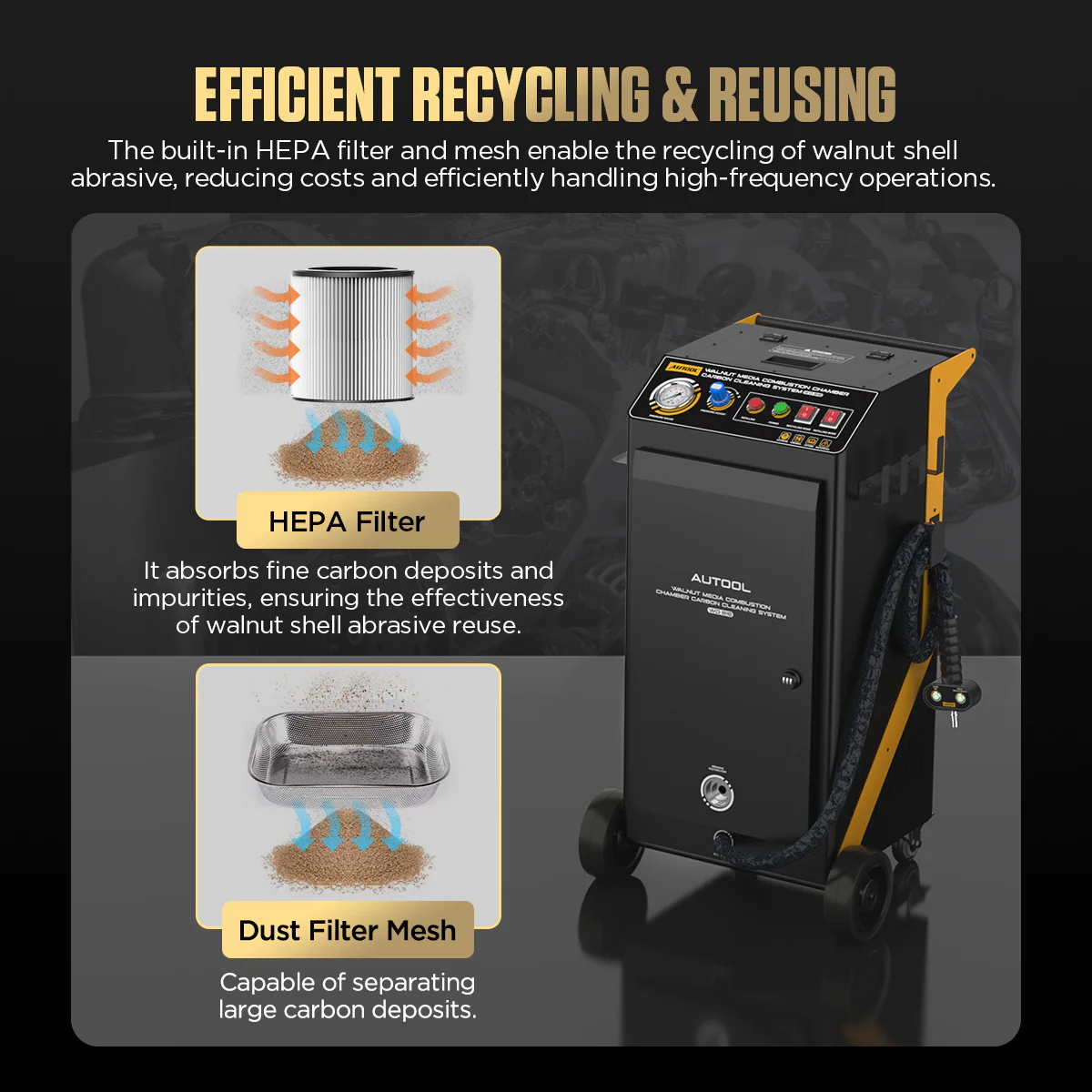

Filter Screen and HEPA Stage
Collected media and carbon residue pass a filter screen and HEPA structure during recovery.
-

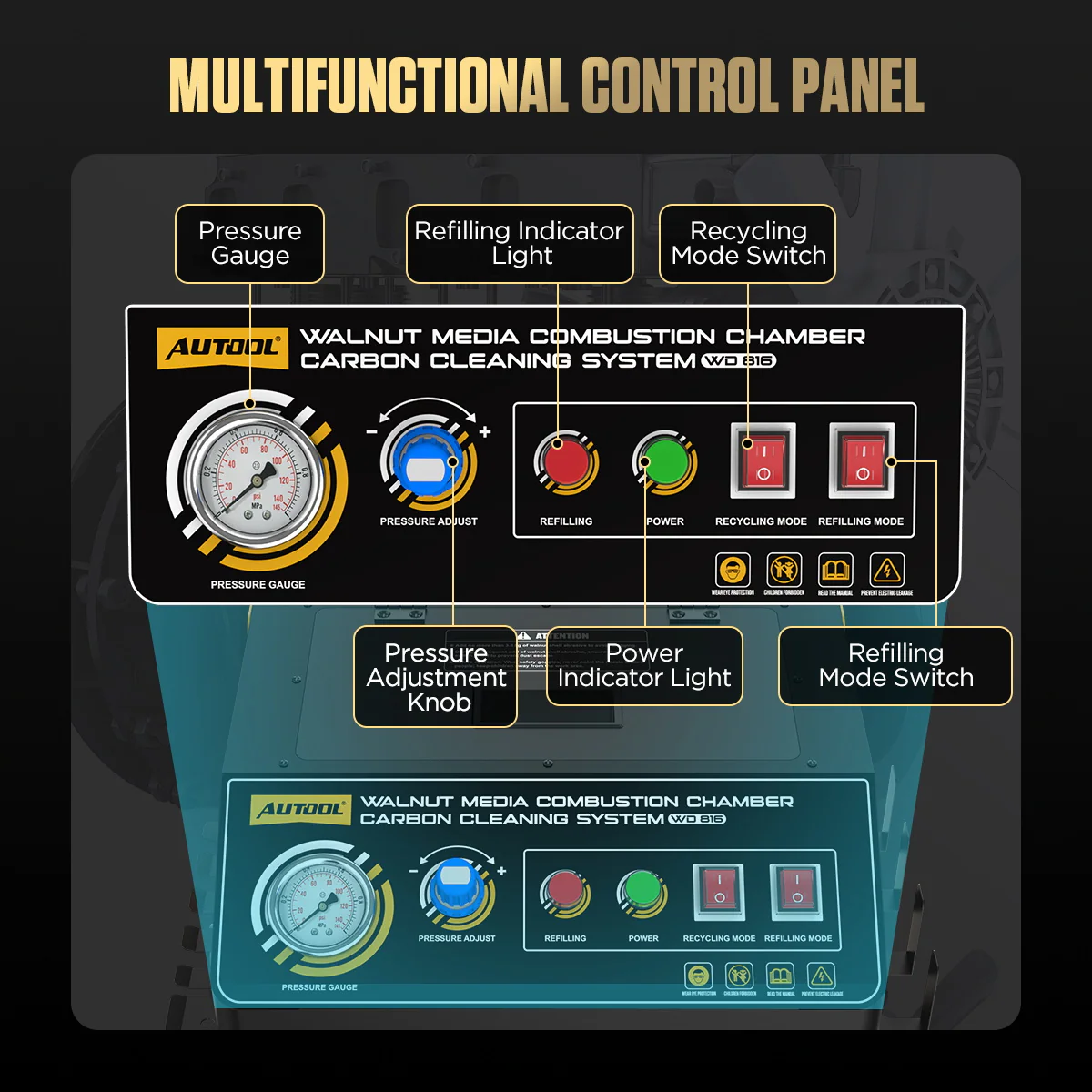

Panel Controls
Filling and Recovery modes, a pressure regulator and status indicators organize loading, blasting and collection.
-

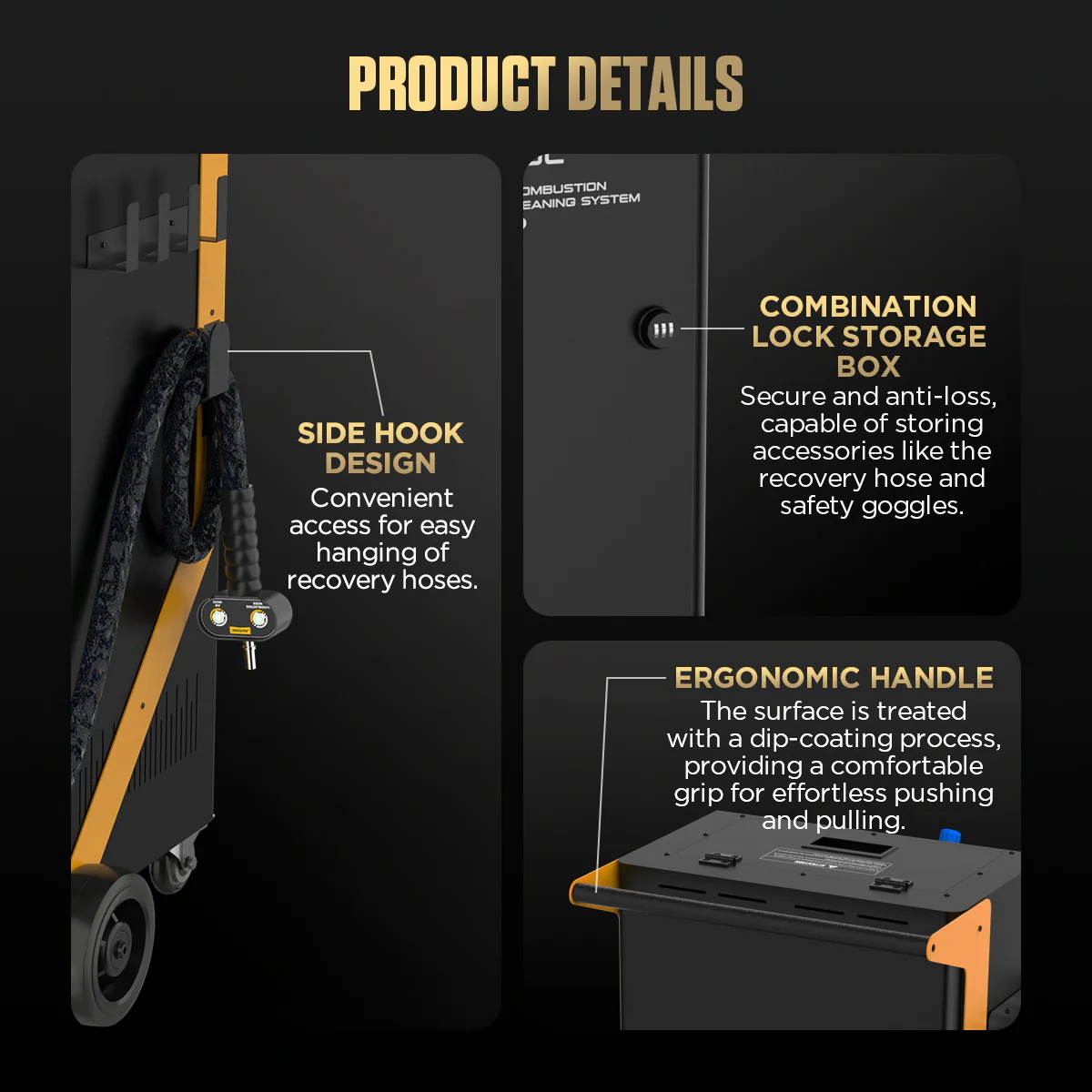

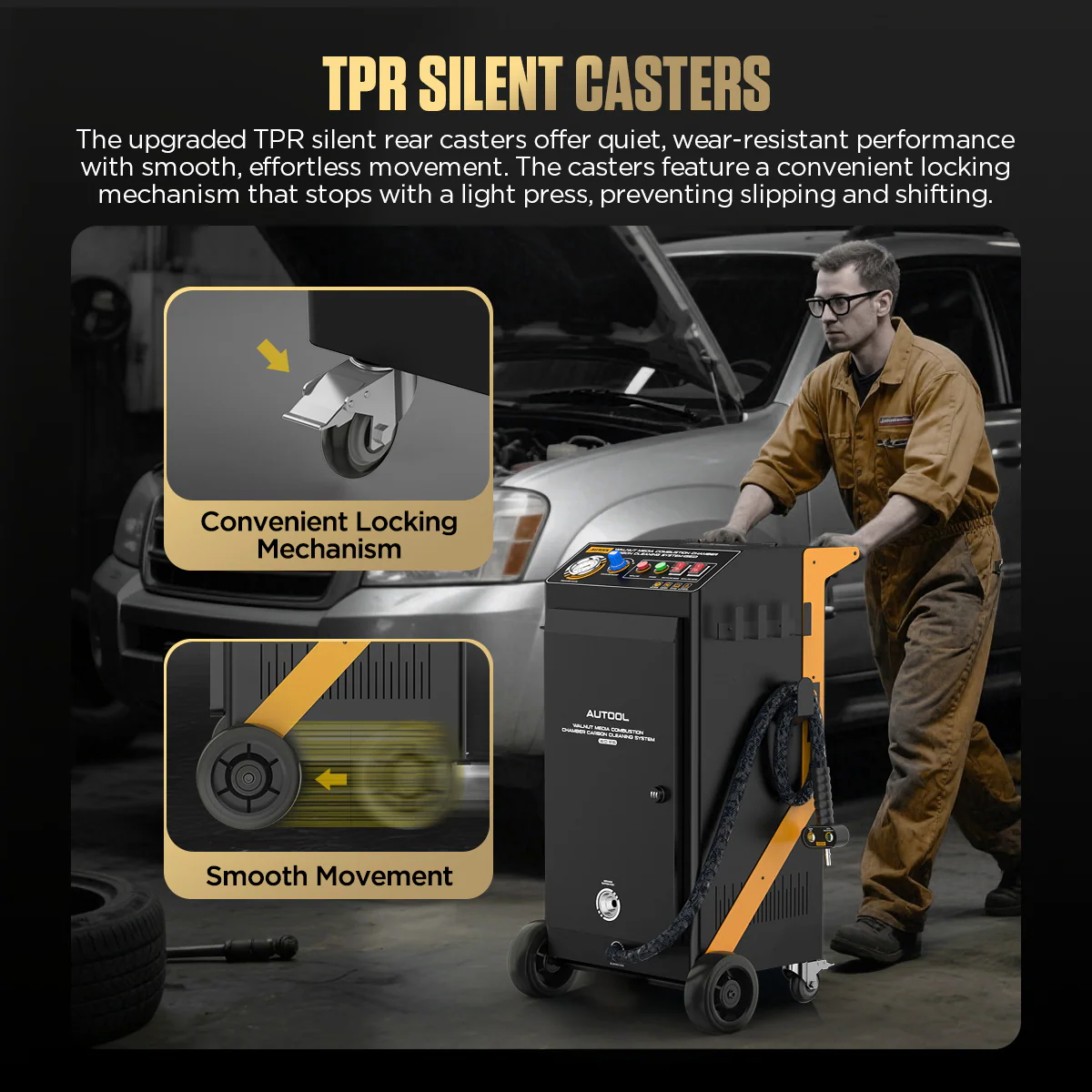

Organized, Mobile Layout

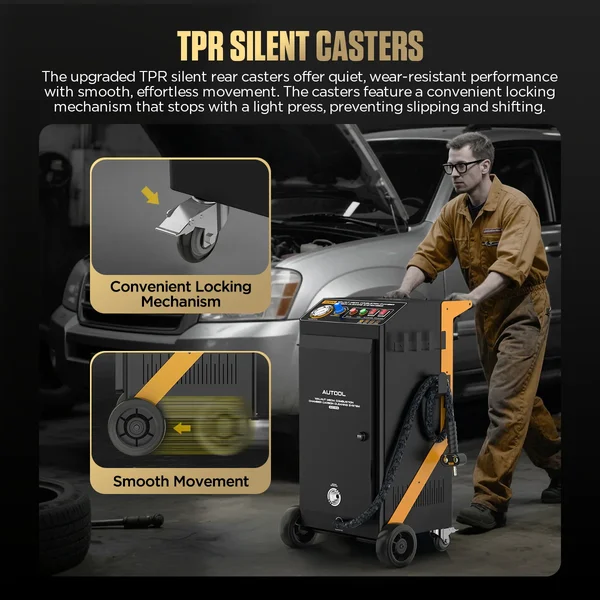

A lockable storage cabinet, side hose hook and TPR wheels keep the machine and its accessories together between bays.
Model Comparison
| WD616 | WD716 | WD816 | |
|---|---|---|---|
| Adapters | 5 | 23 | 23 |
| Capacity | 30 L | 10 L | 10 L |
| Power | 1000 W | 1000 W (110 V) / 1400 W (220 V) | 1000 W (110 V) / 1400 W (220 V) |

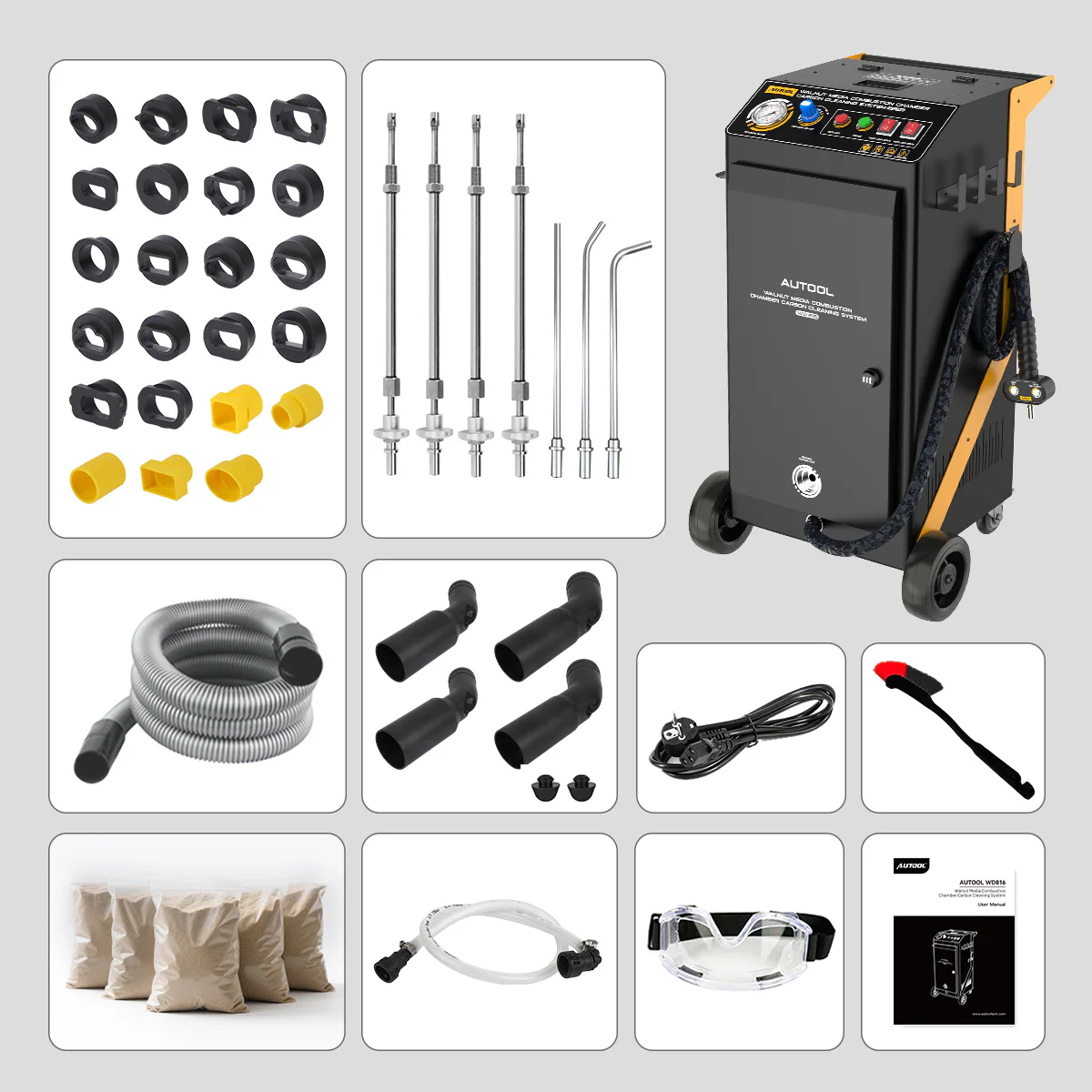

What’s in the Box
- WD816 main unit in the selected voltage
- 23 intake adapters and 8 angled tubes
- 2.5 m recovery hose
- Blasting gun
- Eye protection, fittings and storage items
How to Use
- Confirm procedure, air and powerCheck the vehicle allows the target cleaning, and that the air supply and voltage version match.
- Choose adapter or tubeSelect the exact port or access route, confirm valve positions and seal unintended paths.
- Set up recoveryConnect the recovery hose and set the Filling/Recovery controls as the manual describes.

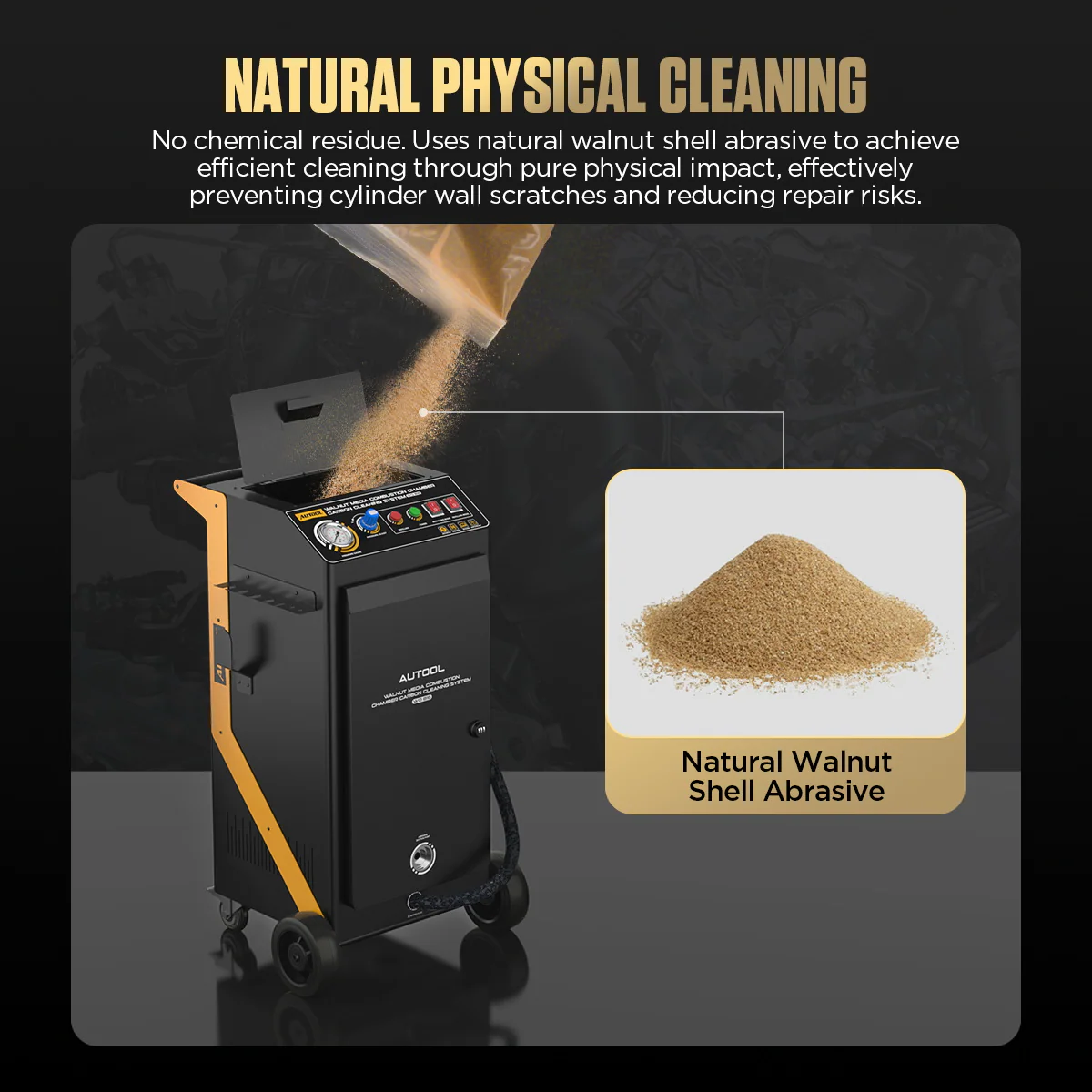

- Load mediaAdd dry 0.4โ0.6 mm walnut media, keeping the blasting tank below 4 kg.
- BlastUse the Blasting position and raise pressure gradually while recovery runs.
- Clear with airStop the media, switch to the Air stage and vacuum out remaining abrasive.
- Inspect and reassembleCheck with good lighting or a borescope, then reassemble and run leak, diagnostic and function checks.
Setup, controls and troubleshooting: WD816 user manual (PDF)
Good to Know
Caution
- An external compressor is required. Supply dry, filtered air through suitable hoses and fittings with enough duty cycle; walnut media is also needed unless your order lists it.
- Use combustion-chamber, intake or exhaust access only when the vehicle procedure names the access point and method. Tube reach alone does not make a job suitable.
- Recover all visible media before starting the engine.
- Wear eye, hand and respiratory protection, ventilate the work area and follow the media SDS.
Care
- Reuse recovered media only when both the manual and the vehicle procedure permit; use fresh media whenever either requires it.
- Confirm the 110 V or 220 V nameplate before connecting power.
