Reviews·45

5.0 / 5Based on 45 reviews
3 ★0%
2 ★0%
1 ★0%
Karolis P.

Delivered faster than expected.

Delivered faster than expected. Well-packaged, box in good condition. Product matches description, high quality, bright light, 360-degree foldable, takes still photos and videos. Very clear full HD image quality. The manual says not to use medically, but shouldn’t be a problem in the hands of a doctor. The camera cable has a diameter of 6.5 mm; if it could be reduced to 5.0 mm, it would sell very well.

Marcin D.

Excellent image resolution, portable and lightweight, bright LED light, clear HD…

Excellent image resolution, portable and lightweight, bright LED light, clear HD display, high-quality camera, ideal for inspection.

mikediesel

Good quality, but check your diesel glow plug hole size.

Very sturdy unit. The screen is nice and bright. However, just a warning for other diesel mechanics: the camera head fits perfectly fine down standard petrol spark plug holes, but it was just a tiny fraction too wide to fit down the glow plug hole of a 2.0 TDI VW engine I was working on. I had to pull an injector instead to get the camera in. Great for everything else though, so 4 stars.

Specifications

BrandAUTOOL
Weight1211 g
Probe Diameter5.5 mm
ArticulationTwo-way 210°
Resolution1280×720

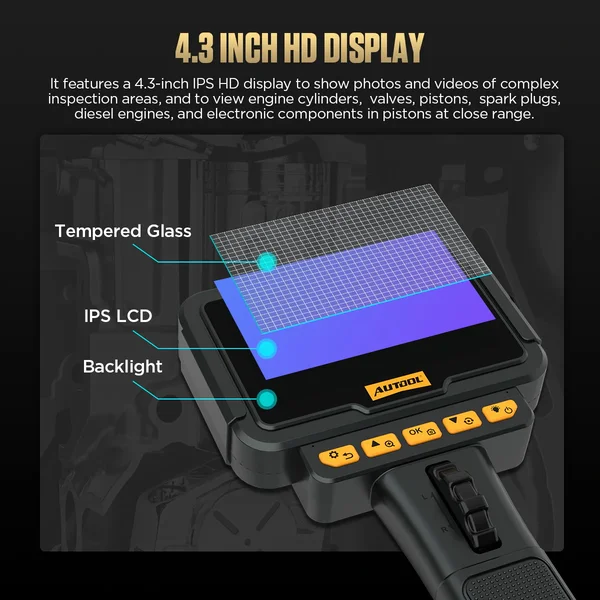

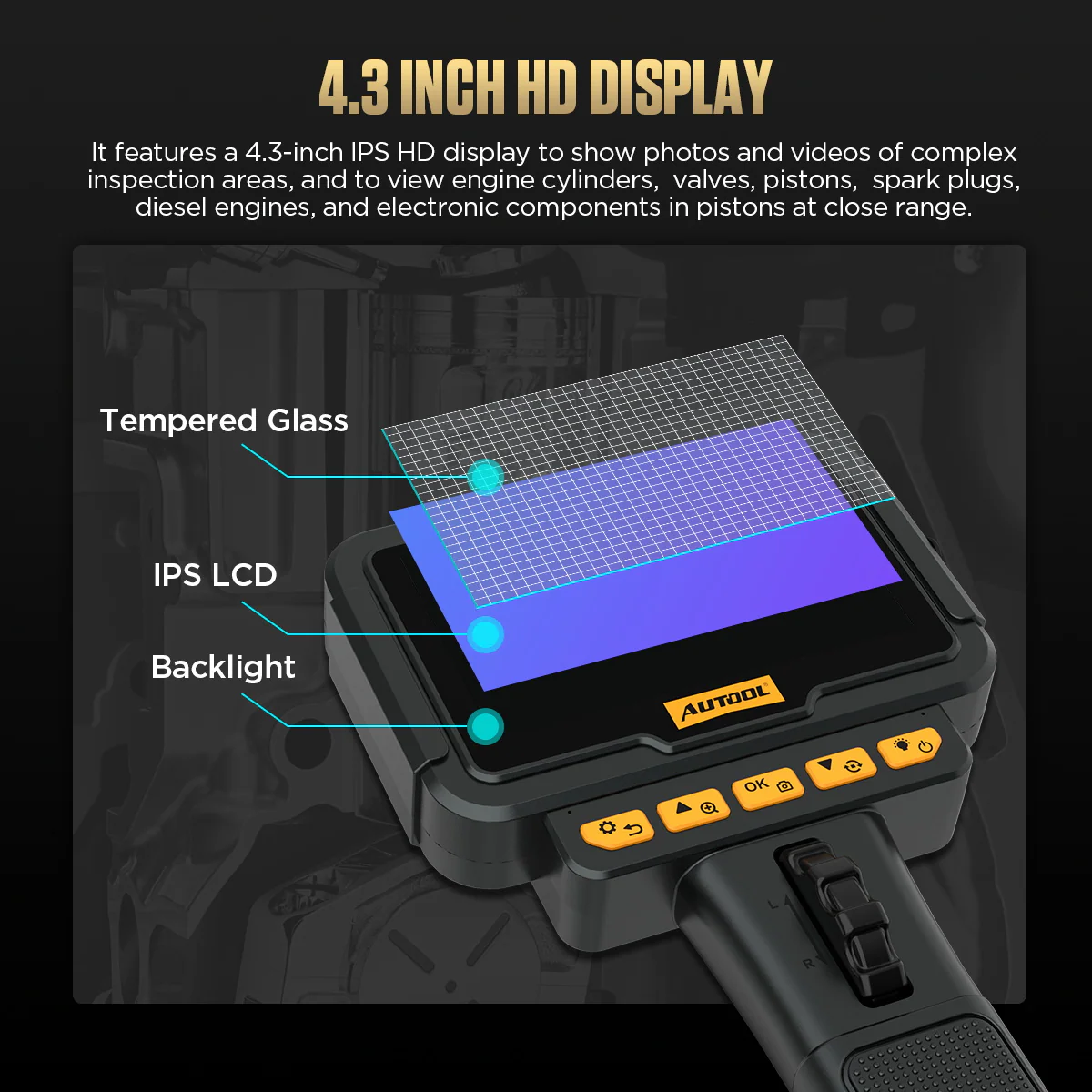

Display4.3-inch built-in screen
Depth of Field25–100 mm
Lighting6 LEDs, 3 brightness levels

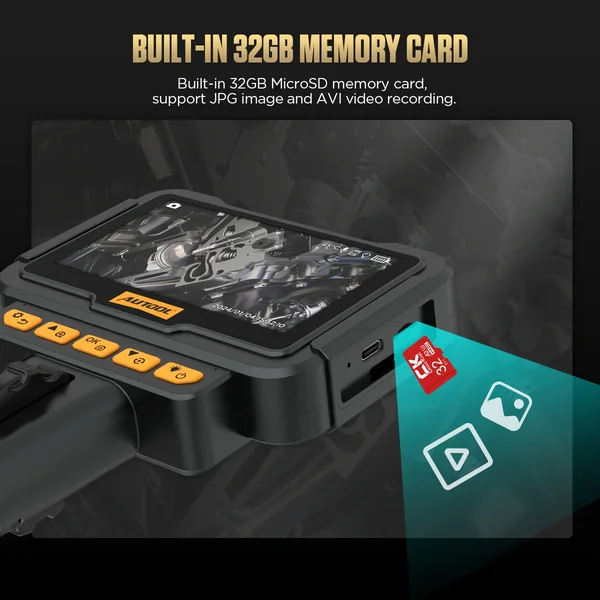

StorageBuilt-in 32 GB, JPG photos / AVI videos

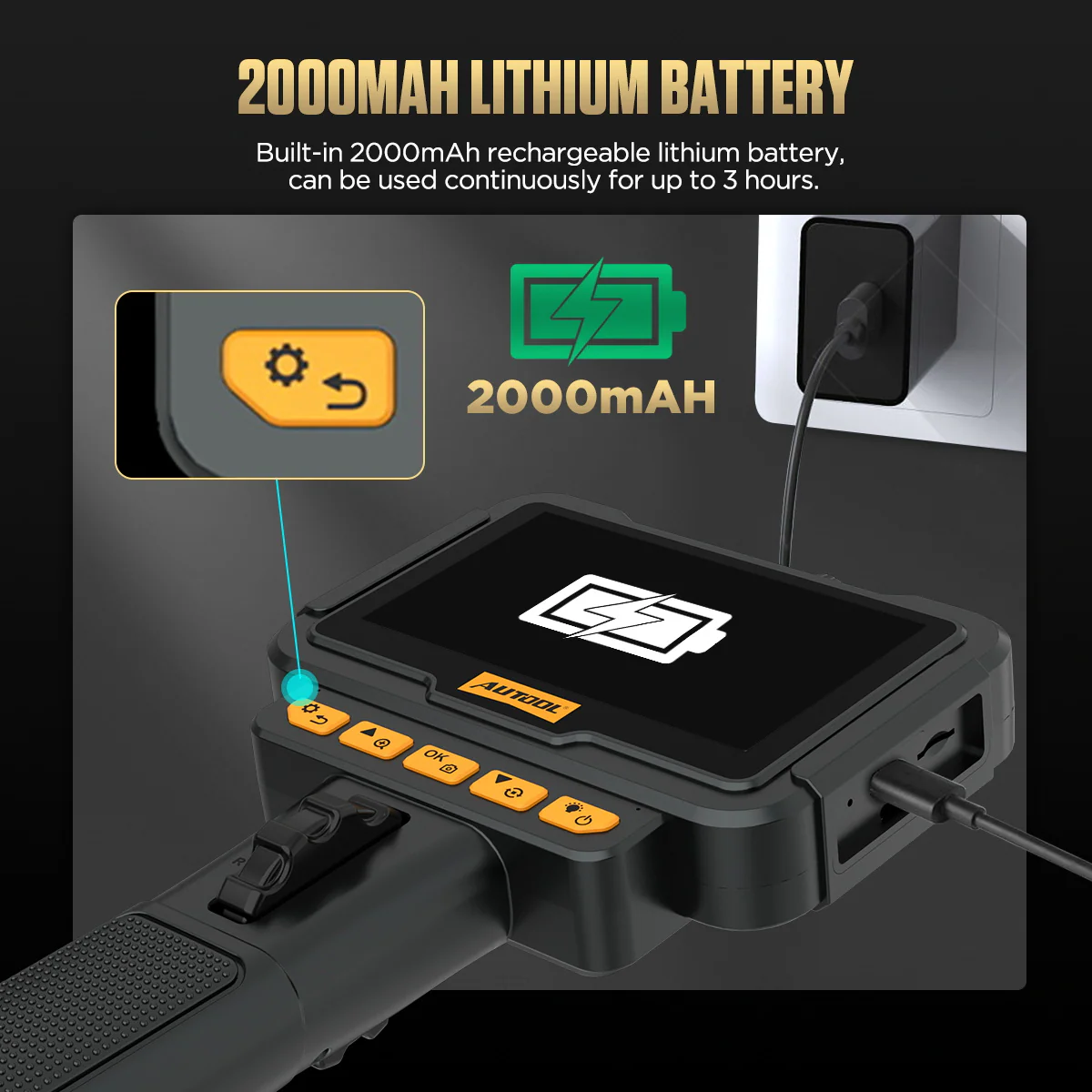

Battery2000 mAh, approx. 3 hours runtime

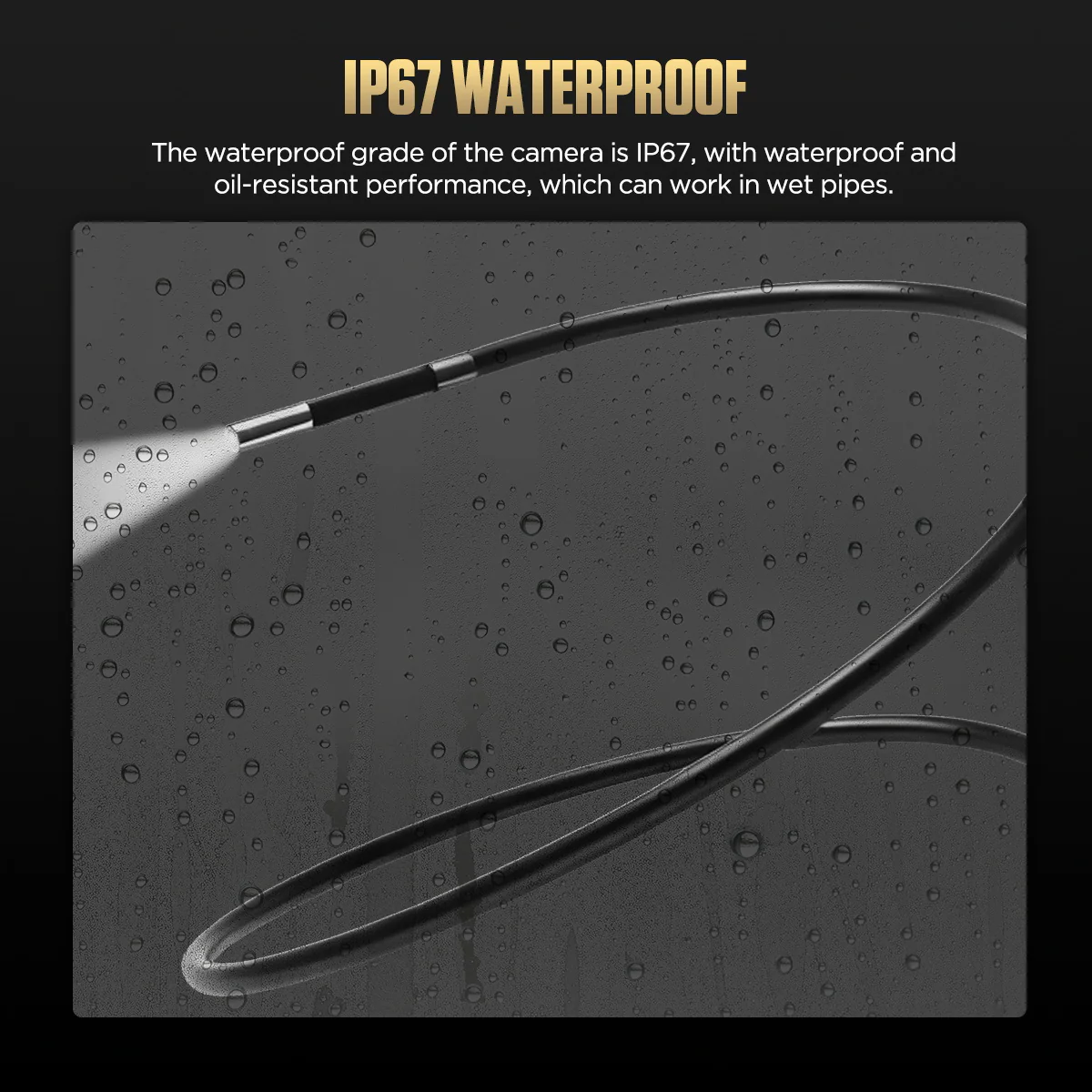

Waterproof RatingProbe IP67
DimensionsScreen width approx. 135 mm, body height approx. 255 mm
Cable Length1 m
Field of View70°
Applicable VehiclesInspection of narrow, curved areas such as engines, pipes and wiring harnesses
Software Updates8 languages (English, German, French, Italian, Spanish, Chinese, Russian, Japanese)

Details

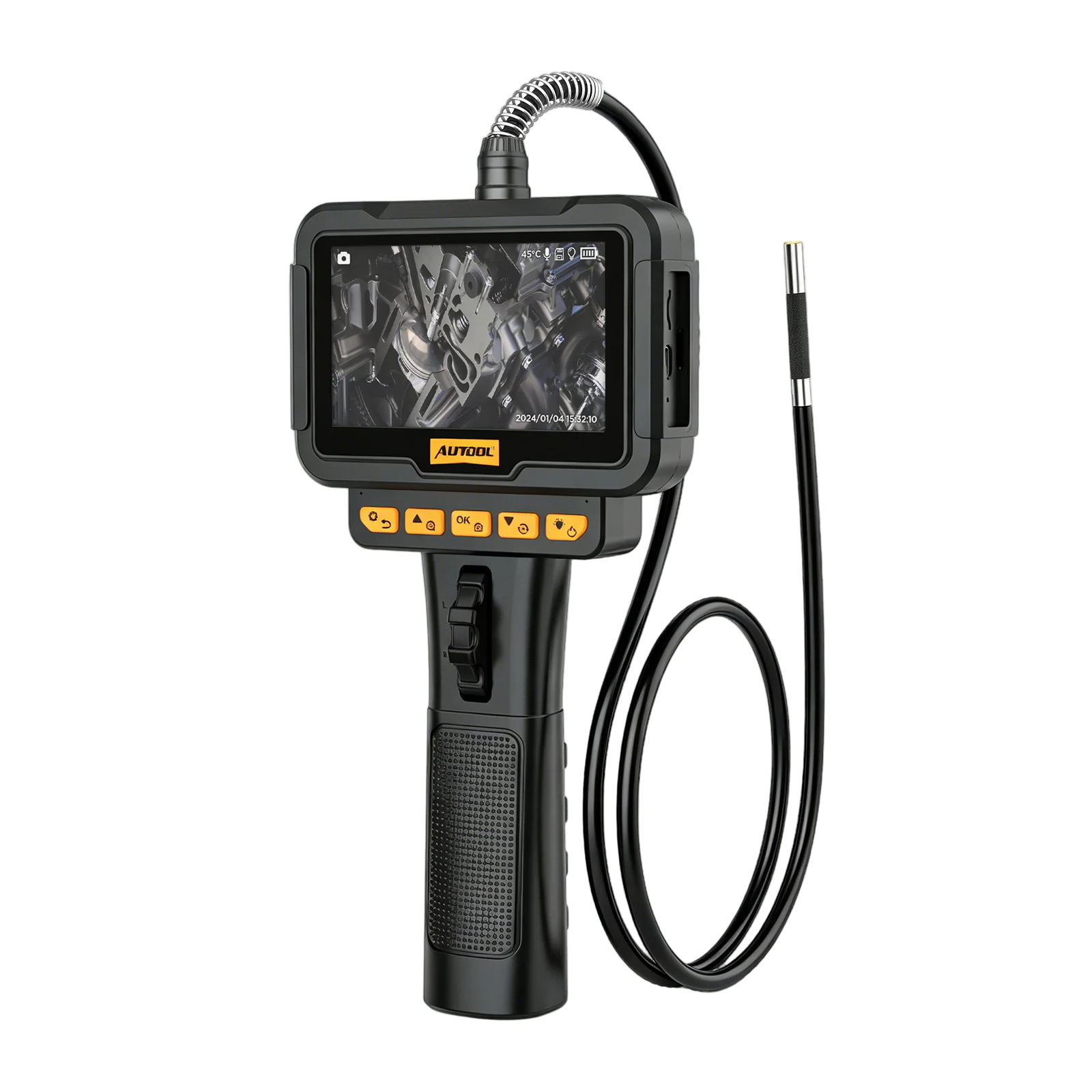

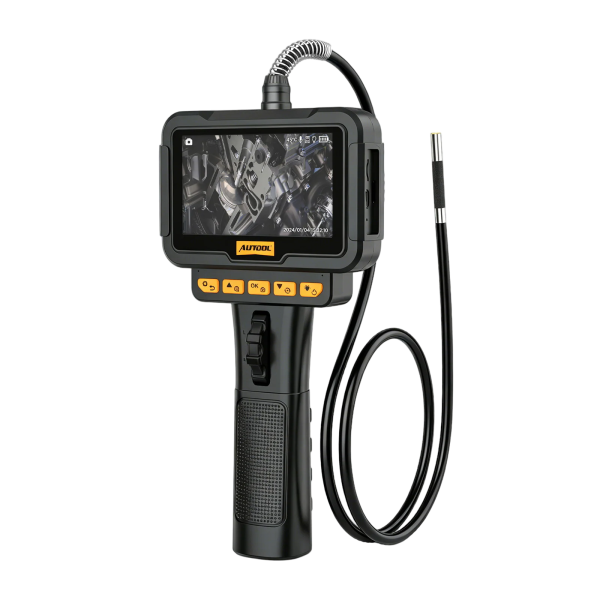

Steer a Slim Camera Around Bends and Record on a Built-In Screen

The SVB305 pairs a two-way articulating probe with its own display, so you can inspect engines, pipes and wiring without a phone and save photos or video to internal storage. The IP67 rating covers the probe only.

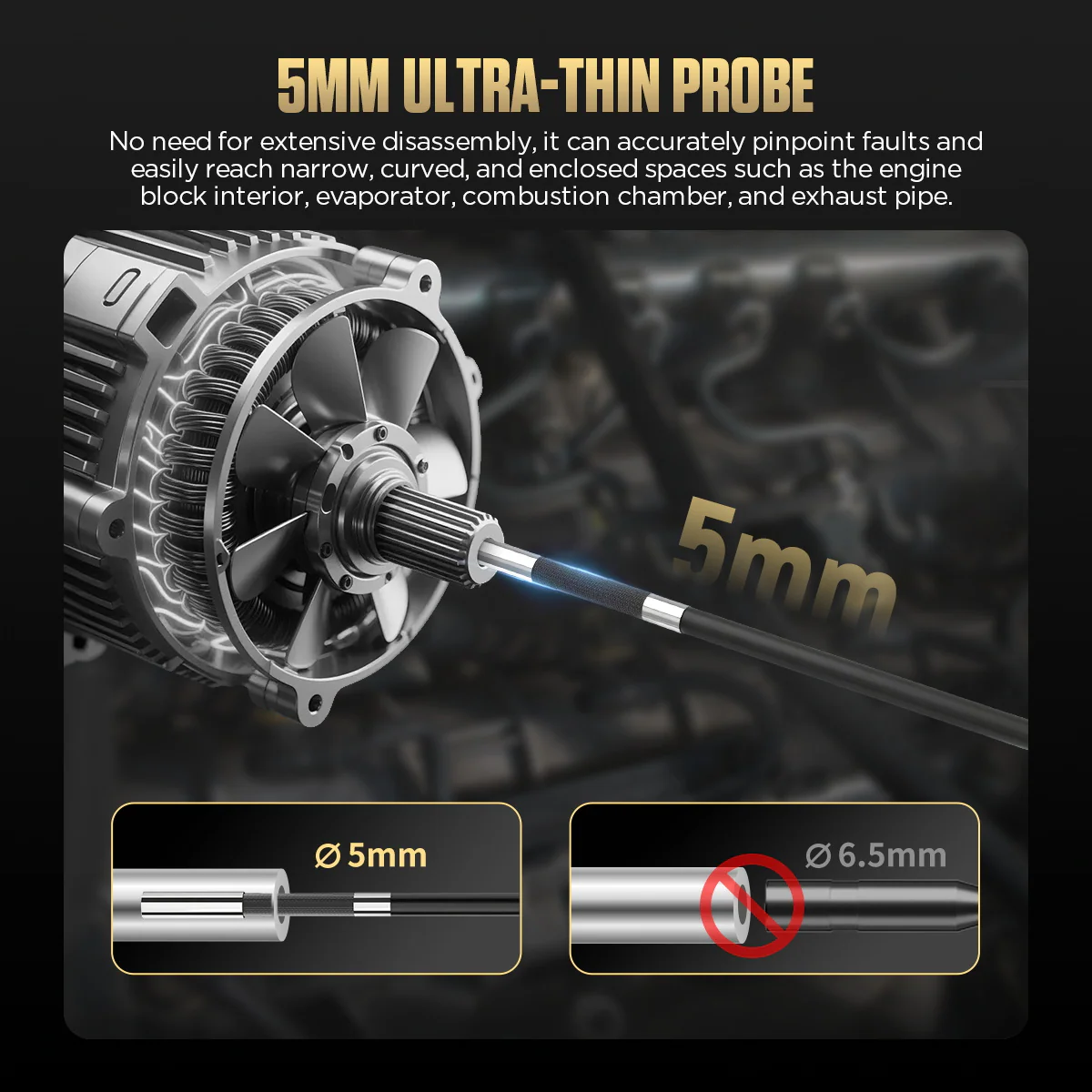

  • 5.5 mm Probe
  • 210° Two-Way Steering
  • 4.3-Inch Screen
  • 32 GB Storage
  • IP67 Probe

Key Features

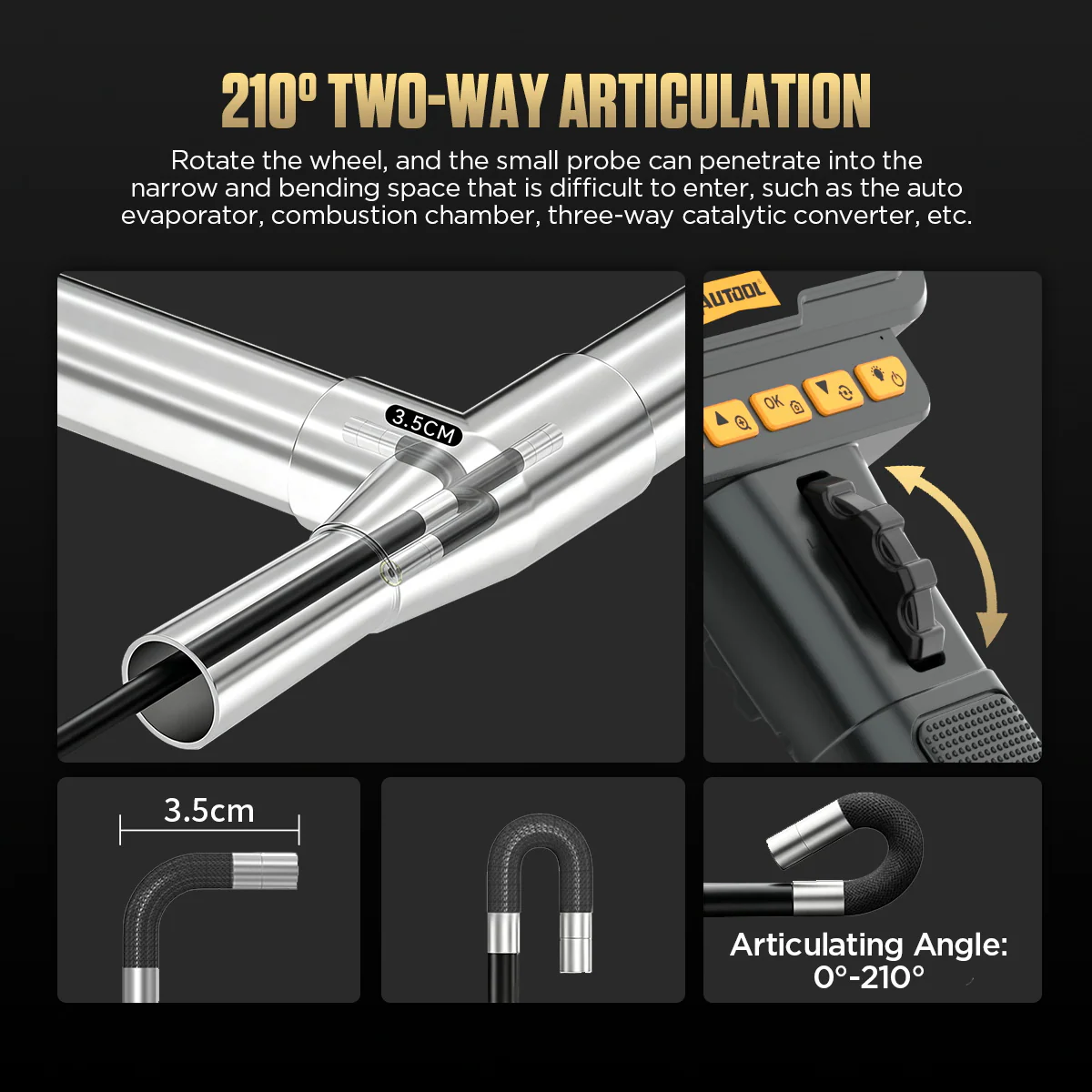

  1. Two-Way Steering

    The rotation wheel on the handle bends the camera tip to reach curved, narrow points without unnecessary disassembly.

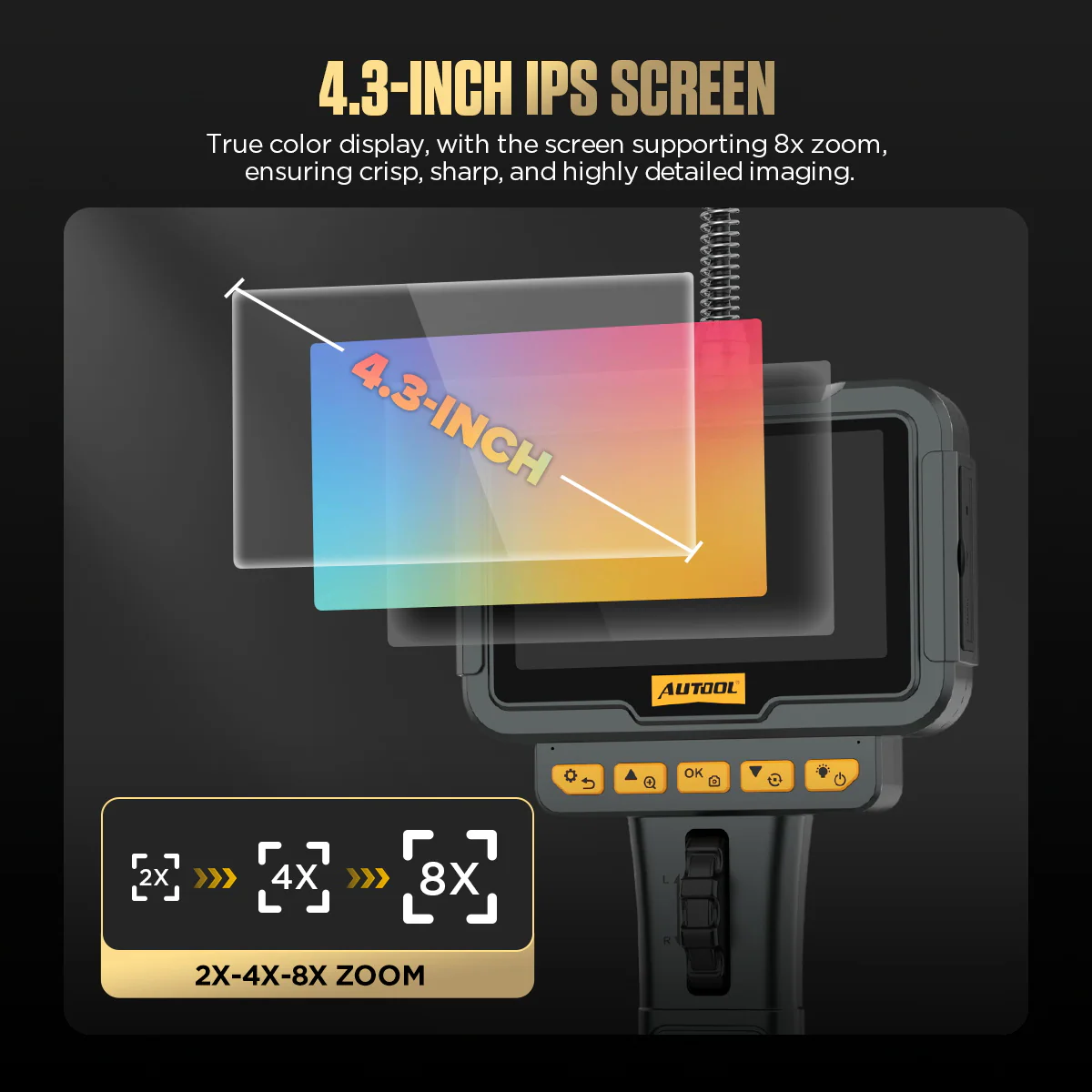

  2. Standalone Display

    View the live image on the built-in screen; no phone or tablet is needed.

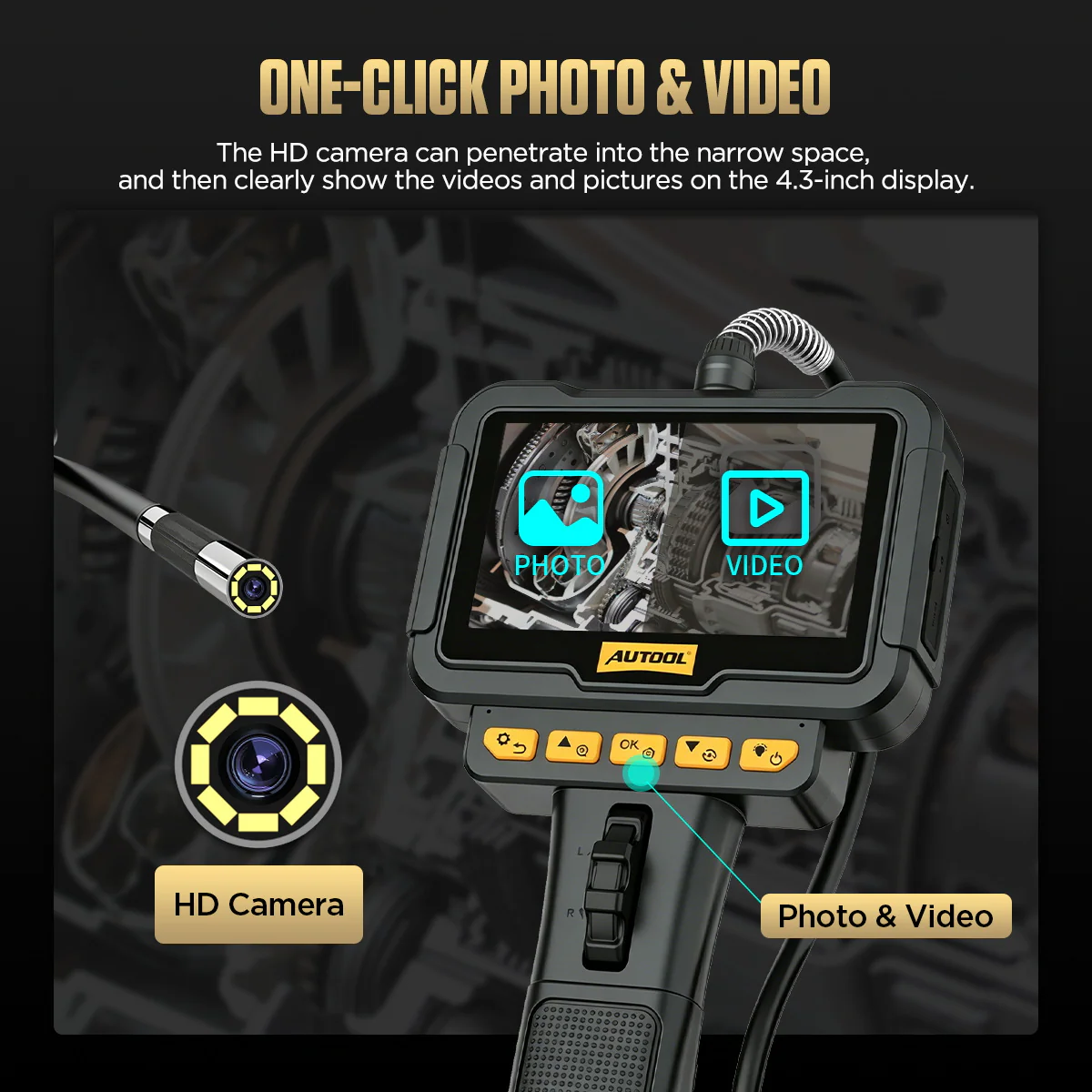

  3. One-Button Capture

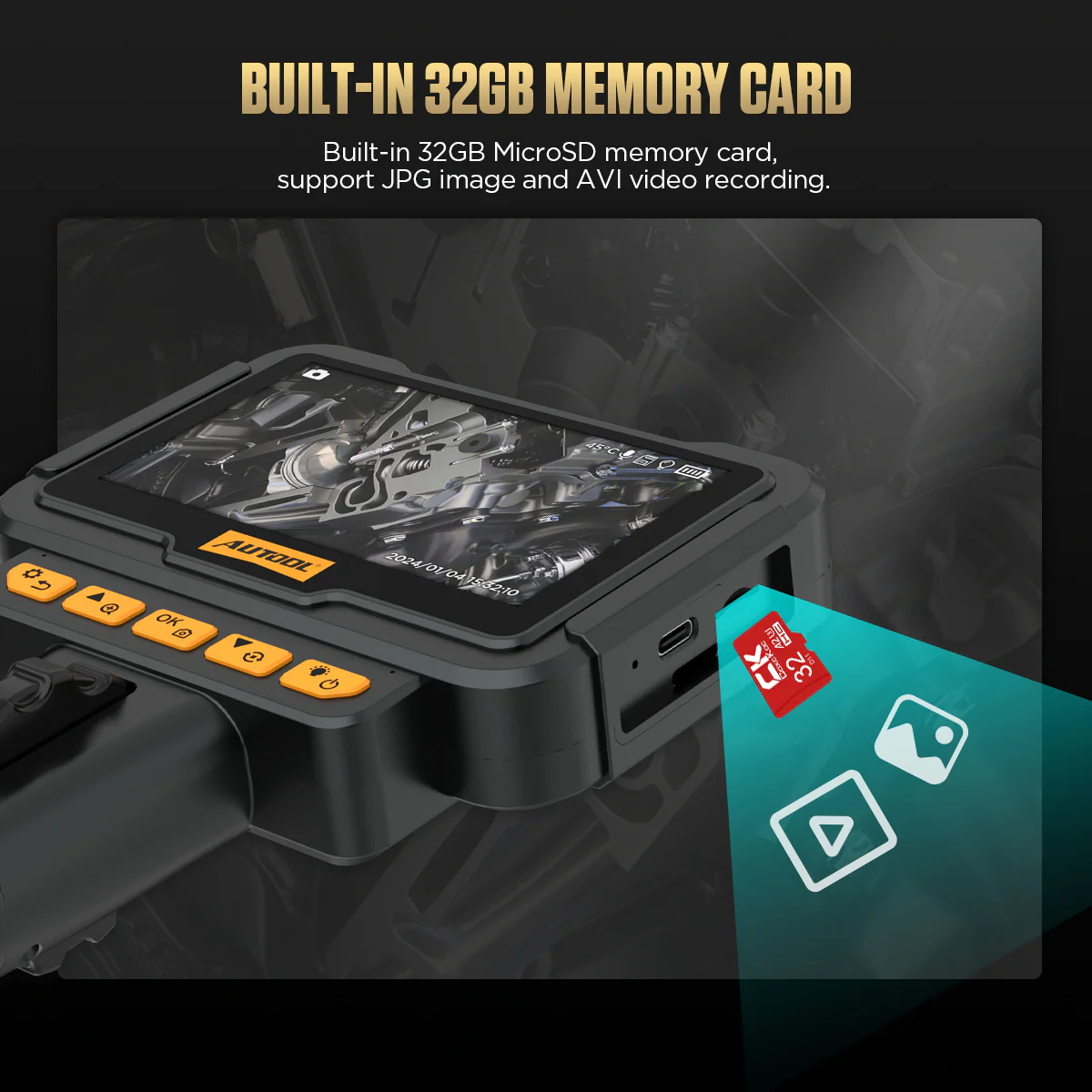

    The handle button takes JPG photos and AVI videos for repair records.

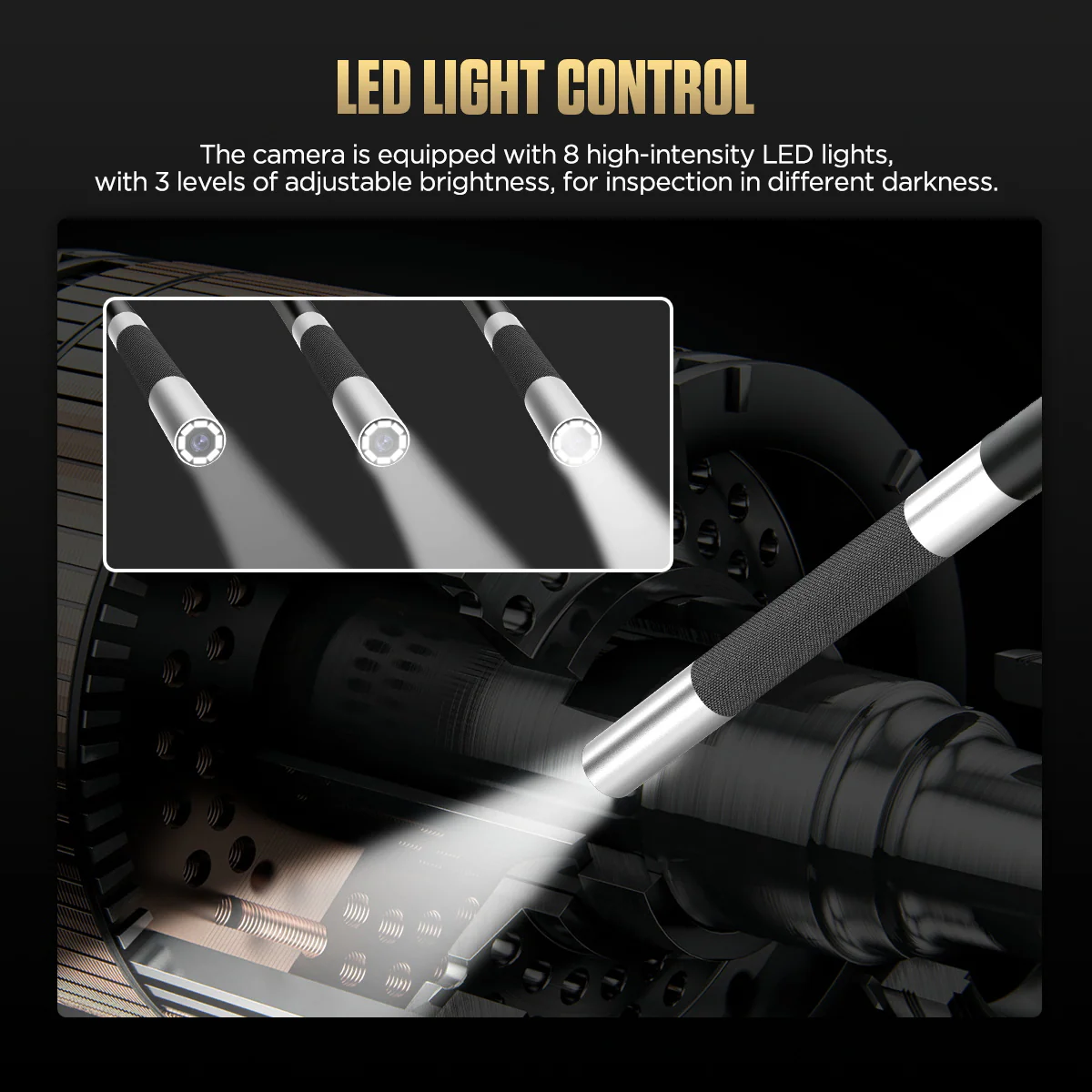

  4. Adjustable Lighting

    Probe LEDs with three brightness levels light dark cavities and enclosed spaces.

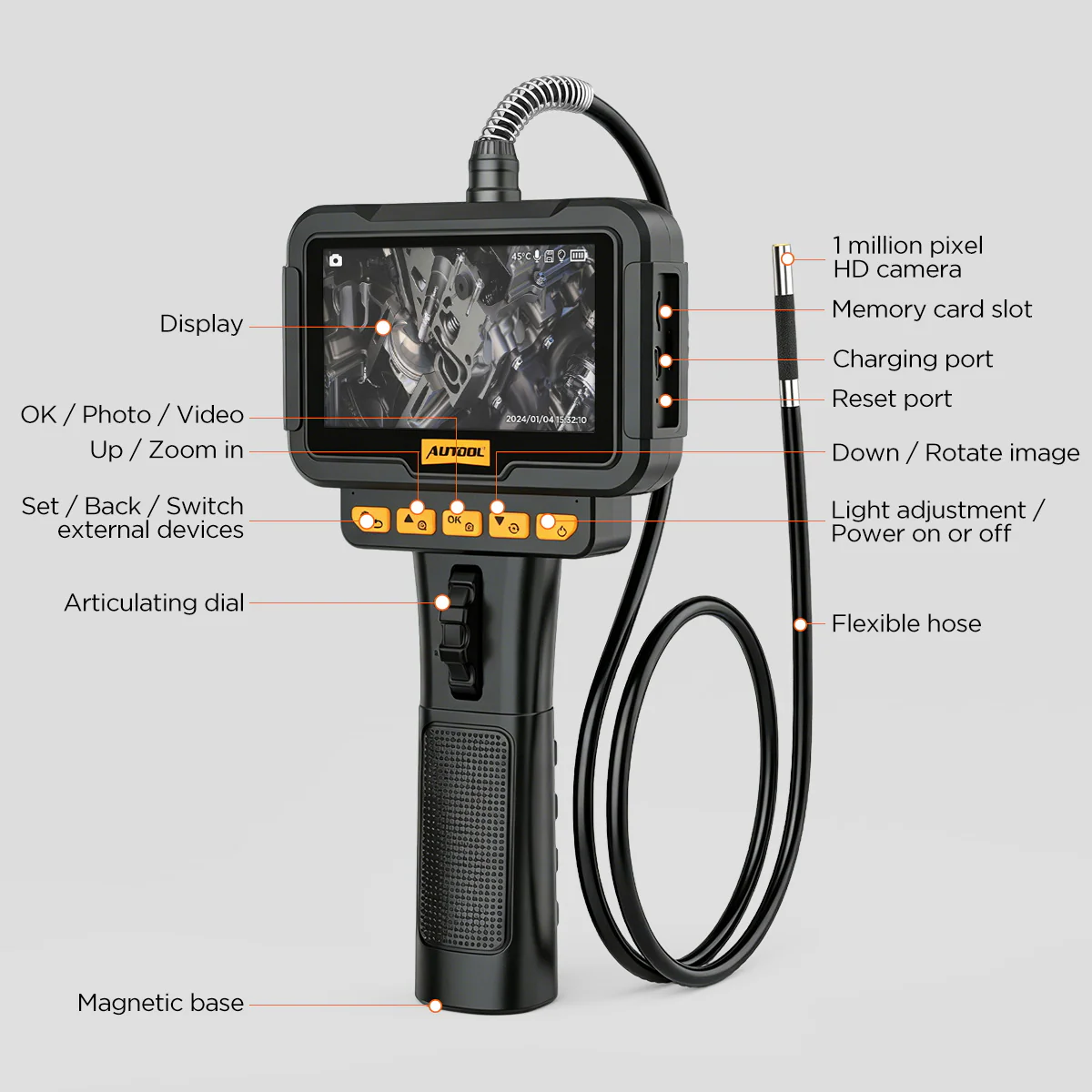

  5. Handle and Display Controls

    Power/light button and capture button on the handle; M, up, settings, down/toggle and OK keys, SD interface and charging port at the display.

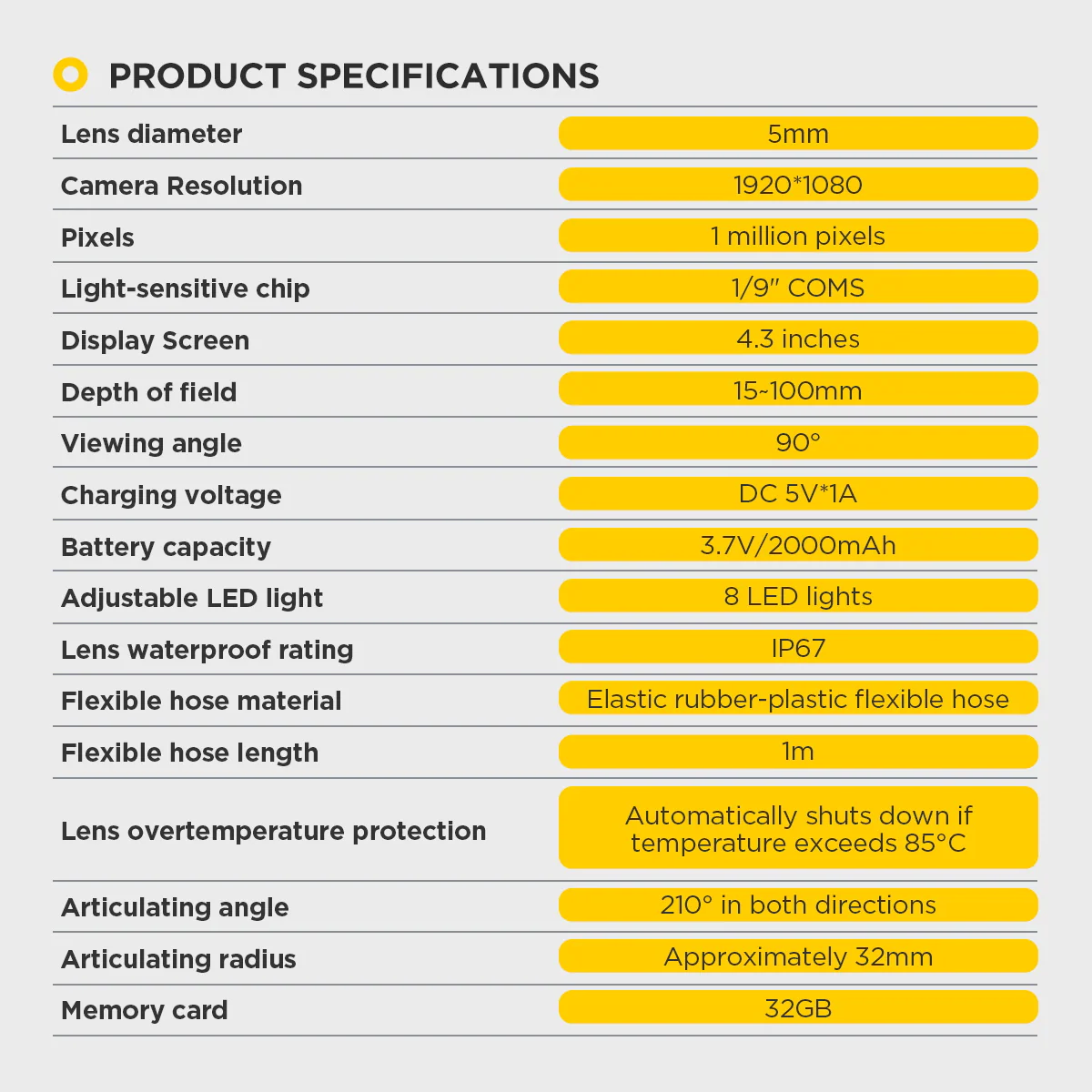

More Specifications

Camera diameter tolerance ±0.2 mm
Image sensor 1 million pixels
Bending radius 35 mm
High-temperature protection Automatic alarm above 80 °C

SVB305 vs SVB308

SVB305 SVB308
Articulation Two-way, 210° Four-way, 360°
Lens diameter 5.5 mm 6.2 mm
Resolution 1280 × 720 1920 × 1080
Languages 8 10
Battery 2000 mAh 2600 mAh

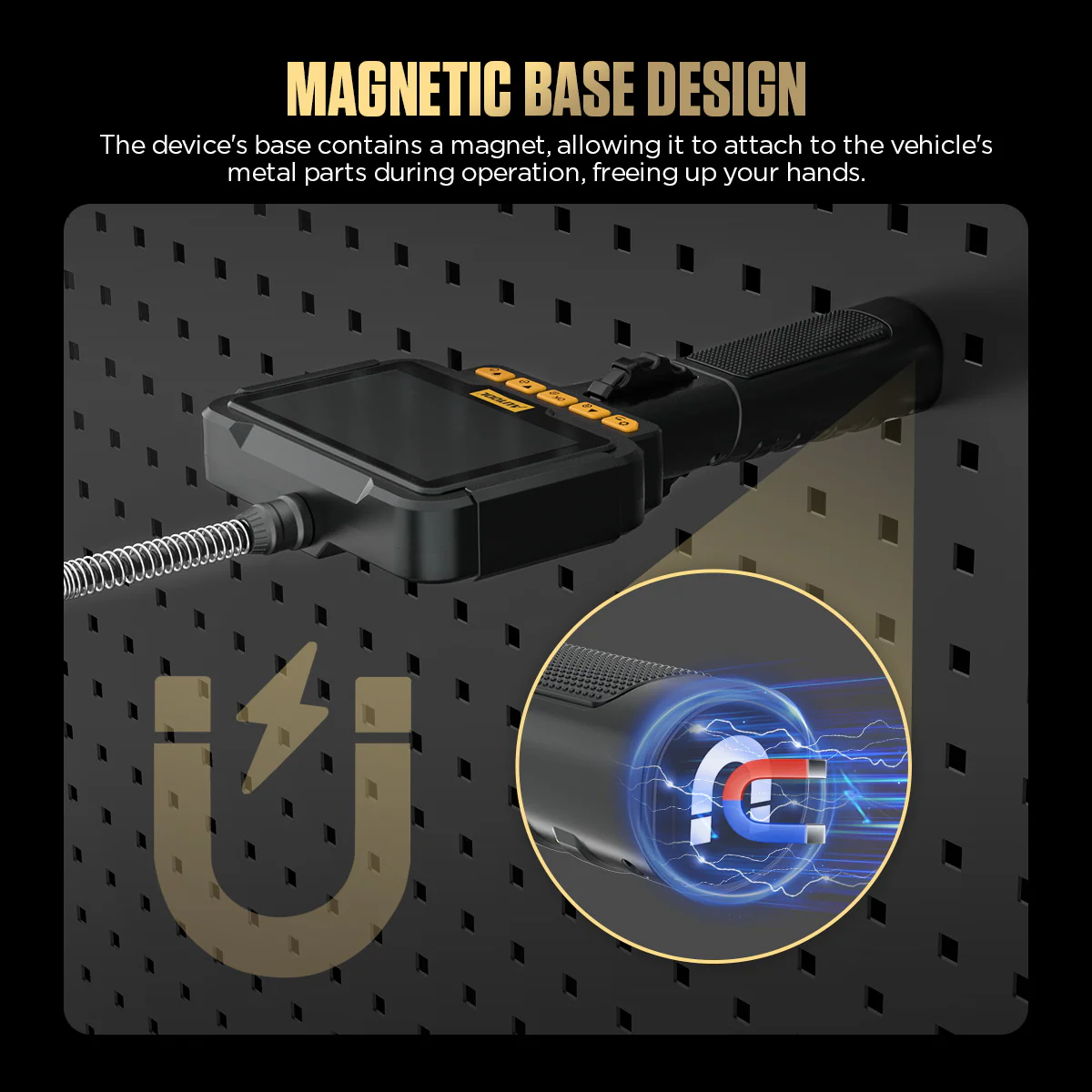

Magnetic design No Yes
Detachable screen/handle No Yes

How to Use

  1. Define the targetIdentify the symptom, entry point and surface, and confirm the probe and viewing range suit the path.
  2. Check the equipmentInspect tip and cable, charge the unit, test steering and lighting, then remove the camera protective cover.
  3. Prepare the vehicleIsolate moving and live parts and let the inspection area cool.
  4. Guide and illuminateInsert gently while watching the image, using steering and lighting to bring the target into focus range.
  5. Record findingsCapture the target from useful angles and note the component, entry point and viewing direction.
  6. Withdraw and storeReturn the tip, withdraw gently, check the probe, then clean, dry and store it.

Steering, recording, temperature protection and troubleshooting: SVB305 user manual (PDF)

Good to Know

Caution
  • IP67 applies to the probe, not the screen or handle; keep the main unit dry and do not assume oil, fuel or solvent compatibility.
  • Let the engine cool before inserting the probe; the heat alarm is a protection event, not a working-temperature rating.
  • Never force a bend or pull harder against resistance; return the tip with the steering control before withdrawing.
Care
  • If the image is unclear, adjust distance and brightness, clean the lens and try another angle; a reflection or shadow can look like a defect.

You may also like
