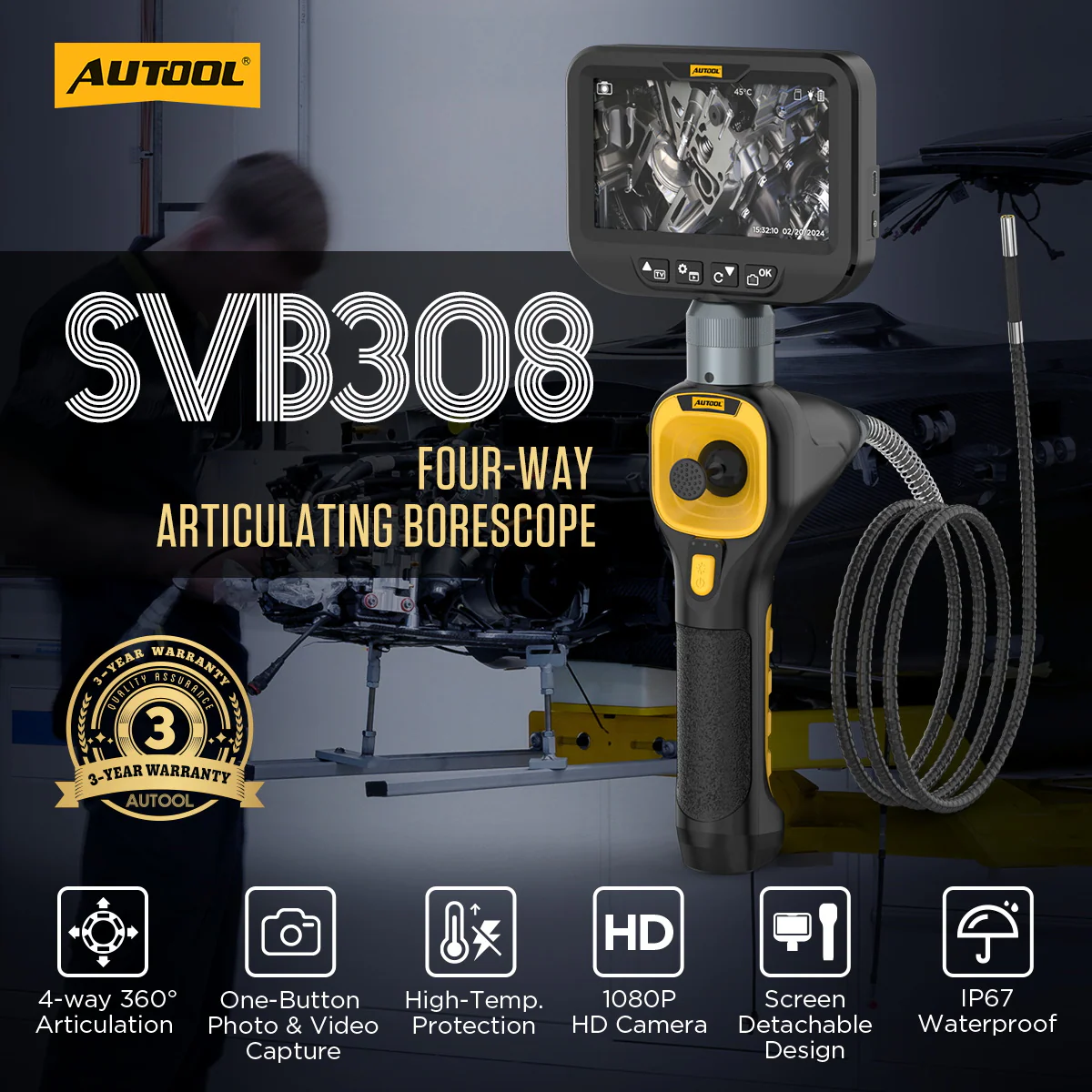

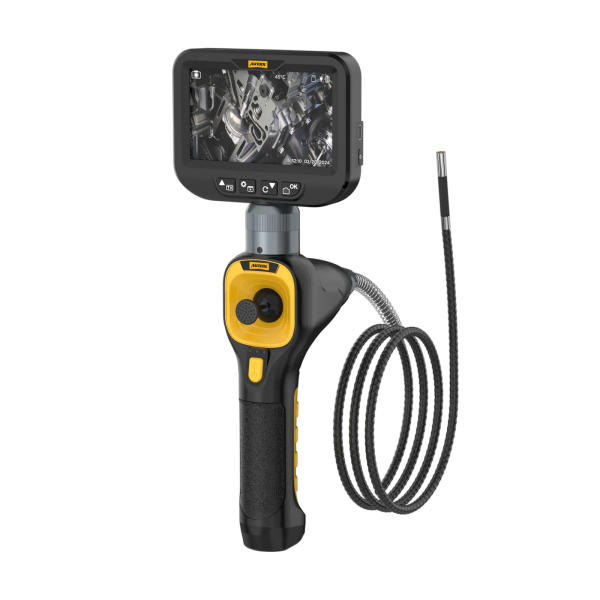

Steer Around Hidden Engine Parts and Record the View Without a Phone
The SVB308 pairs a joystick-steered four-way probe with 1080P imaging and a built-in screen, then lets you detach the screen and hose for transport or service. Only the probe is waterproof, and the engine must be cooled before inspection.
- 6.2 mm Four-Way Probe
- 1080P Imaging
- Detachable Screen & Hose
- Magnetic Base

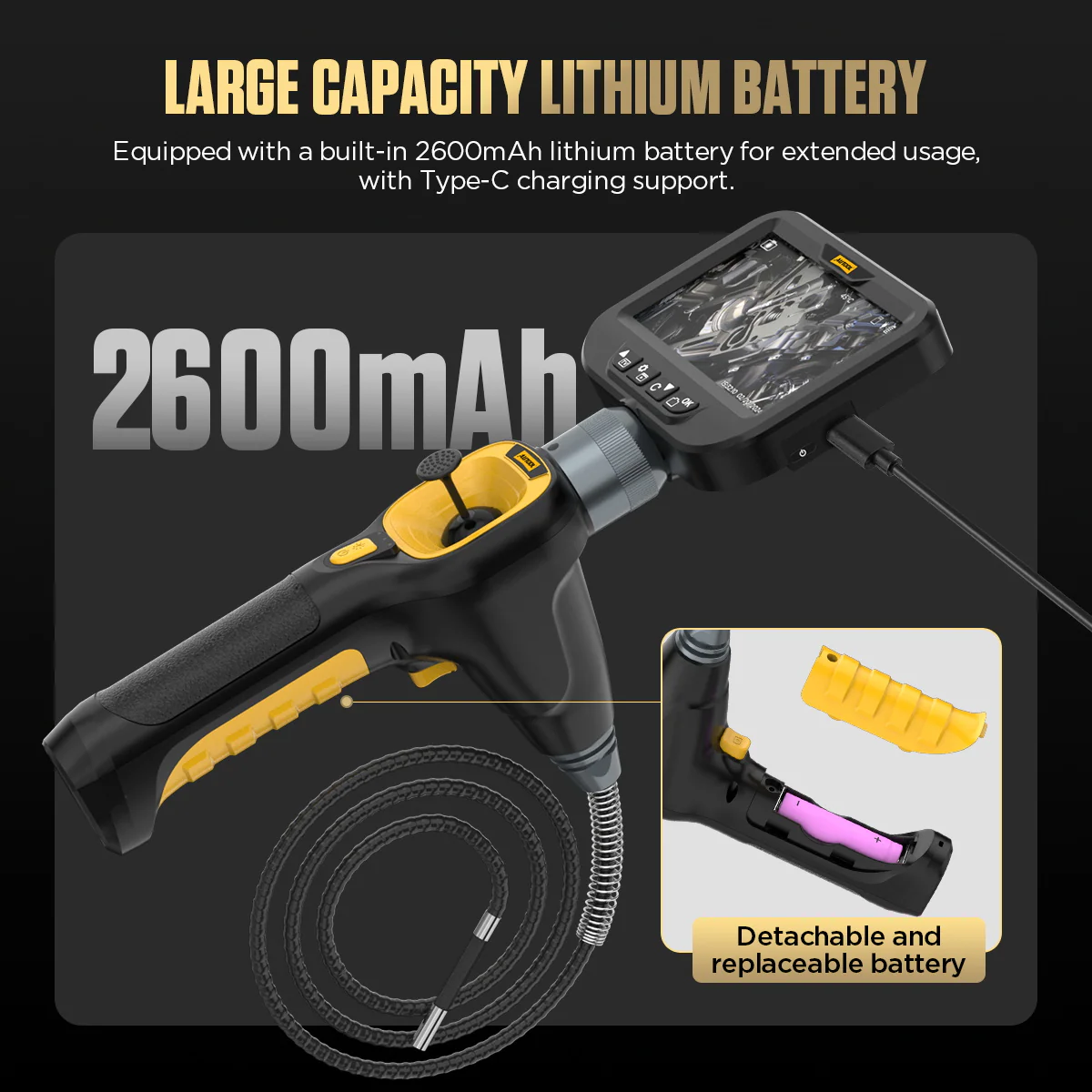

- 2600 mAh Battery
Key Features
-

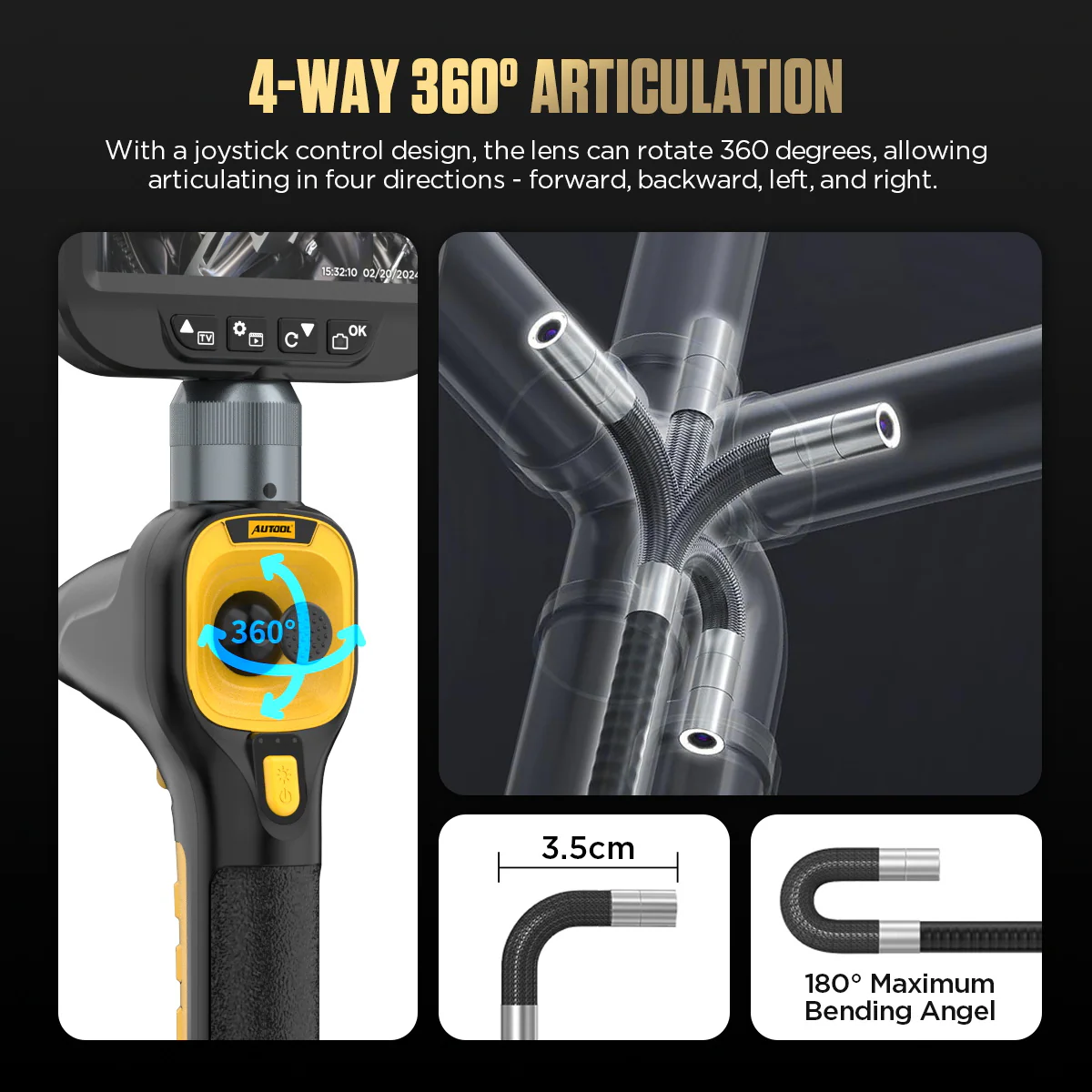

360° Four-Way Articulation
The joystick steers the probe into narrow, curved and hard-to-reach spaces inside engines, pipes, combustion chambers and hidden structures.
-

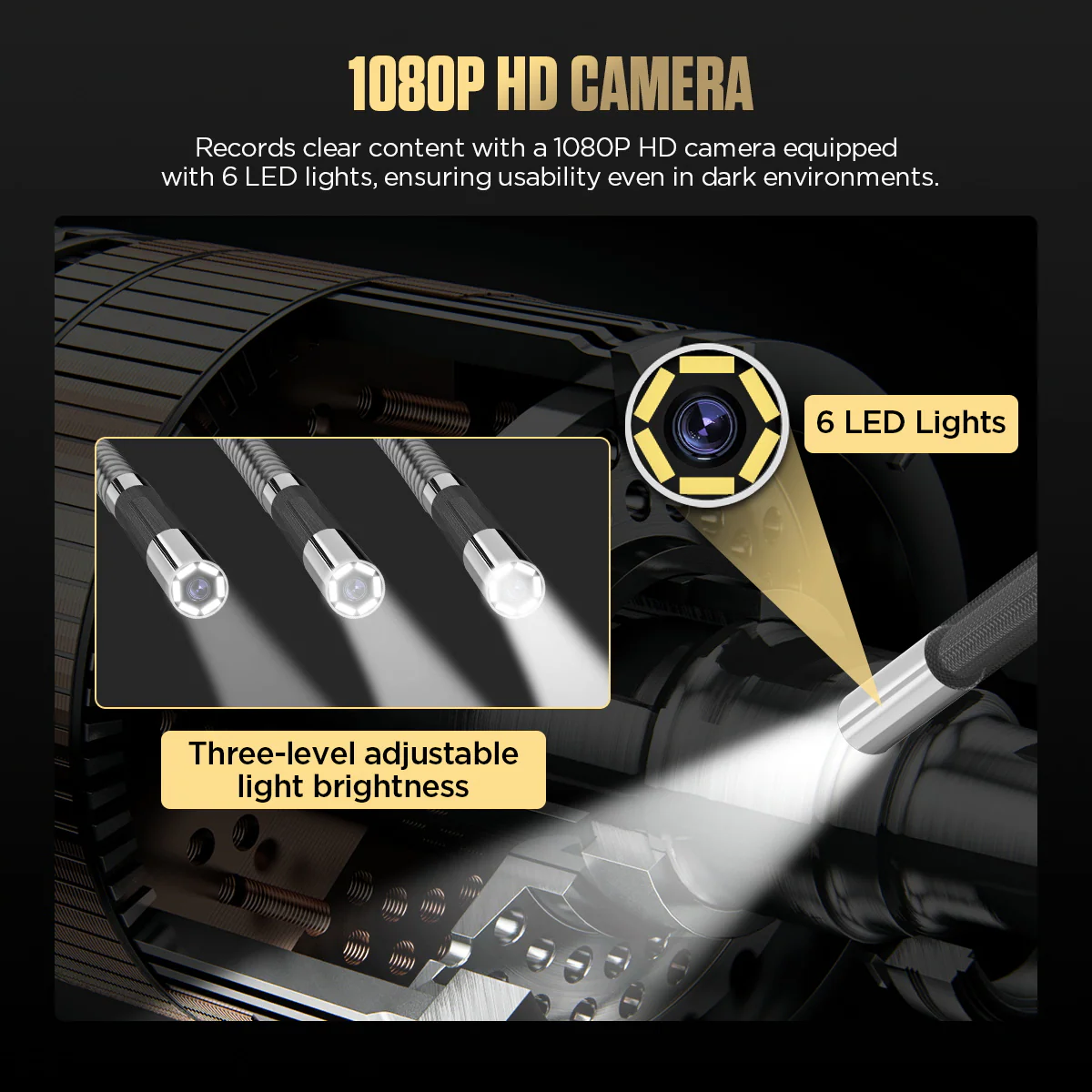

Lighting for Dark Spaces
Six LEDs with three brightness levels improve visibility in dark engine compartments, wet pipes and internal passages.
-

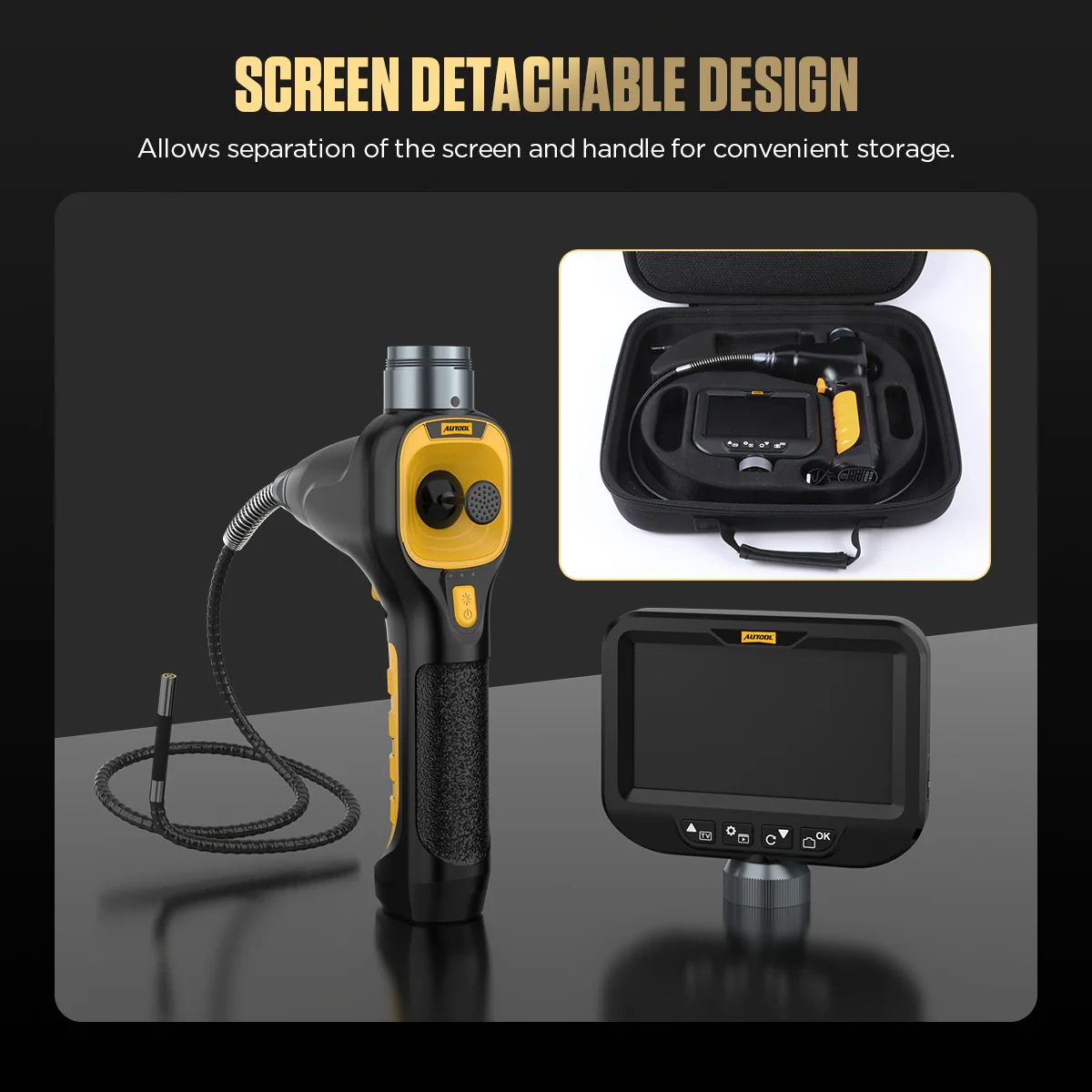

Detachable Screen and Hose
Remove the screen and flexible hose for storage, portability and accessory replacement; the hose comes off by unscrewing the screw near the AUTOOL logo.
-

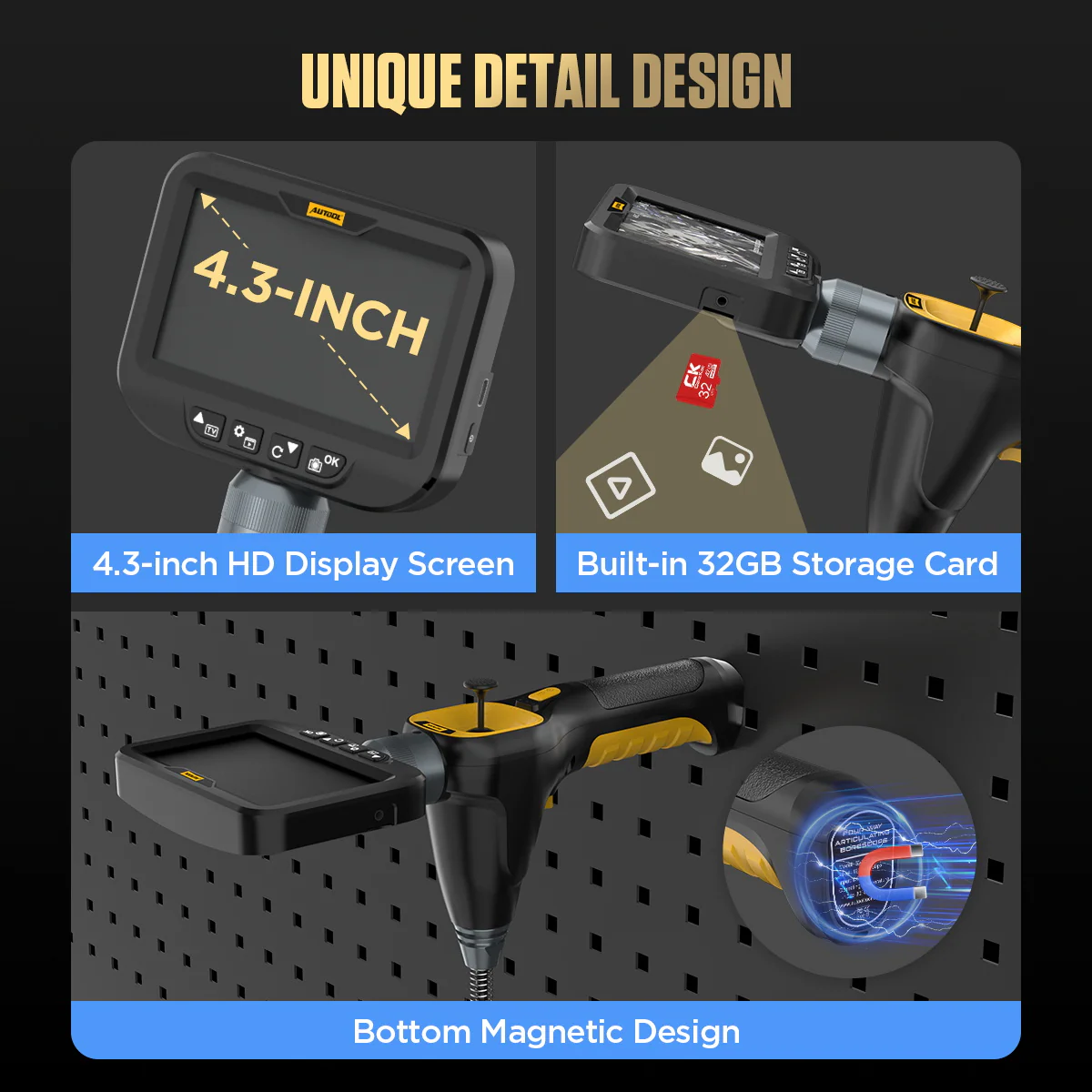

Magnetic Base
Attach the device to magnetic surfaces for hands-free viewing during an inspection.
-

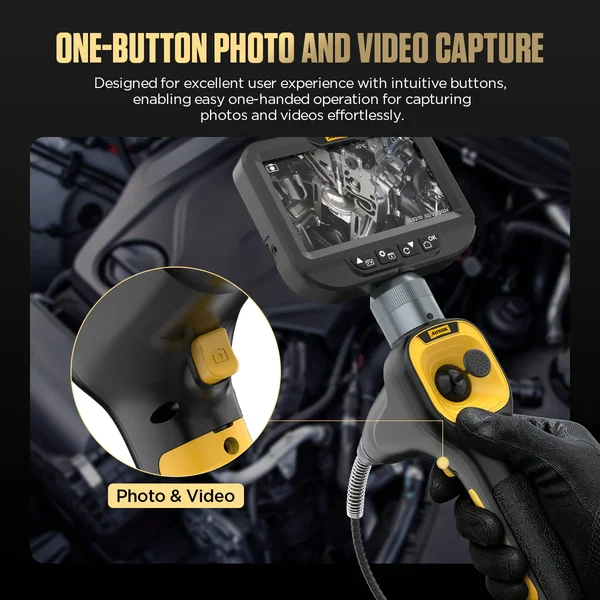

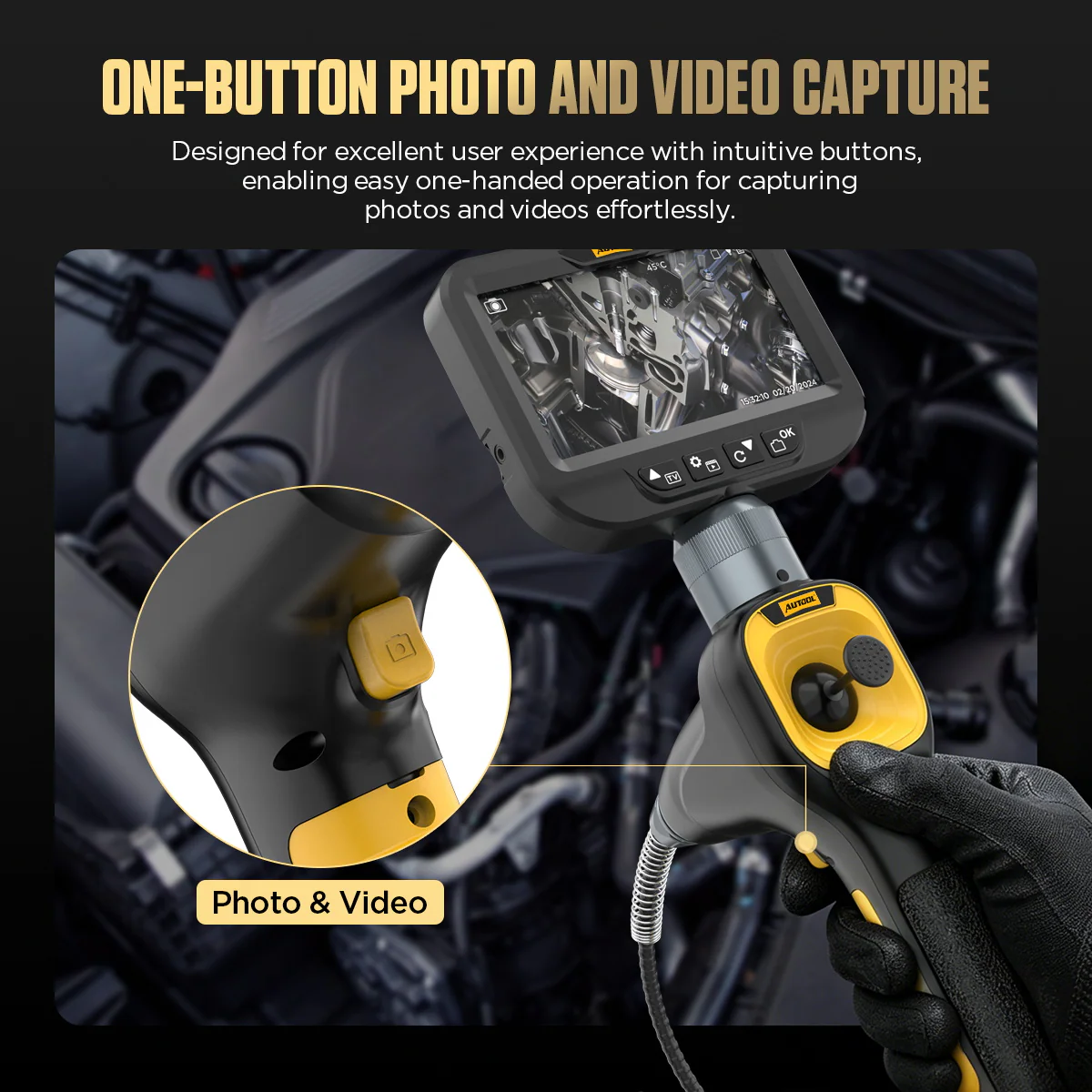

Standalone Recording

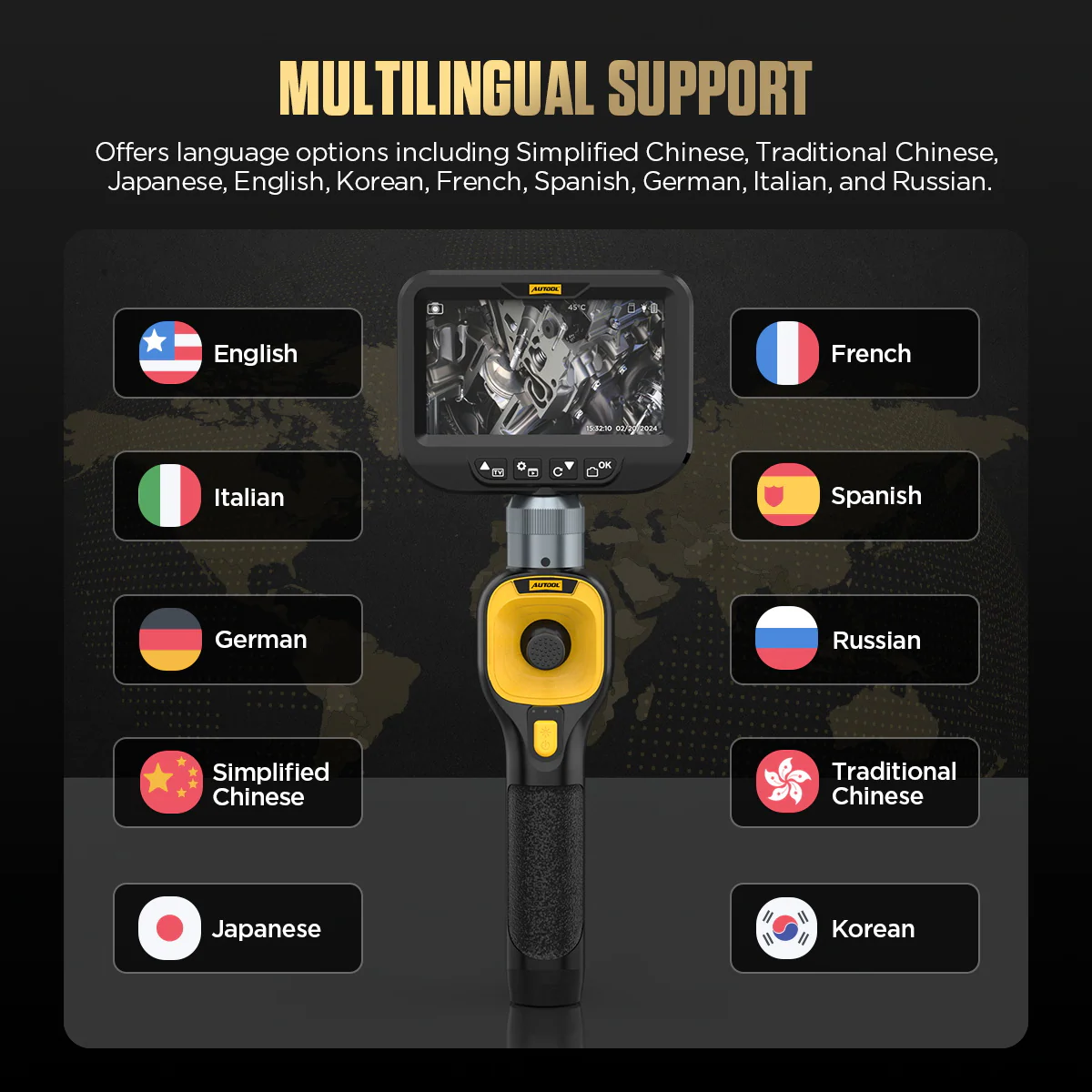

Capture photos and video to onboard storage and review them on the device, with a 10-language interface.
-

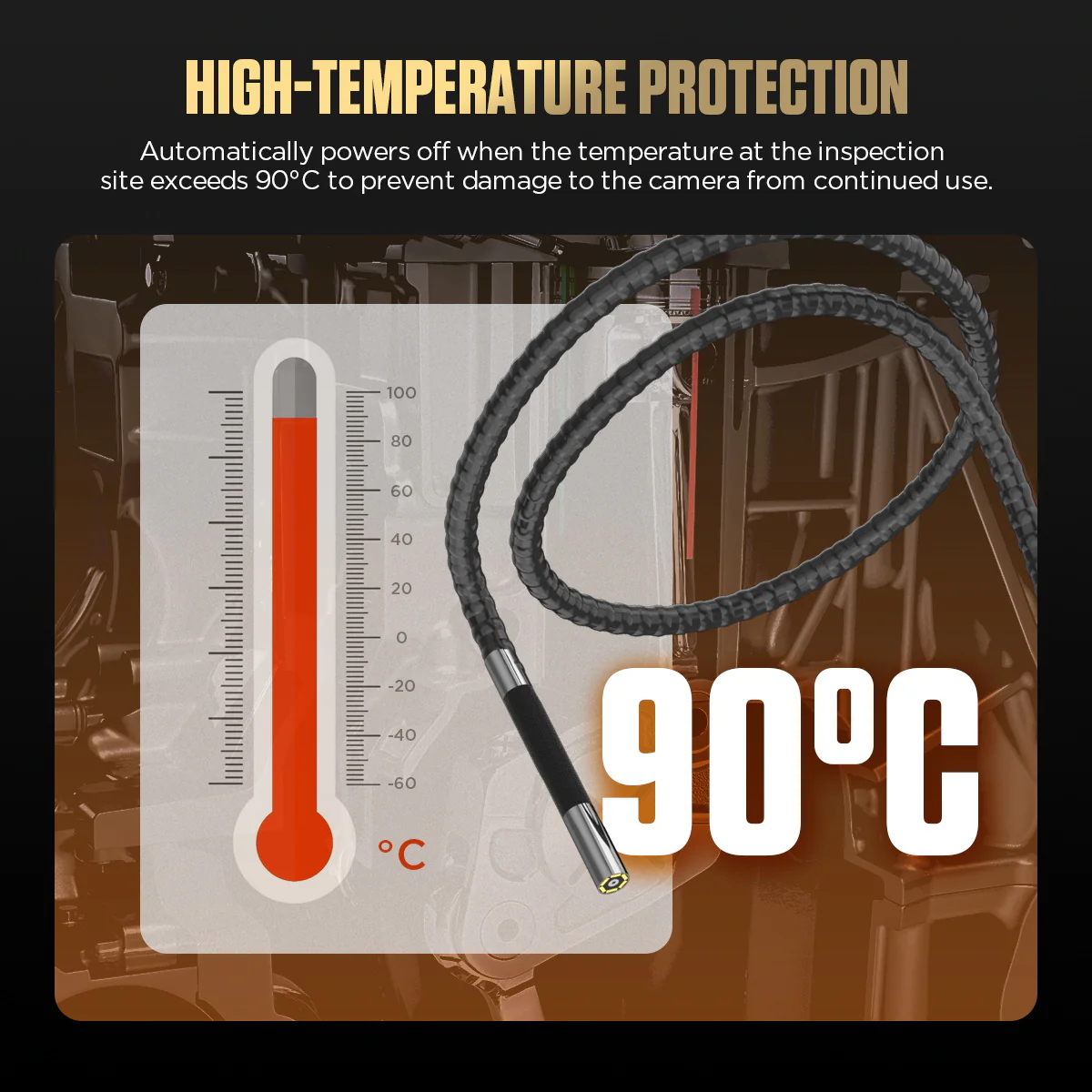

High-Temperature Alarm
Built-in temperature protection warns before heat damages the probe.

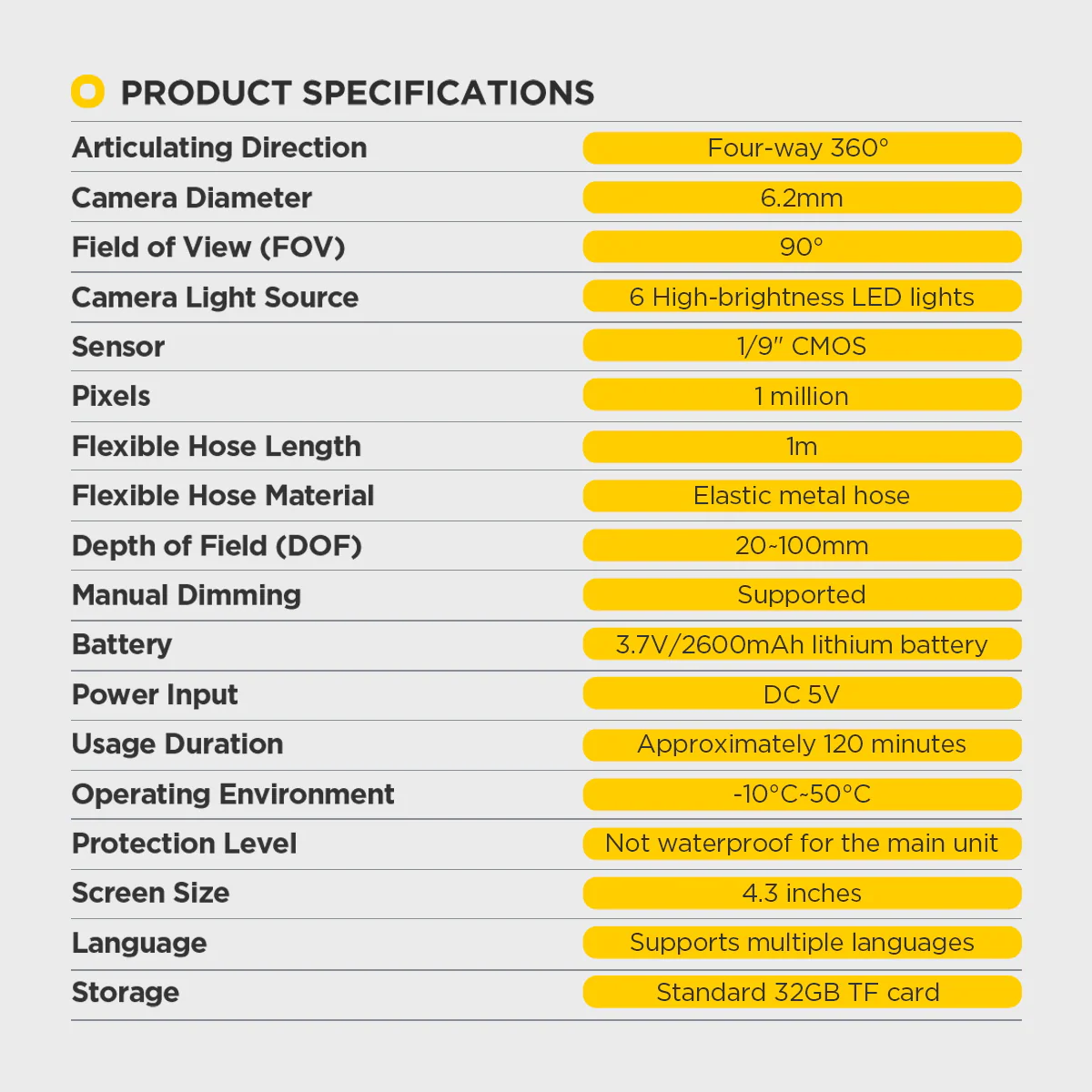

More Specifications
| High-temperature alarm | Above 90 °C (protection event, not a working temperature) |
|---|---|
| Operating environment | -10 to 50 °C |
| Flexible hose temperature limit | Do not expose above 70 °C; avoid environments above 75 °C |
| Bending radius | 35 mm |
| Battery type | Lithium |
SVB308 vs SVB305
| SVB308 | SVB305 | |
|---|---|---|
| Steering | Four-way 360° | Two-way, 210° maximum |
| Lens diameter | 6.2 mm | 5.5 mm |
| Resolution | 1920×1080 | 1280×720 |
| Viewing angle | 90° | 70° |
| Battery | 2600 mAh | 2000 mAh |
| Languages | 10 | 8 |
| Magnetic base / detachable design | Yes / Yes | No / No |

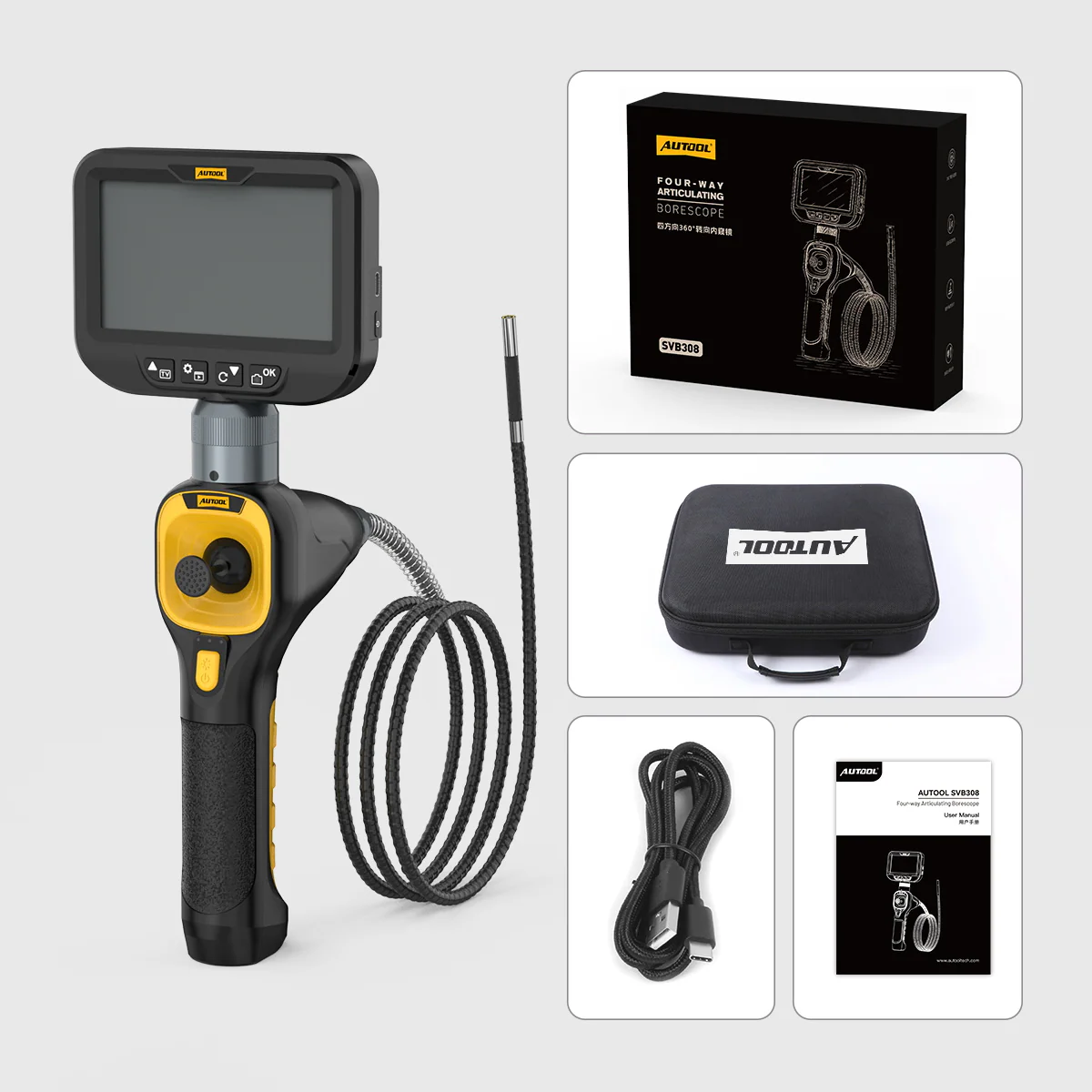

What’s in the Box
- SVB308 borescope with screen and probe hose
- Carrying case
- USB-A to USB-C cable
- User manual
How to Use
- Define the targetIdentify the symptom, entry point and surface to see, and confirm the probe and viewing range suit that path.
- Check the equipmentInspect the tip and cable, charge the device, check steering and lighting, and confirm files can be saved.
- Prepare the vehicleIsolate moving and live parts, let the area cool and prepare a clean access point.
- Power on and insertHold the power button, open the camera cover, then insert gently while watching the live image.
- Guide and recordSteer and adjust the light to bring the target into focus, then capture it from useful angles.
- Withdraw and storeReturn the tip to a position that clears the path, withdraw gently, then clean, dry and store the probe.
Probe control, recording, temperature protection and troubleshooting: SVB308 user manual (PDF).
Good to Know
Caution
- Never inspect a hot engine; engine temperatures may reach 80–100 °C or higher after shutdown. Heat damage to the probe hose or camera may require a paid replacement.

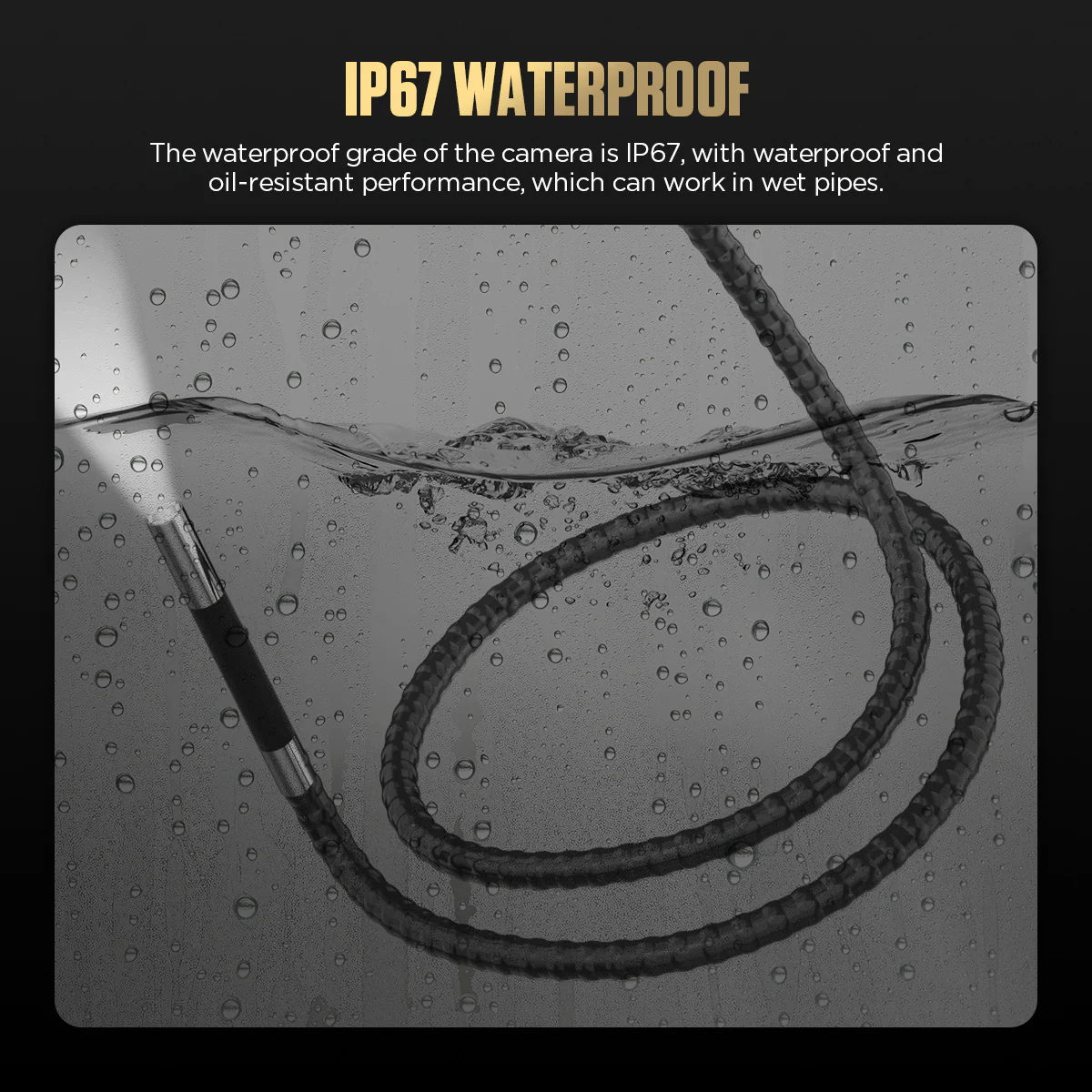

- IP67 applies to the probe only. Keep the screen, handle and main unit dry, and confirm oil, fuel, coolant or solvent compatibility separately.
- Use the joystick to bend the probe; never force it by hand, and do not hold maximum bend for long periods.
- Stop if you feel resistance while withdrawing instead of pulling harder.
- Do not use or store the device in explosive, flammable, corrosive or strong electromagnetic environments, or on humans or animals.
