Four-Channel Waveform Analysis on Your MaxiSys Tablet or PC

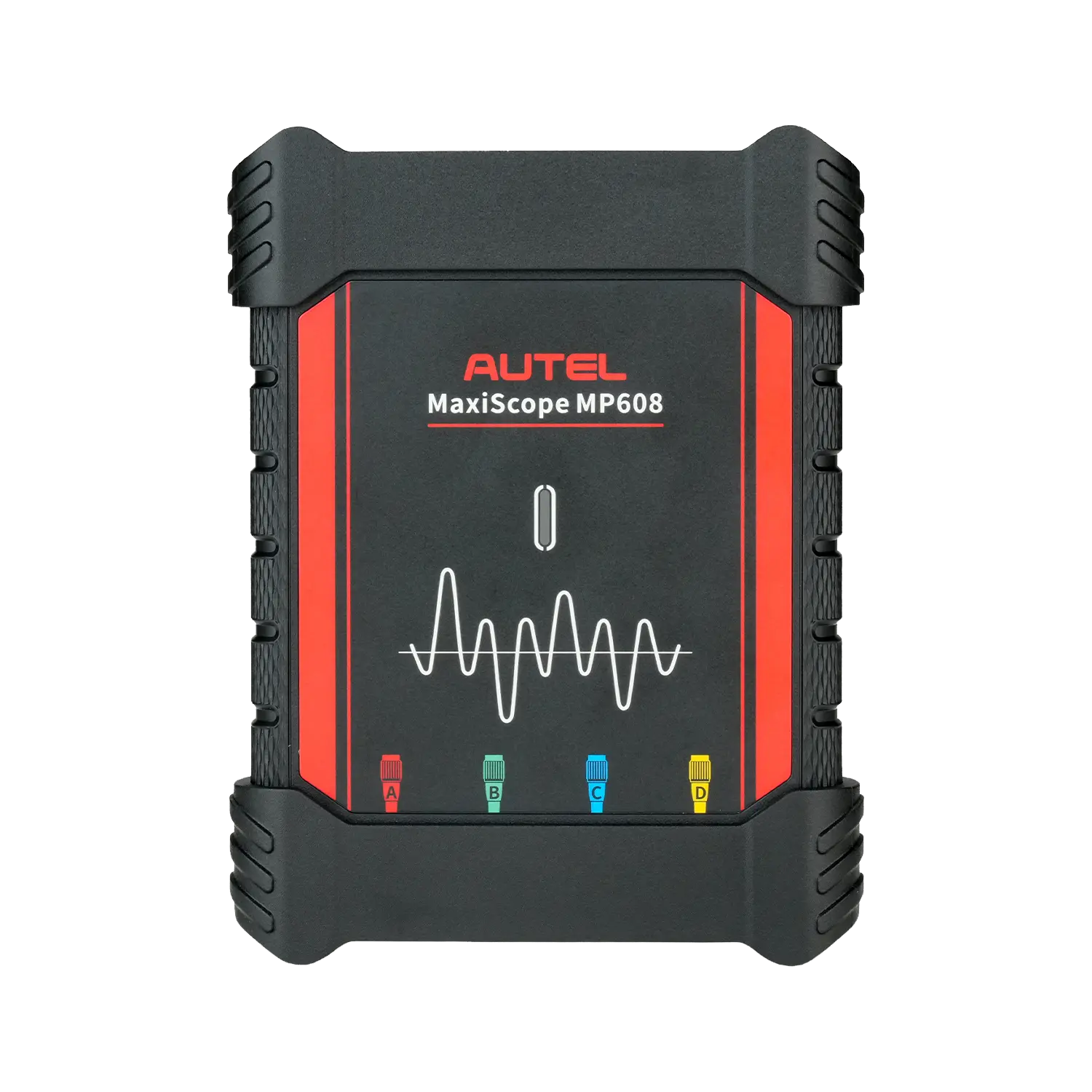

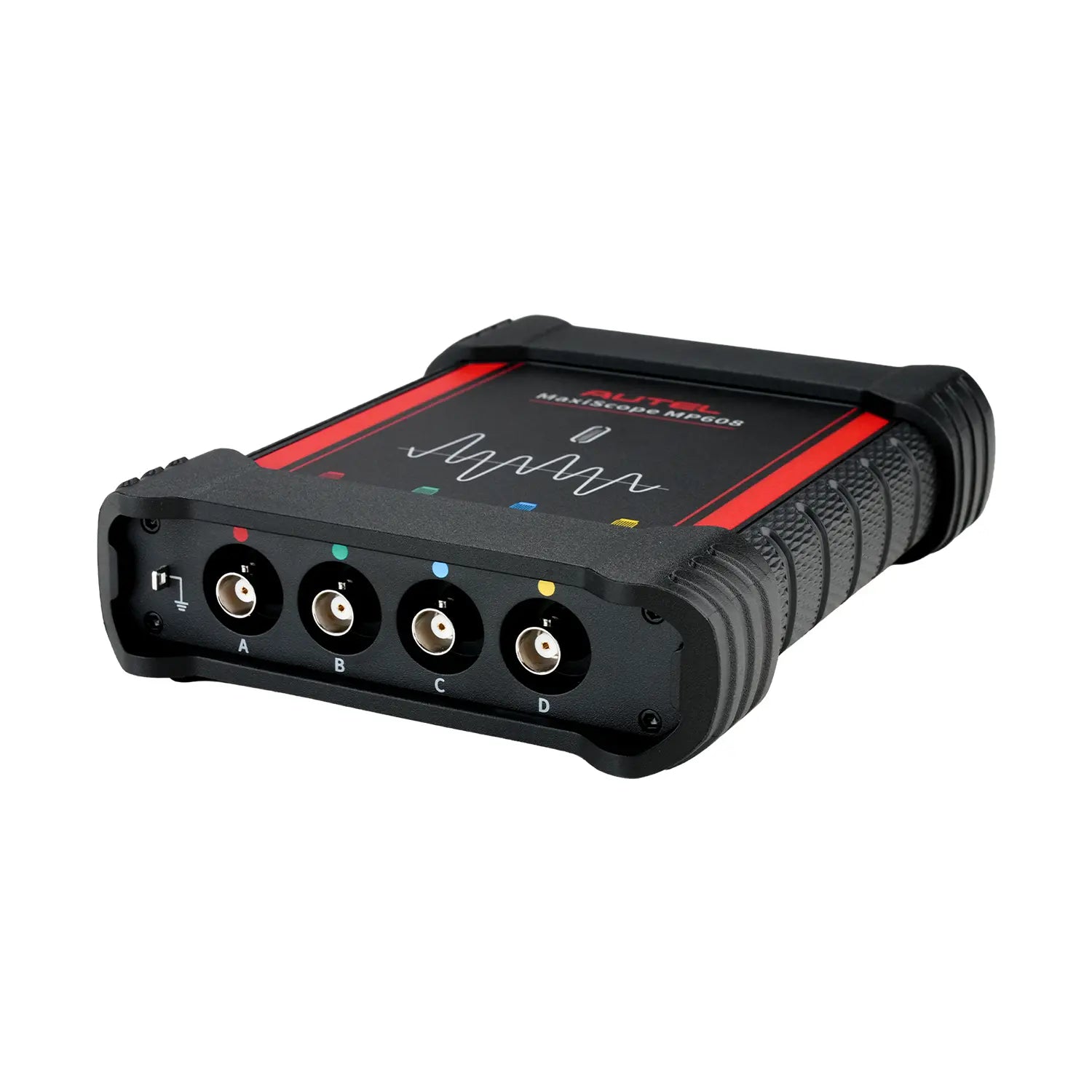

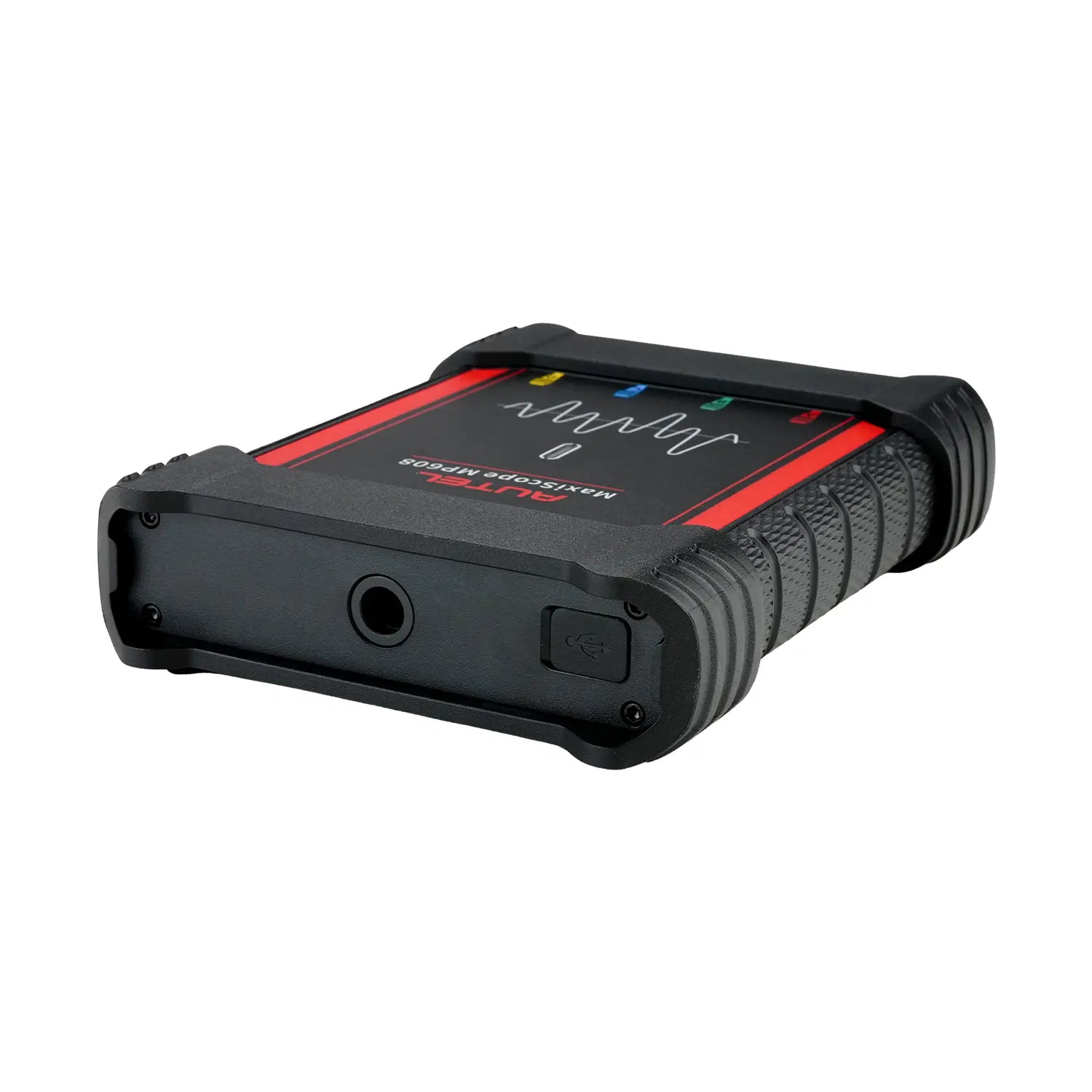

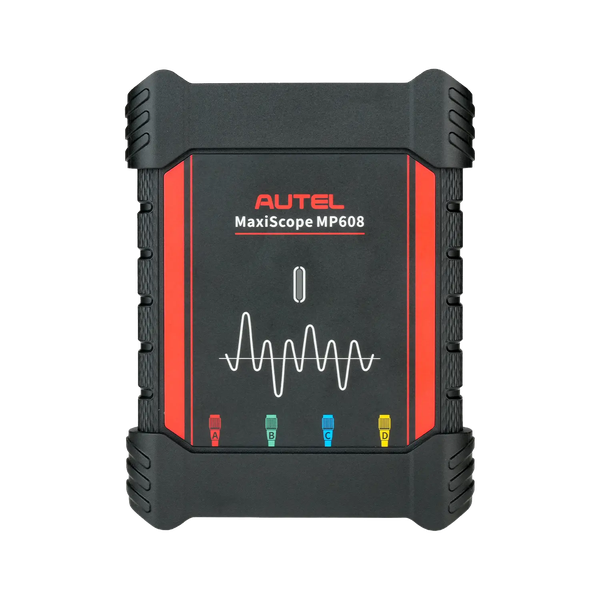

The MaxiScope MP608 is a portable, USB-powered automotive oscilloscope that turns a compatible Autel MaxiSys or MaxiIM tablet, or a Windows PC, into a four-channel scope with one-click setup and CAN FD/FlexRay support.
- 4 Channels / 20 MHz
- 12-Bit Resolution
- CAN FD / FlexRay
- USB-Powered
Key Features
-
One-Click Setup
An intuitive interface sets up measurements quickly on a compatible tablet or PC.
-
Intermittent Fault Capture
AI-assisted analysis helps capture complex and intermittent faults.
-
Multi-View Display
Show signals side by side in oscilloscope, spectrum and XY modes to compare them faster.
-
Tablet and PC Workflow
Cloud synchronization, work-order management and waveform notes let you continue a job on either device.
More Specifications
| Sensitivity | 10 mV/div to 40 V/div |
|---|---|
| Input coupling | AC/DC |
| Storage humidity | 5 to 95 % RH, non-condensing |

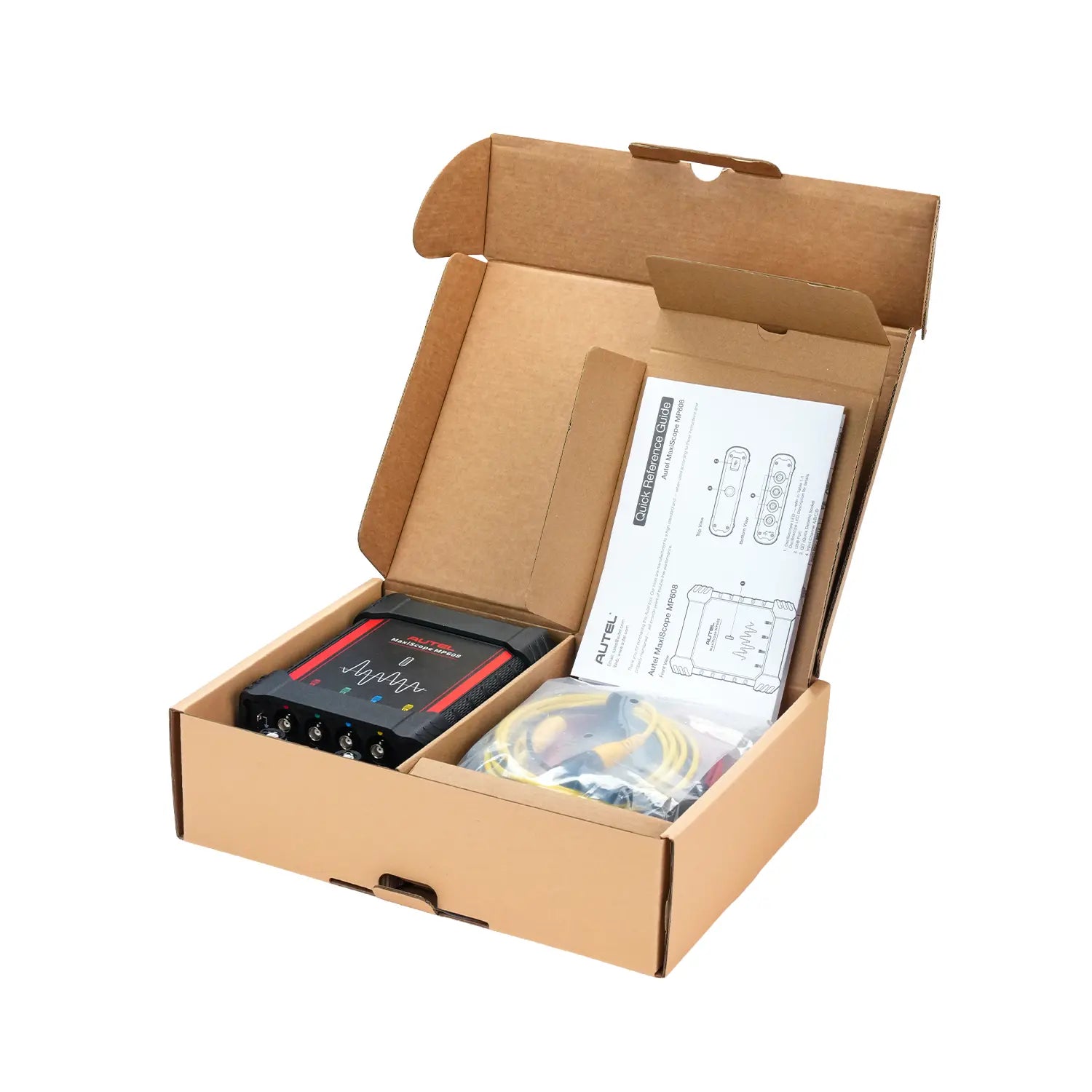

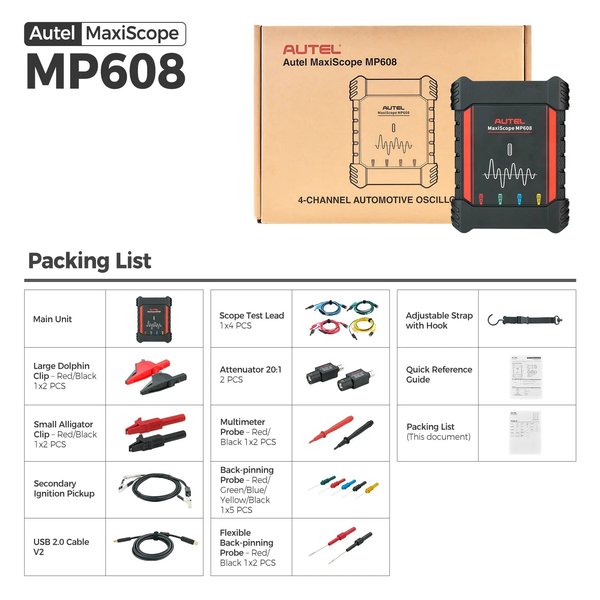

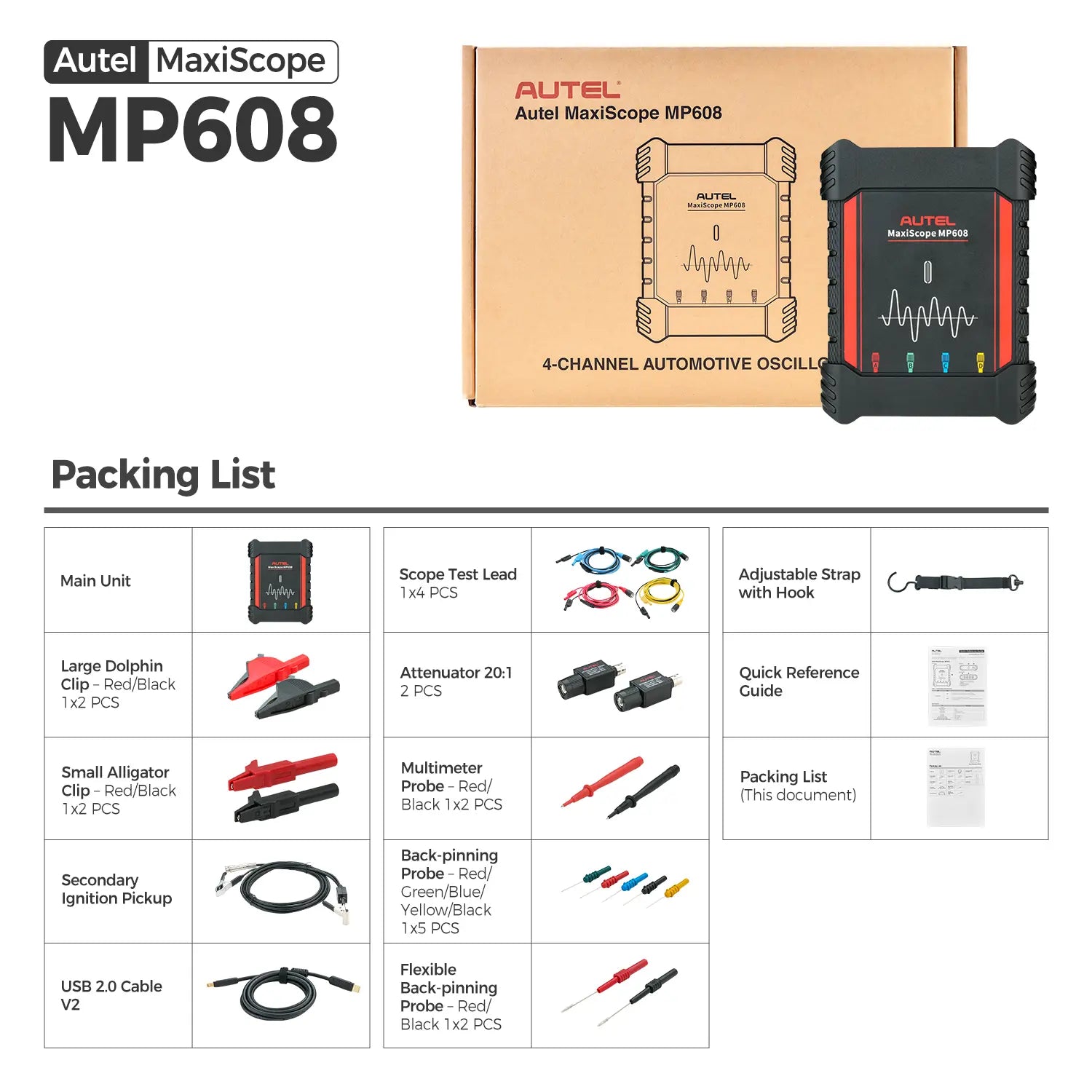

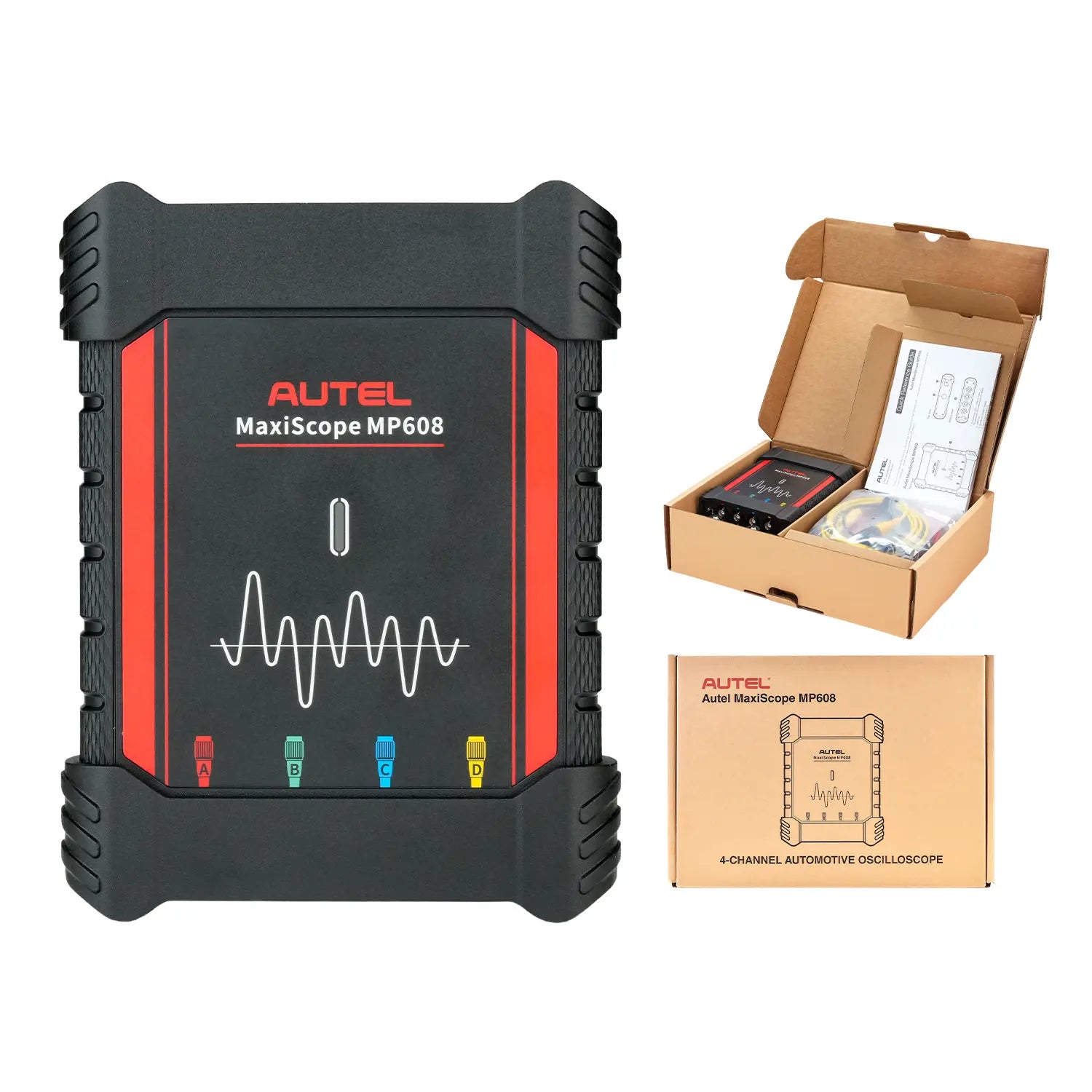

What’s in the Box
- MP608 main unit
- Secondary ignition pickup
- USB 2.0 cable V2
- 20:1 attenuators (2 pcs)
- Large dolphin clips, red/black (2 pcs)
- Small alligator clips, red/black (2 pcs)
- Scope test leads (4 pcs)
- Multimeter probes, red/black (2 pcs)
- Back-pinning probes, red/green/blue/yellow/black (5 pcs)
- Flexible back-pinning probes, red/black (2 pcs)
- Adjustable strap with hook
Good to Know
Caution
- The MP608 has no screen of its own; it needs one of the listed compatible Autel tablets or a Windows PC.
