Diagnostics, Service Functions and Key Programming for Polaris

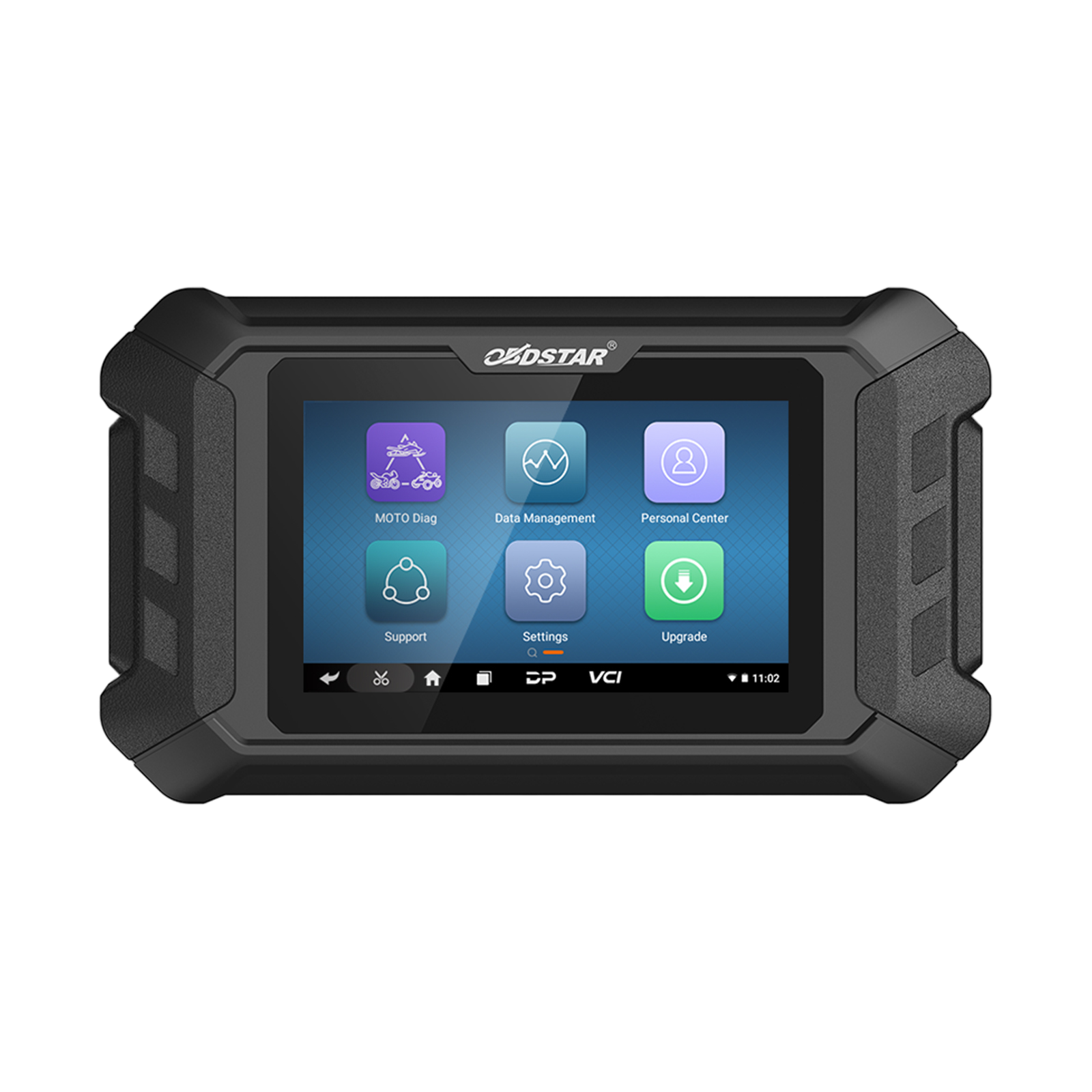

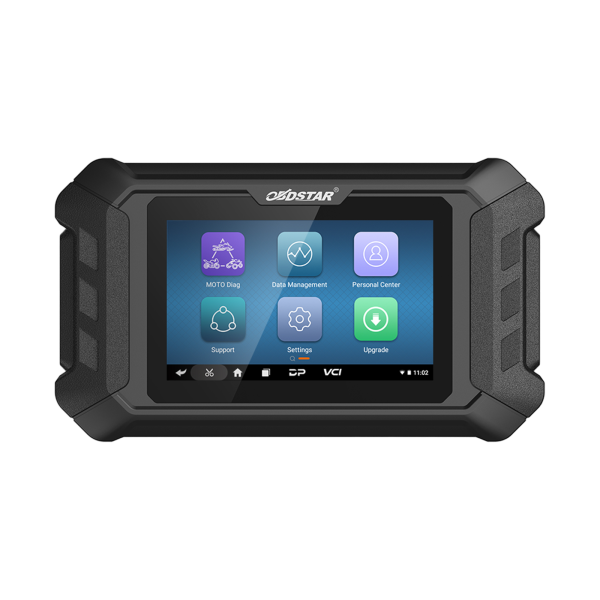

The OBDSTAR iScan Polaris is a dedicated handheld tablet for 2004โ2024 Polaris vehicles, covering full diagnostics, service resets, module coding and immobilizer key work. Check the supported diagnostic and IMMO lists before ordering.
- Polaris 2004โ2024
- Key Programming
- Service Light Reset
- M042 Cable Included
Key Features
-
Complete Diagnostics
Read and clear codes, live data, action tests, settings and coding, with automatic scanning and VIN recognition.
-
Service and Adjustment Functions
Service light reset, CO and idle speed adjustment, A/F value reset, ABS control unit setting, EOL mode, transmission memory reset and computer memory clearing.
-
Programming and Coding
Control module programming and coding, ECU settings, instrument coding and TPMS.
-
Live Data Analysis
Record and play back data streams as text, waveform or gauge views to locate sensor and component faults.
-
Built-In Repair Help
Fault guidance, help data, technical bulletins and diagnostic socket locations on the tablet.
Highlights

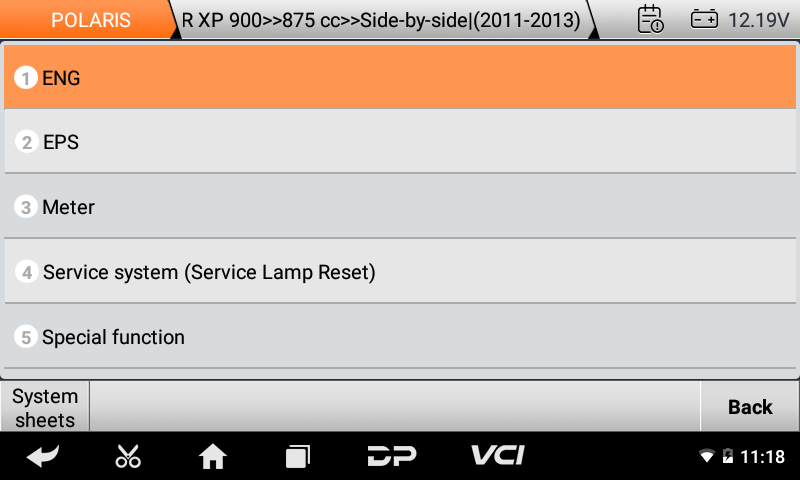

Supported System List
Select the model and open engine, EPS, meter, service and special function menus.

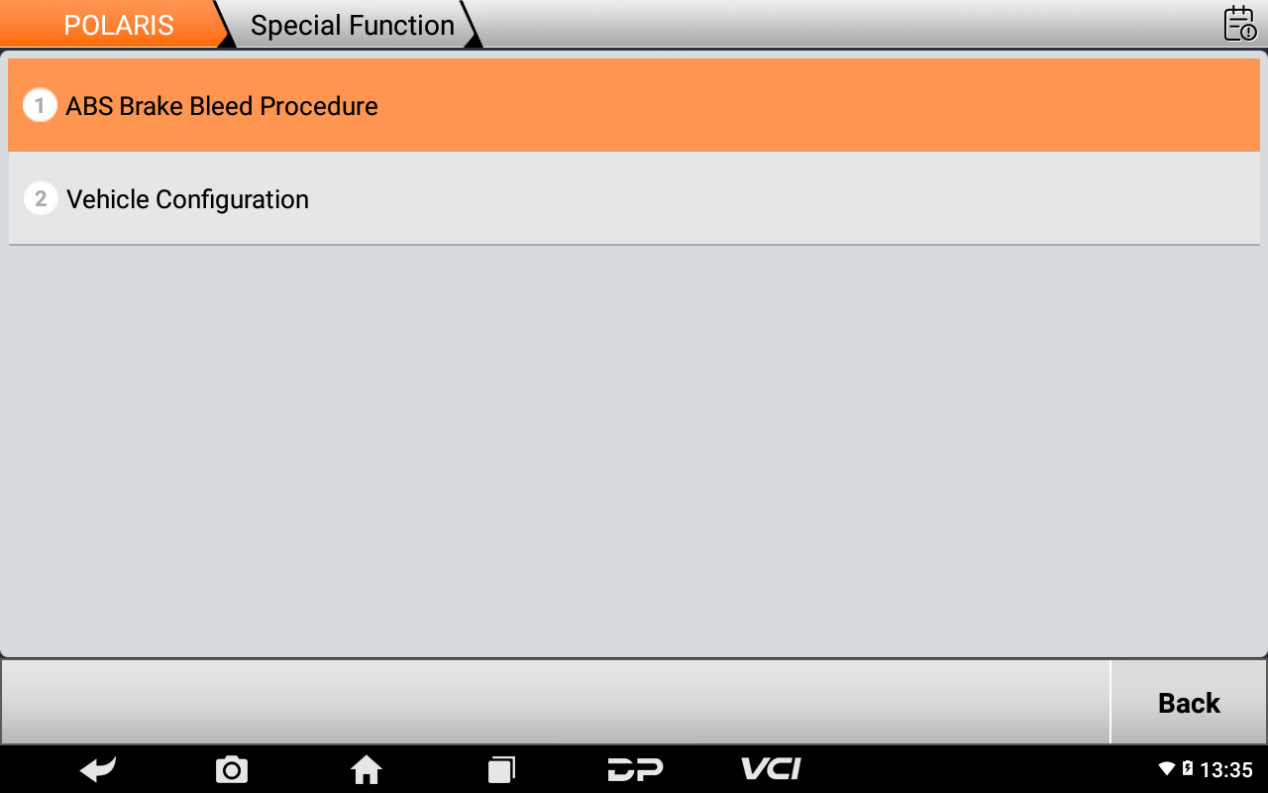

ABS Bleeding and Configuration
Run the ABS brake bleed procedure or vehicle configuration from the special function menu.

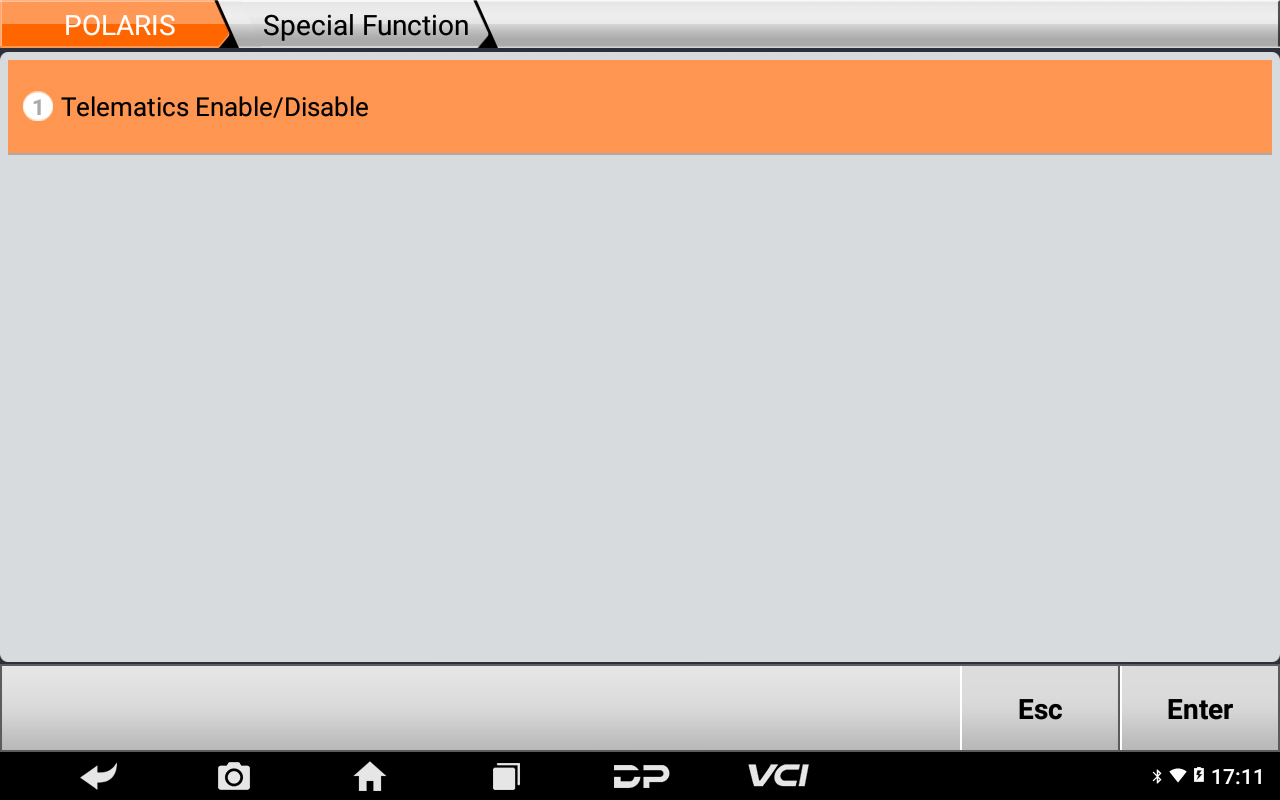

Model-Specific Functions
Additional functions appear depending on the selected model.
More Specifications
| Memory card | 32 GB micro SD (TF) supported |
|---|---|
| Storage temperature | -20 to 70 ยฐC (-4 to 158 ยฐF) |
What’s in the Box
- 1รTablet
- 1รM001 main cable
- 1ร12 V 2 A charger
- 1รM042 Polaris cable
Updates & Support
Operating instructions: iScan Series user manual (PDF).
