Specifications

BrandAUTEL
Weight600 g
Applicable Battery6V, 12V; Flooded, AGM, AGM Spiral, EFB, GEL
CCA Range100-2000 CCA
Battery StandardsCCA, CA, MCA, JIS, DIN, SAE, IEC, EN, EN2, BCI, GB
Test MethodAdaptive conductance, 95%+ accuracy, in-vehicle/out-of-vehicle testing
System Test12V/24V starting and charging systems
Voltage Range6 to 36 V
ConnectivityUSB 2.0 Type C / Bluetooth V3.0+V4.2 LE dual mode
Input Voltage5 V DC
Dimensions107 x 75 x 26 mm (excluding clamp cables)
CompatibilityPassenger car batteries; works with iOS/Android app and Autel tablets
Software UpdatesFree mobile app (iOS/Android), cloud reports

Details

Check Battery, Starter and Generator Health From Your Phone

The MaxiBAS BT506 tests passenger-car batteries in or out of the vehicle with adaptive conductance and checks the starting and charging systems. Results appear in the free iOS or Android app or on a compatible Autel tablet, with cloud-based reports.

  • CCA 100–2000
  • Battery, Starter and Generator Tests
  • Temperature Compensation
  • Free iOS / Android App

Key Features

  1. Adaptive Conductance Testing

    Evaluates cold cranking ability and reserve capacity without draining the battery, and can test low or nearly discharged batteries.

  2. In-Vehicle Test

    Runs battery, starter and generator tests to report the health of each, or test a standalone battery out of the vehicle with an on-screen result and maintenance tip.

  3. Cranking Analysis

    Follow the on-screen steps to get cranking results, including starting voltage and starting time, plus generator charging condition.

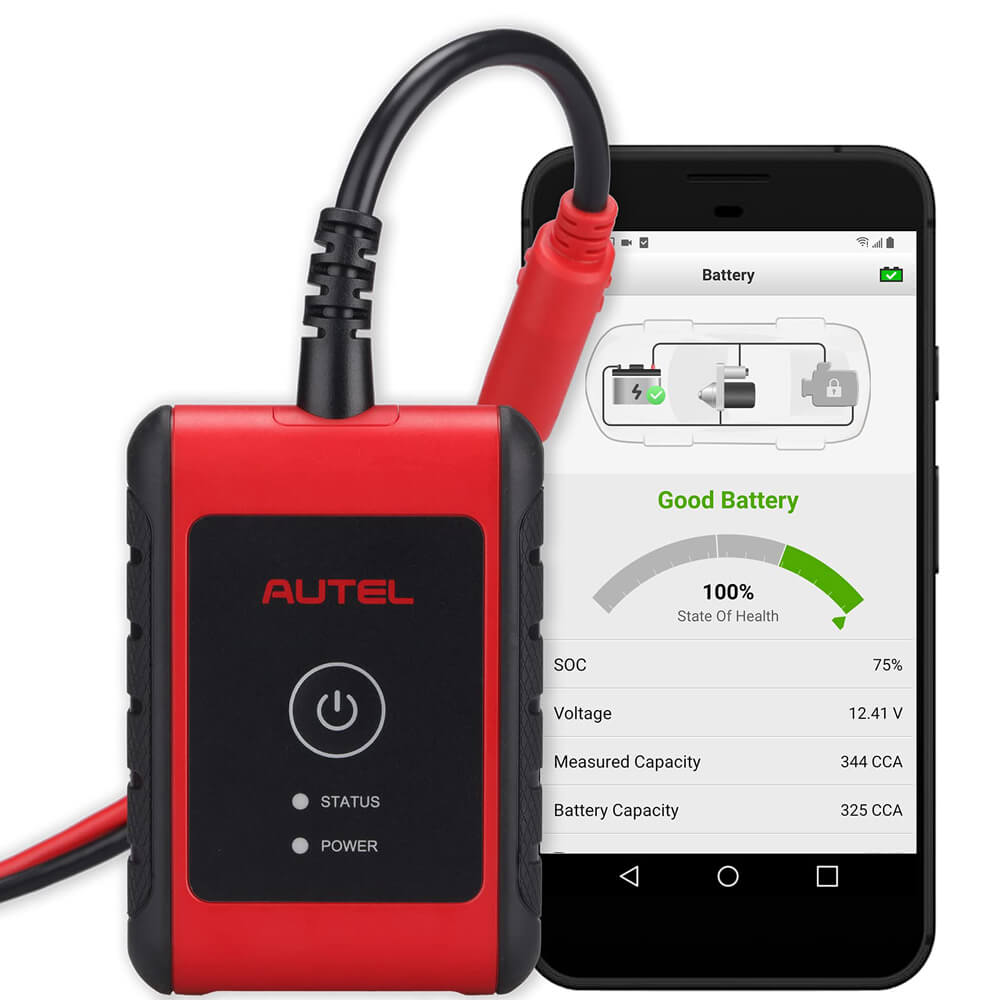

  4. App and Cloud Reports

    Pair with the free mobile app or an Autel tablet to run tests, view results and keep battery health reports in the cloud.

  5. Temperature Compensation

    Supports temperature compensation of test results; a temperature sensor is included.

More Specifications

Working current 150 mA at 12 V DC
Operating temperature -10 to 50 °C (14 to 122 °F)
Storage temperature -20 to 60 °C (-4 to 140 °F)

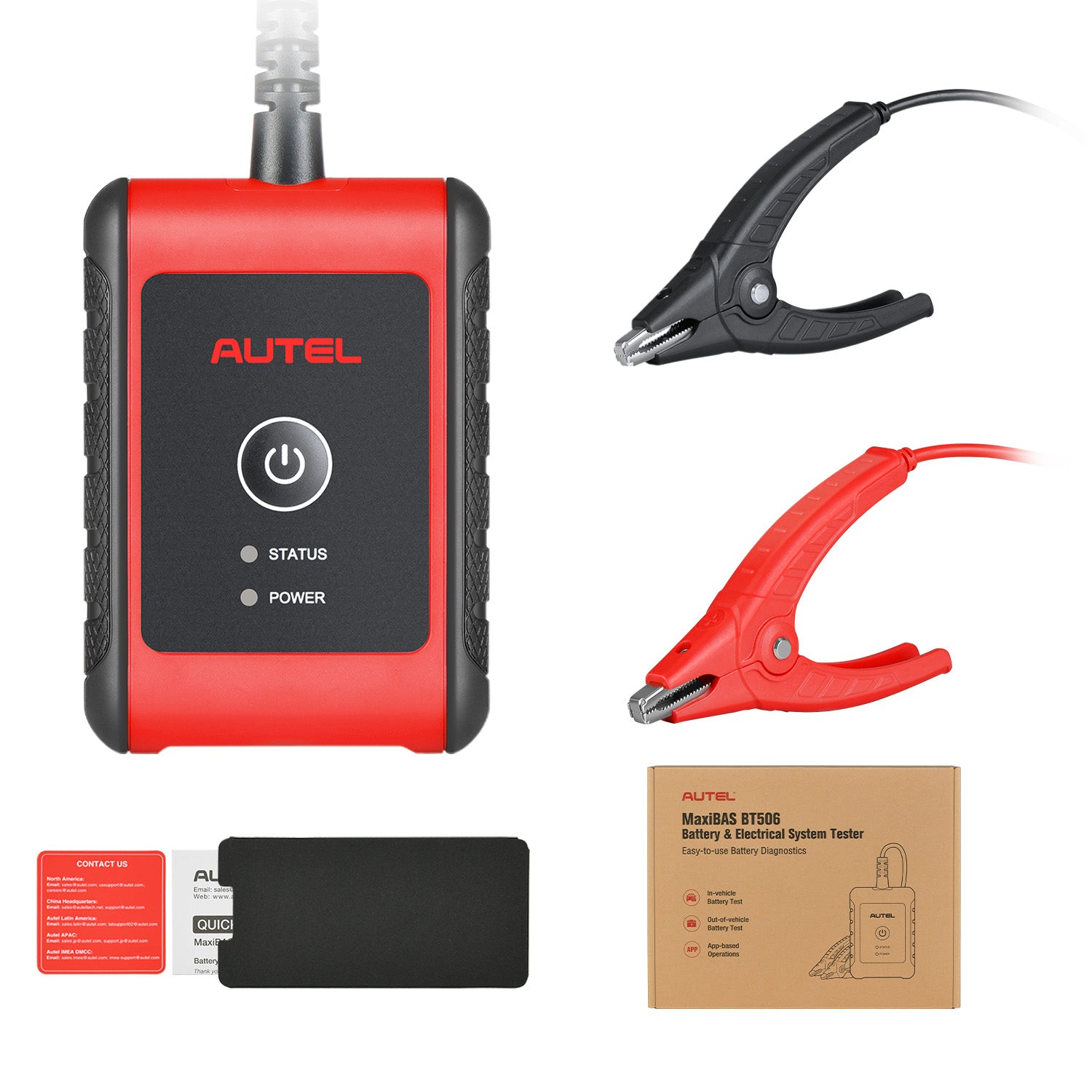

What’s in the Box

  • 1×BT506 main unit
  • 1×Battery cable (approx. 2 ft)
  • 1×Large low-profile clamps
  • 1×Temperature sensor
  • 1×User manual
