Add EV Battery Pack Diagnostics to a Launch Pro Series Tool
This add-on kit supplies pack test line adapters, OBD extension and jumper cables, banana-plug test leads and an activation PIN that unlocks EV diagnostic software, so a Launch Tech Pro Series tool can read SOC, SOH, voltage, temperature and other live data from battery packs of multiple brands.
- OBD, Connector and Jumper Methods
- 3 Pack Test Adapters
- Activation PIN Included
- Live Battery Data
Key Features
-
Three Ways to Connect
Diagnose through the OBD port, through non-standard connectors, or with jumper wires.
-
Software Activation Included
The activation card unlocks the EV diagnostic software on the host tool.
-
Real-Time Battery Data
Streams SOC, SOH, voltage, temperature and more to help pinpoint pack issues.
-
Multi-Brand Packs
Works with battery packs from multiple vehicle brands.

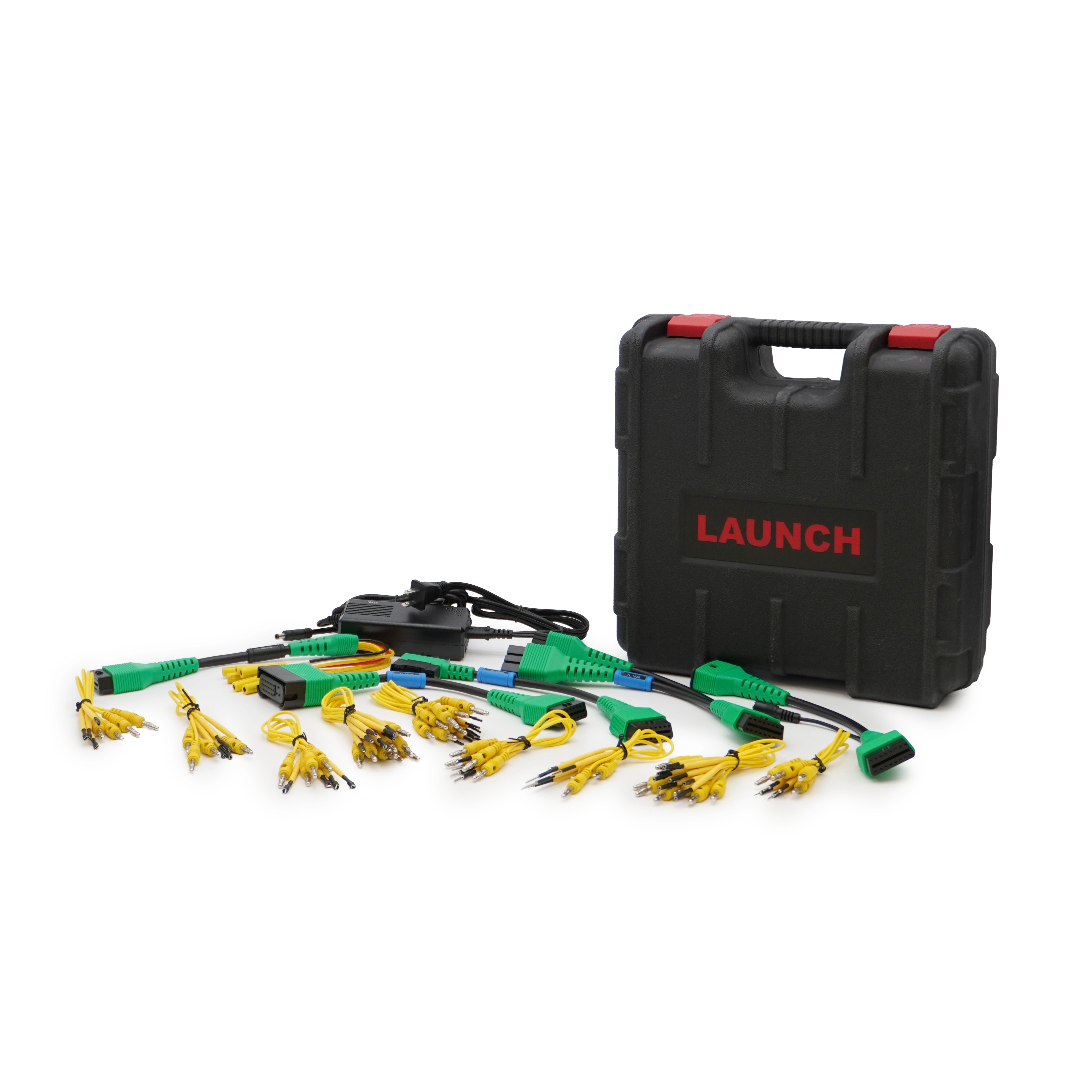

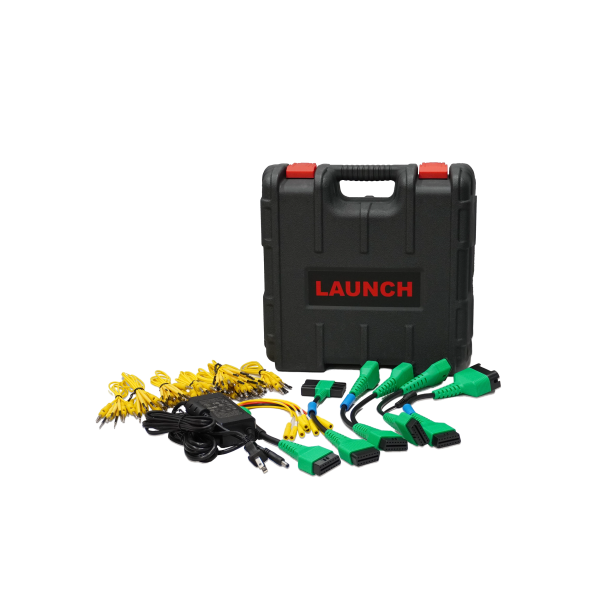

What’s in the Box
- Battery pack test line adapters TL124B, TL-152B and TL153B
- OBD 16-pin male-to-female extension cable with integrated DC barrel jack
- OBD 16-pin female to 8-pin jumper cable (Jump 8)
- Banana plug to electric control adapter test lead cables 10, 11 and 12
- Banana plug to electrically controlled switching line test lead cables 2, 3, 6, 7 and 8
- 12 V DC, 4 A, 48 W AC-to-DC power adapter
- Activation PIN envelope
Good to Know
Caution
- Requires a Launch Tech Pro Series diagnostic tool; the kit does not diagnose on its own.
- EV diagnostic software must be unlocked with the included activation PIN.
