Specifications

BrandAUTEL
Weight4000 g
ComponentsEVDiag Box + BMW, Tesla, VW dedicated adapters + splitter cable
FunctionsEV high-voltage system read/clear codes, high-voltage component replacement, battery pack diagnostics
Battery Pack DataSOC, SOH, voltage, current, temperature
Compatible HostsMaxiSys Ultra S2, Ultra, MS919, MS909
ConnectionConnects to MaxiFlash VCI or VCMI
CompatibilityUsed with Autel Ultra S2/Ultra/MS919/MS909; covers American, European and Asian electric, gasoline, diesel and hybrid vehicles

Details

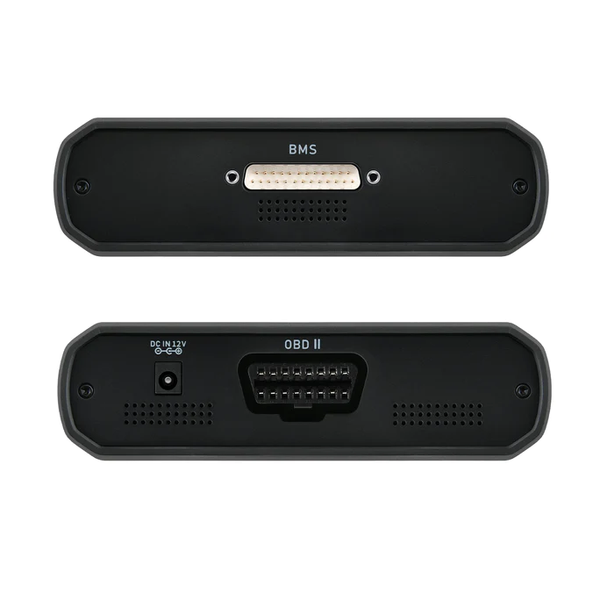

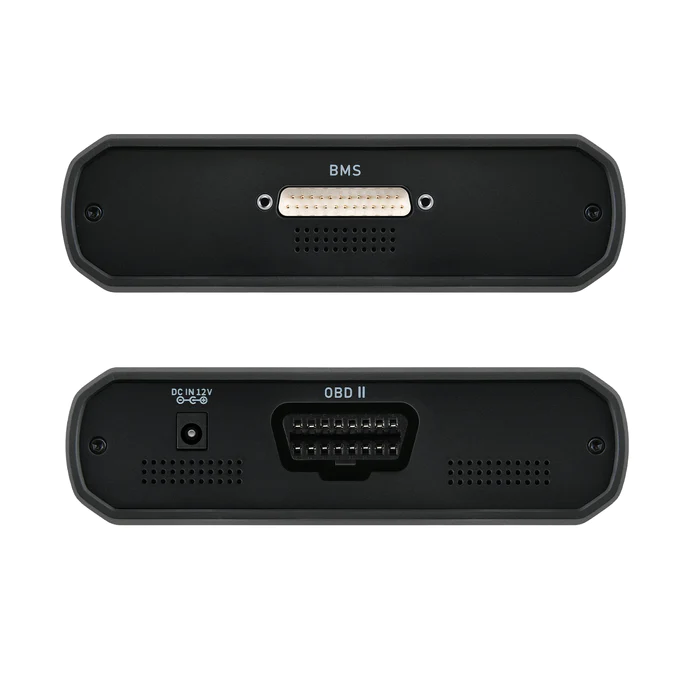

Add EV High-Voltage and Battery Pack Diagnostics to Your Autel Tablet

The EVDiag Box and its adapter set extend a MaxiSys Ultra S2, Ultra, MS919 or MS909 to EV high-voltage system diagnostics and battery pack analysis. The tablet and the MaxiFlash VCI or VCMI it connects to are not part of this kit.

  • EVDiag Box + Adapters
  • HV System Diagnostics
  • Battery Pack Analysis
  • SOC / SOH Readings
  • Carrying Case Included

Key Features

  1. High-Voltage System Diagnostics

    Read and clear codes on HV systems, carry out HV parts replacement procedures and generate HV system diagnostic reports, with system block diagrams and graphic instructions.

  2. Battery Pack Diagnostics

    Collect battery pack data directly through OBD, adapters or jumper cables, and get repair tips and maintenance advice with the results.

  3. Condition Monitoring

    Periodic battery pack checks help track condition, health and capacity, so potential issues can be identified early.

  4. Adapter Set Included

    Battery adapters and connectors for specific EVs, including BMW, Tesla and VW, plus breakout leads, so no extra accessories are needed to communicate with the battery.

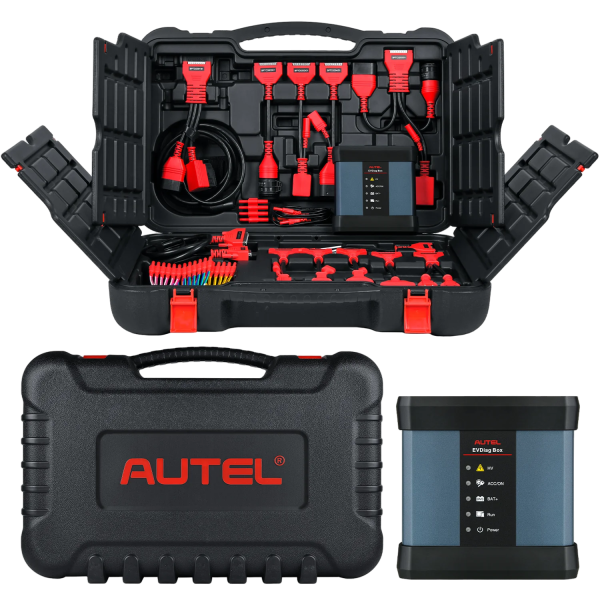

What’s in the Box

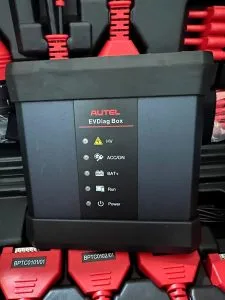

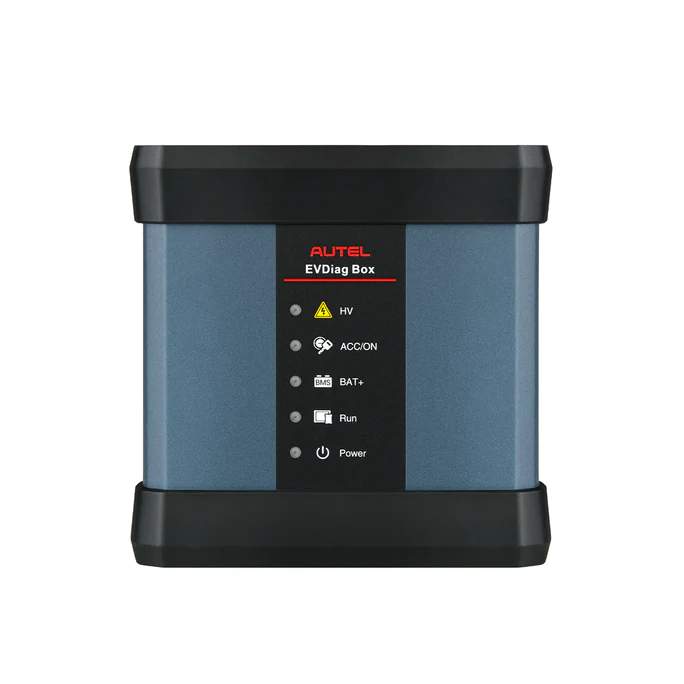

  • EVDiag Box
  • EVDiag Box main cable BPTC0001/01
  • 10 adapters: BPTC0101/01, BPTC0102/01, BPTC0103/01, BPTC0201/01, BPTC0202/01, BPTC0203/01, BPTC0204/01, BPTC0205/01, BPTC1101/01 and BPTC1102/01
  • DB25 snake cable BPTJ0001/01
  • Breakout leads 1, 2, 3 and 4 (6 pcs each)
  • Breakout lead extension cords (3 pcs)
  • Dual banana plugs (4 pcs)
  • Packing list
  • Quick reference guide
  • Carrying case (634 × 170 × 404 mm)

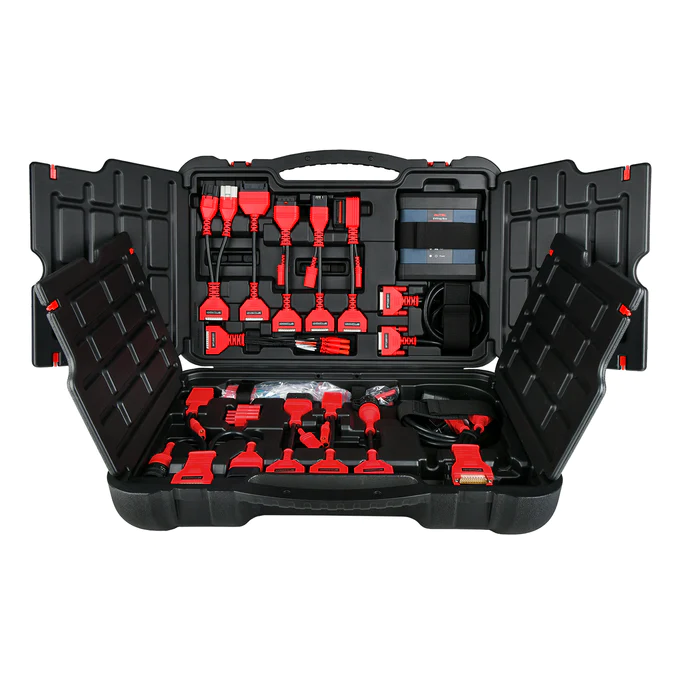

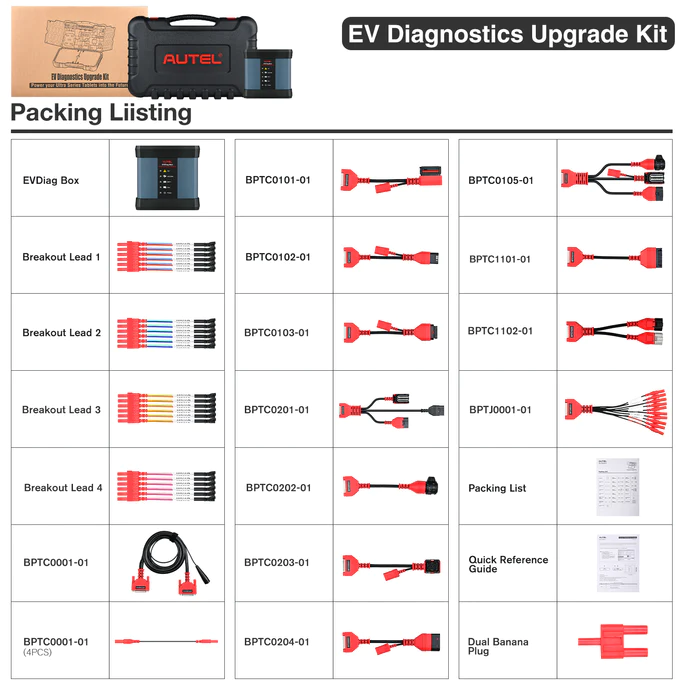

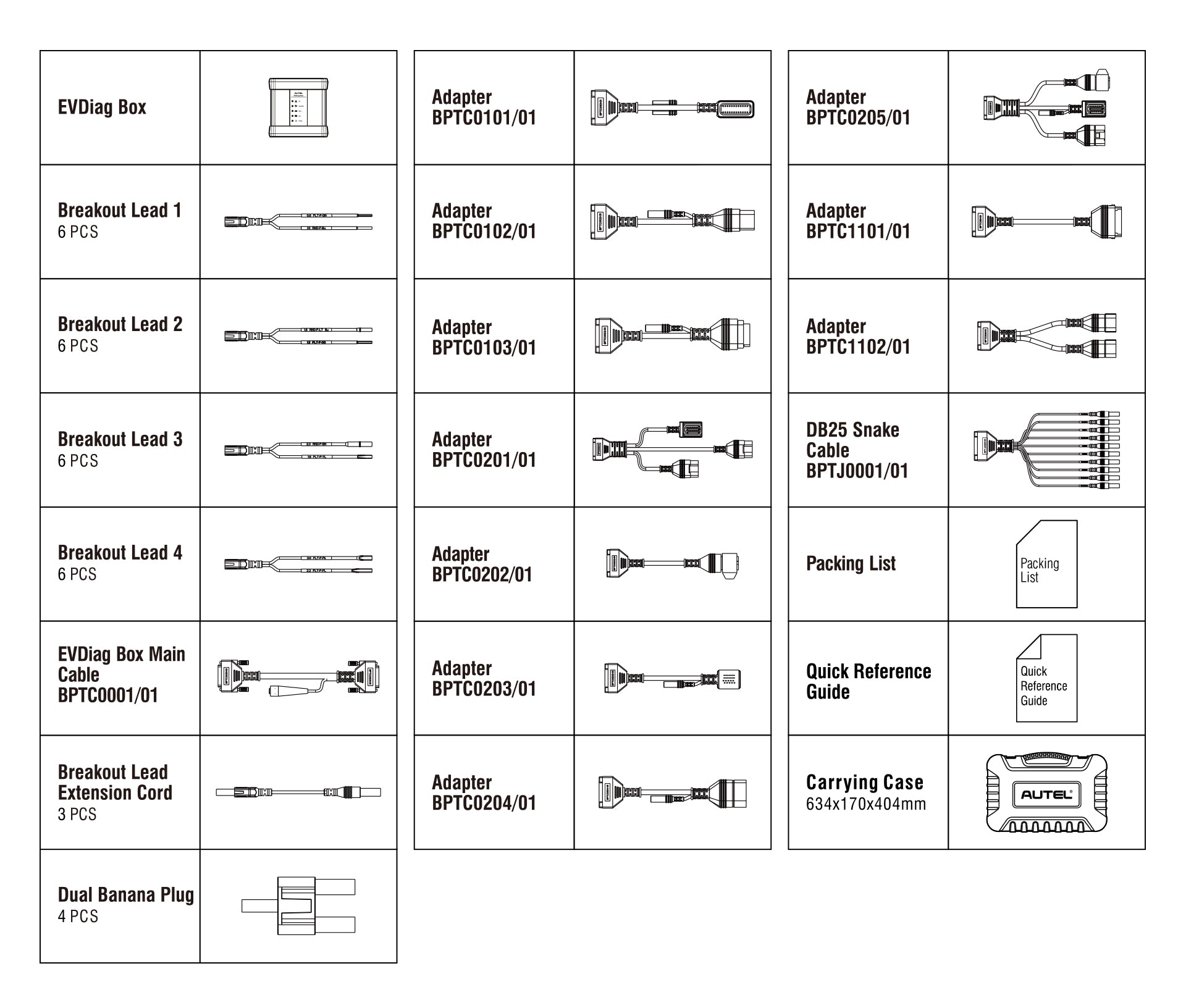

Autel EV Diagnostics Upgrade Kit packing list: EVDiag Box, main cable, adapters, DB25 snake cable, breakout leads, banana plugs, guides and carrying case
EV Diagnostics Upgrade Kit packing list.

Good to Know

Caution
  • Requires a compatible tablet (MaxiSys Ultra S2, Ultra, MS919 or MS909) and a MaxiFlash VCI or VCMI; neither is included in this kit.
