Specifications

BrandMUCAR
Weight862 g
ProcessorMT6580 CORTEX-A7 1.3GHz/4Core
Memory1GB DDR3 / 16GB EMMC
Display5 Inch 480*854 MIPI LCD
Diagnostic Functions4-system diagnostics ABS/SRS/ECM/TCM + full OBDII functions
Service Functions5 resets: Oil, SAS, EPB, TPMS, Throttle
ConnectivityWiFi 802.11b/g/n 2.4GHz
Battery3.7V / 600mAH lithium polymer
Power SupplyOBD 12V or TYPE C 5V
Languages19 languages
Vehicle CoverageCompatible with 95% of American, European and Asian vehicles
Software UpdatesAndroid system, lifetime free online upgrades of diagnostic software

Details

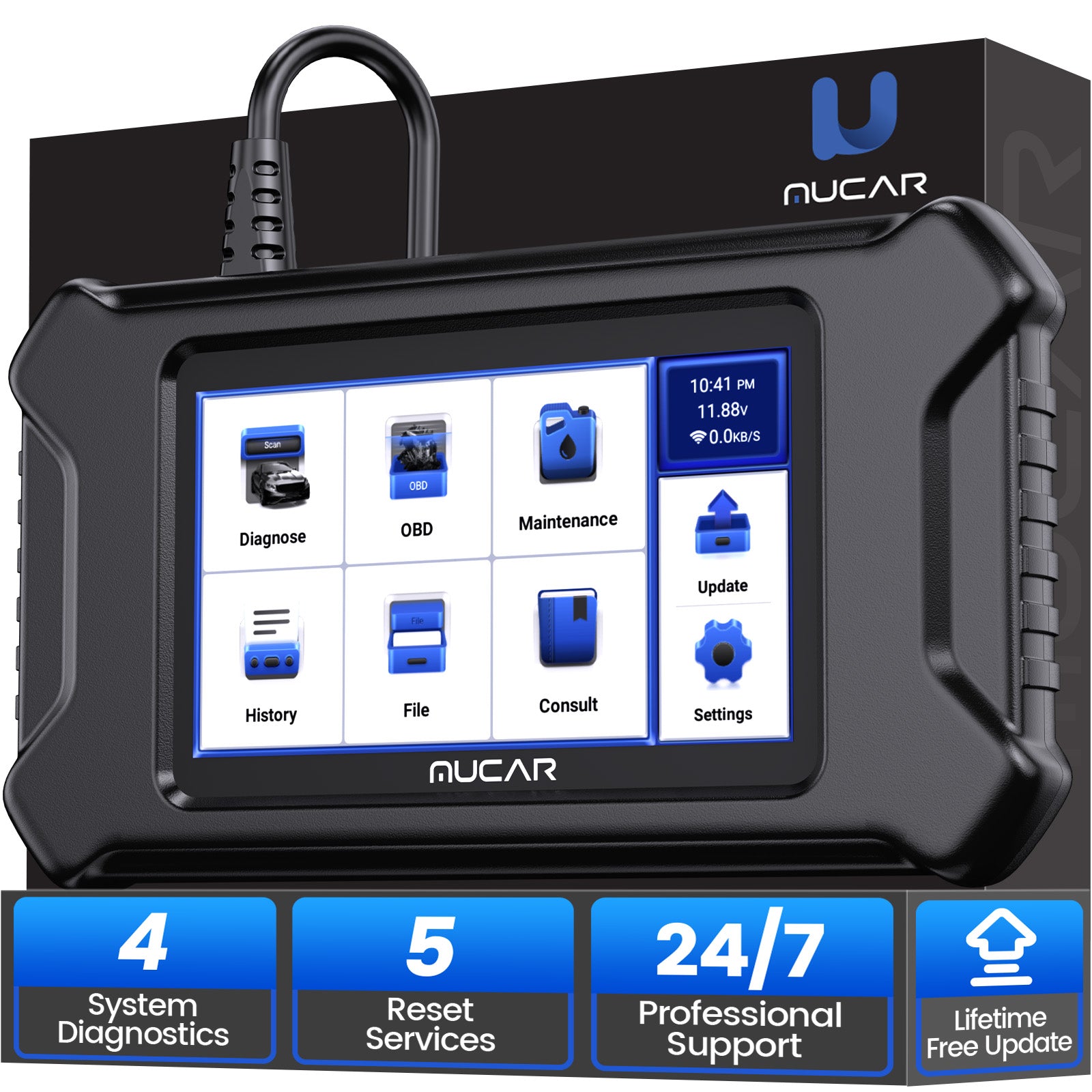

Engine, Transmission, ABS and SRS Diagnostics with 5 Service Resets

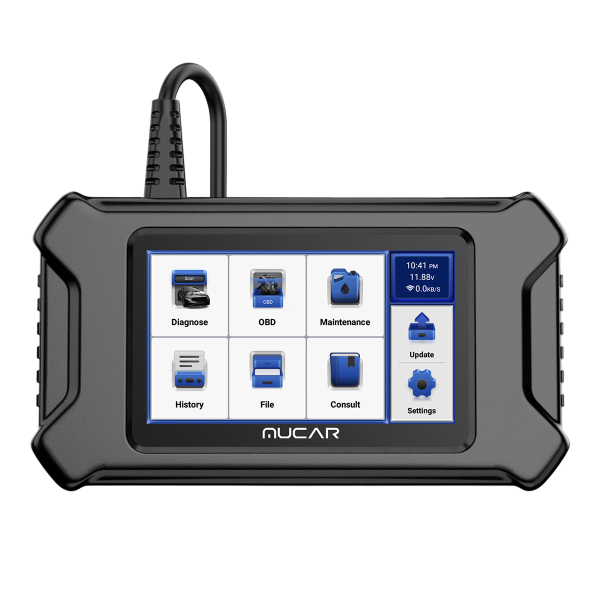

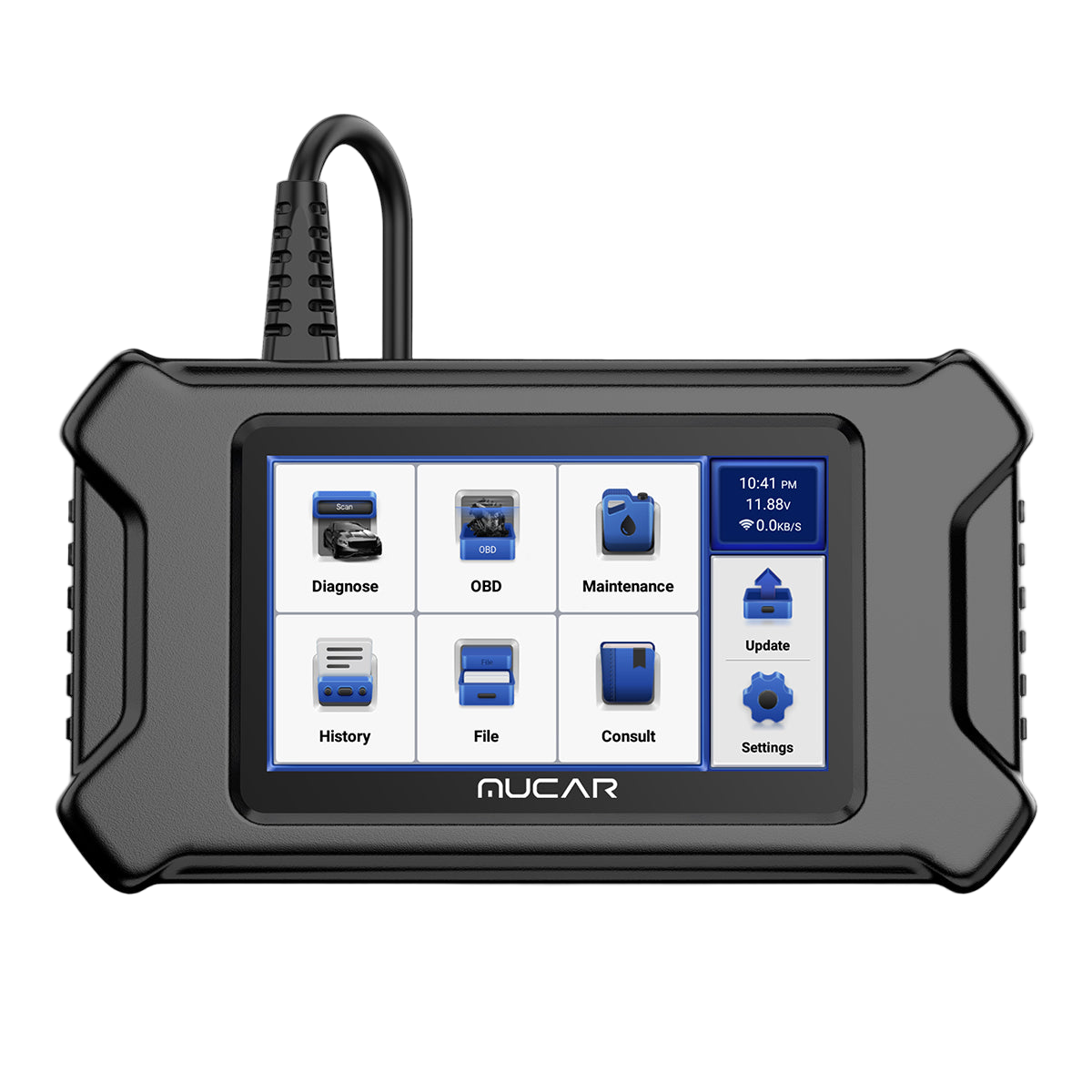

The MUCAR CS4 is an Android-based scan tool for DIY mechanics and small repair shops. It diagnoses the ABS, SRS, ECM and TCM systems, runs full OBDII functions and handles five commonly used service resets.

  • 4 Systems
  • 5 Resets
  • Full OBDII Modes
  • Auto VIN
  • Live Data Recording

Key Features

  1. Engine (ECM)

    Retrieves current, permanent and pending codes, turns off the warning light, and shows OBD II extended data such as fuel and emissions data plus manufacturer-specific parameters.

  2. ABS

    Reads and clears ABS codes, turns off the warning light and shows ABS live data streams to confirm repairs.

  3. SRS (Airbag)

    Checks the electronic parameters of the restraint system, including impact sensors, control module and airbags.

  4. Transmission (TCM)

    Reads transmission fault codes and turns off the warning light once the repair is done.

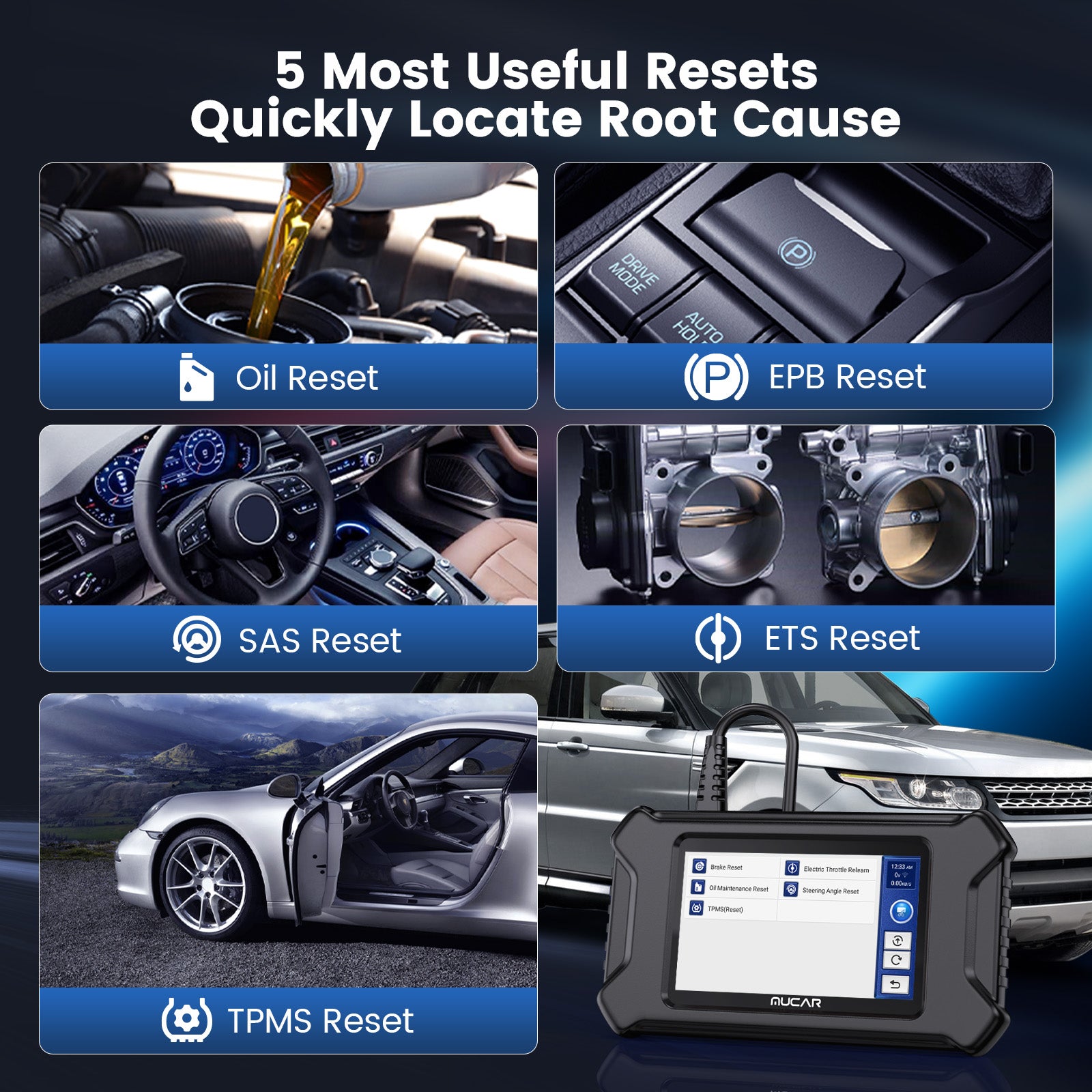

  5. Five Service Resets

    Oil reset, SAS reset, EPB service after brake repairs, TPMS service (sensor ID lookup and relearn after sensor replacement) and throttle adaptation.

  6. Full OBDII Functions

    Read and clear codes, graphical live data, freeze frame, I/M readiness, O2 sensor test, on-board monitor tests, EVAP leak test, VIN/CIN/CVN retrieval and a built-in DTC lookup library with cause analysis.

  7. Live Data Recording and Playback

    Record up to 10 PIDs at once and play them back as text or graphs, with two independent graphs or 4 PIDs combined.

  8. Online Maintenance Resources

    Operating skills, DTC help, an automotive technology handbook, repair cases and how-to videos.

Highlights

MUCAR CS4 auto VIN and engine, transmission, SRS and ABS diagnostics
Four-System Diagnostics

Auto VIN identification plus engine, transmission, SRS and ABS diagnostics.

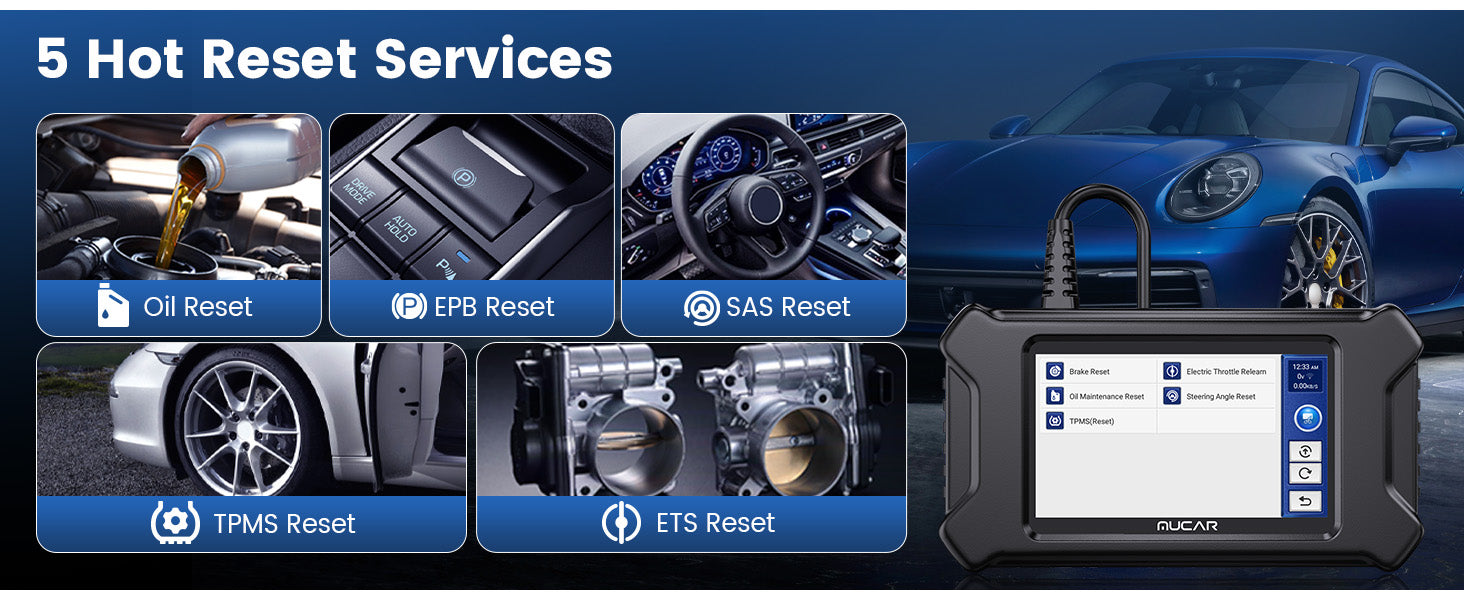

MUCAR CS4 oil, EPB, SAS, TPMS and throttle reset services
Five Reset Services

Oil, EPB, SAS, TPMS and electronic throttle resets from the maintenance menu.

MUCAR CS4 OBD2 modes including read codes, live data and EVAP test
All OBD2 Modes

From reading codes and freeze frame to EVAP and O2 sensor tests and permanent DTCs.

More Specifications

Touch panel GT911 GFF
USB 1 × Type-C
TF card Supports SDHC high-speed cards

What’s in the Box

  • 1×MUCAR CS4 host
  • 1×Manual
  • 1×Charging cable

Updates & Support

Languages
English, French, German, Italian, Spanish, Portuguese, Japanese, Russian, Dutch, Hungarian, Slovak, Greek, Arabic, Czech, Polish, Traditional Chinese, Korean, Turkish, Danish
