Justin E.

An advanced affordable scanner

The CS4 gives you four advanced features found on new cars and trucks as lifetime programs. So you can clear the oil warning after changing oil for instance or reset your TPMS. For other features such as ABS Bleeding as example, you have to use the store and pay 29.95 for it and it's only for a year subscription. So after a year, you have to pay up again. This is on par with other scanners though. Though note that each advanced feature you may need that isn't part of the main four given, is 29.95 a year.. Each. If you are a mechanic, that wouldn't be much of an issue with the ROI from using it more often. DIY though, its kind of a bummer. For me my Chevy Blazer is a 2001 so I really don't need the more advanced features and note that not all features will work with every make and model so you have to check first. The store itself is easy to navigate and look up the different programs to add for purchase has has a review section for each. A glaring issue I find though is there isn't much info about each one and of any known compatible makes and models. You'll actually find some folks saying how they paid for the feature and find it didn't work for them. So keep that in mind. Though the scanner itself though for what it has already is great and was able to find a few codes relating to my dreaded P0300 issue and found that my ABS module is having an issue (common for my vehicle) and that my airbag system is perfectly fine. You can also view live data as well as freeze frame data and customize exactly what you want to look at. So for me I set it up to show me live data for all cylinders and their history. I found that cylinder 3 and 6 are misfiring with high counts. I can then make a report of it and save it as a pdf or email the report to myself or if you're a professional mechanic can send to your customer's email. On the scanner itself on top under a dust cover you'll find a usb-c connector (a usb-c cable is included) and a micro SD card slot. Now for the USB C connector you can use the included cable to connect the scanner to your PC or laptop to get any files from it. The micro SD card slot though I've found it not to be working or at least not with the 64GB card I tried with it. I inserted it and nothing popped up as if it recognized it and going into the file manager only shows internal memory and no external SD card memory. This could be an issue with the slot itself or simply its picky about which micro SD card it'll take. But is something to be thoughtful if you plan to use sdcard to move files. Another glaring issue I find though is while the box it comes in is quite nice, it's also your case. There is no included soft or hard case which for a scanner that is going to possibly be in a shop or heck even at home, I feel a case is more than necessary for a device such as this. In a shop, that box alone isn't going to last. So other than a couple pitfalls that I've found, as an advanced Scanner to help me diagnose issues beyond just OBDII such as ABS, it does the job perfectly in my opinion. Oh also I forgot to mention that in the store they have a points system. You can "check in" every day through the store while connected to wifi and for every 3rd day you get 1 point. You automatically get 5 points. Each point acts as 1usd. So remember that subscription price of 29.95 for each advanced program? That means right off the bat you can save 5 usd off the price or if you saved up 30 points, you should be able to technically get the year subscription for the selected feature at no extra cost. You don't have to hook up the scanner to a vehicle either just to power it on and check on every day for the points. Simply connect the Usb-c cable to a USB power adapter like the one that comes with your phone and it'll power up with it. So overall I would suggest this scanner. It would make an excellent gift for a DIY weekend warrior or a mechanic friend or family member who could use one.

Lisa D.

Great tool

This was a gift to my fiancé and he loves it. He said it’s a great tool and much better than any other diagnostic tool he has used.

Uwe

Voll ok

Gutes Teil … Updates ohne Probleme und schnell… Preis und Bewertungen auf anderen Seiten sind sehr gut… kann man empfehlen

Specificaties

MerkMUCAR
Gewicht862 g
ProcessorMT6580 CORTEX-A7 1.3GHz/4Core
Geheugen1GB DDR3 / 16GB EMMC
Scherm5 Inch 480*854 MIPI LCD
DiagnosefunctiesDiagnose van 4 systemen ABS/SRS/ECM/TCM + volledige OBDII-functies
Onderhoudsfuncties5 resets: olie, SAS, EPB, TPMS, gasklep
ConnectiviteitWiFi 802.11b/g/n 2.4GHz
Accu3.7V / 600mAH lithium-polymeer
VoedingOBD 12V of TYPE C 5V
Talen19 talen
VoertuigdekkingCompatibel met 95% van de Amerikaanse, Europese en Aziatische voertuigen
Software-updatesAndroid-systeem, levenslang gratis online upgrades van de diagnosesoftware

Details

Diagnose van motor, transmissie, ABS en SRS met 5 serviceresets

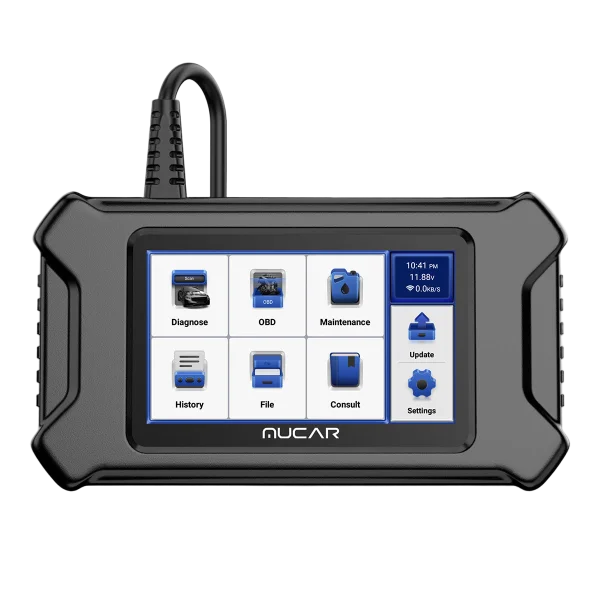

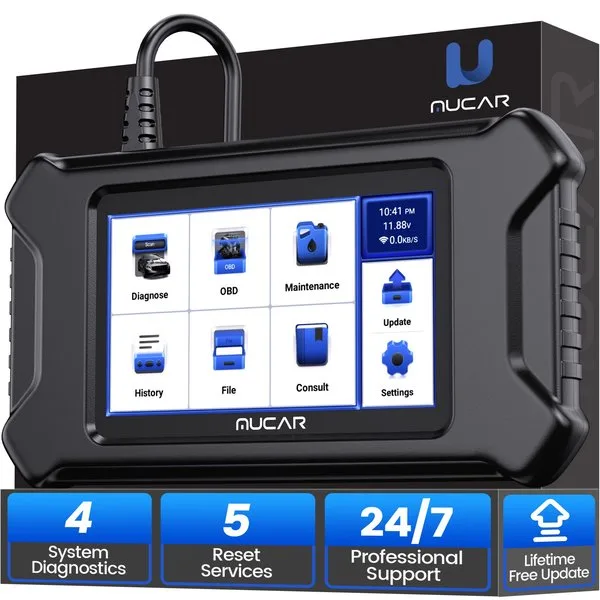

De MUCAR CS4 is een diagnosetester op basis van Android voor hobbymonteurs en kleine garages. Hij stelt diagnoses van de ABS-, SRS-, ECM- en TCM-systemen, voert alle OBDII-functies uit en biedt vijf veelgebruikte serviceresets.

  • 4 systemen
  • 5 resets
  • Volledige OBDII-modi
  • Auto VIN
  • Livegegevens opnemen

Belangrijkste kenmerken

  1. Motor (ECM)

    Leest actuele, permanente en nog niet bevestigde foutcodes uit, schakelt het waarschuwingslampje uit, en toont uitgebreide OBD II-gegevens zoals brandstof- en emissiegegevens en fabrikantspecifieke parameters.

  2. ABS

    Leest en wist ABS-foutcodes, schakelt het waarschuwingslampje uit en toont live datastromen van ABS om reparaties te controleren.

  3. SRS (Airbag)

    Controleert de elektronische parameters van het beveiligingssysteem voor inzittenden, waaronder botsingssensoren, de regelmodule en airbags.

  4. Transmissie (TCM)

    Leest transmissiefoutcodes uit en schakelt het waarschuwingslampje uit zodra de reparatie is voltooid.

  5. Vijf onderhoudsresets

    Olieservicereset, SAS-reset, EPB-service na remreparaties, TPMS-service (sensor-ID opzoeken en opnieuw inleren na sensorvervanging) en gasklepadaptatie.

  6. Volledige OBDII-functies

    Foutcodes uitlezen en wissen, grafische livegegevens, freeze frame, I/M-gereedheid, O2-sensortest, tests van boordmonitors, EVAP-lektest, VIN/CIN/CVN uitlezen en een ingebouwde DTC-opzoekbibliotheek met oorzaakanalyse.

  7. Realtime gegevens opnemen en afspelen

    Neem maximaal 10 PIDs tegelijk op en speel ze af als tekst of grafieken, met twee afzonderlijke grafieken of 4 PIDs gecombineerd.

  8. Online onderhoudsinformatie

    Bedieningsvaardigheden, hulp bij DTC, een handboek autotechniek, reparatievoorbeelden en instructievideo's.

Pluspunten

MUCAR CS4 automatische VIN-herkenning en diagnose van motor, transmissie, SRS en ABS
Diagnose van vier systemen

Automatische VIN-identificatie plus diagnose van motor, transmissie, SRS en ABS.

MUCAR CS4 olieservicereset, EPB-, SAS-, TPMS- en gasklepresetfuncties
Vijf resetfuncties

Olieservicereset, EPB-, SAS-, TPMS- en elektronische gasklepreset via het onderhoudsmenu.

MUCAR CS4 OBD2-modi, waaronder foutcodes uitlezen, livegegevens en EVAP-test
Alle OBD2-modi

Van het uitlezen van foutcodes en freeze-framegegevens tot EVAP- en O2-sensortests en permanente DTC's.

Meer specificaties

Aanraakpaneel GT911 GFF
USB 1 × Type-C
TF-kaart Ondersteunt snelle SDHC-kaarten

Inhoud van de doos

  • 1×MUCAR CS4-hoofdeenheid
  • 1×Handmatig
  • 1×Laadkabel

Updates & ondersteuning

Talen
Engels, Frans, Duits, Italiaans, Spaans, Portugees, Japans, Russisch, Nederlands, Hongaars, Slowaaks, Grieks, Arabisch, Tsjechisch, Pools, traditioneel Chinees, Koreaans, Turks, Deens

Aanbevolen

Opties kiezen

Levering

Verzending binnen 1-3 werkdagen

Betaalmethoden

  • Creditcard / BetaalkaartVisaMastercardAmerican Express
  • PayPalPayPal
  • Apple PayApple Pay
  • Google PayGoogle Pay
  • LinkLink
  • iDEAL | WeroiDEAL | Wero
  • BancontactBancontact
  • EPSEPS
  • Przelewy24Przelewy24
  • BancontactBancontact
  • BlikBlik
  • EPSEPS
  • iDealiDeal
  • MyBankMyBank
  • Przelewy24Przelewy24
  • TrustlyTrustly
  • MultibancoMultibanco

Beschikbare methoden kunnen verschillen per valuta en factuurland; de definitieve lijst wordt getoond bij het afrekenen.

Service

  • Veilig afrekenen

    Betalingen worden via een versleutelde verbinding verwerkt.

  • Ondersteuning na verkoop

    Neem contact met ons op bij vragen over installatie of gebruik.

Specificaties

Merk
MUCAR
Gewicht
862 g
Processor
MT6580 CORTEX-A7 1.3GHz/4Core
Geheugen
1GB DDR3 / 16GB EMMC
Scherm
5 Inch 480*854 MIPI LCD
Diagnosefuncties
Diagnose van 4 systemen ABS/SRS/ECM/TCM + volledige OBDII-functies
Onderhoudsfuncties
5 resets: olie, SAS, EPB, TPMS, gasklep
Connectiviteit
WiFi 802.11b/g/n 2.4GHz
Accu
3.7V / 600mAH lithium-polymeer
Voeding
OBD 12V of TYPE C 5V
Talen
19 talen
Voertuigdekking
Compatibel met 95% van de Amerikaanse, Europese en Aziatische voertuigen
Software-updates
Android-systeem, levenslang gratis online upgrades van de diagnosesoftware

Reviews12

4,9 / 5Gebaseerd op 12 beoordelingen
3 ★0
2 ★0
1 ★0
Justin E.

An advanced affordable scanner

The CS4 gives you four advanced features found on new cars and trucks as lifetime programs. So you can clear the oil warning after changing oil for instance or reset your TPMS. For other features such as ABS Bleeding as example, you have to use the store and pay 29.95 for it and it's only for a year subscription. So after a year, you have to pay up again. This is on par with other scanners though. Though note that each advanced feature you may need that isn't part of the main four given, is 29.95 a year.. Each. If you are a mechanic, that wouldn't be much of an issue with the ROI from using it more often. DIY though, its kind of a bummer. For me my Chevy Blazer is a 2001 so I really don't need the more advanced features and note that not all features will work with every make and model so you have to check first. The store itself is easy to navigate and look up the different programs to add for purchase has has a review section for each. A glaring issue I find though is there isn't much info about each one and of any known compatible makes and models. You'll actually find some folks saying how they paid for the feature and find it didn't work for them. So keep that in mind. Though the scanner itself though for what it has already is great and was able to find a few codes relating to my dreaded P0300 issue and found that my ABS module is having an issue (common for my vehicle) and that my airbag system is perfectly fine. You can also view live data as well as freeze frame data and customize exactly what you want to look at. So for me I set it up to show me live data for all cylinders and their history. I found that cylinder 3 and 6 are misfiring with high counts. I can then make a report of it and save it as a pdf or email the report to myself or if you're a professional mechanic can send to your customer's email. On the scanner itself on top under a dust cover you'll find a usb-c connector (a usb-c cable is included) and a micro SD card slot. Now for the USB C connector you can use the included cable to connect the scanner to your PC or laptop to get any files from it. The micro SD card slot though I've found it not to be working or at least not with the 64GB card I tried with it. I inserted it and nothing popped up as if it recognized it and going into the file manager only shows internal memory and no external SD card memory. This could be an issue with the slot itself or simply its picky about which micro SD card it'll take. But is something to be thoughtful if you plan to use sdcard to move files. Another glaring issue I find though is while the box it comes in is quite nice, it's also your case. There is no included soft or hard case which for a scanner that is going to possibly be in a shop or heck even at home, I feel a case is more than necessary for a device such as this. In a shop, that box alone isn't going to last. So other than a couple pitfalls that I've found, as an advanced Scanner to help me diagnose issues beyond just OBDII such as ABS, it does the job perfectly in my opinion. Oh also I forgot to mention that in the store they have a points system. You can "check in" every day through the store while connected to wifi and for every 3rd day you get 1 point. You automatically get 5 points. Each point acts as 1usd. So remember that subscription price of 29.95 for each advanced program? That means right off the bat you can save 5 usd off the price or if you saved up 30 points, you should be able to technically get the year subscription for the selected feature at no extra cost. You don't have to hook up the scanner to a vehicle either just to power it on and check on every day for the points. Simply connect the Usb-c cable to a USB power adapter like the one that comes with your phone and it'll power up with it. So overall I would suggest this scanner. It would make an excellent gift for a DIY weekend warrior or a mechanic friend or family member who could use one.

Lisa D.

Great tool

This was a gift to my fiancé and he loves it. He said it’s a great tool and much better than any other diagnostic tool he has used.

Uwe

Voll ok

Gutes Teil … Updates ohne Probleme und schnell… Preis und Bewertungen auf anderen Seiten sind sehr gut… kann man empfehlen

Werner P.

Gerät macht, was es soll

Dieses Diagnosegerät macht und kann all das, was in der Gerätebeschreibung steht. Super! Schade ist nur, dass eine Aufbewahrungstasche nicht dabei ist.

markus S.

Sehr gutes Preis-Leistungs-Verhältnis

Für Hobbyschrauber mehr als ausreichend, einfache Bedienbarkeit, gute Funktionen und Auslesebarkeit von ISTwerten, zu empfehlen

Fiona

great value scanner

This was my first scanner .What a great choice! Cleared codes and check engine light went off and running live stream data 90 miles before inspection helped pass the vehicle! A+!

Evgenii

Does its job

Works well with Sorento UM. Successfully resets EPB to 0 position so brake pads can be replaced. Price is also acceptable

heiner L.

Ist super 1a

Ist sehr gut und zeigt vieles an

JP

Ganz einfach zu bedienen

Das Gerät ist perfekt

Karl W.

Diagnose

Sehr gutes Gerät funktioniert wie beschrieben komme sehr gut zurecht und einwandfrei
