Sale

Reviews·13

4.9 / 5Based on 13 reviews

3 ★0%

2 ★0%

1 ★0%

Marcin D.

Jul 11, 2023

Marcin Debowski

Perfekt all was I'm ned

Alexander G.

Aug 7, 2026

5 years on...

...and not a single problem, I use this scanner on around 30 different cars a week from all marques, have not found a single car I cannot talk to, the free updates for life pay for scanner in the first year and they are pretty regular. It may not be the fastest on the market but with it's help and its seemingly endless battery life, there is no way I can justify buying a more expensive, pay for features scanner from other tool manufacturers.

Attila L.

Mar 20, 2025

Thinktool mini2

Fast shipping, perfect product, good communications.

Specifications

BrandTHINKCAR

Operating SystemAndroid 10

Display5.99-inch (also stated as 6 inch)

Memory2G + 32G

ConnectivityBluetooth 5.0BLE dual-mode + Wi-Fi

Camera8Mp

Battery6300 mAh/3.8V

Diagnostic FunctionsOE-level full-system diagnostics + 28 resets, lifetime free

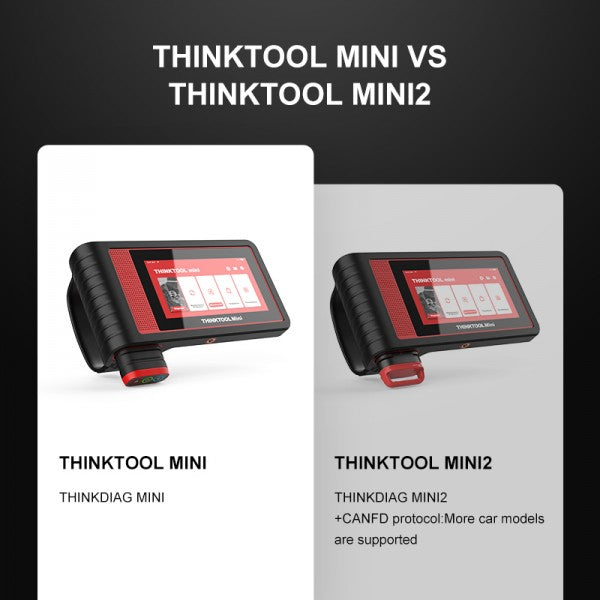

Supported ProtocolsMINI 2 supports CANFD

Vehicle Coverage93-106 brands; most 1996 and newer vehicles; MINI 2 supports CAN-FD (GM 2020 and newer)

Dimensions228mm*118mm*53mm

Software UpdatesFull-system and resets lifetime free; ECU Coding and Active Test require a paid per-make subscription

Details

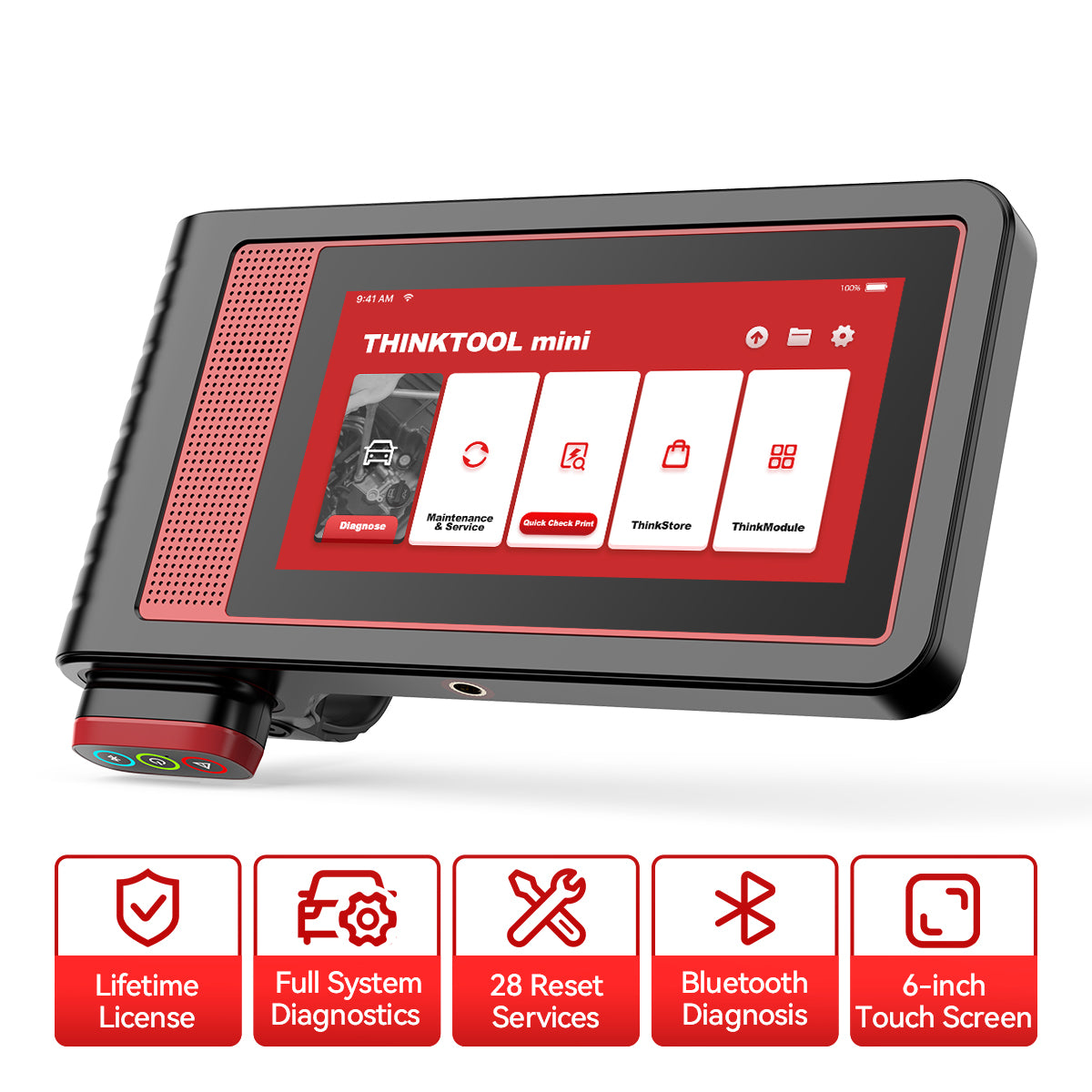

Full-System Diagnostics and 28 Maintenance Services on a Compact Android Tablet

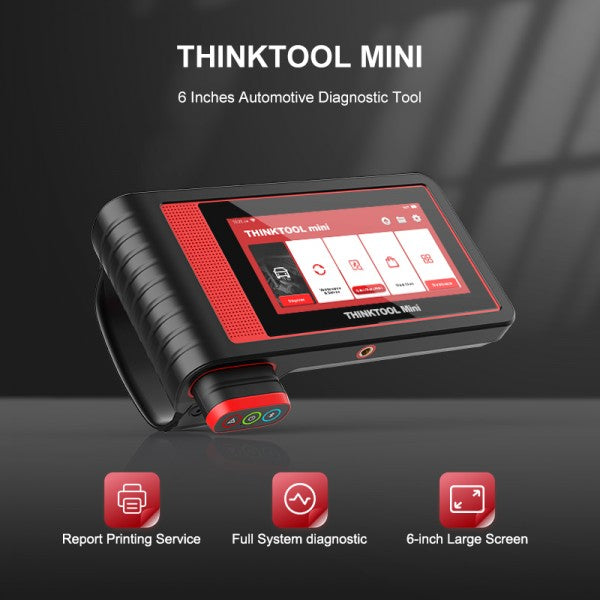

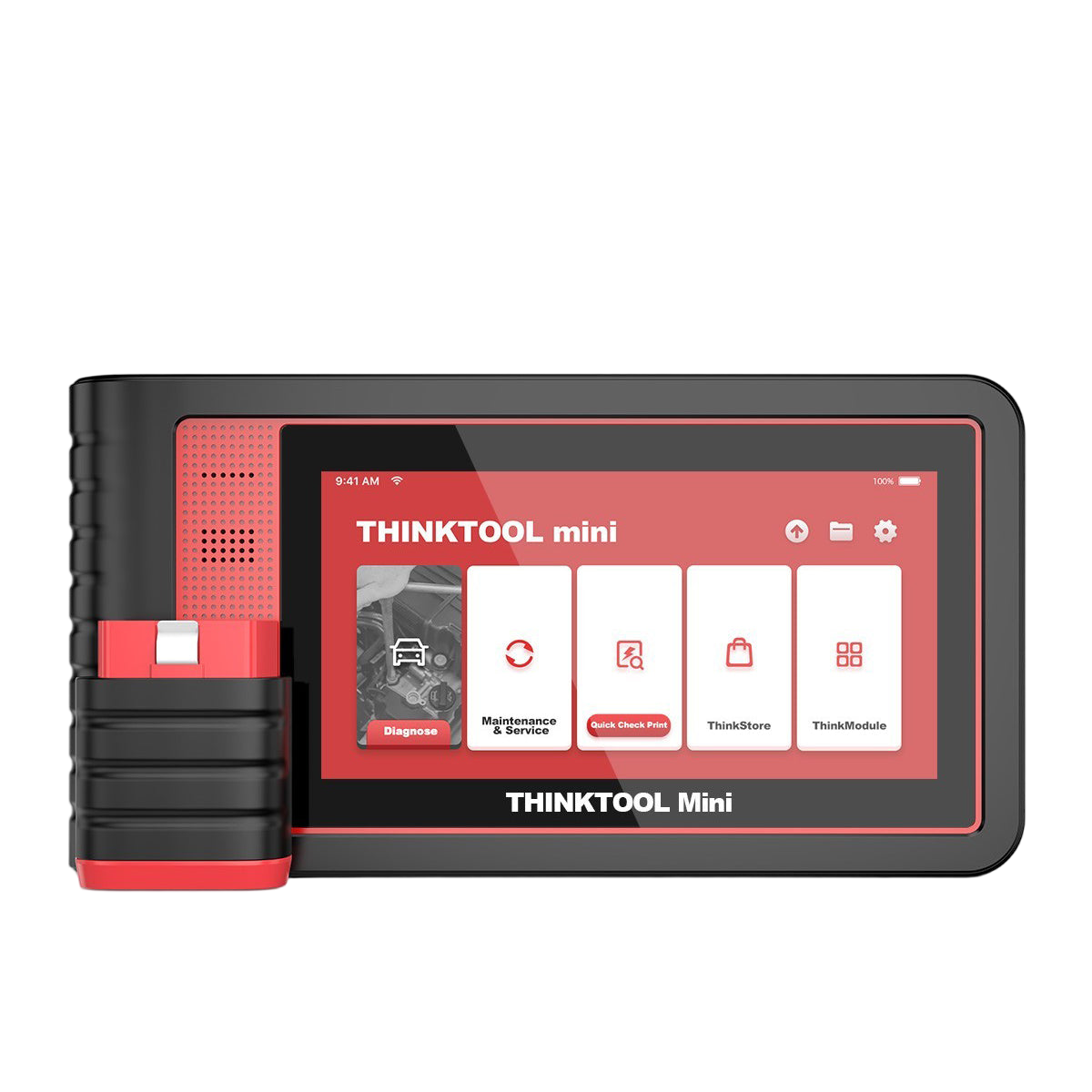

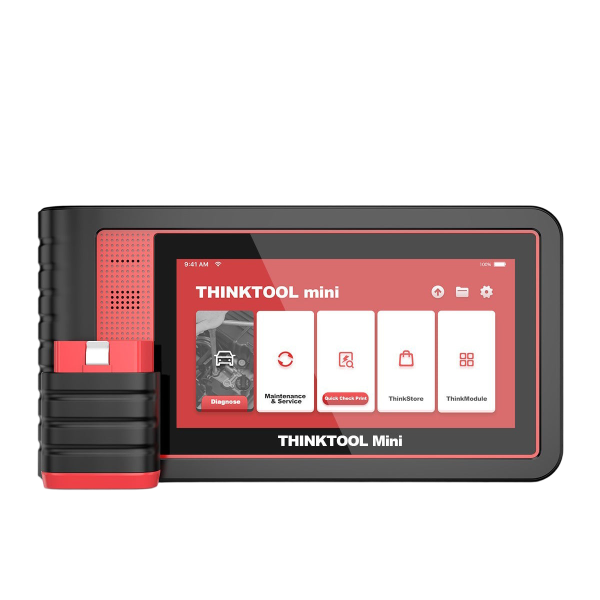

THINKTOOL MINI pairs an Android 10 tablet with a Bluetooth VCI for OE-level full-system diagnostics and maintenance services on most vehicles built in 1996 or later, and supports optional extension modules.

Full-System Diagnostics
28 Maintenance Services
Bluetooth VCI
Extensible Modules
AutoAuth FCA SGW

Key Features

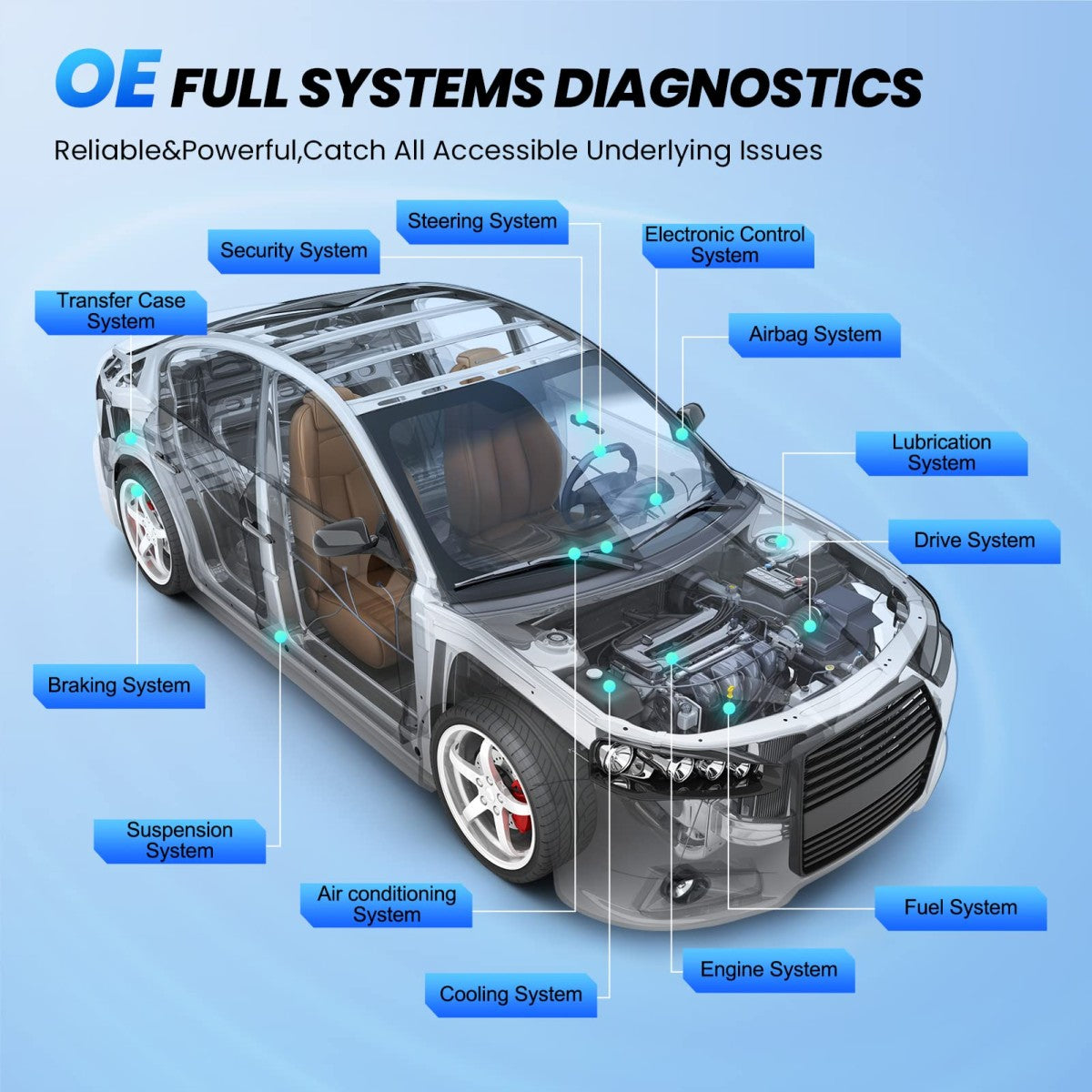

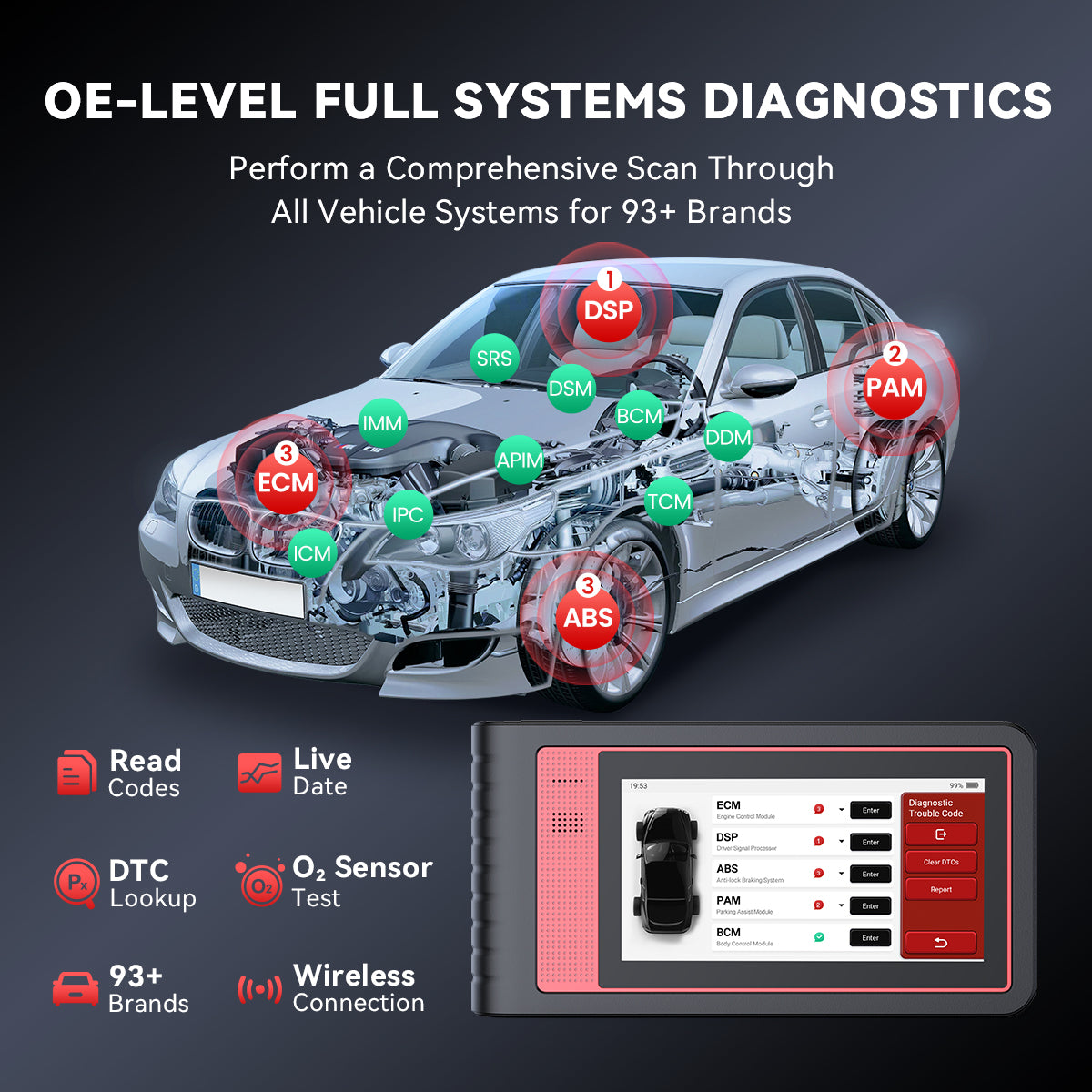

OE-Level Full-System Diagnostics

Read and clear fault codes for systems such as ECM, TCM, ABS, SRS, BCM, IMM, BMS, TPMS, SAS, fuel, lighting and wipers; read ECU information and display real-time data.
28 Maintenance Services

Includes ABS bleeding, AdBlue reset, adaptive front lighting, air/fuel reset, air level calibration, airbag reset, battery matching, brake reset, coolant bleed, crank position sensor learning, DPF regeneration, EGR adaption, throttle relearn, gearbox relearn, immobilizer reset, injector coding, language change, NOx sensor reset, oil maintenance reset, seat occupancy calibration, steering angle reset, stop/start reset, sunroof reset, TPMS reset, tire reset, transport mode and window calibration.
Full OBD2 Functions

Supports the full set of OBD2 diagnostic functions over KWP, CAN, ISO 9141-2 and SAE J1850 VPW and PWM protocols.

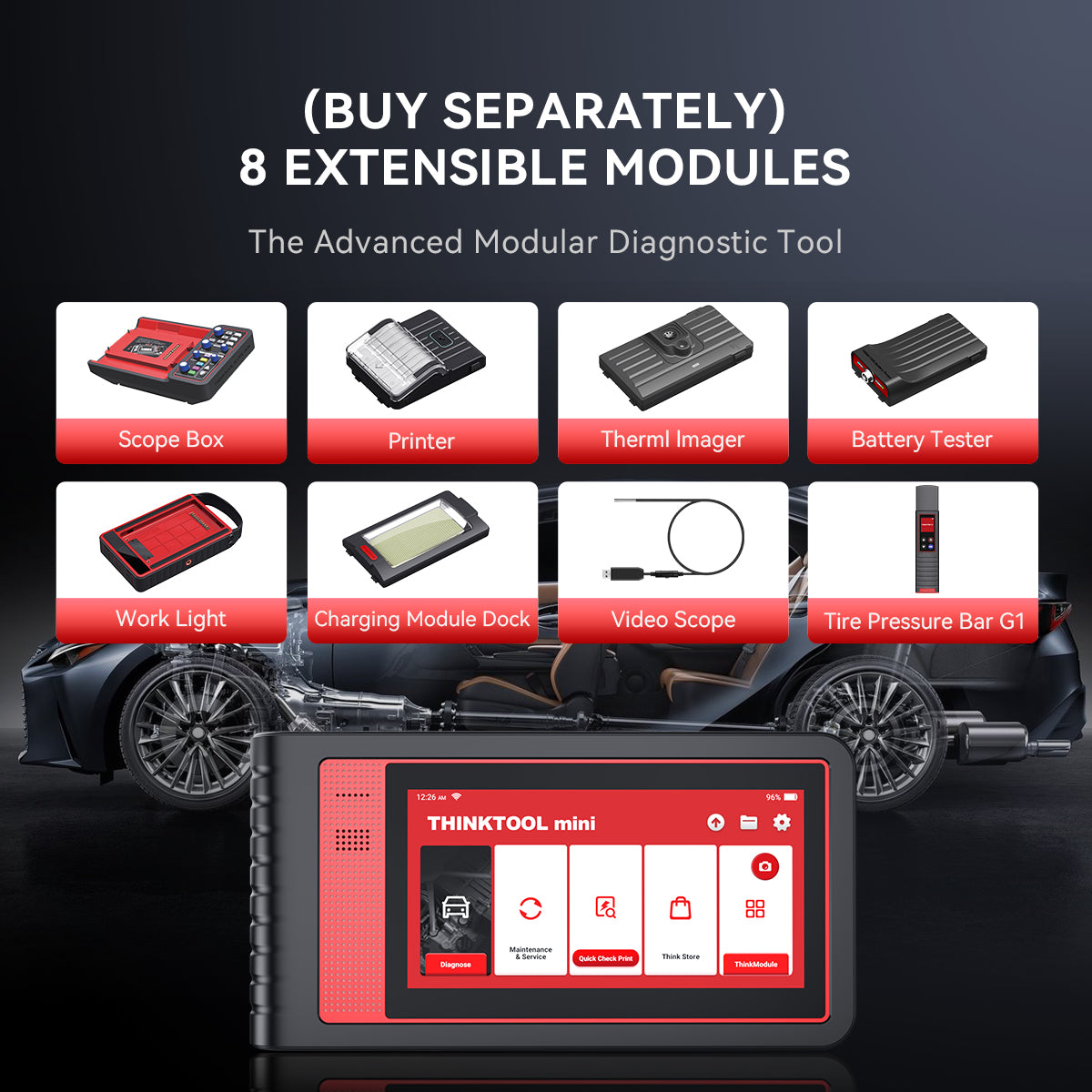

Extensible Modules

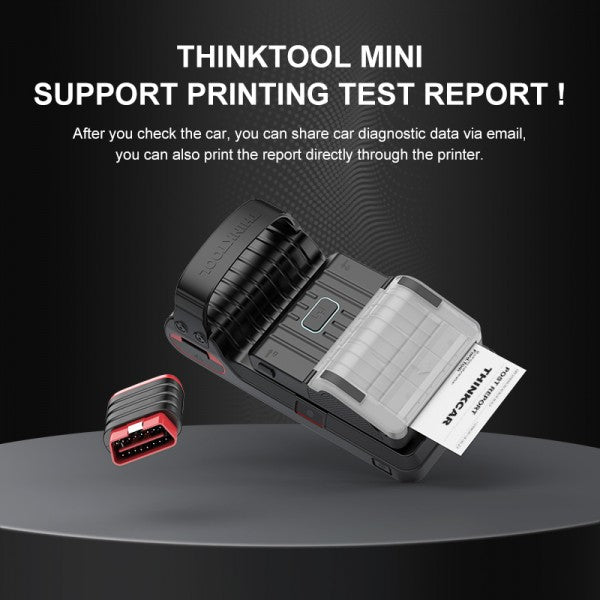

Connects to optional modules such as a scope box, printer, thermal imager, battery tester, work light, charging module dock and video scope.
TPMS and FCA Gateway Access

Works with THINKCAR THINKTPMS G2 and with AutoAuth for FCA secure gateway access.

Highlights

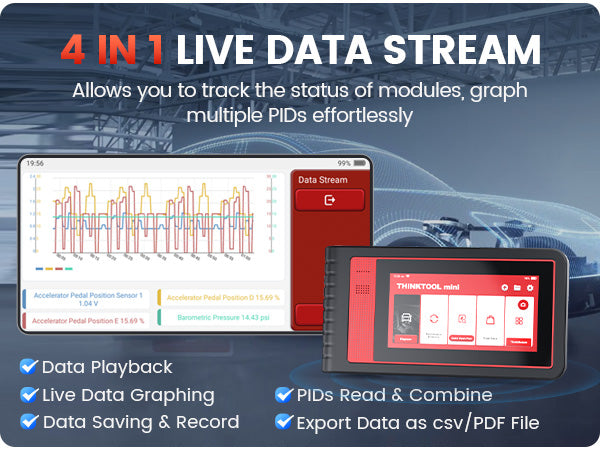

THINKTOOL MINI live data stream screen graphing multiple PIDs — Live Data

Real-time data and parameters from vehicle systems.

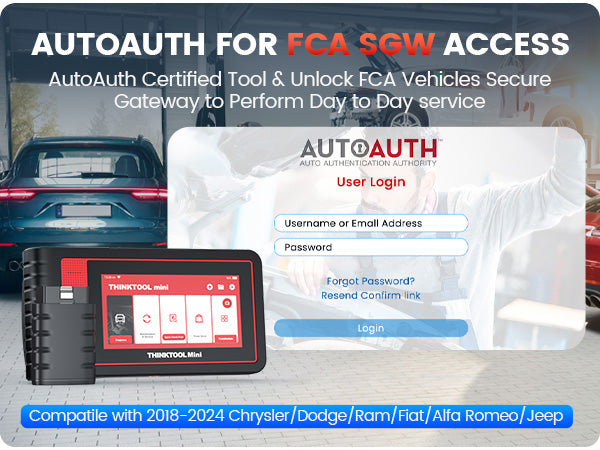

THINKTOOL MINI with the AutoAuth login screen for FCA secure gateway access — FCA Gateway Access

Use with an AutoAuth account on FCA vehicles.

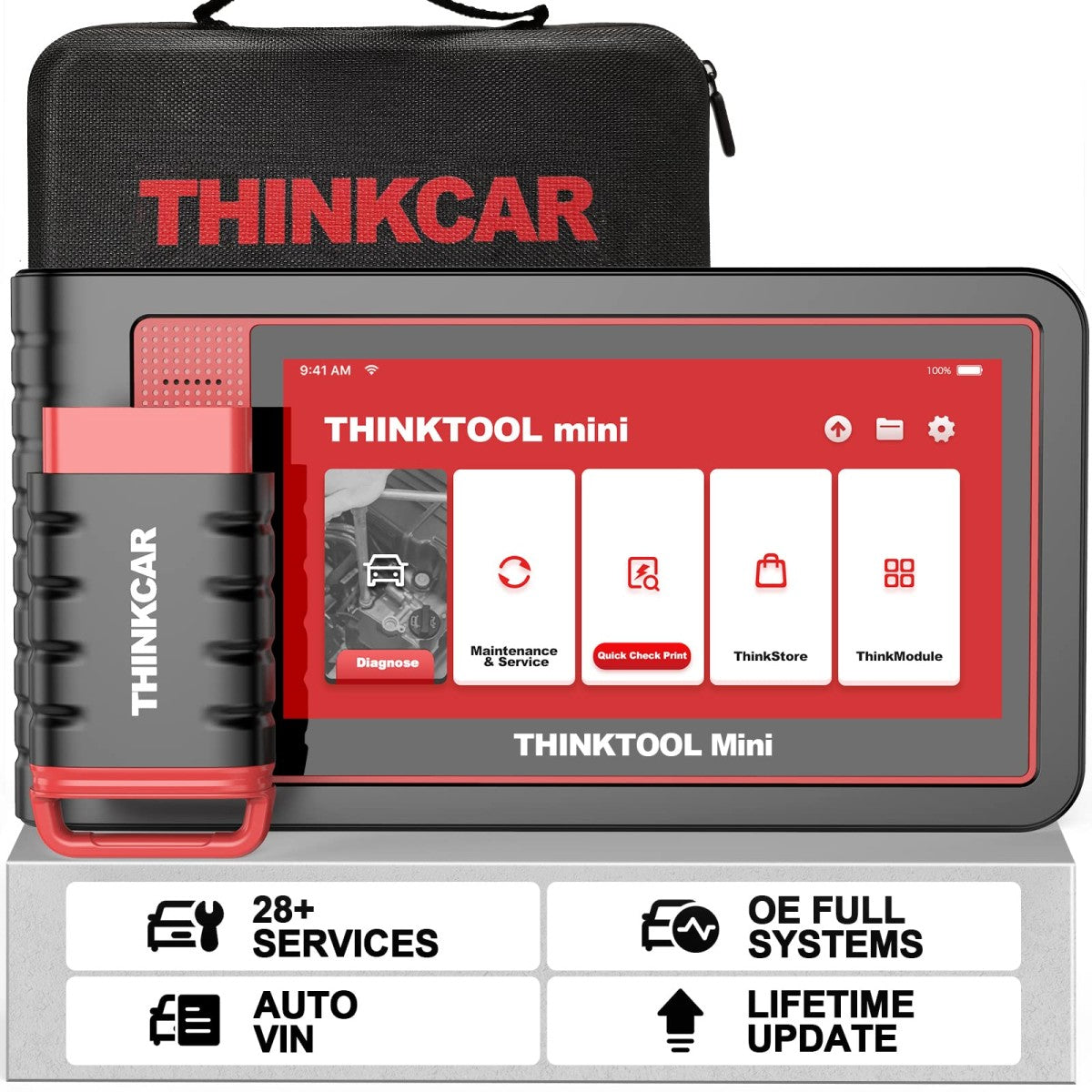

What’s in the Box

1×THINKTOOL MINI tablet
1×THINKTOOL MINI VCI
1×Charging cable
1×Power adapter
1×Manual
1×Carry bag

Good to Know

Caution

ECU coding and Active Test special functions require a paid subscription per vehicle make per year.
Supported maintenance functions vary by vehicle model and software version.
The THINKTPMS G2, the AutoAuth FCA SGW account and the extension modules are sold separately.
