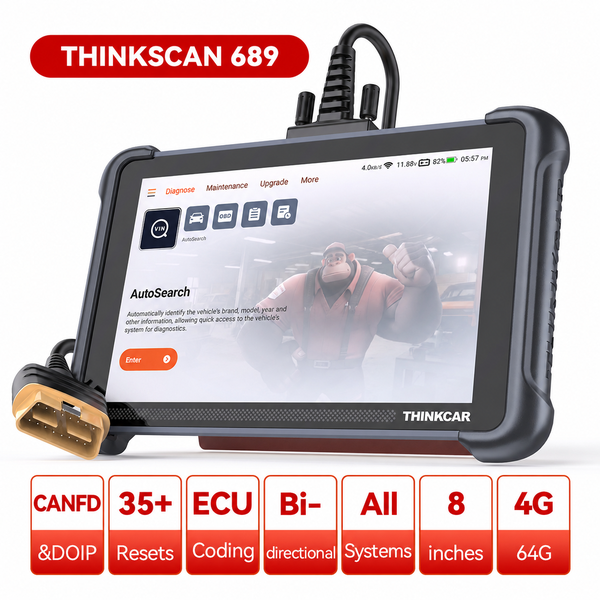

THINKSCAN 689

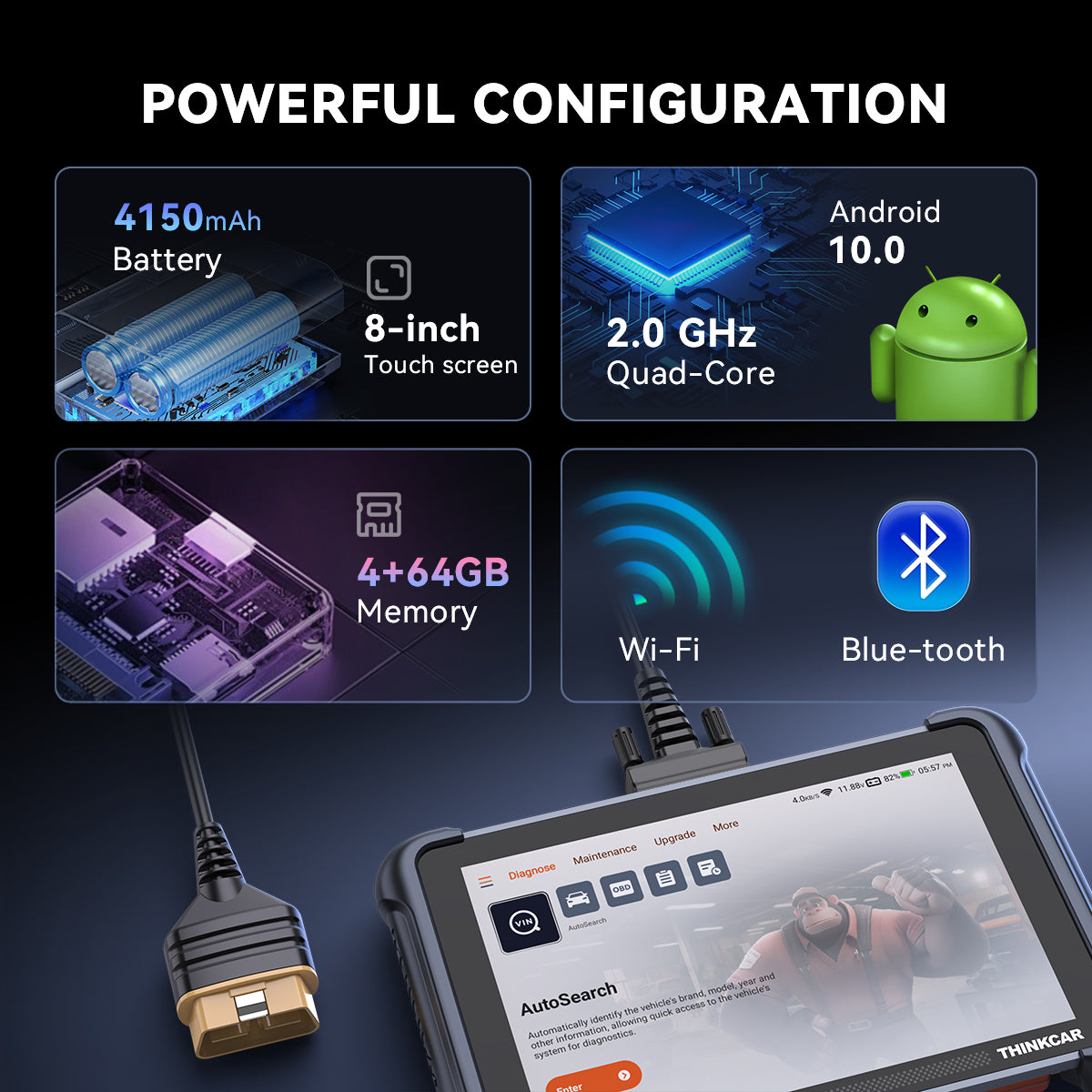

Specifications

BrandTHINKCAR
Weight1550 g
Operating SystemAndroid 10
ProcessorCortex-A53 2.0GHz Quad-Core
MemoryRAM 4GB / ROM 64GB
Display8-inch HD IPS touchscreen 1280*800
Battery4150mAh/3.8V
Supported ProtocolsCAN FD & DoIP
Gateway AccessAutoAuth for FCA SGW
Diagnostic FunctionsOE-level full-system diagnostics, ECU coding, bidirectional control
Service Functions34+/35 resets

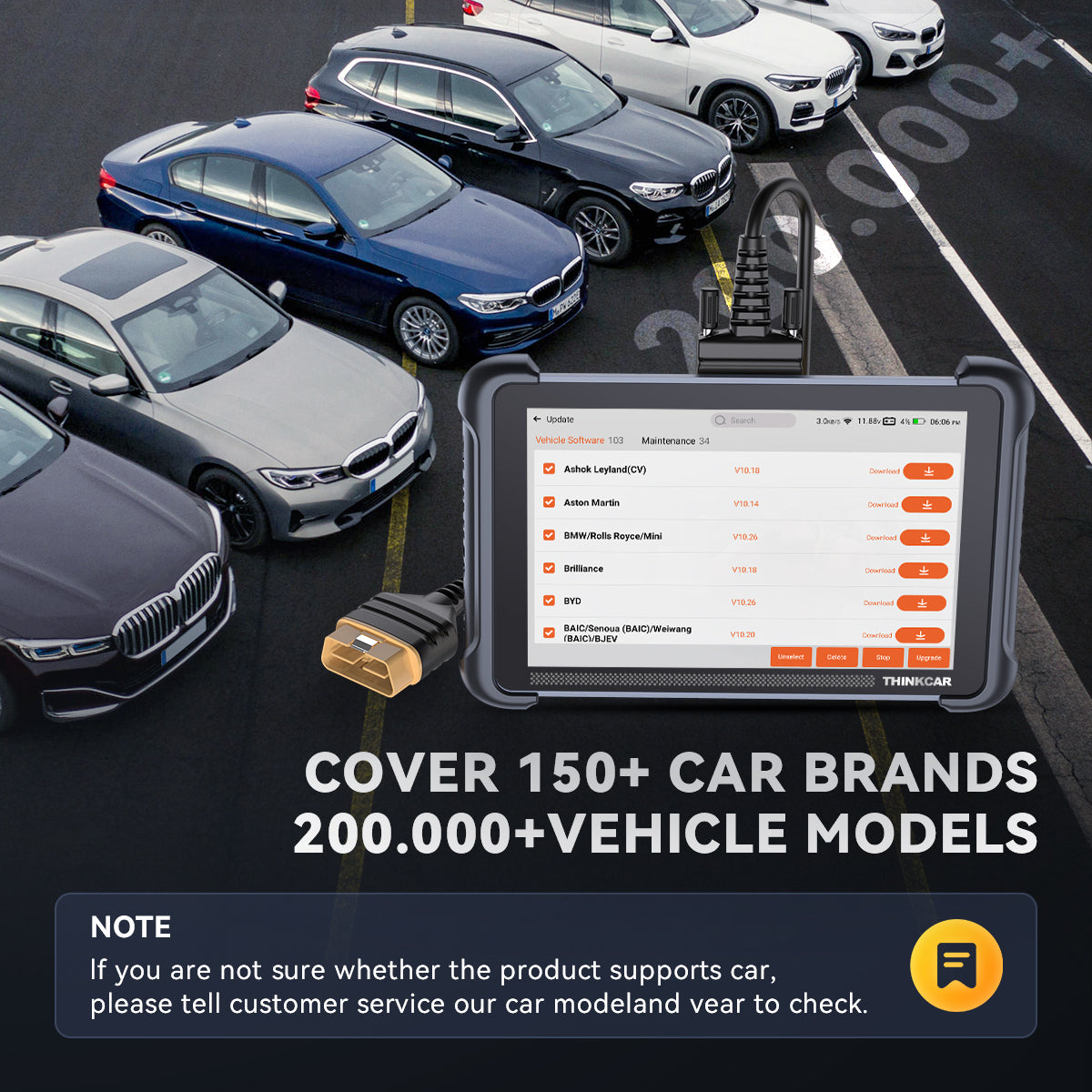

Vehicle Coverage150+ brands, 200,000+ vehicles; CAN-FD for 2020+ GM/Chrysler, DoIP for Volvo, Land Rover/Jaguar, BMW F/G; 2018+ FCA SGW requires AutoAuth
Languages28 languages
Software UpdatesLifetime free updates; TeamViewer remote technical support

Details

OE-Level All-System Diagnostics with ECU Coding and Active Tests

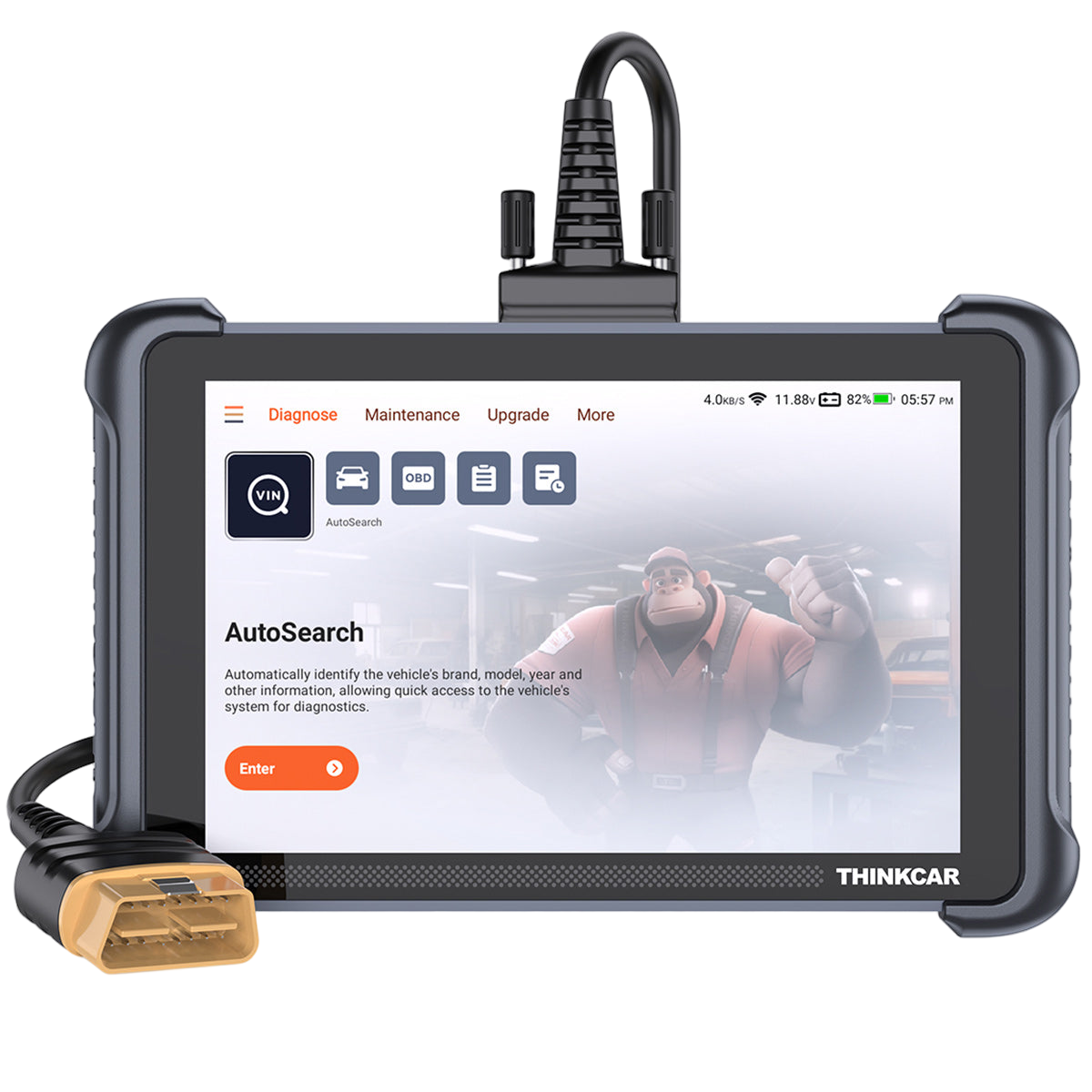

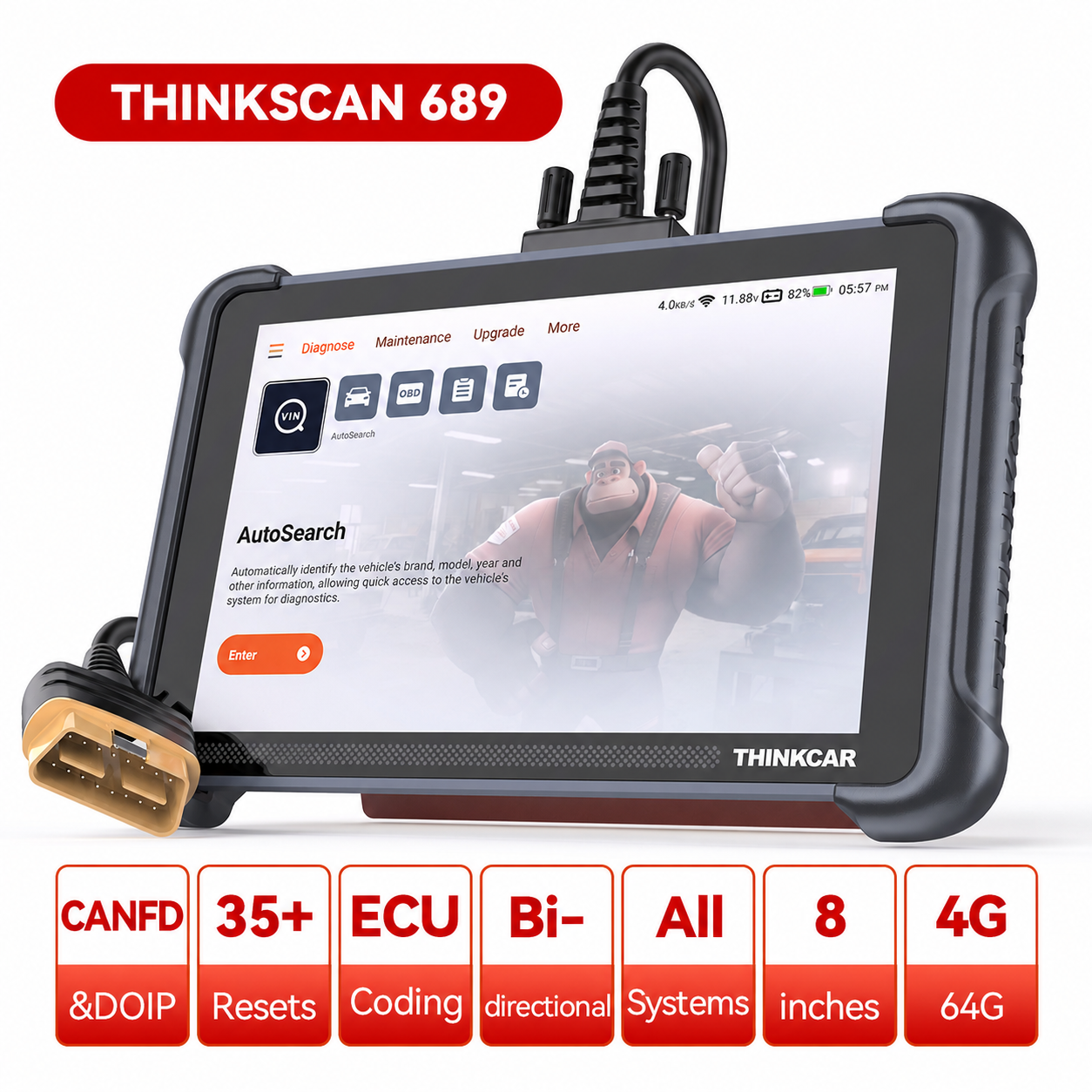

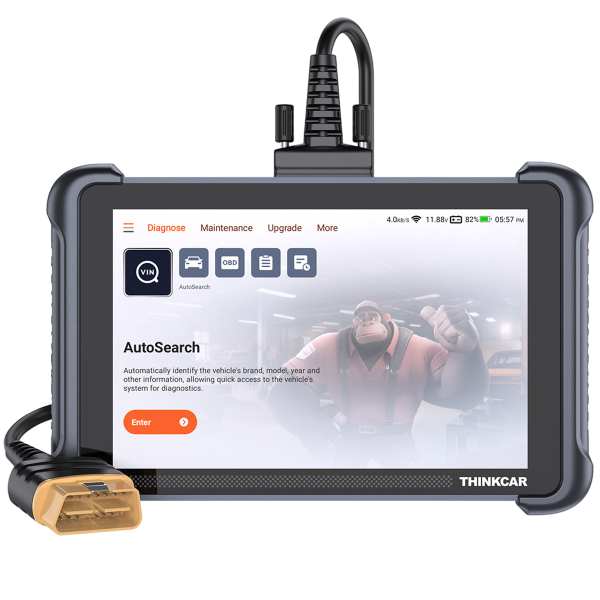

The THINKSCAN 689 is an 8-inch Android scan tool for full-system diagnostics, ECU coding, bi-directional control and maintenance resets, with CAN FD, DoIP and AutoAuth access for FCA secure gateways.

  • ECU Coding
  • Bi-Directional Control
  • CAN FD & DoIP
  • FCA AutoAuth
  • Lifetime Free Updates

Key Features

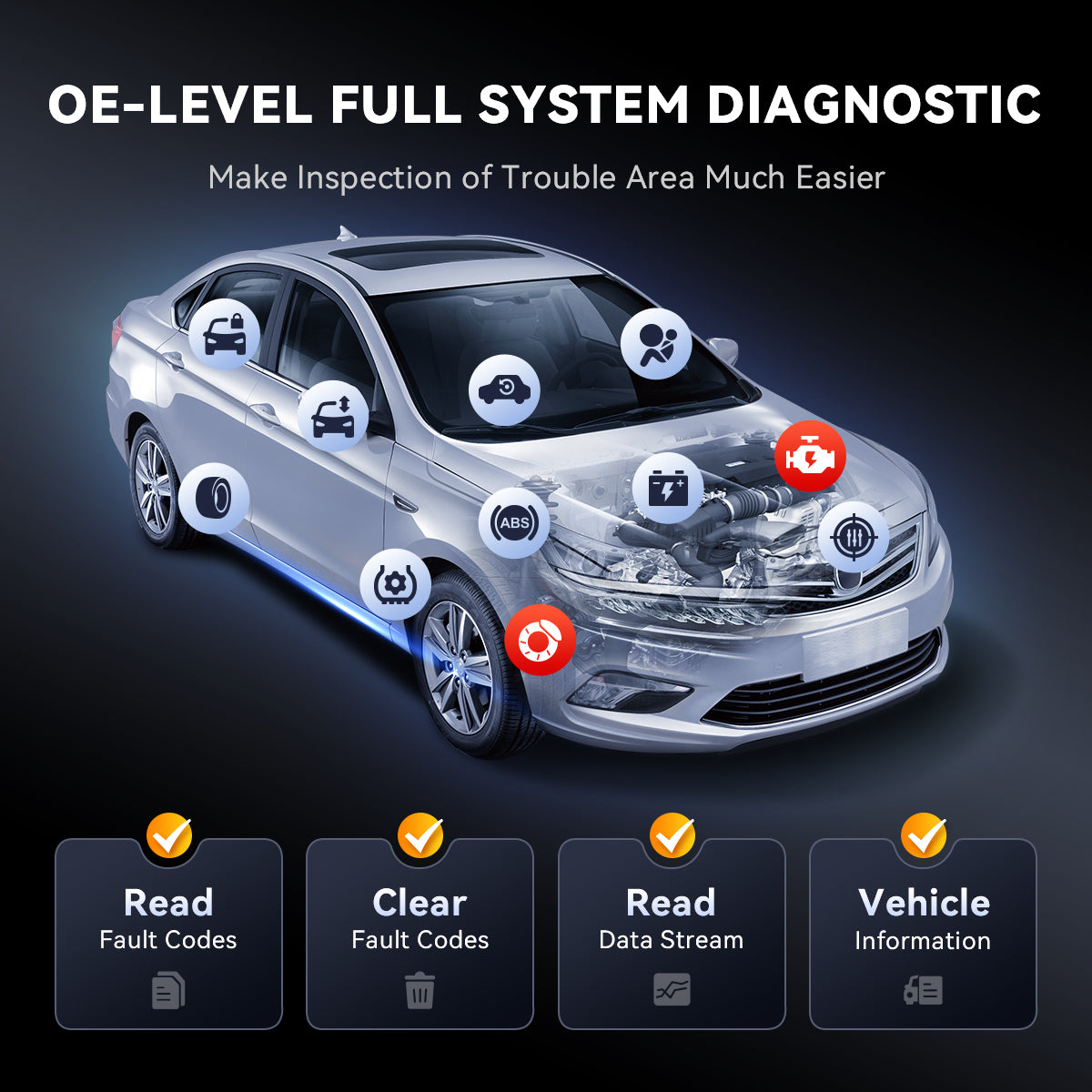

  1. Full-System Diagnostics

    Retrieve ECU information, read and erase codes and view live data across systems such as engine, transmission, airbags, ABS, steering angle, tire pressure, body and air conditioning.

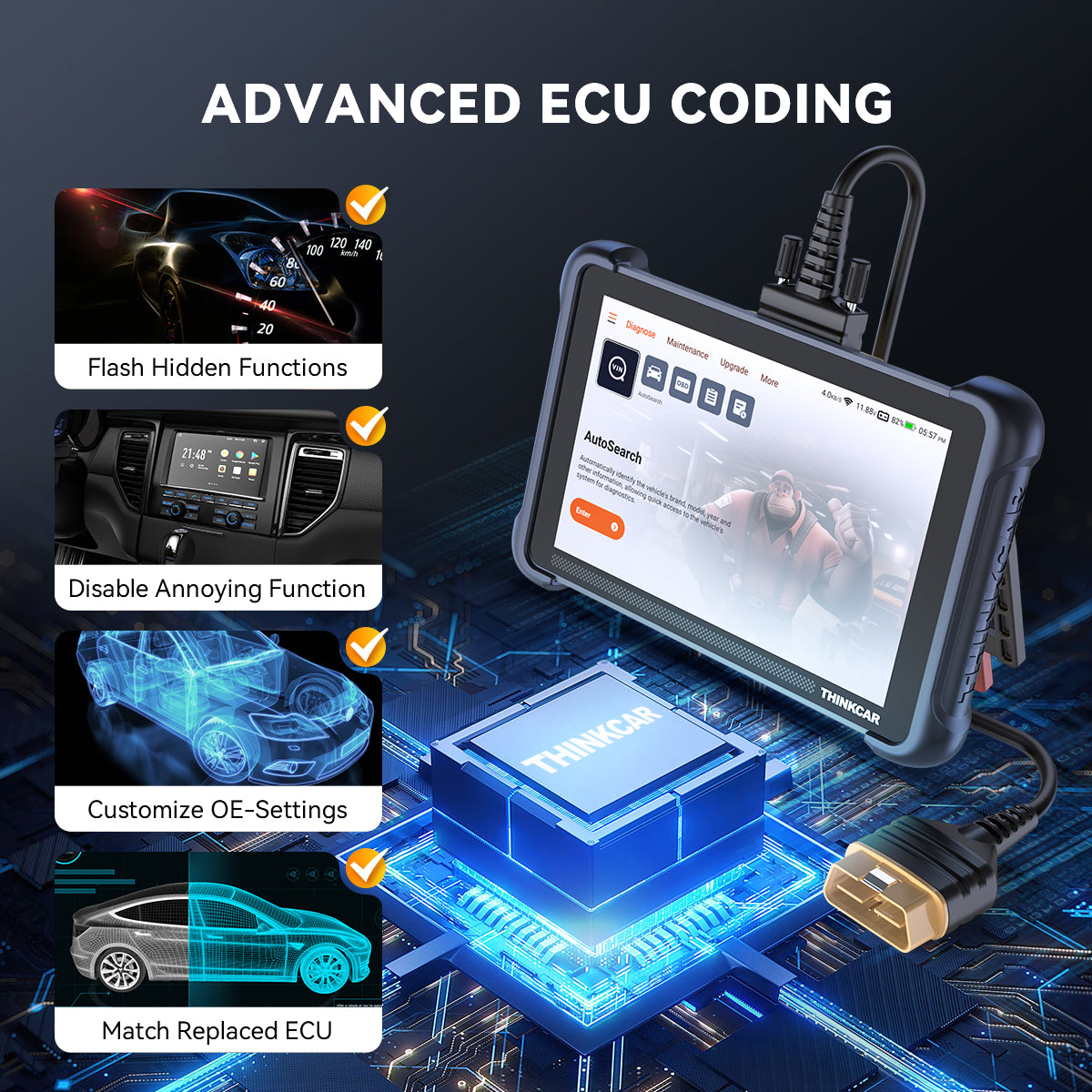

  2. Coding After Module Replacement

    Match, learn and code a replaced ECU or module so it works normally, including Programmable Module Installation (PMI) mainly for Ford models.

  3. Personalize Vehicle Functions

    Turn certain features on or off, for example how long the interior light stays on after closing the door on a Ford Focus, or daytime running lights and seat belt alarm settings. Settings can also be restored to default.

  4. Aftermarket Installation

    Code new parts added to an older vehicle, such as a retrofit TPMS kit.

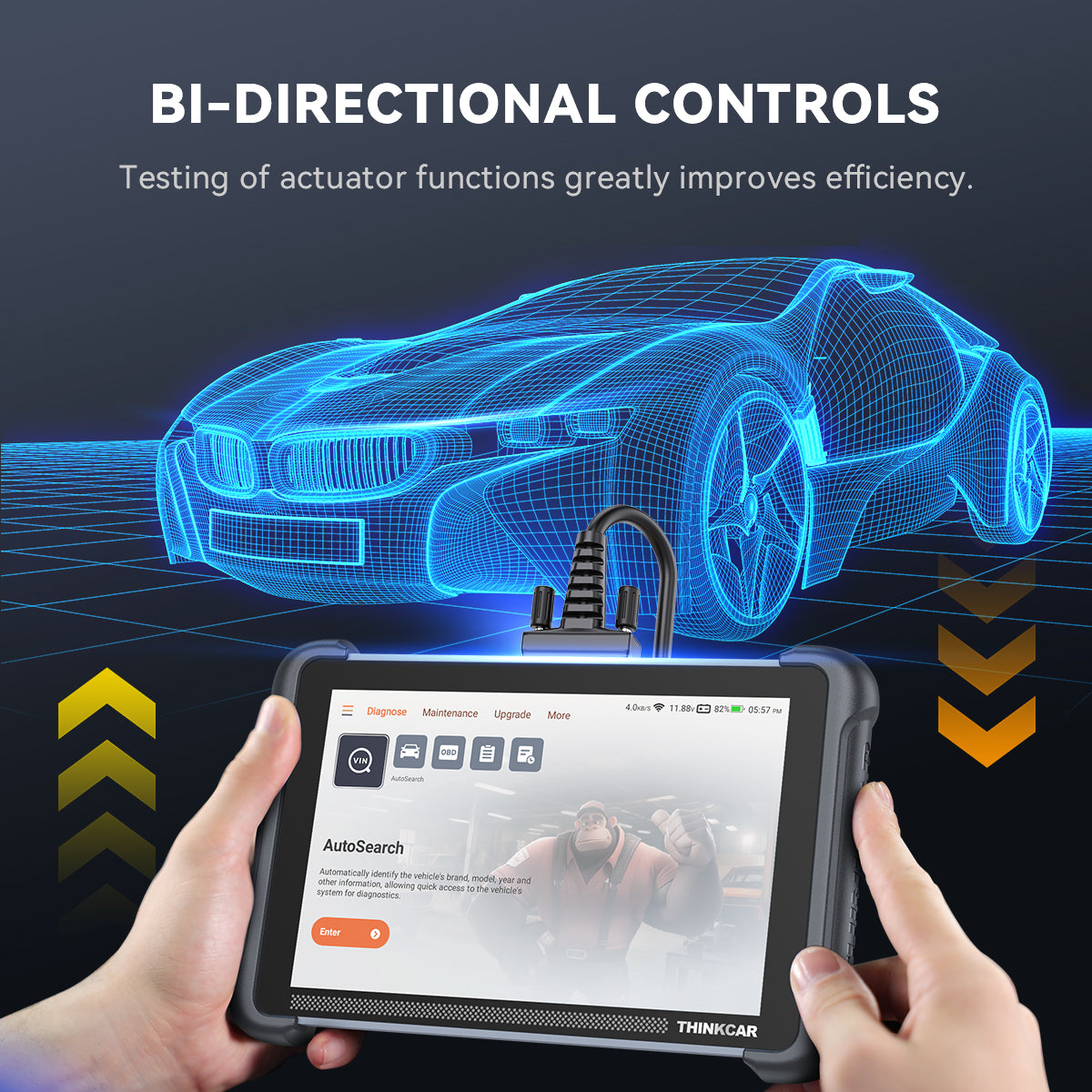

  5. Bi-Directional Active Tests

    Command relays, coils, injectors and actuators directly to check them without using the vehicle’s own controls, for example cooling fan, injector buzz, EVAP, windows, wipers, sunroof, door lock and headlamp tests.

  6. Maintenance Services

    Includes oil maintenance reset, DPF regeneration, ABS bleeding, battery matching, injector coding, steering angle reset, TPMS reset, electric throttle relearn, EGR adaption and AdBlue reset.

  7. Newer Protocols and Secure Gateways

    CAN FD and DoIP support for newer vehicles, and built-in AutoAuth registration so FCA vehicles with a secure gateway can have codes cleared, active tests and relearns performed.

  8. Expandable with Accessories

    Works with THINKTPMS VENU iPro or THINKTPMS G2, an endoscope, an oscilloscope, a printer and a Bluetooth battery clip.

Highlights

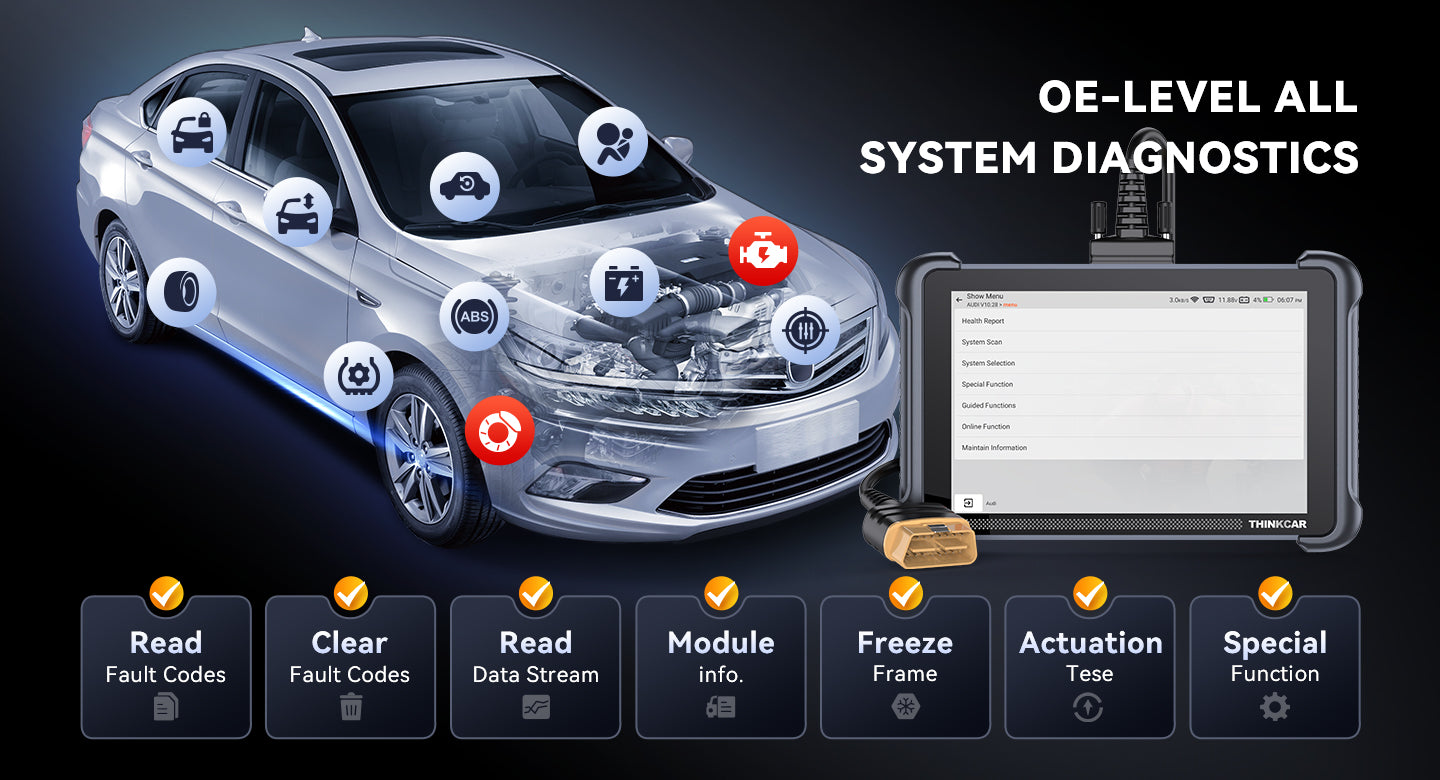

THINKCAR THINKSCAN 689 diagnostic menu next to a vehicle with read codes, clear codes, data stream, module info, freeze frame, actuation test and special function labels
All-System Diagnostics

Codes, data stream, module information and freeze frame in one menu.

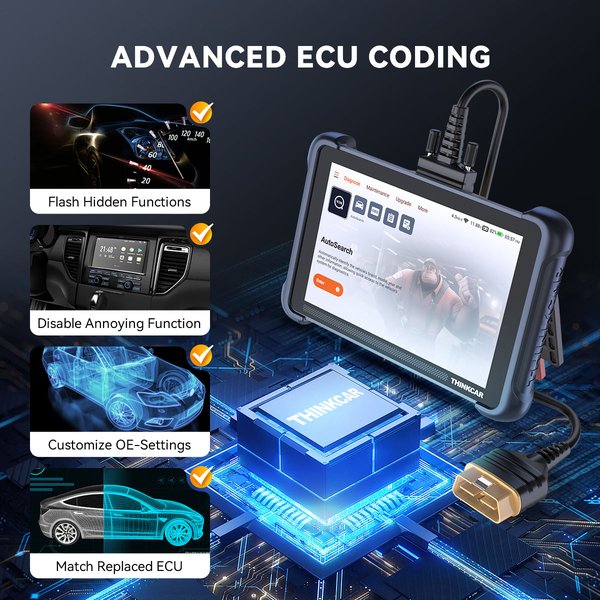

THINKCAR ECU coding functions: flash hidden functions, disable functions, customize OE settings, match replaced ECU and fix ECU-related issues
ECU Coding

Match replaced ECUs and customize OE settings.

THINKCAR THINKSCAN 689 bi-directional active tests including window lock, interior lights, EGR and injector buzz tests
Active Tests

Trigger components directly to confirm whether they work.

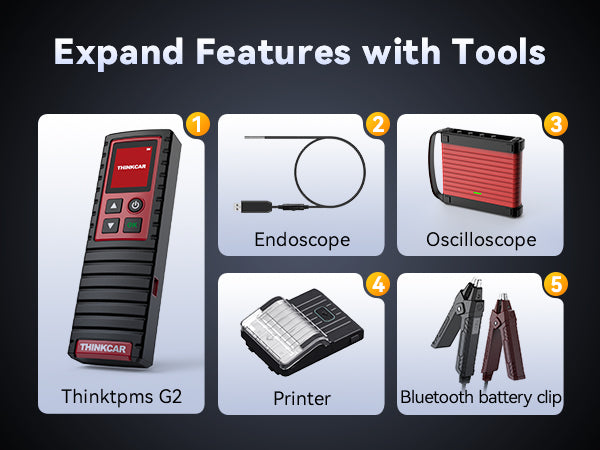

Accessories that work with THINKSCAN 689: THINKTPMS G2, endoscope, oscilloscope, printer and Bluetooth battery clip
Expansion Tools

TPMS tool, endoscope, oscilloscope, printer and battery clip.

More Specifications

Bluetooth Bluetooth 5.0
Working voltage 9–18V
Working current ≤1.2A
Operating temperature 0–50°C (32–122°F)
Storage temperature -20–60°C (-4–140°F)

Good to Know

Caution
  • Special functions do not work on all cars; supported resets vary by vehicle model and software version.
  • FCA secure gateway access requires registering with the built-in AutoAuth service.
