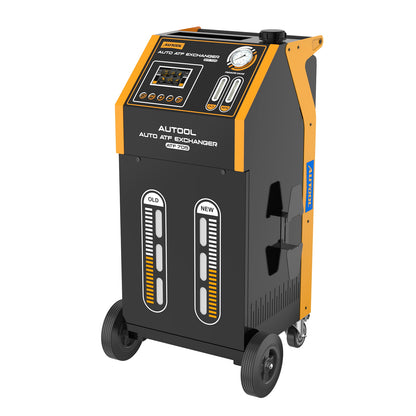

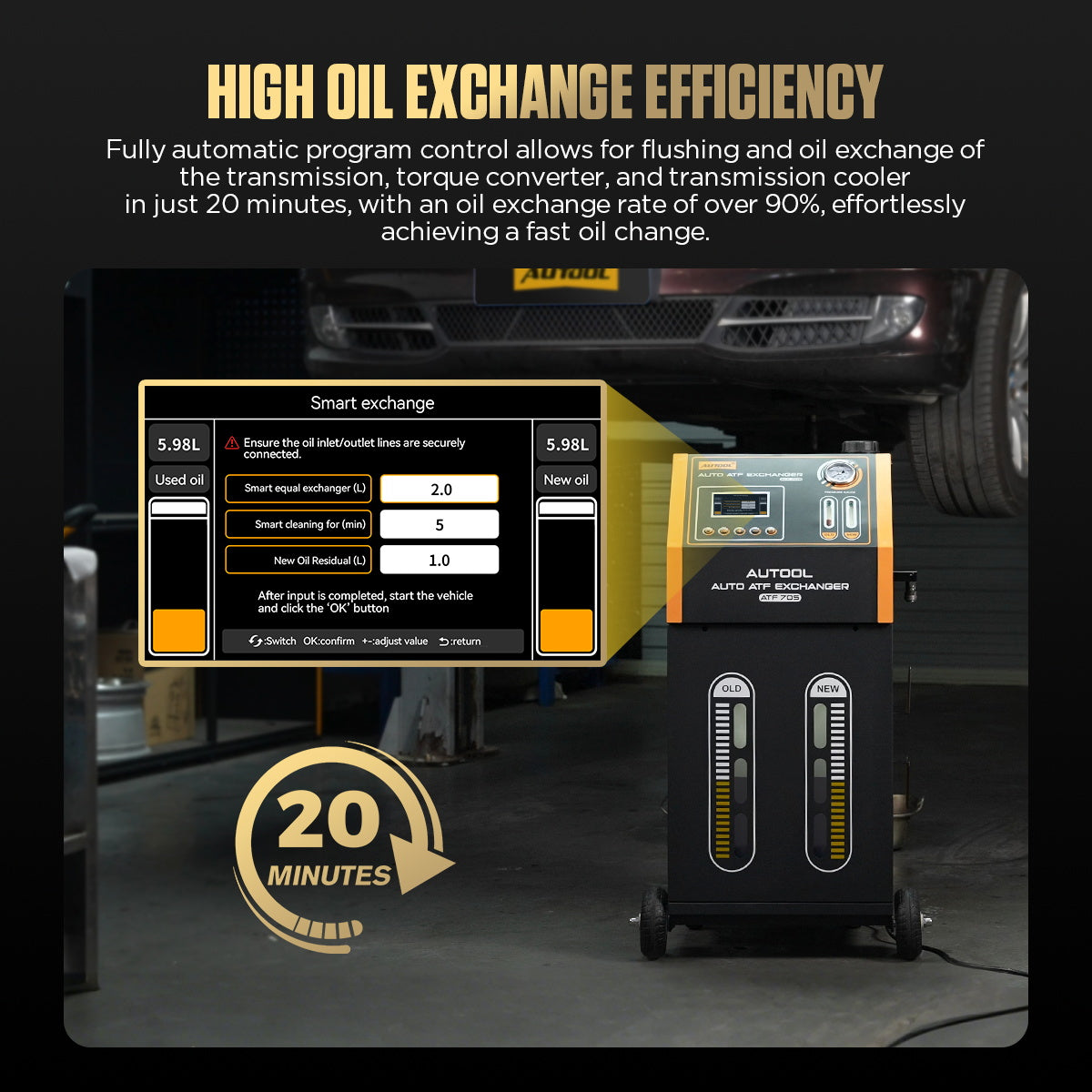

AUTOOL ATF705 Fully Automatic Intelligent Oil Changer is designed for efficient automatic transmission fluid replacement and supports all vehicle models including European, American, and Japanese makes. The built-in intelligent program automatically identifies the inlet and outlet directions, enabling precise equal-volume exchange of old and new oil. With an oil change rate of over 90%, it takes only 20 minutes to complete the cleaning and fluid filling of the transmission, torque converter, and cooling system, effectively solving the problem of incomplete fluid replacement associated with traditional manual methods.

Why choose the ATF705 Transmission Fluid Changer?

Traditional transmission fluid changes are inefficient, leaving contaminants that cause performance issues. The AUTOOL ATF705 solves this with intelligent, automated operation. It achieves over 90% fluid replacement in just 20 minutes, precisely controlling the flow to prevent damage, boost performance, and extend transmission life.

AUTOOL ATF705 Automatic Transmission Fluid Exchanger – Key Features:

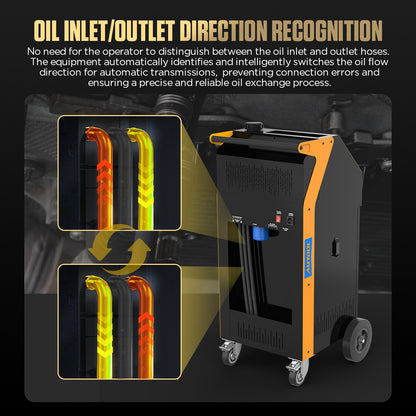

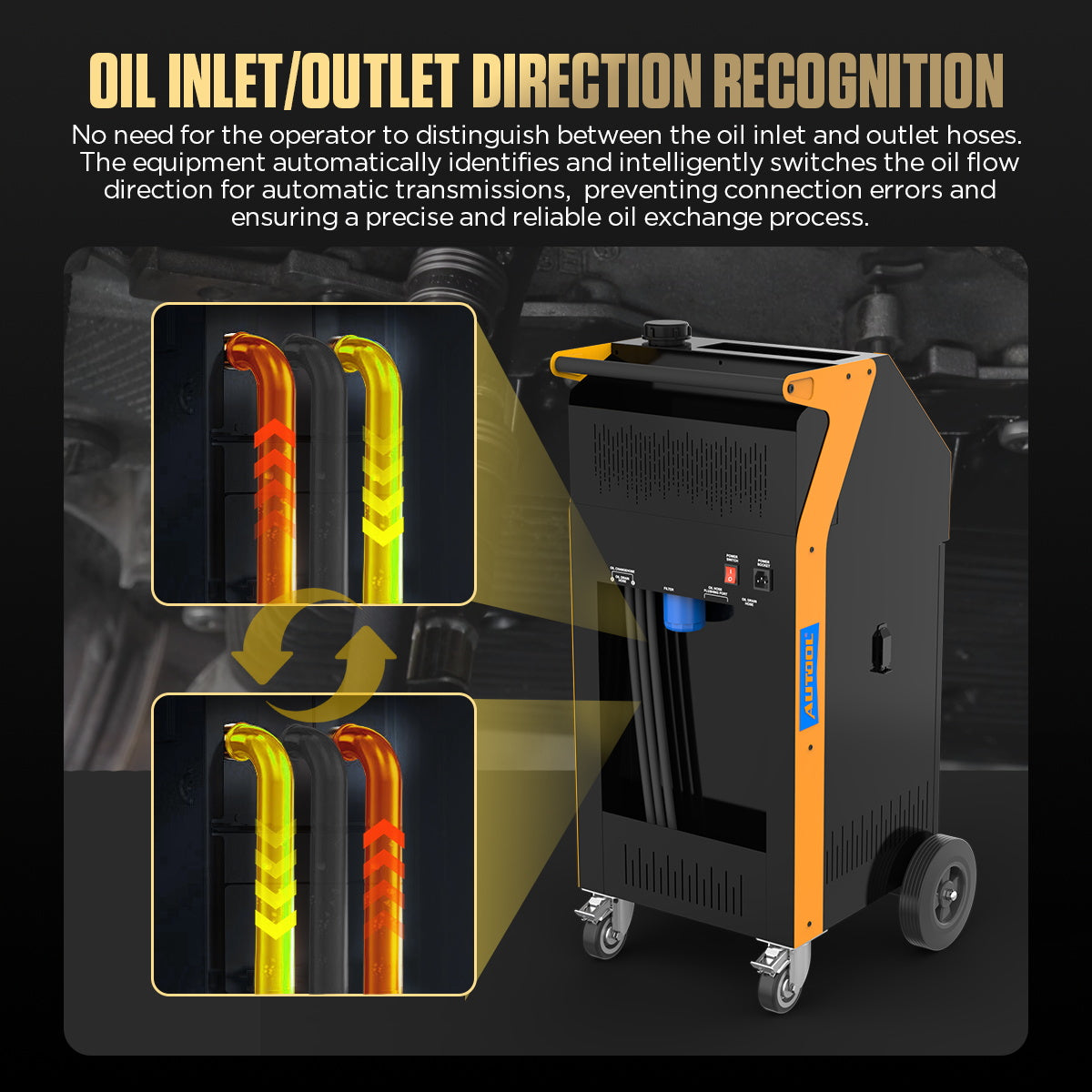

• Fully Automatic Operation: The system automatically identifies oil flow direction and power polarity, eliminating manual errors and ensuring safe, hassle-free use.

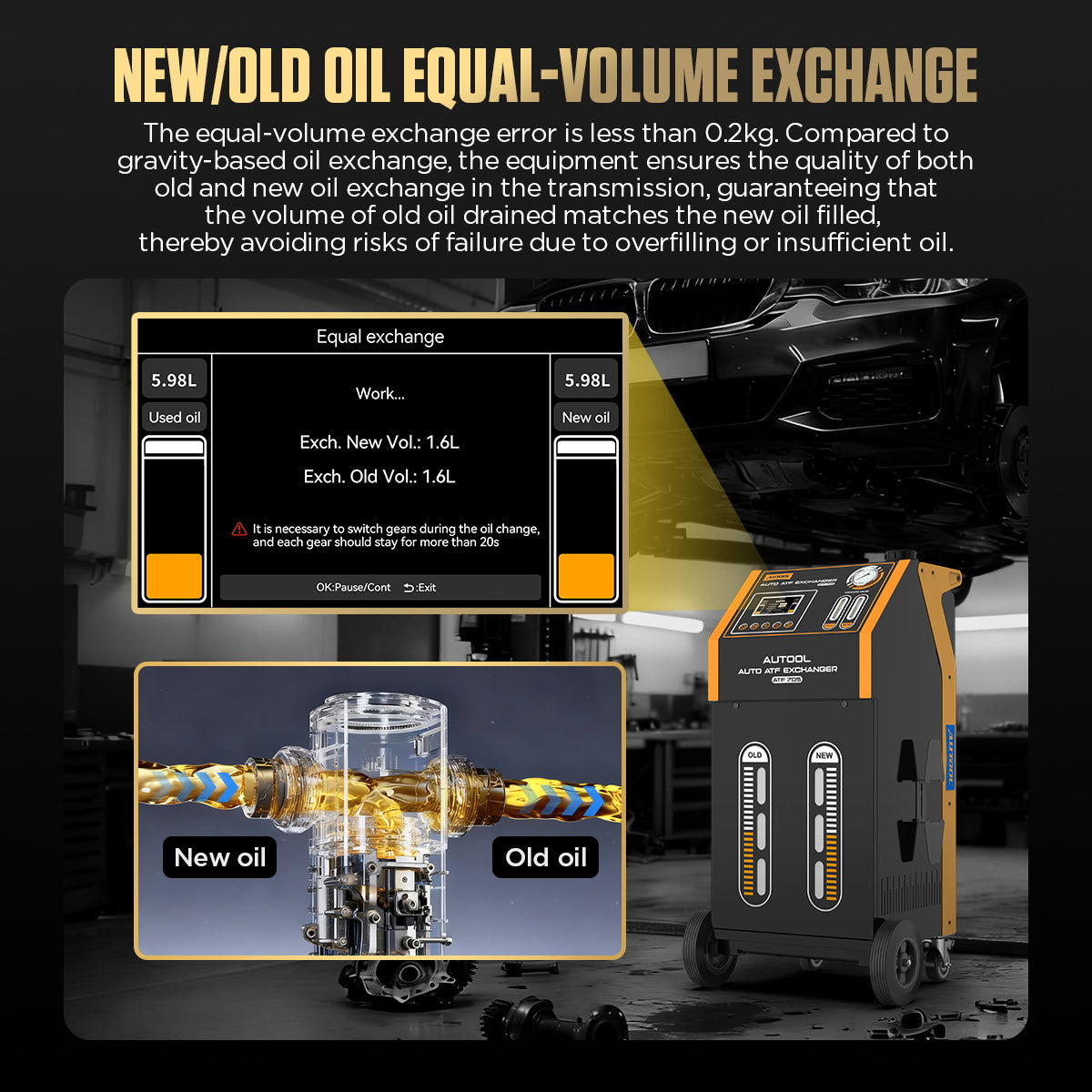

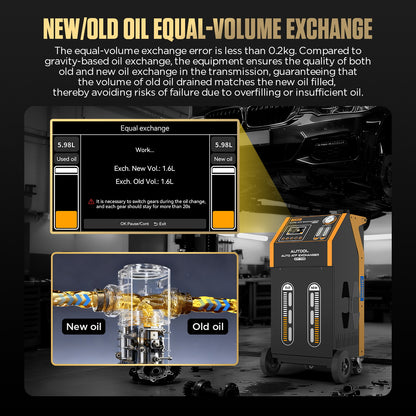

• High-Precision Equal Exchange: Achieves a precise, equal-volume exchange of old and new fluid with intelligent flow balancing, guaranteeing over 90% replacement rate.

• Integrated Cyclic Cleaning: The automatic cleaning function effectively removes sludge and contaminants from the transmission, torque converter, and cooler for a more thorough service.

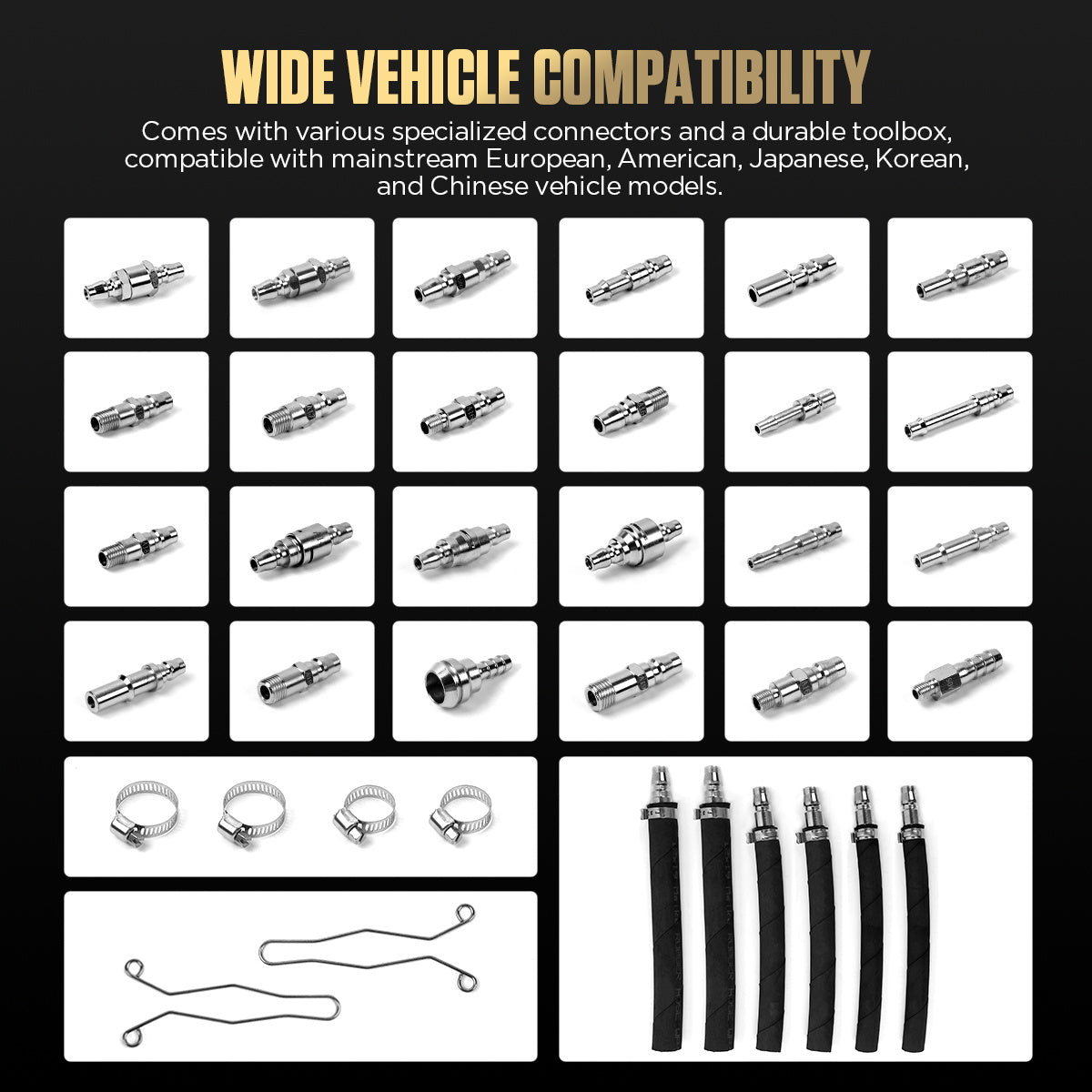

• Broad Vehicle Compatibility: Includes a full set of specialized quick-connect fittings for European, American, and Japanese models. The adjustable electric pressure design adapts to different vehicle requirements without any disassembly.

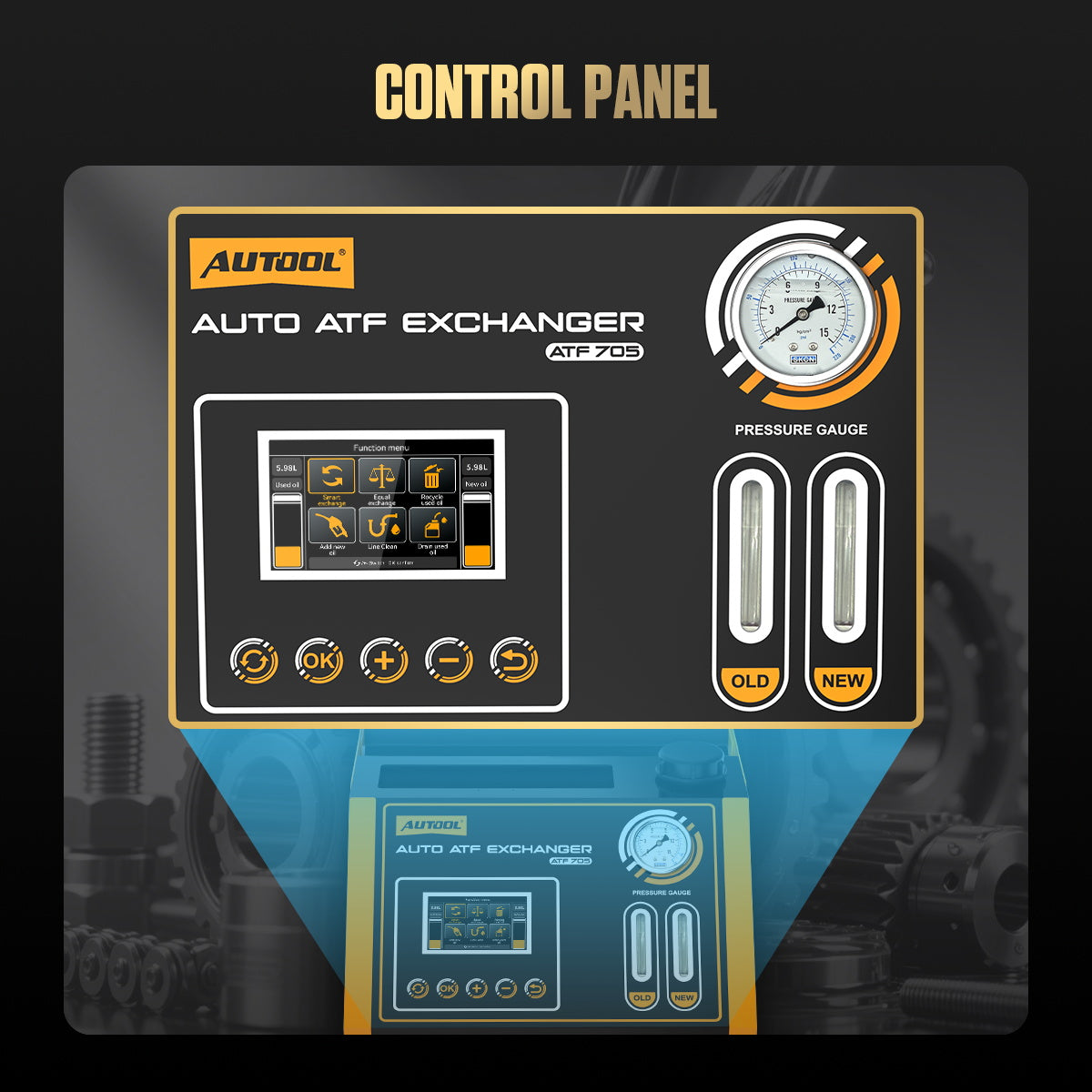

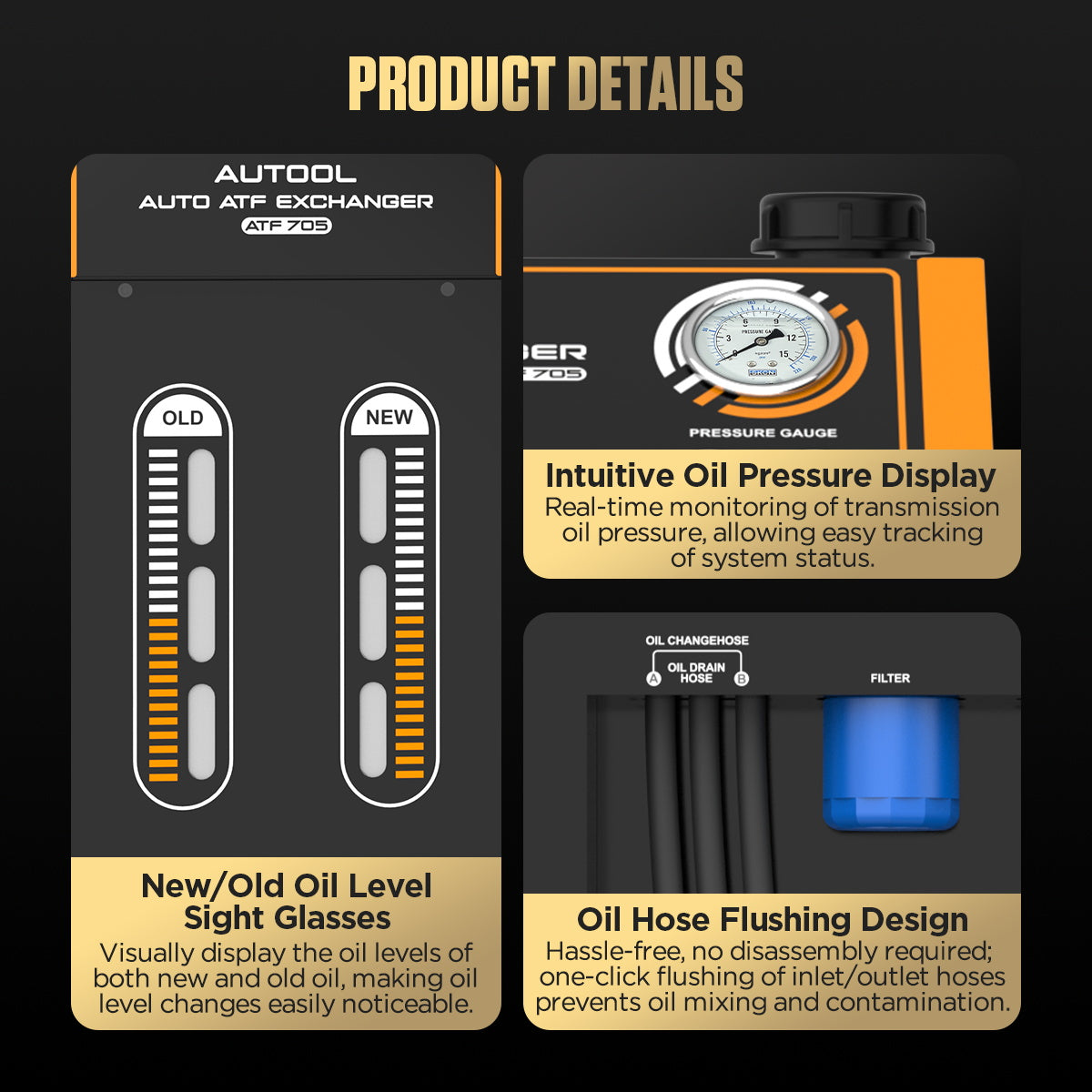

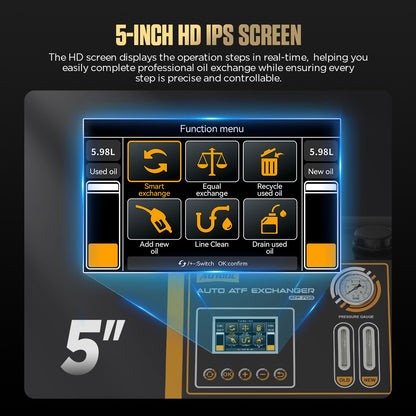

• User-Friendly Design: Features visual oil view windows for real-time monitoring of pressure, temperature, and data. The swivel casters allow for easy portability and maneuverability.

AUTOOL ATF705 ATF Exchanger Operations Instruction:

• Connecting Power: Connect the clamps to the two terminals of the car battery (DC12V; the device can automatically recognize the polarity)
• Lifting the Car: Raise the car so that the drive wheels are suspended at least 20cm off the ground. Engage the handbrake, and place wheel chocks securely in front and behind the non-drive wheels to ensure the vehicle’s stability.
• Connecting the Hoses: First, find the connection oil pipe between the transmission and radiator, and disconnect the one that’s easy to take apart. Next, connect the appropriate connectors from the connector box to the ends of the disconnected oil pipe. Finally, you can simply connect the device’s hoses to the transmission oil pipe connectors; in addition, this means that the device works in both flow directions.
• Check and Confirm: Start the vehicle’s engine and check for any leaks in the pipes. Once confirmed there are no issues, turn on the equipment’s power switch.
