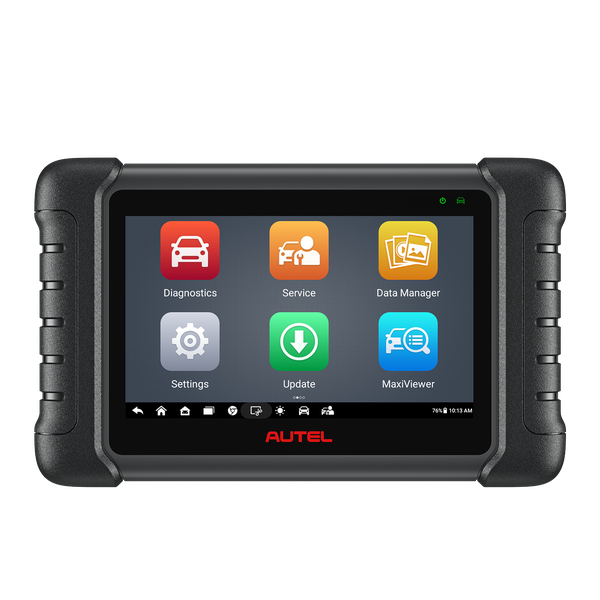

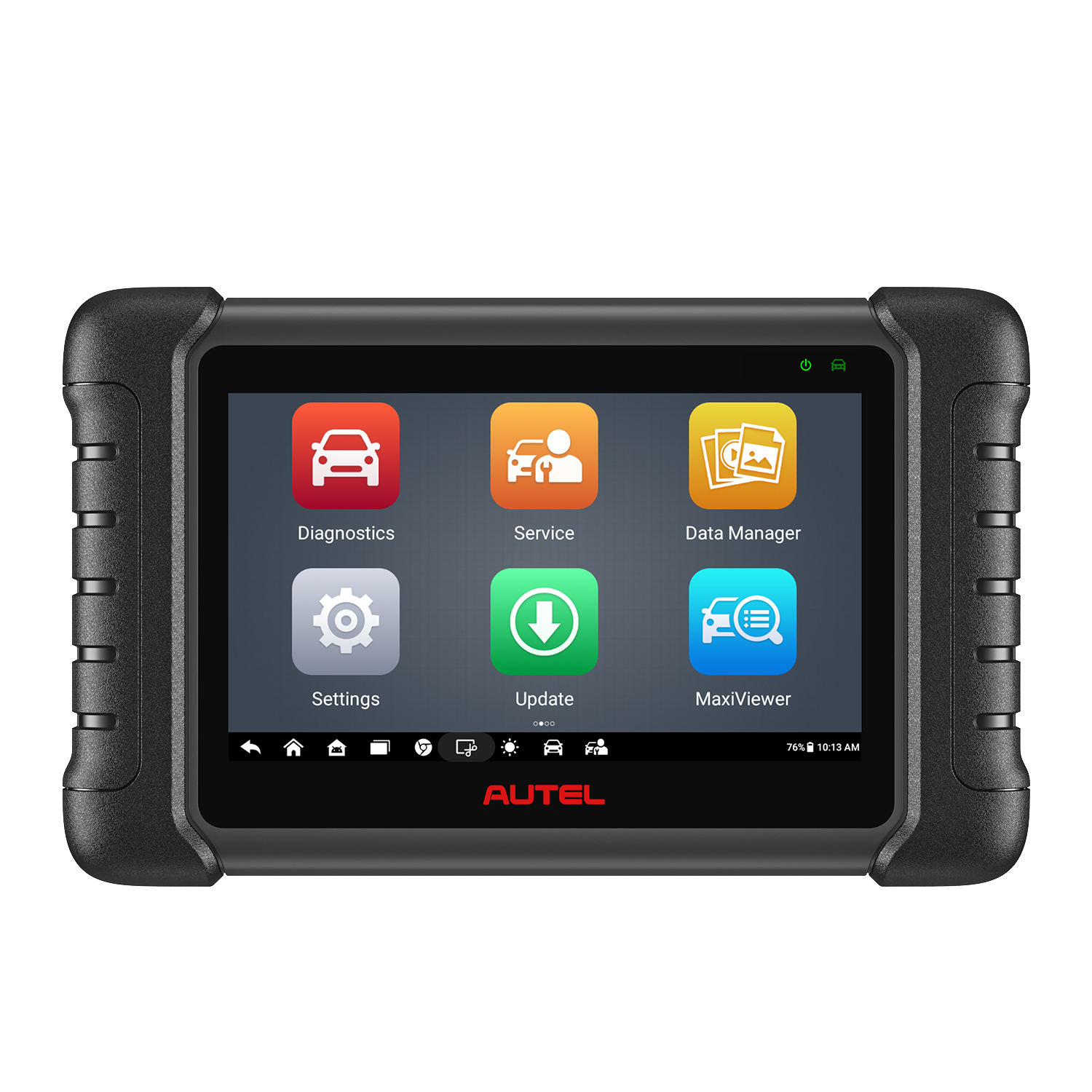

All-System Diagnostics, Active Tests and 28+ Resets on a 7-Inch Android Tablet
The MaxiCheck MX808S reads and clears codes, shows live data and retrieves ECU information for all available systems on 80+ makes from 1996 onward, and adds bi-directional active tests, coding and adaptations.
- 28+ Reset Services
- Bi-Directional Control
- FCA AutoAuth
- AutoVIN

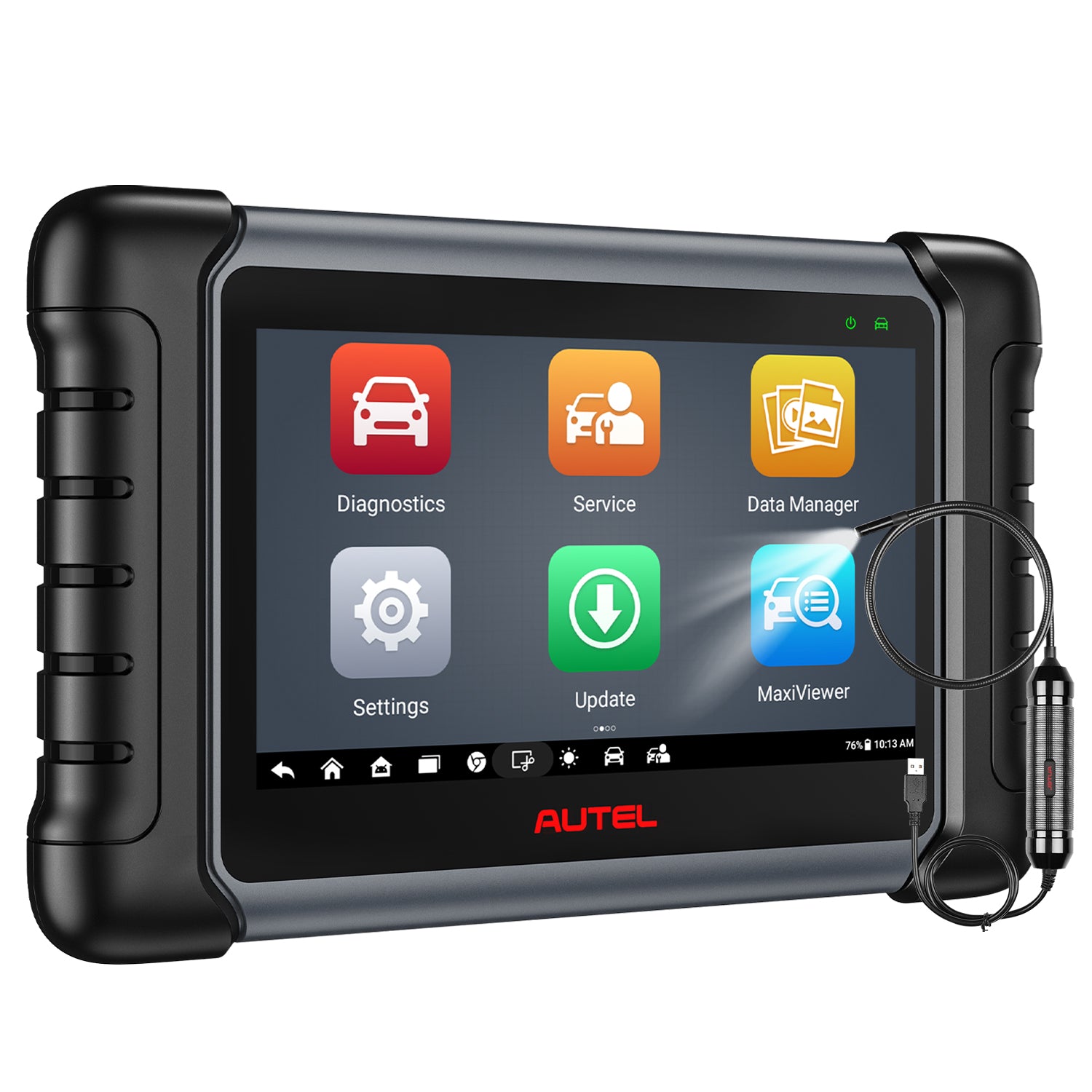

- Videoscope Compatible
Key Features
-
OE-Level Diagnostics
In-depth access to all systems, such as engine, fuel and ignition: read and clear codes, display live data as text, graph or analog, view freeze frame, retrieve ECU information and generate diagnosis reports.
-
Reset Services
Oil reset and service interval reset, EPB service, ABS auto bleed, SAS calibration, DPF regeneration and injector reset.
-
Bi-Directional Control
Send commands to the ECU to activate and monitor actuators such as ABS, windows, doors, solenoids, valves and wipers, to find bad parts and pinpoint faults.
-
Coding and Adaptations
Perform coding and adaptations alongside active tests.
-
FCA AutoAuth
AutoAuth, unlocked with the latest software update, gives secure access to modern FCA vehicles for OBDII diagnostics, active tests and more.
-
AutoVIN
Automatically identifies the vehicle make, model and year.
More Specifications
| Other ports | Mini USB 2.0, Micro SD card slot (supports up to 32GB) |
|---|---|
| Sensors | Light sensor for automatic brightness |
| Audio output | Beep |
| Charging | 5 VDC power supply, 5V/1.5A input |
| Power consumption | 600 mA at 3.7 V (LCD on at default brightness, Wi-Fi on) |
| Operating temperature | -10ยฐC to 60ยฐC (14ยฐF to 140ยฐF) |
| Storage temperature | -20ยฐC to 70ยฐC (-4ยฐF to 158ยฐF) |
| Operating humidity | 5%โ95% non-condensing |
| Protocols | ISO 9141-2, ISO 14230-2, ISO 15765, K/L-Line, Flashing Code, SAE J1850 VPW, SAE J1850 PWM, ISO 11898 (high-, middle- and low-speed and single-wire CAN, fault-tolerant CAN), SAE J2610, GM UART, UART Echo Byte, Honda Diag-H, TP 2.0, TP 1.6 |

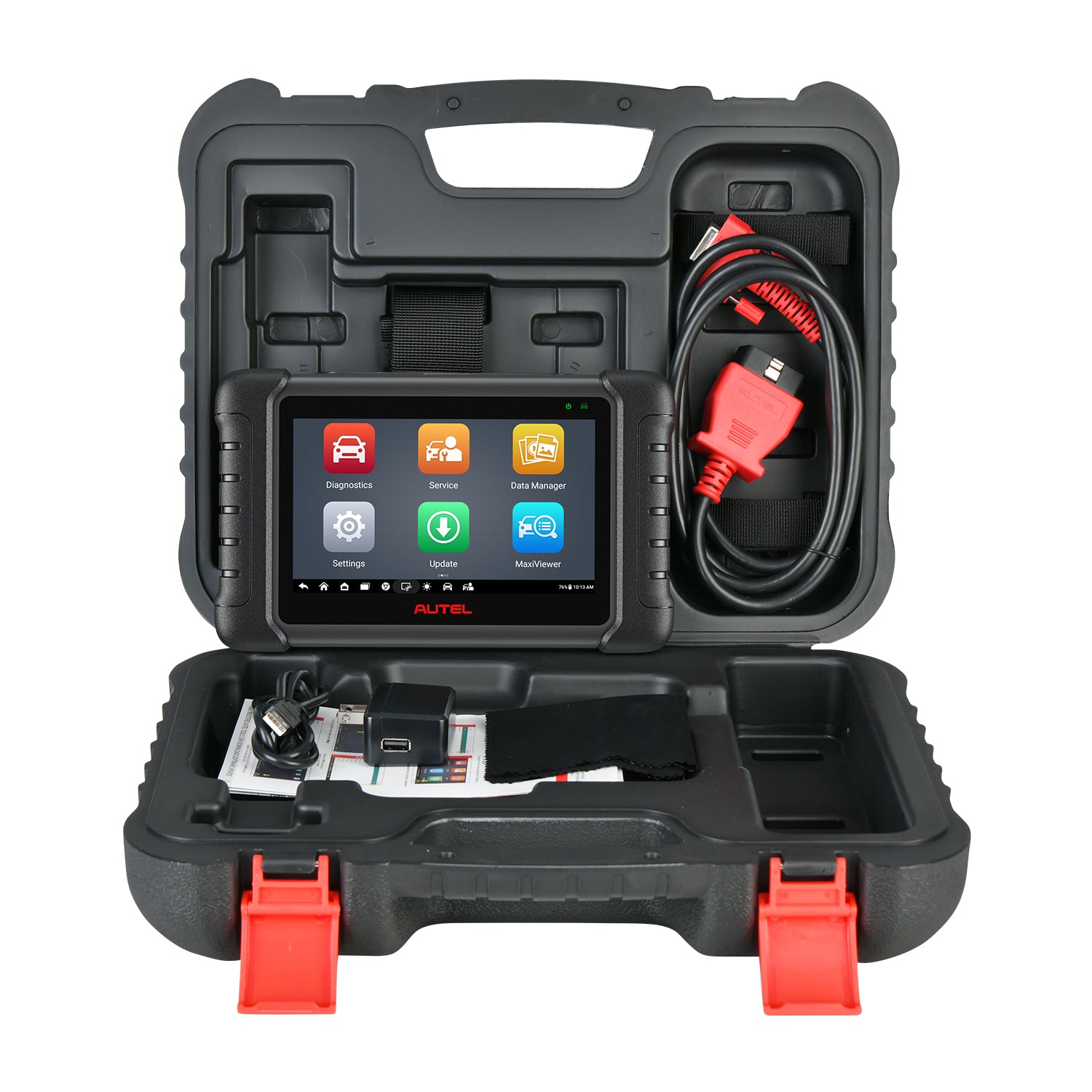

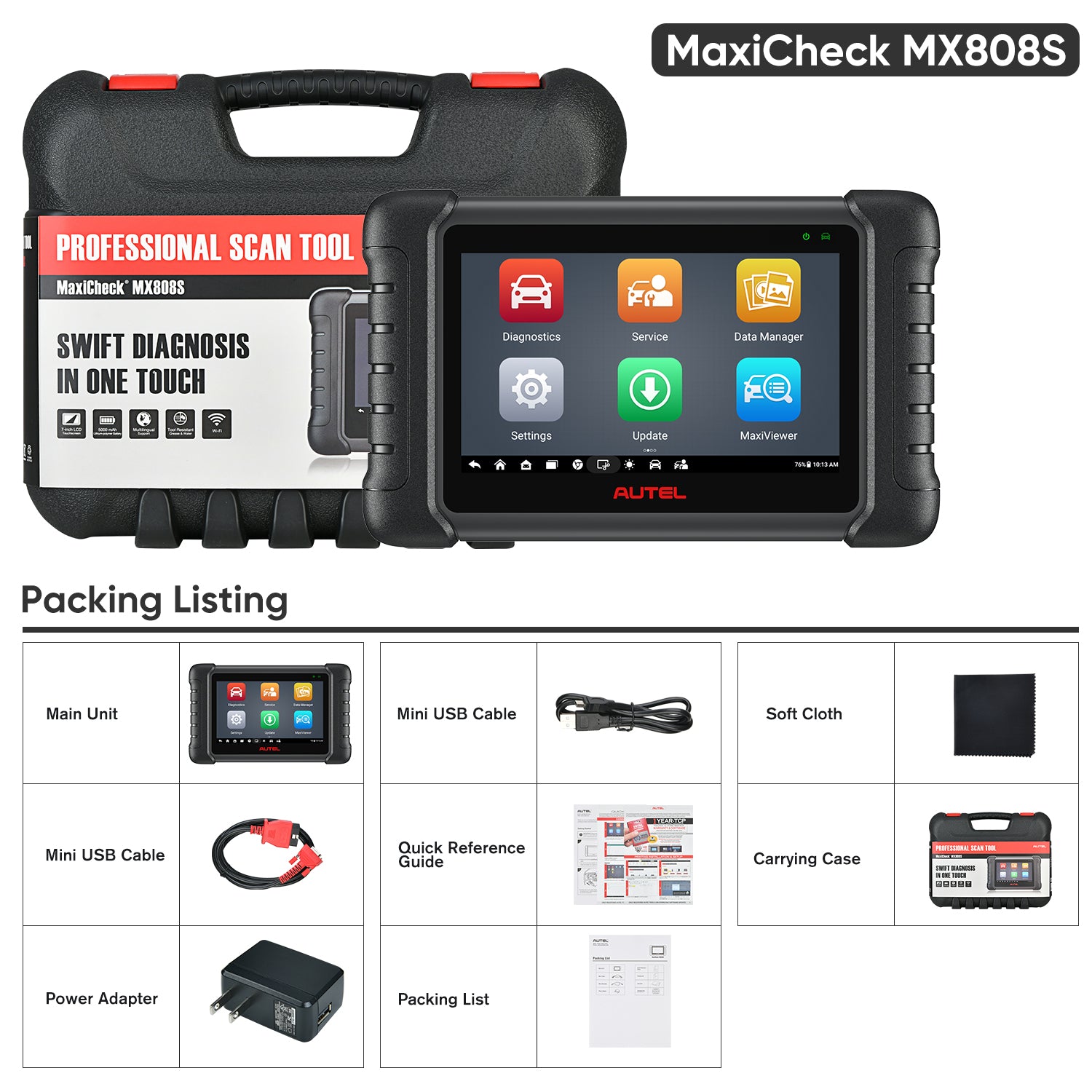

What’s in the Box
- 1รMX808S main unit
- 1รUSB external power adapter
- 1รUSB cable (for testing)
- 1รUSB cable (for charging)
- 1รQuick reference guide
- 1รUser manual
- 1รCarrying case
