Wireless All-System Diagnostics With Adapters for Older Vehicles
The MaxiPRO MP808BT Pro Kit is a 7-inch wireless tablet for OE-level diagnostics, bi-directional control, ECU coding and 37+ service functions on 1996 and newer U.S., Asian and European vehicles. Its non-standard OBD adapter kit extends access to more older vehicles.
- Wireless VCI
- Bi-Directional Control
- 37+ Services
- ECU Coding
- Non-OBD II Adapters
Key Features
-
OE-Level All-System Diagnostics

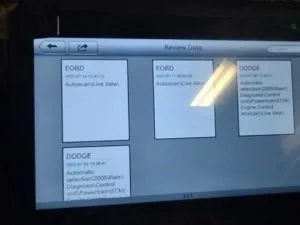

Read and erase codes on all available systems, view freeze frame data, graph live data and read ECU information. AutoVIN identifies the vehicle quickly.
-
Bi-Directional Control
Send commands to activate actuators such as ABS, windows, doors, solenoids, relays, switches, valves and headlamps to pinpoint faults.
-
37+ Service Functions
Covers common maintenance including Oil, EPB, SAS, DPF, BMS, ABS Bleed and Injector.
-
Advanced ECU Coding
The same ECU coding features as the MS906 PRO for BMW, Porsche and VW, refresh hidden functions on BMW, Audi, VW and Skoda, and VAG guided functions for Audi, VW and Skoda.
-
FCA AutoAuth Access
OBDII diagnostics, active tests and calibrations on 2017 and later Chrysler, Dodge, Jeep, Alfa Romeo, Fiat and other FCA vehicles.
-
Non-OBD II Adapter Kit
OE-compliant adapters for specific vehicles give access to more models, past and present.
-
Shop Management and Cloud Reports
Keep customer information and vehicle history, and view and share reports through cloud-based report management.
-
Rugged Build
Rubberized outer protection over a rugged internal housing for everyday shop use.
More Specifications
| Sensors | Ambient light sensor for automatic brightness |
|---|---|
| Audio | Buzzer output |
| Battery type | Lithium-polymer |
| Charging | 5 VDC power supply, 5 V/1.5 A input |
| Power consumption | 500 mA (LCD on with default brightness, Wi-Fi on) @3.7 V |
| Operating temperature | 0 to 55°C (32 to 131°F) |
| Storage temperature | -20 to 60°C (-4 to 140°F) |
| Operating humidity | 5% – 95% non-condensing |
| Protocols | ISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, SAE J2610, GM UART, UART Echo Byte, ISO11898 (high-speed, middle-speed, low-speed, single-wire and fault-tolerant CAN), Honda Diag-H, TP2.0, TP1.6 |
What’s in the Box
- 1×MaxiPRO MP808BT Pro main unit
- 1×VCI mini
- 1×Honda-3 adapter
- 1×Nissan-14 adapter
- 1×Mitsubishi/Hyundai-12+16 adapter
- 1×Kia-20 adapter
- 1×BMW-20 adapter
- 1×Volkswagen Audi-2+2 adapter
- 1×GM/Daewoo-12 adapter
- 1×Benz-38 adapter
- 1×Chrysler-16 adapter (America only)
- 1×Fiat-3 adapter (Europe only)
- 1×PSA-2 adapter (Europe only)
- 1×Benz-14 adapter (Europe only)
- 1×Power adapter
- 2×Mini USB cables
- 1×Carrying case
- 1×Strap
- 1×Quick reference guide
- 1×Packing list
