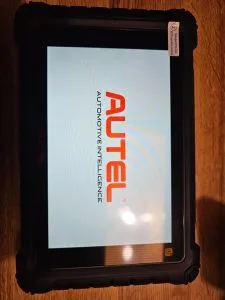

All-System Diagnostics and Full TPMS Service on an 8-Inch Tablet
The MaxiCheck MX900-TS reads and clears codes, shows live data and retrieves ECU information on all available systems, adds complete TPMS service including MX-Sensor programming, and runs 40+ service functions.
- All-System Diagnostics
- Full TPMS Service
- 40+ Services
- AutoVIN & AutoScan
- DoIP & CAN FD
Key Features
-
OE-Level All-System Diagnostics
Read and clear codes, view live data, retrieve ECU information, and perform active tests, adaptation and matching on all available electronic systems.
-
Complete TPMS Service
One-step TPMS health check with DTC descriptions, activation of known sensors, Autel MX-Sensor programming and OBD relearn with on-screen procedures.
-
AutoVIN and AutoScan
Identify the vehicle from its VIN and run a full scan of all available systems.
-
40+ Service Functions
Including oil reset, EPB, SAS reset, DPF regeneration, throttle reset, ABS bleed, battery registration, injector coding and headlamp.
-
Workshop Management
Keep data files, customer information and vehicle records organized in one place.
-
Updates and Remote Support
Automatic system and software updates with real-time push notifications over the Internet, plus remote-control technical support.
More Specifications
| Connectivity | USB Type-C, USB 2.0, Wi-Fi, Mini SD card (up to 64GB) |
|---|---|
| Audio output | Buzzer |
| Charging | 5 VDC power supply, 5V/3 A charging input |
| Operating temperature | 0 to 50°C (32 to 122°F) |
| Storage temperature | -10 to 60°C (14 to 140°F) |
| Protocols | ISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, ISO11898 (high-, middle-, low-speed and single-wire CAN, fault-tolerant CAN), SAE J2610, GM UART, UART Echo Byte, Honda Diag-H, TP2.0, TP1.6, DoIP, CAN FD |
What’s in the Box
- 1×MX900-TS tablet
- 1×MaxiVCI V150
- 1×Power adapter
- 1×USB Type-C cable
- 1×Soft cloth
- 1×Quick reference guide
- 1×Carrying case
- 1×Packing list
Good to Know
Caution
- The MX900-TS is subject to IP restrictions and can only be used within the United States.
