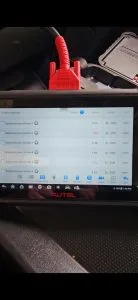

Works great on my LB7 Duramax for checking injector balance rates and fuel rail pressure has a lot of options to choose from to check different modules and active functions so far really like it.

Tina D.

easy to use

runs and diagnoses as fast as I expected. good price with mv108, easy to check narrow space. It works good on my old honda accord as far.

Alyssa P.

Next level

This scanner has taken me to the next level in troubleshooting and repair. Cant wait to use many more of its features

Specifications

BrandAUTEL
Weight925 g
Operating SystemAndroid 11
ProcessorQuad-core 1.8GHz
Memory / Storage4GB RAM & 64GB ROM
Display8-inch capacitive touchscreen 1280x800
Battery3.7 V/7700mAh lithium polymer battery
ConnectivityUSB Type-C, USB 2.0, Wi-Fi; DoIP, CAN FD
Diagnostic FunctionsAll-system diagnostics, bidirectional control, 40 service functions, FCA AutoAuth (2018 and later)
Rear Camera8 MP
Vehicle CoverageAmerican, Asian and European vehicles
Software UpdatesIncludes 1-year free updates; Wi-Fi push updates

Details

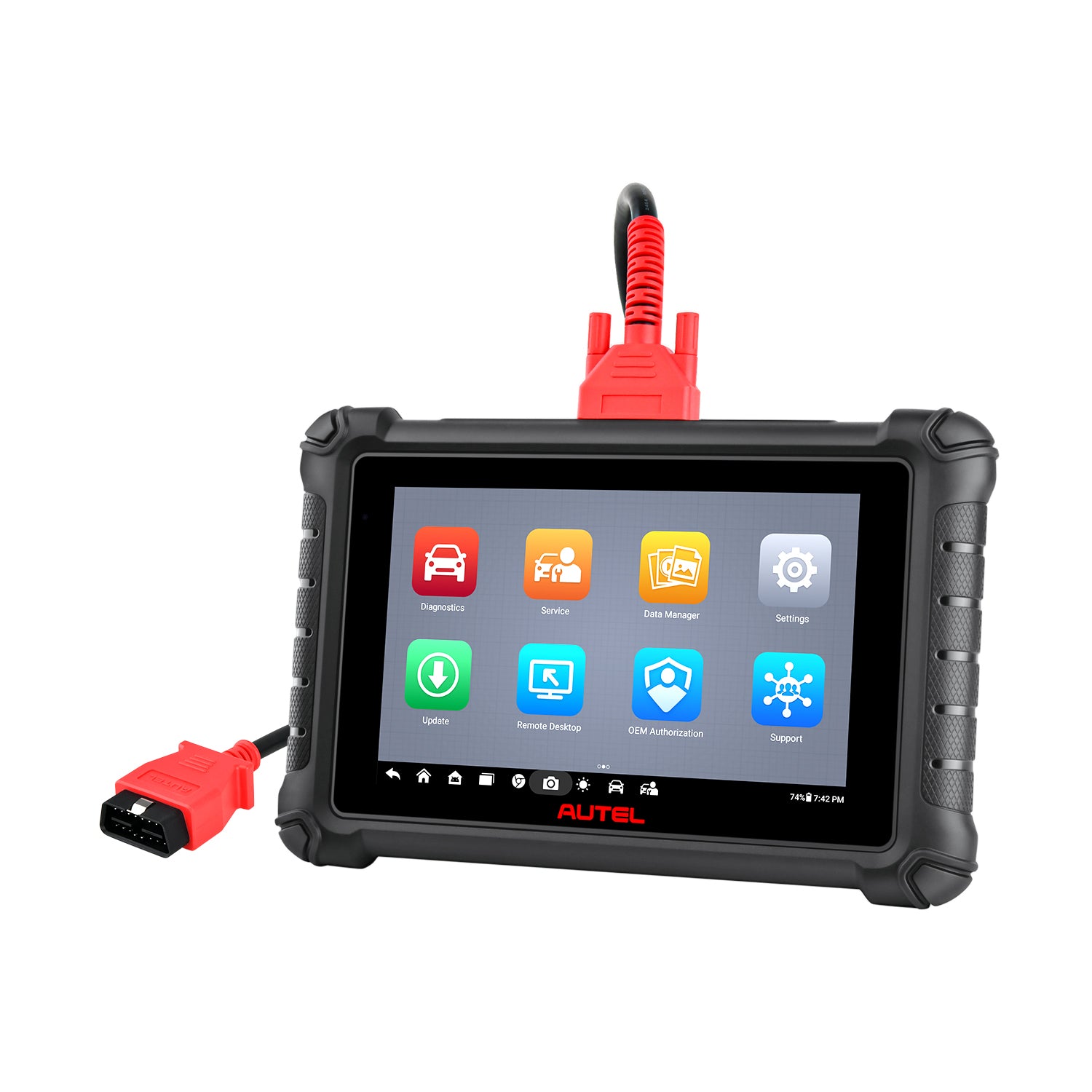

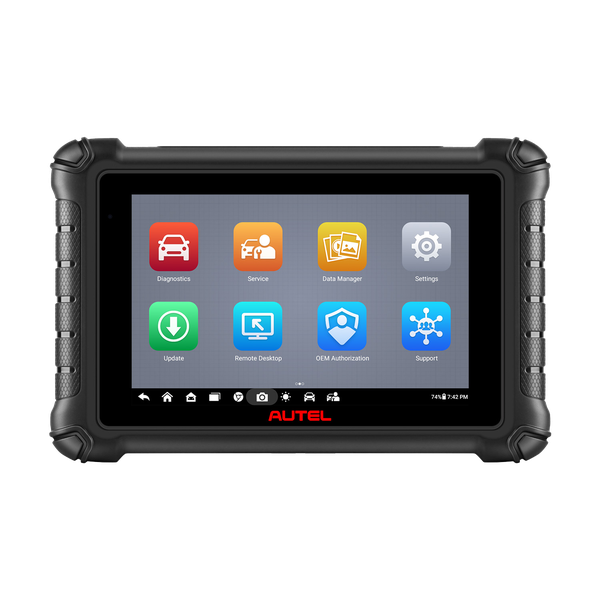

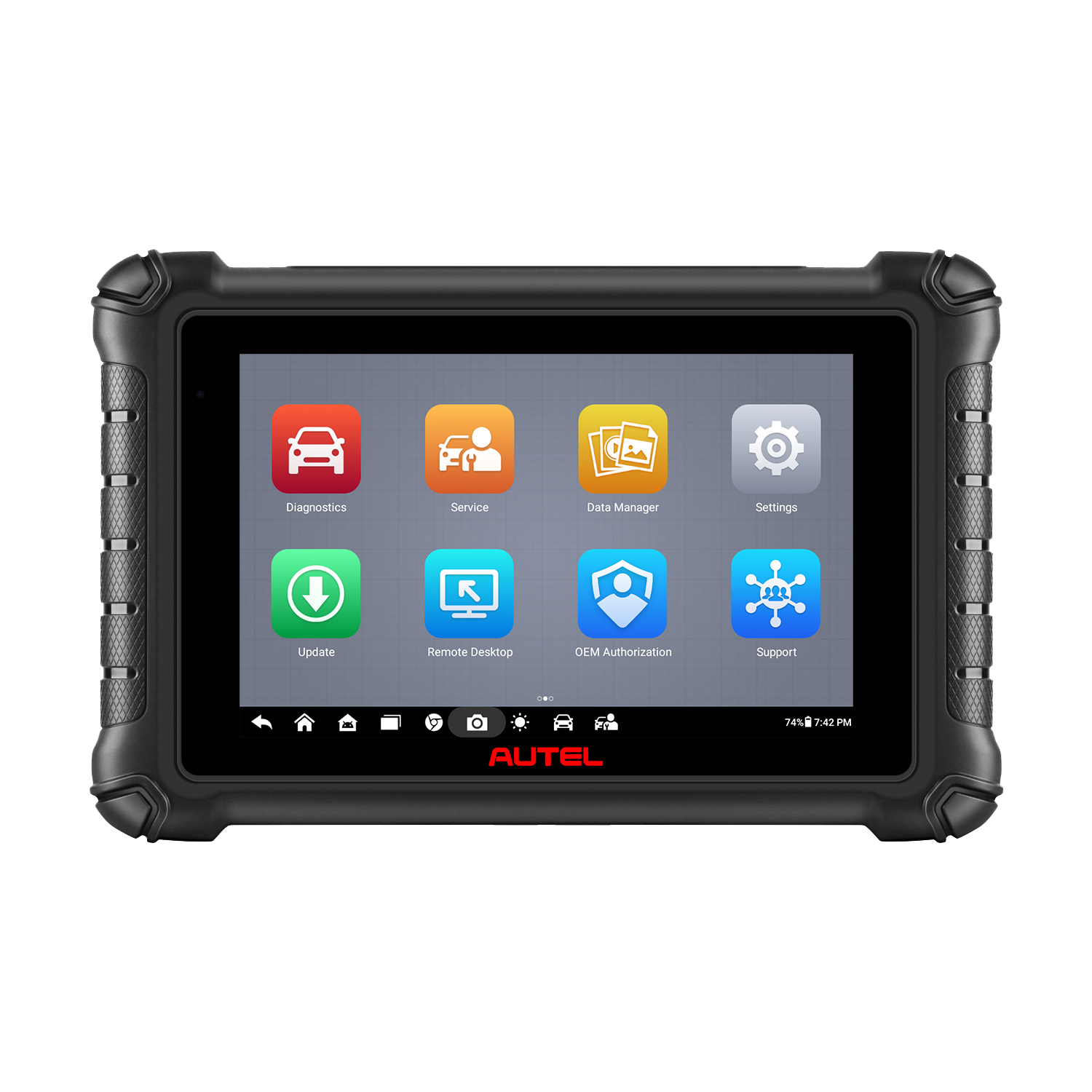

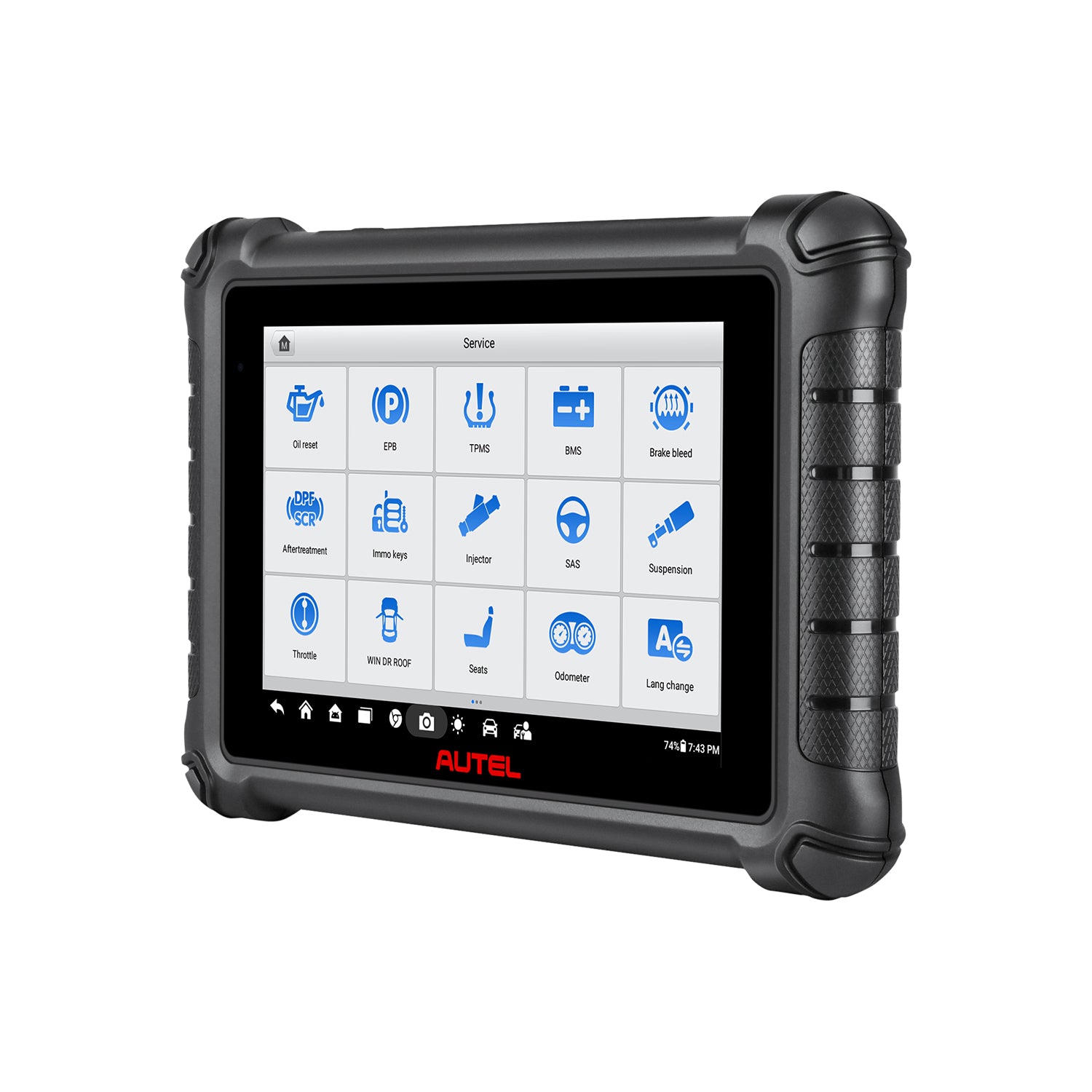

All-System Diagnostics, Active Tests and 40 Services on an 8-Inch Android Tablet

The MaxiCheck MX900 is Autel’s base-model scan tool that replaces the MX808. It reads and clears codes on all vehicle systems, runs bi-directional active tests and covers 40 service functions, with support for the DoIP and CAN FD protocols.

  • 40 Service Functions
  • Bi-Directional Control
  • FCA AutoAuth
  • DoIP & CAN FD
  • Pre- & Post-Scan

Key Features

  1. Upgrade From the MX808

    Longer battery life, more memory and a faster processor than the MX808 it replaces.

  2. Service Functions

    Oil reset, EPB reset, SAS reset, battery registration, throttle reset, ABS bleed and more.

  3. OE-Level All-System Diagnostics

    Read and clear fault codes on all vehicle systems, view live data in several formats and read ECU information.

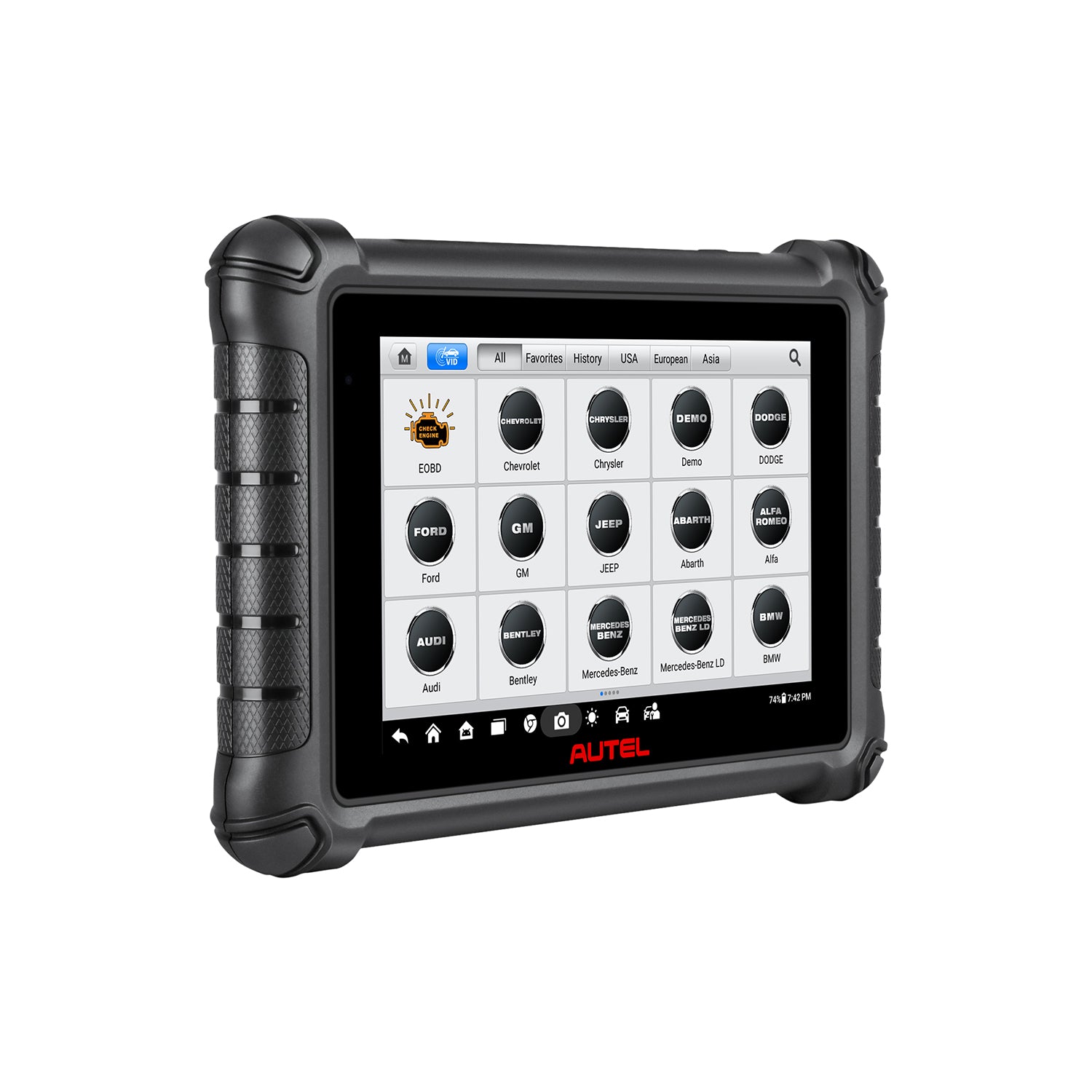

  4. AutoVIN and Auto Scan

    Retrieves VIN information quickly and runs a full system scan for the identified vehicle.

  5. Full Bi-Directional Control

    Injector tests, headlamp and fuel pump control, A/C cycling, clutch engagement and disengagement, oil pressure testing, vehicle level position calibration, brake vacuum pump operation and valve testing.

  6. Advanced Functions

    Pre- and post-scan reports, Wi-Fi printing and auto authentication for FCA vehicles.

  7. Workshop Tools

    Remote access technical support, plus data management that keeps files, customer info and vehicle records organized.

More Specifications

Storage expansion Micro SD card (supports up to 64GB)
Audio output Buzzer
Charging 5 VDC power supply, 5V/3 A input
Operating temperature 0 to 50°C (32 to 122°F)
Storage temperature -10 to 60°C (14 to 140°F)
Protocols ISO 9141-2, ISO 14230-2, ISO 15765, K/L-Line, Flashing Code, SAE J1850 VPW, SAE J1850 PWM, ISO 11898 (high-, middle- and low-speed and single-wire CAN, fault-tolerant CAN), SAE J2610, GM UART, UART Echo Byte, Honda Diag-H, TP 2.0, TP 1.6, DoIP, CAN FD

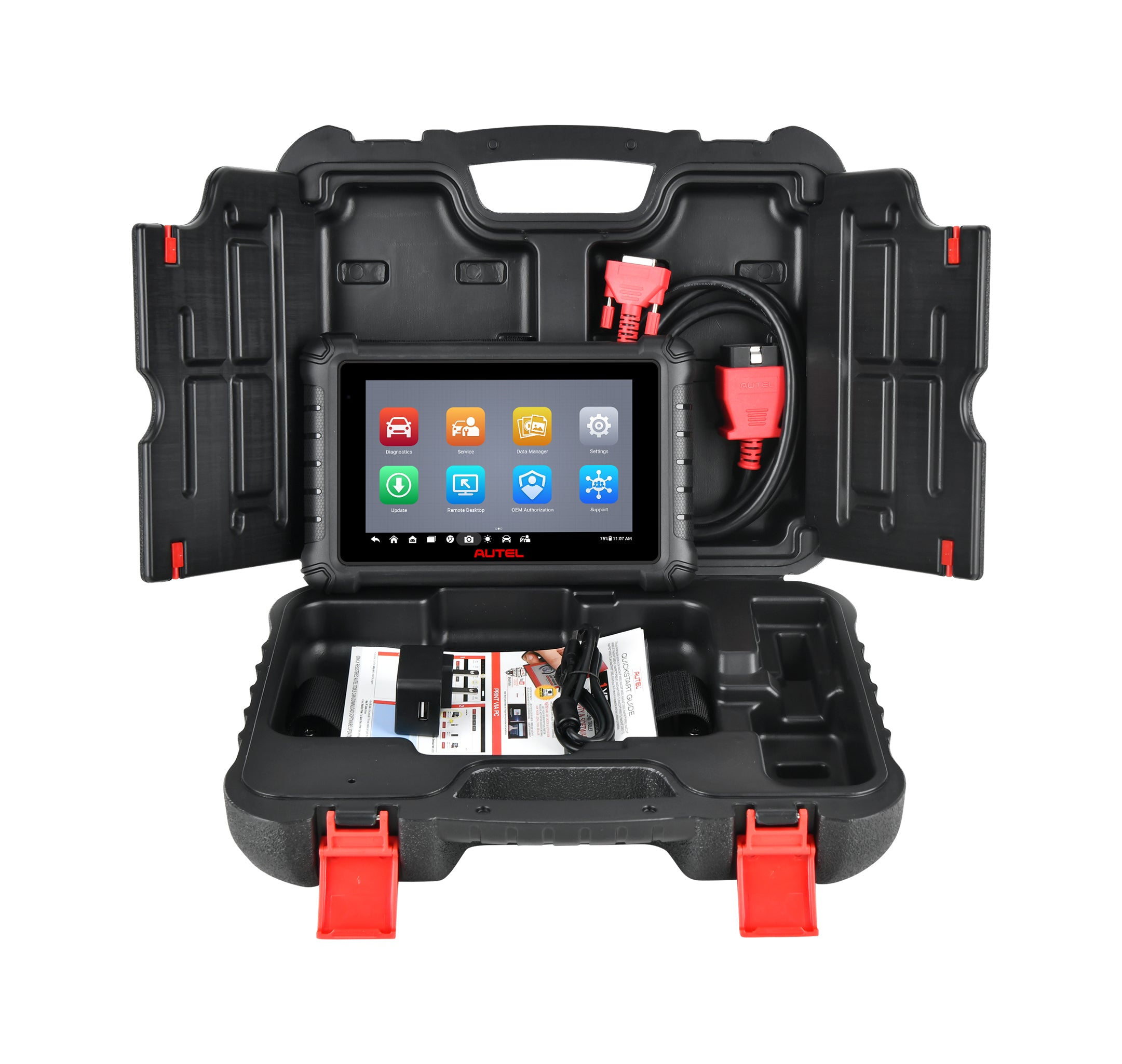

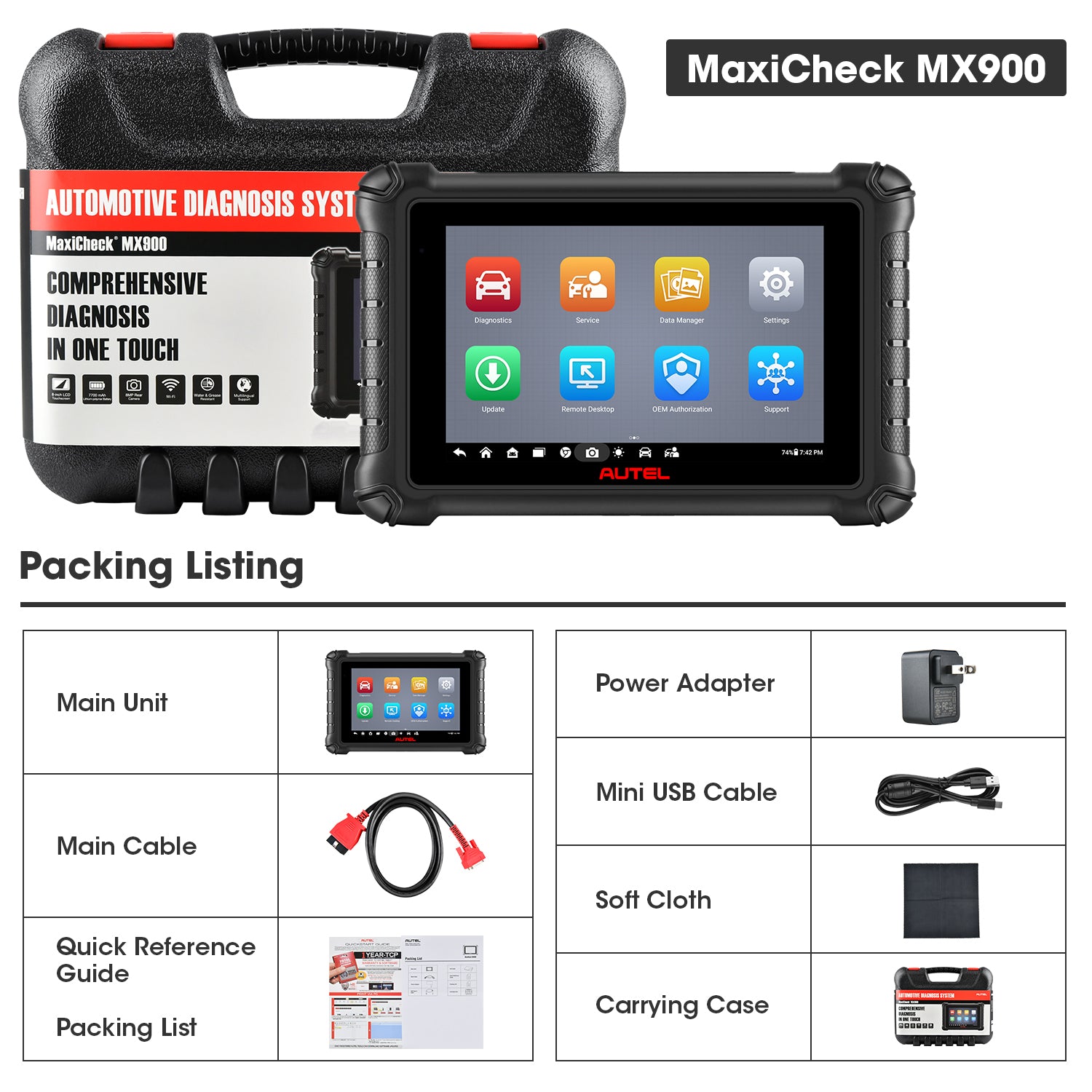

What’s in the Box

  • 1×MX900 main unit

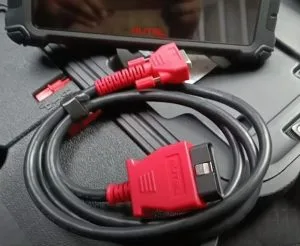

  • 1×Main cable
  • 1×Power adapter
  • 1×USB Type-C cable
  • 1×Soft cloth
  • 1×Quick reference guide

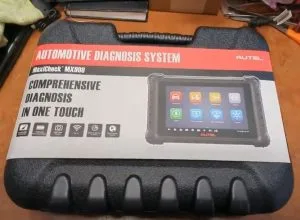

  • 1×Carrying case

You may also like

Select specifications

More

Delivery

Ships in 1-3 business days

Payment methods

  • Credit / Debit CardVisaMastercardAmerican Express
  • PayPalPayPal
  • Apple PayApple Pay
  • Google PayGoogle Pay
  • LinkLink
  • iDEAL | WeroiDEAL | Wero
  • BancontactBancontact
  • EPSEPS
  • Przelewy24Przelewy24
  • BancontactBancontact
  • BlikBlik
  • EPSEPS
  • iDealiDeal
  • MyBankMyBank
  • Przelewy24Przelewy24
  • TrustlyTrustly
  • MultibancoMultibanco

Available methods may vary by currency and billing country; the final list is shown at checkout.

Service

  • Secure checkout

    Payments are processed over an encrypted connection.

  • After-sales support

    Contact us for installation or usage questions.

Specifications

Brand
AUTEL
Weight
925 g
Operating System
Android 11
Processor
Quad-core 1.8GHz
Memory / Storage
4GB RAM & 64GB ROM
Display
8-inch capacitive touchscreen 1280x800
Battery
3.7 V/7700mAh lithium polymer battery
Connectivity
USB Type-C, USB 2.0, Wi-Fi; DoIP, CAN FD
Diagnostic Functions
All-system diagnostics, bidirectional control, 40 service functions, FCA AutoAuth (2018 and later)
Rear Camera
8 MP
Vehicle Coverage
American, Asian and European vehicles
Software Updates
Includes 1-year free updates; Wi-Fi push updates

Reviews96

5.0 / 5Based on 96 reviews
3 ★0
2 ★0
1 ★0
Anonymous

Works great on my LB7 Duramax for checking injector balance rates and fuel rail pressure has a lot of options to choose from to check different modules and active functions so far really like it.

Tina D.

easy to use

runs and diagnoses as fast as I expected. good price with mv108, easy to check narrow space. It works good on my old honda accord as far.

Alyssa P.

Next level

This scanner has taken me to the next level in troubleshooting and repair. Cant wait to use many more of its features

Mr. L.

Very capable and well supported

I'm using this unit to scan my '07 Land Rover LR3,'12 LR4 and '09 Audi Avant....along with a Buch of other cars belonging to friends.This unit has been VERY user friendly.I'm very impressed with the simplicity and overall functionality.

Carl H.

bigger screen, faster cpu

I can say the new mx900 is much faster than my old device. bigger screen, faster cpu, larger battery, more vehicles covered, supports new protocol can fd and doip, has fca access with autoauth.....have tried on honda, toyota, ford, chevrolet vehicles, all good.

Gabriel M.

Súper bien Satisfecho con el equipo Muy

Súper bien Satisfecho con el equipo Muy bueno

Charles B.

Does the job perfectly

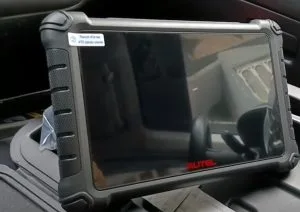

The MX900 is lightweight but does not feel cheap. I keep it on my cart for quick scans and the battery lasts all week. Packed well in the box.
