Full TPMS Service and Bi-Directional Diagnostics With ECU Coding on an 8-Inch Tablet

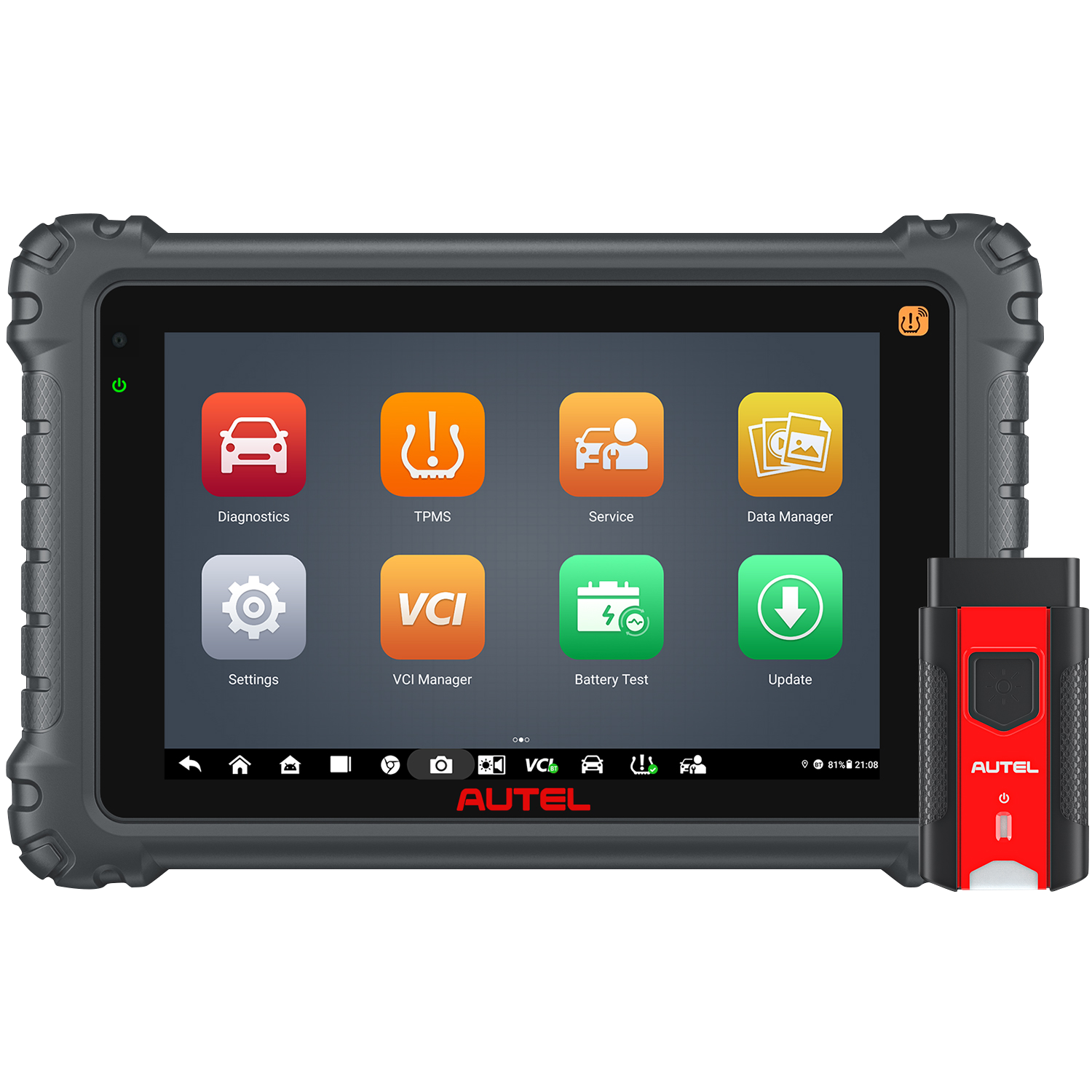

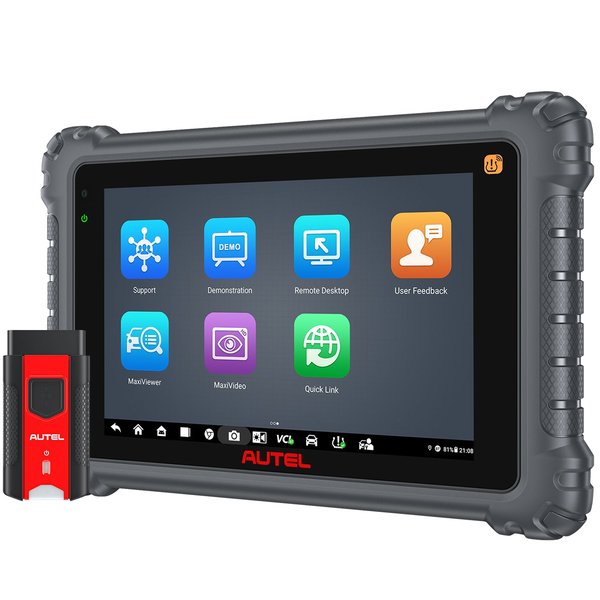

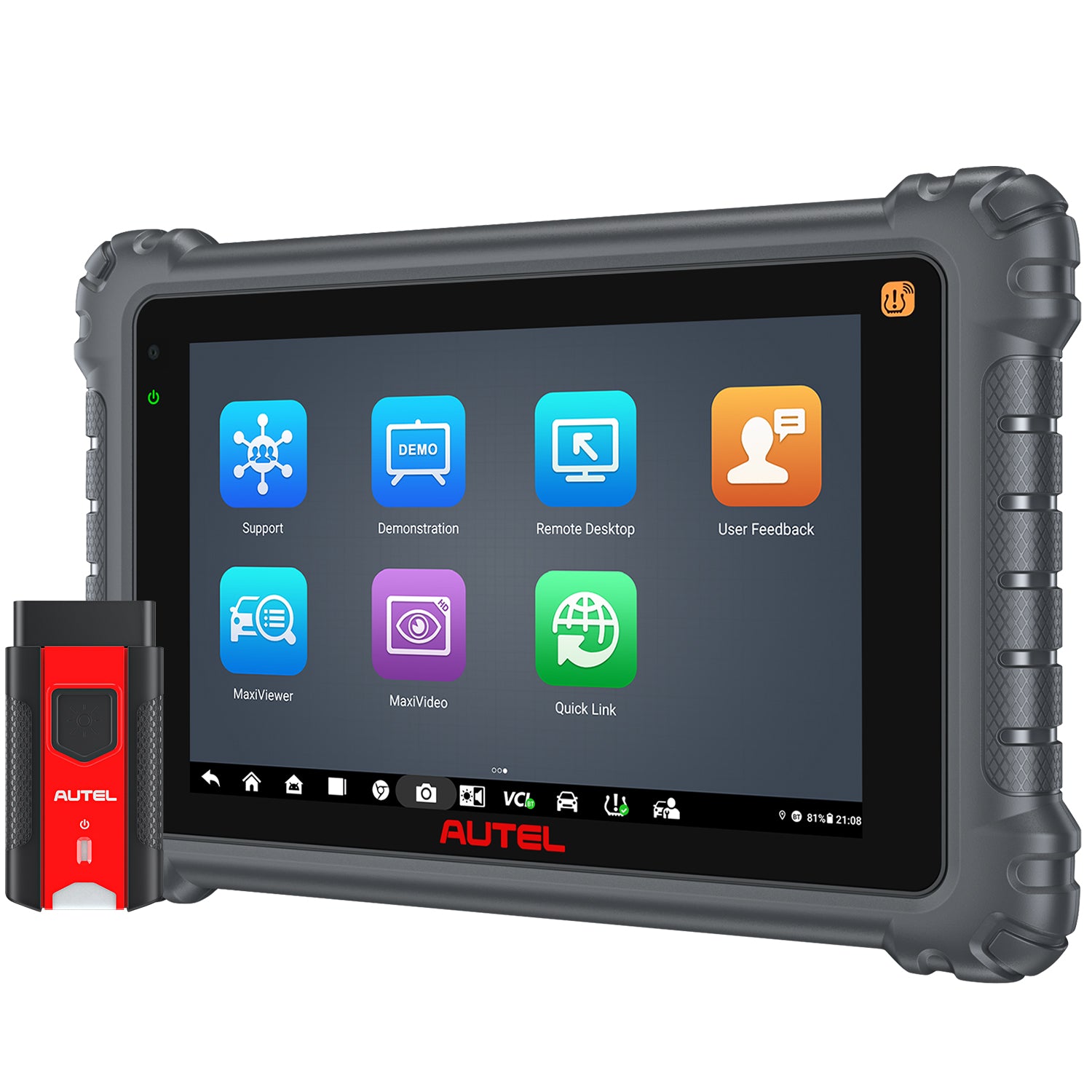

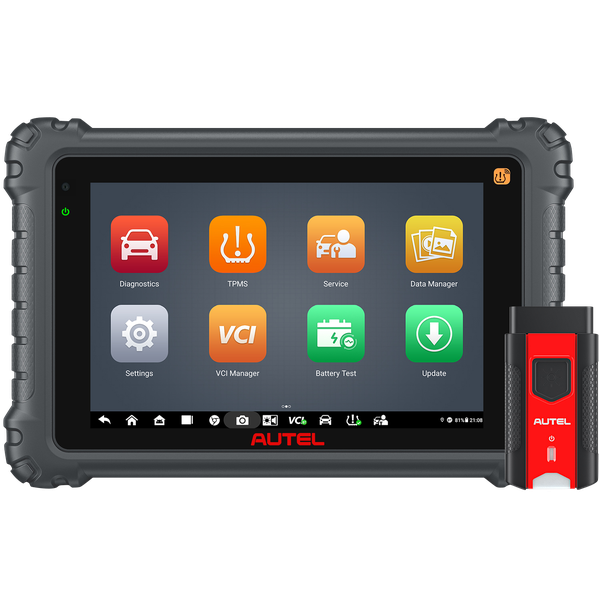

The MaxiCOM MK906S PRO2-TS combines an all-system diagnostic scanner with an integrated TPMS antenna module, so one tablet handles sensor activation, relearn and MX-Sensor programming alongside coding, adaptations and active tests. It is the upgrade of the MK906S PRO-TS / MK906 PRO-TS.
- Integrated TPMS Module
- MaxiVCI V200 Bluetooth
- ECU Online Coding
- FCA AutoAuth
- Cloud Reports
Key Features
-

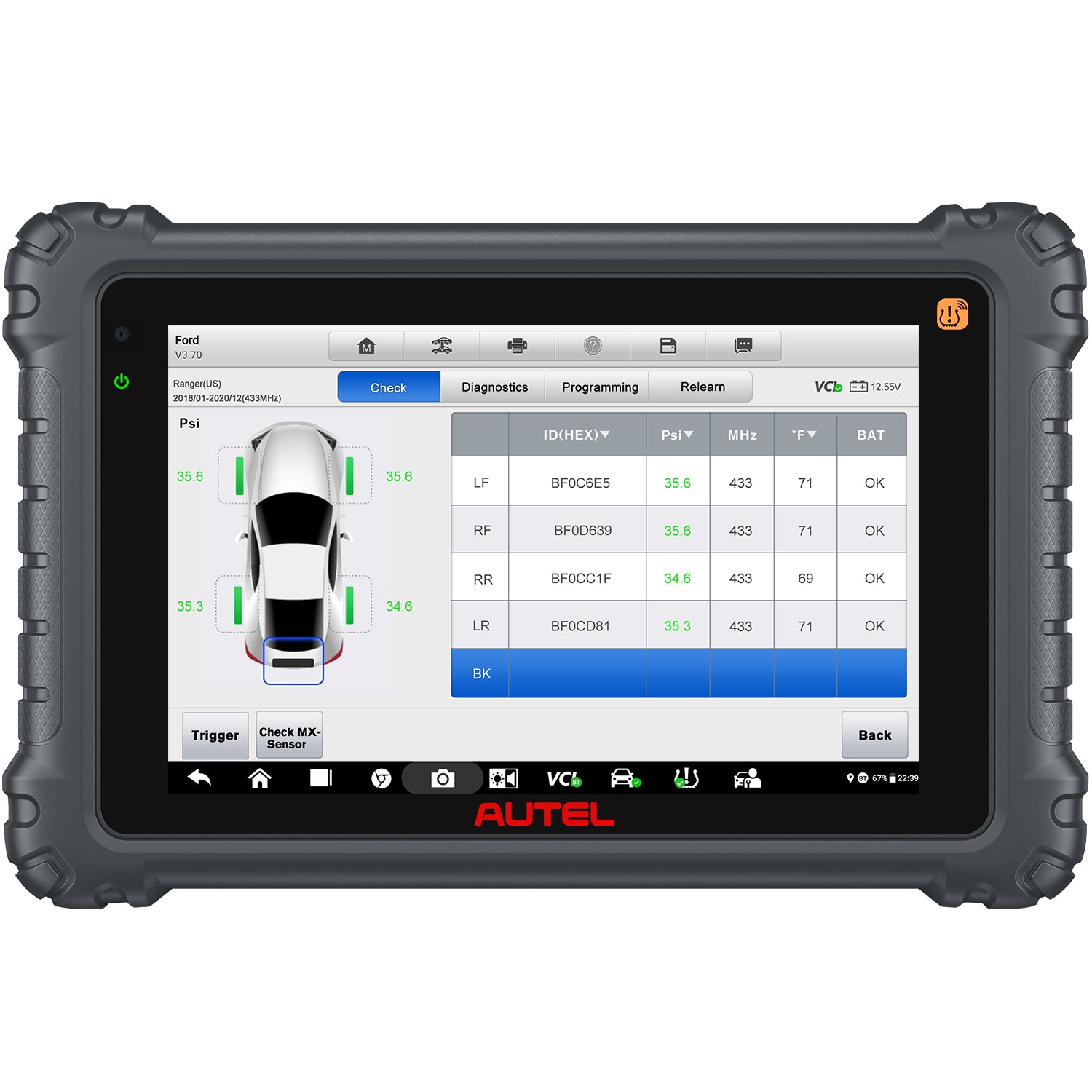

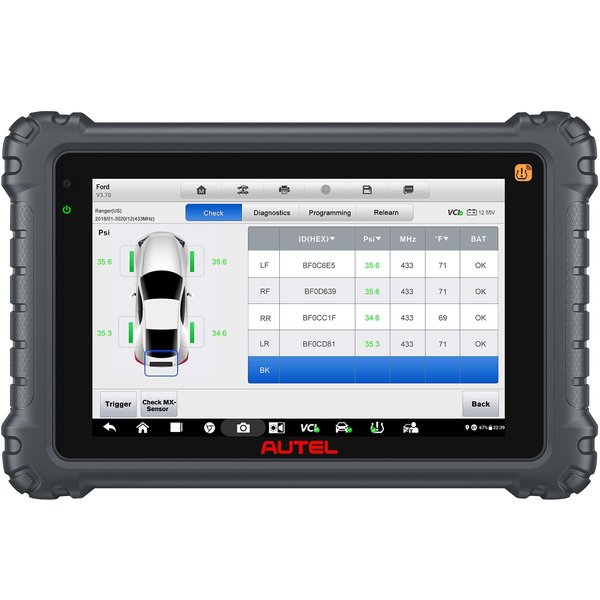

Complete TPMS Service
Activate and relearn sensors, program MX-Sensors, turn off TPMS lights and retrieve OEM sensor part numbers; compatible with the Autel MX-Sensor BLE-A001 Tesla sensor.
-
ECU Coding
Establishes full data links with control units through the VCI for diagnosis, repair and coding, with online coding and personalization for BMW, Porsche and VW.
-
Guided Functions
OE-level, step-by-step on-screen guidance for VW, Audi, Skoda, Seat, Bentley and more.
-
Bi-Directional Control
Send commands to control units to control and monitor modules such as PDM, SMF, RSM and TCU.
-
Hidden Features
Activate features already programmed into the vehicle computer, such as auto start-stop, injector light customization and auto door lock speed, on BMW, VW, Audi, Skoda and more.
-
FCA AutoAuth
Clear codes, run active tests and access special functions on 2018 and newer Chrysler FCA models without special adapters.
-
Fast Scans and Cloud Reports
AutoScan of all available systems, AutoVIN/Scan VIN identification, freeze frame and live data, and cloud-based report and data management.
More Specifications
| CPU cores | 2.2GHz quad-core A73 + 1.8GHz quad-core A53 |
|---|---|
| Ports and wireless | Wi-Fi (802.11 b/g/n), USB 2.0, Mini USB 2.0, BT V2.1+EDR Class1, HDMI 1.4a, SD card (up to 32 GB) |
| Sensors | Gravity accelerometer, ambient light sensor |
| Audio | Microphone, single speaker, 3-band 3.5 mm headset jack |
| Charging | 12 V AC/DC power supply |
| Input voltage | 12 V (9–35 V) |
| Power consumption | 5 W |
| Operating temperature | -10 to 55°C (14 to 131°F) |
| Storage temperature | -20 to 70°C (-4 to 158°F) |

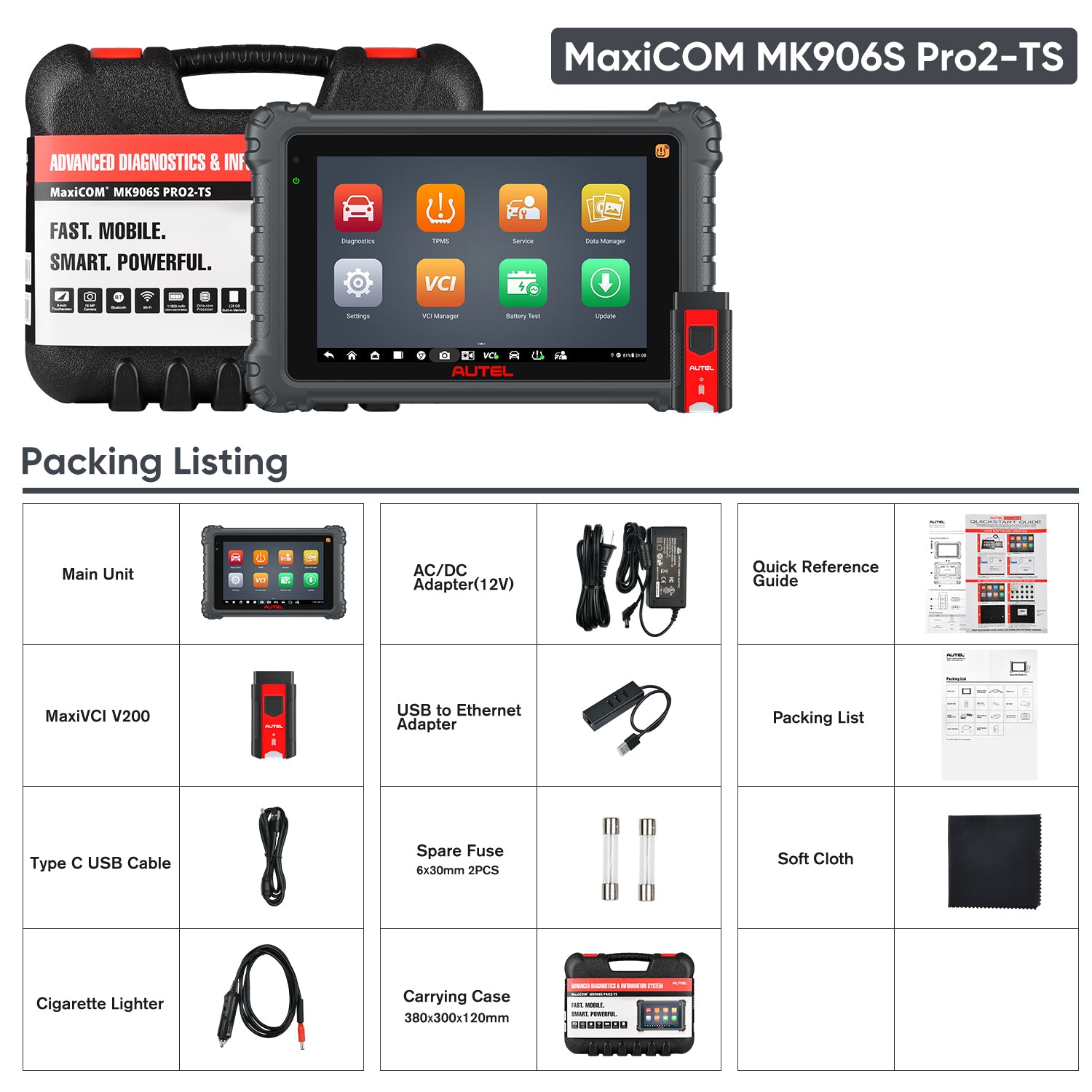

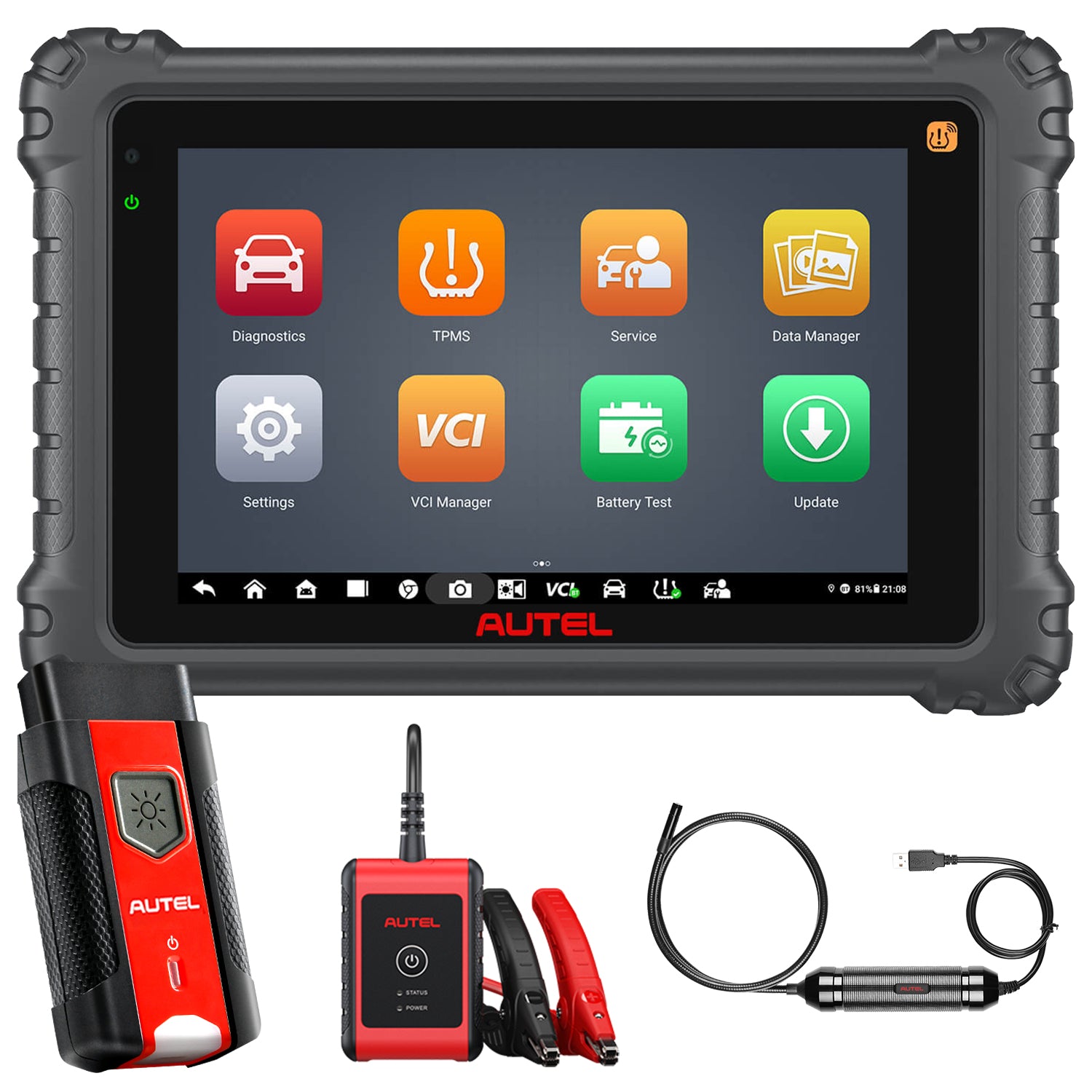

What’s in the Box
- 1×MaxiCOM MK906S Pro2-TS main unit
- 1×MaxiVCI V200
- 1×AC/DC adapter (12V)
- 1×Type-C USB cable
- 1×Cigarette lighter adapter
- 2×Spare fuses (6 × 30 mm)
- 1×USB to Ethernet adapter
- 1×Soft cloth
- 1×Packing list
- 1×Carrying case
- 1×Quick reference guide
Good to Know
Caution

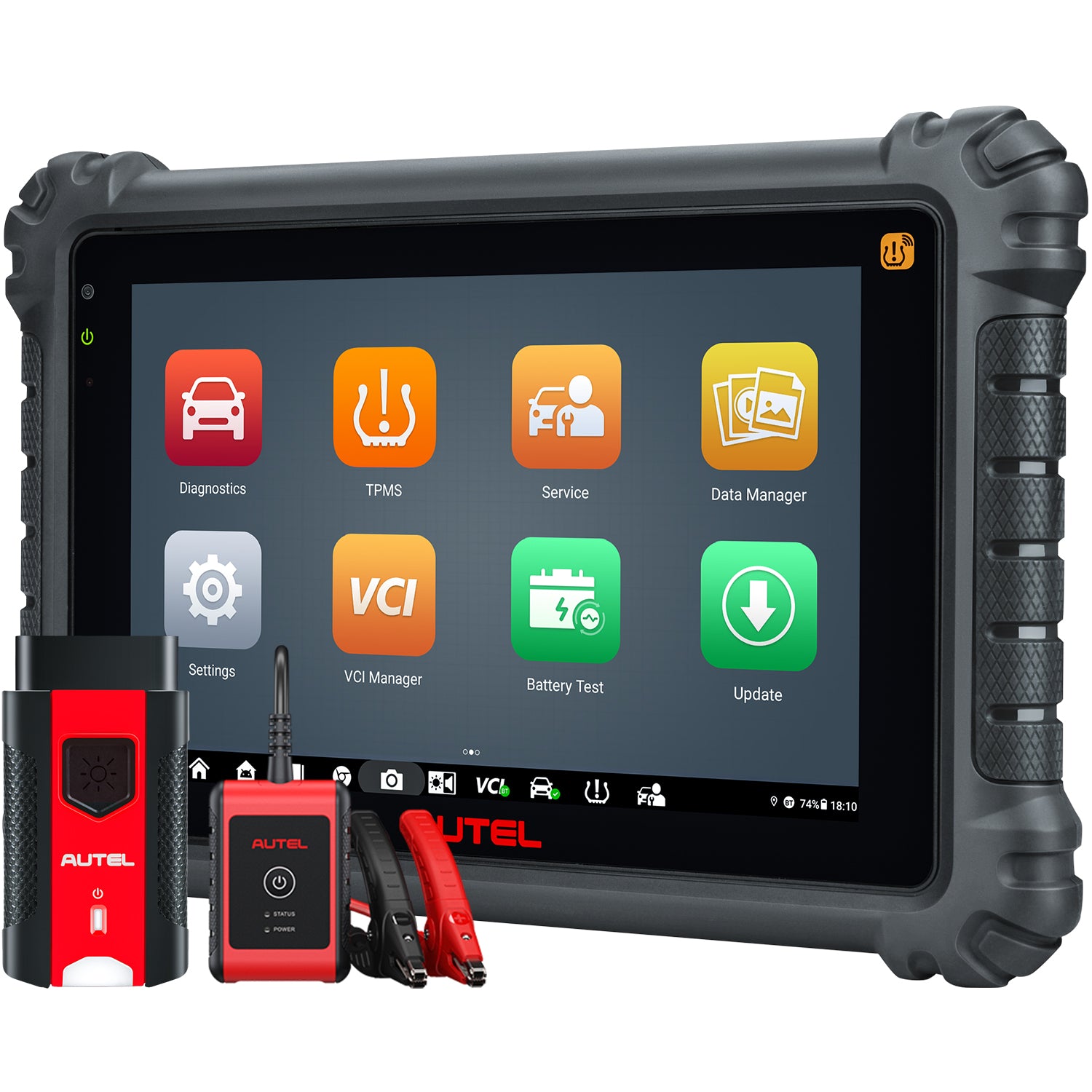

- Battery analysis works with the MaxiBAS BT506 battery and electrical system tester, which is sold separately.
