ECU Coding, Active Tests and 40+ Services on an 8-Inch Tablet

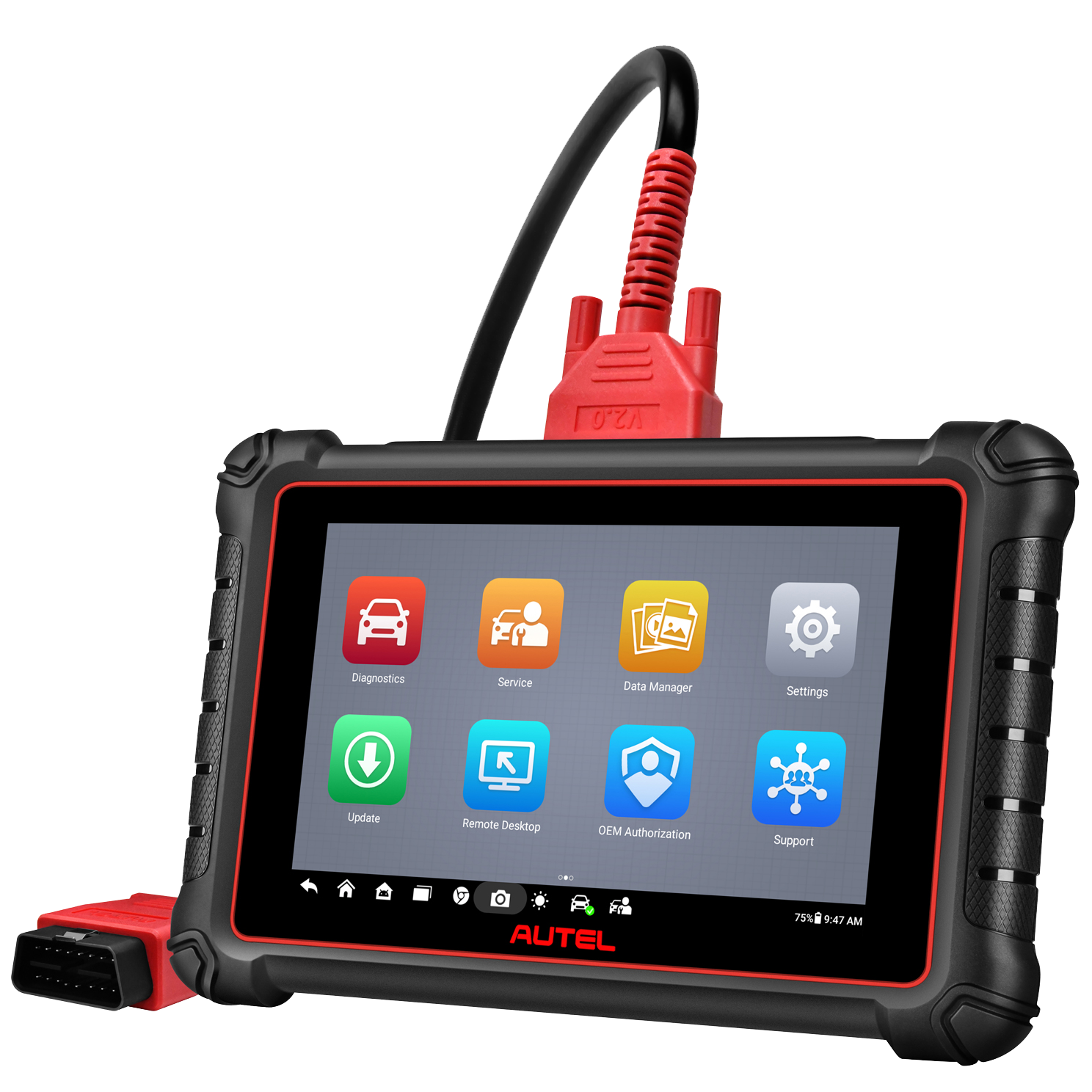

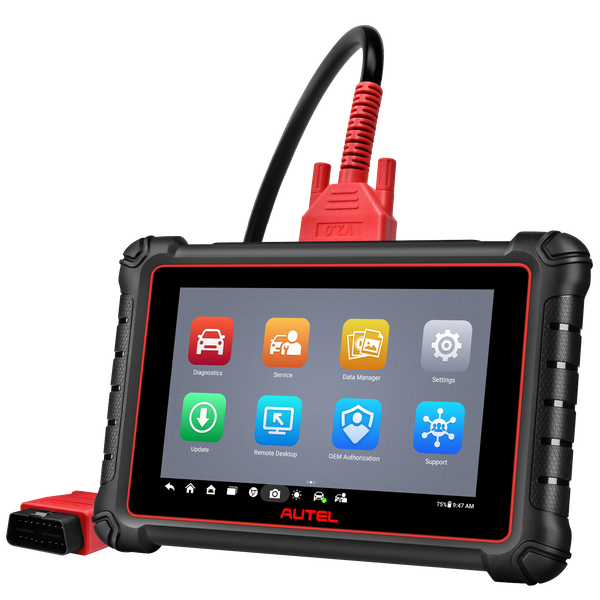

The MaxiPro MP900 (same as the MP900E / DS900) delivers all-system diagnostics, online and offline ECU coding, bi-directional tests and pre- and post-scan reports out of the box, with step-by-step guides for VAG vehicles.
- Online & Offline Coding
- Bi-Directional Tests
- VAG Guided Functions
- Pre- & Post-Scan Reports
- Wi-Fi Printing
Key Features
-
ECU Coding
Online and offline coding to activate hidden functions, customize OE settings such as auto start/stop, and match, code, re-code or adapt replacement modules.
-

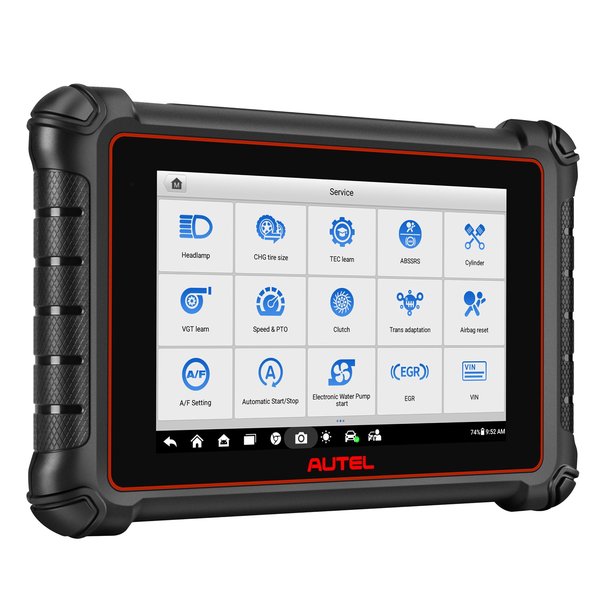

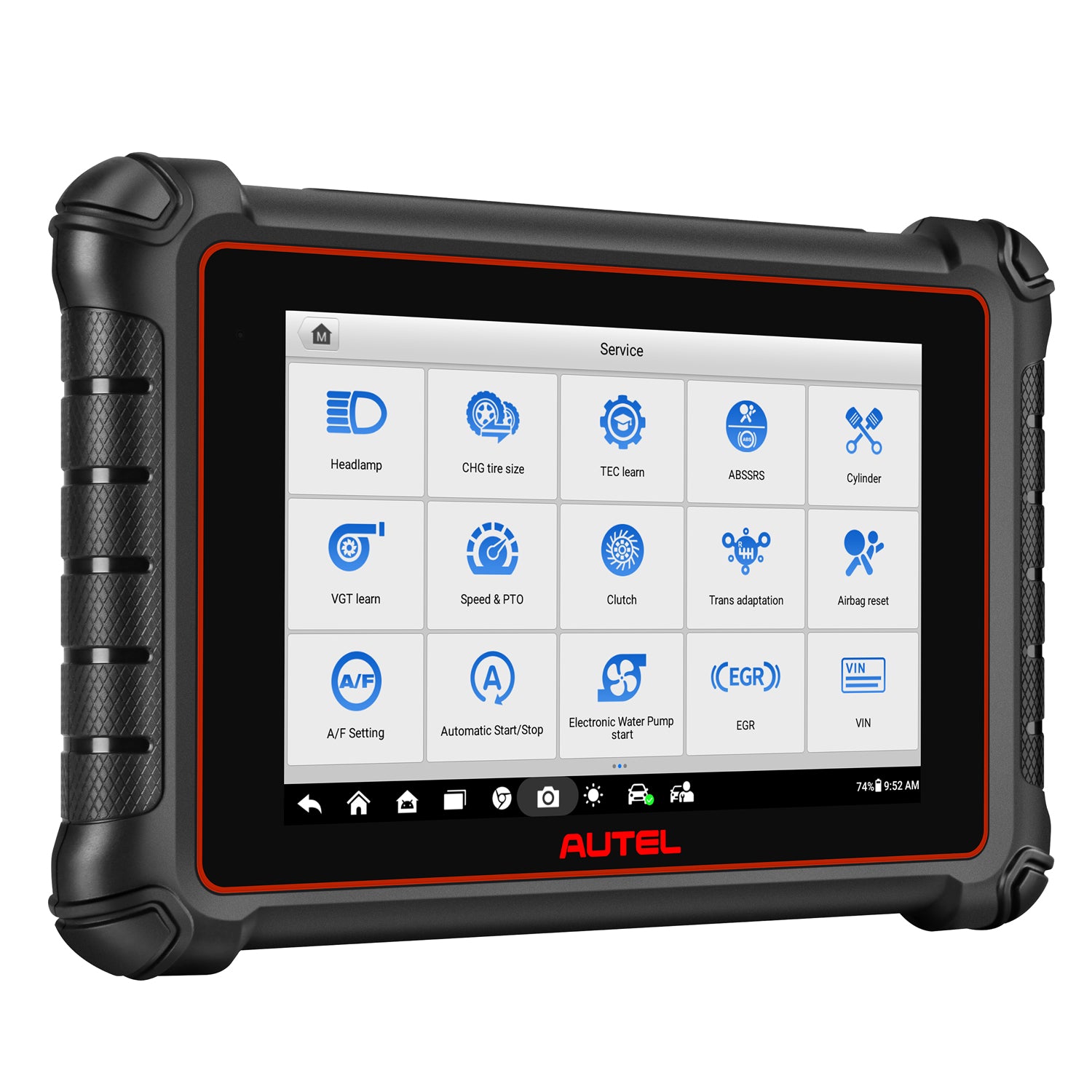

Service and Relearn Functions
ABS bleed, oil reset, SAS reset, injector coding, SRS reset, BMS reset, EPB reset and more, plus initial adaptation and self-learning after maintenance, such as crankshaft position sensor learn.
-
Bi-Directional Tests
Test the integrity and function of module actuators without dismantling anything.
-
VAG Guided Functions
Step-by-step special service guides for VW, Audi, Skoda, Seat and MAN LD.
-

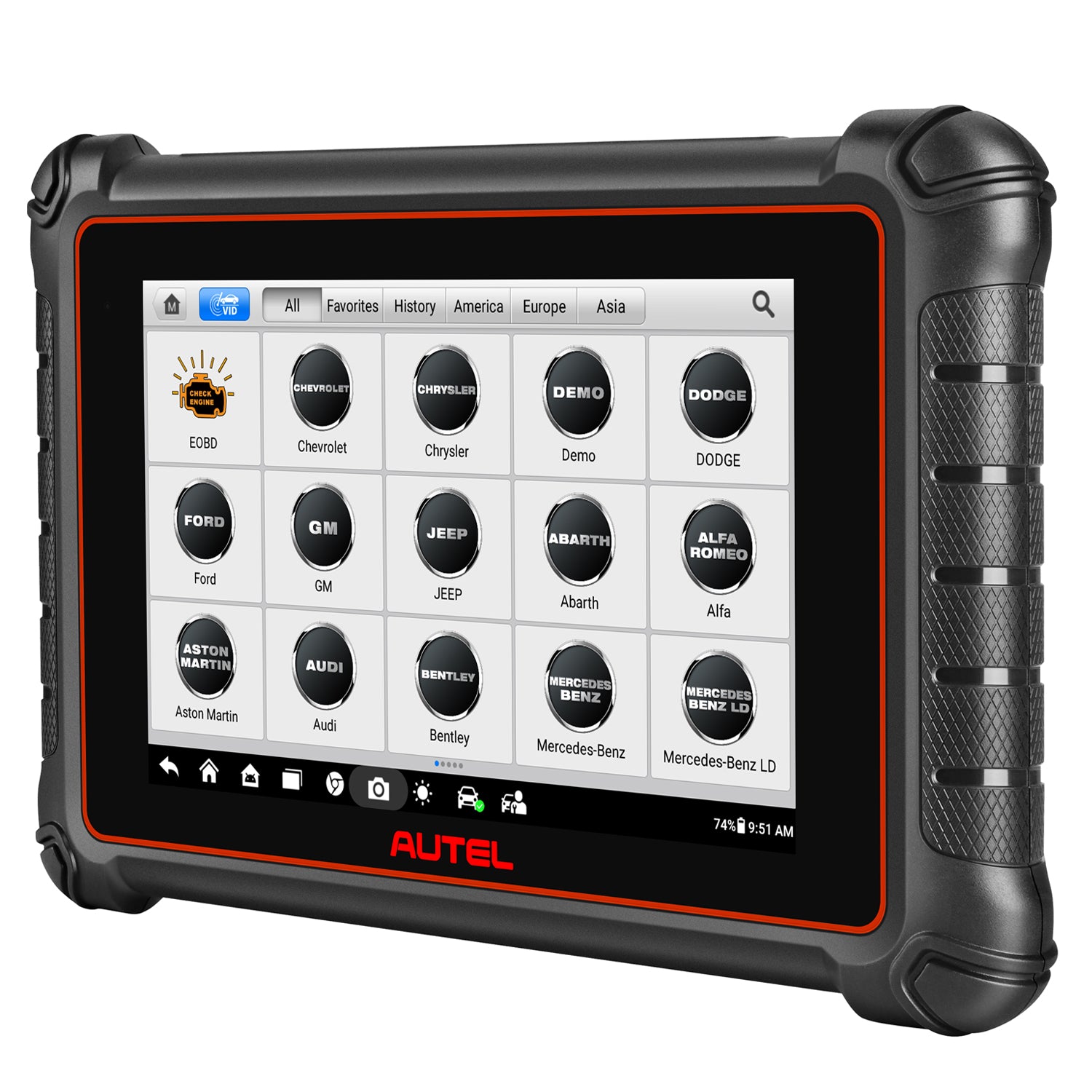

Complete Diagnostics
Codes, live data, ECU information, active tests and special functions for all electronic systems on U.S., Asian and European vehicles, with Smart AutoVIN and VIN/license scanning.
-
Remote Support and Shop Tools
Remote-access technical support, plus a shop management application for data files, customer information and vehicle records.
More Specifications
| Memory card | Mini SD card (supports up to 64GB) |
|---|---|
| Charging | 5 VDC power supply; 5 V/3 A charging input |
| Audio output | Buzzer |
| Operating temperature | 0 to 50ยฐC (32 to 122ยฐF) |
| Storage temperature | -10 to 60ยฐC (14 to 140ยฐF) |
| Protocols | ISO 9141-2, ISO 14230-2, ISO 15765, K/L-Line, Flashing Code, SAE J1850 VPW and PWM, ISO 11898 (high, middle, low speed and single-wire CAN, fault-tolerant CAN), SAE J2610, GM UART, UART Echo Byte, Honda Diag-H, TP 2.0, TP 1.6, DoIP, CAN FD |

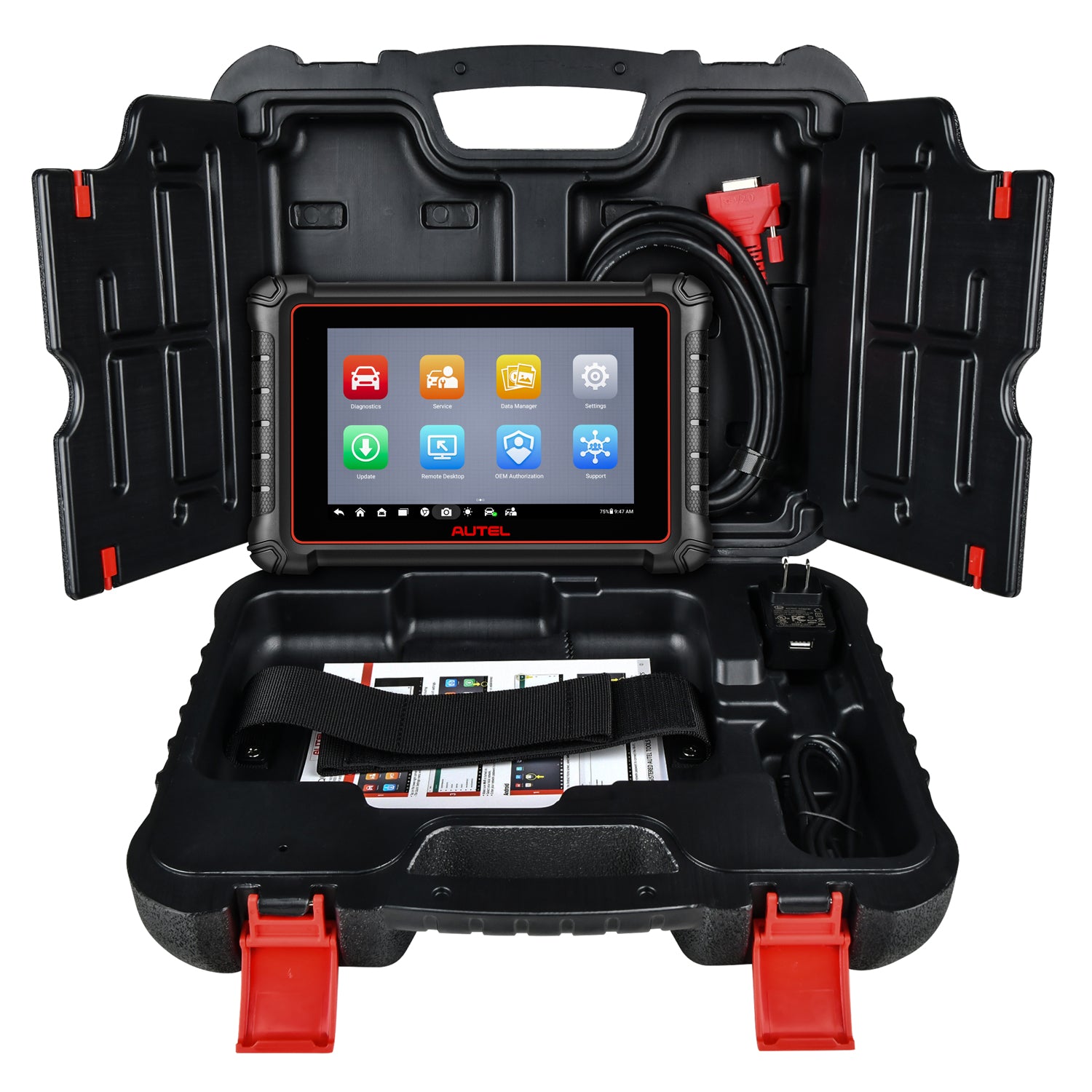

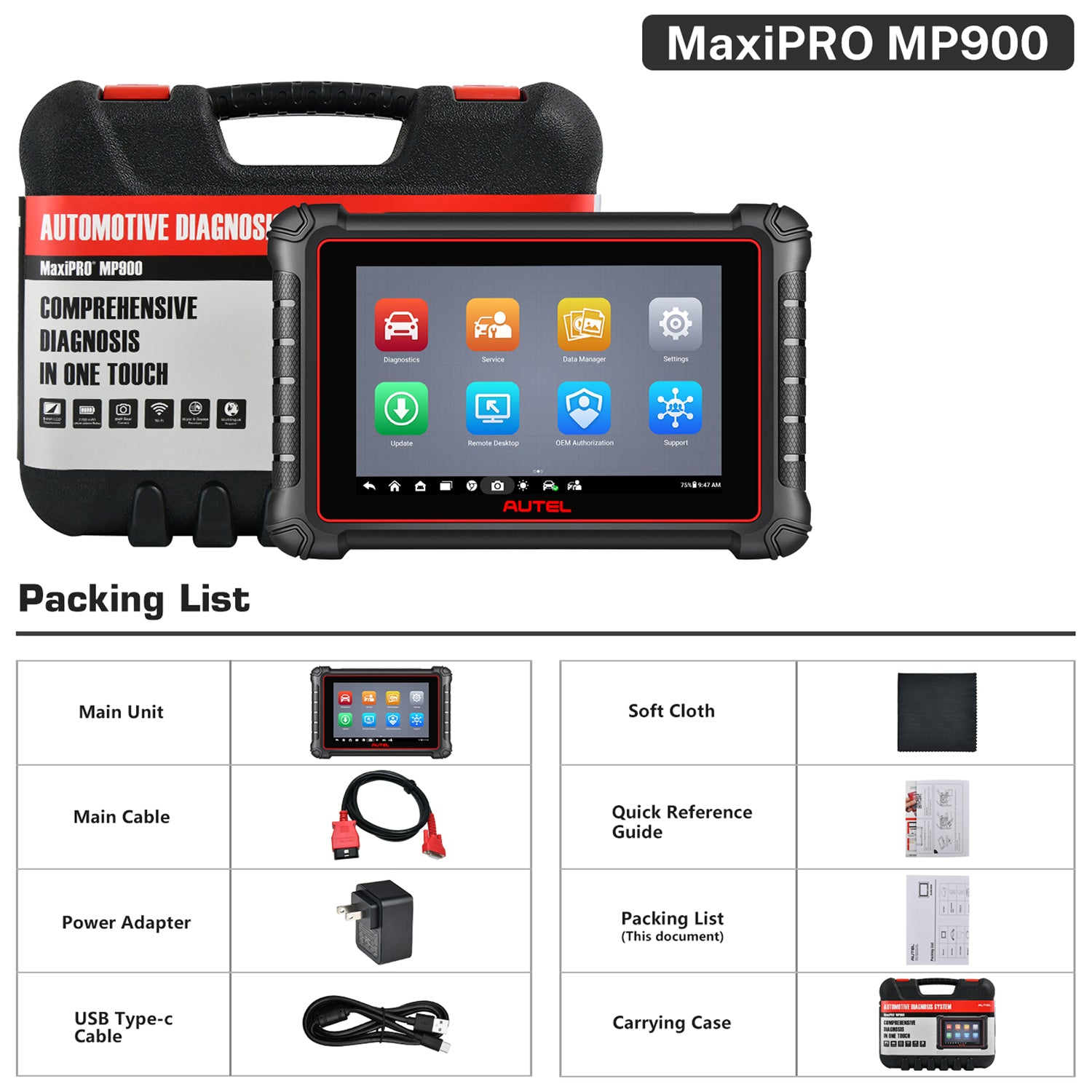

What’s in the Box
- 1รMP900 main unit
- 1รMain cable
- 1รPower adapter
- 1รUSB Type-C cable
- 1รSoft cloth
- 1รQuick reference guide
- 1รPacking list
- 1รCarrying case
