Specifications

BrandAUTEL
Weight1656.5 g
Operating SystemAndroid 13
Processor / Storage2.7G octa-core, 12GB+256GB
Display11-inch anti-glare 2176x1600
Battery15000 mAh
VCI6-in-1 MaxiFlash VCMI2 (J2534, 4-channel oscilloscope, multimeter, waveform generator, CAN testing, remote expert)
Supported ProtocolsDoIP, CAN FD, J2534, D-PDU
Diagnostic FunctionsTopology 3.0, voice assistant, AI vehicle inspection
Service Functions48+
ConnectivityDual Wi-Fi 6, Bluetooth
CameraFront and rear 16M
Vehicle CoverageAll-system diagnostics for a wide range of vehicles

Details

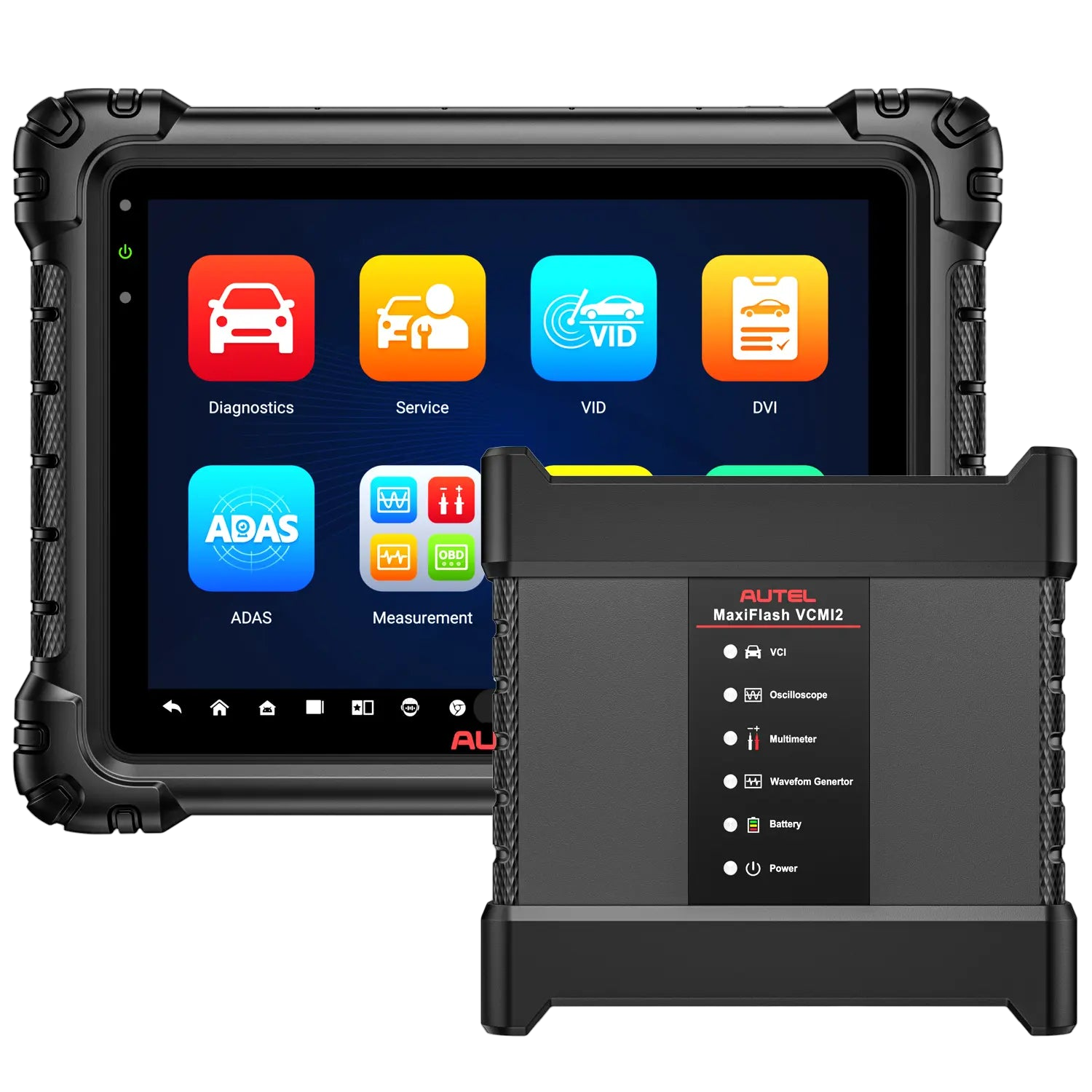

Topology 3.0, a 6-in-1 VCMI2 and 48+ Services on an 11-Inch Tablet

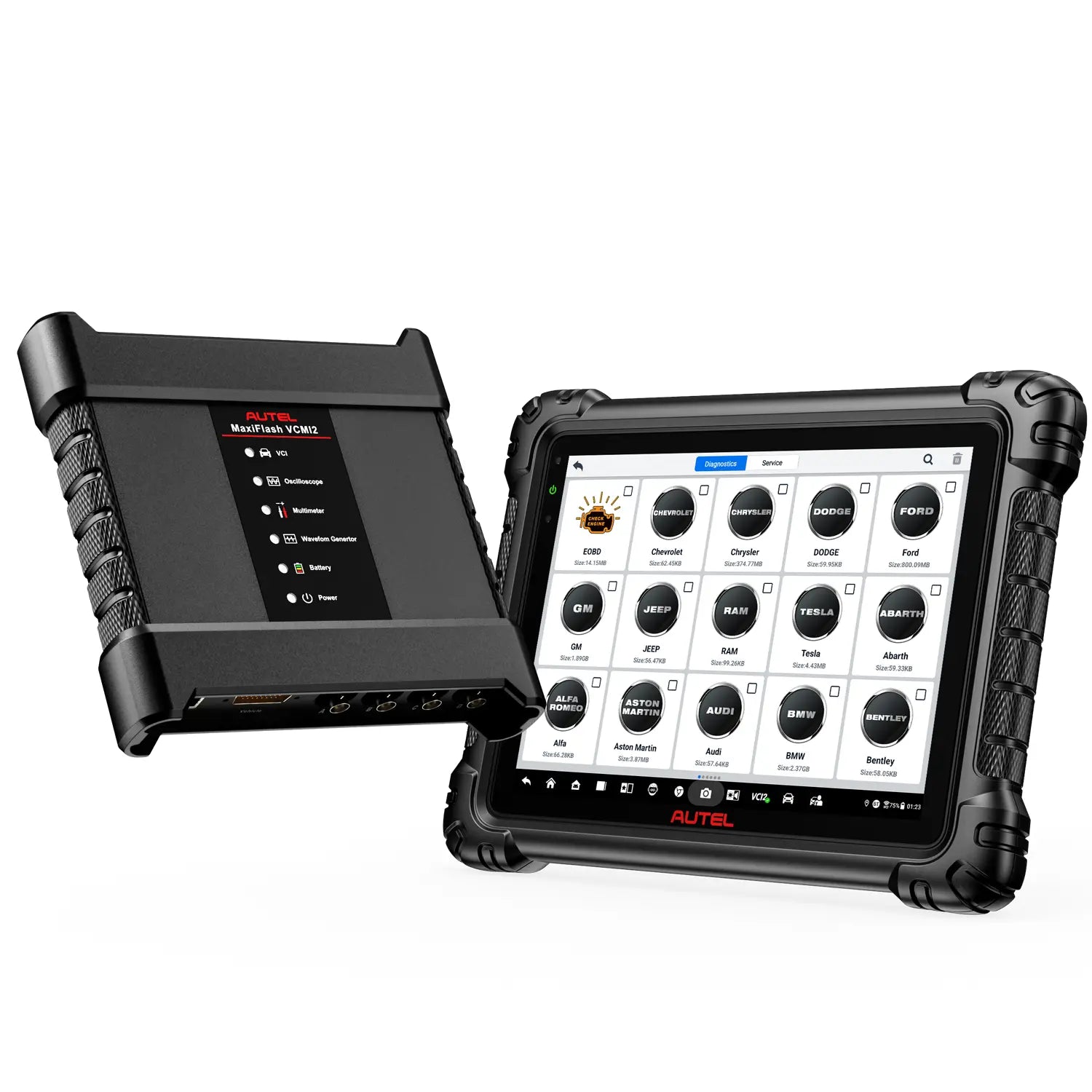

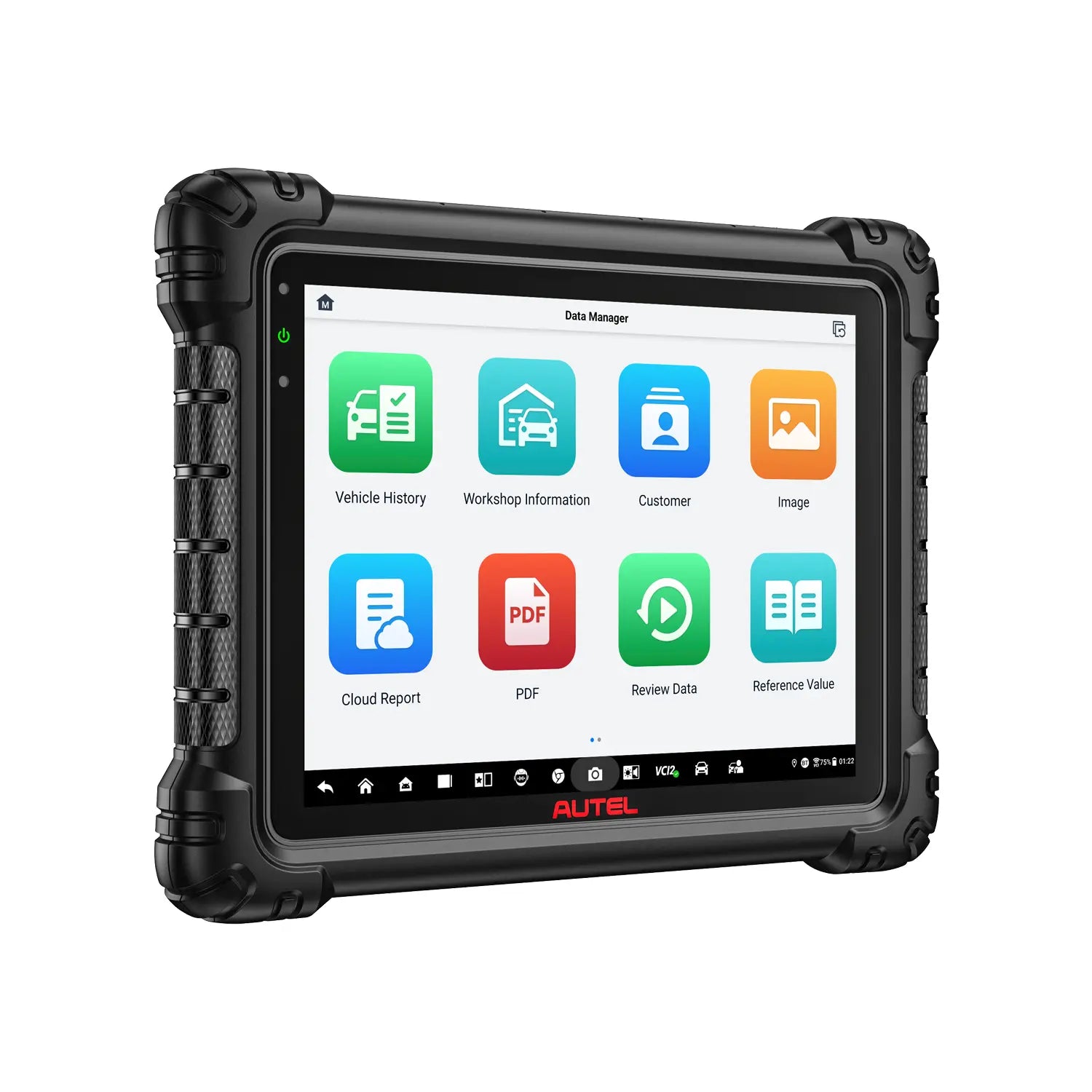

The MaxiSys MS919S2 pairs an Android tablet with the MaxiFlash VCMI2 for network analysis, J2534 programming and built-in measurement, and adds hands-free voice control and AI-driven vehicle inspection.

  • 6-in-1 VCMI2
  • Network Topology 3.0
  • 48+ Service Functions
  • 4-Channel Oscilloscope
  • Voice Assistant MAX

Key Features

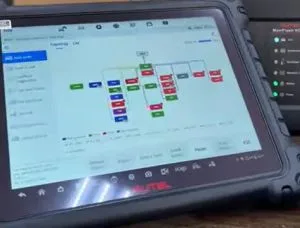

  1. Network Topology 3.0

    OE-style analysis across multi-speed protocol networks with color-coded module status to pinpoint ECU issues, test signal quality and confirm network integrity.

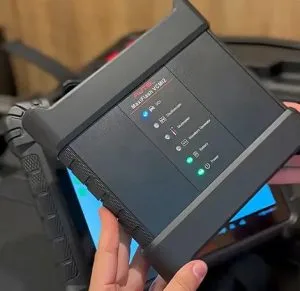

  2. 6-in-1 VCMI2

    J2534 pass-thru programming, a 4-channel oscilloscope, multimeter, waveform generator, CAN-bus tester and standalone Remote Expert device in a lighter, streamlined design.

  3. Enhanced PID Analysis

    Graph multiple related parameters together, record and compare value changes across systems, and view system process diagrams with live data at critical points.

  4. Scope From Live Data

    Open the oscilloscope directly from live data analysis.

  5. Hands-Free Virtual Assistant MAX

    Run system scans, maintenance tasks and active tests with voice commands.

  6. Maintenance Services

    Oil reset, EPB reset, SAS calibration, DPF regen, battery registration, throttle reset, ABS bleeding, injector coding, power balance and more.

  7. Multitasking and Digital Inspection

    Diagnostics+X runs diagnostics alongside other apps; multi-point DVI uses AI to detect dents and scratches.

More Specifications

Charging DC fast charging
Auto Scan Based on ECU network and module location

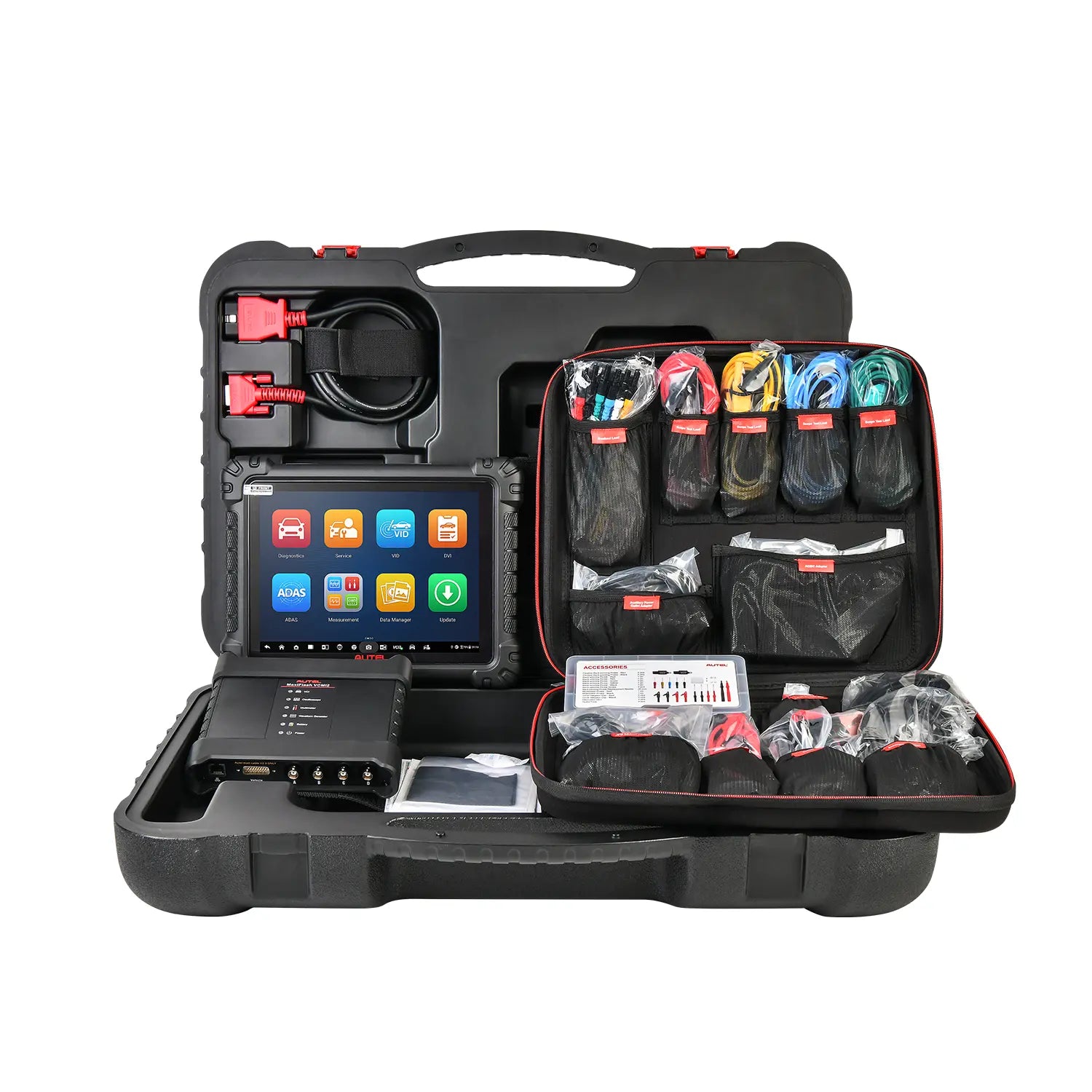

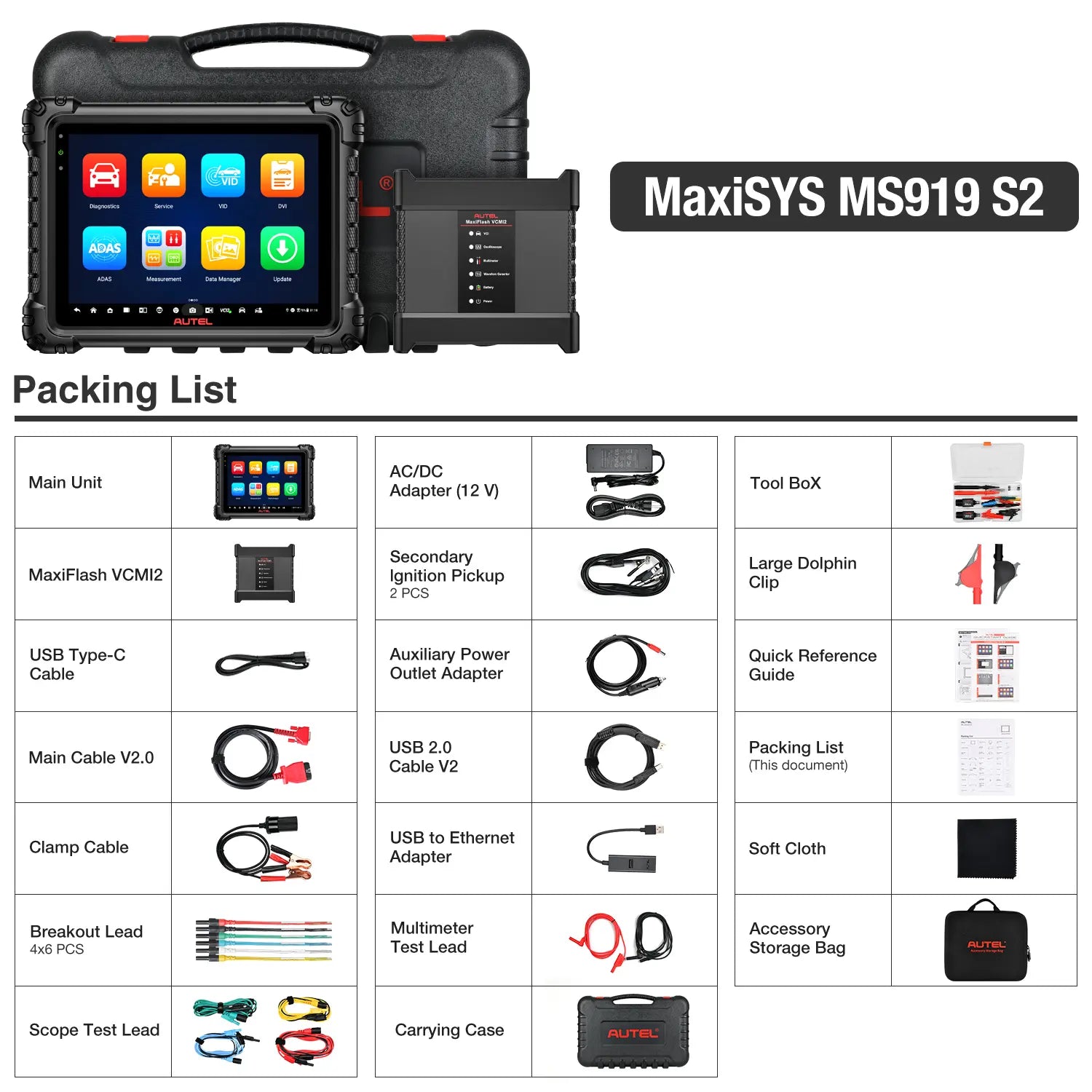

What’s in the Box

  • 1×MS919S2 main unit
  • 1×MaxiFlash VCMI2
  • 1×USB Type-C cable
  • 1×Main cable V2.0
  • 1×Clamp cable
  • 4×6Breakout leads (4 sets of 6)
  • 1×Scope test lead
  • 1×AC/DC adapter (12V)
  • 2×Secondary ignition pickups
  • 1×Auxiliary power outlet adapter
  • 1×USB 2.0 cable V2
  • 1×USB to Ethernet adapter
  • 1×Multimeter test lead

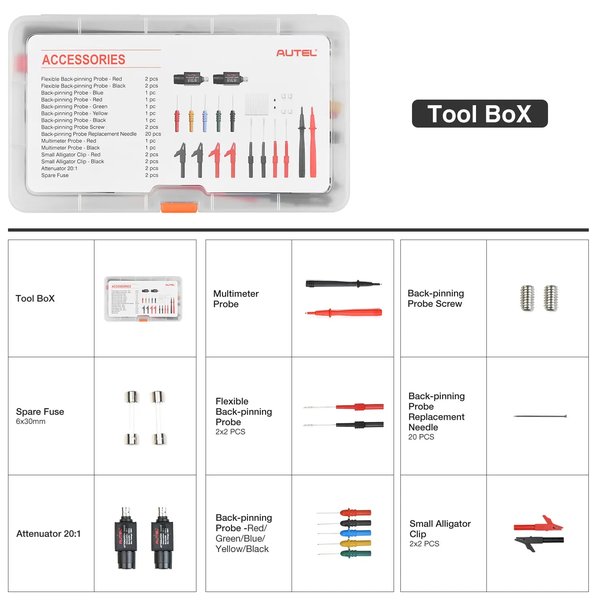

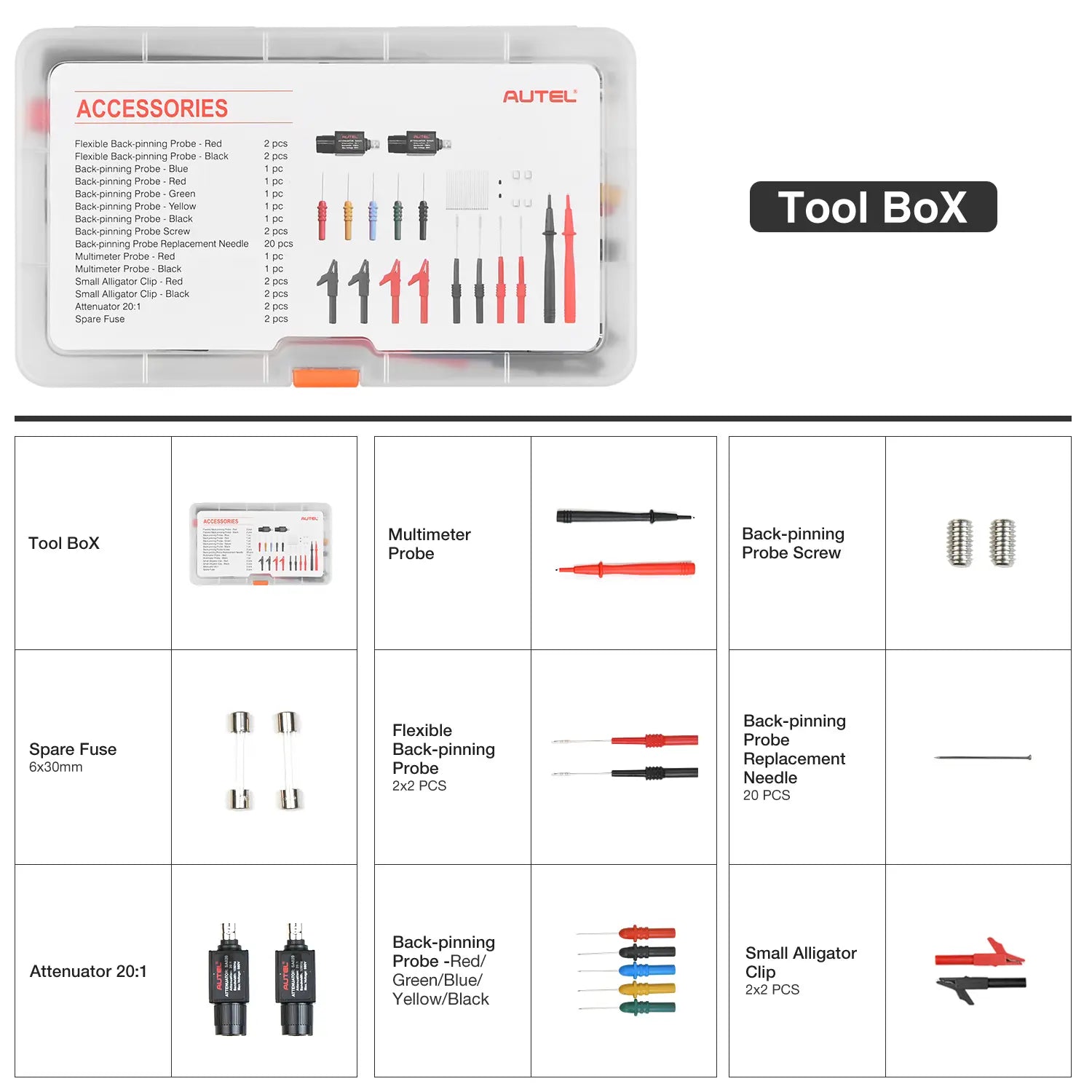

  • 1×Tool box
  • 1×Large dolphin clip
  • 1×Quick reference guide
  • 1×Packing list
  • 1×Soft cloth
  • 1×Accessory storage bag
  • 1×Carrying case

Good to Know

Caution
  • The MS919S2 is subject to IP restrictions and can only be used within the United States.
  • A charging dock is not included.

You may also like

Select specifications

More

Delivery

Ships in 1-3 business days

Payment methods

  • Credit / Debit CardVisaMastercardAmerican Express
  • PayPalPayPal
  • Apple PayApple Pay
  • Google PayGoogle Pay
  • LinkLink
  • iDEAL | WeroiDEAL | Wero
  • BancontactBancontact
  • EPSEPS
  • Przelewy24Przelewy24
  • BancontactBancontact
  • BlikBlik
  • EPSEPS
  • iDealiDeal
  • MyBankMyBank
  • Przelewy24Przelewy24
  • TrustlyTrustly
  • MultibancoMultibanco

Available methods may vary by currency and billing country; the final list is shown at checkout.

Service

  • Secure checkout

    Payments are processed over an encrypted connection.

  • After-sales support

    Contact us for installation or usage questions.

Specifications

Brand
AUTEL
Weight
1656.5 g
Operating System
Android 13
Processor / Storage
2.7G octa-core, 12GB+256GB
Display
11-inch anti-glare 2176x1600
Battery
15000 mAh
VCI
6-in-1 MaxiFlash VCMI2 (J2534, 4-channel oscilloscope, multimeter, waveform generator, CAN testing, remote expert)
Supported Protocols
DoIP, CAN FD, J2534, D-PDU
Diagnostic Functions
Topology 3.0, voice assistant, AI vehicle inspection
Service Functions
48+
Connectivity
Dual Wi-Fi 6, Bluetooth
Camera
Front and rear 16M
Vehicle Coverage
All-system diagnostics for a wide range of vehicles

Reviews58

4.9 / 5Based on 58 reviews
3 ★0
2 ★0
1 ★0
Mike J.

A real time saver on the job

This scanner has cut my diagnostic time in half. The live data graphing is incredibly intuitive. I use the four channel scope for electrical work constantly. The Wi-Fi 6 connection is stable and fast. The whole unit feels solid and professional.

Frank R.

Exceptional Compatibility

Exceptional compatibility covers all vehicles in my client list. It scans quickly and provides detailed diagnostic reports. The tool is easy to use despite its advanced features. Shipping was fast and arrived in perfect condition. It’s a valuable asset for my business.

Patrick R.

Oscilloscope works flawlessly

The 6-in-1 VCMI2 on MS919S2 pairs perfectly with live data graphs. Troubleshooting intermittent faults is way easier now.

Jean B.

This product is so awesome I enjoyed

Daniel S.

Good upgrade from my old Autel

Diagnosed a complex network issue on a Mercedes using the MS919S2 topology mapping. It saved me hours of testing. Battery life is great and the larger screen is easy on the eyes during long diag sessions.

Benjamin T.

Perfect shop upgrade

Switched to MS919S2 from older scanner. It covers new 2026 vehicles and speeds up every repair job.

Charles S.

Packed like a tank

Everything came well protected in the box. The MS919S2 feels rugged and the wireless communication is rock steady out in the bay. Managed to pinpoint a intermittent CAN bus fault that was driving me nuts.

Raymond M.

All-in-one MS919S2

Autel MaxiSys MS919S2 built-in oscilloscope handles all electrical tests I need. No extra tools required for complex faults.

Thomas S.

Quick delivery, works perfect

The MS919S2 is lightning fast. I ran a full system scan on a 2024 GM truck and it completed in half the time my old scanner needed. Programming capabilities are excellent, did a module flash without any hiccups.

Charles M.

Works Great

Used this on a few European imports that gave other scanners trouble. Pulled codes no problem. Interface is clean and easy to follow. Definitely a step up from older units.

Write a review

AUTEL MaxiSys MS919S2 Intelligent Diagnostic Tablet with 6-in-1 VCMI2 & J2534 Programming
Overall rating *
What stood out?optional, up to 3
Add photos0 / 5
JPG, PNG or WebP, up to 5 MB each.

Reviews are checked before they appear. Verified Purchase is added automatically when your email matches an order.

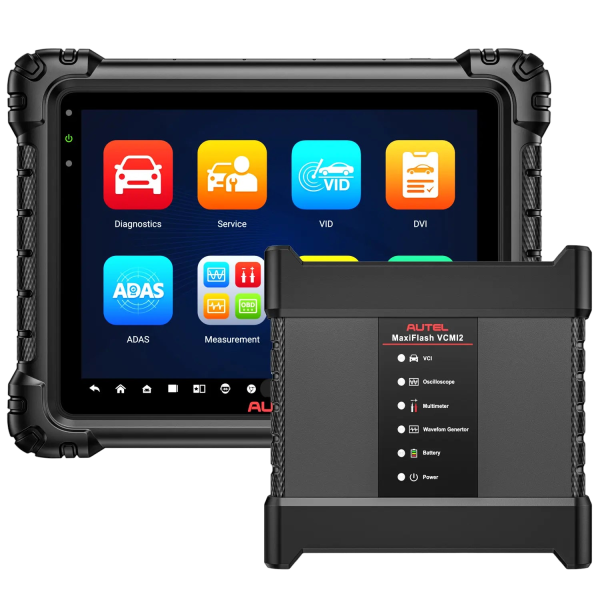

MaxiSys MS919S2
